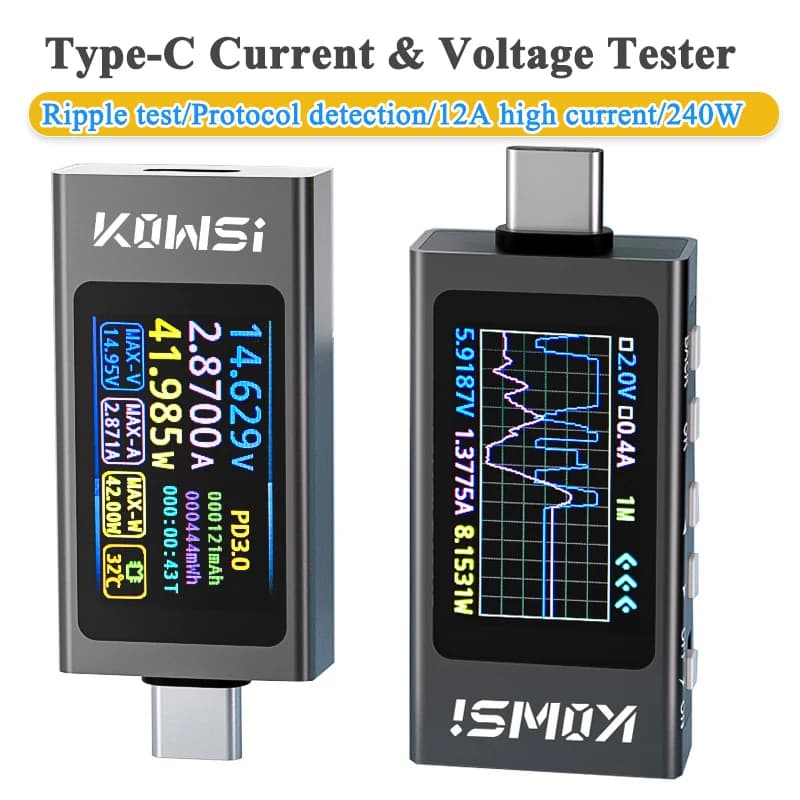

KWS-X1 4V-30V 12A Type C Tester Voltmeter Ammeter TYPE-C Fast Charge Detection Trigger Capacity Measurement Ripple Measurement

KWS-X1 4V-30V 12A Type C Tester Voltmeter Ammeter TYPE-C Fast Charge Detection Trigger Capacity Measurement Ripple Measurement

Descriptions:
1. CNC metal case, dustproof and drop-proof, HD IPS display, real-time charging power detection.
2. 3 kinds of display page, make the function more strengthened, click the button to change the page.
3. Multi-function full protocol, curve measurement, ripple measurement, protocol test (automatic test, PD single decoy).
4. Highly reliable and safe Type-C voltage and current testing meter and fast charging trigger meter for mobile communication terminals.
5. Fully compatible with fast charging protocol and Qualcomm QC3.0/4.0 protocol, compatible with a variety of protocols fast charging, support PD/OC2.0/3.0/4.0, MTK and other protocols.
6. Support automatic protocol detection, PD2.0, 3.0, PPS, QC2.0, 3.0, FCP, SCP, AFC, PE, DASH VOOC, SuperVooc and so on.

Product parameters:
Absolute withstand voltage: 0~40V
Absolute current: 0~16A
Absolute power: 0~380W
Measuring voltage: 3.3~40V (typical: 4-30V)
Measuring current: 0~12A
Measuring power: 280W
Temperature measurement range: 0~99℃
Sampling frequency: 2~5MHz
Product size: 54.96*24.45*11.15mm

Package list:
1 * Type-C tester
