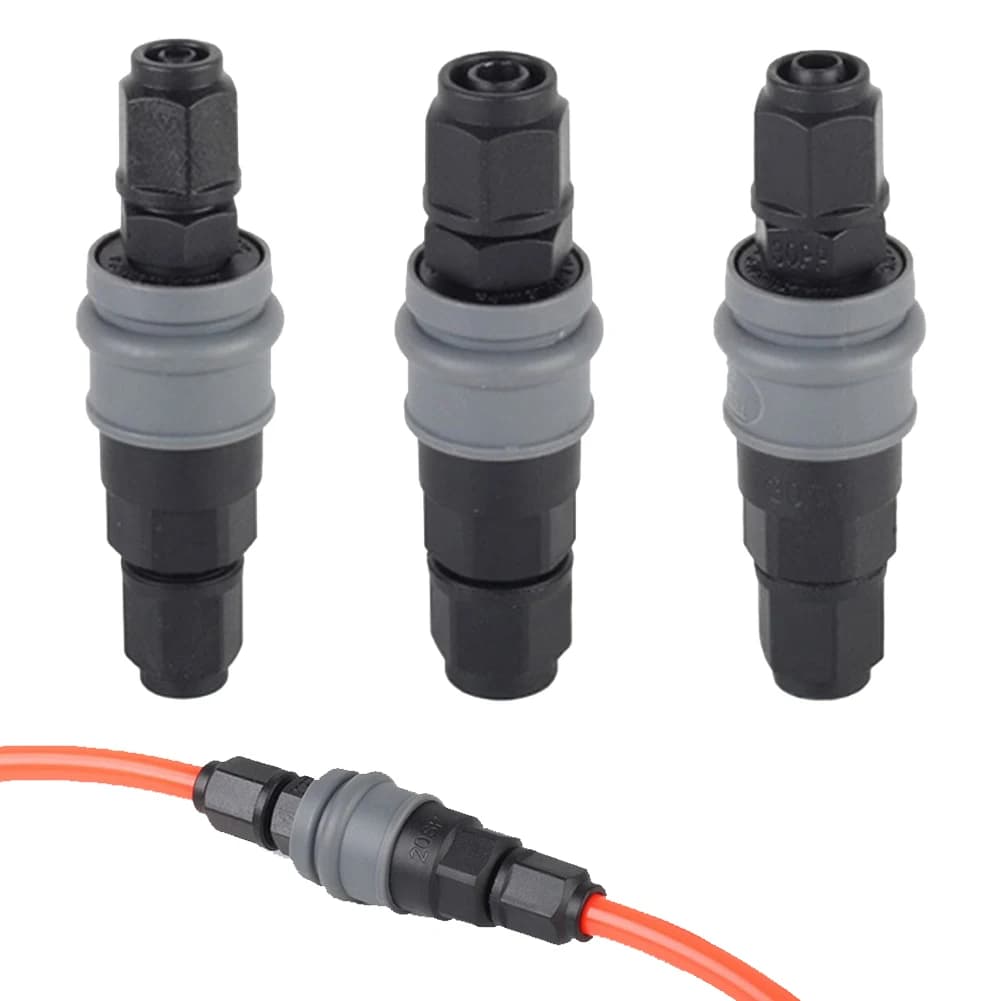

2pcs C-Type Self-locking Quick Connector Compressor Pneumatic Fittings 8/10/12mm Pneumatic Self-locking Quick Connector

Description：
Made of industrial high-strength plastic steel, 304 stainless steel spring, 304 stainless steel ball.
With precise automatic locking design, it is more sturdy and labor-saving.
Lightweight, faster connection, wear-resistant and corrosion-resistant, which can replace the quick joint made of traditional materials.

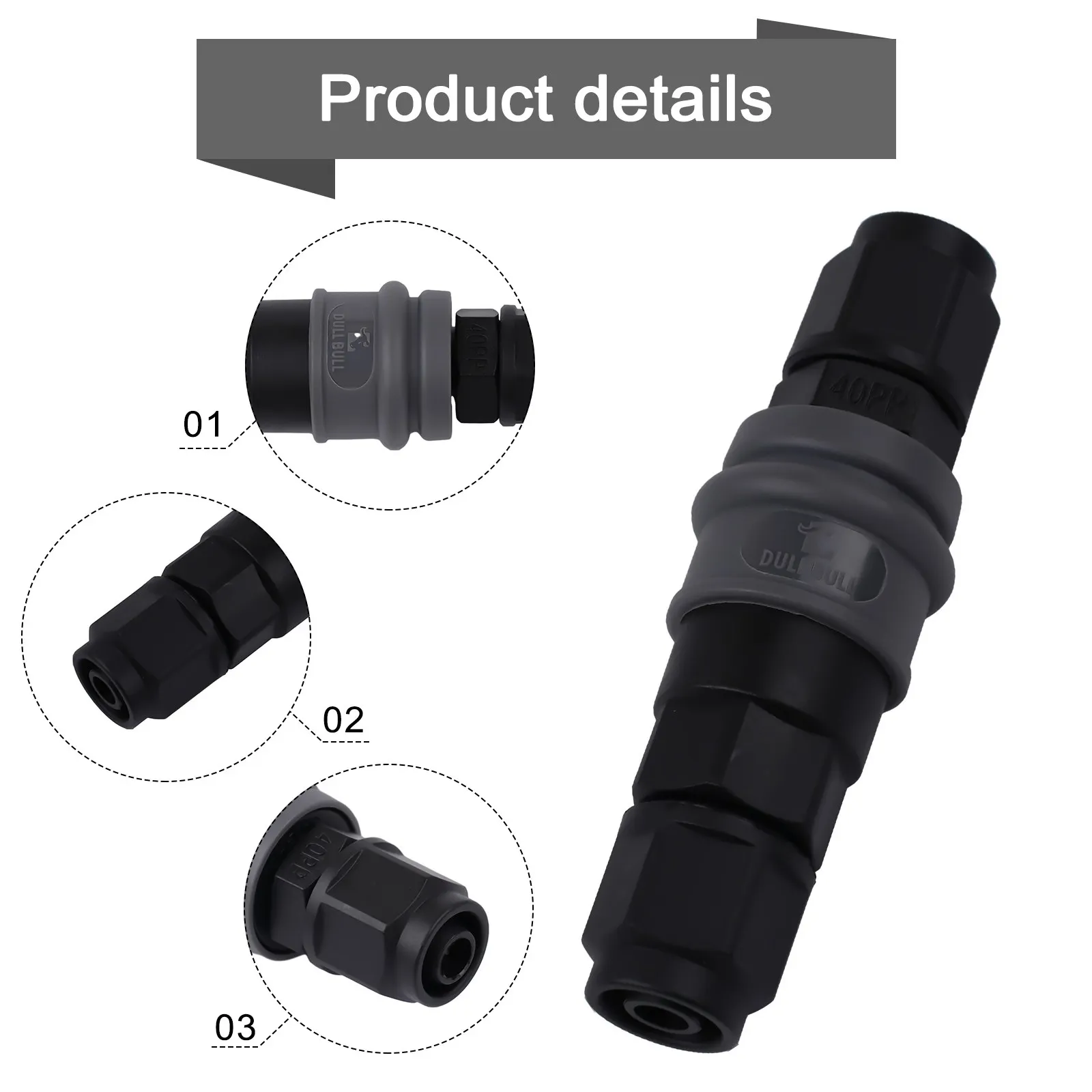

Product details:
Product name : C-Type Self-locking Quick Connector
Material :Plastic Steel
Connection size: 8/10/12mm pipe
MAX Pressure: 15 kgf/cm2
Apply Hose: PU Hose,Plastic pipe
Working temperature: -35℃~50℃
Type:SP+PP
Features: Self-locking, lightweight, leak-proof, non-rusting
Application:Garden irrigation,Automation equipment,gas,Compressor etc

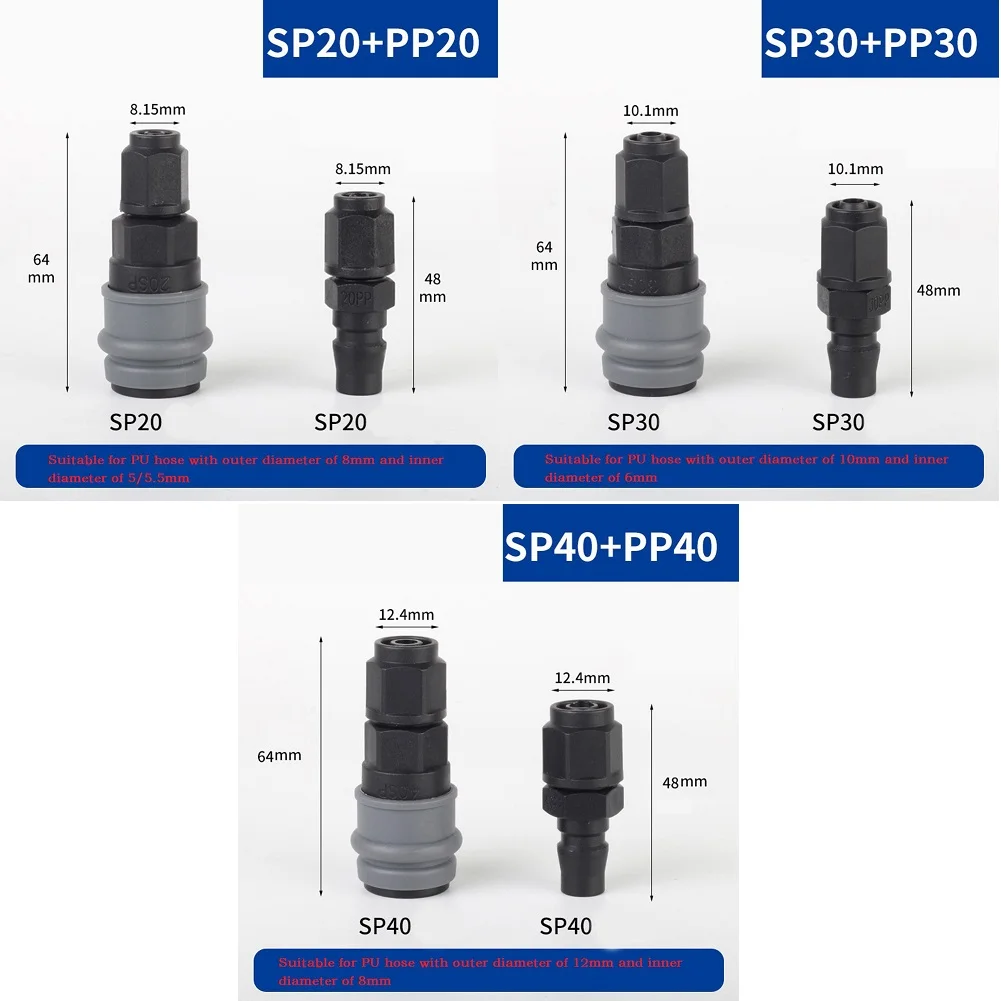

Suitable Connection specification:
SP20,PP20: 8mm(Outer diameter)*5mm(Inner diameter)pipe port
SP30,PP30: 10mm(Outer diameter)*6.5mm(Inner diameter)pipe port
SP40,PP40: 12mm(Outer diameter)*8mm(Inner diameter)pipe port

Tip: 20=1/4 ; 30=3/8 ; 40=1/2

Package quantity :
2Pcs x C-Type Self-locking Connector


Note:
1.Transition: 1cm=10mm=0.39inch.
2. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
3. Please allow slight manual measurement deviation for the data.
