Fandesensor New Pressure Gauge for Hydraulic Water Air Oxygen Accuracy 1%FS Waterproof IP65 Diameter 80mm

FAQ

Q1: Why doesn’t my digital pressure gauge display 0.1, 0.01, or 0.001?
A: This is due to the display digit limit of the gauge. Refer to the pressure range and resolution table to select the appropriate range.
For example, the DR3730 has a 4-digit display. If the selected range exceeds 4 digits, it won’t display. For instance, selecting 100MPa (1000bar) won’t show 1000.0, even if the measured pressure is 1MPa (10.1bar won’t display). Choosing 70MPa (700bar) allows 0.1 display. For 1000.0bar, consider DR3710 (4-1/2 digits), DR-S200 (5 digits), or DR-S210 (5 digits).

Q2: Why doesn’t my digital pressure gauge show units like bar or kPa?
A: This is also due to the display digit limit. If the unit exceeds the display digits, the gauge won’t show the unit. Refer to the pressure range and unit display table to select the correct range.
For example, the DR3730 has a 4-digit display. Selecting 100MPa (100000kPa, 6 digits) won’t show kPa, even if the measured pressure is 10kPa.

Specification

More info: https://www.fandesensor.com/products/digital-pressure-gauge

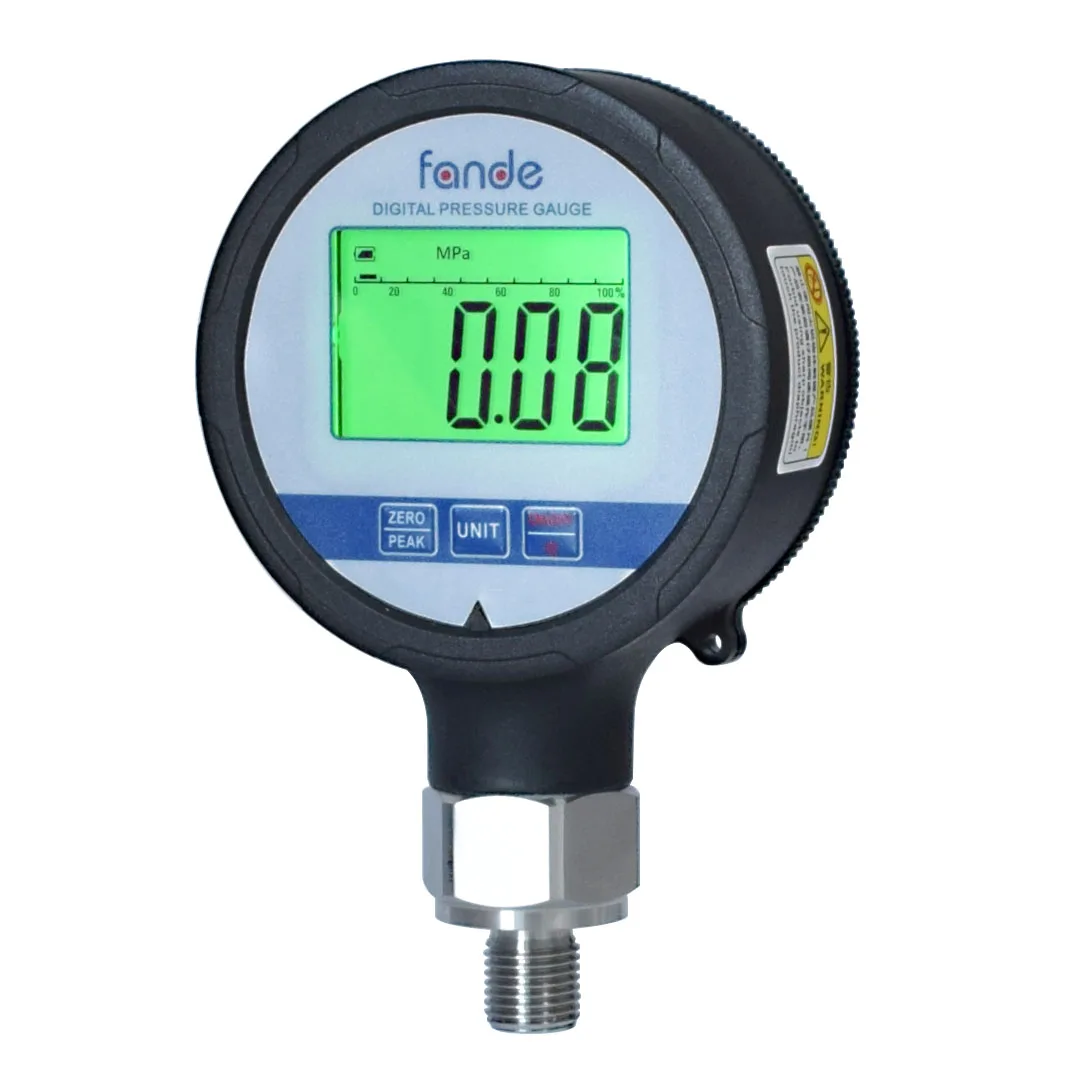

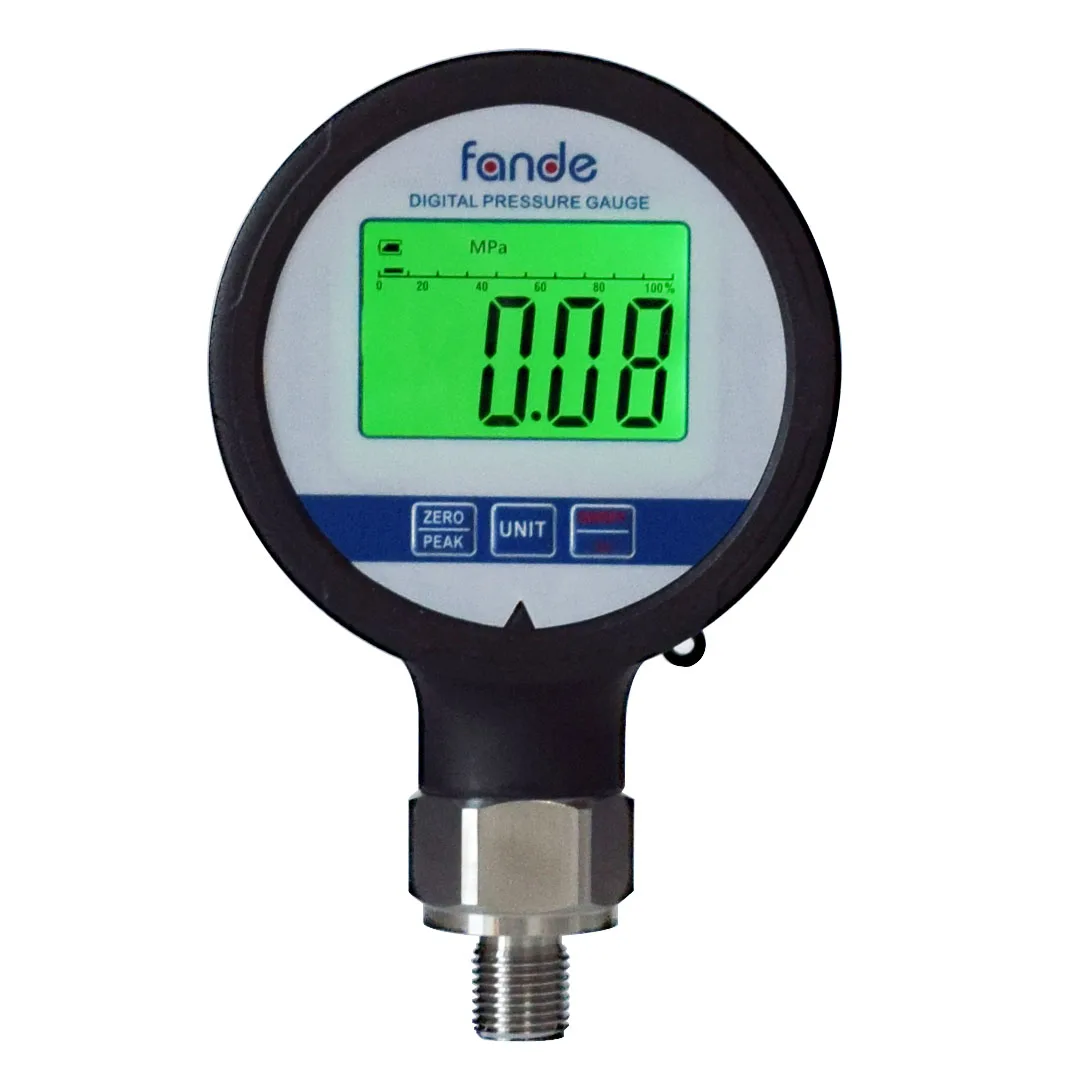

Introducing the DR3730 digital pressure gauge - your reliable companion in monitoring pressure with precision and ease. Say goodbye to traditional analogue gauges as this cost-effective marvel offers an impressive accuracy of 1% FS across its full range. Designed for durability, its waterproof and dustproof ABS shell ensures resilience in even the harshest environments. The large LCD screen guarantees clear readings, while features like maximum pressure value recording and zeroing functions streamline on-site monitoring. With low power consumption and long-lasting AAA alkaline batteries, enjoy up to 1 month of continuous operation. Upgrade to the DR3730 for efficient and accurate pressure measurement like never before.

Manual link: https://www.fandesensor.com/download/17259/?tmstv=1708253235

Digital Pressure Gauge for Hydraulic water and air
Measurement range: 0~100MPa
Medium Type: Gas, water, oil, pure liquid
Pressure type: gauge pressure
Display digits: 4 digits display
Overload: 200% full Measurement range
Pressure accuracy: ± 1% FS
Power supply: 4.5V, 3 * AAA batteries（Battery Not Included）
Material: ABS
Sensor: stainless steel 17-4PH
Sealing ring: NBR

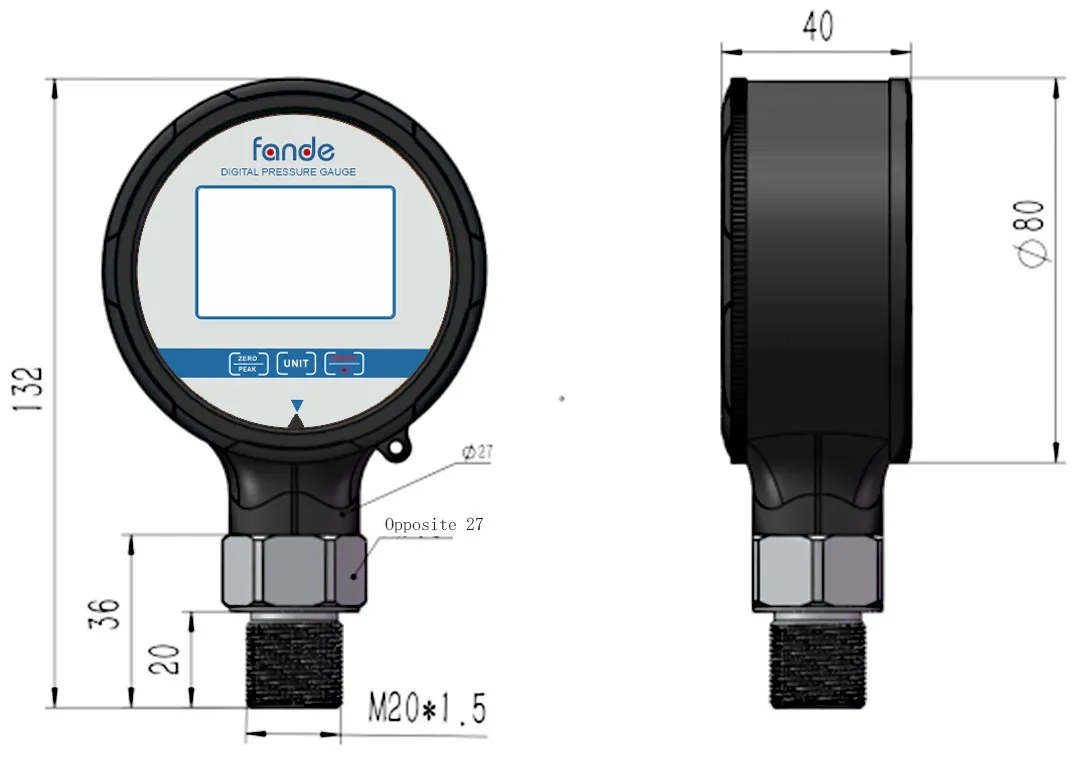

Diameter: 80mm
Pressure interface: NPT1/2 NPT1/4 G1/2 G1/4 M20 * 1.5/ external thread(standard)
Compensation temperature: 0 ℃ ~ + 50 ℃
Operating temperature: - 10 ℃ ~ + 60 ℃
Protection grade: IP65

Product Features

This product is widely used in laboratory pressure measurement, compressed gas pressure measurement, factory mechanical maintenance pressure measurement, tap water pipeline pressure measurement, oil pipeline pressure measurement

1) With backlight, large LCD display
2) 4 digits display
3) Zero clearing
4) Maximum value display
5) Pressure progress bar display
6) Electric quantity display
8) Five pressure unit switching (bar, psi, kPa, MPa, kg / cm2)

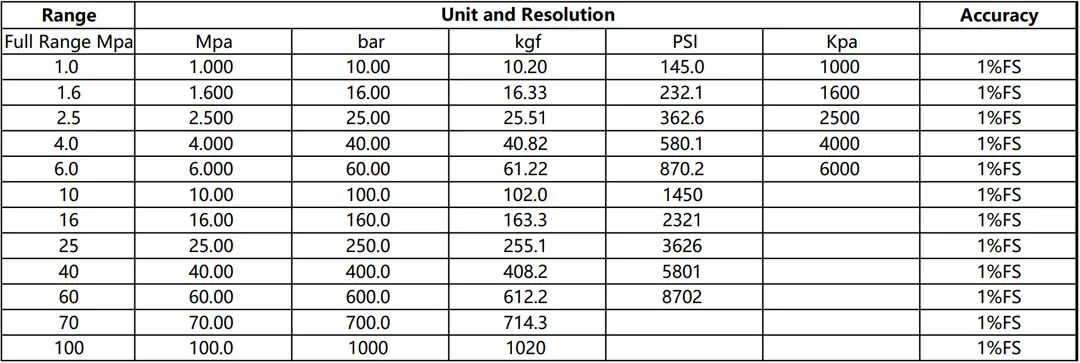

Range Unit and Resolution
