Digital Angle Gauge 360° Mini Measuring Inclinometer With Magnetic Base Electronic Universal Bevel Protractor Measurement Tool

Please note: When the initial value of the product is not 0°, the product needs to be calibrated before use!!!

Digital Protractor 4*90° Electronic Inclinometer Backlight Level Box With Magnetic Base Angle Finder Gauge Measurement Tool

Features:

1. Convenient to carry

2. Fast response to measured values

3. Backlit liquid crystal display

5. 2 No. 7 AAA dry batteries (product without battery)

6. 4 * 90 ° measurement range

7. Reading value: 0.1 °, measurement accuracy: 0.2 °

8. Multipurpose measuring tools, including a protractor, inclinometer, and level gauge

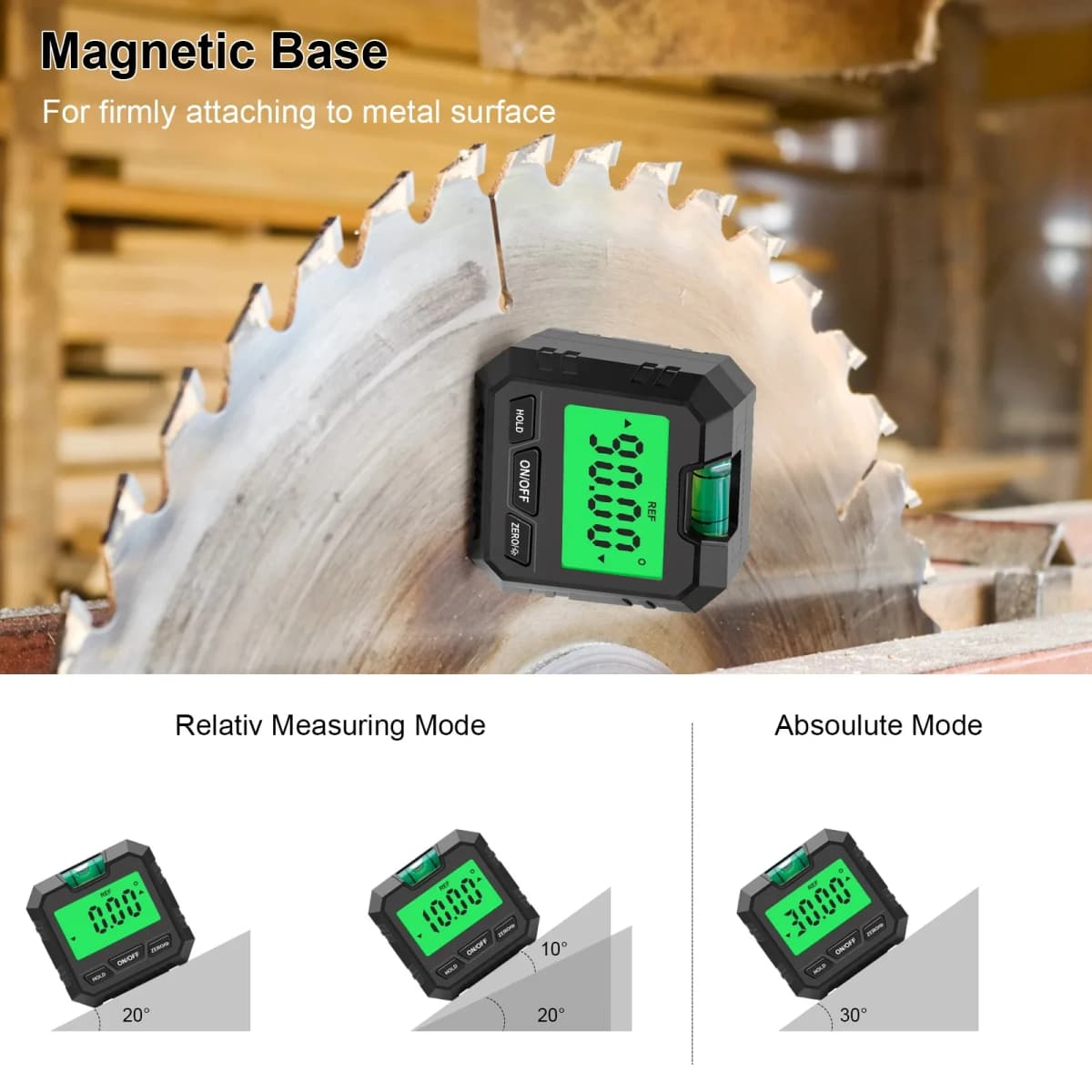

9. There is a magnet at the bottom that can be attached to the measured object.

Material: plastic ABS

Size: 60 * 30 * 55mm

Measuring range: 4 * 90 ° 2 * 180 °

Display resolution: 0.05 ° 0.05 ° (<100 °), 0.1 ° (100 °~180 °)

Accuracy: ± 0.2 °

Repeatability: 0.1 °

Operating temperature: 0 ° C~40 ° C

characteristic:

-Magnetically adsorbed on the measuring surface and can be attached to the workpiece under test

-Data locking for easy reading

-Portable size, easy to use with other measuring tools, expanding the measurement range

Application:

Wood processing: precision cutting of wood corners

2 Automobile repair industry: precise control of tire assembly angle

III. Processing: Accurate positioning of the working angle of the machine tool, and rotation angle of the boom

Notes:

Due to manual measurement, different measurement methods and tools, there may be slight dimensional deviations.

Due to different shooting lights, angles, and displays, images may not reflect the actual color of the item.
