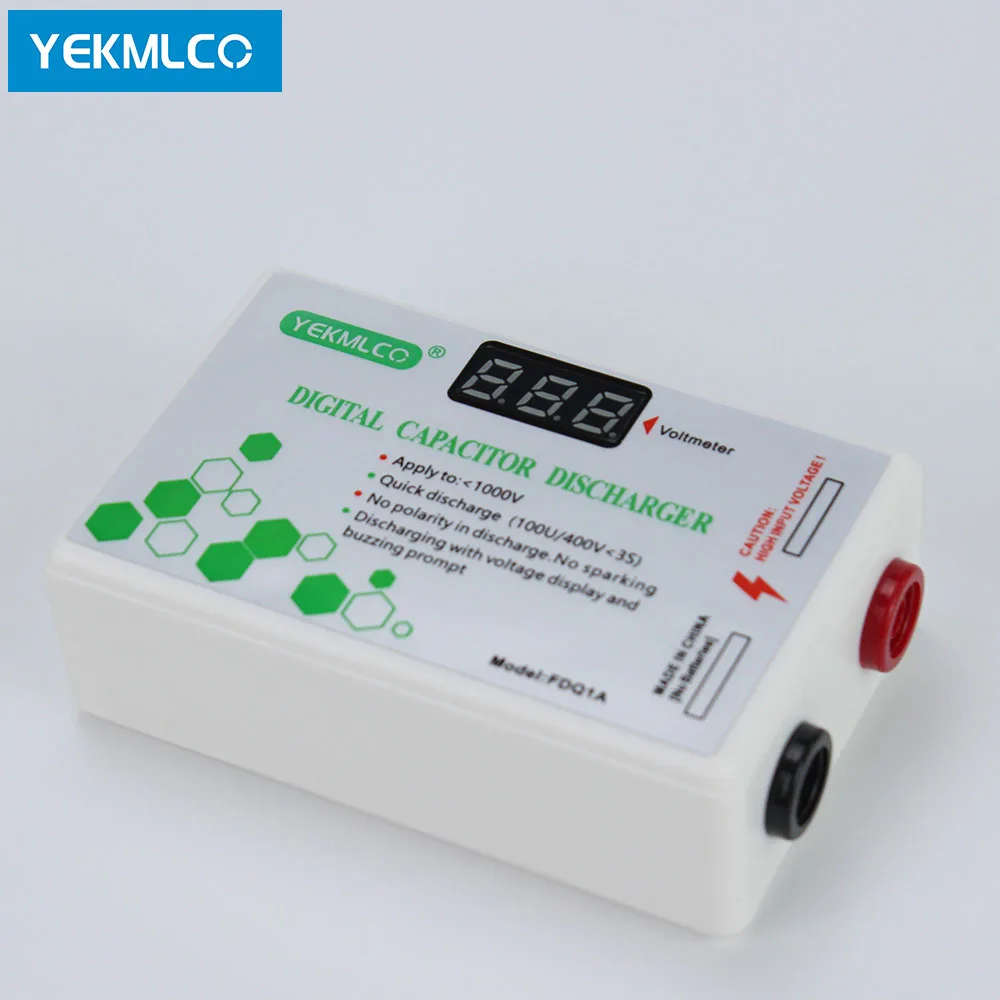

Capacitor Discharger 10-1000V Fast Discharge Protection Electrician Voltage Discharging Tool for Electronic

Product Parameters

Model: FDQ1A
Apply to:<1000V
Quick Discharge:(100U/400V, <3S)
Tester Size: 95mm*58mm*31mm

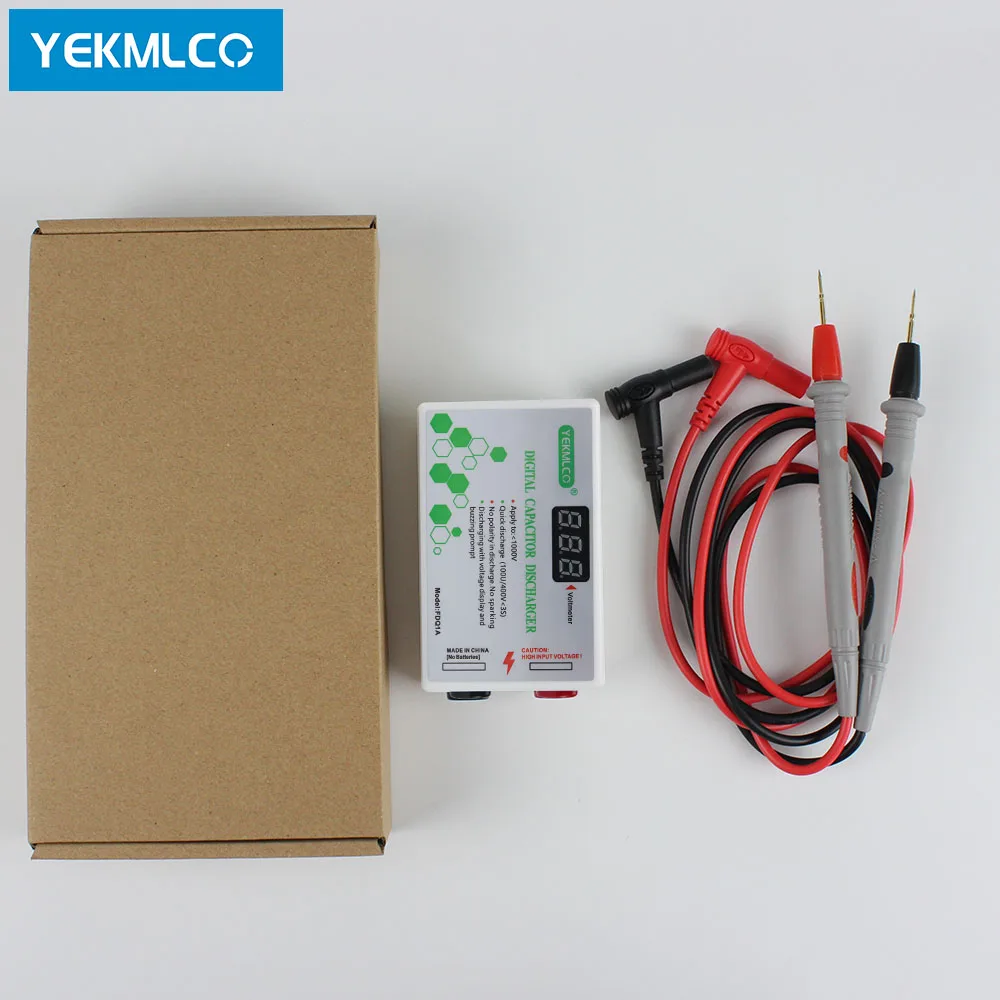

Package List:

1x Digital Capacitor Discharger
1x Test Probes (black and Red)
1x User Manual
Weight: 195g

FUNCTION INSTRUCTION

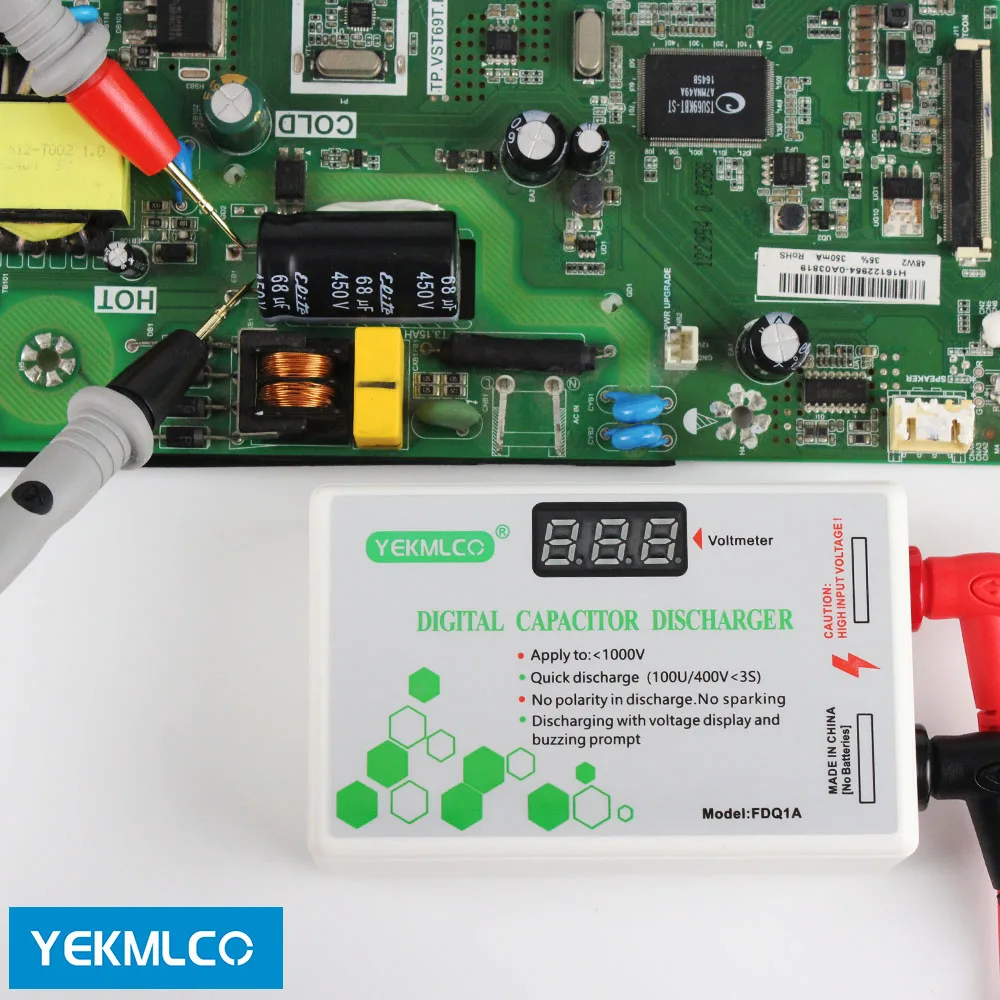

A.The capacitor discharger is designed for discharge the capacitors(10-1000V) of electric appliances (such as: switching power supply; digital cameras, mobile phones, power panel of TV etc. in maintenance). Can't discharge the battery.

B.It avoids electric shock and short circuit effectively.

C.The voltmeter can display the voltage change during discharge. When the voltmeter is off, the discharge is completed.

D.No polarity in discharge.No sparking.

E.Constant current discharging.

DIRECTIONS

A.Discharger self-test: Short contact the AC110-220V power supply with the probes, there is screen display and buzzing sound reminder, it shows the discharger work properly.

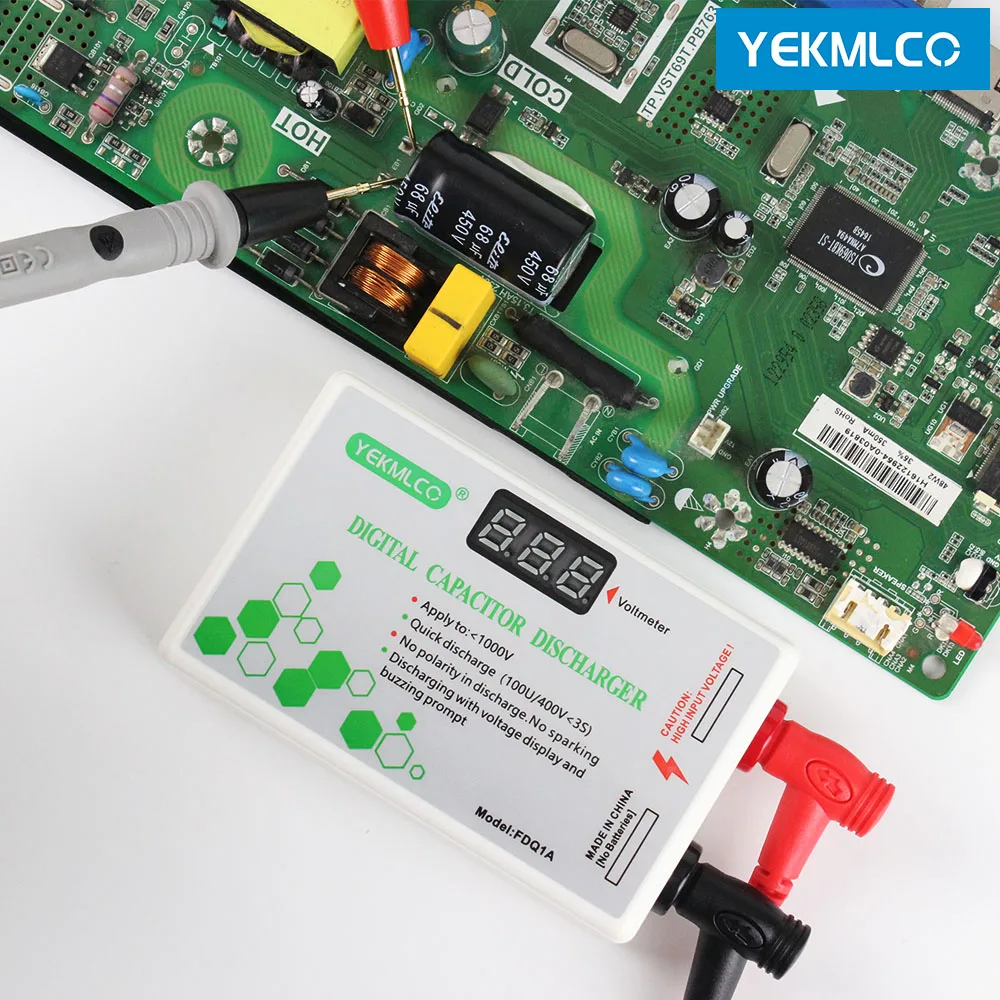

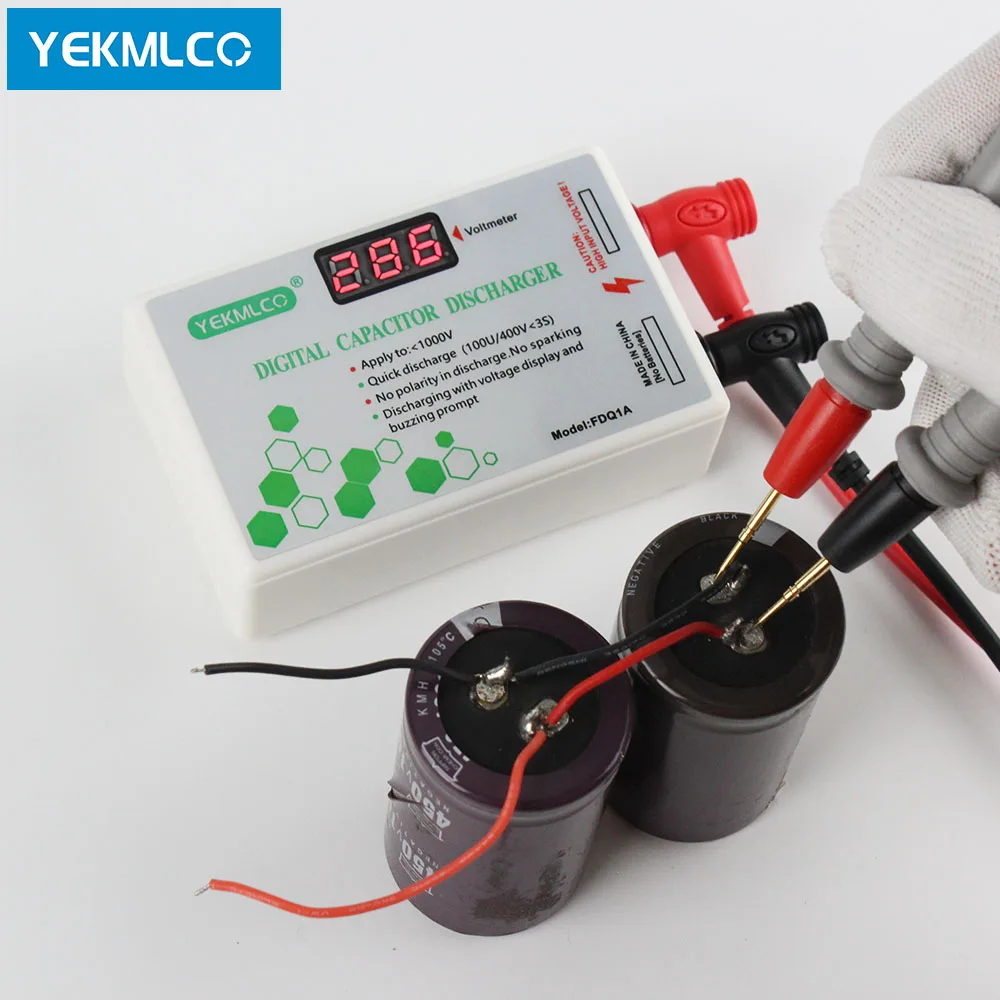

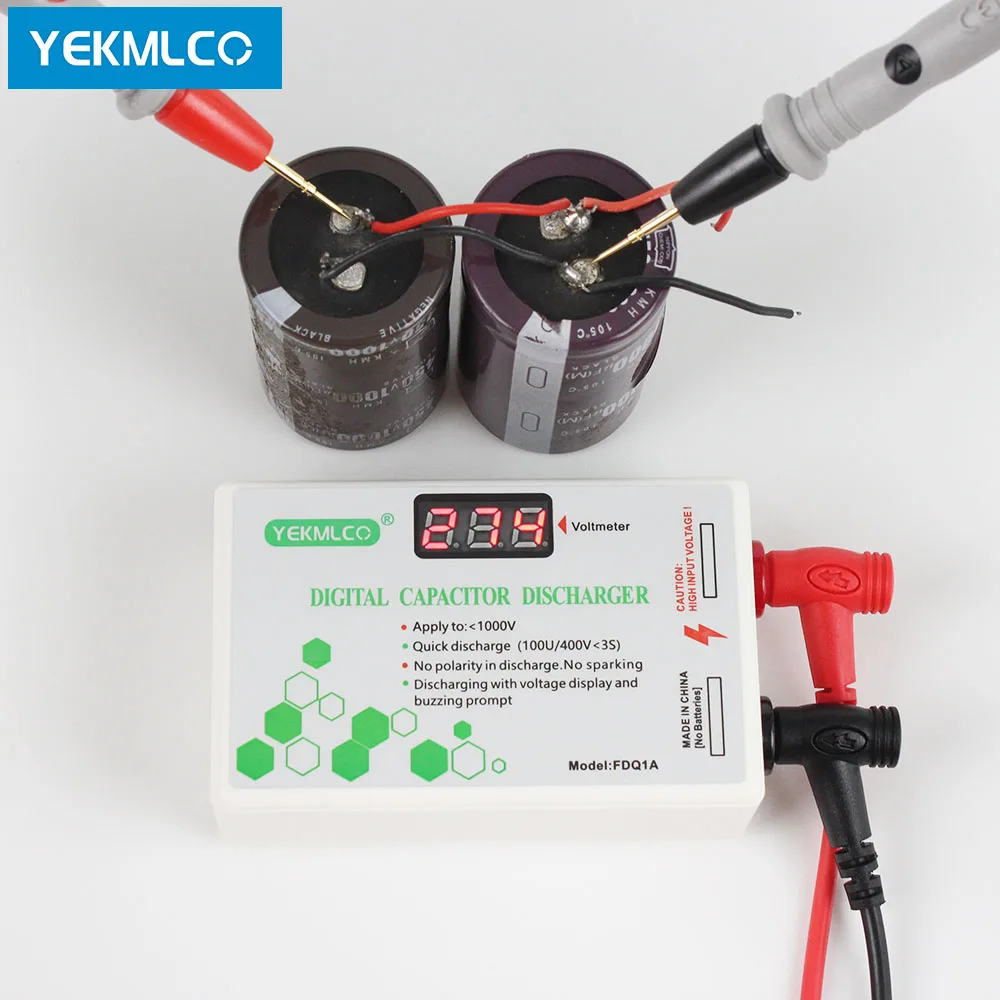

B.The probes contact the capacitor with no polarity, then discharge starts. Screen display OR buzzing sound.

C.The discharger discharges to about 6V, the screen display turns off and the sound disappears. After 2-5 seconds, the discharger can continue to discharge to below 2V.

NOTE

You can only discharge high-voltage(10-1000V) capacitors offline, and cannot be used as an electronic load (Do not discharge while charging). Can’t discharge for Electrostatic double-layer capacitor.

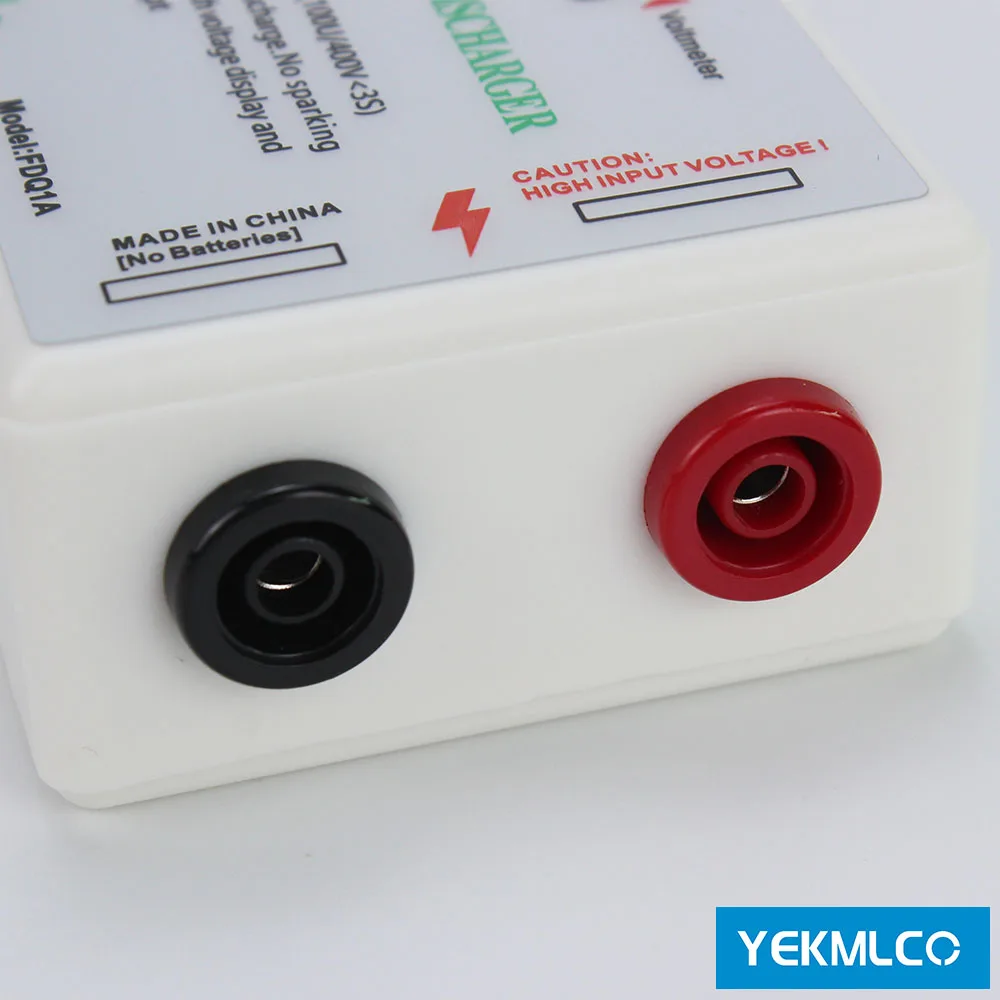

PRODUCT DETAILS

WARRANTY

1. This product is guaranteed up to one year from purchase.
2. If there are some performance problem, simply return it in its original condition within 30 days of receiving it. In the warranty period, we will repair it and ship you a good tester.
3. The warranty period will be extended for three months after repair.
4. During the warranty period, freight AA.
5. Please note that the guarantee policy does not apply to:
A. Product has man-made damage or accidental damage such as excessive input voltage high temperature, water damage, drop and
break,mechanical damage and corrosion.
B. Unauthorized modification and tearing the product date mark.
