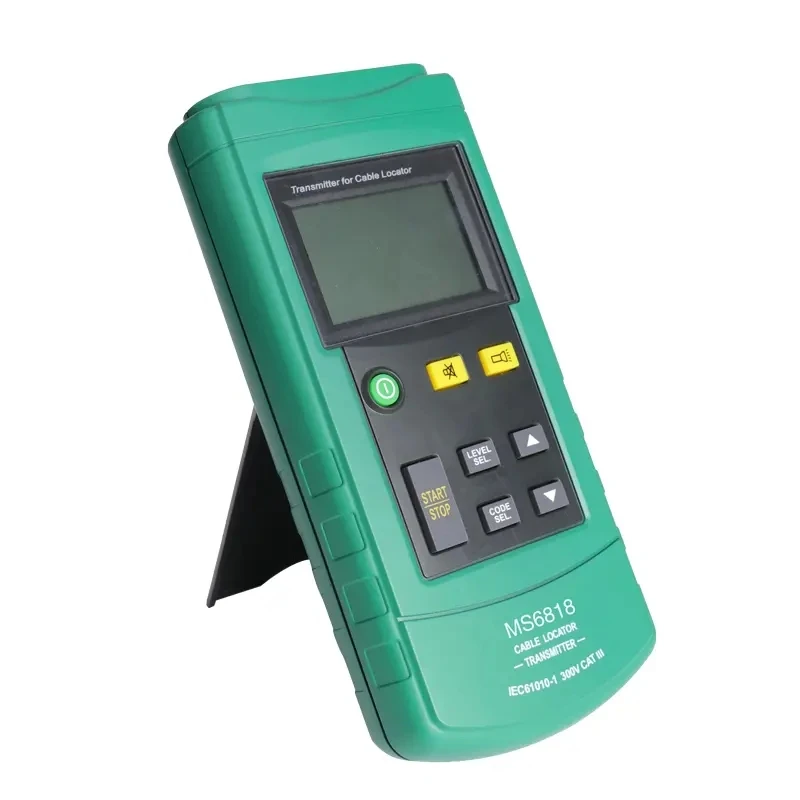

MS6818 Professional Cable Tester 30-400V AC/DC Metal Pipe Locator Wall Underground Inspect Interruption Short Circuit Detection

Description :

Note: the test leads cable length is about 95cm. The 1.5M printed on the instruction manual is incorrect. Please refer to the actual length received

The MS6818 appearance has been updated(2026/5/1)

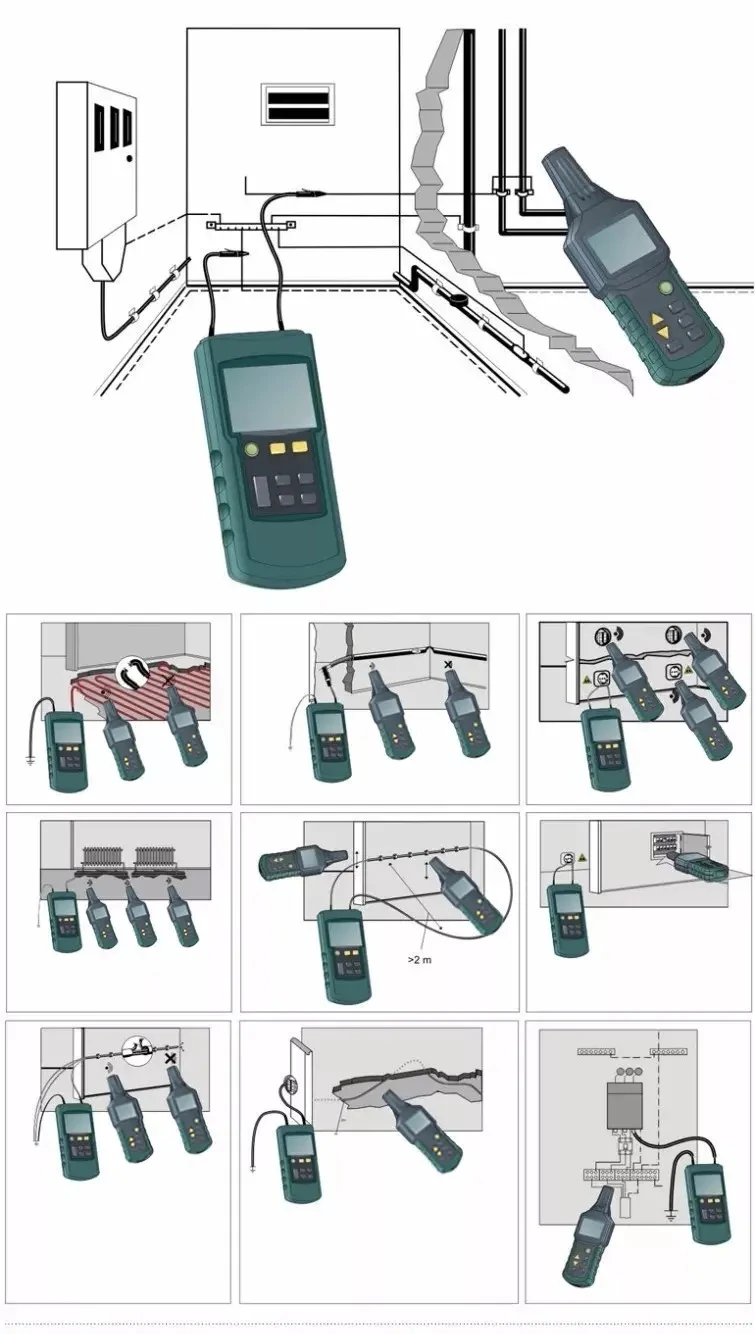

Detecting cables,electrical lines,water/gas supply pipelines buried in wall or earth
Detecting interruptions and short circuit in cables and electrical lines buried in wall or earth
Detecting fuses and assigning current circuits
Detecting interruptions and short-circults in floor heating
Detecting sockets and distribution sockets having accidentally been covered by plastering
Features :
The transmitter is integrated with the function of AC/DC voltmeter,which can measure 30 to 400V AC/DC voltage on a linear basis.
The screen of the transmitter can display preset transmitting power,transmitted codes,its own battery energy,mains voltage detected,AC/DC status of mains voltage detected,and warning symbol for mains voltage.
The Transmitter has the function of self-inspection to detect its own working status and to display it on the LCD screen for user's reference
The sensitivity of the receiver can be adjusted either manually or automatically
The receiver can sweep frequency automatically,both the transmitter and the receiver can work under mute mode
Additional transmitters are available for expansion or to differentiate between multiple signals compactness,durability and portability

Specification :

Model Number : MS6818
Ambient temperature range：-10~50°C +2.5°C
Length of Test Leads: 95CM
Technical Specifications :
Voltage Measurement Range : Transmitter : 30V-400V (AC / DC)
Output Signal : Transmitter : 125KHz
Voltage : Transmitter : maximum 400V (AC / DC)
Cable Depth Measurement : Receiver 0-2.5 m (wall / underground cable)
Main Voltage Measurement : Receiver 0-0.4m
Environment Specifications :
Work Environment : Transmitter : 0~40 °c;Receiver : 0~40°c
Storage Temperature : Transimiter : -20°c~60°c;Receiver : -20°c~60°c
Relative hamidity(no condensation) : Transmitter Maximum : 80%;Receiver Maximum : 80%
Measuring Height : Transmitter Maximum : 2000m;Receiver Maximum : 2000m
Battery: 6 x 1.5v AAA Battery (NOT included) 1 x 9V Battery (NOT included)

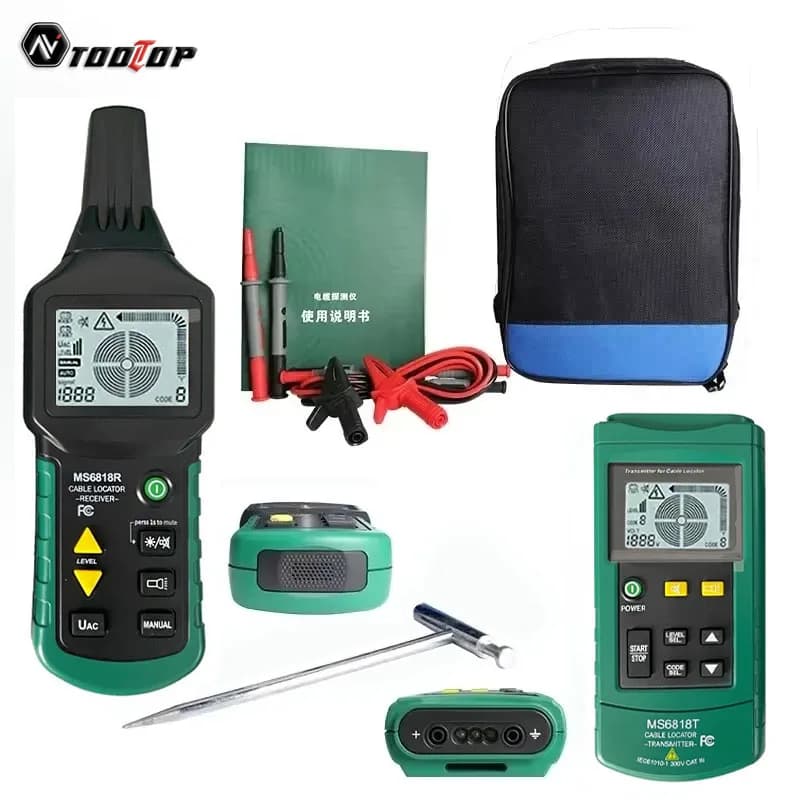

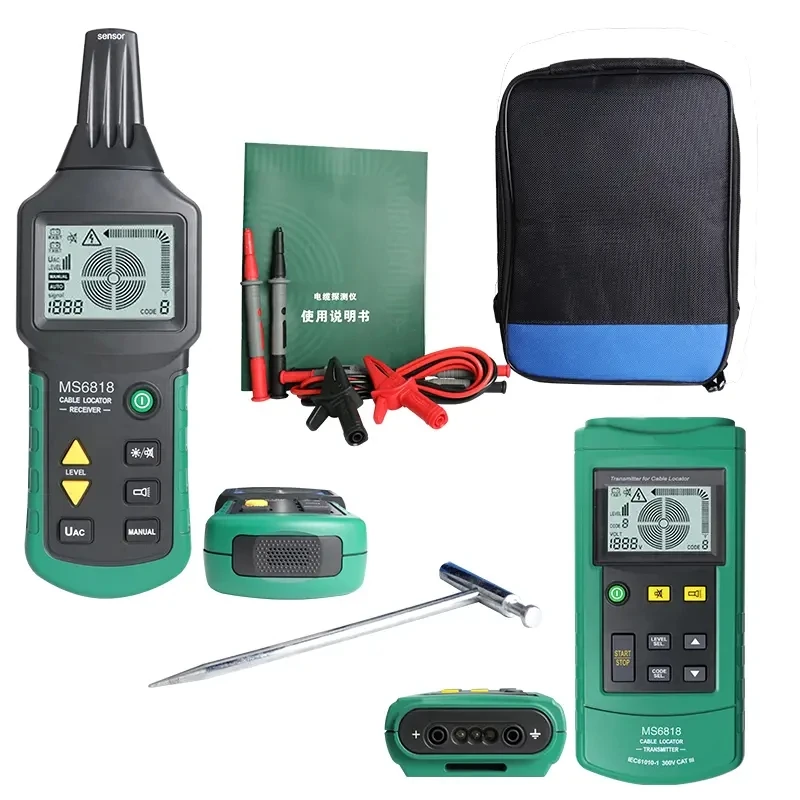

Package List:

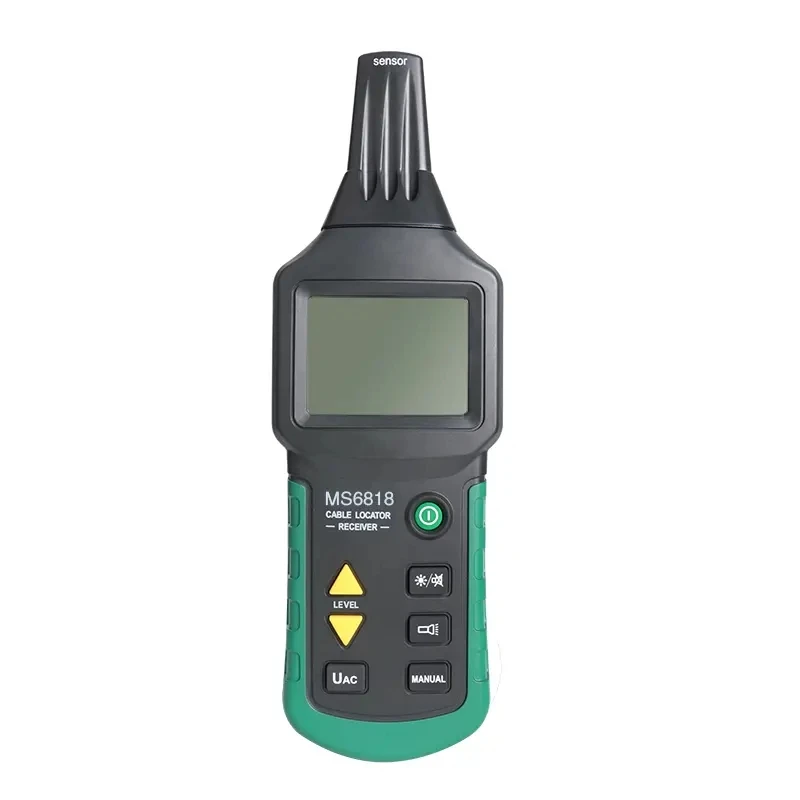

1 x MS6818 Receiver
1 x Transmitter
1 x Test Leads(Black & Red)
cable length about 95cm
1 x Test Probe(Black & Red)
1 x Crocodile Clamps(Black & Red)
1 x Grounding Rod
1 x User Manual
