JBD Bluetooth 7S to 14S 13S Lithium Battery Protection Board Smart BMS Balance 24V 36V 48V 52V Li-ion Lipo 8S 12S LifePo4 30A

JBD 7S to 14S 13S Lithium Battery Protection Board 24V 36V 48V 52V 13S 10S Li-ion Lipo Smart BMS Bluetooth APP continuous discharge 20A 30A 12S 8S LifePo4

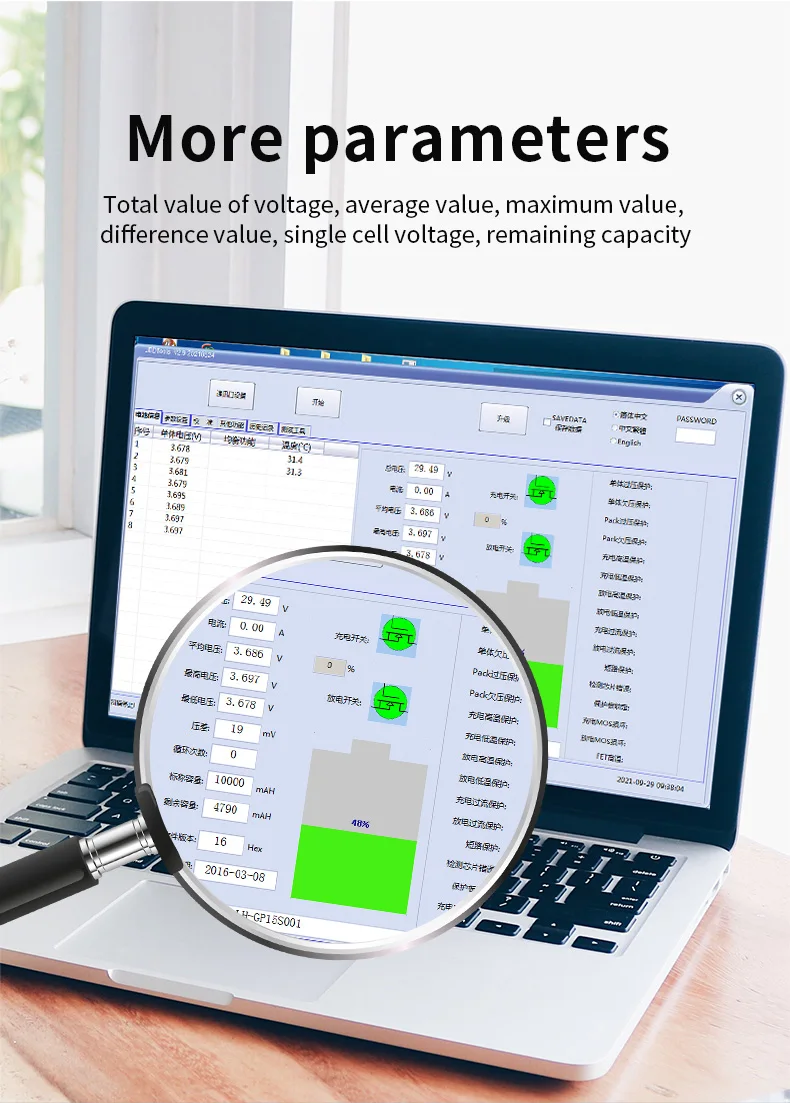

Software APP LINK Download

http://115.28.16.44:81/file/0011.RAR

Description

Type:/ Default 3.7V Li ion Lipo batteries (if the is 3.2V LifePo4 batteries need APP is set before use)

30A rated 90A peak : continuous discharge 30A , peak discharge 90A

Series range : 7S to 14S

20A rated 60A peak : continuous discharge 20A , peak discharge 60A

Series range : 7S to 13S

Bluetooth module is built-in board already .

UART box need to buy separately . don't include in BMS

Overcharge protection

Over-discharge protection

Overcurrent protection

Built-in Bluetooth

Short circuit protection

Temperature protection

Balance function

size : 63*52*12mm

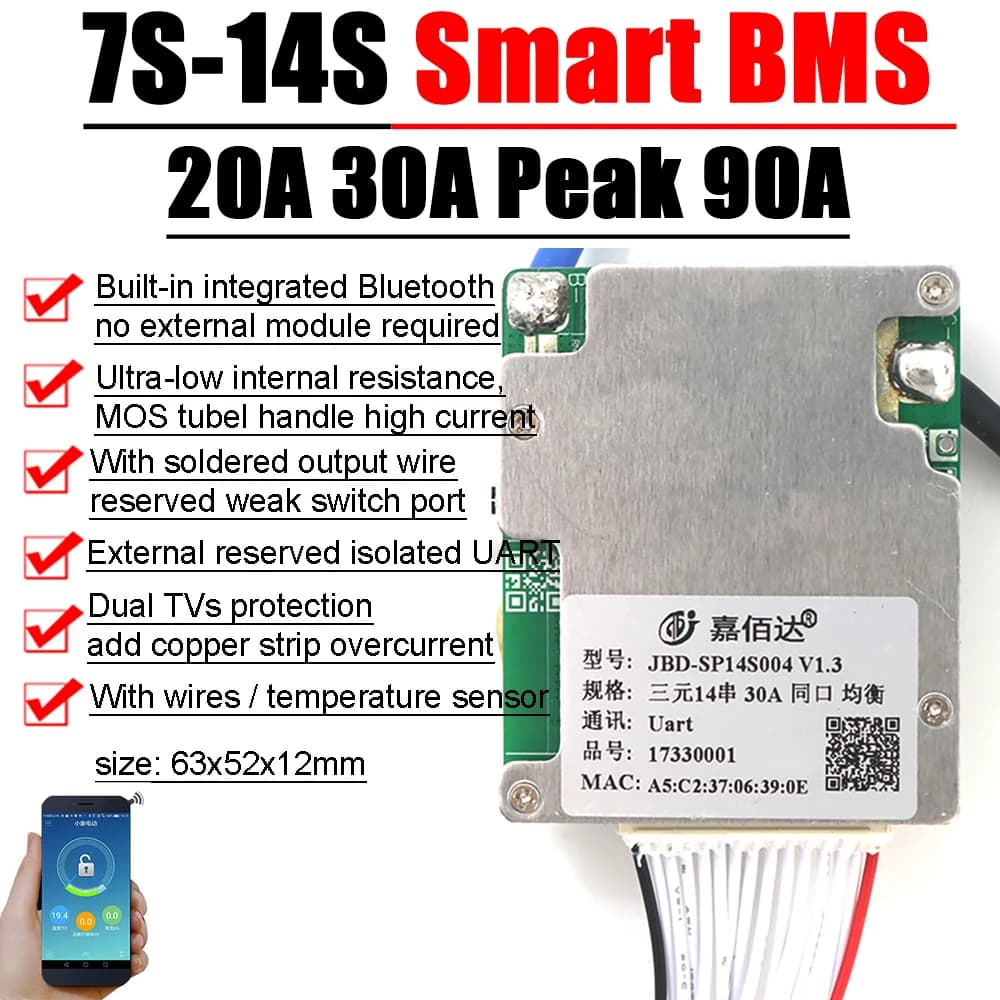

Built-in integrated Bluetooth/no external module required

Ultra-low internal resistance MOS tube/ handle high current

With soldered output wire / reserved weak switch port

External reserved isolated UART communication

Dual TVS protection/ add copper strip overcurrent

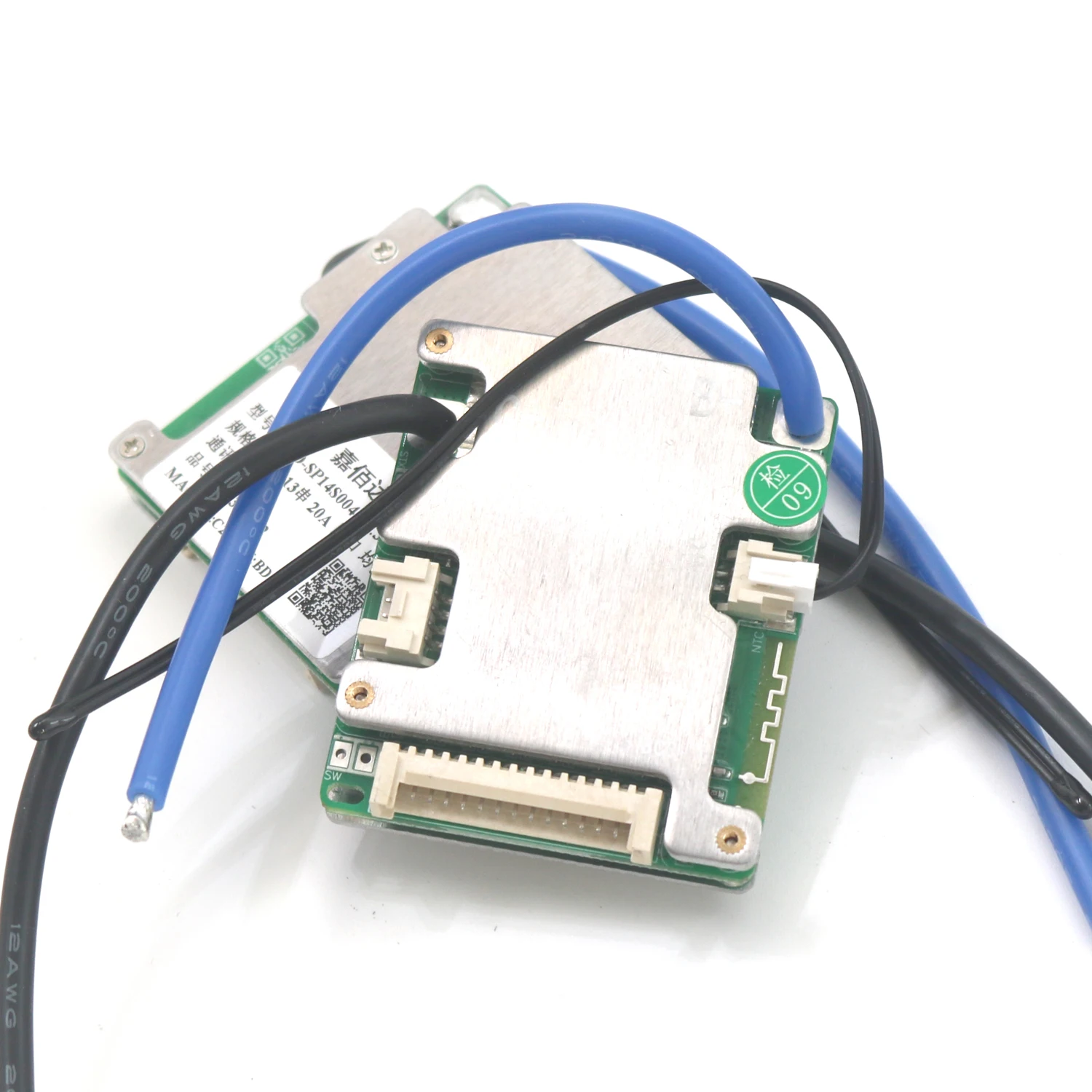

With wires / temperature sensor

Does not support batteries
