FNIRSI HRM-10 Battery Voltage Intemal Resistance Tester High-precision Trithium Lithium lron Phosphate 18650 Battery Tester

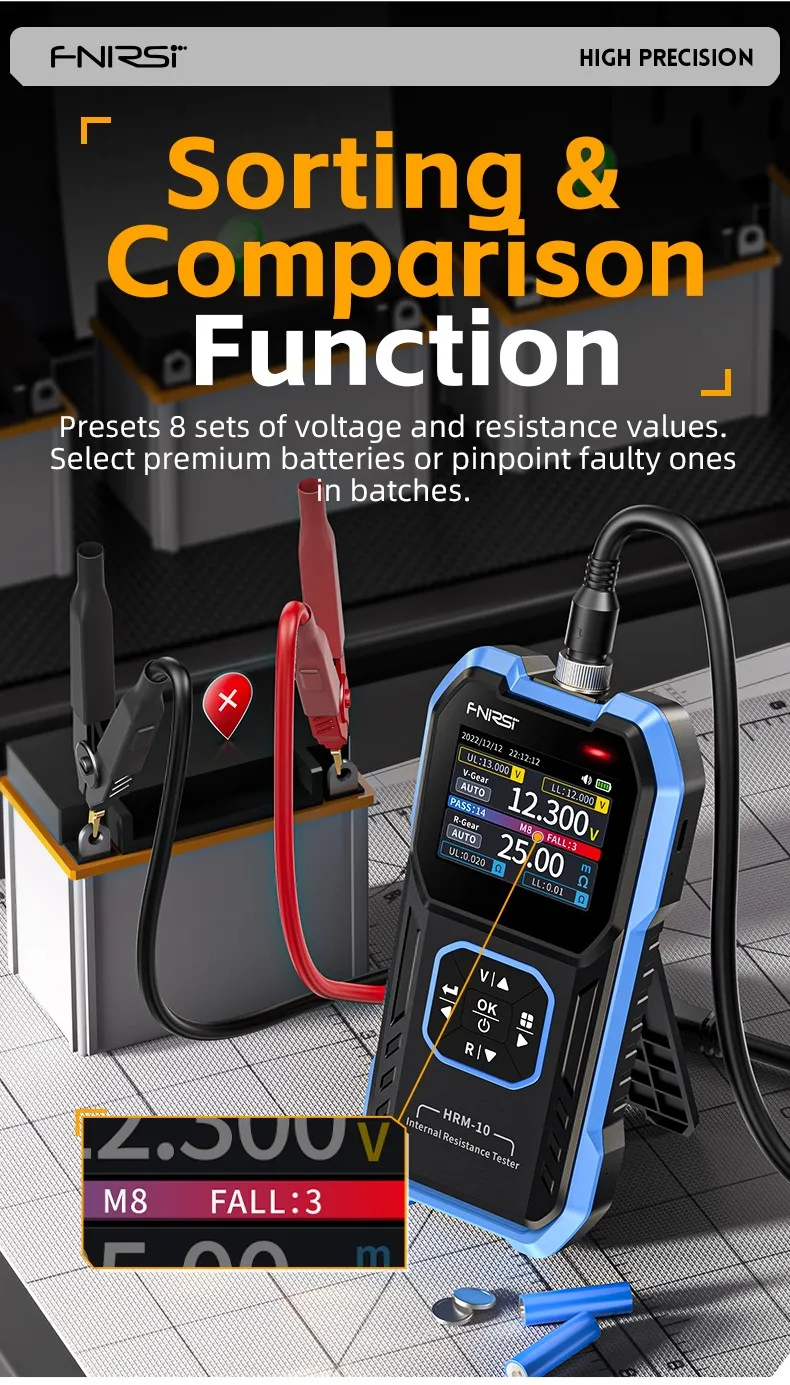

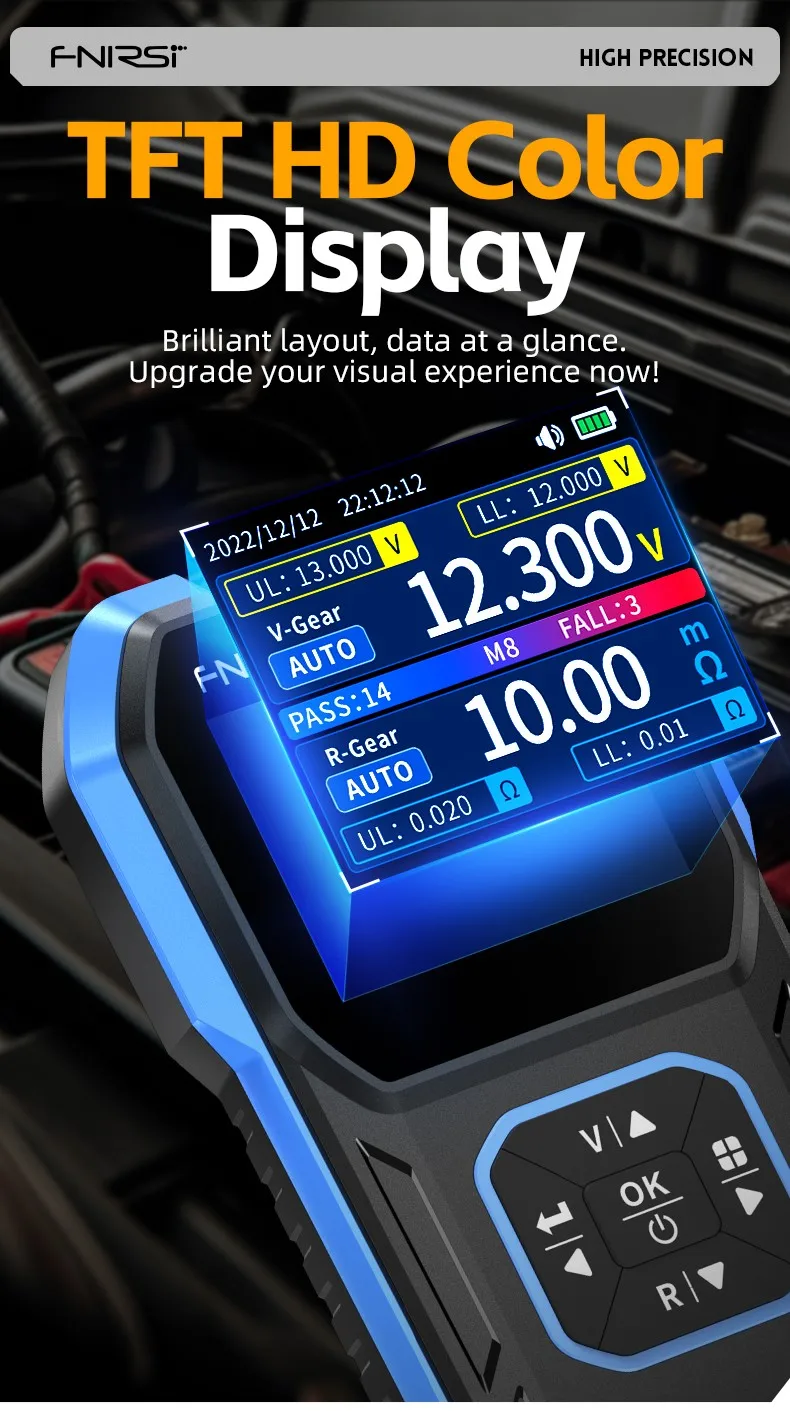

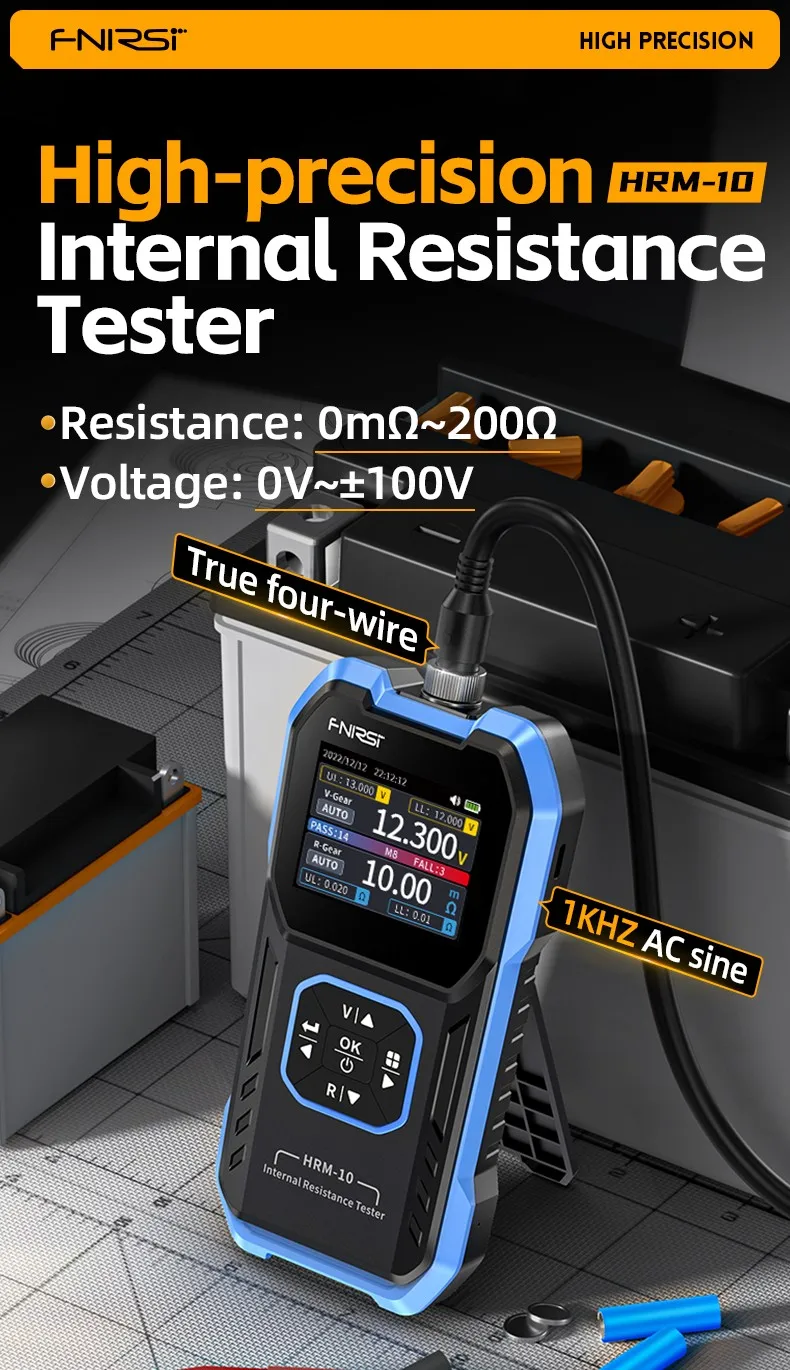

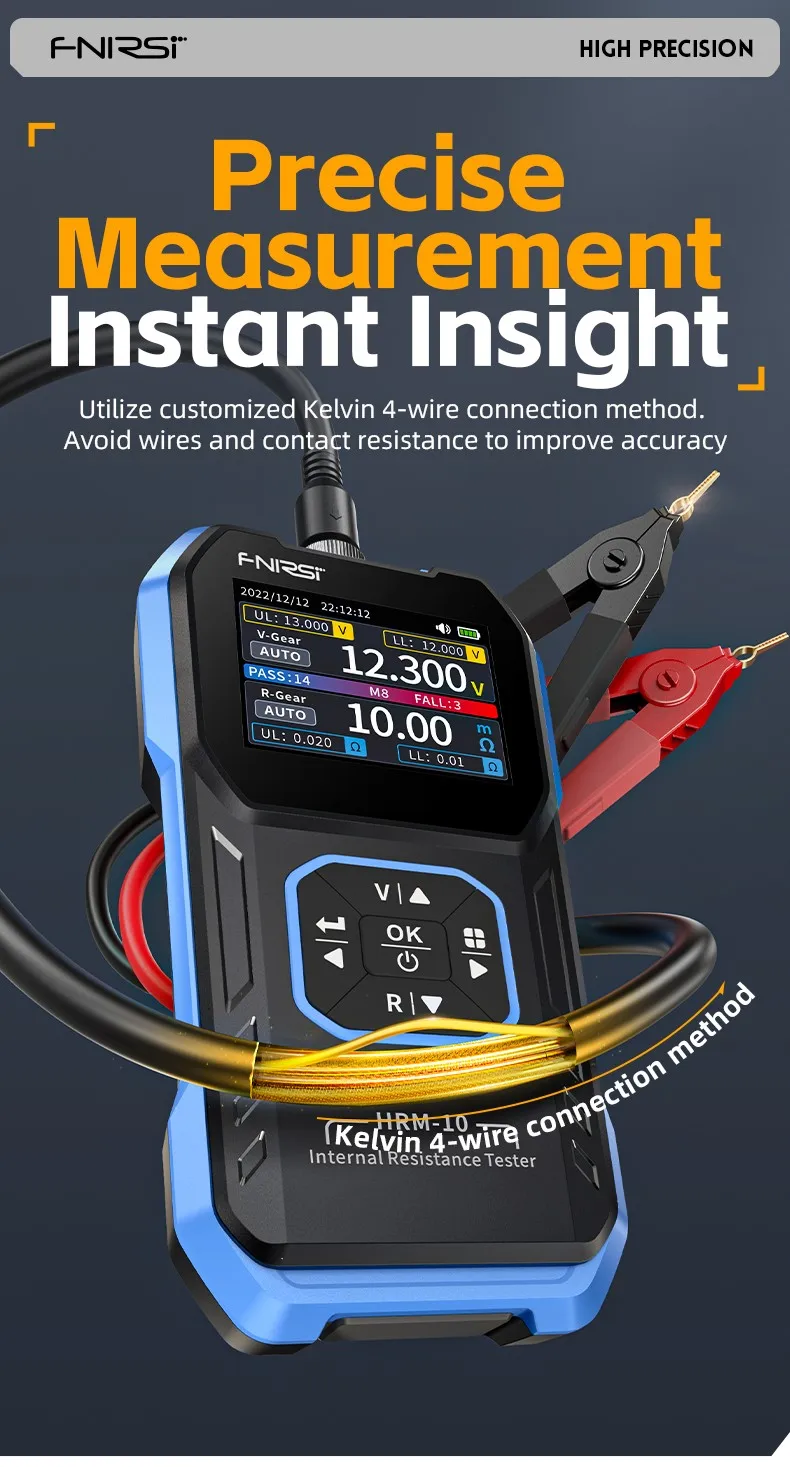

FNIRSI "HRM-10" is our company's first handheld high-precision attery internal resistance meter. It is a true four-wire measurement internal resistance meter, designed with precision, convenient to carry. The device can automatically test internal resistance and voltage values simultaneously, with measurement results displayed on the screen. Users can also manually adjust the voltage and resistance range. The product features a sorting mode, automatically filtering the good and bad batteries based on user-set thresholds. It also supports historical records and exporting data tables of historical measurements.

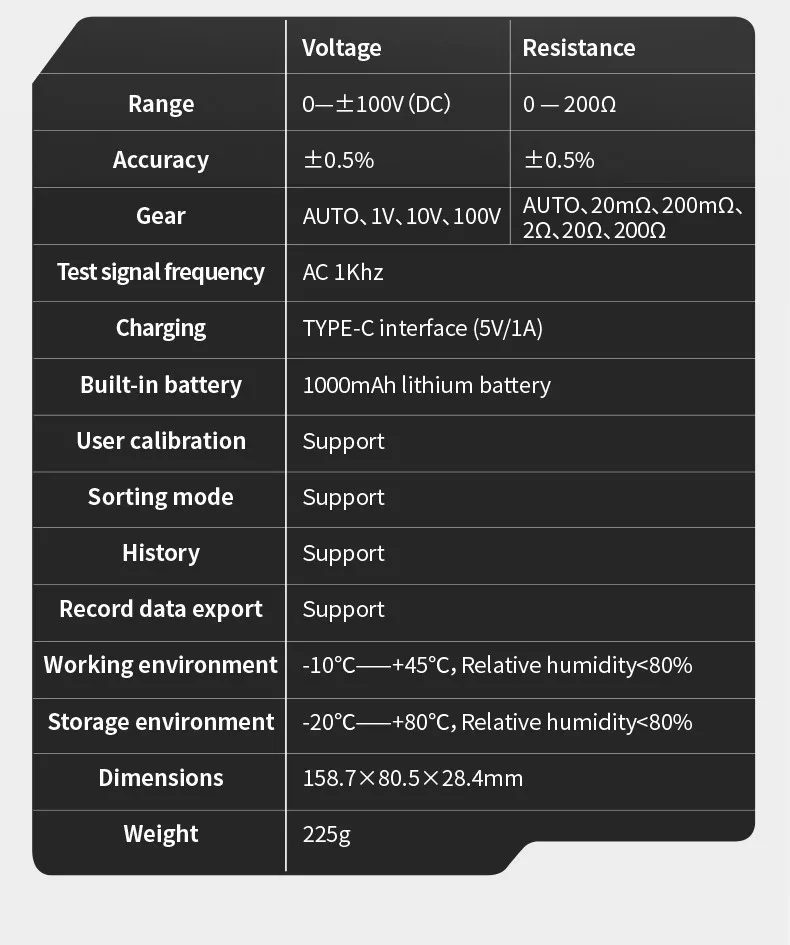

Voltage measuring range：0—±100V（DC）
Voltage gear：Automatic, 1V, 10V, 100V
R​esistance measuring range：0 — 200Ω
R​esistance gear：Automatic, 20mΩ, 200mΩ, 2Ω, 20Ω, 200Ω
Accuracy：±0.5%
Instrument test signal frequency：AC 1Khz
Rechargeable：Type-C interface (5V/1A)
Built-in battery：1000mAh lithium battery
User calibration：Support
Sorting mode：Support

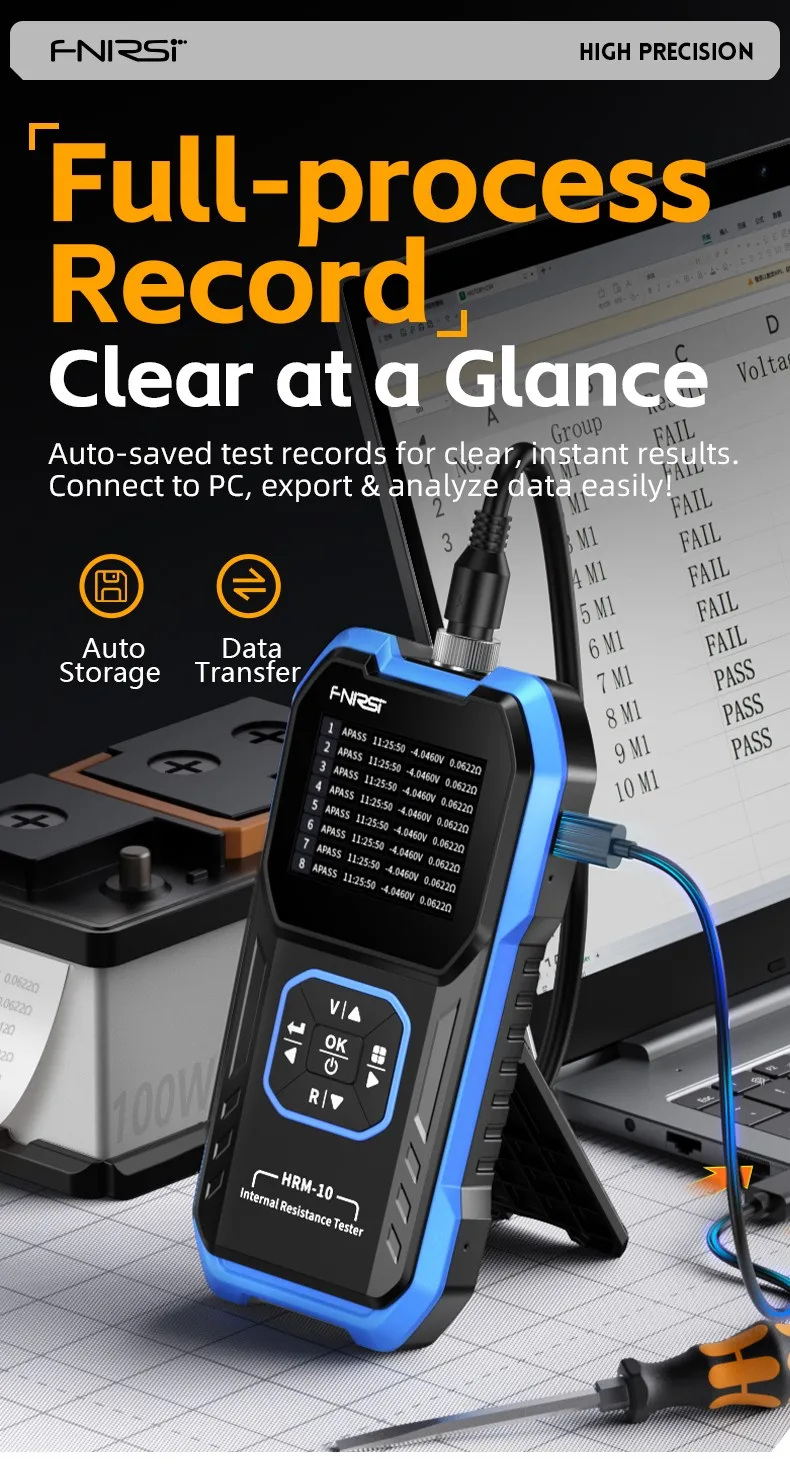

History recoed：Support
Recorded data expor：Support
Working environment：-10℃ ~ +45℃, relative humidity<80%
Storage environment：-20℃ ~ +80℃, relative humidity<80%

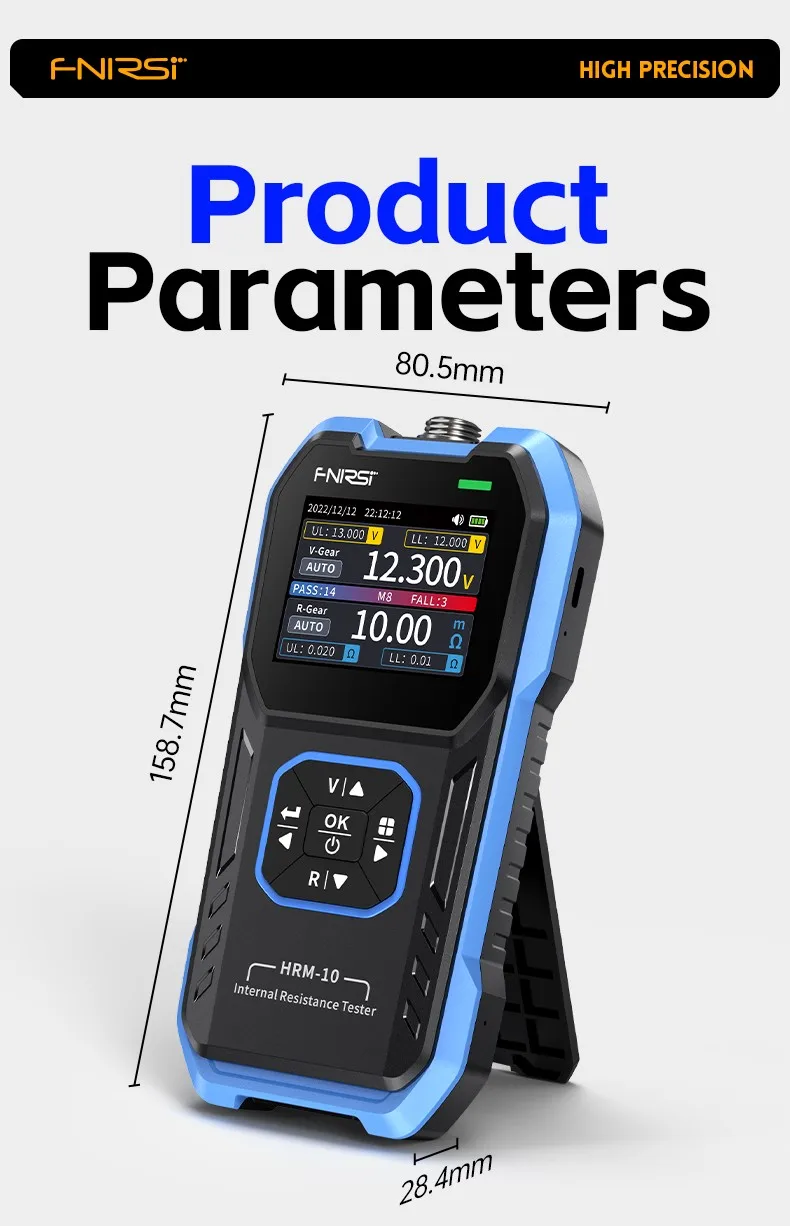

Size：158.7×80.5×28.4mm
Weight：225g

Rechargeable：Type-C interface (5V/1A)

Built-in battery：1000mAh lithium battery

User calibration：Support

Sorting mode：Support

History recoed：Support

Recorded data export：Support

Working environment：-10℃ ~ +45℃, relative humidity<80%

Storage environment：-20℃ ~ +80℃, relative humidity<80%

Size：158.7×80.5×28.4mm

Weight：225g

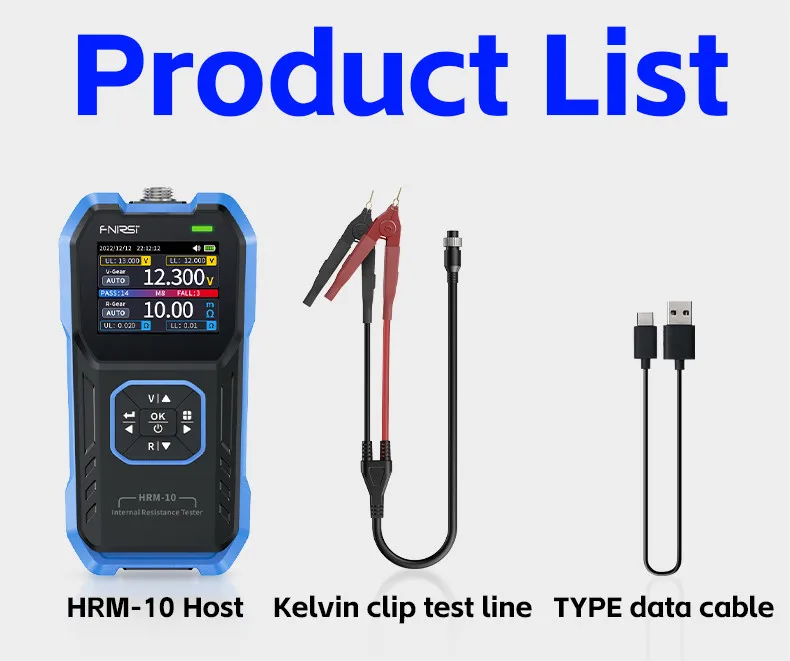

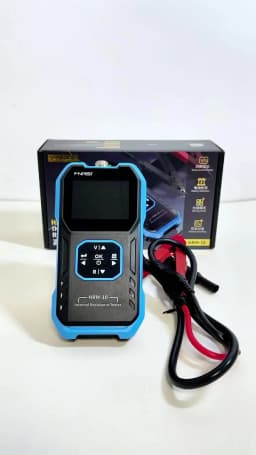

HRM-10 Host *1

Clip test line *1

Type-C data cable *1

User Manual *1

Packaging box *1
