INKBIRD IHC-200/IHC-200-Wifi Humidity Controller Smart App Control Dual Digital Display Hygrometer Socket with High Low Alarm

INKBIRD IHC-200-Wifi Humidity Controller Smart App Control Dual Digital Display Hygrometer Socket with High Low Alarm

Only IHC-200 WIFI Version could be connected with WIFI.

Usage: For mushroom, mini greenhouse, ventilator fan, crawl space, turtle enclosure, curing chanmber, snake cage, tobacco cage ...

IHC-200 WIFI Humidity Controller Introduction:

Description of IHC-200 Humidity Controller:

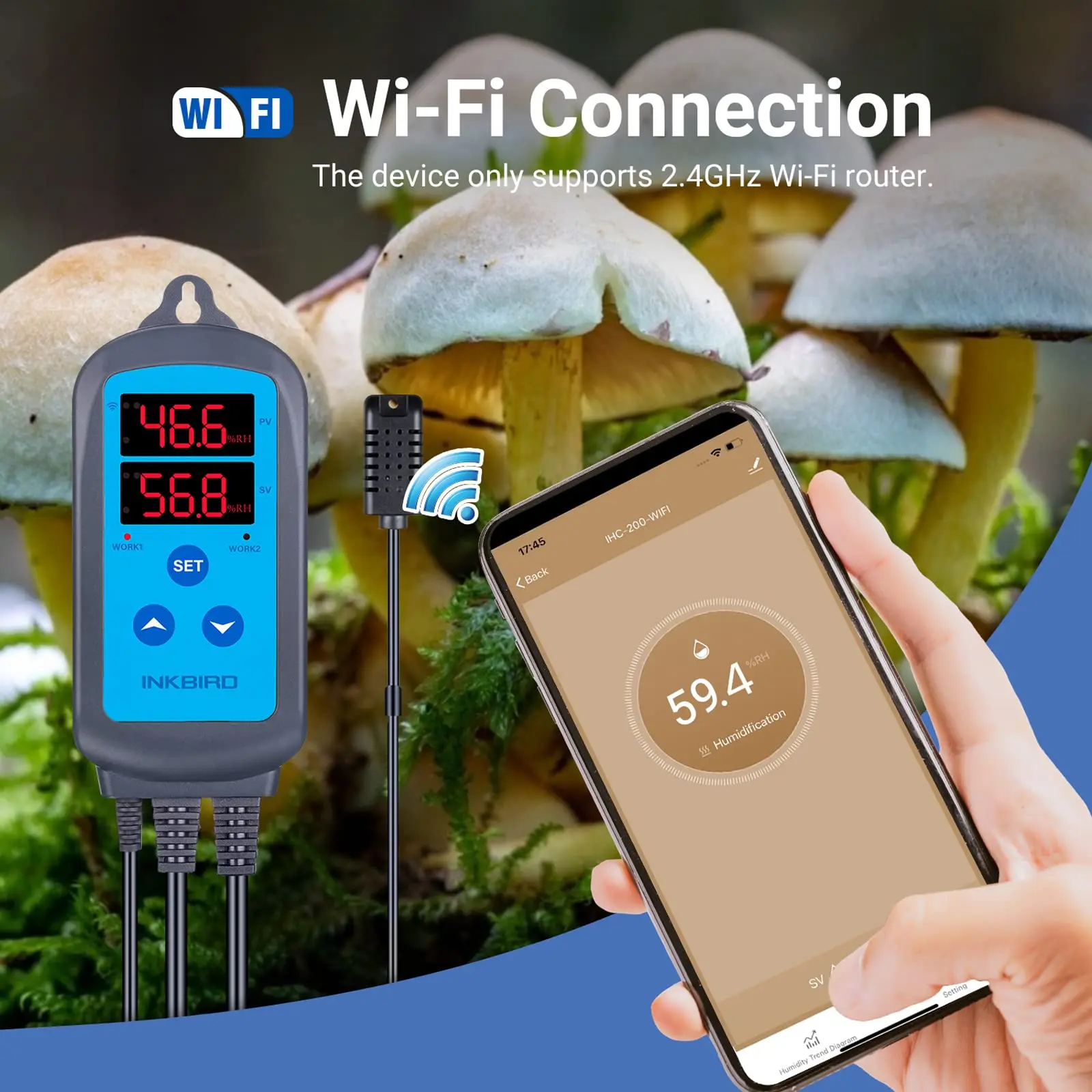

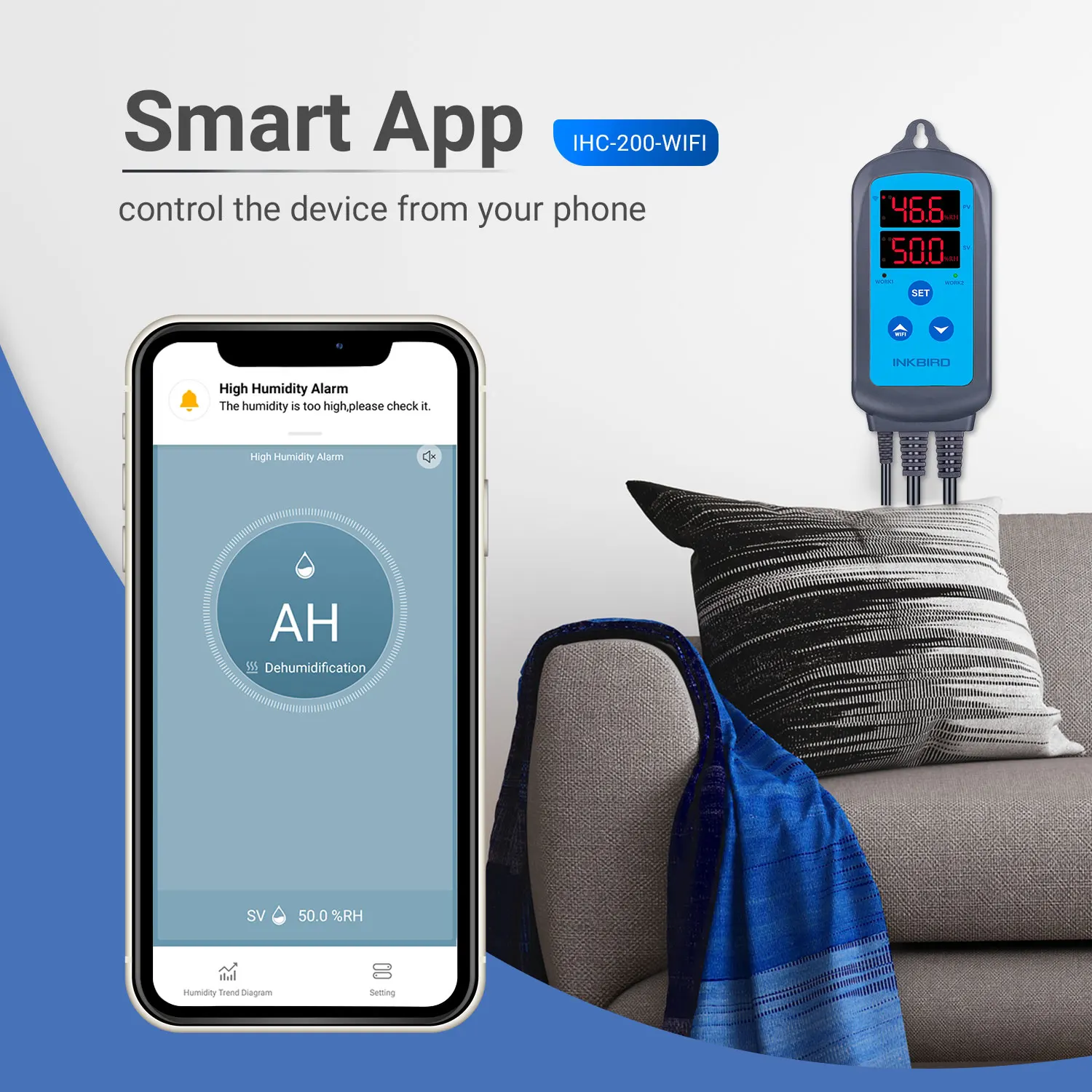

✔ WIFI Remote Control: Connect the IHC-200 Wi-Fi humidity controller to 2.4GHz Wi-Fi, then you can monitor or adjust the humidity on your phone through the app at any time anywhere.

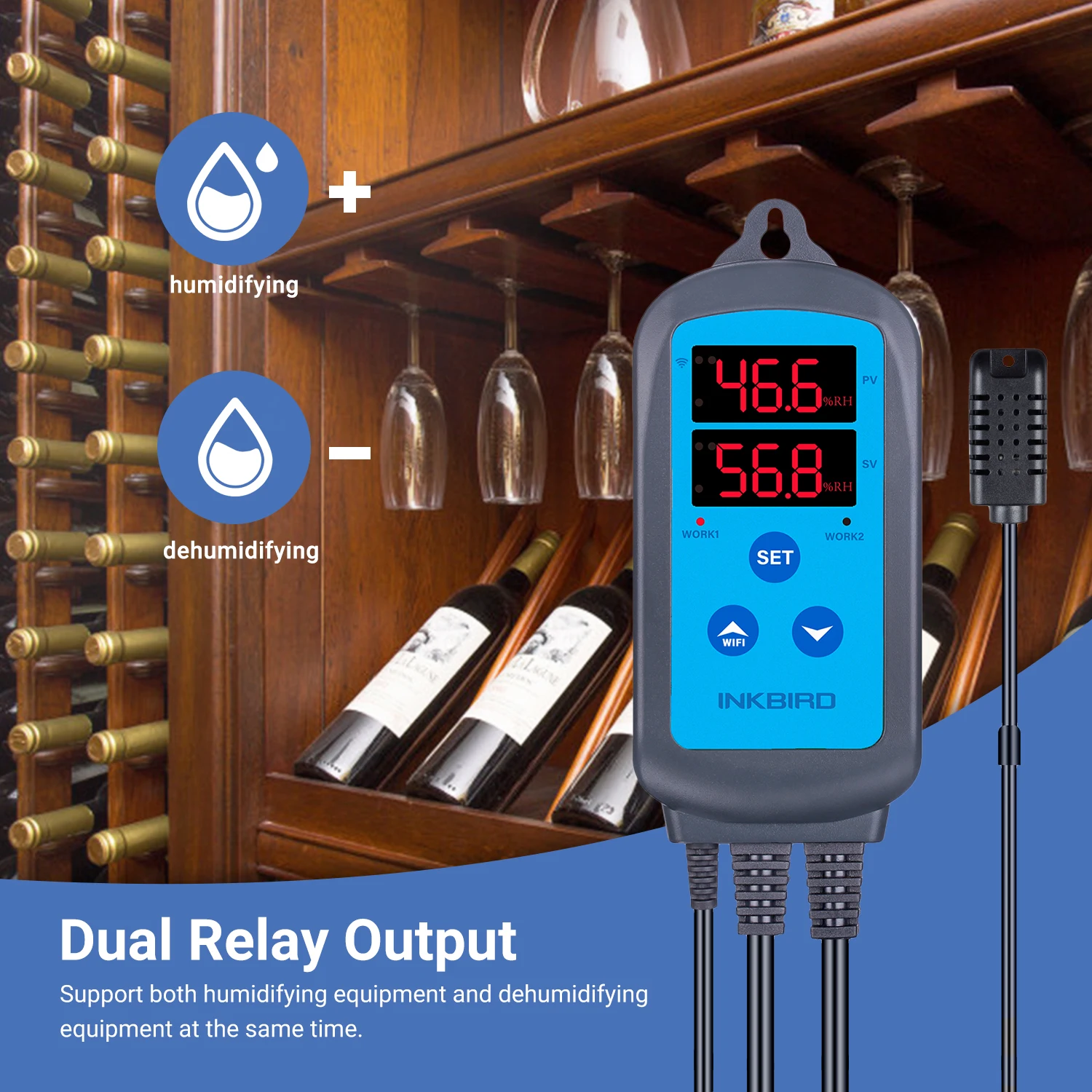

✔ Dual Relay Output: Support both humidifying equipment and dehumidifying equipment. Humidity measurement range: 10 ~ 99% RH. Relative humidity accuracy: ± 3% RH ~ ± 5% RH.

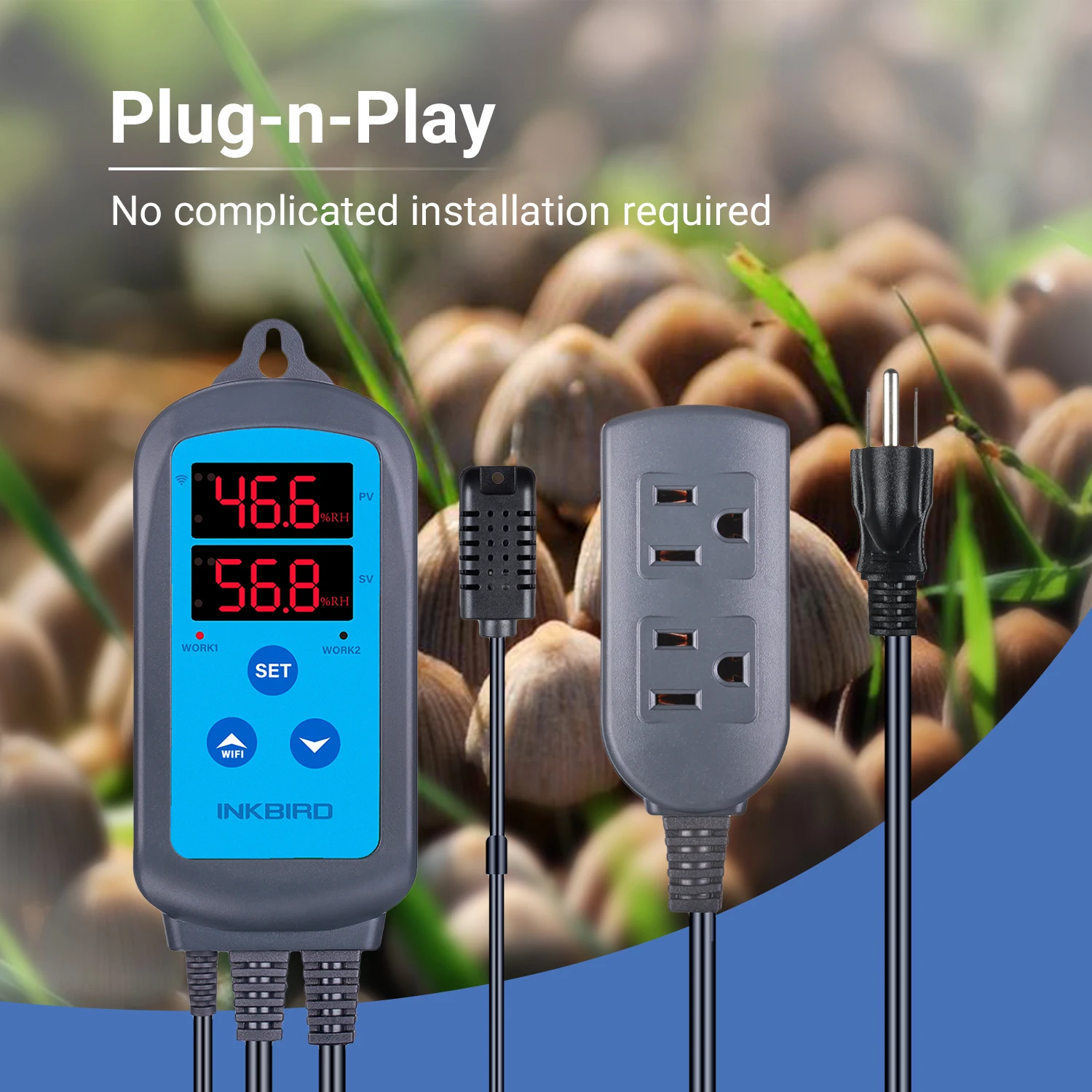

✔ Plug-n-Play: No complicated installation required. Display the set humidity value and the measured humidity value at the same time with 2 screens. Support humidity calibration and dehumidification control delay protection.

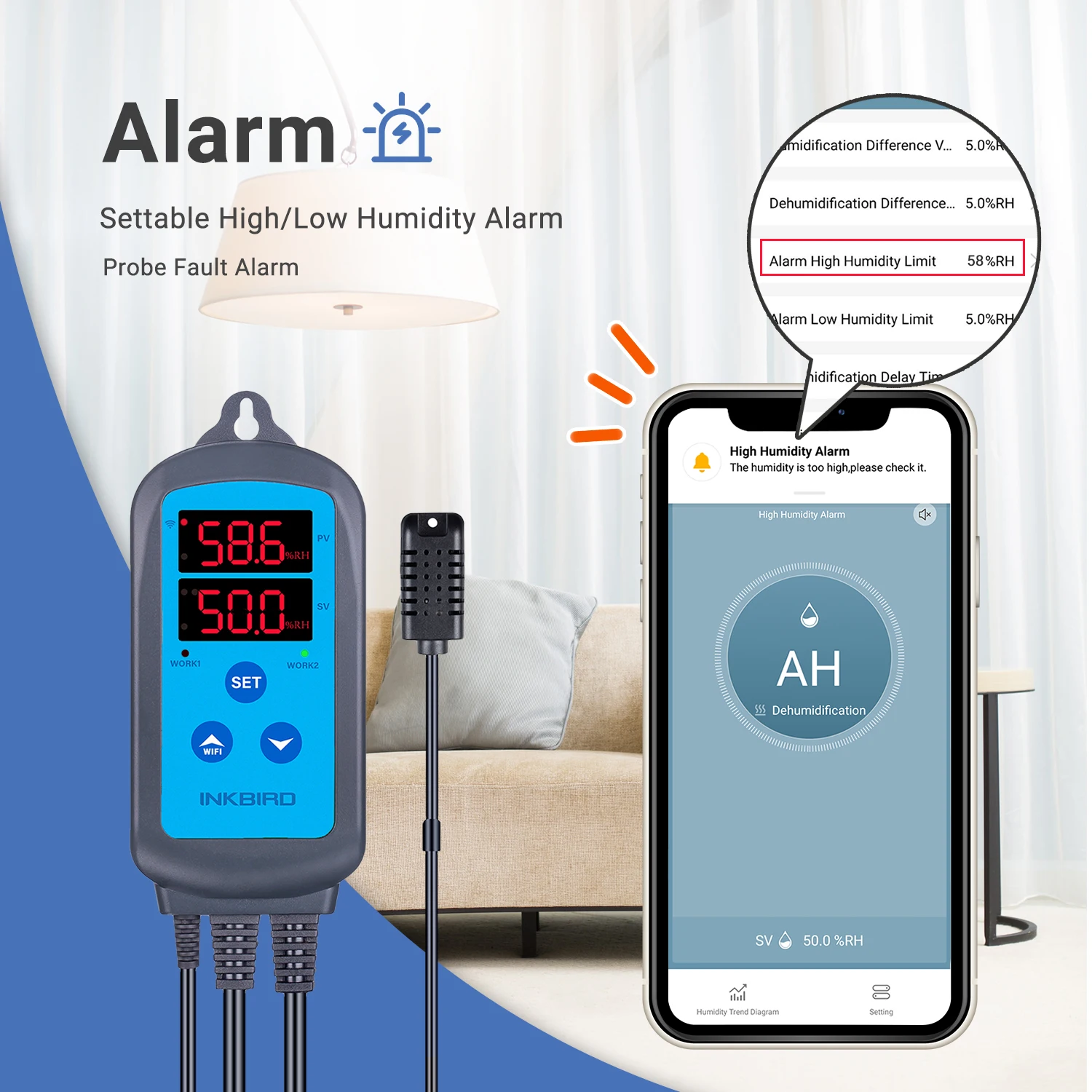

✔ High/Low Humidity Alarm: Set a High/Low Humidity Alarm, the controller will alarm to remind you if the humidity value exceeds the setting value, and it also alarm when a probe error occurs. Press any button to turn off the alarm sound or you can turn it off on your phone.

✔ 12-Month Warranty.

Related Parameters:

- Power: 2200W(220Vac)

- Current: 10A

- Humidity Measurement Range: 10~99%RH

- Humidity Display Accuracy: 0.1%RH

- Relative Humidity Accuracy(10% to 95%RH): Typ: ±3%RH, Max: ±5%RH

- Display Unit: %RH

- Operating Ambient Temperature: -20℃~40℃/-4℉~104℉

- Storage Temperature: 0℃~60℃/32℉~140℉

- Storage Humidity: 20~80%RH(not frozen or dewed)

- Waterproof Grade: not waterproof

- Wireless Connection: Wi-Fi Connection for iOS&Android

- Warranty: 12 Months

IHC-200 Humidity Controller Introduction:

Description of IHC-200 Humidity Controller:

IHC-200 Humidistat is an easy-to-use, safe and reliable dual relay output humidity controller. Its play-n-plug designed: Plug it into wall socket, set your controller’s humidification or dehumidification values to your need. It can maintain the humidity between humidification and dehumidification automatically. In addition, the humidifier and dehumidifier can be programmed separately, too.

It is widely used for mushroom, mini greenhouse, ventilator fan, crawl space, turtle enclosure, curing chanmber, snake cage, tobacco cage and so on.

Bullet Points:

✅Switch the modes: between humidification and dehumidification automatically;

✅Control humidity by setting value and differential value;

✅Calibrate the humidity value;

✅Delay protection for control output;

✅Query current temperature;

✅Multifunctional Alarms: alarms when humidity exceeds high/low humidity setting value, when sensor error or humidity exceeds limit and alarm when sensor error or humidity exceeds limit;

Specifications:

●Humidity Measuring Range : 5%-99.99%RH

●Humidity Control Range : 5%-99%RH

●Resolution: 1%RH

●Accuracy: ±3%RH

●Sensor model: AM-2301

●Sensor stability: <0.5%RH/yr

●Sensor Length: 2m / 6.56ft

●Relay Contact Capacity

●Humidification (12A, 100-240VAC)

●Dehumidification (12A, 100-240VAC)

●Input Power Cable Length: 1.5m (5ft)

●Output Power Cable Length: 30cm (1ft)

●Dimension: Body: 140x68x33mm (5.5x2.7x1.3inch)

●Socket: 85x42x24mm(3.3x1.7x1inch)

●Ambient Temperature : -30~ 75 ° C / -22~ 167 ° F

●Storage: Temperature -30~ 75 ° C / -22~ 167 ° F

●Humidity 20~85% (No Condensate)

Package Contents:

- Humidity Controller * 1

- User’s Manual * 1

- Warranty Card * 1

Notes:

- Do not put probes or metal wire into fire.

- Do not put probes into water, it may lead to inaccurate measurements.

- Only support 2.4GHz Wi-Fi(Support IEEE 802.11b/g/n).

IHC-200 Wi-Fi Humidity Controller

IHC-200 Humidity Controller
