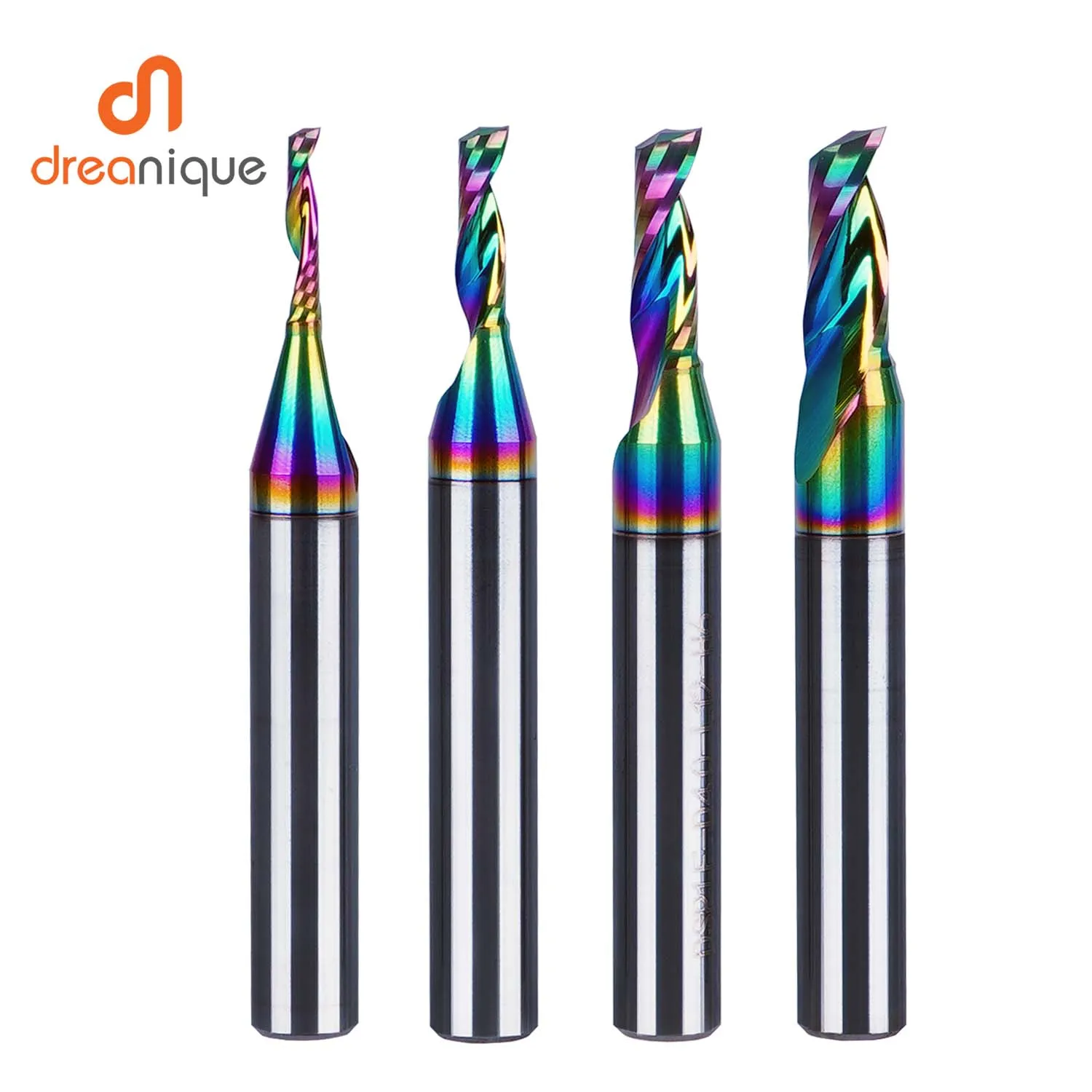

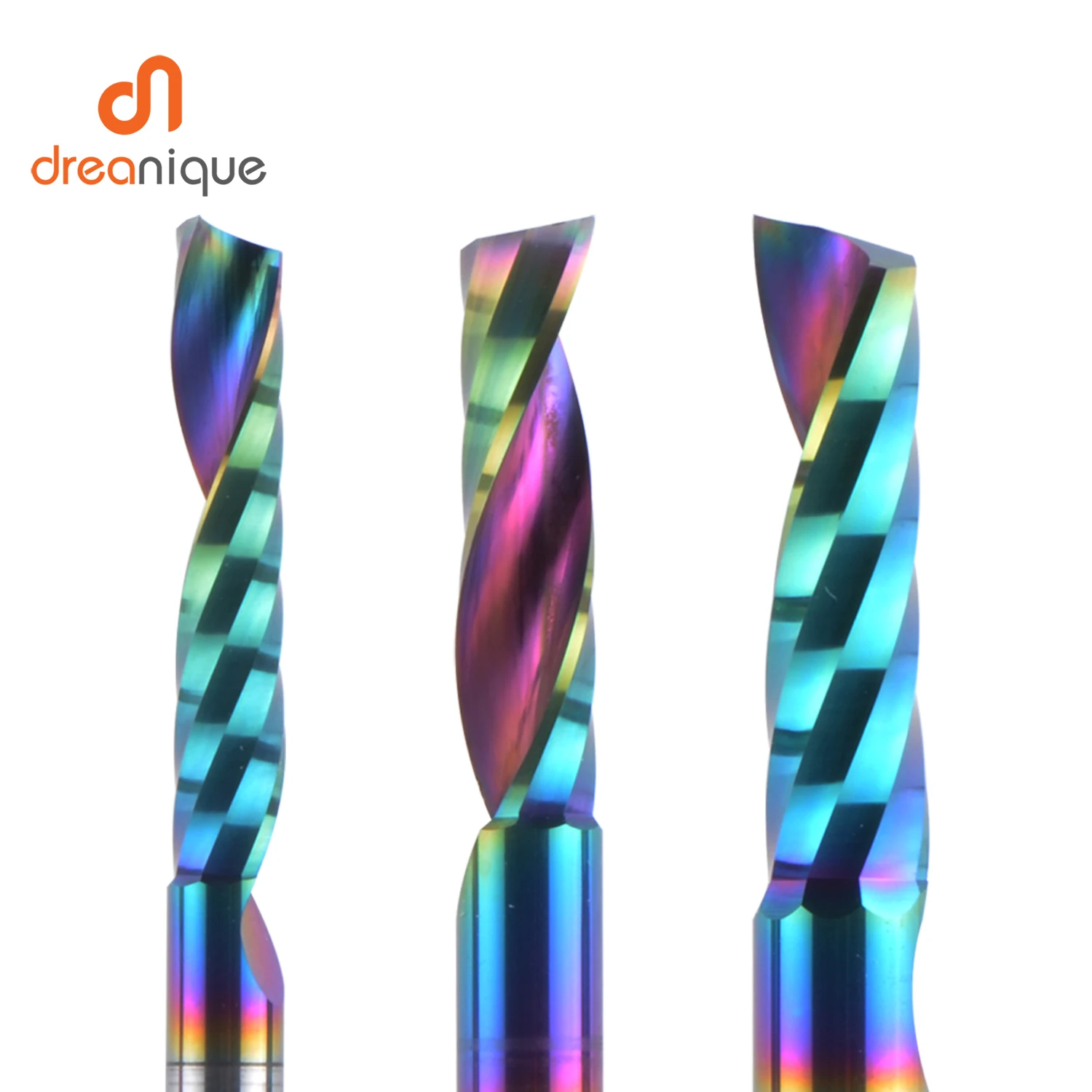

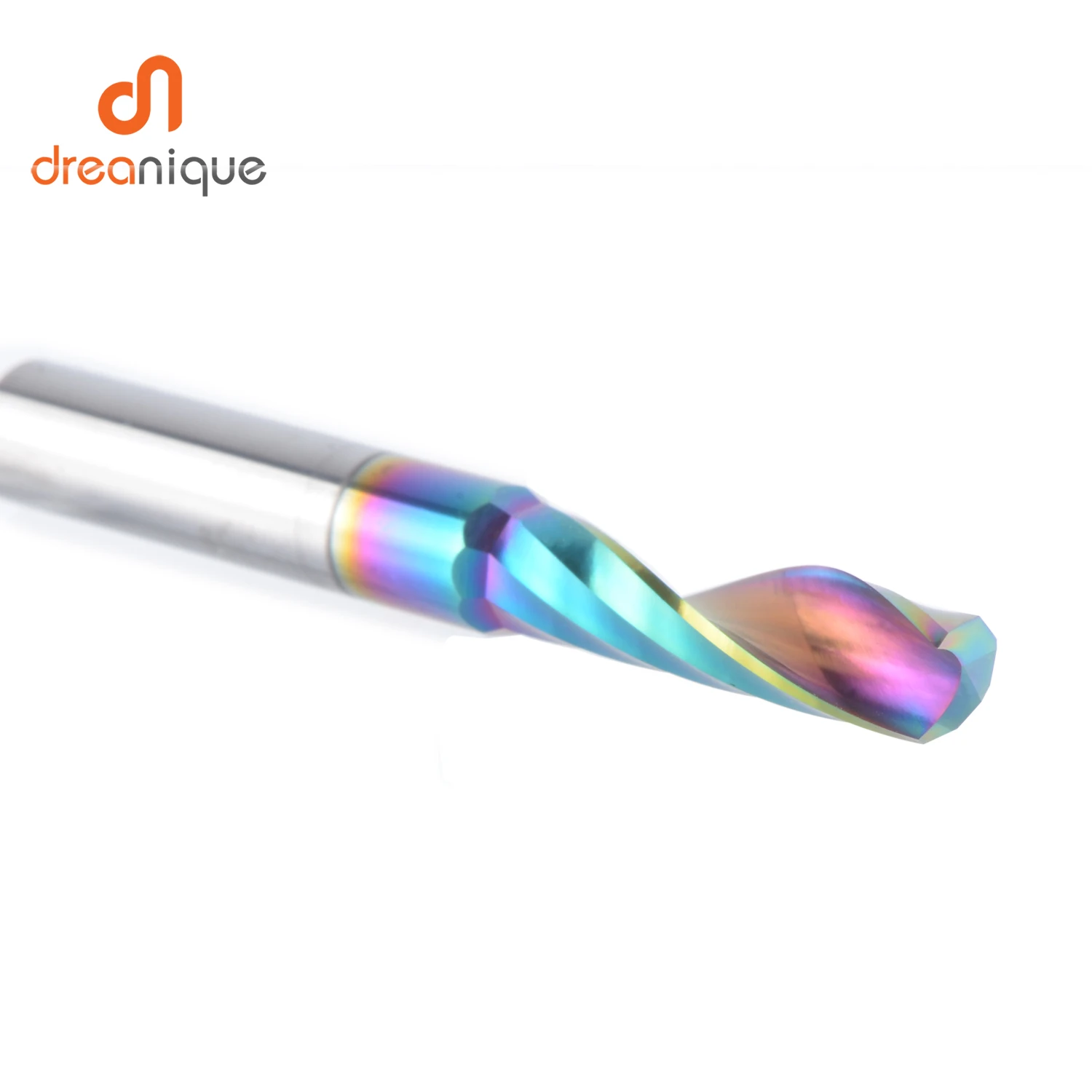

Dreanique 1pc 6mm Shank Single Flute Carbide Spiral End Mill Aluminum 3D CNC Engraving Woodworking Acrylic DLC Coating

Dreanique 1pc Shank Diameter 6mm Single Flute Carbide Spiral End Mill Aluminum 3D CNC Engraving Woodworking Acrylic DLC Coating

Notice:
(1) the real cutting diameter is smaller than the marked diameter 0.05mm, it is specially designed like this, not caused by error or tolerance.
(2) The tolerance is ±0.005mm.

Description:

(1) Brand: DREANIQUE
(2) Type: Single Flute Spiral Solid Carbide End mills;
(3) Grade: AAAAA
(4) Made of: High-quality Micro Grain Solid Carbide;

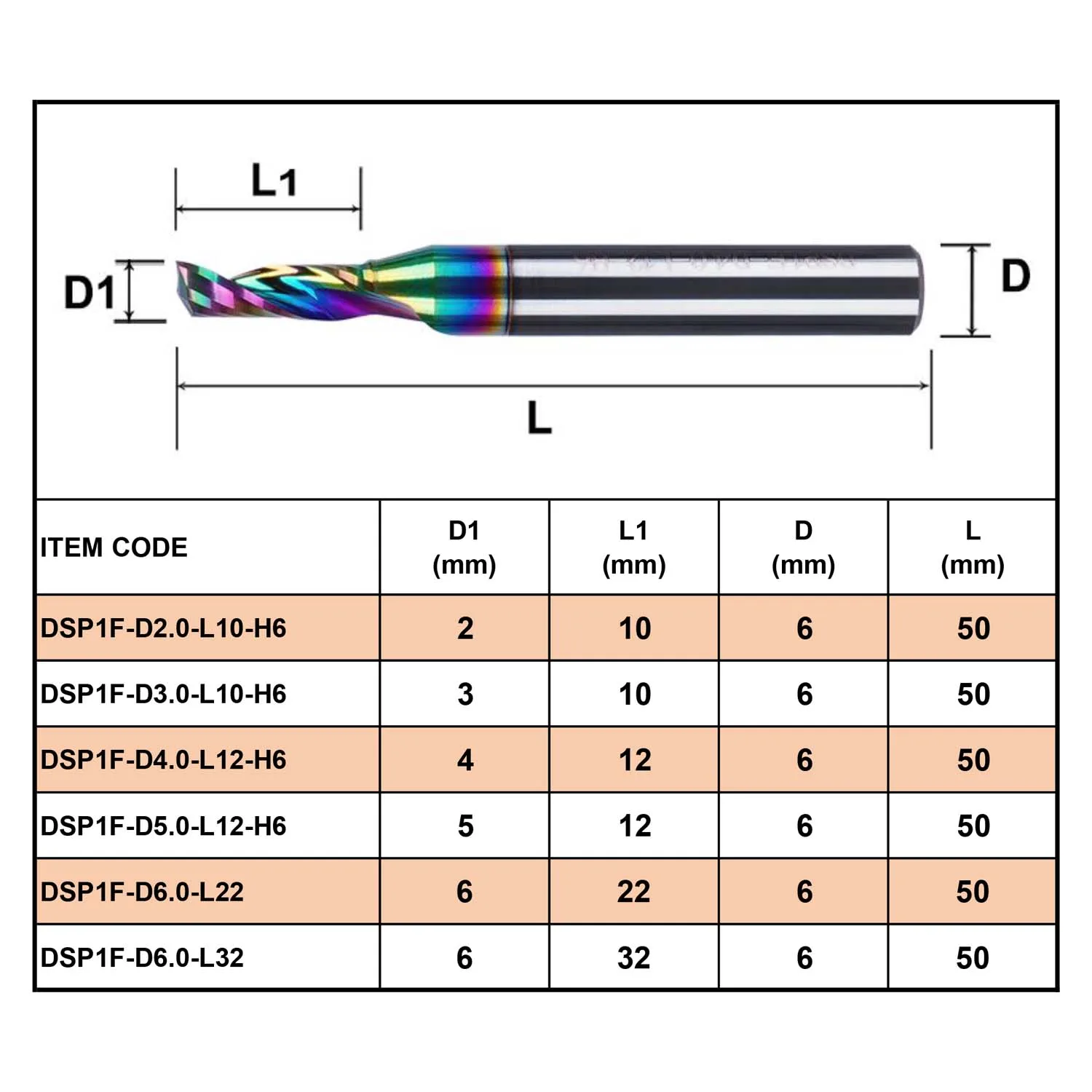

(5) Shank Diameter: 6mm
(6) Coating: DLC coating, High Heat Resistant, Chip Removal Easier.

Best Suitable Materials: Acrylic, Compression, MDF
could also suitable on below materials:
(1) MDF, particle board, board with lagging, log, affixed to the skin panels;
(2) Acrylic, PVC, resin, plastic, chipboard, composite board, melamine board;
(3) Solid wood, native wood, plywood, lotus plate;

Applied to:
CNC Router Machining Center, Woodworking Machine, Advertising CNC Router, etc;

Features:
(1) Excellent combination of upper and lower blades, SHARP cutting edge;
(2) High precision grinded and polished, high abrasion resistance and temperature resistance, good rigidity, not easy to break;
(3) No burrs for Up and down spiral machining;
(4) High performance, improve the work efficiency, reduce cost;

DLC coating is a type of carbon-based film coating, with the full name of Diamond-like Carbon. It is formed by depositing carbon ions under vacuum conditions and has high hardness, excellent wear resistance, and low friction coefficient. Therefore, it is widely used in surface treatment of cutting tools in fields such as engineering machinery, automotive parts, and aerospace engines. Hard alloy cutting tools treated with DLC coating can not only improve cutting efficiency and extend service life but also effectively reduce thermal loss and cutting force during cutting, thereby improving product processing quality and stability.

FAQ:

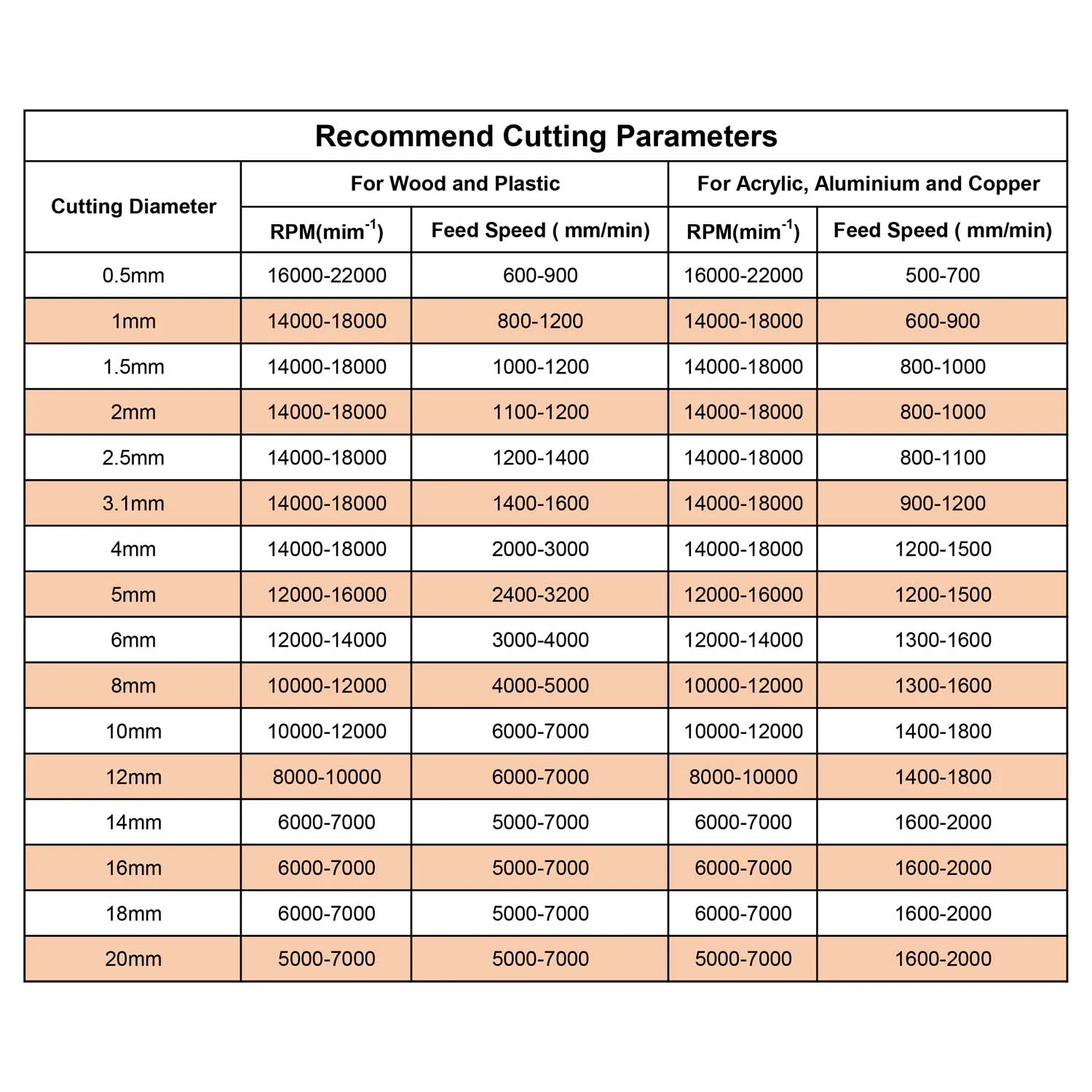

Question：What's the cutting parameters ?
Answer：18000-20000RPM. feed speed 4-8m/min for Acrylic and wood, reduce the speed when using a 1.0mm or 2.0mm cutter.

Question：Can cut Acrylic ?
Answer：yes, can also process Wood, AL, MDF, PVC, PP

Question: Is this cutter good for wood roughing processing ?
Answer: yes, this cutter is very good for wood roughing and finishing

Question：Can work on PCB ?
Answer：No. We recommend PCB corn milling cutter for PCB.

Question：Can work on steel ?
Answer：No. This cutter mainly used for processing PVC, PP, wood, AL, MDF.

Question：Can work with electric drills ?
Answer： No. Cannot be used on electric drills and bench drills.This cutter mainly be used on engraving machine and CNC lathe with 18000-20000RPM
