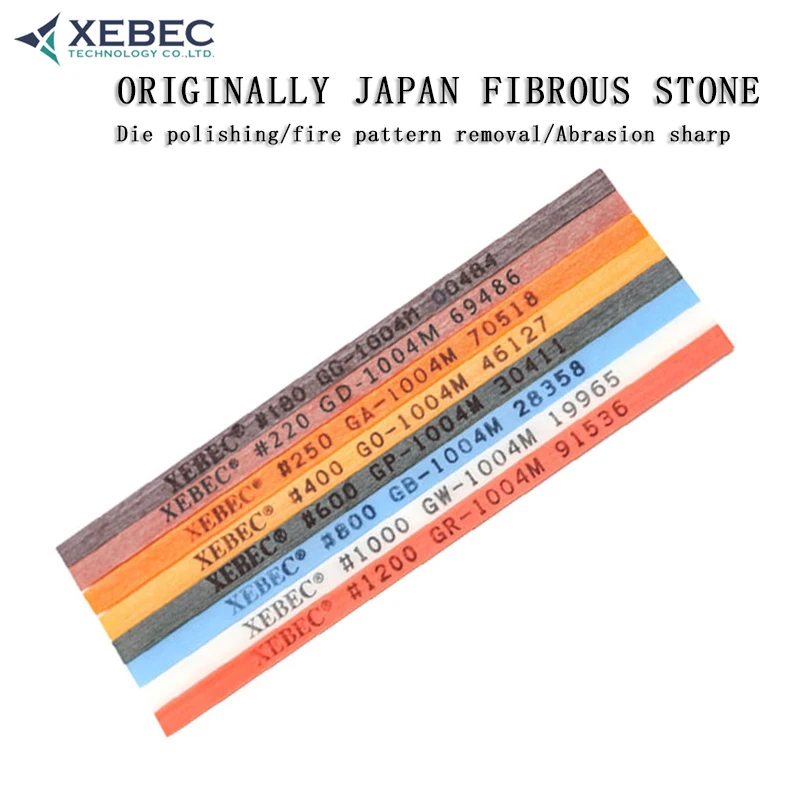

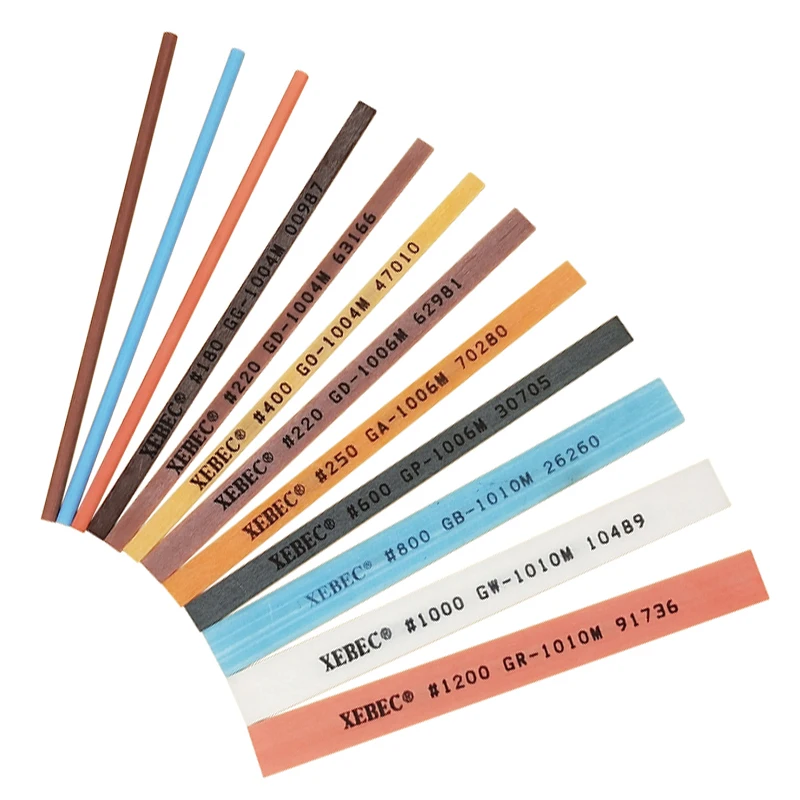

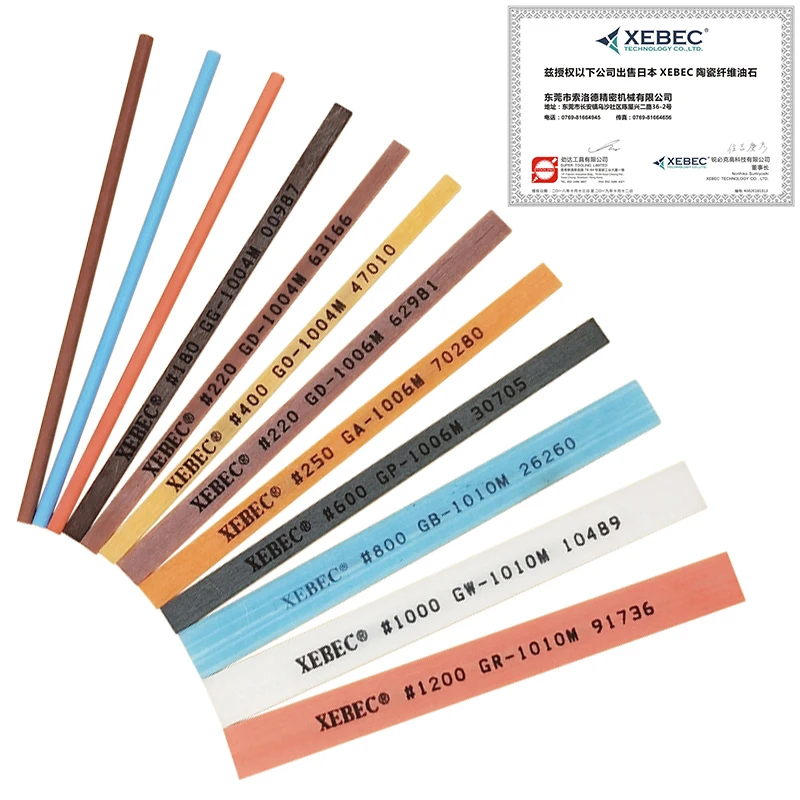

Japan Original XEBEC G Series Wholesale 1004/1006/1010/D3 Ceramic Alumina Fiber Stone Polishing Mold to Remove Fire Patterns

Application

Both bar and round shapes can be used to polish the tip or sides of the tool.

Suitable for polishing after EDM and wire-cut machining.

It is also ideal for polishing ribs and deburring edges and corners.

Can be ground into the desired shape, such as a thinner tip.

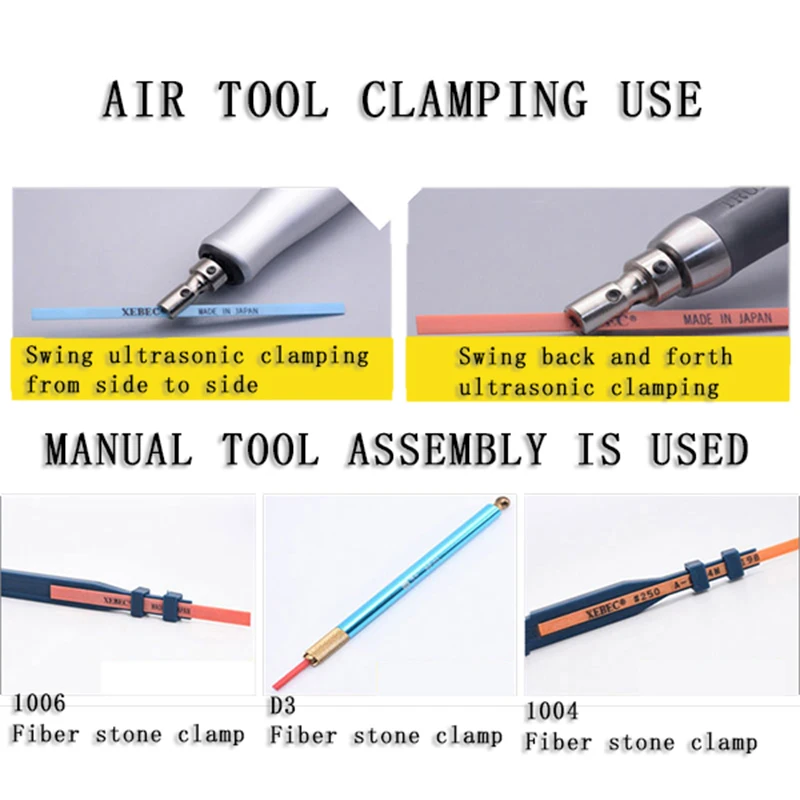

When attached to a tool (electric), it can be polished more efficiently. Such as pneumatic or electric ultrasonic).

Usage

Ceramic fiber stone can be ground on a variety of different materials of steel. It is often used for difficult grinding processes, such as narrow ditch walls, holes, scratches, ribs and fine details. Especially for the rapid removal and polishing effect after the discharge carbon layer treatment is much better.

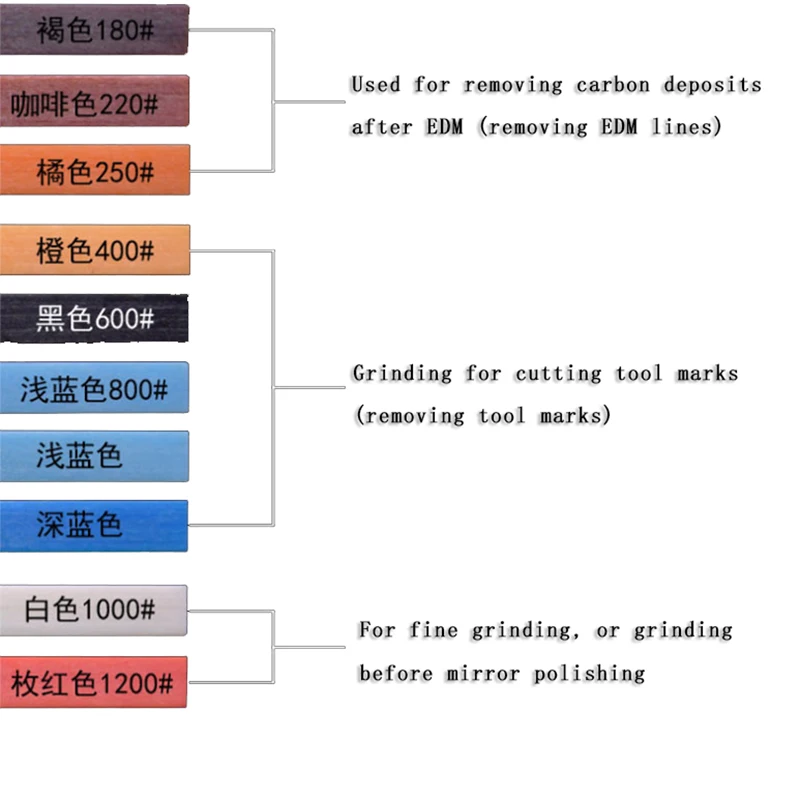

#180, #250 - for the removal of rough machining surfaces of workpiece and die steel or machining after die EDM, to remove fire patterns

#400, #600 - General grinding of scratch lines on the surface of die and die steel.

#800, #1000, #1200 - Fine polishing, treatment before mirror polishing
