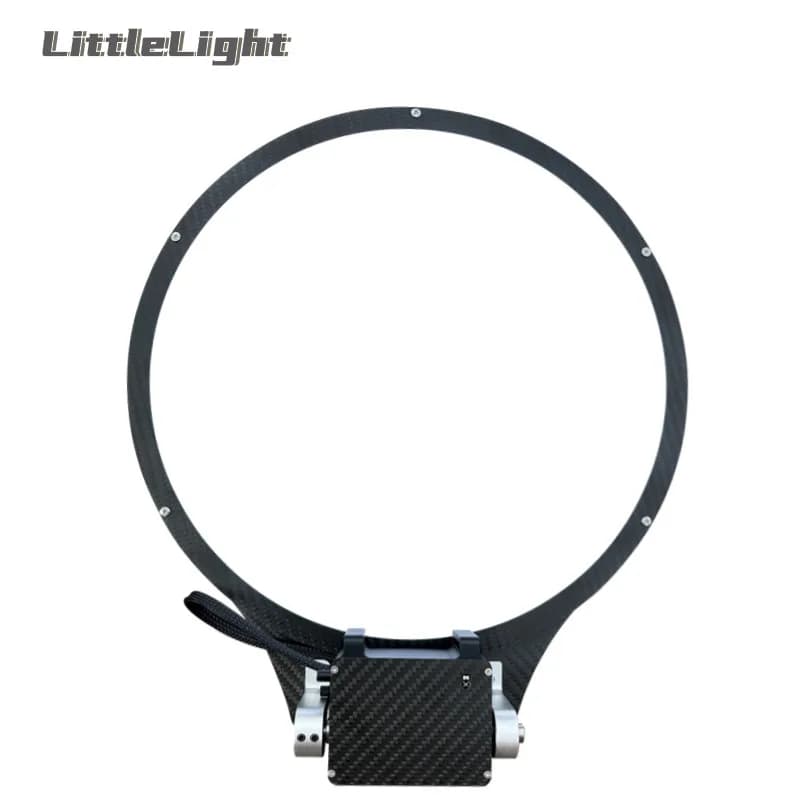

GEMINI Astro V3 75/100/130/150/190/225mm No-Stroboscopic Automatic FlatPanel for Astronomical Telescope - ASCOM/INDI

What are the differences between V3 version

Professional lightweight motorized flatpanel

luminous diameter of 75mm/100mm/130mm/150mm/190mm/225mm Auto electric flatpanel.

DC12V power supply

When using ASIAIR, power can be supplied through ASIAIR, and the remote control can control opening and closing as well as adjust brightness

The biggest feature of this product is that it emits light without flickering, which is very friendly to users who need short exposure for flat field correction

Luminous diameter: 75mm/100mm/130mm/150mm/190mm/225mm

Material:  Aluminum alloy + Carbon fiber

Support ASCOM/INDI

Weight: 150mm-0.4kg/ 190mm-0.48kg/ 225mm-0.58kg(excluding cables)

Light source adjustment range:High brightness mode：0-255/Low brightness mode：0-255

Software

New version of desktop independent control software

Purchase Guide

Corresponding telescope model

100mm - FAM230 RedCat51/71 ACL200 72ed or below

150mm - SkyRover 80/102  FRA400/500 FSQ85 ASKAR107/FRA600  FSQ106  SV503-80ED

190mm - SKY ROVER/ ASKAR130 TOA130 Sky-Watcher 150/750EQ

225mm - SKY ROVER155 ASKAR151 TOA150

Telescopes not listed above？Roughly confirm according to the following method:

*Measure the outer diameter of the telescope's hood

The selected Flatpanel's luminous diameter must be greater than the outer diameter of the hood

Latest Update

--Added 12VDC power supply

--Increase carrying capacity

--Optimize LED connection wires

--Add INDI driver

--Increase the width of the control box

Operation Interface

Product Comparison

Package List

*Flat Panel

*USB 2.0 data cable

*12VD connection cable

*Remote control

Support

Users can scan the QR code to download the driver after receiving the package.

Click to join our Facebook communication group

TAX

For goods exceeding $150, the price displayed by EU users is inclusive of tax, but the actual payment is NOT inclusive of tax, and users need to pay when the package arrives locally.
