18650 Lithium Battery Capacity Tester Module MAh MWh Digital Battery Power Detector Module 18650 Battery Tester Type-C

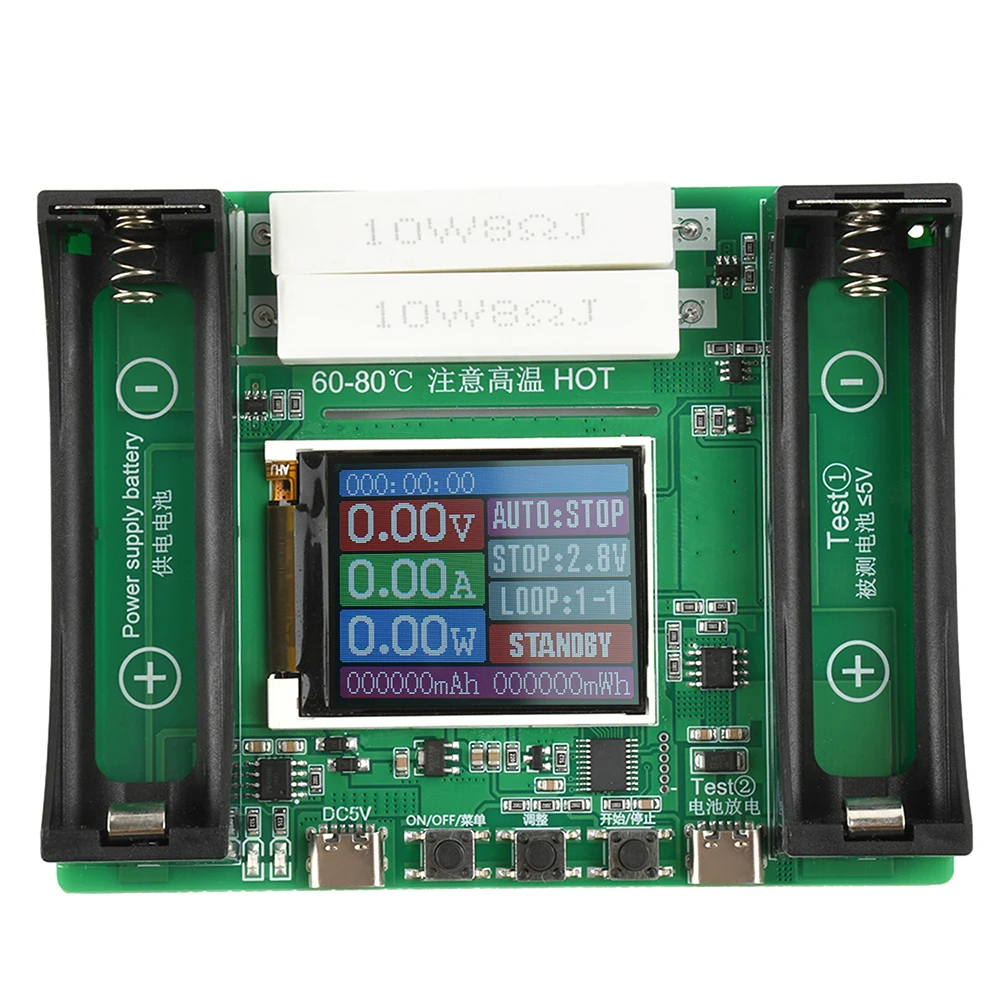

1CH

Features:

1.The product supports single channel internal resistance and capacity measurement

2.Supports separate charging, with up to 9 charging and discharging cycles in automatic mode

3.Using DC two wire method to test internal resistance, both Chinese and English can be switched

4.The 18650 battery holder uses a compact battery holder suitable for flat head battery measurement

5.The maximum charging and discharging current is about 1A

Attention: During the charging and discharging process, some components may generate local high temperatures. Please ensure that the use environment is open and uncovered, and it is best to increase fan heat dissipation. To ensure the firmness of the battery clamp, the 18650 battery holder uses a compact battery holder suitable for flat head battery measurement!!! Lithium iron phosphate battery charging is not supported

Power on/off:

① Automatic power on when powered on

② Press and hold the "ON/OFF/Menu" button to turn off the device when it is turned on.

③ When the power is not turned off, click the "ON/OFF/Menu" button to turn on the computer.

Switching between Chinese and English interfaces:

① Shutdown

② Press and hold the "Adjust" button to power on, release the button after the screen lights up, and wait for 10 seconds after turning on to turn off

③ Reboot and complete the switch.

Parameters

Working power supply: DC5V external power supply or 18650 battery (both need to be provided by oneself)

Applicable batteries: Suitable for batteries that meet the requirements of stopping discharge voltage of 2.5-3.5V and charging at 4.2V

Power supply interface: Type-C interface, with self-contained power supply line (C-port mobile phone line)

System language: English/Chinese switchable

Test quantity: 1-way charging and discharging measurement (only for the right battery)

Internal resistance measurement: supported, using DC two wire method to test internal resistance

Charging function: supported, with 1-channel program control for up to approximately 1A charging; 1-circuit hardware control with a maximum charge of approximately 0.5A

Discharge function: Supported, only 1 channel supports a maximum discharge of about 1A, and automatically stops when the condition is met

Automatic charging and discharging: Supported, the battery is fully charged at the end of automatic mode (stop voltage set to 2.8V or above)

Cyclic charging and discharging: supported, adjustable for 1-9 cycles

Status prompt: Supported

Stop discharge voltage: 2.5V, 2.6V, 2.7V, 2.8V, 2.9V, 3.0V, 3.1V, 3.2V

3.3V, 3.4V, 3.5V, a total of 11 adjustable gears

Discharge current: Two resistors, with a maximum current of about 1A, non adjustable, and does not support independent modification

Charging voltage: controlled by a dedicated battery charging chip, with a maximum charge of about 0.5A/1A and a full charge voltage of 4.2V

Power off save: only save the set parameters, not the measurement data

Data link: https://www.banber.com/gather/63f08fc5b2c1a900078b96bd

Package include:

18650 Battery Capacity Internal Resistance Tester X1

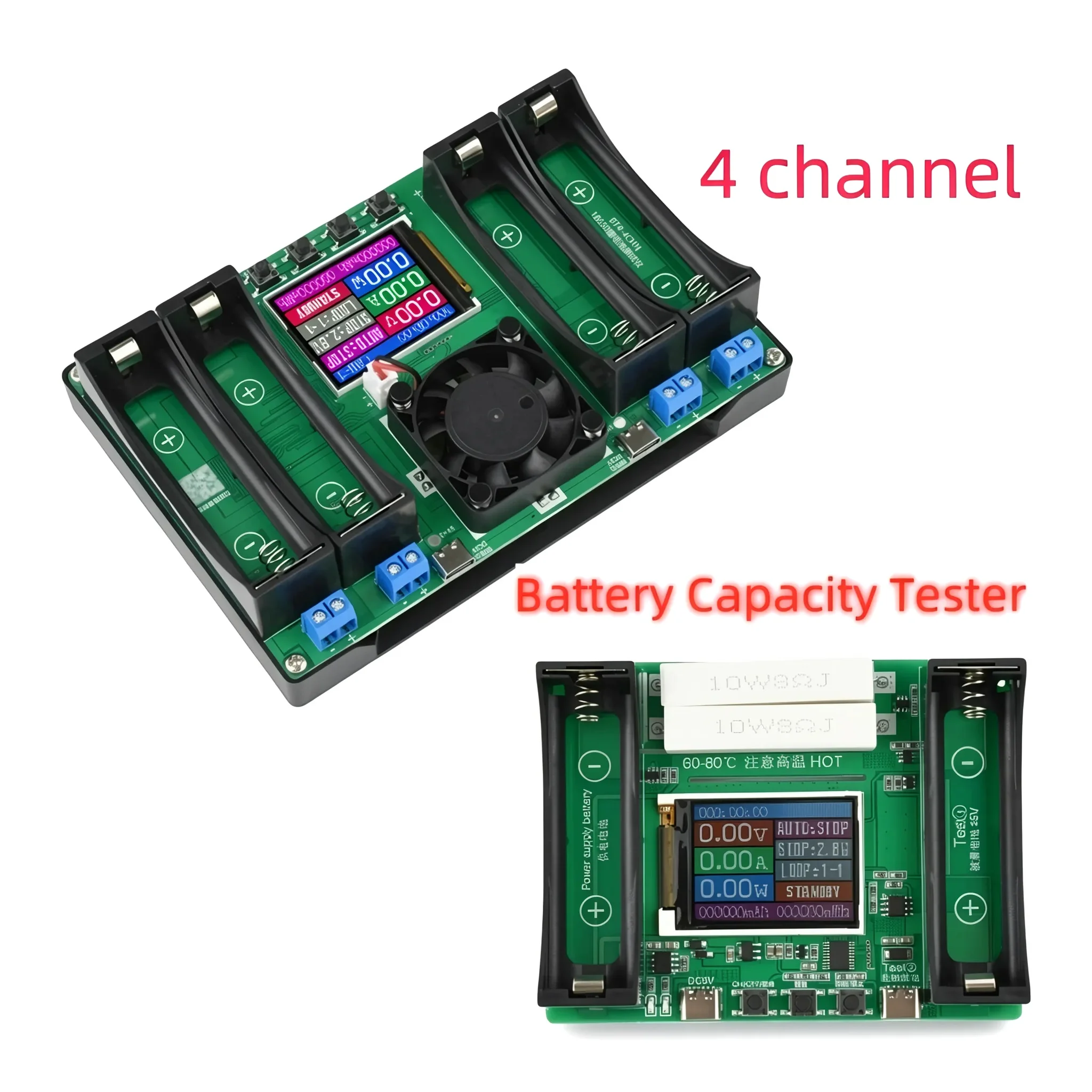

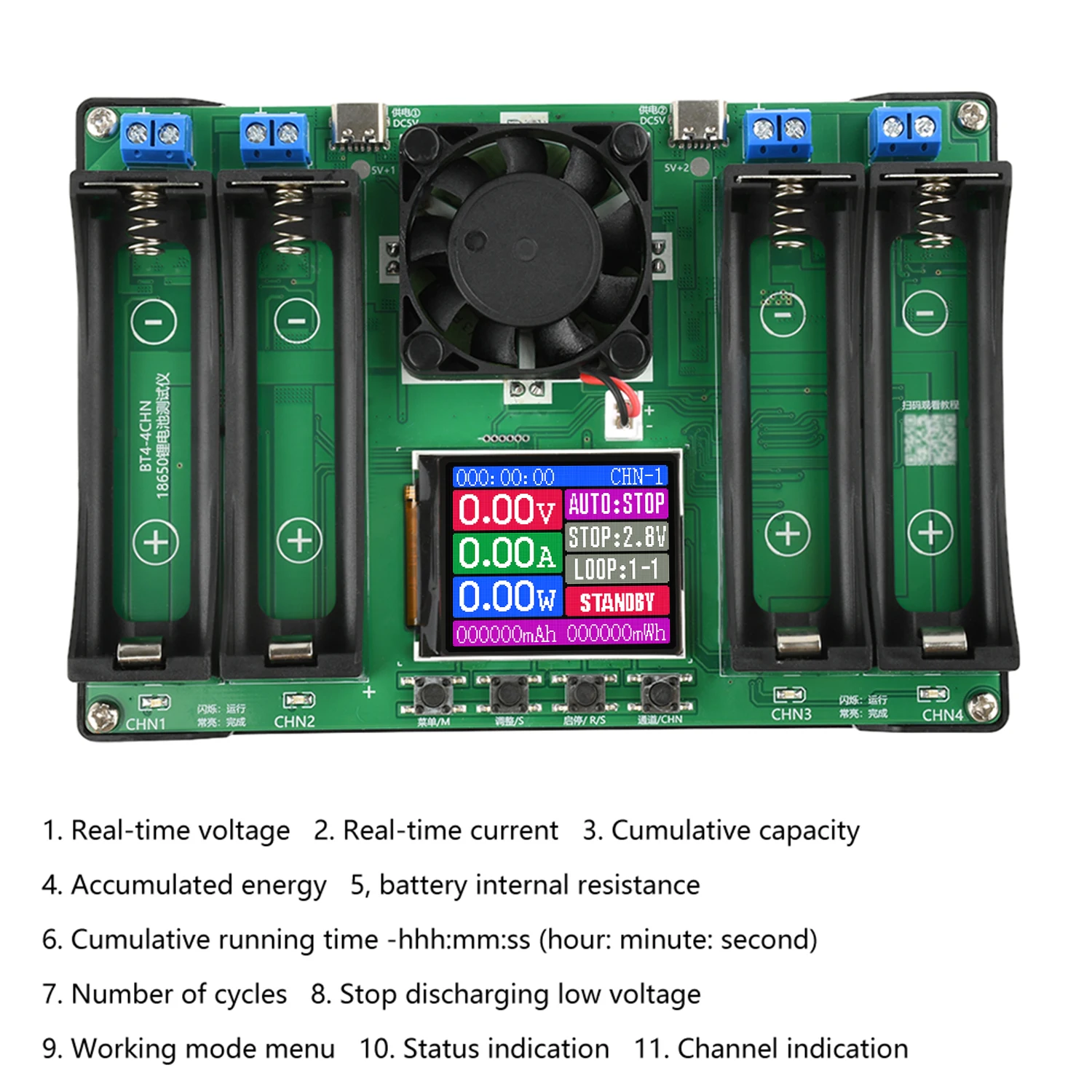

4CH

Features:

1.The product supports four-channel capacity and internal resistance measurement

2.Support separate charging and discharging, and support up to 9 charging and discharging cycles in automatic mode

3.Each channel is independent of each other, set separately, operates independently, and does not interfere with each other

4.18650 battery holder uses compact battery holder, suitable for flat-head battery measurement

5.Active cooling of fan supports overheating protection

6.Using DC two-wire method to measure internal resistance

Note: lithium iron phosphate battery charging is not supported

Parameters:

Working voltage: DC5V

Applicable battery: suitable for all batteries that meet the requirements of stopping discharge voltage of 2.5~3.5V and starting from 2.8V to 4.2V

Power supply interface: Dual Type-C power supply interface (power supply and power cord are not included)

System language: English/Chinese can be switched

Test quantity: 4-way charging and discharging measurement

Internal resistance measurement: support, use DC two-wire method to test internal resistance

Charging function: support, automatic cut-off charging when fully charged (lithium iron phosphate battery charging is not supported)

Discharge function: support, automatically stop when conditions are met, and the discharge current is not adjustable

Automatic charging and discharging: supported. The battery is fully charged at the end of automatic mode

Cyclic charging and discharging: supported, 1~9 cycles adjustable (only supported in automatic mode)

Status prompt: Supported

Cooling mode: fan active cooling

Overheat protection: support

Stop discharge voltage: 2.5V, 2.6V, 2.7V, 2.8V, 2.9V, 3.0V, 3.1V, 3.2V, 3.3V, 3.4V, 3.5V, 11 adjustable gears

Discharge current: the maximum current is about 1A, which is not adjustable, and does not support independent transformation

Charging voltage: controlled by a special battery charging chip, with a maximum charge of about 1A and a full charge voltage of 4.2V

Power-off saving: only save the set parameters, not the measurement data

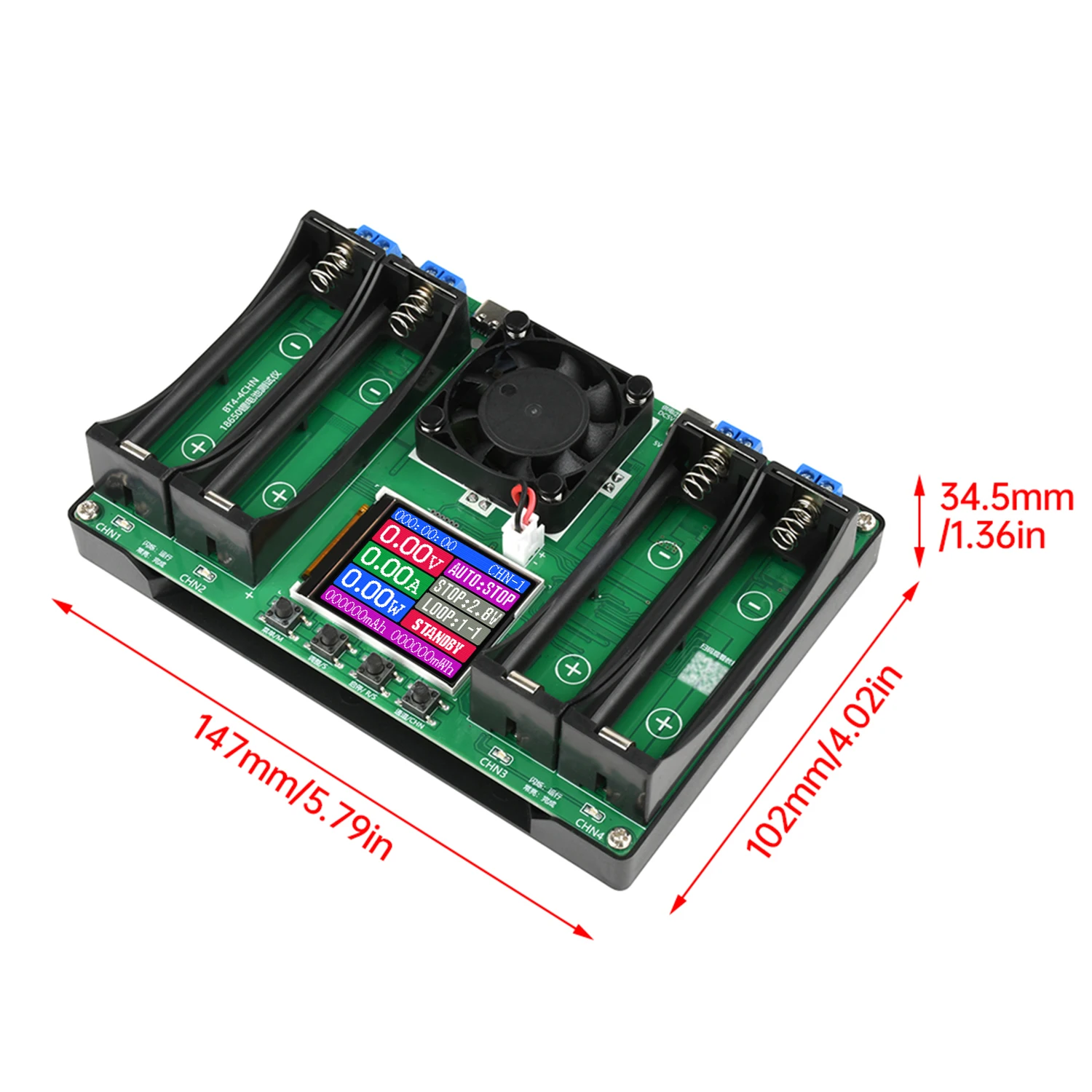

Product size: 150 × one hundred and three × 36mm

Package size: 182 × one hundred and twelve × 50mm

Data link: https://www.banber.com/gather/6374be9b2ee0e200077ec155

Package include:

18650 battery capacity internal resistance tester X1
