Ecowitt WN32(WH32) Outdoor Temperature Humidity Sensor, Single Channel Thermo-Hygro Sensor, for Replacing Data of WS69 WS80 WS90

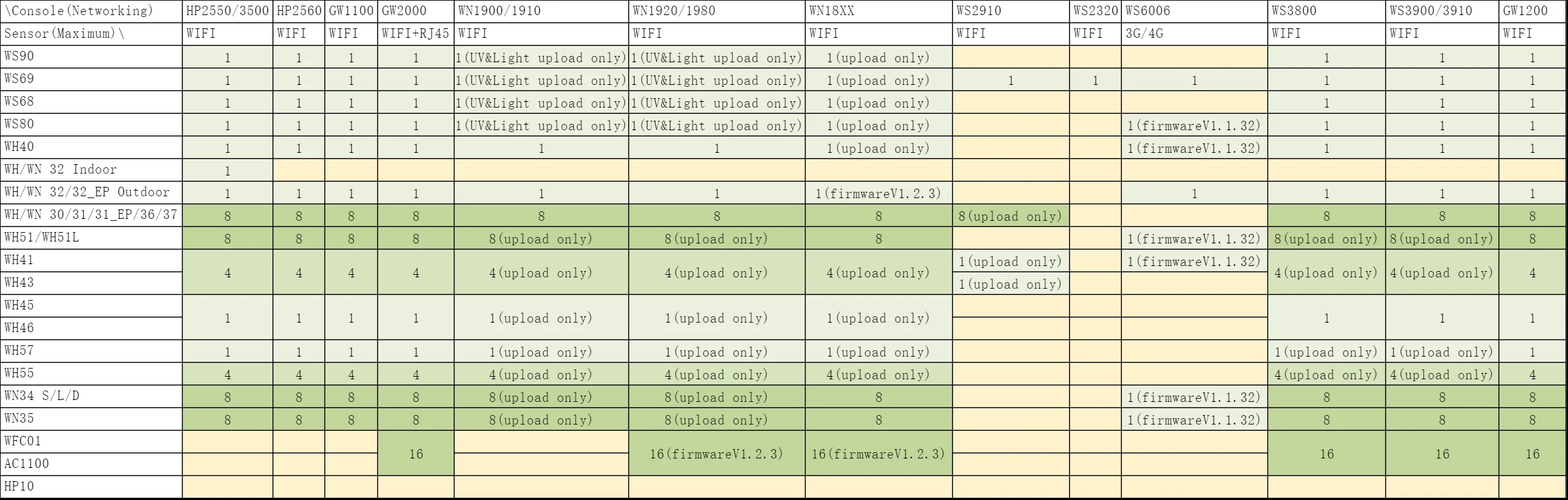

Compatibility Table for Ecowitt Products

Ecowitt WN32(WH32) Outdoor Temperature Humidity Sensor, Single Channel Thermo-Hygro Sensor Wireless Temperature and Humidity Sensor Thermometer Hygrometer Gauge with LCD Display, Designed for Replacing Data of WS69 WS80 WS90 (Sensor Only, Gateway not Included)

F​eatures

• WH32 outdoor coded supports one channel only to connect console, for there are complex algorithm to calculate Feels Like, App Temp and Dew Point.

• The WN32 outdoor sensor, overrides the temperature and humidity value from the WS69, 80, and 90 outdoor sensors, as this sensor has the highest priority against other sensor array's temperature and humidity sensors. The WN32 can only use one in the Ecowitt weather system.

• It's design for replace data of WS69 WS80 WS90 or upgrade WS68 WH40 under the same console. If you already have WS69 WS80 WS90, you don't need to buy one WN32 Outdoor sensor. Unless you need to replace the outdoor temp & humidity of WS69 WS80 WS90.

• Humidity & Temperature on LCD screen;

• One channel to work with one console only;

• The sensor data is transmitted every 64 second using RF frequency wireless signal up to 300 feet (100 meter) range.

Power Type and ℃ /℉

2 pcs AA batteries(NOT included) powered. 915MHz and 868MHz support dialing the dip switch to freely switch between ℃ and ℉. 433MHz only have °C. If you want to pair this device with GW1100 wi-fi gateway(sold separately), please refer to the GW1100 quick start to get the wi-fi configuration procedures.

Specifications

Frequency: North American: 915MHz; Europe:868MHz; Other areas: 433MHz
Power: 2 AA batteries (not included)
Sensor Size: 123x42x14mm
Temperature range: -10°C~60°C(14°F- 140°F)
Temperature display resolution: 0.1°C,or 0.1°F
Temperature accuracy: ±0.5°/±0.2°C
Humidity range: 1%~99%
Humidity display resolution: 1%
Humidity accuracy: ± 4.5%/±2%
Sensor reporting interval: 64 seconds

Package Included

1 x WN32( WH32) Outdoor Temperature and Humidity sensor
1 x User Manual

F&Q

Q1: What if I purchased the wrong frequency?

A: For example, if you are in Europe and have already mistakenly purchased the 915 MHz products.

Although the products sold in European are 868 MHz, it is ok for you to use them in Europe as long as the sensors and the gateway/receivers are the same frequency(for example, they are 915 MHz).

However, the hiding problem is that once you mistakenly purchased 1 device with 915 MHz frequency at first, when you need to purchase other ecowitt devices, you need to purchase them with the same frequency too. Only in this way can make sure the sensors and the receivers work together.

Q2: What are the differences between WN32 and WH32?

A: They are the same products and there is no difference in terms of functionality.

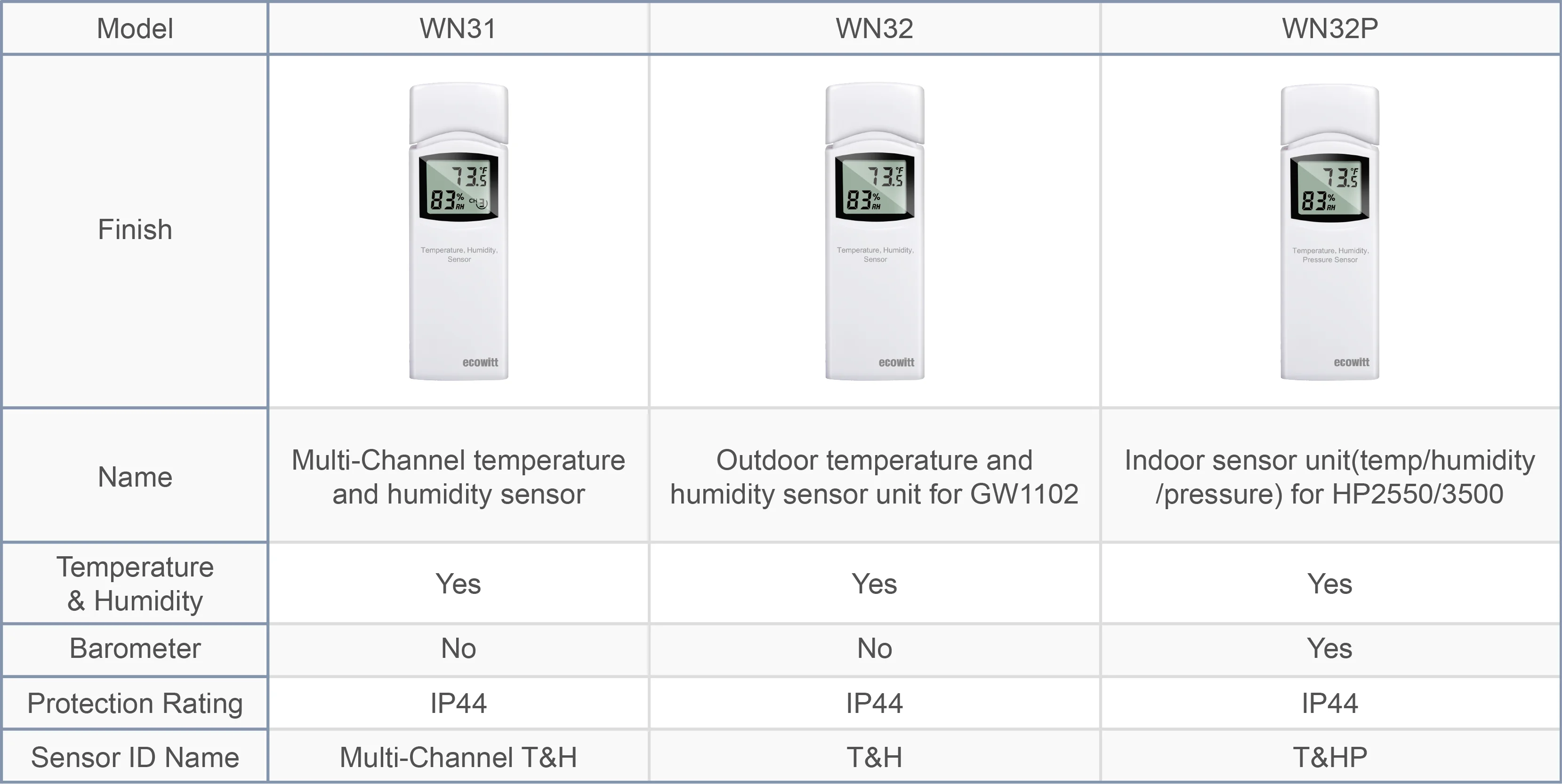

Q3: What are the differences between WN32 and WN31?

A: 1. WN32 sensor worked as dedicated data for "Outdoor Temperature and Humidity". The WH31 sensor works as"Multi-channel Temperature and Humidity"sensor. And maximum of 8 sensors can be hosted on a same receiver.

2. The WN32 sensor data can be hosted on weather underground, while WN31 data is not supported on WU.

3. Both the WN32 and WN31 data can be uploaded to https://www.ecowitt.net.

Q4: Can the WN32 sensor freely switch ℃/℉?

A: Now only 915MHz and 868MHz support °C/°F, 433MHz only have °C.

Q5: What are the differences between WN32 Indoor and WN32 Outdoor?

A: WN32 Indoor measures temperature, humidity and barometric, which is designed for upgrade HP2550 and HP3500.

WN32 Outdoor measures outdoor temperature and humidity, which is designed for replace data of WS69 WS80 WS90 or upgrade WS68 WH40. If you already have WS69, WS80 and WS90, please don't buy WN32 Outdoor.
