W3001 W3002 W3005 W1088 W1099 Digital Display Hygrometer Thermorelator Microcomputer Temperature Humidity Controller 12V 220V

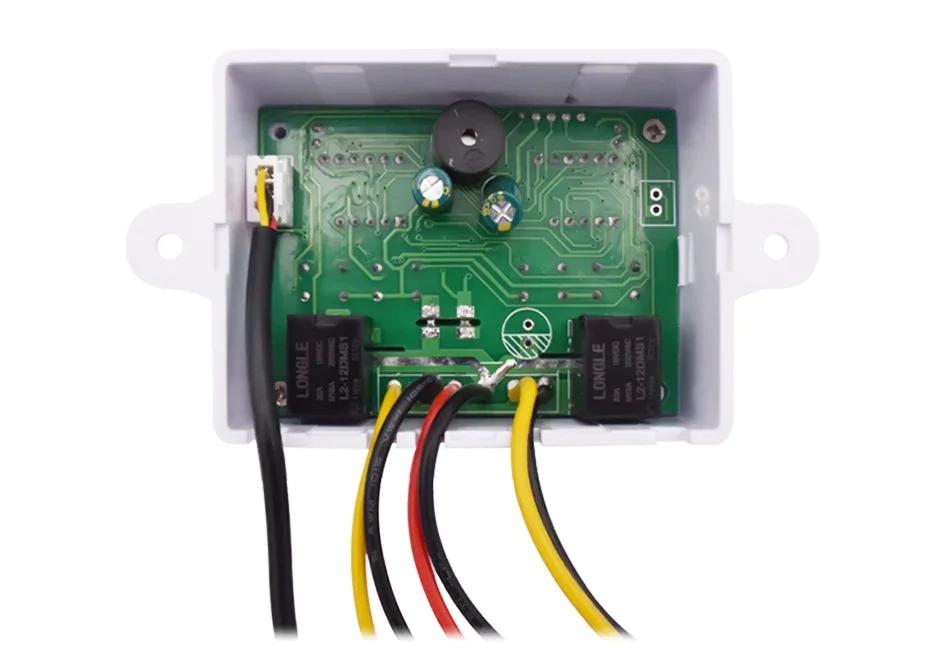

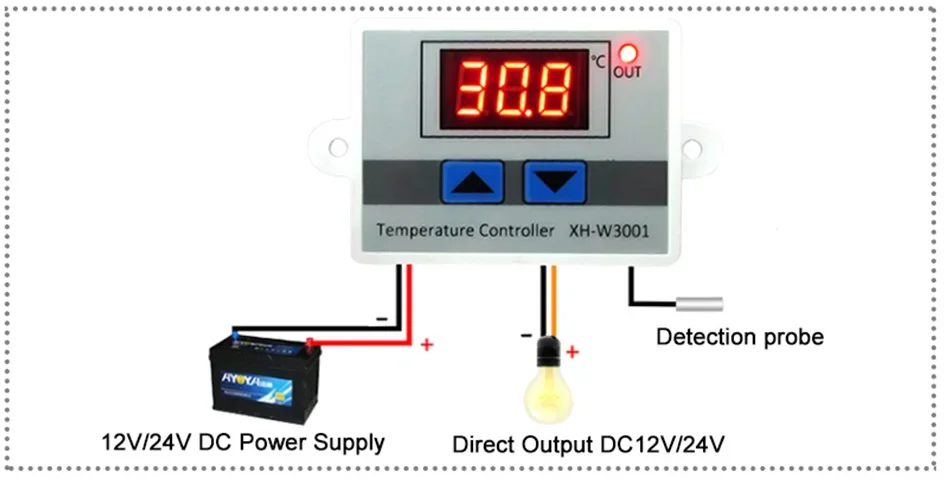

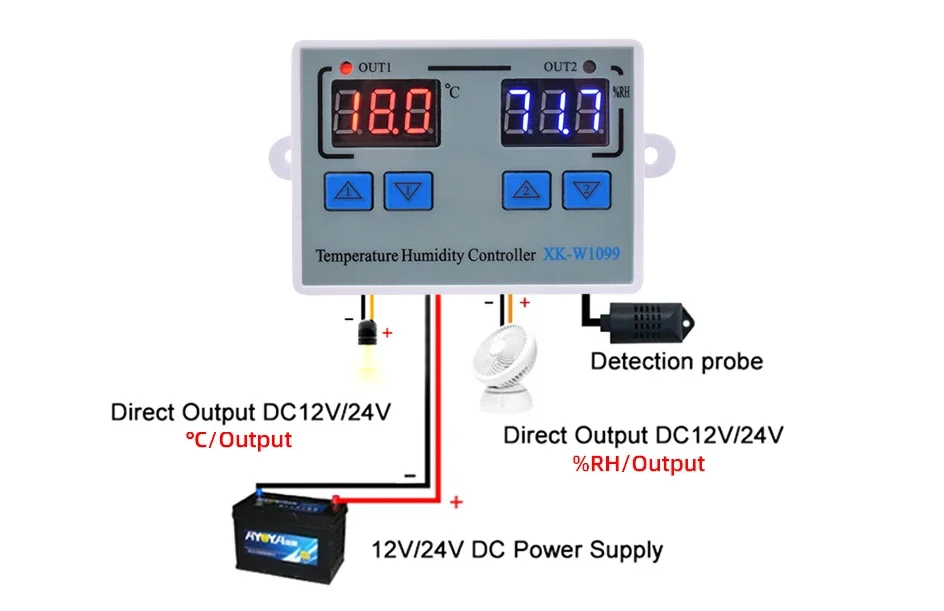

Note:

1. 12V/24VD Controller can use the transformer or 12V/24V DC Power Supply.

2. Controller is Direct Output: The output and input voltage are synchronized.
When the controller is working ( the indicator light is on), the output voltage is the same as input voltage;
When the controller is off (the indicator light is off), the output will do not have voltage.

YIDI W3001 W3002 W3005 W1088 W1099 Digital Display Microcomputer Temperature Humidity Controller 12V 24V 110V 220V Hygrometer Thermorelator Heating Cooling Control

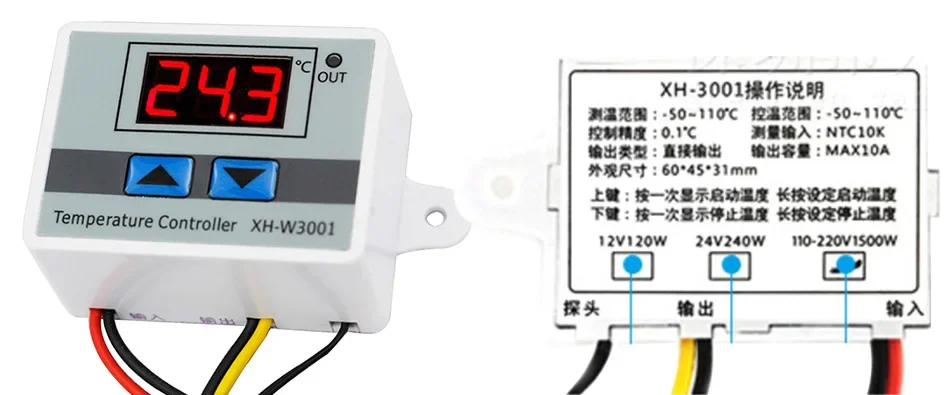

1. XH-3001 Temperature Controller

Description:

Temperature Range: -50℃~110℃
Supply Voltage:12VDC/24VDC/110-220VAC
Load Power: 120W/240W/1500W
Control Range: -50℃~110℃
Measurement Temperature Accuracy: ±0.2℃
Temperature Control Accuracy: ±0.1℃
Measurement Input: 1m NTC10K Whaterproof Probe
Output Type: Direct Output
Output Capacity: 10A Max
Mounting Pitch: 73mm (4mm aperture)
Dimension: 60x45x31mm

Product Advantages:

A. Clearly displayed birght digital reading. Can be clearly read whether in day or at night.

B. Sensor probe is connected via 2P terminal, and can be replaced. If need to use other probe, can be replaced easily.

C. Material of shell is ABS. Looks beautiful; With 1.8mm thick; High mechanical strength.

D. Wide temperature control range of -50~110℃, can be used in various fields. The temperature control accuracy is ±0.1℃

E. Convenient to be used in various industrial equipment with input & output wires. Standard cable of 20A/300V rating, safe and reliable.

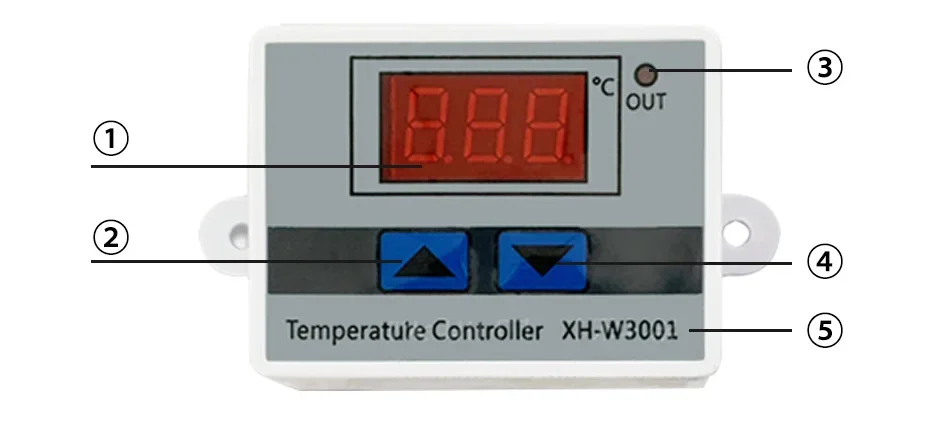

How to Set XH-W3001

① Detecting Temperature
② UP Button
③ Output Indicator
④ Down Button
⑤ Item No.

A. Set The Starting Temperature：
Press the UP button once to show the starting temperature;
Long push the UP button more than 3 seconds until the reading flashing, then push the UP or Down button to set the Starting Temperature Value.

B. Set Stop Temperature:
Press the Down button once to show the stop temperature;
Long push the Down button more than 3 seconds until the reading flashing, then push the UP or Down button to set the Stop Temperature Value.

C. Reset:
When the power is on, long press the UP and Down button at the same time. The reading shows 888, and then the controller automatically jumps to the detection temperature.

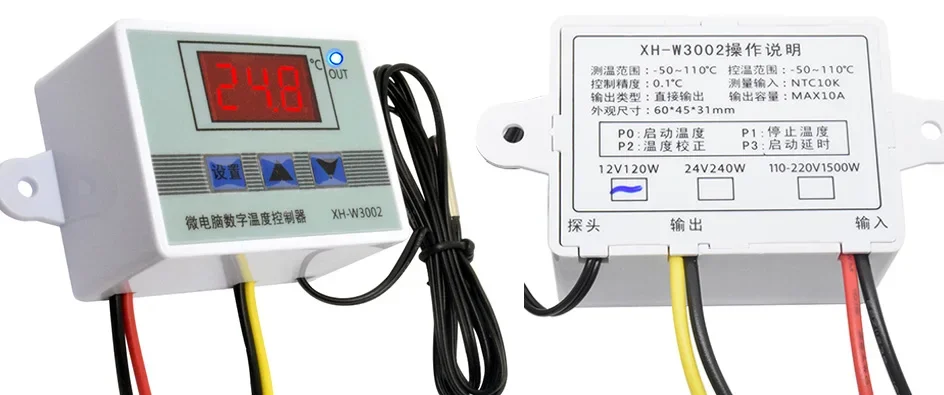

2. XH-W3002 Microcomputer Temperature Controller

Product Advantages:

A. Clearly displayed birght digital reading. Can be clearly read whether in day or at night.

B. Sensor probe is connected via 2P terminal, and can be replaced. If need to use other probe, can be replaced easily.

C. Material of shell is ABS. Looks beautiful; With 1.8mm thick; High mechanical strength.

D. Wide temperature control range of -50~110℃, can be used in various fields. The temperature control accuracy is ±0.1℃

E. Convenient to be used in various industrial equipment with input & output wires. Standard cable of 20A/300V rating, safe and reliable.

Description:

Temperature Range: -50℃~110℃
Supply Voltage:12VDC/24VDC/110-220VAC
Load Power: 120W/240W/1500W
Control Range: -50℃~110℃
Measurement Temperature Accuracy: ±0.2℃
Temperature Control Accuracy: ±0.1℃
Measurement Input: 1m NTC10K Whaterproof Probe
Output Type: Direct Output
Output Capacity: 10A Max
Mounting Pitch: 73mm (4mm aperture)
Dimension: 60x45x31mm

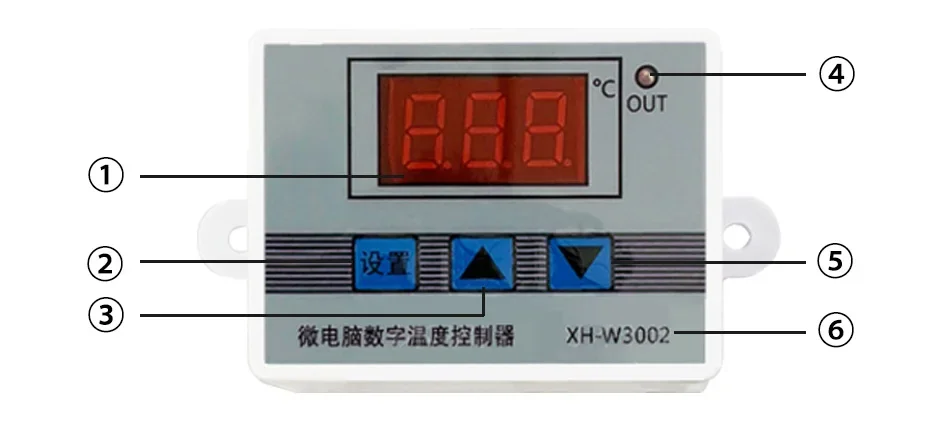

How to Set XH-W3002

① Detecting Temperature
② Set Button
③ UP Indicator
④ Output Indicator
⑤ Down Button
⑥ Item No.

P0 Set The Starting Temperature：
Press Set Button go to the manual, choose P0;
Press the set button again, then press the UP and Down Button to set the starting temperature.

P1 Set Stop Temperature:
Press Set Button go to the manual, then press the UP and Down button to choose P1;
Press the set button again, then press the UP and Down Button to set the stop temperature.

P2 Set Temperature Correction
Press Set Button go to the manual, then press the UP and Down button to choose P2;
Press the set button again, then press the UP and Down Button to set the temperature correction;

P3 Set Delay Start
Press Set Button go to the manual, then press the UP and Down button to choose P3;
Press the set button again, then press the UP and Down Button to set the delayed start time ( Unit: Minute)

Reset:
When the power is on, long press the UP and Down button at the same time. The reading shows 888, and then the controller automatically jumps to the detection temperature.

If shows "LLL", please help check the probe is workable, or you may change the probe;

If shows " HHH", please help to check if the measurement temperature is over the rang of -50~110℃


Operation Method:
Heating Mode
Start temperature < Stop temperature
Program automatically determines the working mode is heading mode

Cooling Mode
Start temperature > Stop temperature
Program automatically determines the working mode is cooling mode

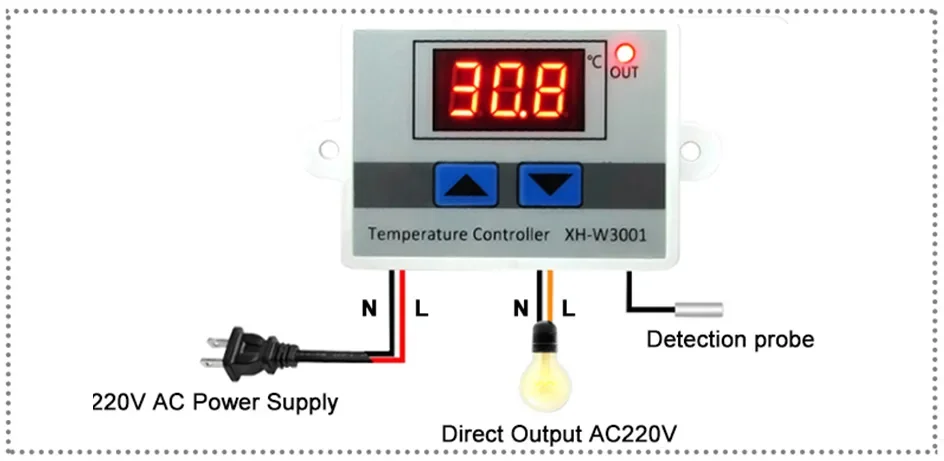

Wiring Way

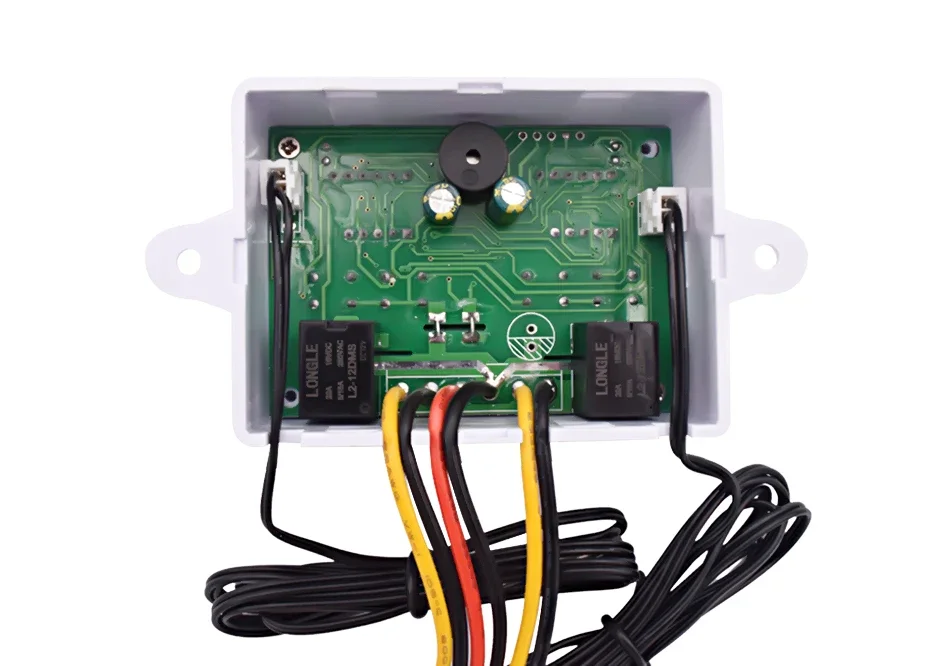

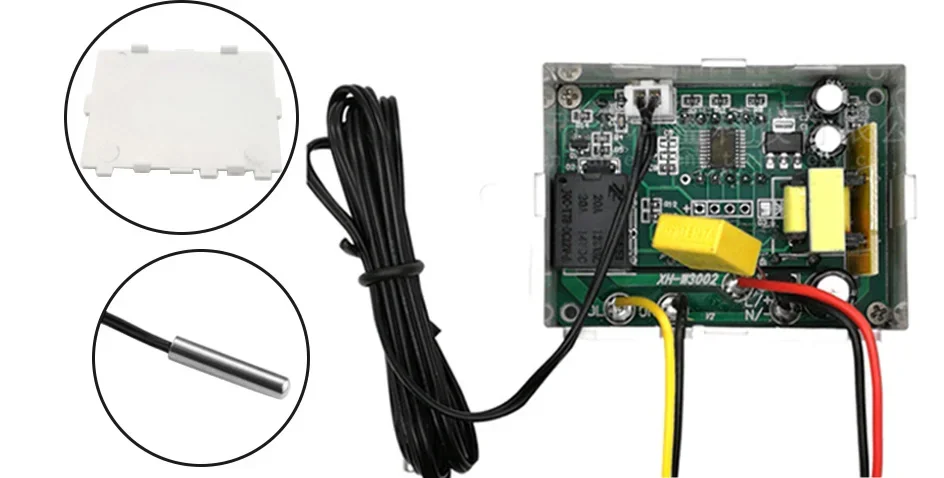

Details

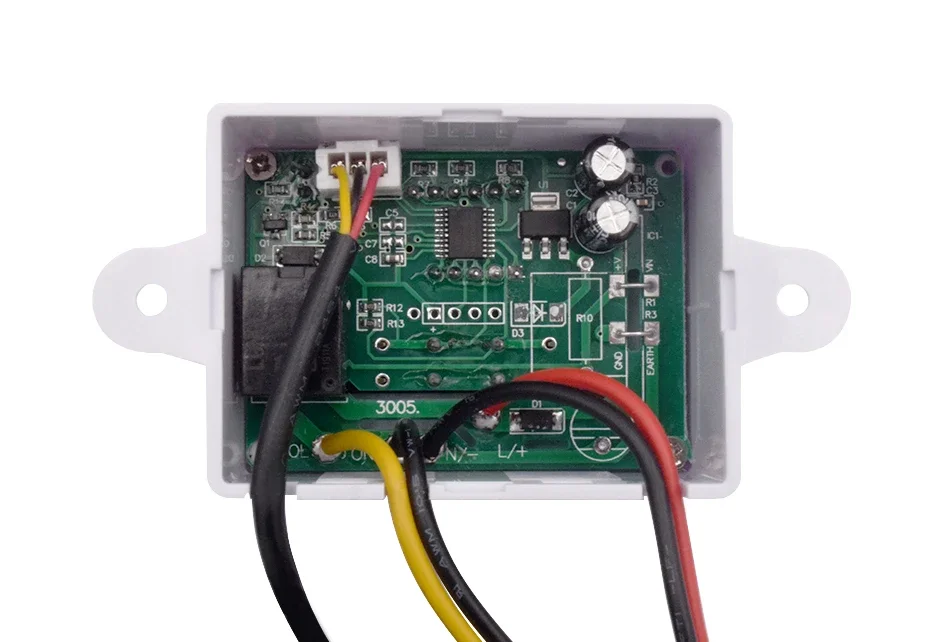

Snap-on back cover
4mm in diameter waterproof probe

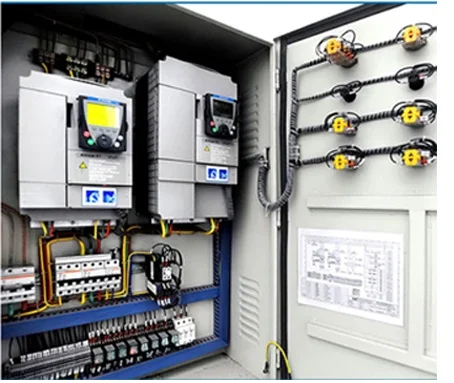

Internal Installation

Used on the control box or control cabinet
Can be installed directly inside
Disign with a back cover
Safe and reliable
Low environmental requirements

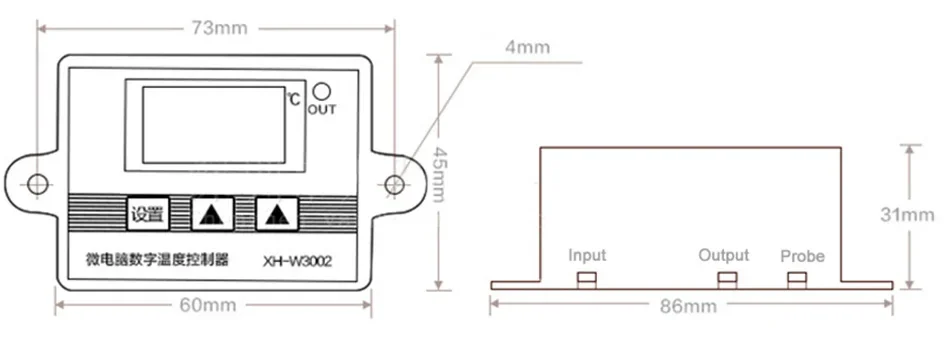

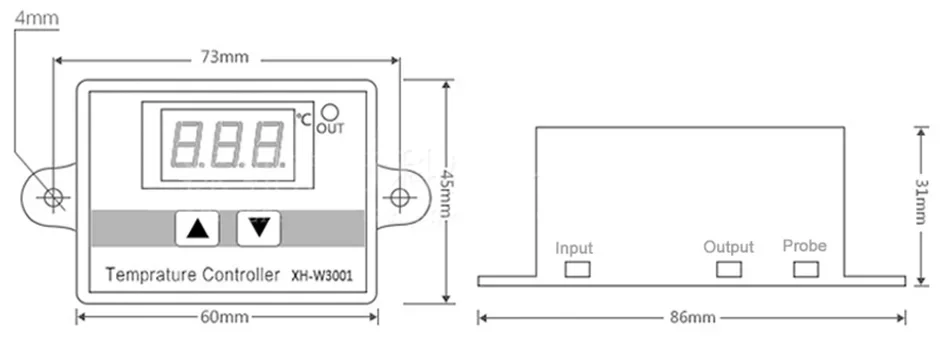

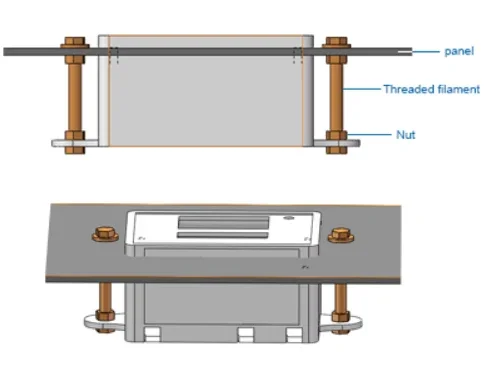

Hole Mounting

Make two holes in the place where you are going to install
The hole center spacing is 73mm
The hole diameter is 4mm

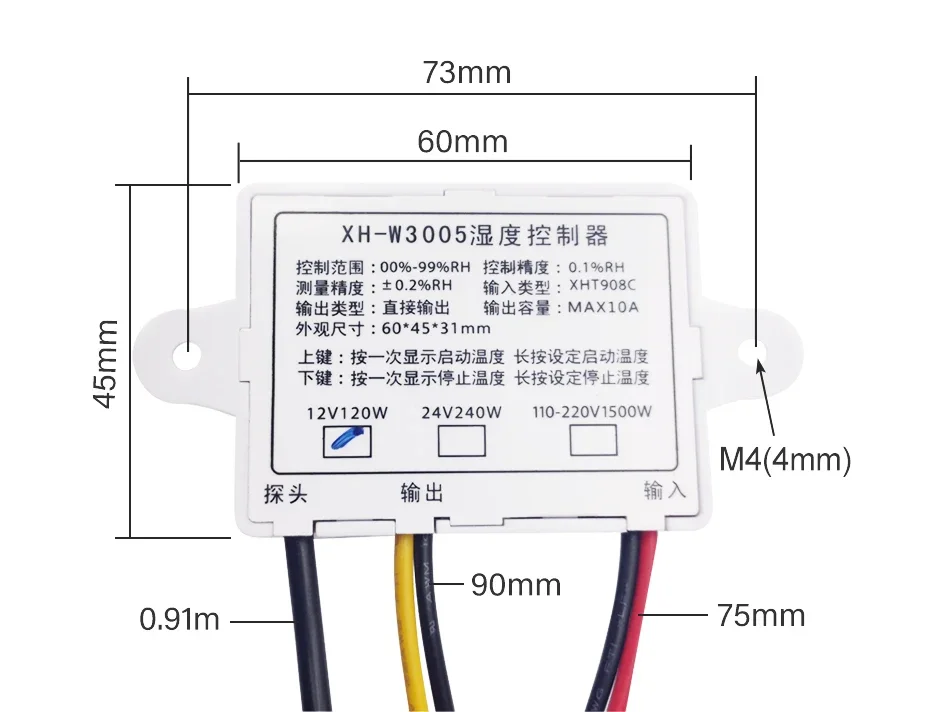

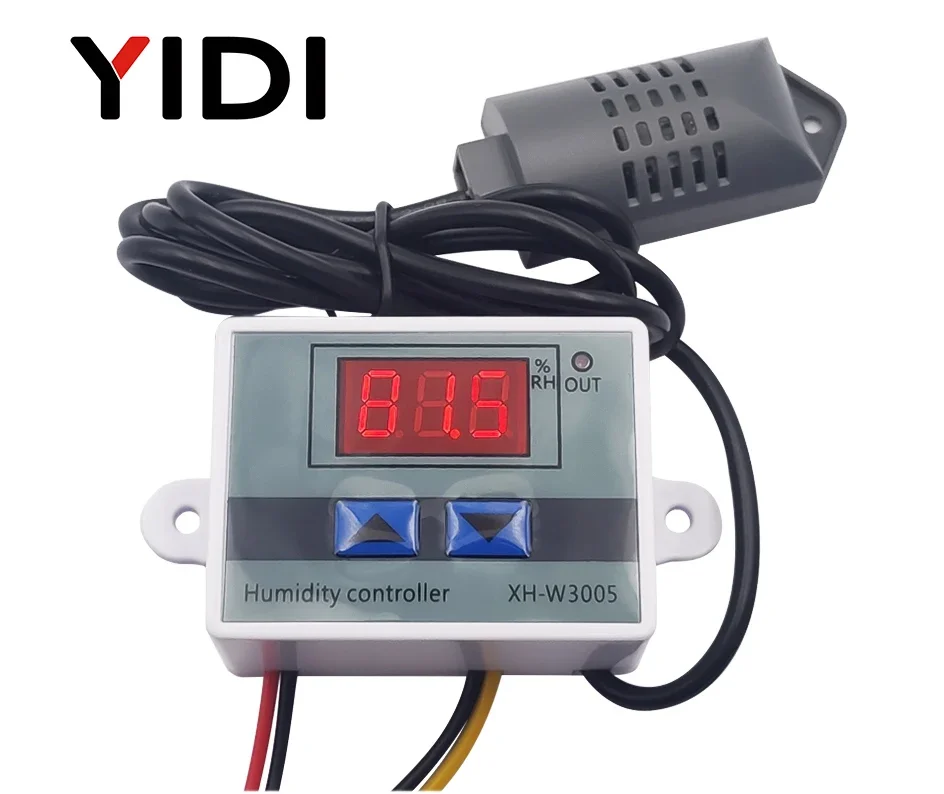

3. XH-W3005 Humidity Controller

Description:

Model: XH-W3005
Humidity Range: 00%~99%RH
Humidity Control Accuracy: 0.1% RH
Measurement Accuracy: ± 2% RH
Load Power: 12v 120w or 24v 240w or 220v 1500w (depending on your choice)
Output: Max10A
Output Type: Direct output
Sensor length: 1m
Size: 60* 45 * 31 mm

Packing List: 1x Humidity Controller

How to Set XH-W3005

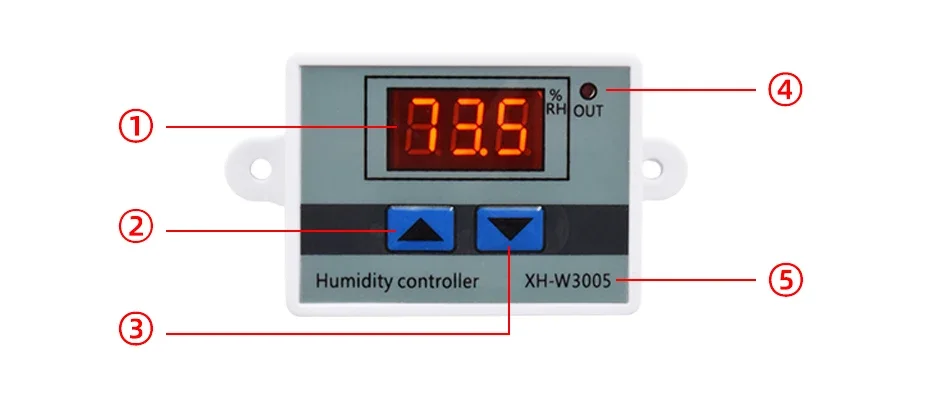

① Detecting Humidity
② Up Button
③ Down Button
④ Output Indicator
⑤ Item No.

Instructions:
Connect to power supply, diplay indicating humidity.

A. Set the starting humidity:
Press the Up button once to show the starting humidity;
Long push the Up button more than 3 seconds until the reading flashing, then push the Up or Down button to set the Starting Humidity Value.

B. Set stop humidity:
Press the Down button once to show the stop humidity;
Long push the Down button more than 3 seconds until the reading flashing, then push the Up or Down button to set the Stop Humidity Value.

C. Reset:
When the power is on, long press the Up and Down button at the same time for 3 seconds. The reading shows 888, and then the controller automatically jumps to the detected humidity.

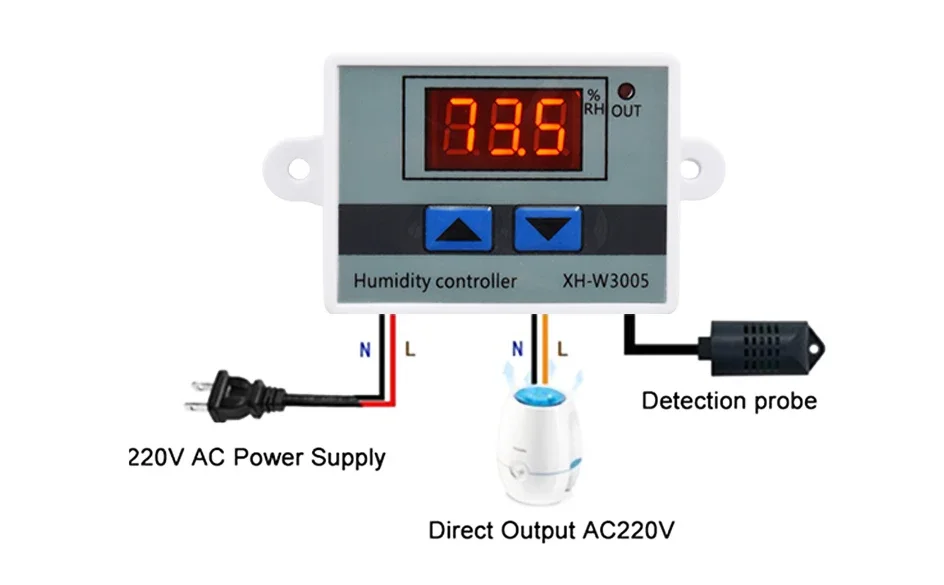

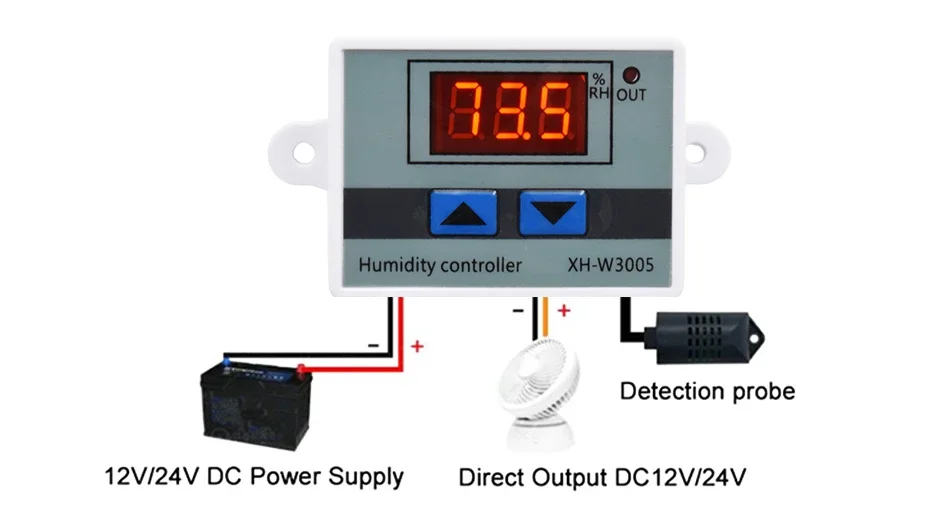

Wiring Way

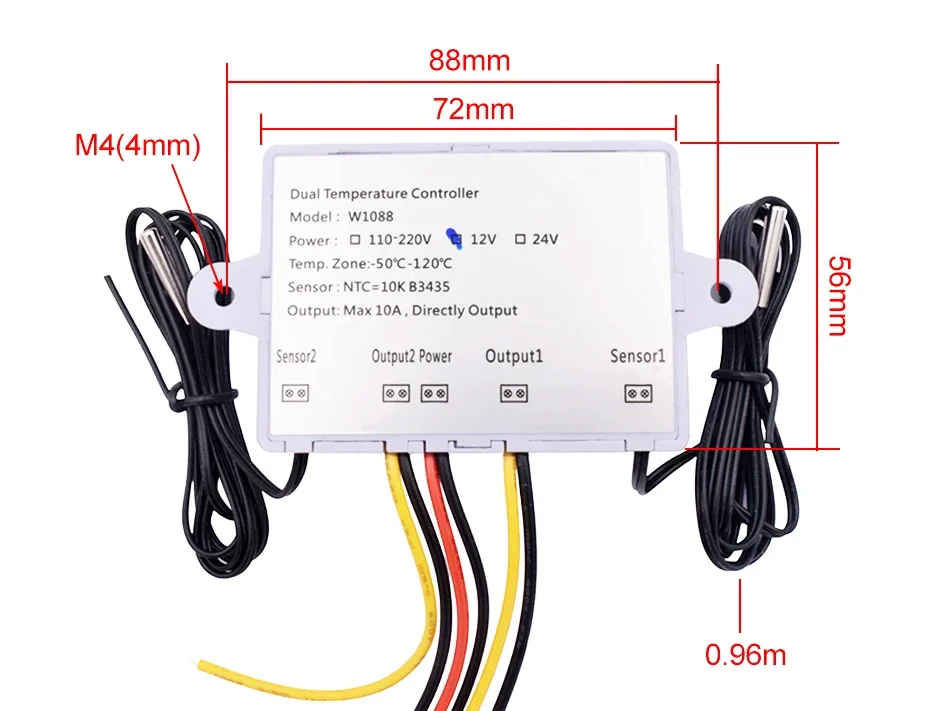

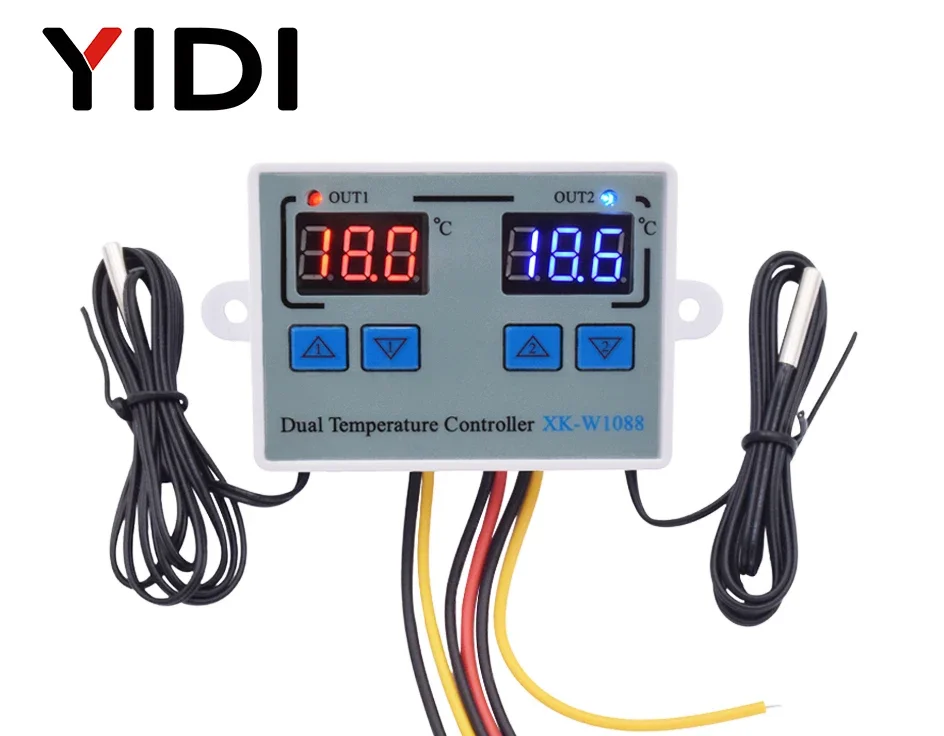

4. XK-W1088 Dual Display Temperature Controller

Features:

Heating or cooling control
Red and blue dual led display
Independent Dual-way temperature controller
Temperature display resolution 0.1
Directly power output
Support high(low) temperature alarm and support for power loss (the parameters of the sudden power failure are still valid)
Application range is like home temperature control, farm, various cold storage, greenhouse, aquarium, etc.

Specifications:

Display Type: Digital
Shell Material: ABS + PCB
Temperature Sensor: NTC 10K
Senor Length: 1m
Temperature Measuring Range: -55 ° C ~ 120 ° C
Resolution: 0.1 ° C
Accuracy: ±1° C
Power Supply: 110-220VAC 50/60Hz, 12V DC , 24V DC(Please choose power supply when ordering)
Relay Contact Capacity: Two Relay Max 10A
Output Type: Direct Output
Size: 72*56*31mm

Packing List: 1 x Temperature Controller

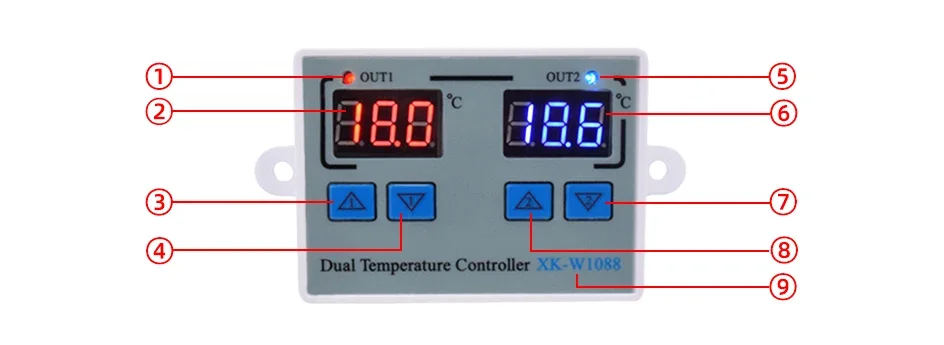

①NO.1 Work Signal
②NO.1 Measured Temperature
③NO.1 Start Temperature Set
④NO.1 Stop Temperature Set
⑤NO.2 Work Signal
⑥NO.2 Measured Temperature
⑦NO.2 Stop Temperature Set
⑧NO.2 Start Temperature Set
⑨Item NO.

How to Set XH-W1088

A. Set The Starting Temperature:
Press the UP button once to display the starting temperature. Long press the UP button for about 3 seconds,The required temperature can be set by the UP and DOWN buttons.


B. Set Stop Temperature:
Press the DOWN button once to display the stop temperature. Long press the button for about 3 seconds and the stop temperature number flashes. The required temperature can be set by the UP and DOWN buttons.

C. Set mode:
Press UP ① and UP② buttons for 3 seconds at the same time to enter the setting mode, display P0, the first group temperature delay, press UP ② and DOWN ② to adjust, 0~60 minutes, default 0, after adjustment, press UP ① since P1, the second group temperature delay, press UP ② and DOWN ② to adjust, 0~60 minutes, default 0. After adjustment, press UP ① since P2, high temperature alarm function, default 120 ℃, press UP ② and DOWN ② to adjust. Press UP ① to enter P3, low temperature Alarm, default -55℃, press UP ② and DOWN ② to adjust, wait for the second to automatically exit. Press DOWN ① and DOWN ② 3 seconds to reset to factory settings.

Menu Instruction
P0: Function ①: Delay start, Set Range: 0-60 minutes, Default 0
P1: Function ②: Delay start, Set Range: 0-60 minutes, Default 0
P2: Function High temperature alarm, Set Range: P3~120°C, Defaut 120°C
P3: Function Low temperature alarm, Set Range: P2~ -55°C, Defaut -55°C

D. Reset Factory Settings:
When the power is on, press the DOWN ① and DOWN ② buttons at the same time for 3 seconds. The reading shows 888, and then the controller automatically jumps to the detected temperature.

E. Temperature Correction:
Press UP ① and Down ① at the same times for 3 seconds to display 0.0, and then set the value by pressing the Up① and Down① buttons.
Positive Value = Measured Value +Corrected Value( NO.2 temperature correction is the same method, press UP ② and Down ② buttons )

F. Heating Cooling Method:
Heating Mode
Start temperature < Stop temperature
Program automatically determines the working mode is heading mode

Cooling Mode
Start temperature > Stop temperature
Program automatically determines the working mode is cooling mode

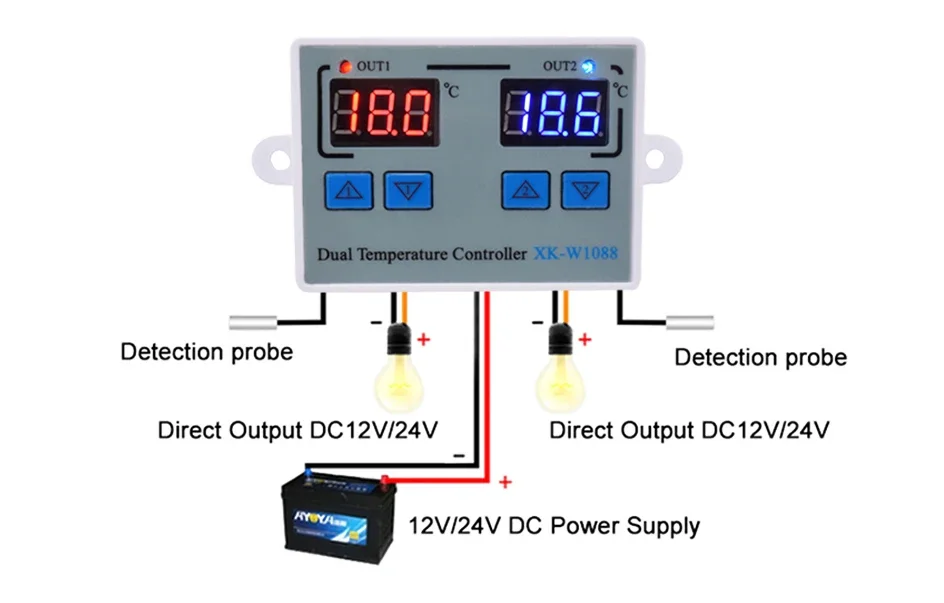

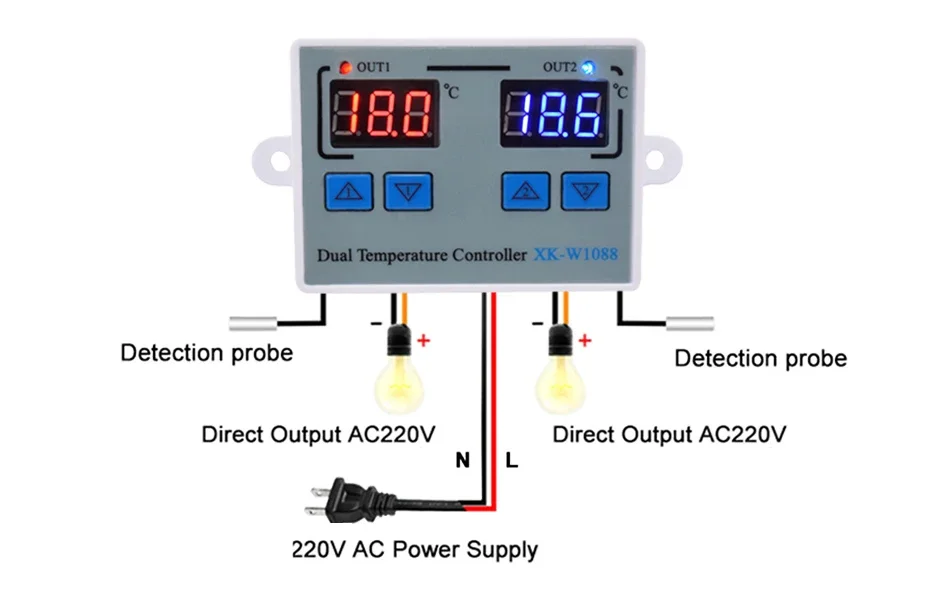

Wiring Way

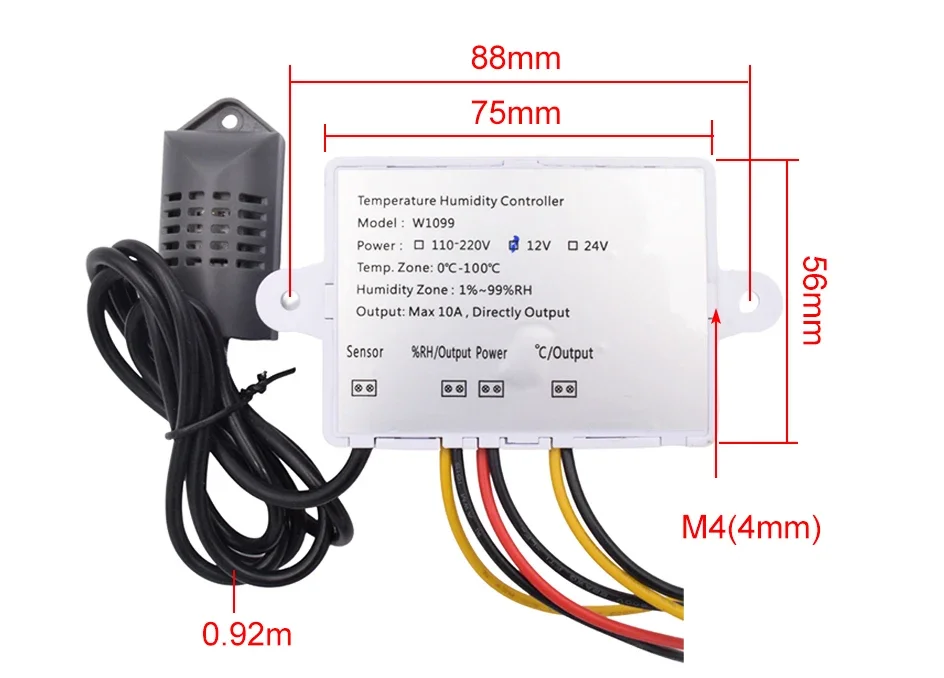

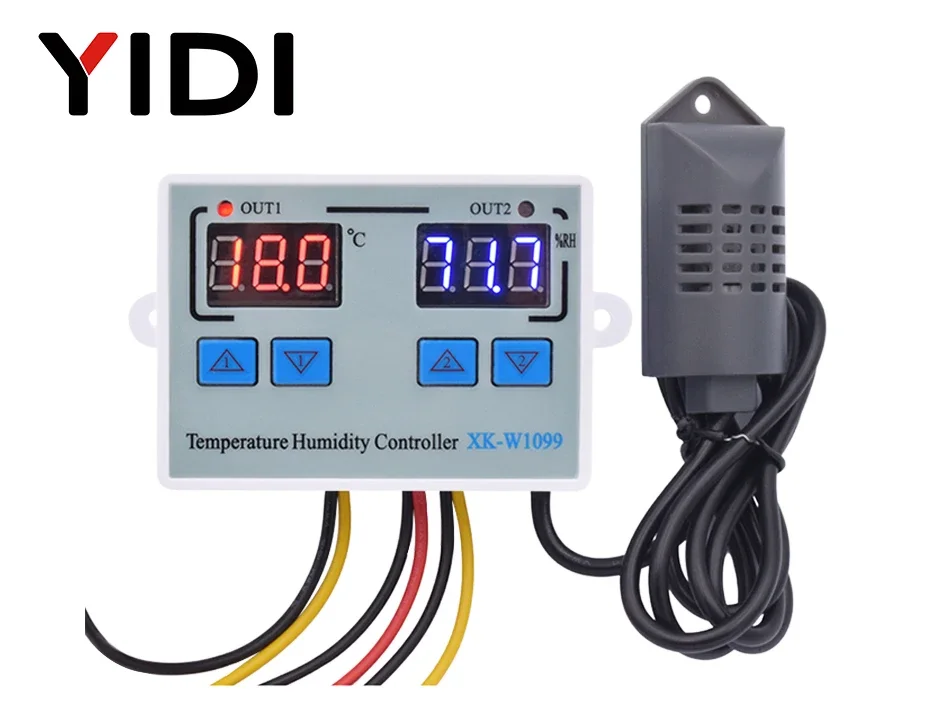

5. W1099 Digital Temperature Humidity Controller

Features:

Be able to control temperature and humidity at the same time.
Be able to connect with humidifier and dehumidifier equipment at the same time.
Be able to connect with refrigeration/ heating and humidifier/dehumidifier equipment at the same time.
Heating/Cooling function could be set separately for refrigeration and heating to protect temperature controller from violent change.Same as humidity Control.
Supporting Temp and Humidity Calibration
[Dual Display Window] Be able to display measured temperature/humidity and set temp/humidity at the same time

Specification:

ModOperation Methodel: XK-W1099
Shell Material: PC + ABS Fireproof
Input Voltage: AC110V-220V, DC24V, DC12V
Measuring Temperature Range: 0°C~100° C
Measuring humidity range: 1~ 99%RH
Accuracy: ±1°C, 0.1%RH
Relay Output Contact Capacity: Two Relay Max10A
Output Type: Direct Output
Sensor Length: 1m
Size: 75*56*31mm

Packing List: 1 X Temperature Humidity Controller

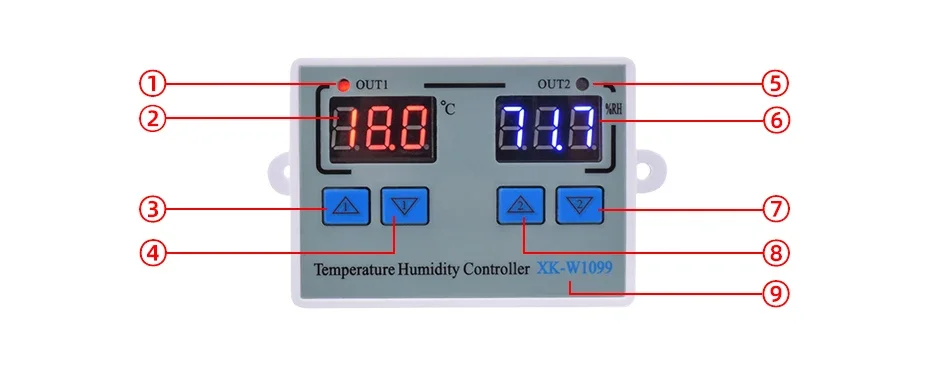

① Temperature indicator
②Temperature value
③Start temperature
④Stop temperature
⑤Humidity indicator
⑥Humidity value
⑦Stop humidity
⑧Start humidity
⑨Item NO.

How to Set XH-W1099

Set Starting Temperature:
Press the Up① button once to display the starting temperature.
Long press the Up① button for about 3 second until the starting temperature number flashes. The required temperature can be set by the Up① and Down① buttons.

Set Stop Temperature:
Press the Down① button once to display the stop temperature.
Long press the Down① button for about 3 seconds until the stop temperature number flashes. The required temperature can be set by the Up① and Down① buttons.

Set Starting Humidity:
Press the Up② button once to display the starting humidity.
Long press the Up② button for about 3 second until the starting humidity number flashes. The required temperature can be set by the Up② and Down② buttons.

Set Stop Humidity:
Press the Down② button once to display the stop humidity.
Long press the Down② button for about 3 seconds until the stop humidity number flashes. The required humidity can be set by the Up② and Down② buttons.

Temperature ( Humidity) Correction:
Press Up① and Down① buttons at the same time for 3 seconds to display 0.0, and then set the value by pressing the Up① and Down① buttons.
Positive Value = Measured Value + Corrected Value(Humidity correction is the same method, by pressing Up② and Down② buttons. )

Reset:
When the power is on, long press the Down① and Down② buttons at the same time for 3 seconds. The reading shows 888, and then the controller automatically jumps to the detected temperature( humidity).

Heating Cooling Method:
Heating Mode
Start temperature < Stop temperature
Program automatically determines the working mode is heading mode

Cooling Mode
Start temperature > Stop temperature
Program automatically determines the working mode is cooling mode

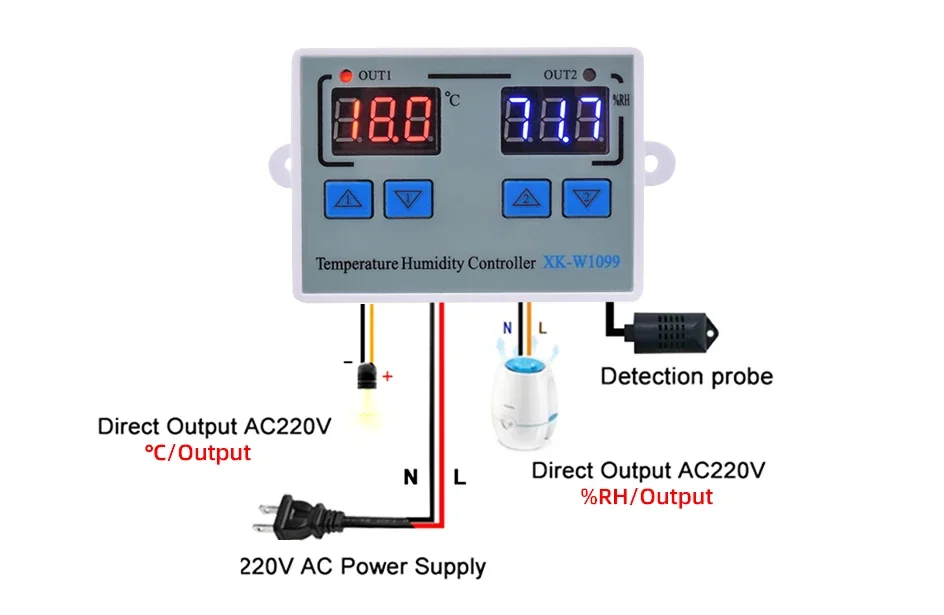

Wiring Way
