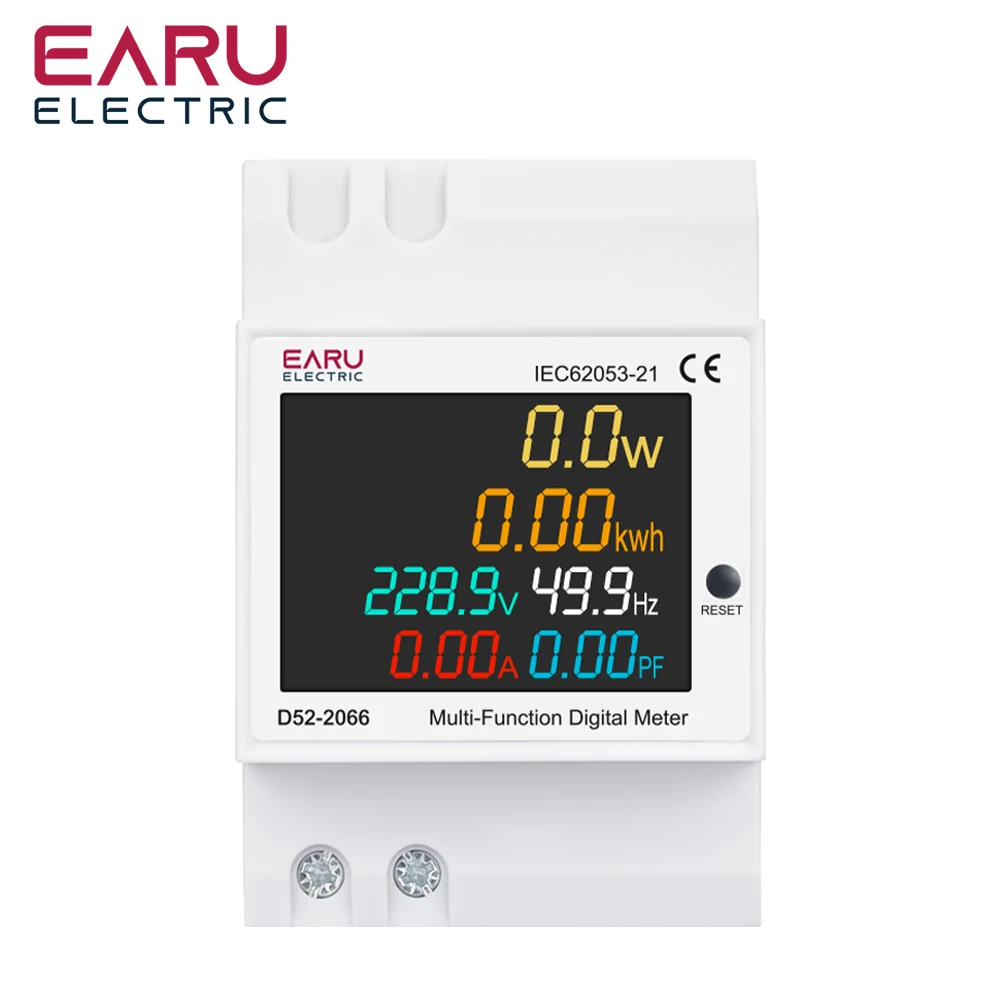

EARU 6IN1 Din Rail 110V 220V 380V 100A Voltage Current Frequency Power Factor Active Electric KWh Energy Meter Monitor Voltmeter

Technical Indicators

1. Accuracy:1%±2 words

2. Range:

AC Voltage: AC 40.0-300.0V or AC 250.0-450.0V

The measuring range AC 40-300V without limitation, and it can be used in grid power,photovoltaic and inverter current

AC250-450V only can use for 380V

AC Current:AC 0-100.0A, the current resolution is 0.01A.

Frequence: 45.0Hz-65.0Hz

Power Factor: 0.00-1.00PF

Electric Power: 0-450000W, the electric power resolution is 0. 1W when measure electric power between

0-9999.9W, otherwise the electric power resolution is 1W.

Electric Energy: 0-99999kwh, the display of electric energy resolution is 0.01kwh when measure electric

engery between 0-999.99kwh, the display of electric energy resolution is 0.1kwh when measure electric engery between 1000.0-9999.9kwh and the display of electric energy resolution is 1kwh when measure electric engery larger than 9999.9kwh

3. Speed: 2 Times Per Second

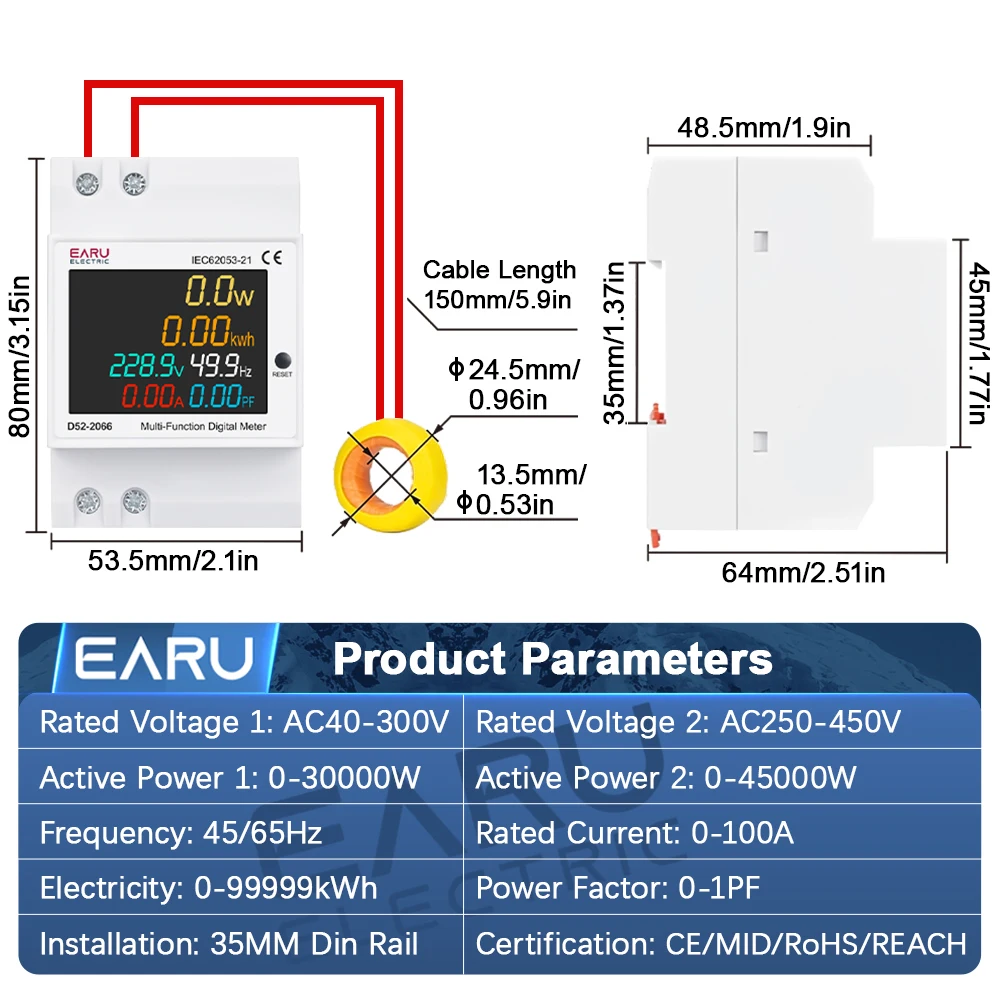

4. Size: 54×80×64

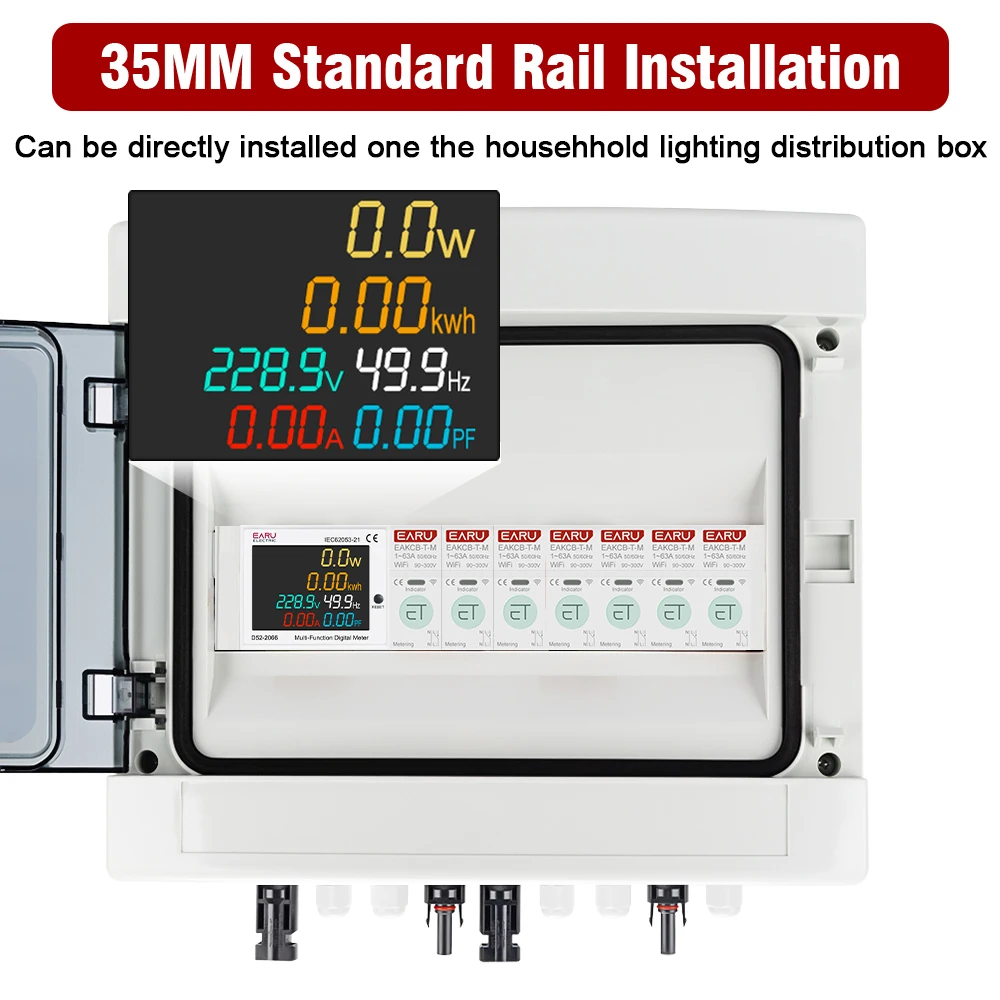

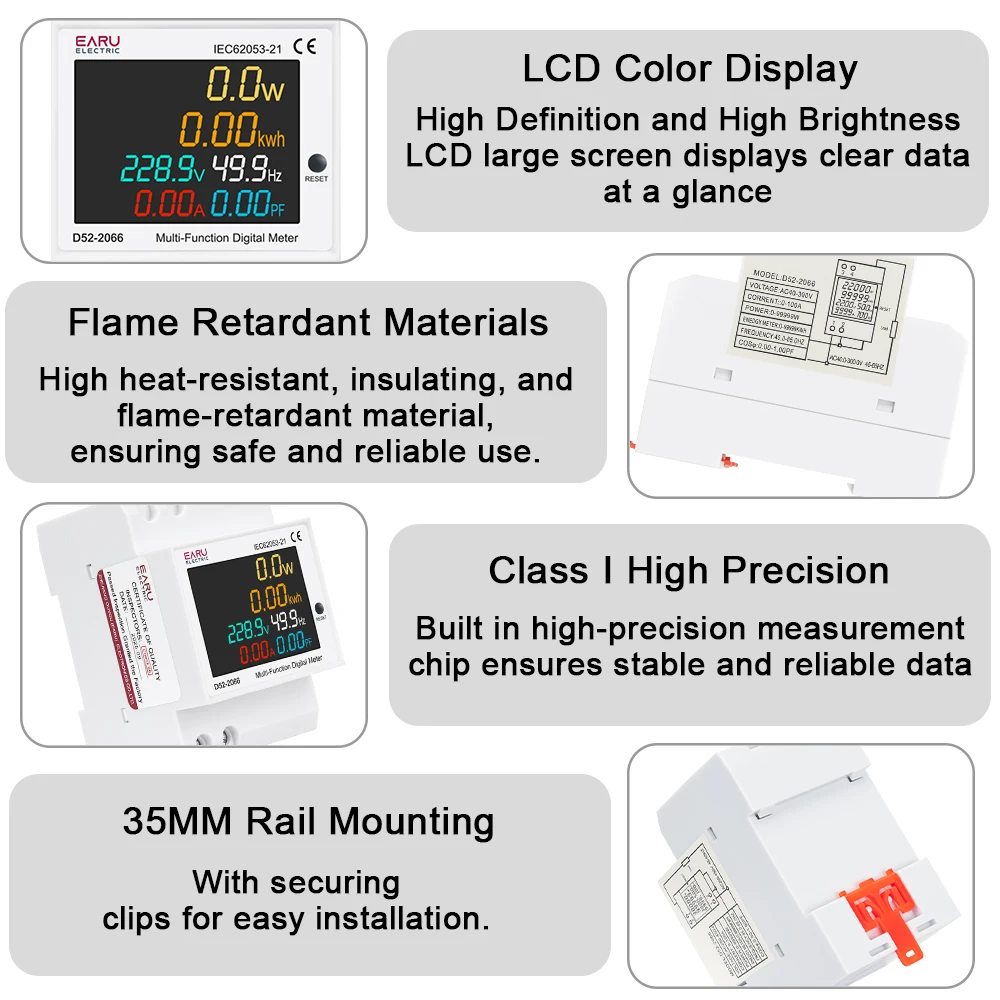

5. Installation: 35MM Din-Rail

Application Method

1. Conneet the measure voltage to the 1and2 terminal

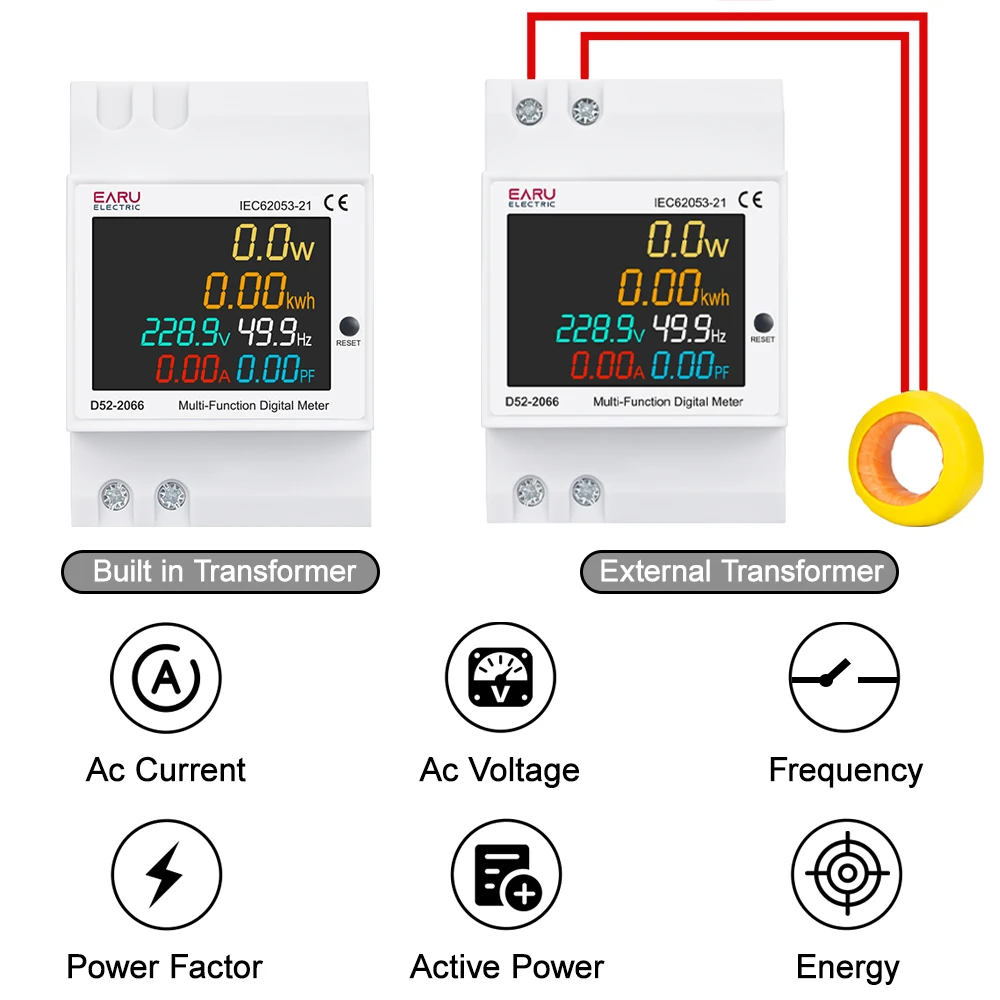

2. Conncctions of meter with internal current transformer as graph1, make the wire through the hole in the meterand the direction chose arbitrarily.

3. Connections of meter with,exterhat curent transformer as graph2,make the wire through the hole in the meter,and connect the two wires of the secondary transformer to the 3 and 4 terminal.

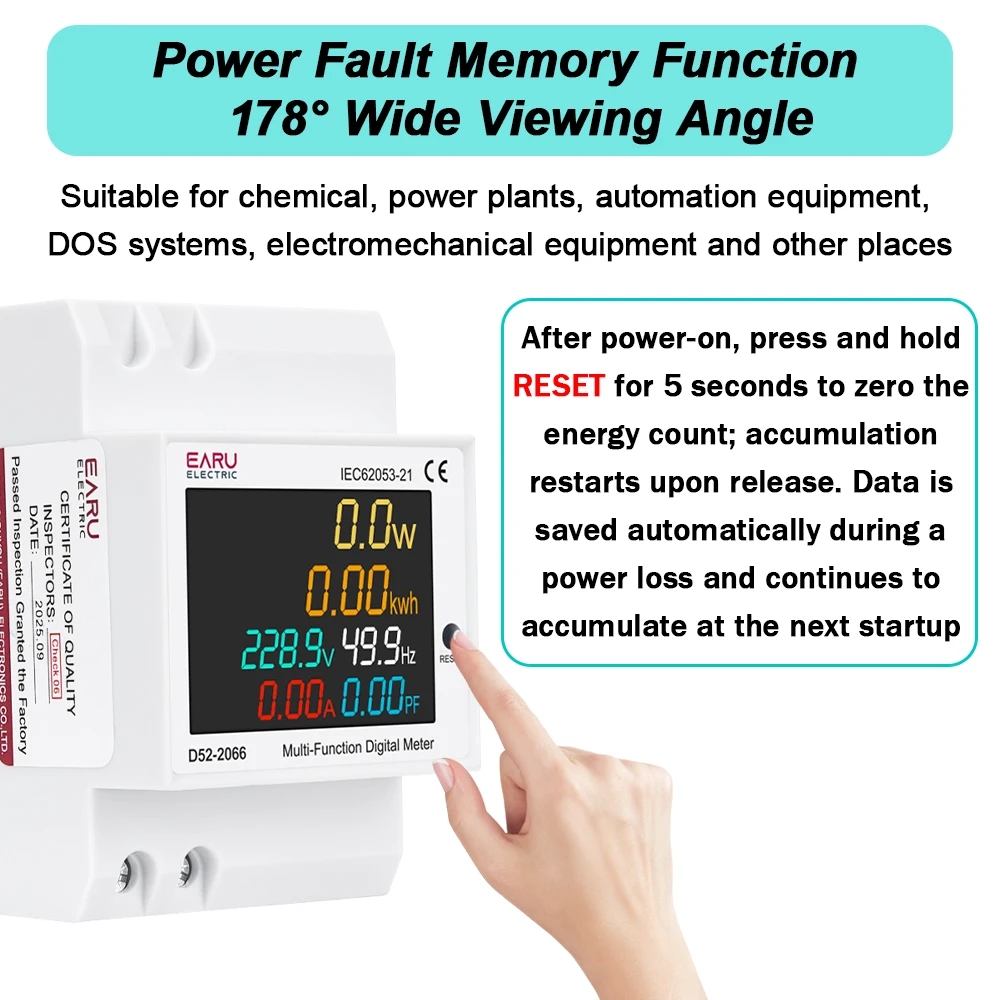

4. When power on,the meter display the measure parameters.
