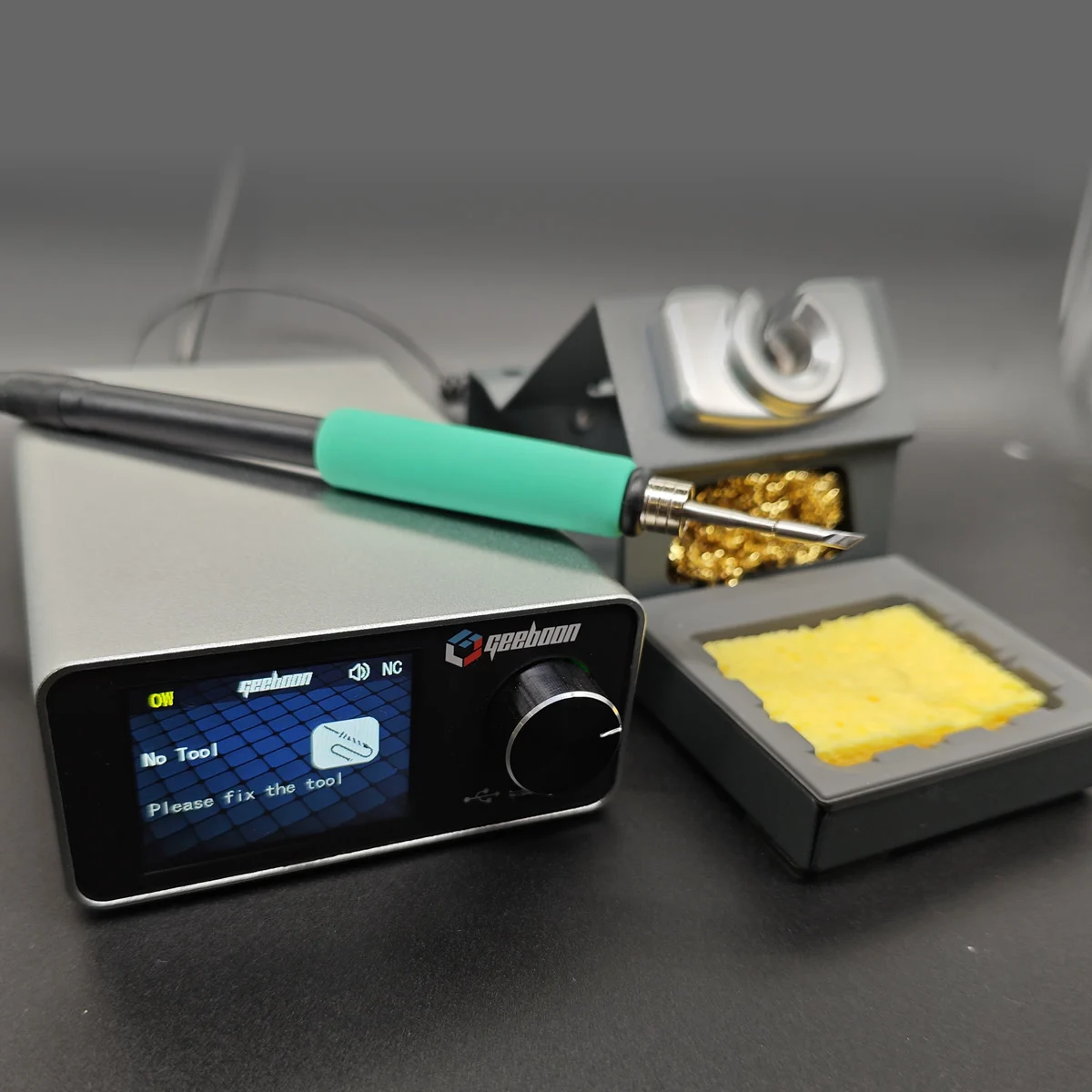

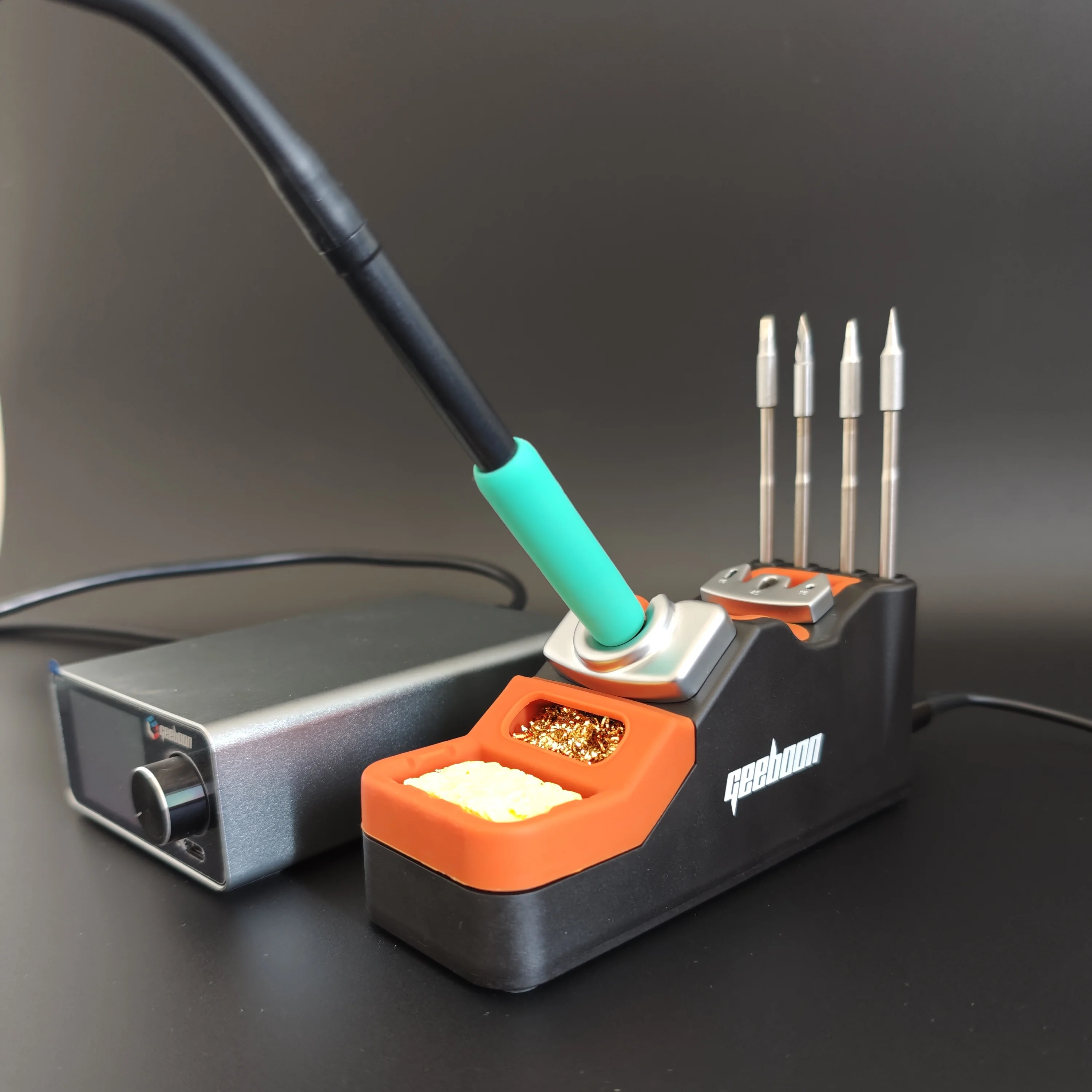

GEEBOON 220W TC22 soldering station compatible with 115/210/245/T12 soldering tip color curve display soldering rework station

TC22 The leakage voltage between the soldering iron tip and the ground wire is less than 10mV, which is lower than the ANSI/ESD S20.20 requirement.

compatible with 115/210/245/T12

Supports short-circuit protection (response time less than 12us), hot-swappable tips, performance products.

One-year warranty and lifetime cost maintenance.

Chinese and English, wide voltage support 110-240V, (110V input power supply power is about 190W)

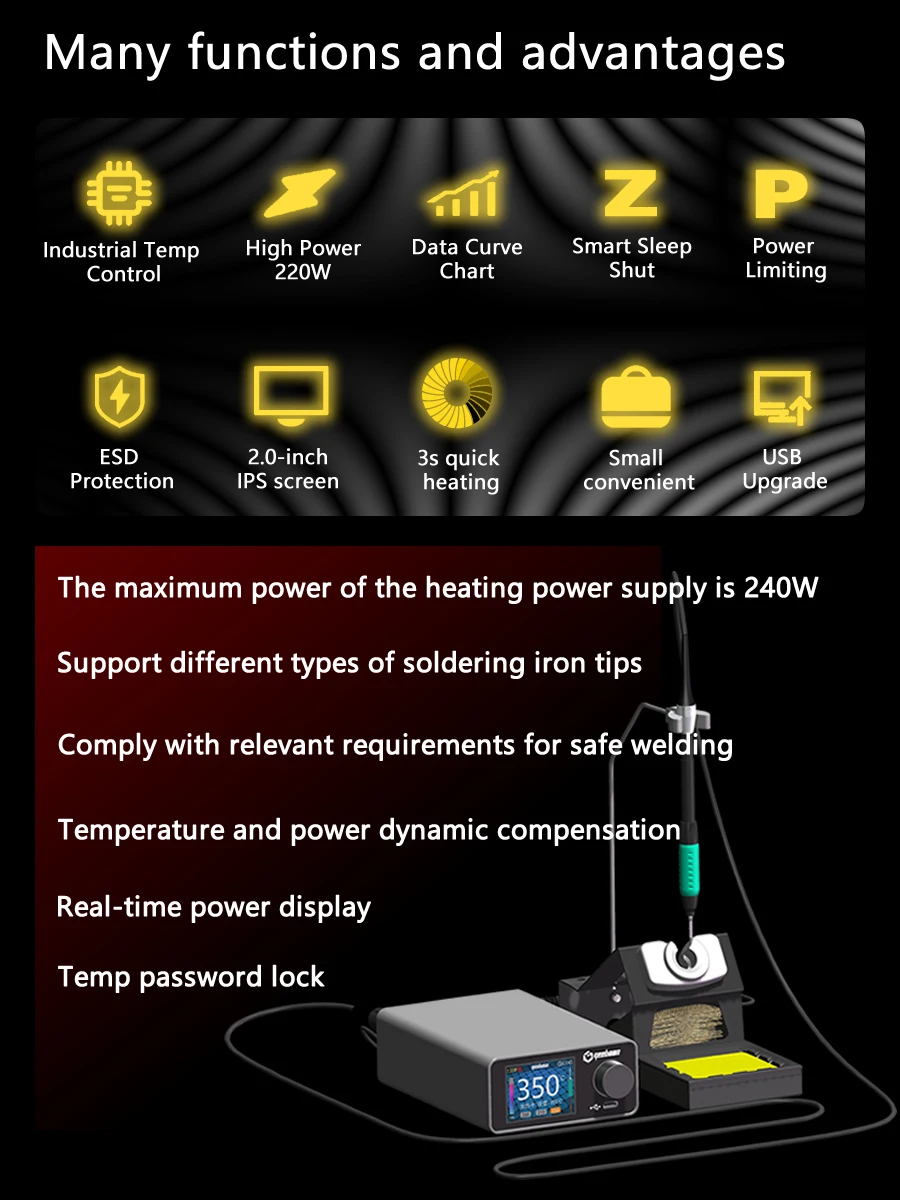

Functions & Advantages:

* Precise temperature control. Fast and stable

* 240W high power

* Dynamic curves

* Smart sleep mode

* Power limitation and multiple protections

* Safety protection: ESD/short-circuit proof

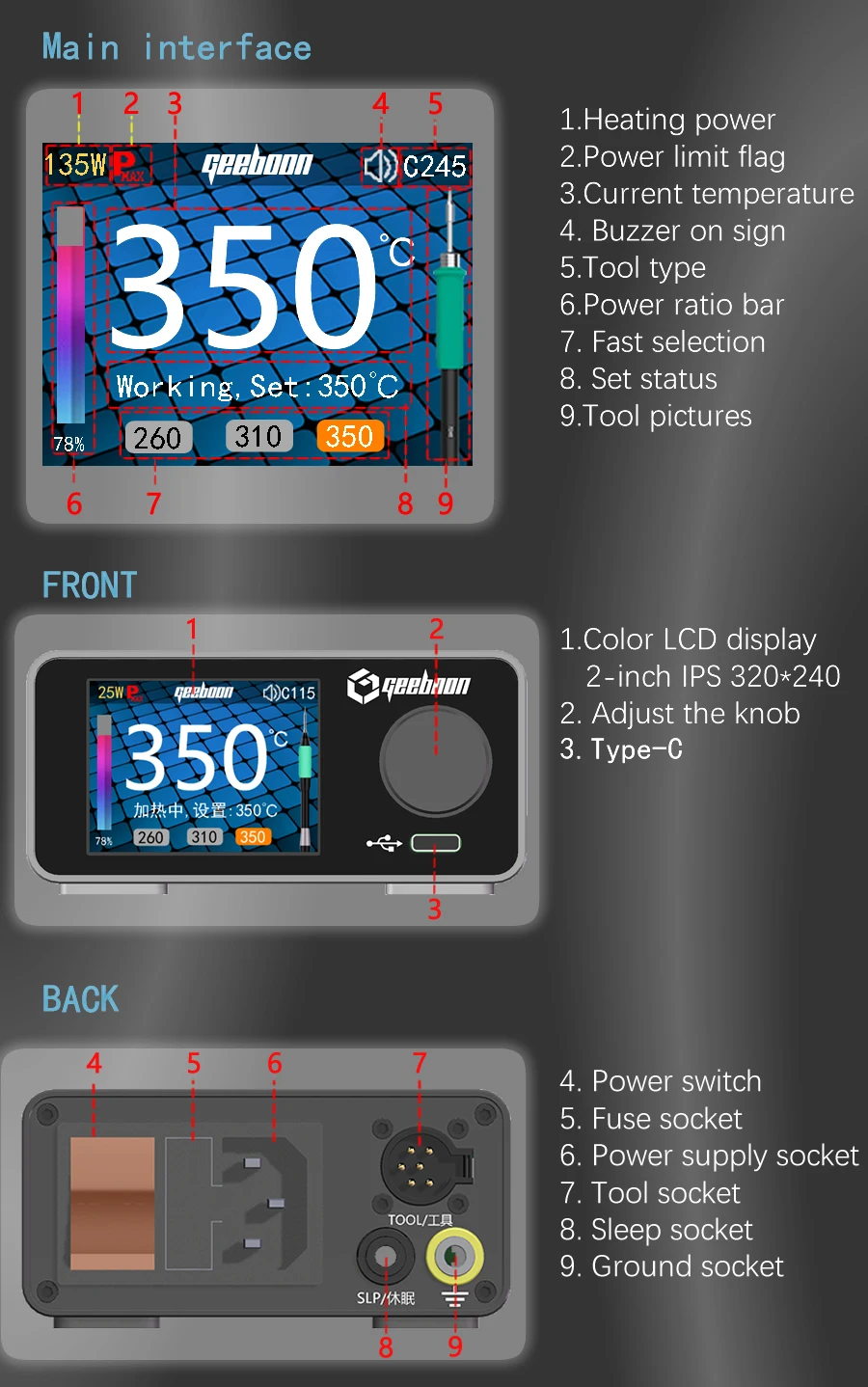

* 2.0" IPS screen

* 3-second heating-up makes it convenient and quick to use

* Small and convenient

* Smart USB upgrade

* Languages: Chinese and English

Features:

* Supports short-circuit protection. The response time is less than 12us

* High performance: No burning of the main unit and no burning of the heating core thanks to the hot-swappable heating core

* When C245 is used, the maximum power can be unlocked up to 240W

* Many types of soldering iron tips are supported

* Comply with the relevant requirements for safe welding

* The temperature is dynamically compensated with power

* Real-time display of power

* The temperature is locked with a password

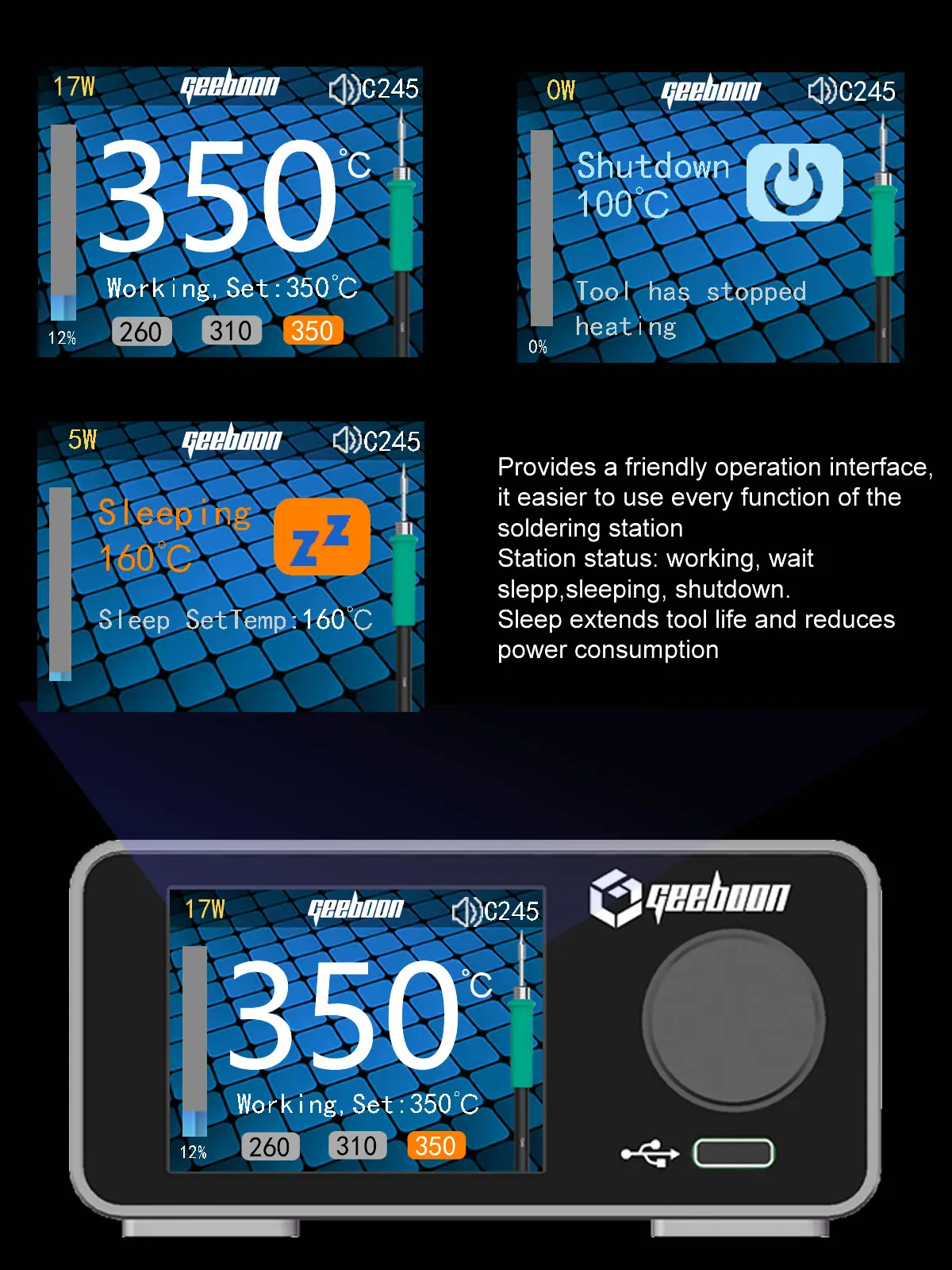

* 4 modes: There are working, standby, sleep and shutdown modes. Sleep and shutdown modes reduce life degradation at high temperatures and extend service life. Place the handle on the soldering iron holder to sleep

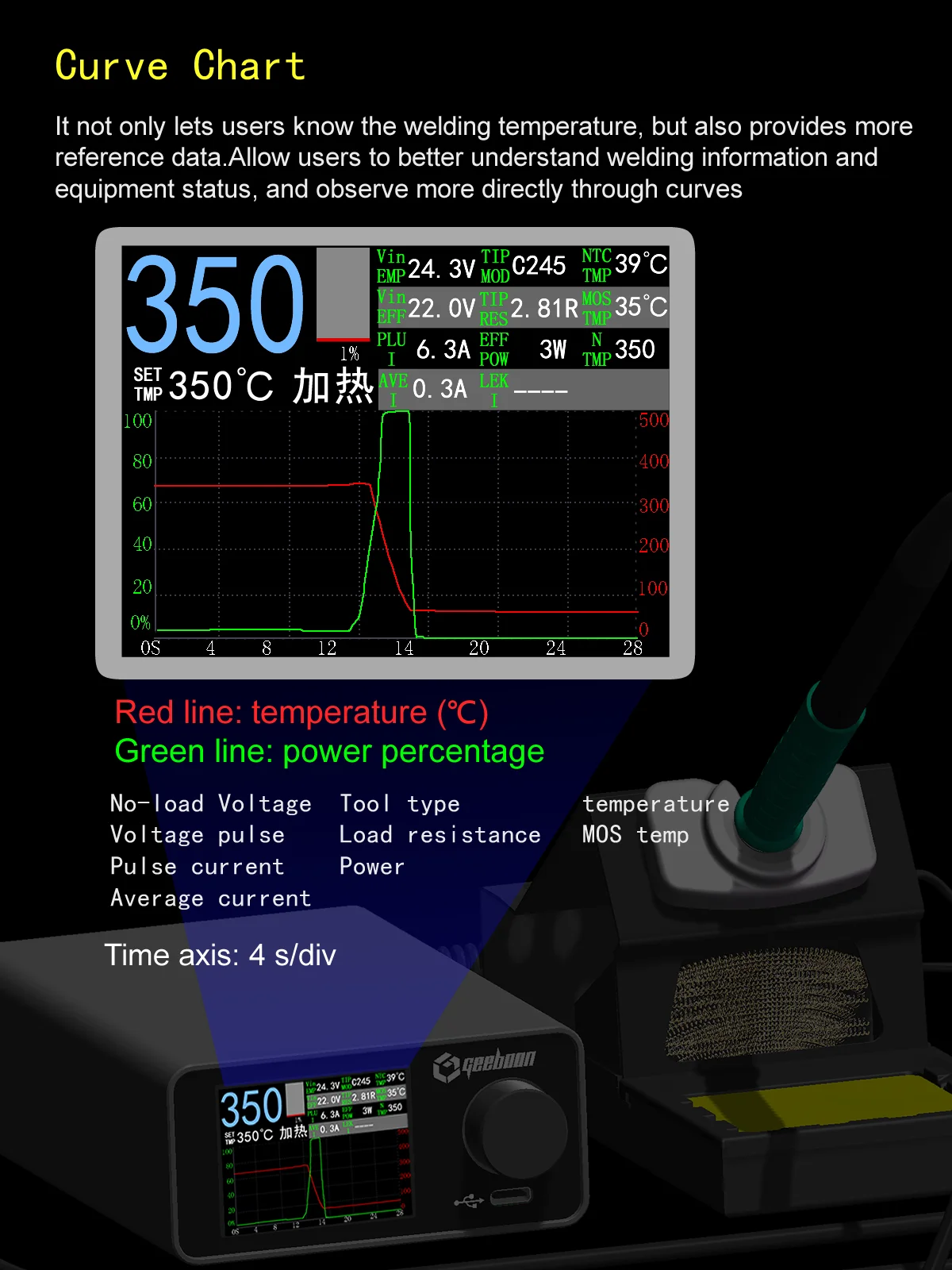

* Graph: The graph shows the welding temperature and provides

more reference data, allowing users to better understand the welding

information and equipment status. The curves make it easy to observe

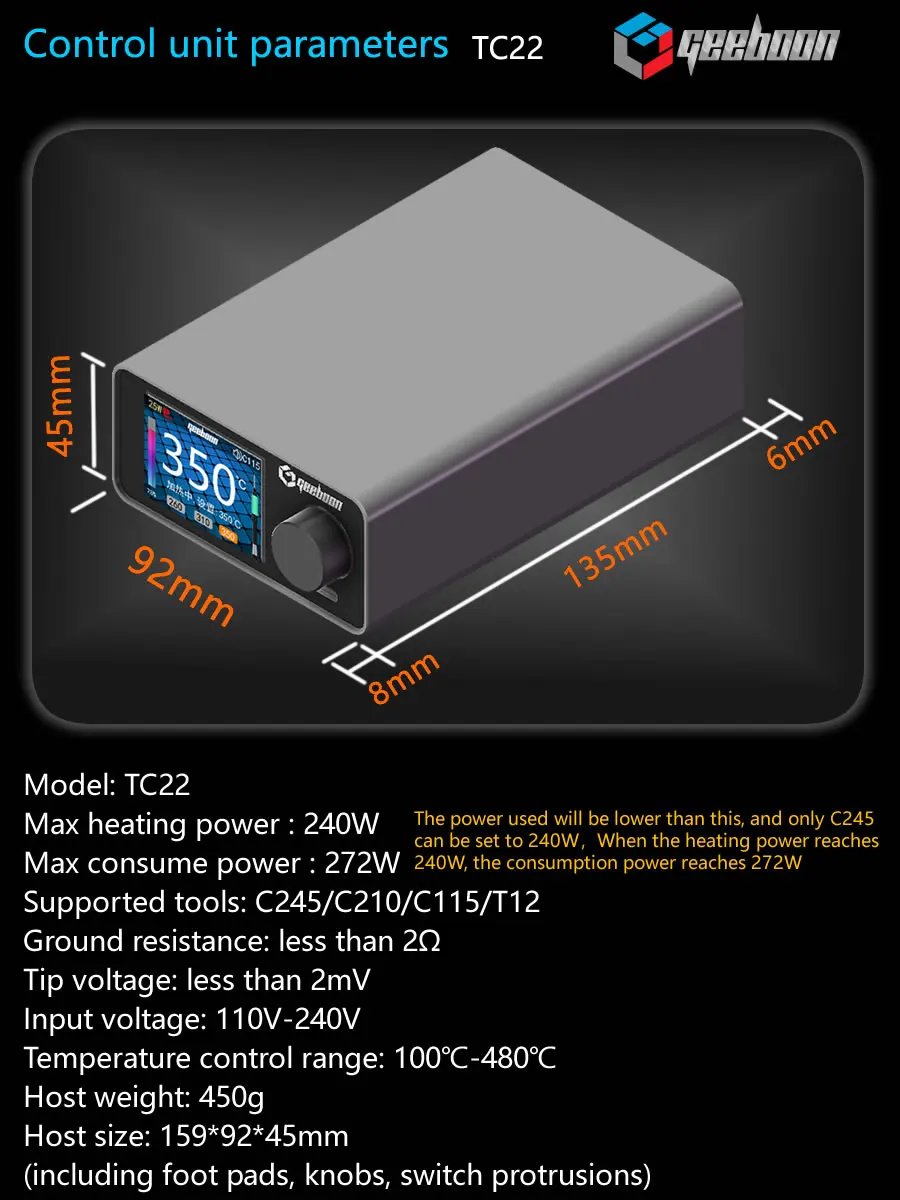

TC22 Parameters:

* Maximum heating power: 240W (The software will control the heating power to be less than this power. And when C245 is used, it will unlock the power to 240W)

* Maximum power consumption: 272W (when the heating power reaches 240W, the total power consumption of the device is 272W)

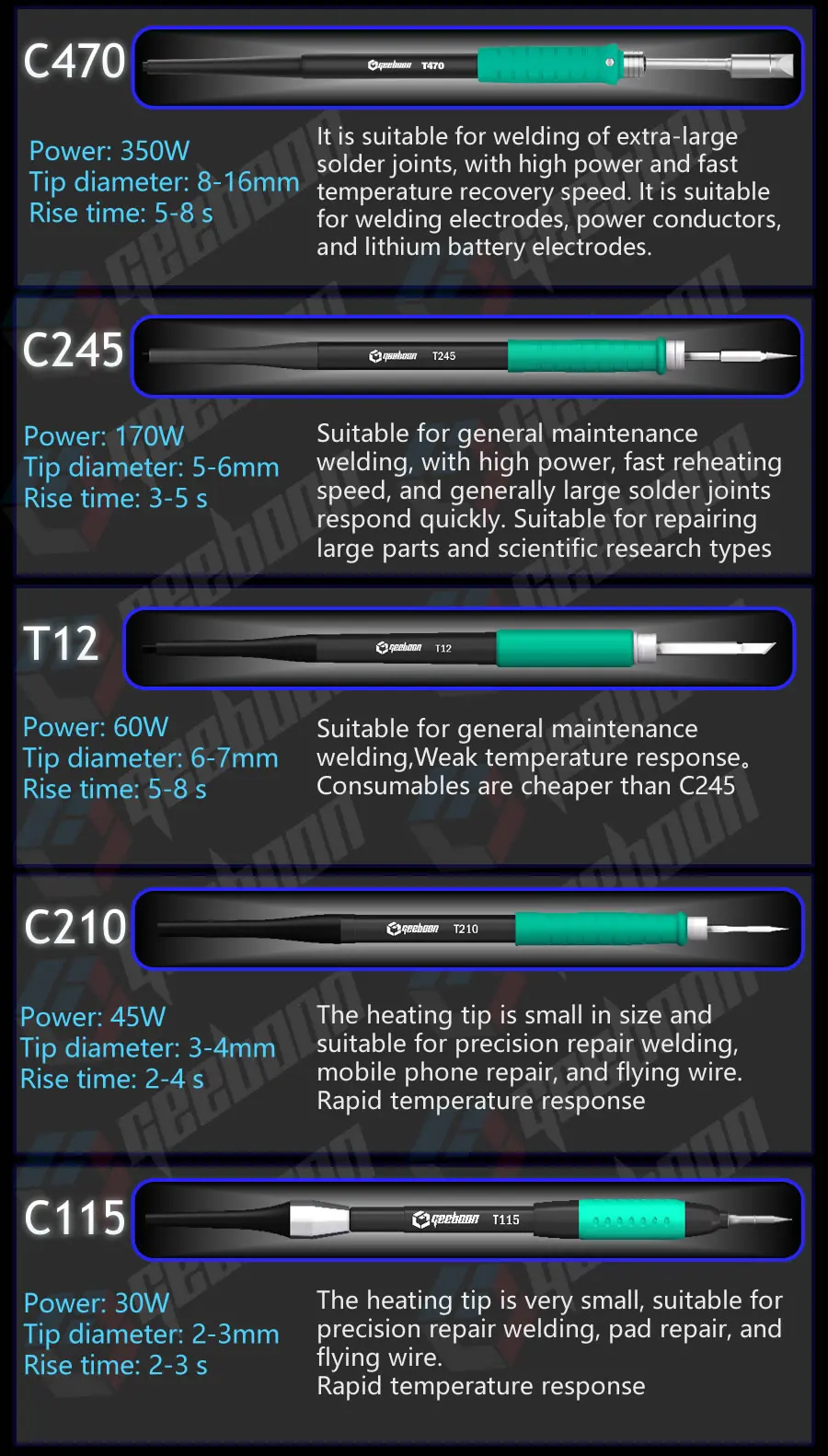

* Supported tools: C245/C210/C115/T12

* Ground resistance: less than 2Ω

* Soldering tip voltage: less than 10mV

* Input voltage: 110V-240V

* Temperature control range: 100°C-480°C

* Control unitWeight: 450g/1lb

SSD01  C115 KIT Included:

* 1 x TC22 main unit

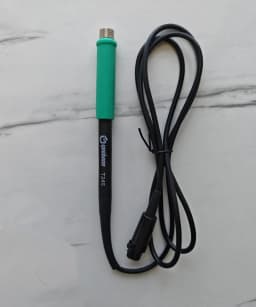

* 1 x T115 handle (with 1.2m/3.9ft cable)

* 2 x C115 soldering iron tip

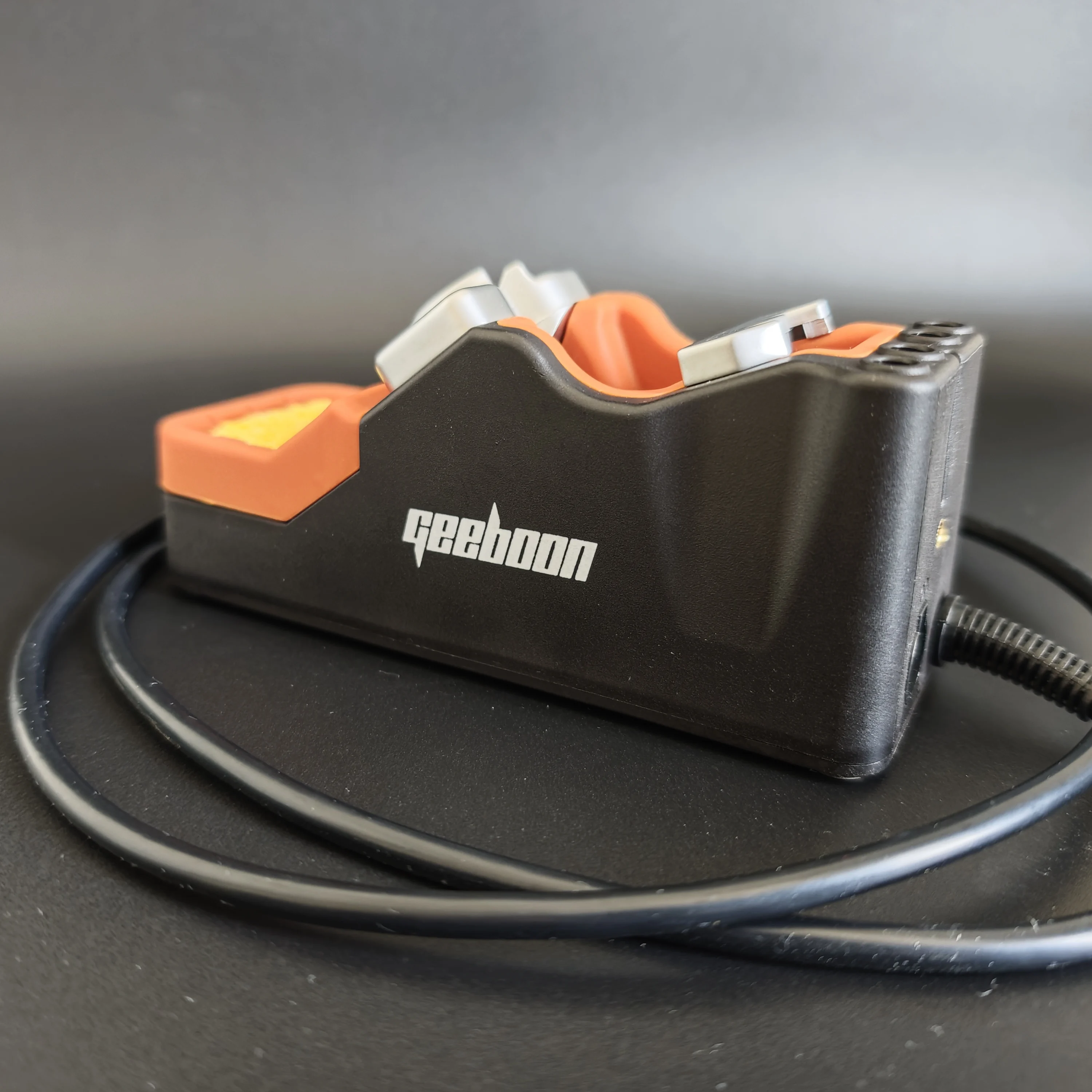

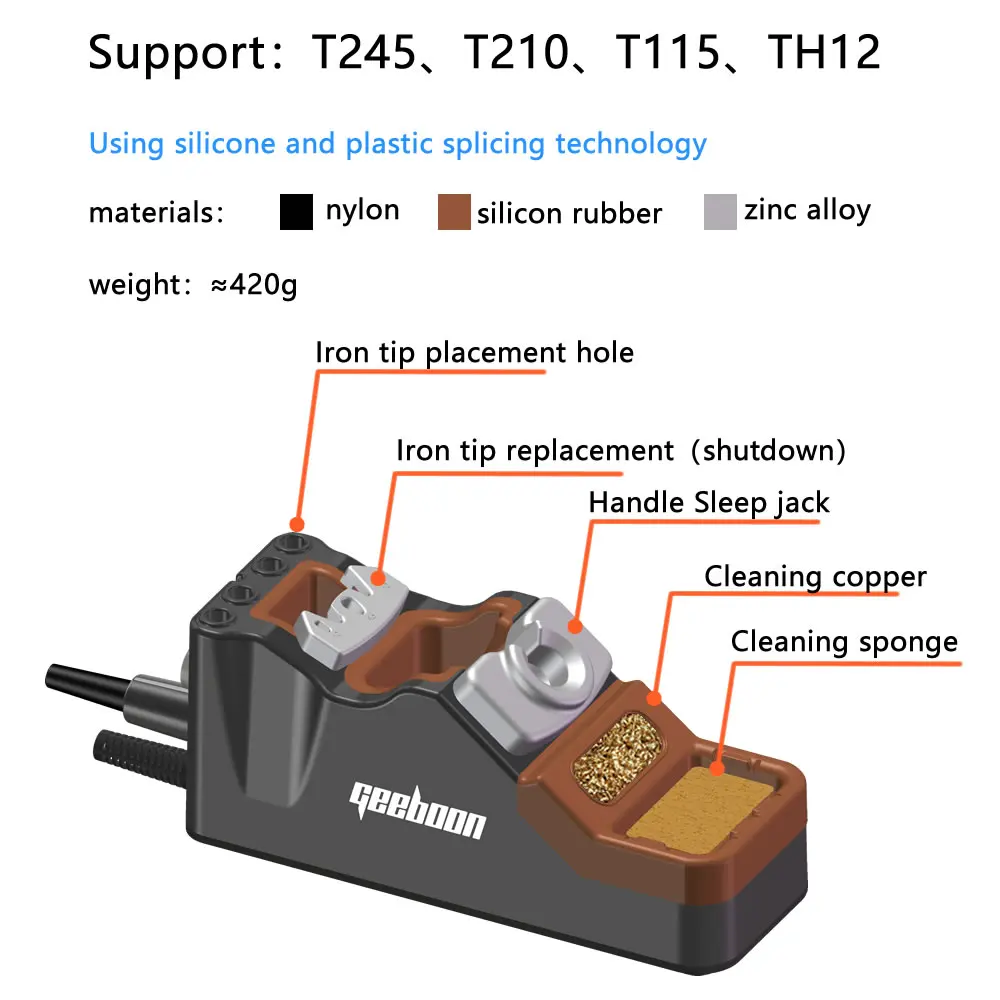

* 1 x SSD01Soldering iron stand

* 1 x Power cable

SD01 C210 KIT Included:

* 1 x TC22 main unit

* 1 x T210 handle (with 1.2m/3.9ft cable)

* 2 x C210 soldering iron tip

* 1 x SSD01Soldering iron stand

* 1 x Power cable

SSD01C245 KIT Included:

* 1 x TC22 control unit

* 1 x T245 handle (with 1.2m/3.9ft cable)

* 2 x C245 soldering iron tip

* 1 x SSD01Soldering iron stand

* 1 x Power cable

SSD01C245 C210 KIT Included:

* 1 x TC22 control unit

* 1 x T245 handle (with 1.2m/3.9ft cable)

* 2 x C245 soldering iron tip

* 1 x SSD01Soldering iron stand

* 1 x Power cable

SDC02 C210 KIT Included:

* 1 x TC22 main unit

* 1 x T210 handle (with 1.2m/3.9ft cable)

* 2 x C210 soldering iron tip

* 1 x SDC02 Soldering iron stand

* 1 x Power cable

SSD01C245 KIT Included:

* 1 x TC22 control unit

* 1 x T245 handle (with 1.2m/3.9ft cable)

* 2 x C245 soldering iron tip

* 1 x SDC02 Soldering iron stand

* 1 x Power cable

SSD01C245 C210 KIT Included:

* 1 x TC22 control unit

* 1 x T245 handle (with 1.2m/3.9ft cable)

* 2 x C245 soldering iron tip

* 1 x  SDC02 Soldering iron stand

* 1 x Power cable

Packaging Details:

* Weight: 1.4kg
