FNIRSI HRM-10 Battery Voltage Intemal Resistance Tester High-precision Trithium Lithium lron Phosphate 18650 Battery Tester

null

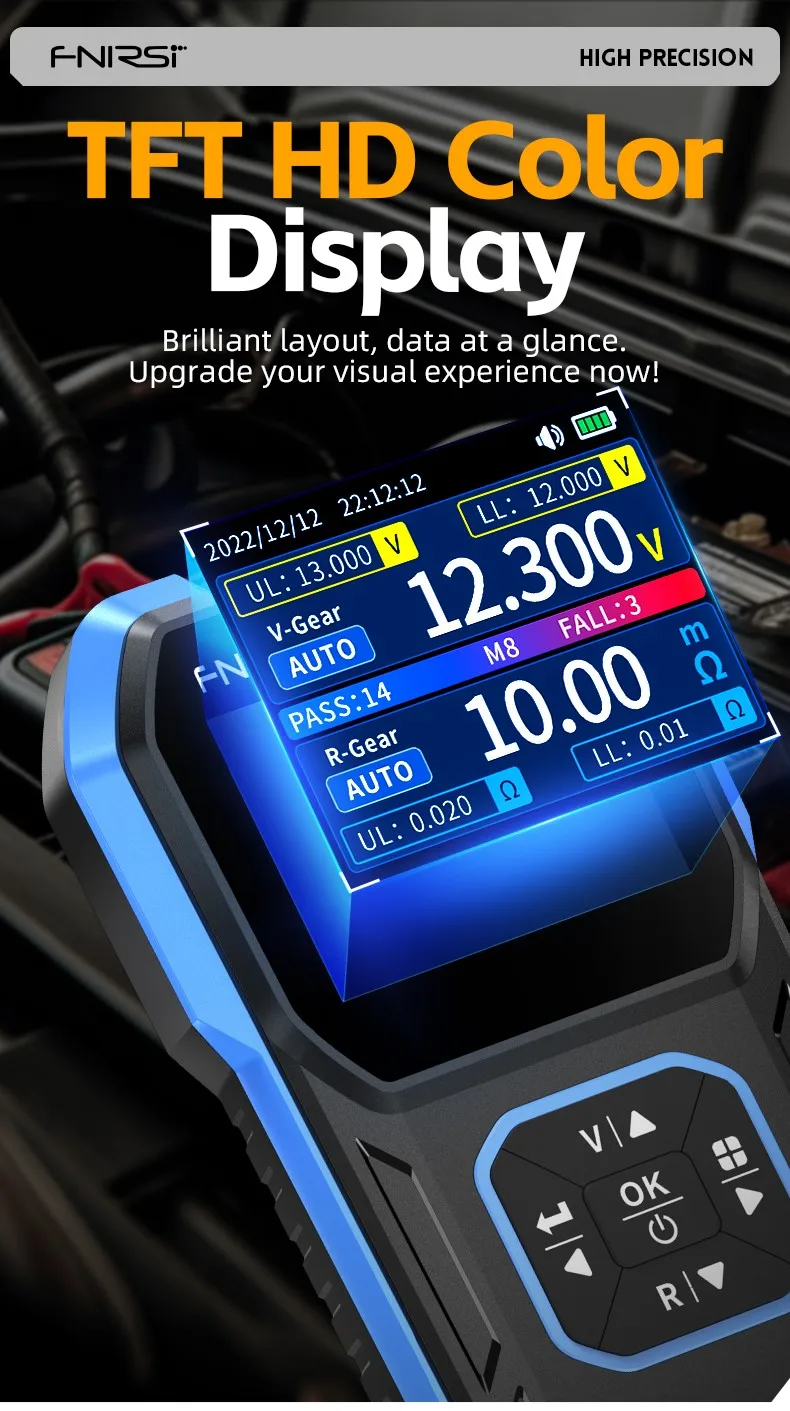

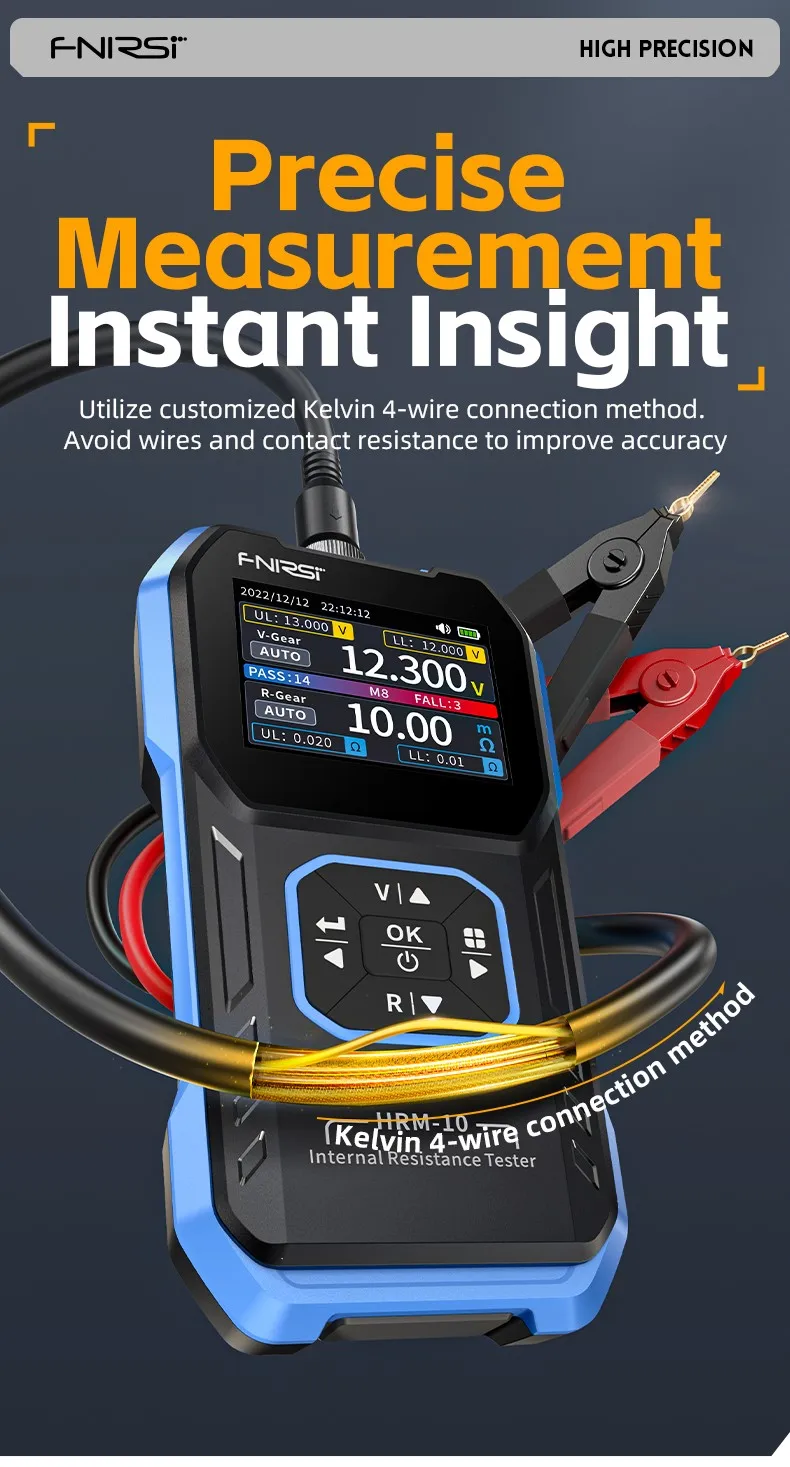

FNIRSI "HRM-10" is our company's first handheld high-precision attery internal resistance meter. It is a true four-wire measurement internal resistance meter, designed with precision, convenient to carry. The device can automatically test internal resistance and voltage values simultaneously, with measurement results displayed on the screen. Users can also manually adjust the voltage and resistance range. The product features a sorting mode, automatically filtering the good and bad batteries based on user-set thresholds. It also supports historical records and exporting data tables of historical measurements.

null

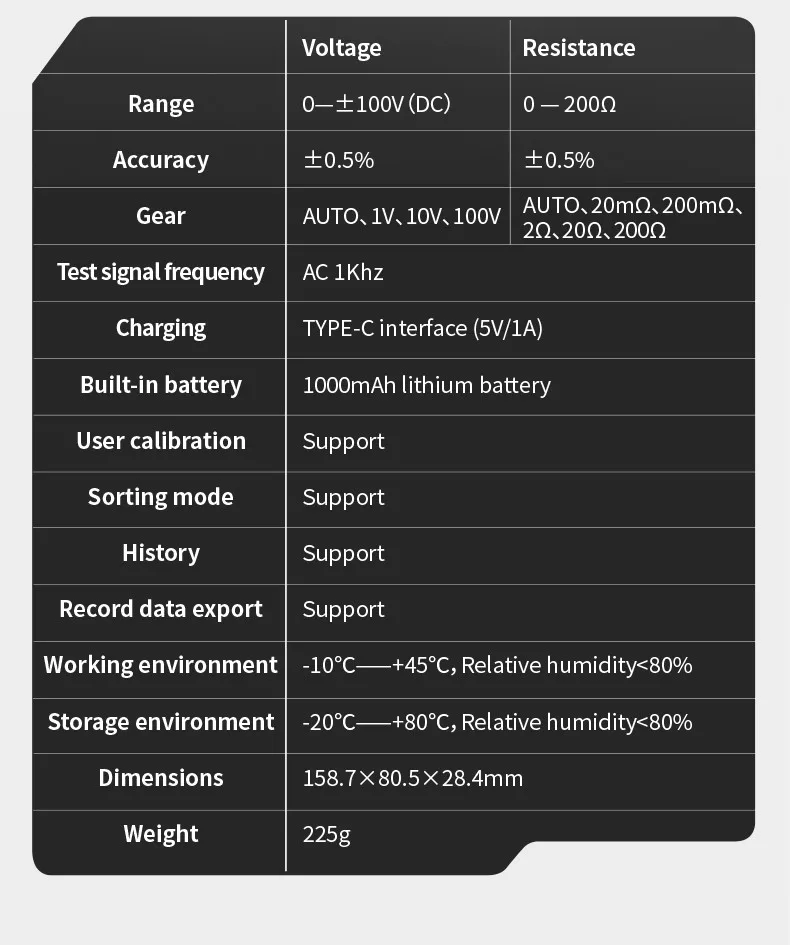

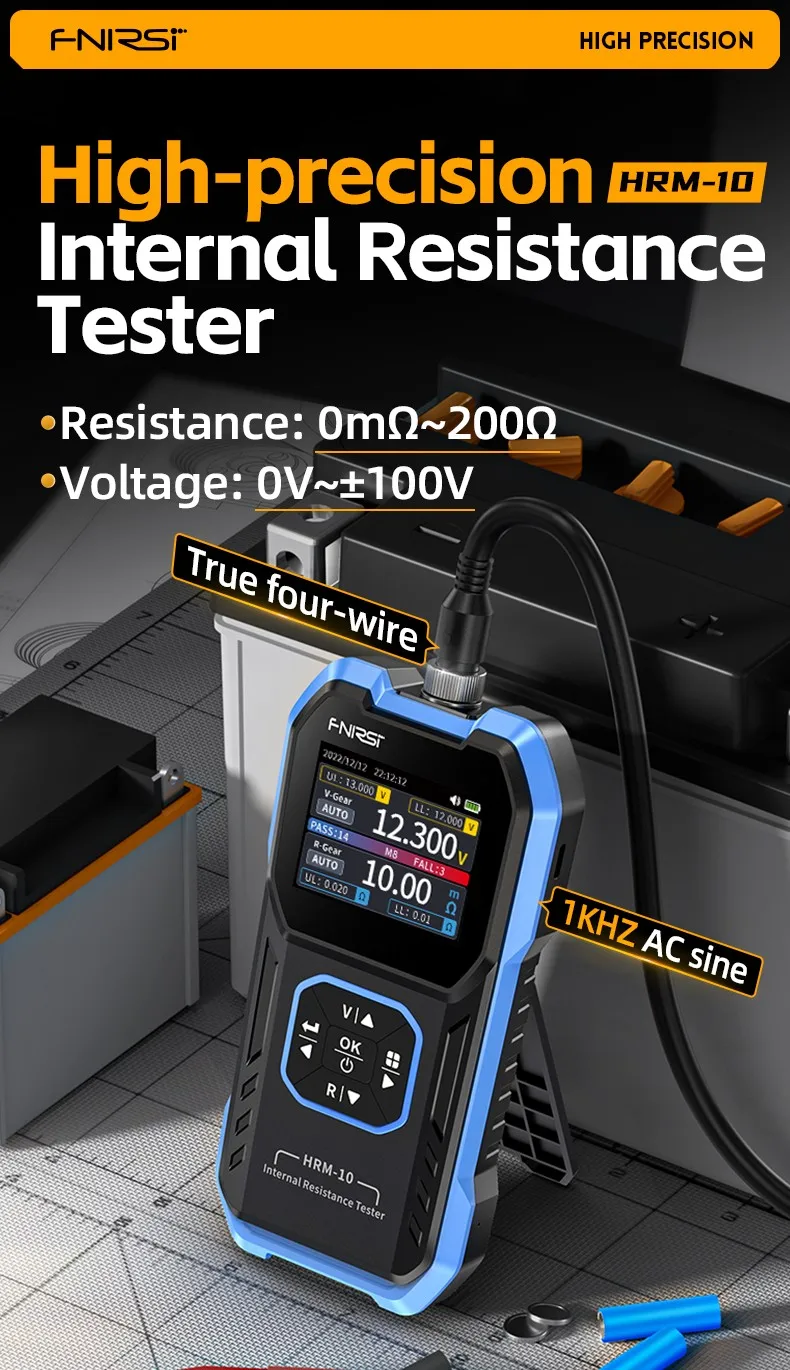

Voltage measuring range：0—±100V（DC）
Voltage gear：Automatic, 1V, 10V, 100V
R​esistance measuring range：0 — 200Ω
R​esistance gear：Automatic, 20mΩ, 200mΩ, 2Ω, 20Ω, 200Ω
Accuracy：±0.5%
Instrument test signal frequency：AC 1Khz
Rechargeable：Type-C interface (5V/1A)
Built-in battery：1000mAh lithium battery
User calibration：Support

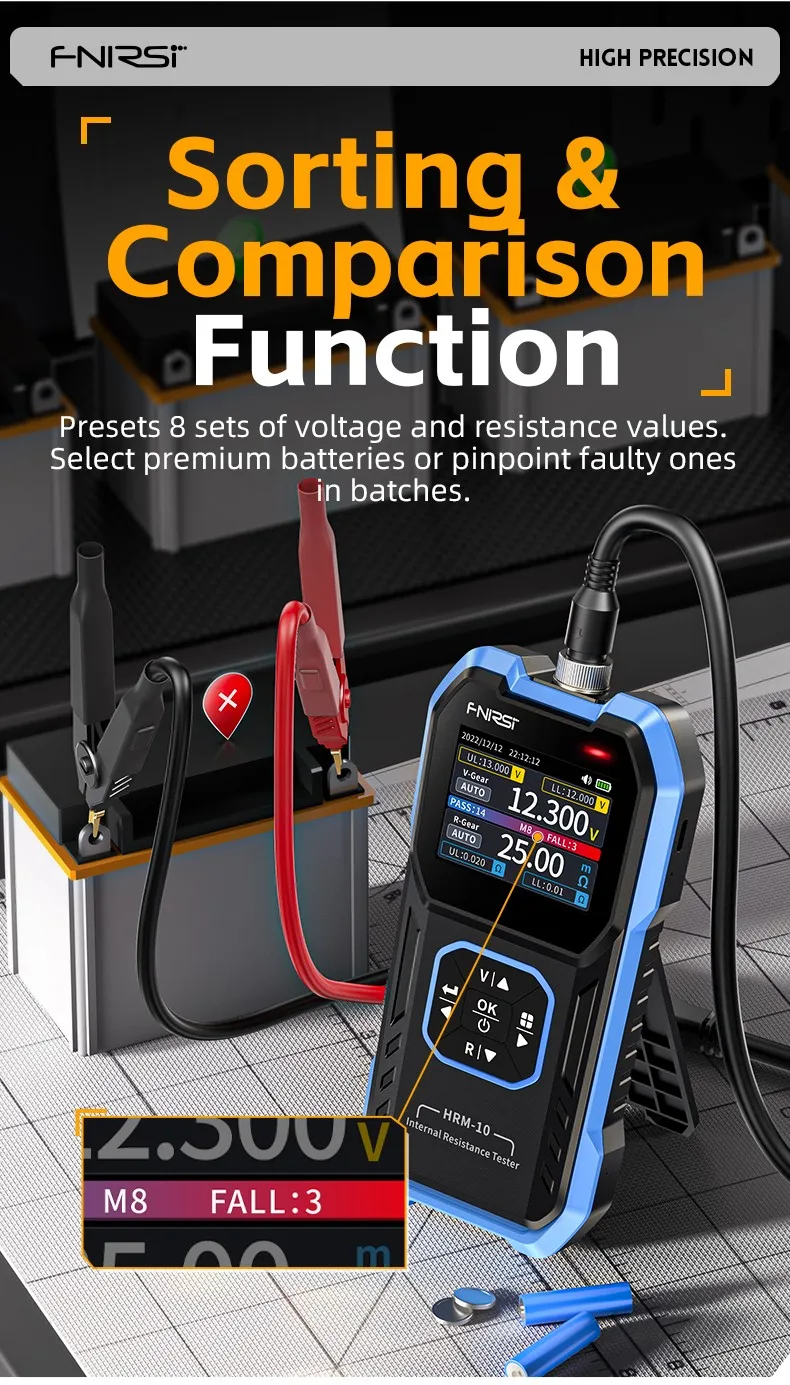

Sorting mode：Support

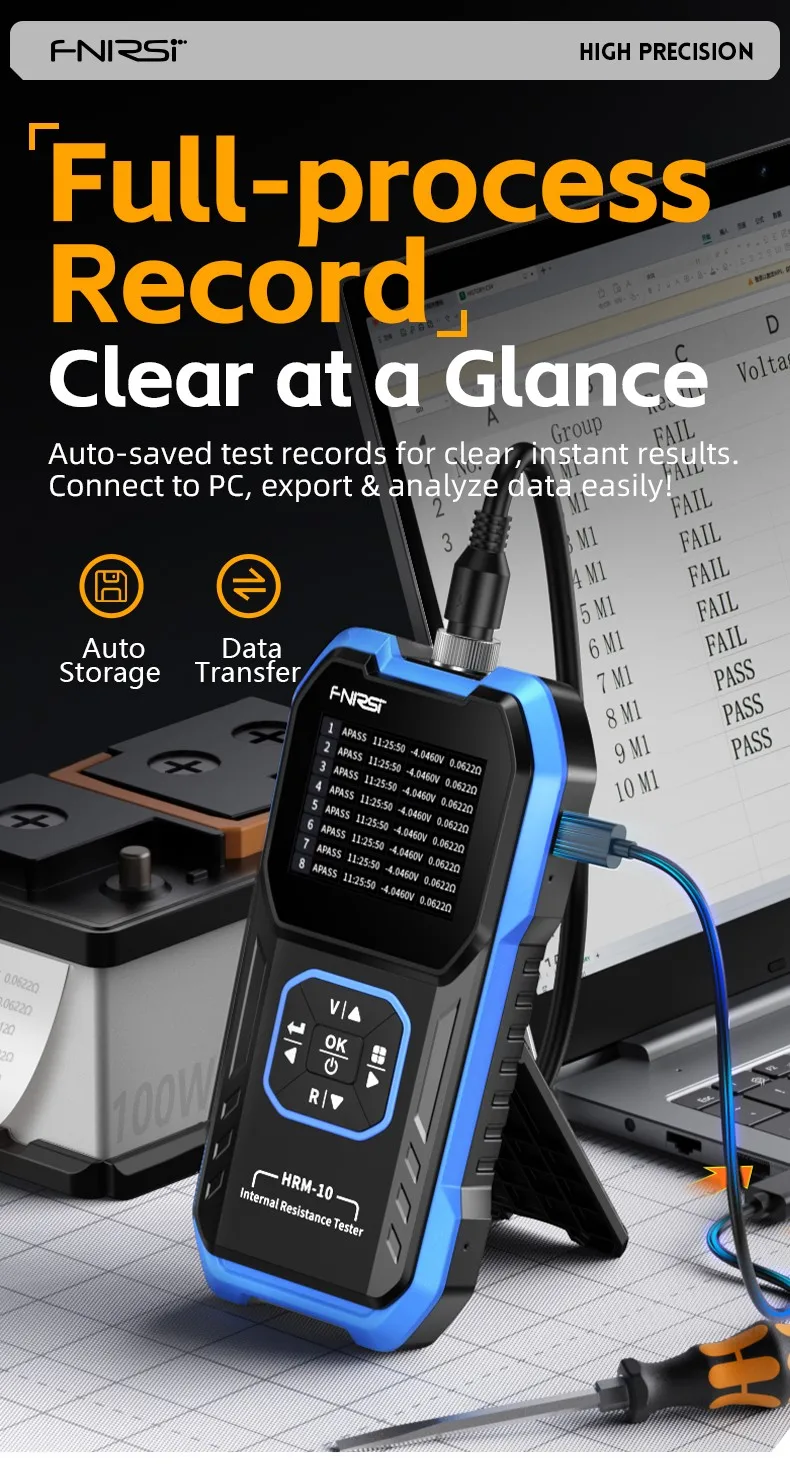

History recoed：Support
Recorded data expor：Support
Working environment：-10℃ ~ +45℃, relative humidity<80%
Storage environment：-20℃ ~ +80℃, relative humidity<80%

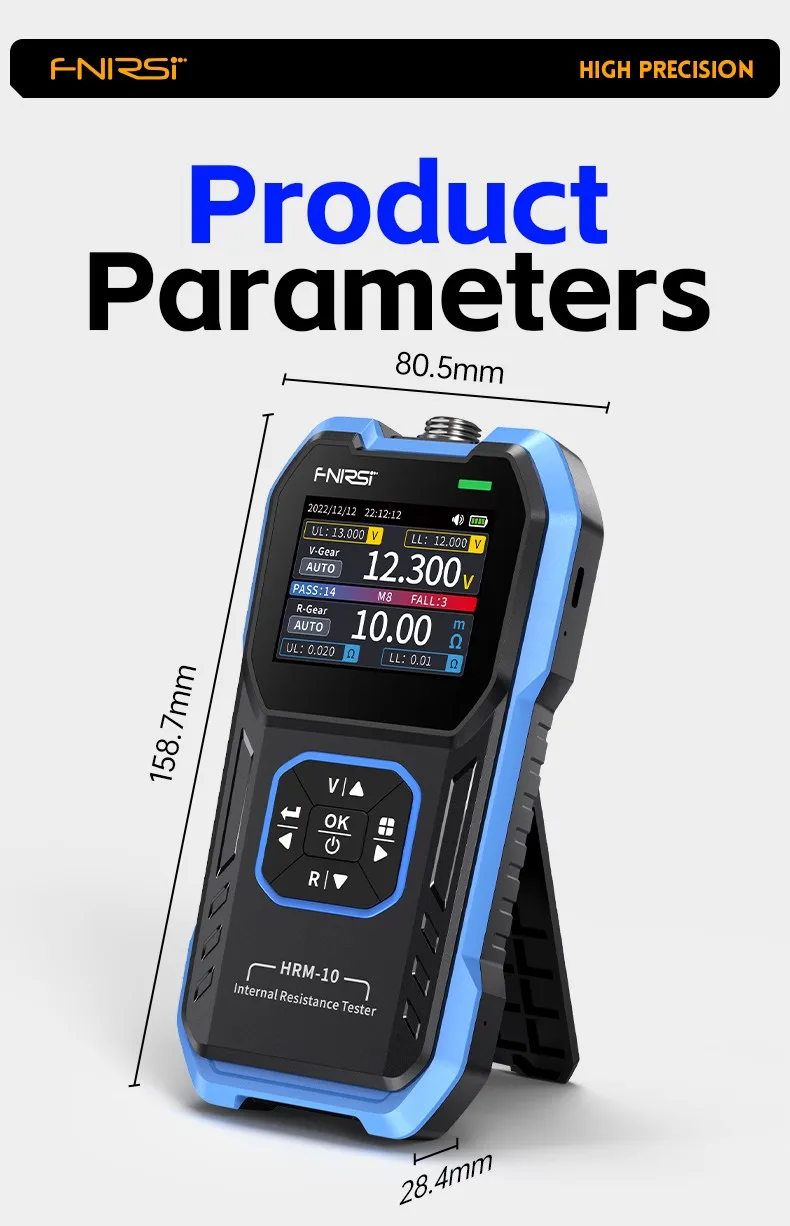

Size：158.7×80.5×28.4mm
Weight：225g

null

Rechargeable：Type-C interface (5V/1A)

null

Built-in battery：1000mAh lithium battery

null

User calibration：Support

null

Sorting mode：Support

null

History recoed：Support

null

Recorded data export：Support

null

Working environment：-10℃ ~ +45℃, relative humidity<80%

null

Storage environment：-20℃ ~ +80℃, relative humidity<80%

null

Size：158.7×80.5×28.4mm

null

Weight：225g

null

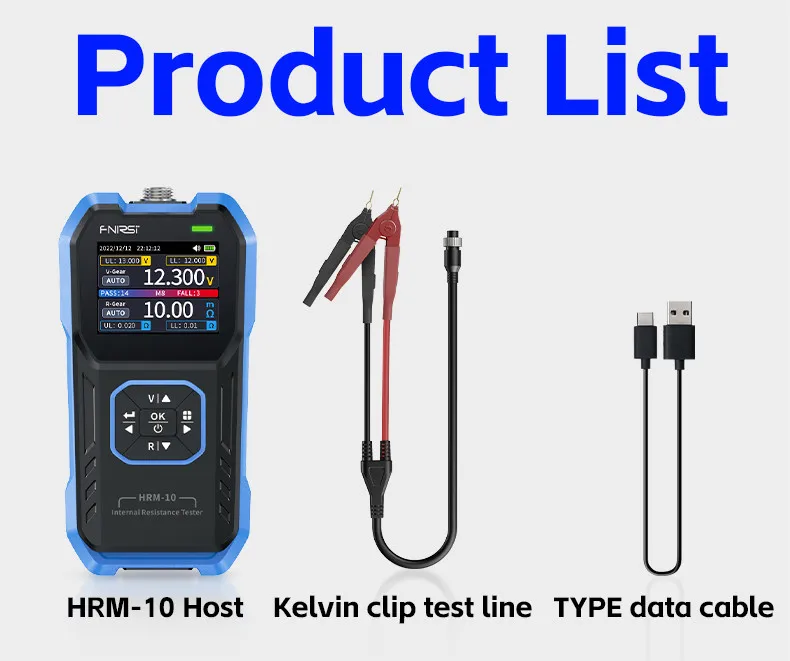

HRM-10 Host *1

null

Clip test line *1

null

Type-C data cable *1

null

User Manual *1

null

Packaging box *1
