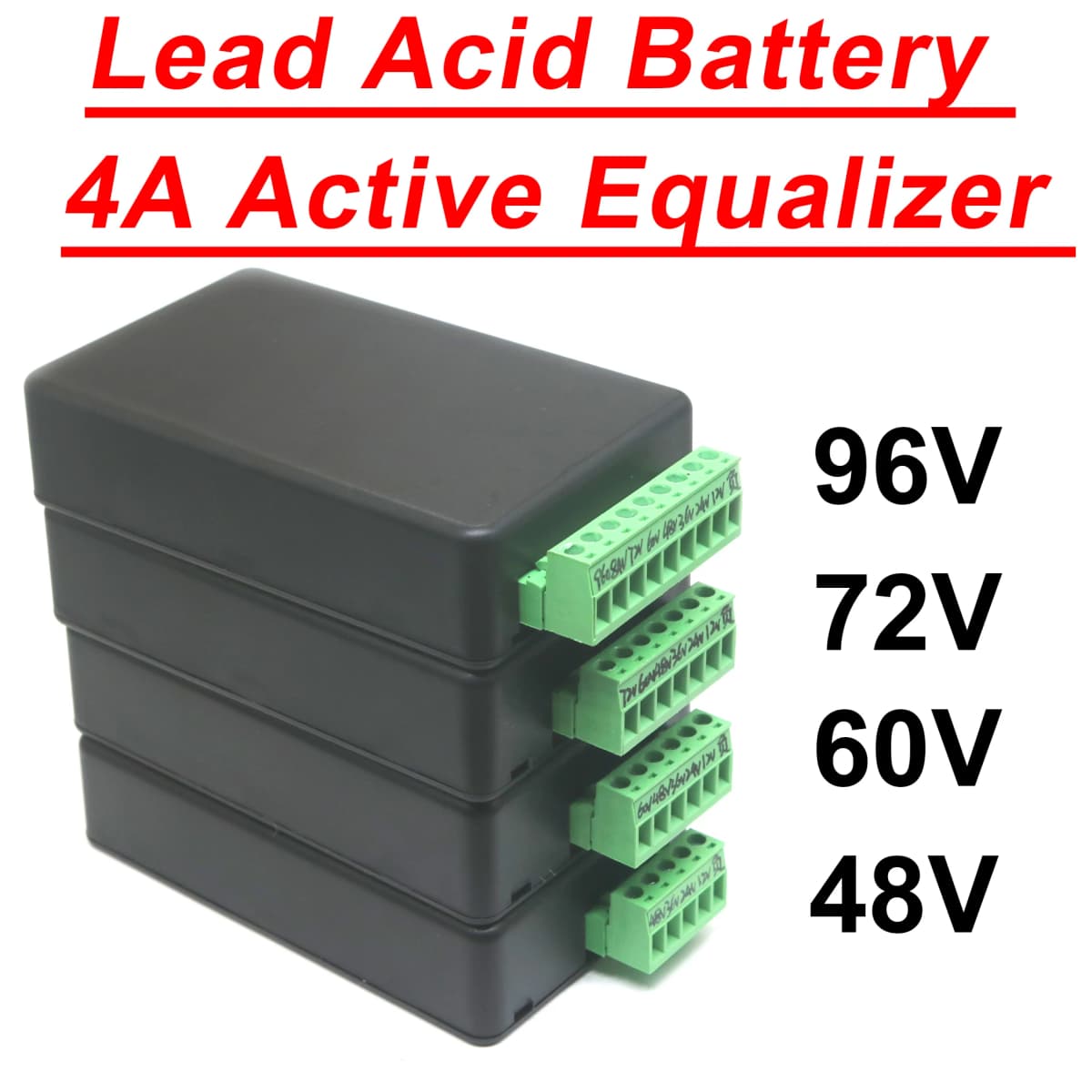

4A Lead Acid Battery Active Equalizer Balancer Board Automatic Voltage Balance DC 24V 36V 48V 60V 72V 96V Electric Vehicle CAR

0-4A Lead acid battery active balancing board voltage automatic balancer 12V 24V 36V 48V 60V 72V 84V 96V DC
Products do not include CABLE
Wiring must be 100% correct. Wiring must be 100% correct. Wiring must be 100% correct.
cable not included. Product has no reverse protection.. Reverse must burn chip insurance moS... Wire short plug also burned,
Applicable Battery Type:Lead acid battery
48V supports 12V, 24V, 36V
60V supports 12V 24V 36V 48V
72V supports 12V, 24V, 36V, 48V, 60V
96V supports 12V, 24V, 36V, 48V, 60V, 72V, 84V
Balanced current 0-4A accuracy 0.01V-0.1V self-consumption 0.1-0.5W,All strings have power after work
The role of active balancing is to balance the energy of each series of batteries. Let some of the weaker series monomers get the help of the stronger monomers, and do not let a series of poorer monomers appear always overcharge and overrelease. Then let the whole battery to extend the service life and enhance the whole capacity

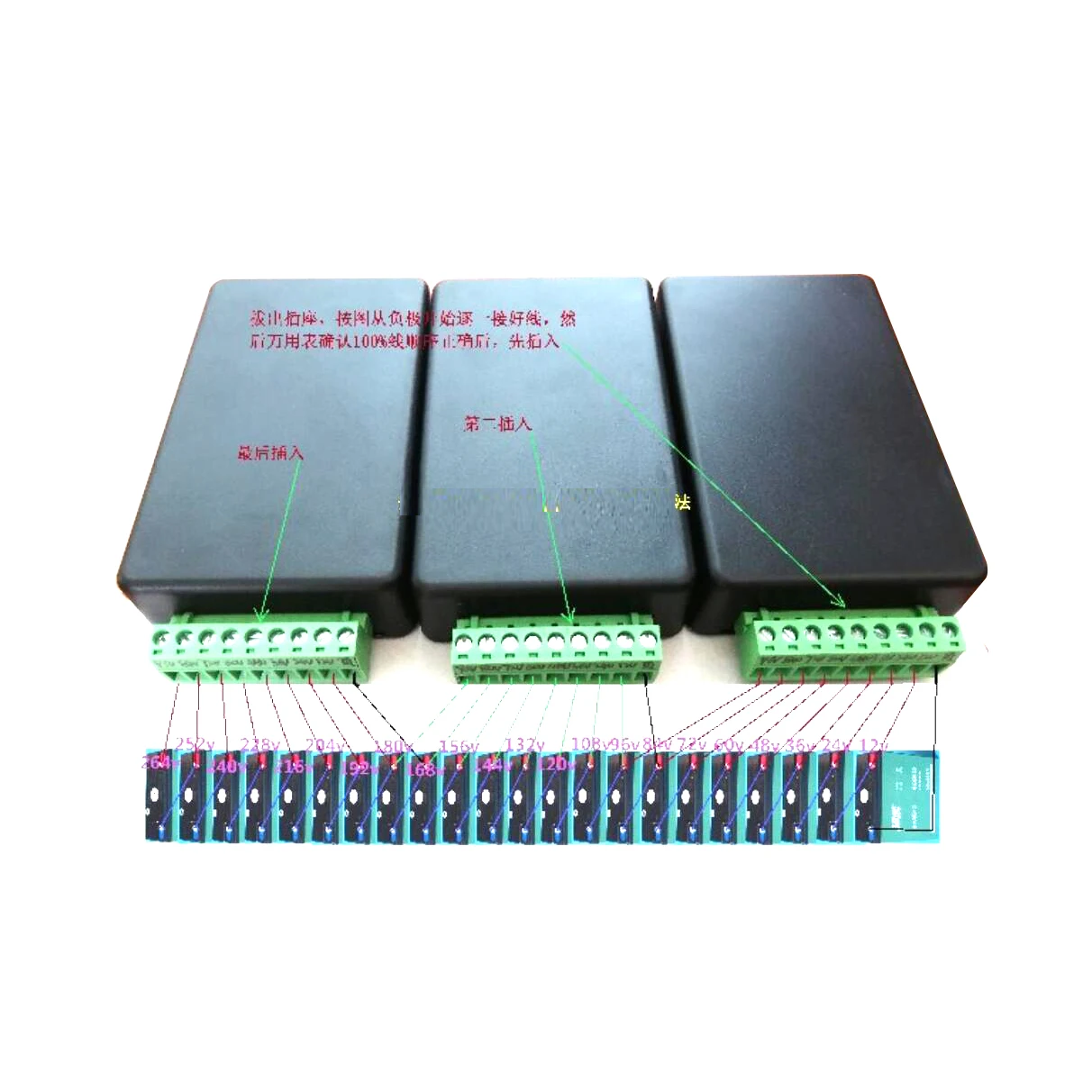

It is recommended to put the worst battery in the first series. The first series 11.7-12v stops balancing
.12.3-12.8V
starts balancing. It is to prevent discharge from normally emptying. Each string that the pressure difference is very large. Burn equalizer insurance. Because the greater the balance pressure difference, the greater the balance current.
The product has no limited current function. Be careful not to empty the battery to charge, there will be no balanced current too large and burning insurance, good batteries will not be basic, afraid of those capacity differences too much.
We all know that the whole battery can not be the same capacity performance of each series. A long time will appear a series of single lag. Vicious circle to the end of this backward first scrapped, resulting in the whole battery can no longer be used. The role and purpose of active balancing: it is to balance the energy of each string of batteries. Let some of the weaker monomers get help from the stronger monomers. And do not let a series of relatively poor monomer always overcharge and overdischarge, and then the whole battery to extend the service life and enhance the whole group capacity
Charging please use 5A below. Because the voltage difference is too large when the battery is dead. The pressure is too large. The equalizer has no limited current function, and the balance current will be too large, causing burn out insurance or mos. No reverse protection. Connected to reverse explosion capacitor ignition safety and moS.
The line has not used the wire to wire short circuit plug also burned. Because each string has electricity after work. Accuracy 0.01v-0.1v power consumption 0.1-0.5W. Be careful and safety first!
Only professionals with hands-on skills can buy them
