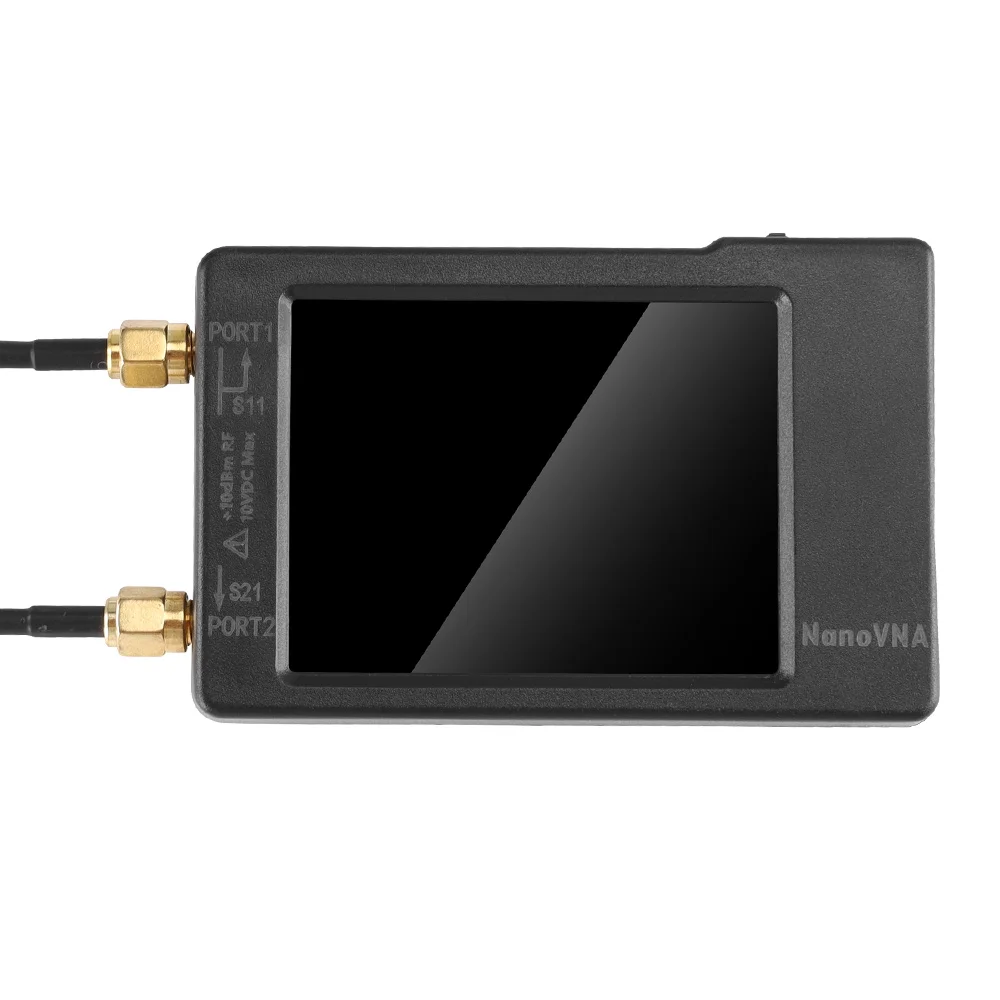

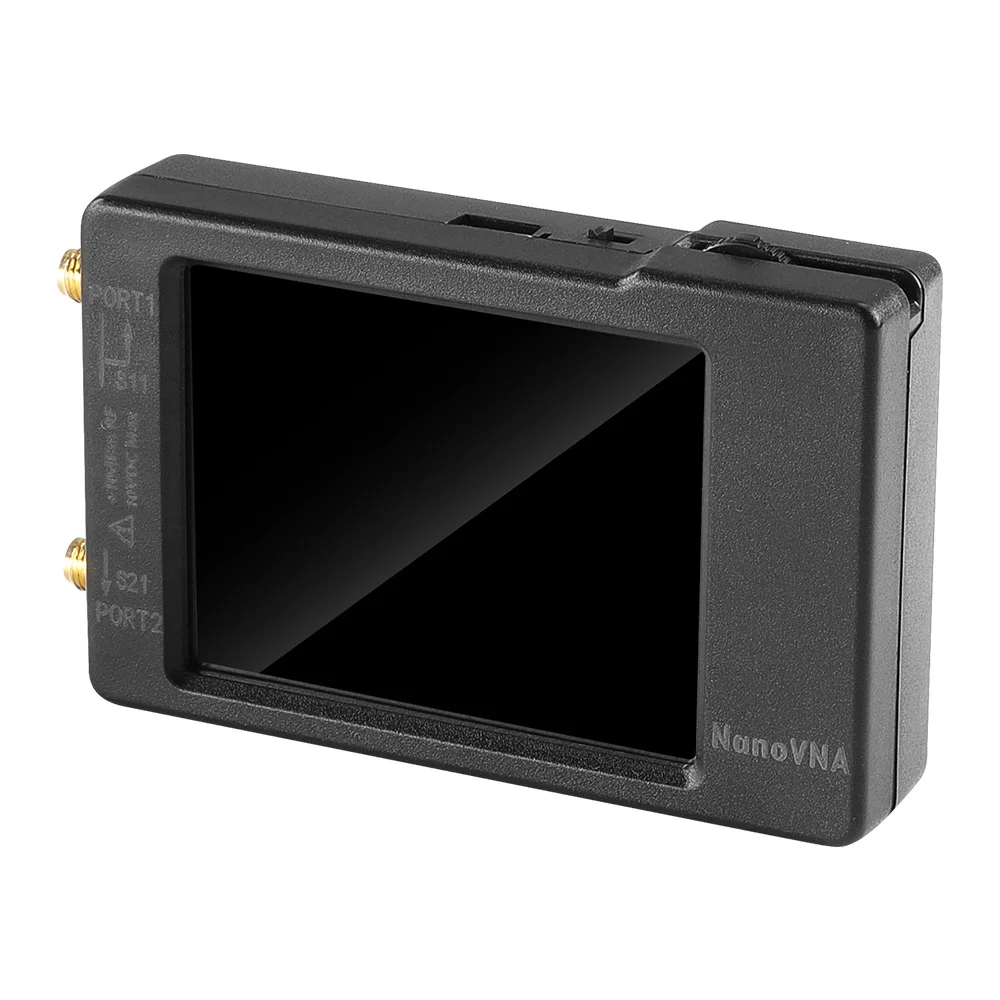

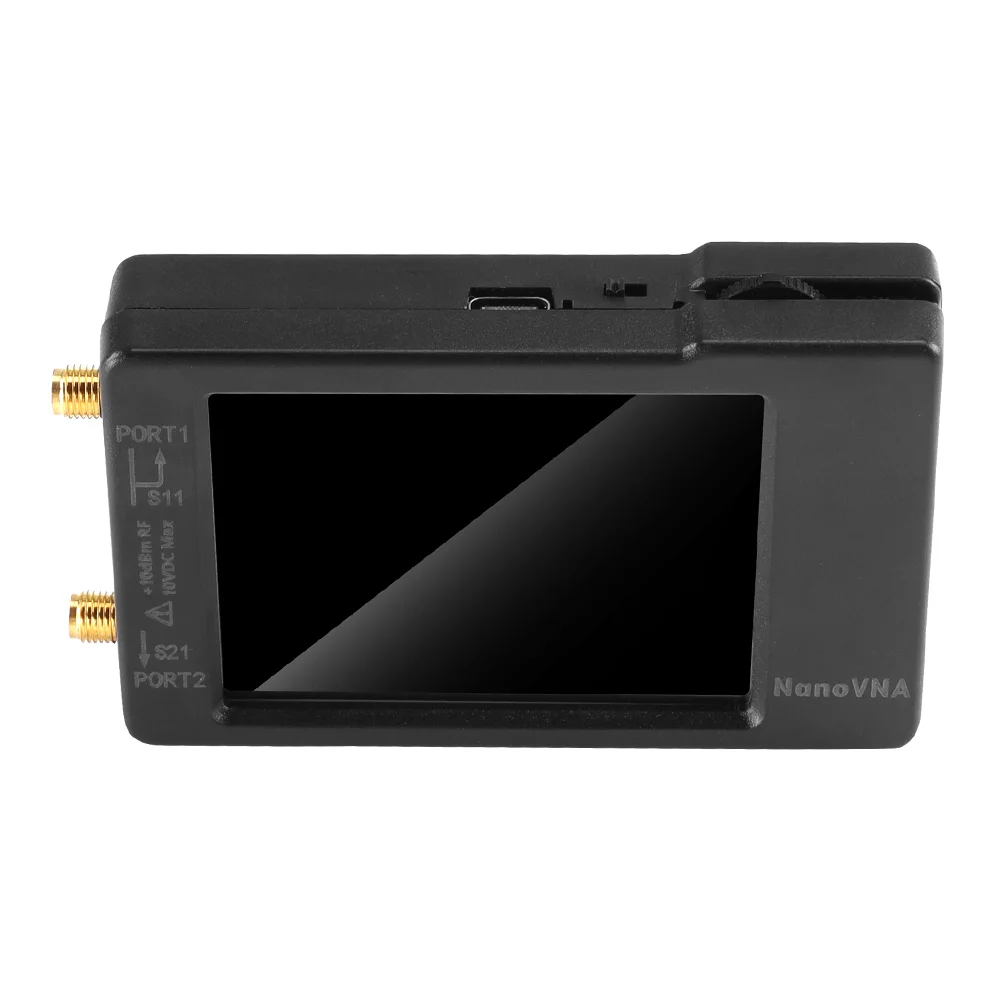

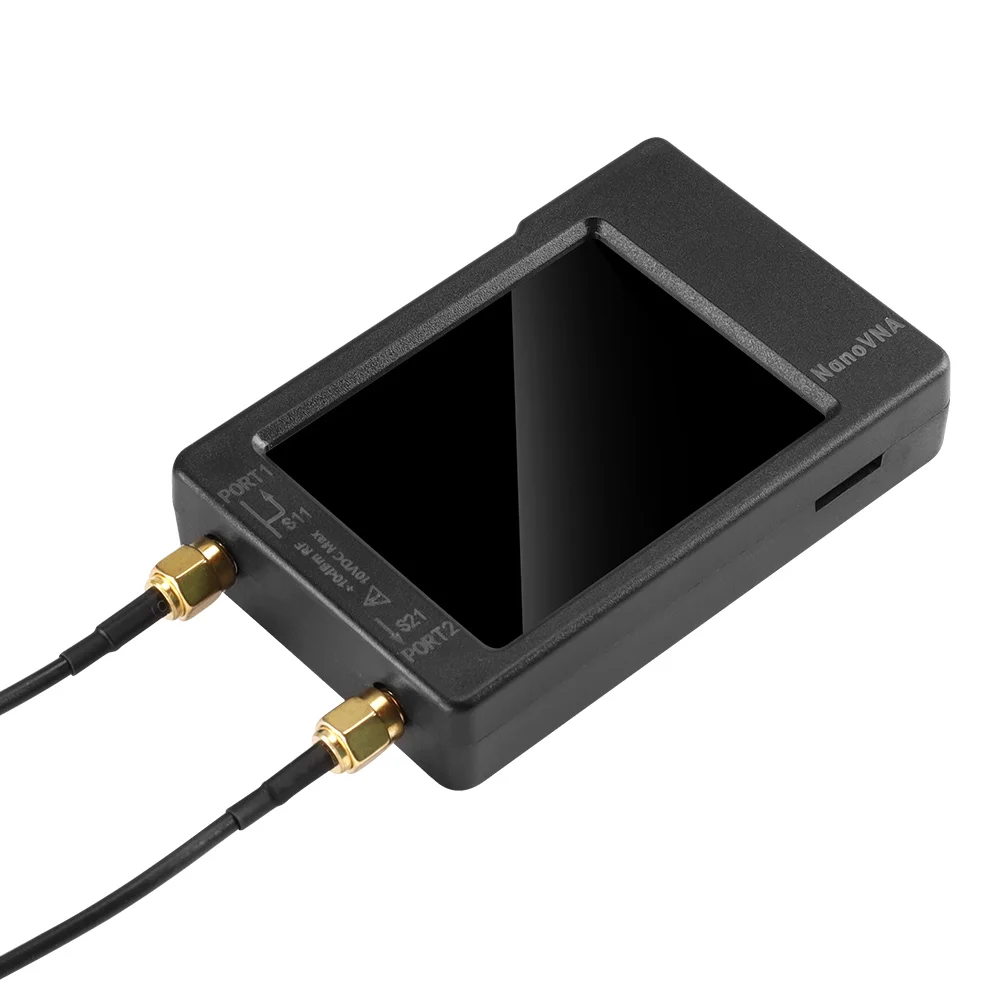

Spectrum Anslyzer NanoVNA-H4 2.8/4" Vector Network Antenna Analyzer 10KHz-1.5GHz MF HF VHF UHF Antenna Tuner Nano VNA NanoVNA-H

NanoVNA-H Vector Network Antenna Analyzer 10KHz-1.5G HzMF HF VHF UHF with Shell Spectrum Analyzer

NanoVNA-H Spectrum Analyzer Features:

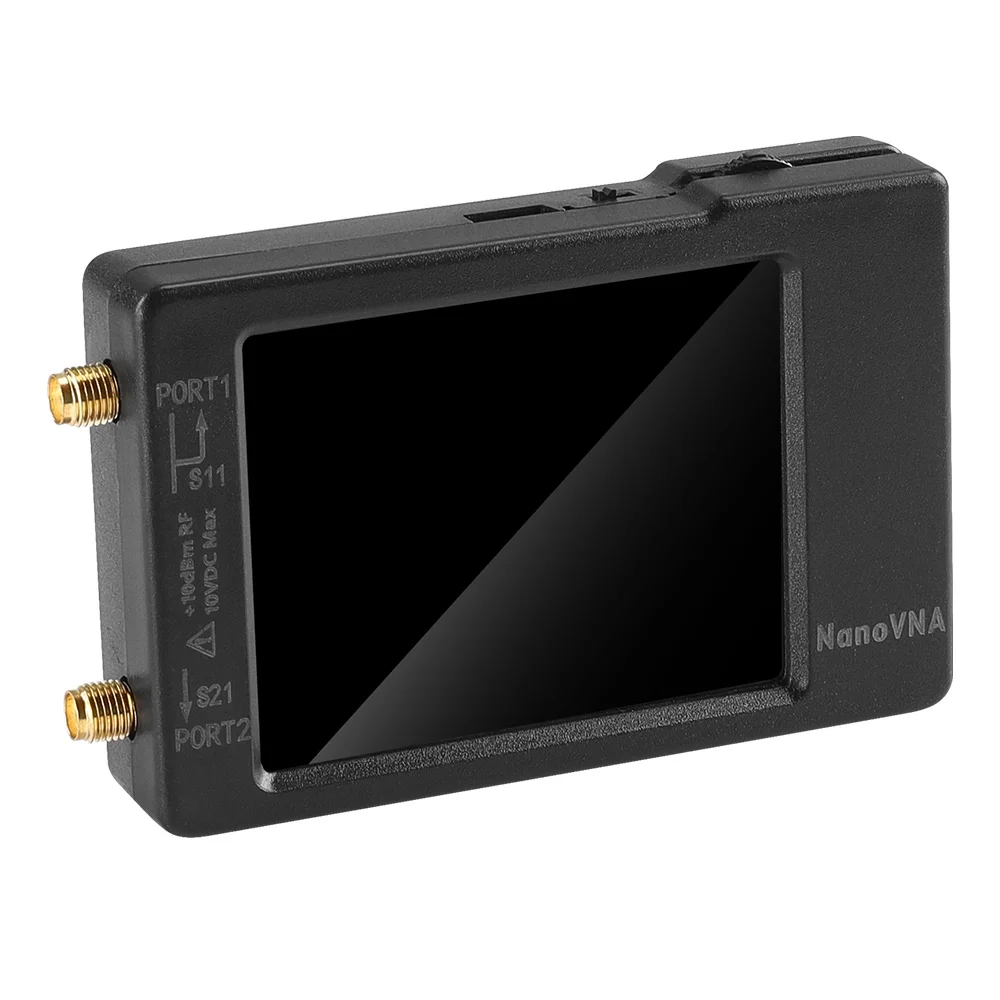

1. With the addition of the ABS casing and the new packaging, Compared to many customers using 3D printed housing, it saves costs.

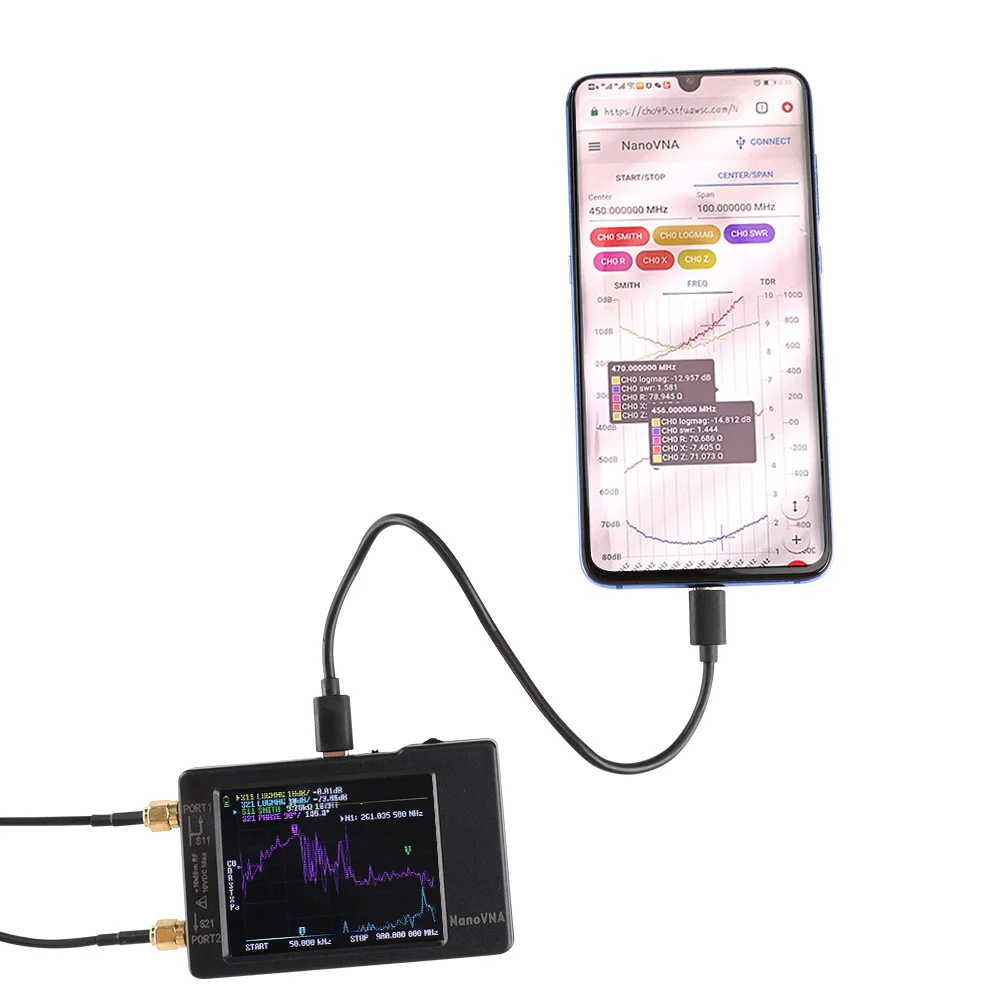

2. This Spectrum Analyzer support typec-typec line, more convenient to connect to mobile phones ,Support to most Android phones with the same screen display(Doesn't support for iPhone). Solve the problem of small screen, insufficient brightness and so on.

3.Support time domain analysis function (TDR)

4.The battery usage can be displayed on the interface.

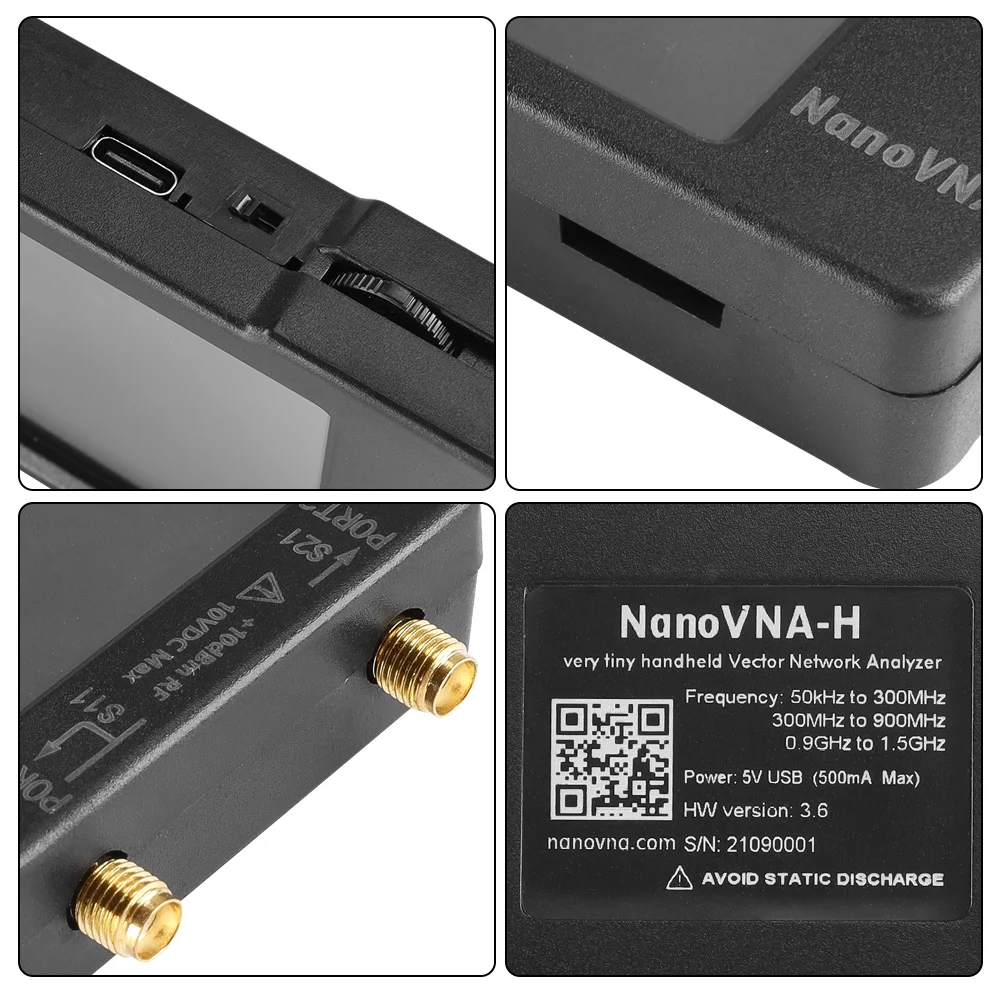

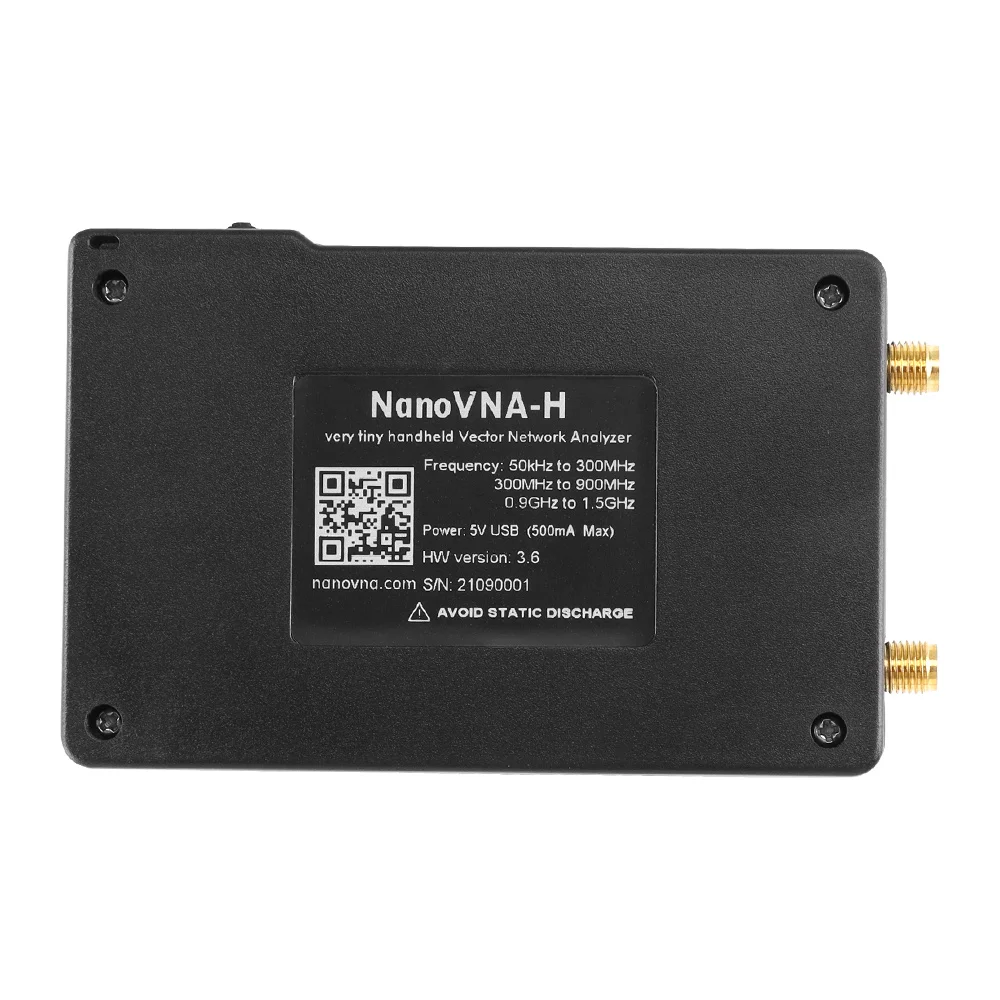

5.The spectrum analyzer serial number is attached to the back

6.Changed the outer packaging, the world cover hot stamping carton, plastic inner protection. Reduce problems caused by transportation shocks and other processes.

7.Other details have been improved.

Spectrum Analyzer Specification:

- Spectrum Analyzer PCB: 54mm x 85.5mm x 11mm (without the size of connectors, switches)

- Measurement Frequency: 10KHz -1.5GHz

- RF Output: -13dbm (maximum -9dbm)

- Frequency Accuracy: ＜0.5ppm

- Measurement Range: 70dB (50kHz-300MHz), 50dB (300M-600MHz), 40dB (600M-900MHz) enable extended firmware)

- Port SWR: < 1.1

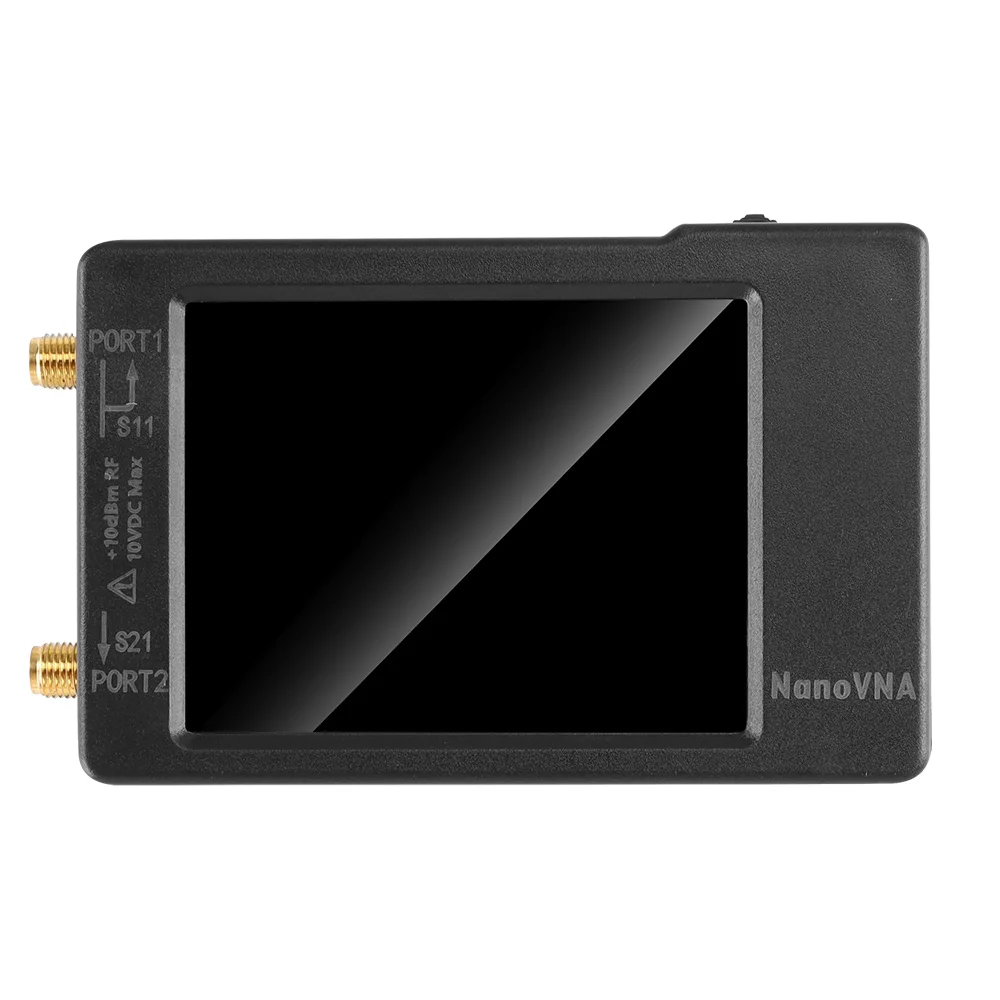

- Display: 2.8 inch TFT (320 x240)

- USB Interface: USB Type-C; Communications Mode: CDC (Serial)

- Power Supply: USB 5V 120mA, built-in 650mAh electricity, maximum charging current 0.8A

- Number of Calibration Points: 101 (Fixed)

- Number of Scanning Points: 101 (Fixed)

- Display Tracking: 4, Marking: 4, Save Setting : 5

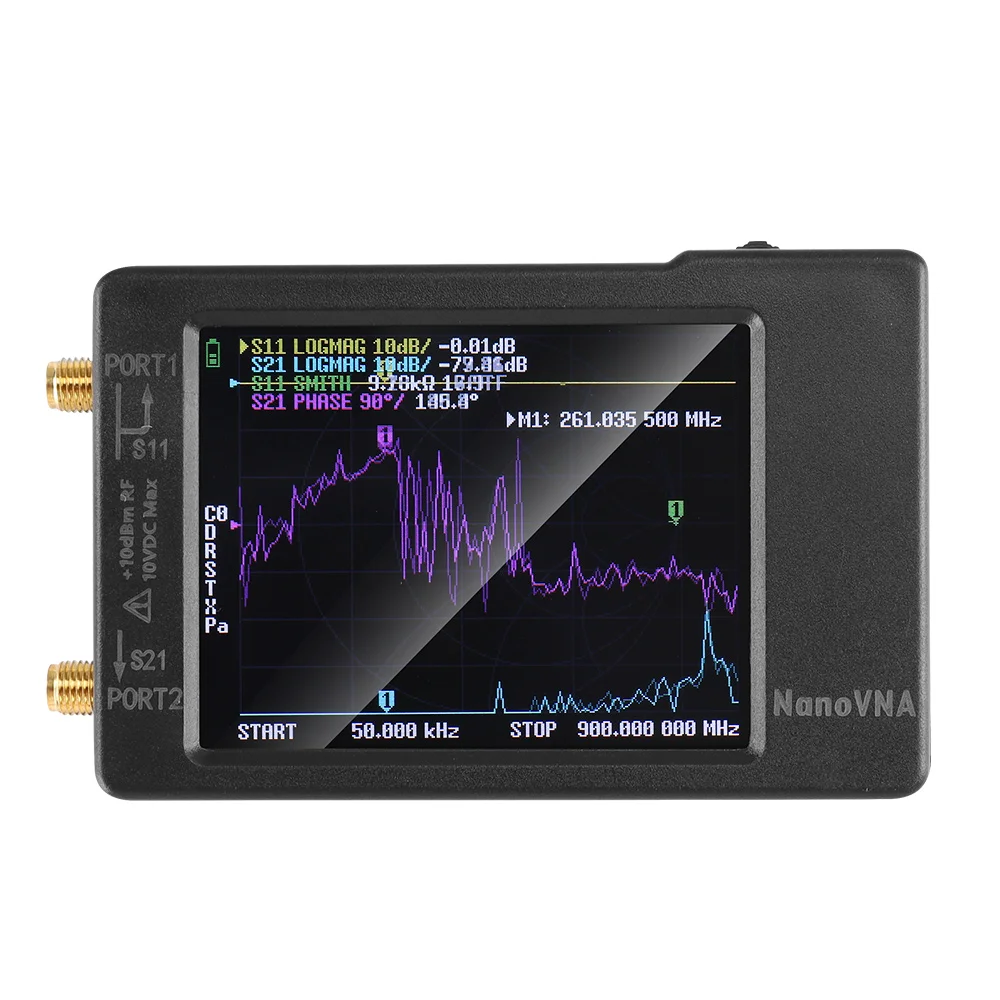

- Measuring S parameters, voltage standing wave ratio, phase, delay, Smith chart and the like

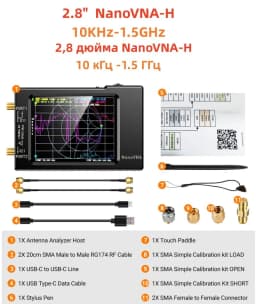

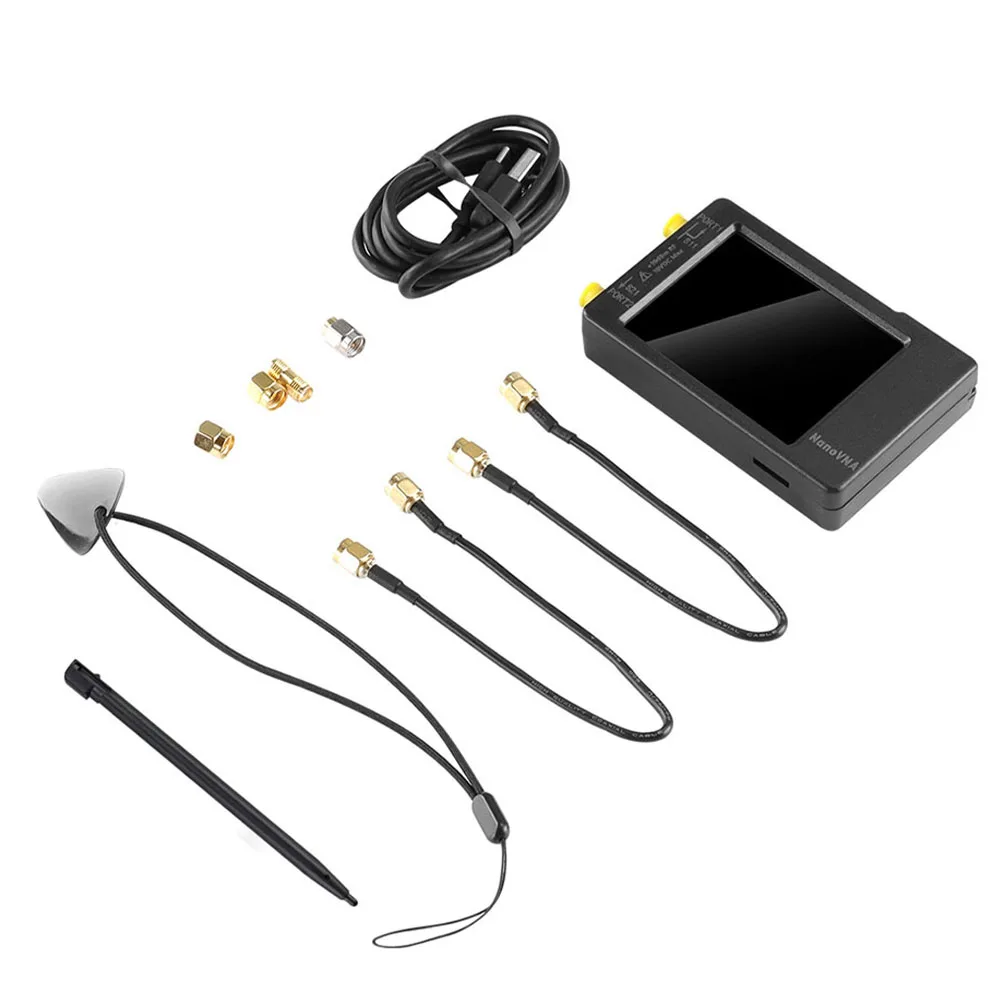

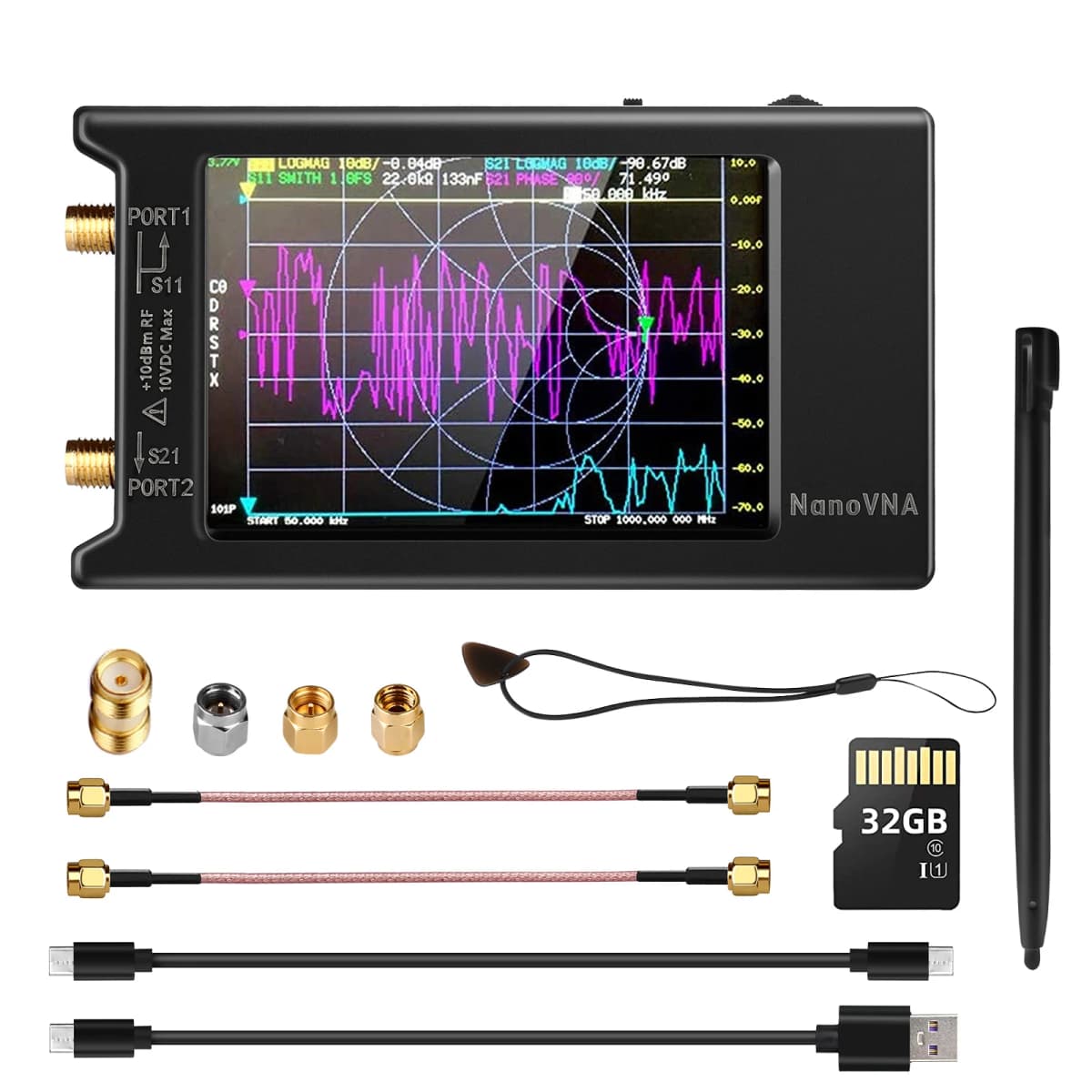

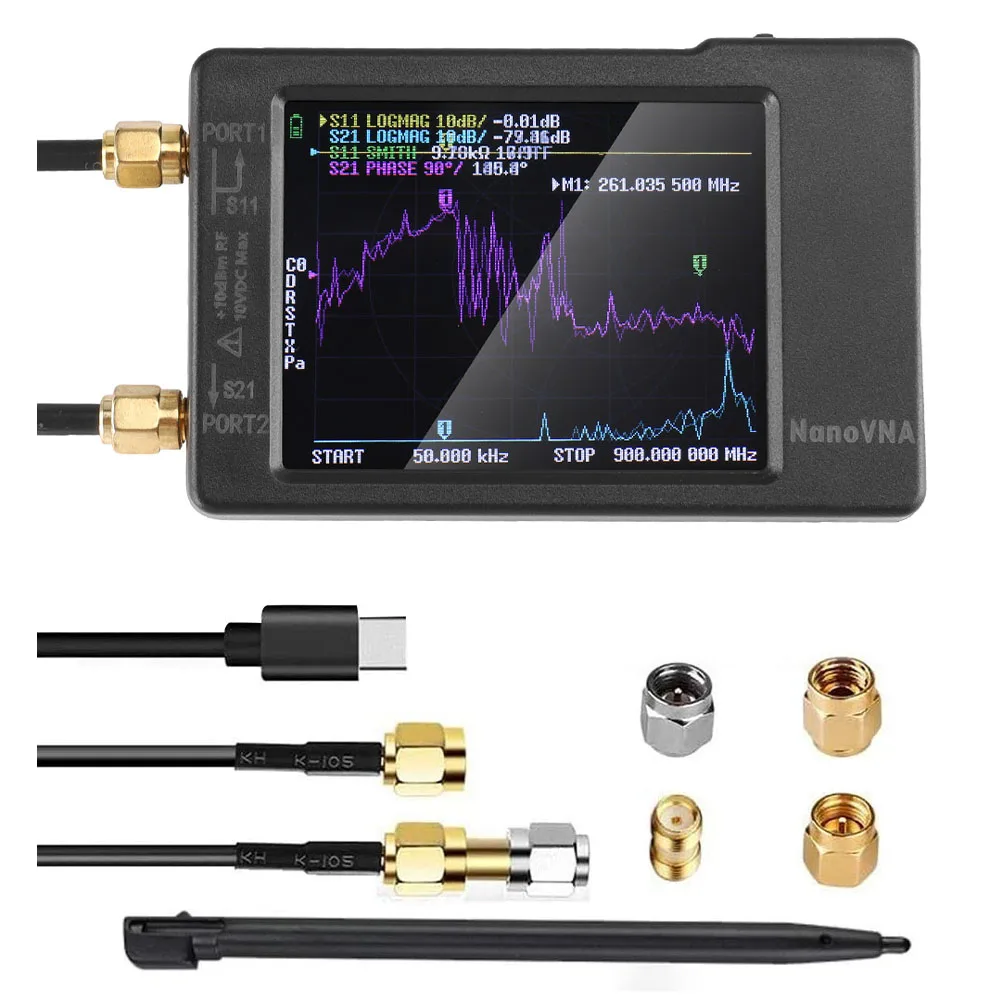

Package List:

1X Spectrum Analyzer NanoVNA Host (2.8-inch touch screen and 650mAh battery is included)

2X 20cm SMA Male to Male RG174 RF Cable

2X SMA Female to Female Connector

1X SMA Simple Calibration Kit SHORT

1X SMA Simple Calibration kit OPEN

1X SMA Simple Calibration kit LOAD
