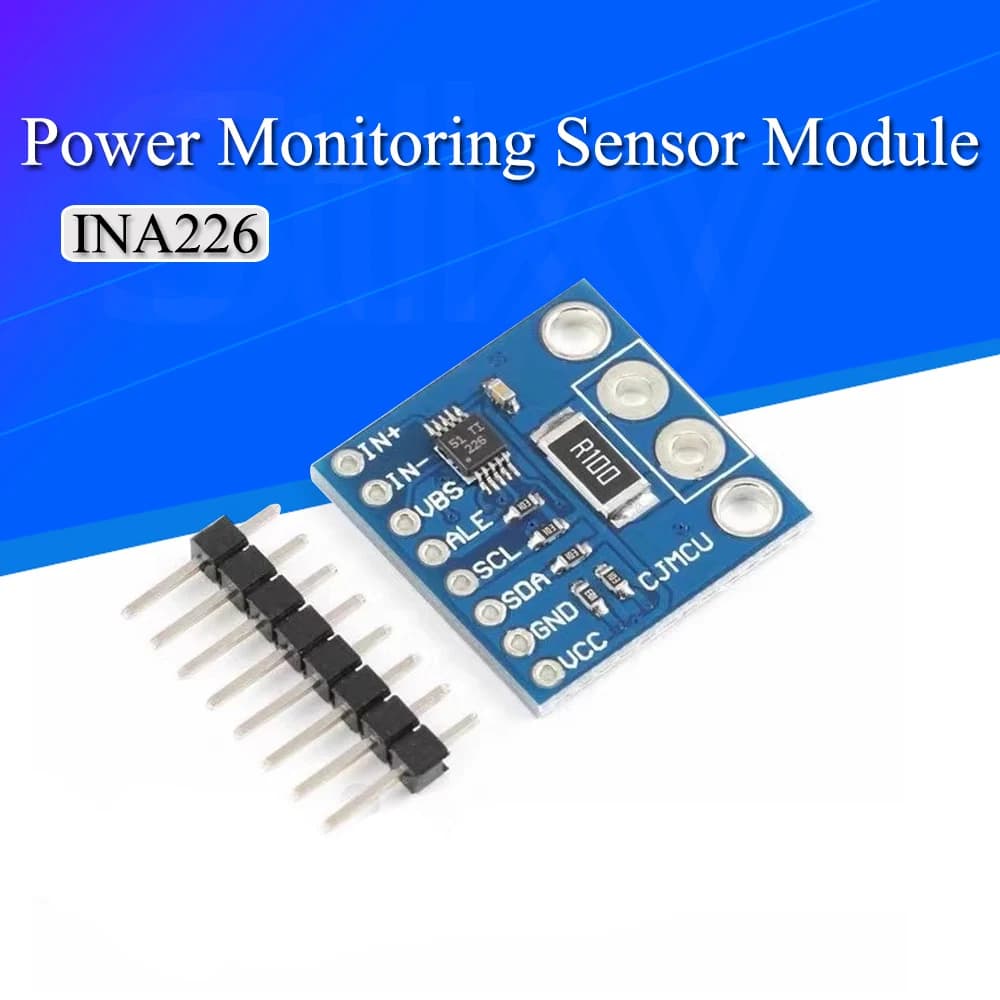

INA226 IIC I2C Interface Bi-directional Current/Power Monitoring Sensor Module For Arduino

Description

The INA226 is a current shunt and power monitor with an I2C™- or SMBUS-compatible interface. Thedevice monitors both a shunt voltage drop and bussupply voltage. Programmable calibration value,conversion times,and averaging,combined with aninternal multiplier,enable direct readouts of current inamperes and power in watts.

The INA226 senses current on common-mode bus voltages that can vary from 0 V to 36 V,independent of the supply voltage. The device operates from a single 2.7-V to 5.5-V supply,drawing a typical of 330μA of supply current. The device is specified over the operating temperature range between –40°C and125°C and features up to 16 programmable addresses on the I2C-compatible interface

Features

Senses Bus Voltages From 0 V to 36 V

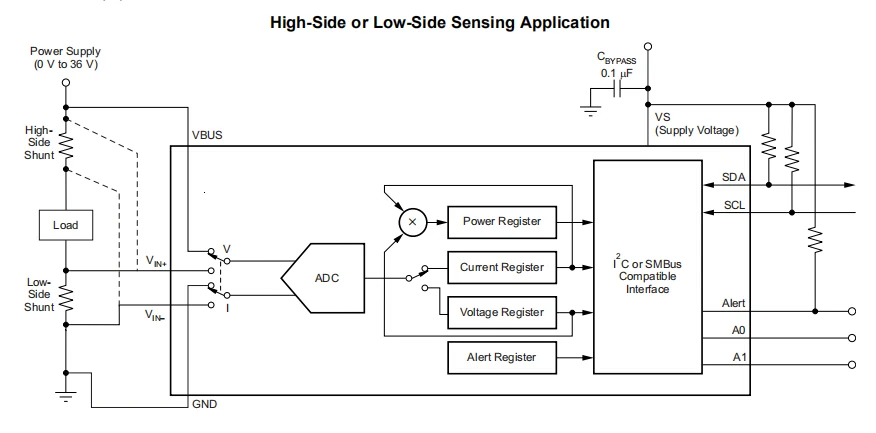

• High-Side or Low-Side Sensing

• Reports Current,Voltage,and Power

• High Accuracy:

  – 0.1% Gain Error (Max)

  – 10 μV Offset (Max)

• Configurable Averaging Options

• 16 Programmable Addresses

• Operates from 2.7-V to 5.5-V Power Supply

• 10-Pin,DGS (VSSOP) Package

Applications

• Servers

• Telecom Equipment

• Computing

• Power Management

• Battery Chargers

• Power Supplies

• Test Equipme

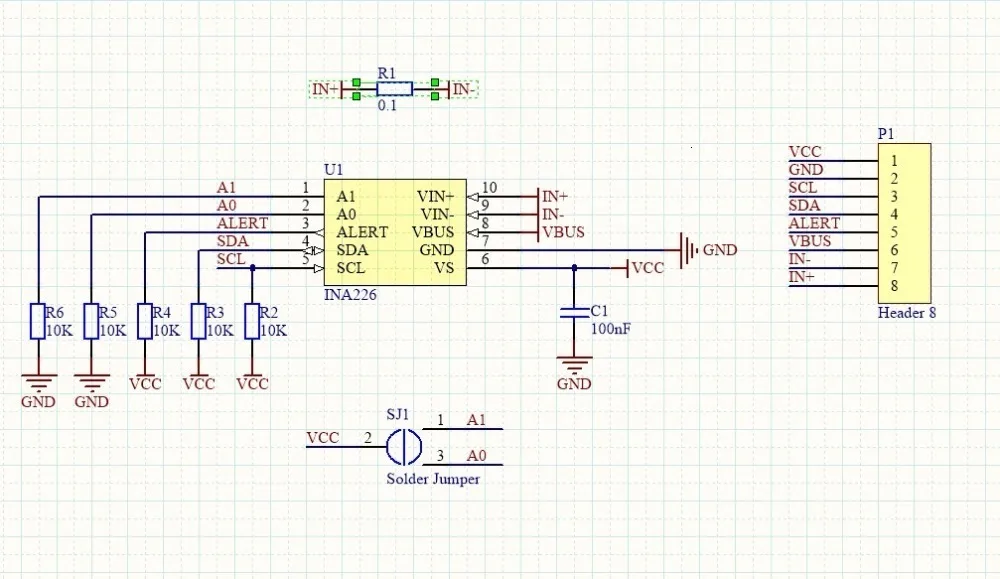

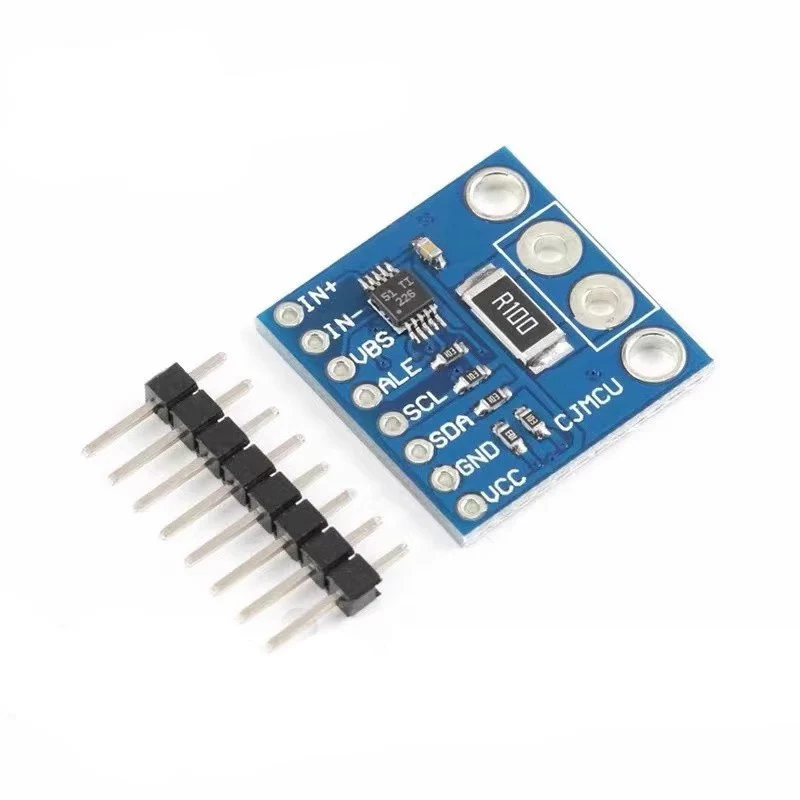

Pin Description

VBUS: bus voltage input

SDA/SCL: IIC bus data and clock signal lines

ALERT: Multi-function alarm output

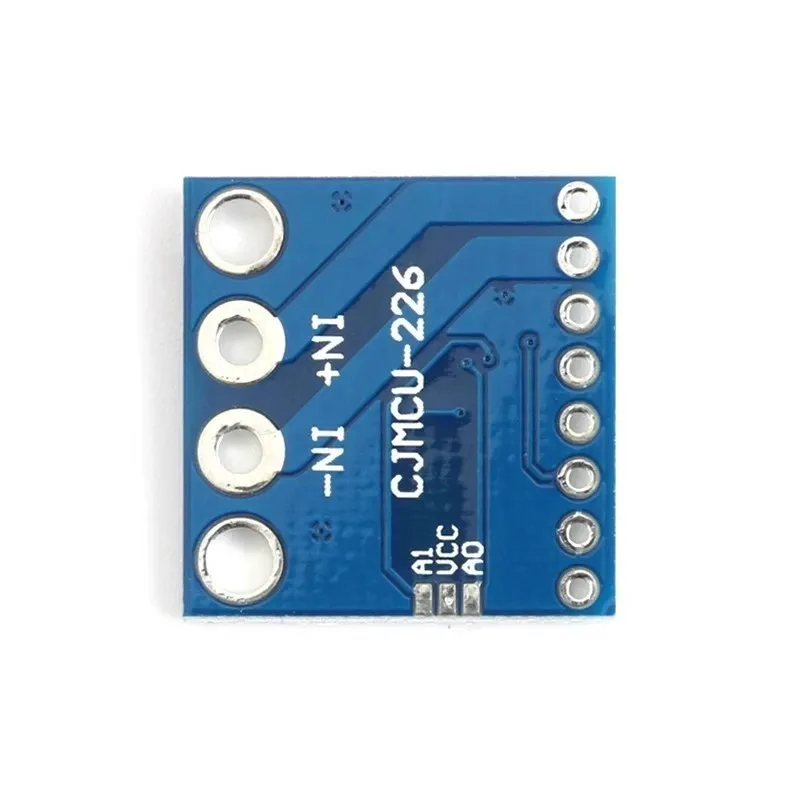

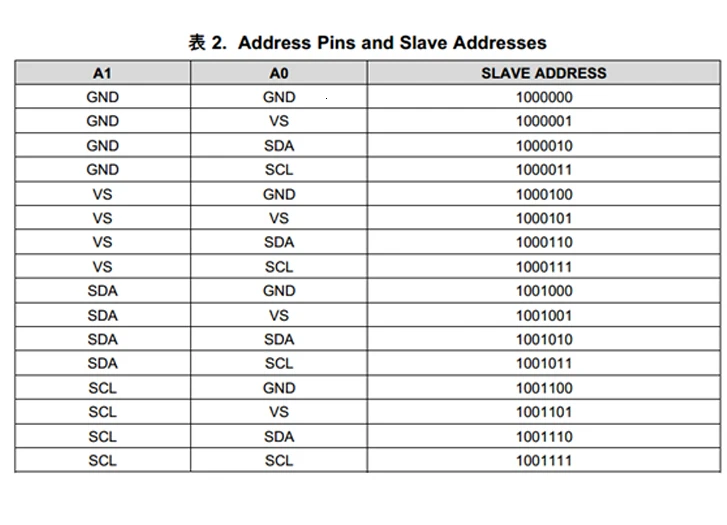

A0/A1: IIC address line

IN+/IN-: non-inverting analog input,inverting analog input
