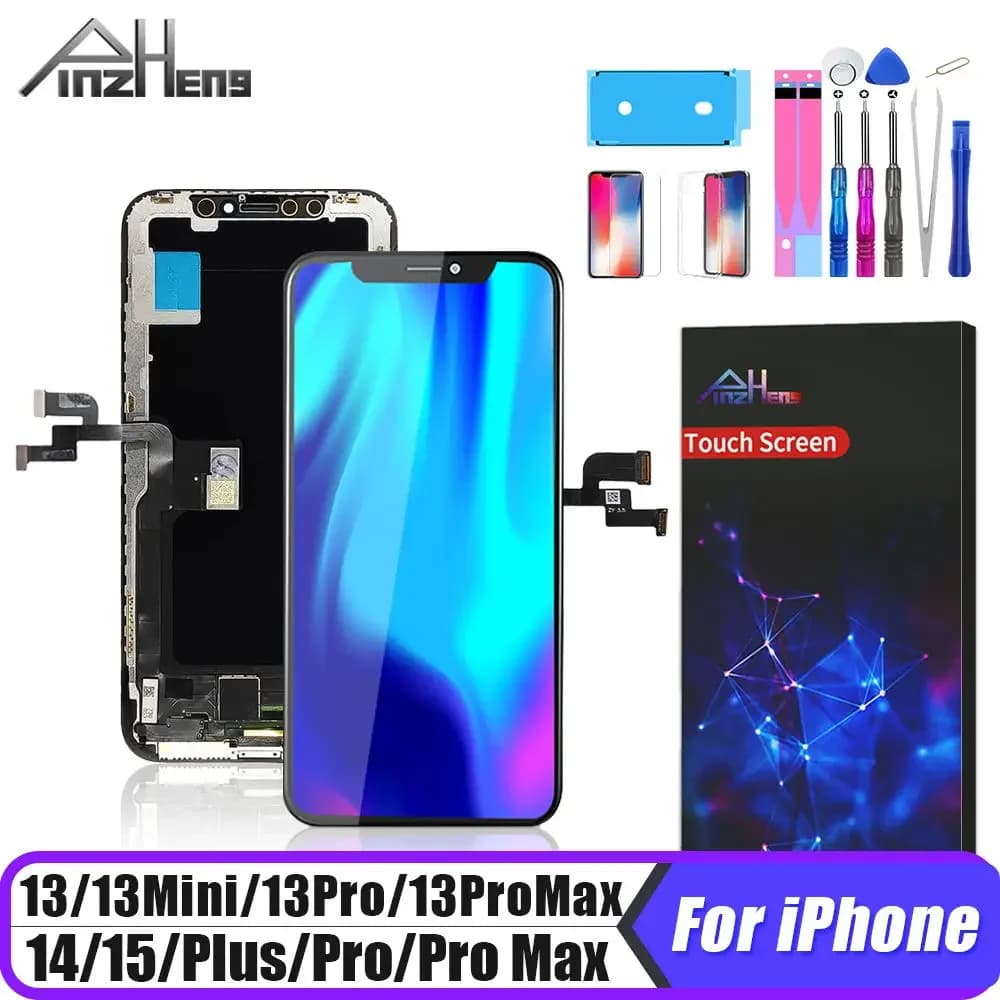

PINZHENG High Quality Screen INCELL LCD OLED For iPhone 14 Pro 15 Plus 13 Pro Max Displays For iPhone Replacement With Tools

Warning: Be sure to disconnect the battery power plug when replacing the screen.
Warning: Please only connect the cable and do not fully install it when testing.
Warning: 13 and 13 Pro are two completely different products, please confirm the model before purchasing.

How to identify from appearance for INCELL, OLED(China), newOLED(China) and OEM.

Thickness of mobile phone screen after installation:
INCELL>Original Thickness.(thicker 0.3-0.6mm)
OLED(China)>newOLED(China)>Original Thickness.(thicker 0.2-0.5mm)
OEM=Original Thickness.

The width of the black border on the side of the phone screen:
INCELL>OLED(China)>newOLED(China)>OEM(Ori)---(0.05mm-0.2mm)

The width of the black border at the bottom of the phone screen:
INCELL>OLED(China)>newOLED(China)>OEM(Ori)---(0.1mm-0.8mm)

Maximum Brightness:
INCELL: 720-750, OLED(China)/NewOLED(China): 780-810, OEM(Original): 820-850

If there are repair buyers and wholesale buyers who need to identify different types of screens through technology and display effects, please contact customer service directly. We will explain all relevant technical issues to you. (Due to the technical composition of the PINZHENG factory's products, it is not possible to fully disclose them)

About INCELL/OLED(China)/newOLED(China)(Upgraded)/AMOLED/OEM

INCELL
Advantages: the price is very favorable, the quality is stable.
Disadvantages: The brightness and resolution are 82% of the original, the power consumption is high, the black borders around are thicker than the original, the screen thickness is thicker than the original, and the black interface displays dark gray, but it can meet daily use.

OLED(China)
Advantages: The price is moderate, with a resolution and brightness of about 90% of the original, making it the most cost-effective type.
Disadvantages: The black border at the bottom is wider than the original. Cannot display a pure black interface. The black interface will display a gray color. The screen thickness is only slightly thicker than the original.Power consumption higher than the original.

newOLED(China) (Upgraded)
Advantages: The surrounding borders are close to the original, and the resolution and brightness are about 95% of the original.
Disadvantages: The price is relatively expensive, and it still cannot display pure black. The black interface will display a gray color, but the display effect is better than ordinary OLED. The screen thickness is only slightly thicker than the original.Power consumption slightly higher than the original.

AMOLED
Advantages: The quality of all aspects of the product is close to 98% of the original, and it can display pure black color. The black border of the screen and the thickness of the product are the same as the original.
Disadvantage: Expensive price.

OEM
Advantages: All products are made of original materials.
Note: This product is not assembled by Apple, but by Pinzheng using original materials.

About 3D Touch and Face ID:

All models: All products have this feature
All Support Face ID, Unless The Camera Chip Damaged Or Replaced.

About Hard OLED/Soft OLED:

The OLED-China and newOLED-China we sell are hard OLED.
AMOLED is a soft OLED.

​About Automatic brightness adjustment:

​INCELL: All models are not supported.

OLED(China) and newOLED(China)(upgrade):
X-12promax----This function can be achieved by transplanting the chip.
13-15promax----There is no such function. Due to the inability to punch holes on this type of screen, automatic brightness adjustment is not supported. (Note: This type of screen lacks physical light sensing holes.)

AMOLED and OEM: All models are supported.

About "the phone cannot recognize the screen":

Transplant IC chips:
All models can be realized by IC chip transplantation to realize the new screen to be recognized by mobile phones, thereby eliminating non-original information.
13,14,15 series :  These new models use a dual-layer encryption system, and only by transplanting the IC chip can the phone recognise the new screen, eliminating non-original information.
Note: Due to system encryption issues, if the handset cable has been replaced, but the handset sensor chip has not been transplanted at the same time, the above functions cannot be realized.
(incell: does not support chip transplantation, OLED/AMOLED/OEM: supports chip transplantation)

Regarding after-sales service:

Within 10 years, the screen is damaged by non-human factors, and we promise to send a new screen for free.

Regarding installation:

Please contact customer service directly to request an installation video. We recommend non professionals to go to a repair shop for installation, especially for the first time. (It is very difficult to disassemble the screen)

Regarding evaluation:

We hope buyers who receive good products can give us a five-star rating. We offer gifts or discount coupons as gifts. If you receive defective products, please contact customer service directly, and we will provide the highest quality after-sales service.

Packing List:

INCELL: screen×1 waterproof ashesive×1 tools kit×1
OLED(China): packaging×1 screen×1 waterproof ashesive×1 tempered glass×1 tools kit×1
new OLED(China): packaging×1 screen×1 waterproof ashesive×1 phone case×1 tempered glass×1 tools kit×1
OEM:packaging×1 screen×1 waterproof ashesive×1 phone case×1 tempered glass×1 tools kit×1

Note:

In order to test the protective effect of different packaging on the product, we will randomly send two different types of packaging. After testing the results, we will choose a better packaging.(Ordinary model: cardboard box, upgraded model: iron box.)
