Gear Display Meter For Suzuki GSXR600 GSXR750 GSXR1000 GSX R750 R600 R1000 GSXR 750 600 1000 Motorcycle 1-6 Speed Gear Indicator

Note：

1.Before purchasing the product, please check whether your motorcycle connector is compatible with my product connector.

Fitment:

For Suzuki GSX1300（1999-2020）

For Suzuki GSX1400(2001-2009)

For Suzuki GSX650F(2008-2015)

For Suzuki GSX1000F(2019-2020)

For Suzuki GSX1250FA(2010-2017)

For Suzuki GSXS750(2015-2020)

For Suzuki GSXS1000(2015-2020)

For Suzuki GSXR 600 1997-2019

For Suzuki GSXR 750 (1996-2020)

For Suzuki GSXR1000(2001-2016)

For Suzuki GSR400(ALL)

For Suzuki GSR600 ALL YEARS

For Suzuki GSR750 2011-2017

For Suzuki GSF650(2006-2015)

For Suzuki GSF1250N(2007-2016)

For Suzuki GSF1250S/SA(2007-2016)

For Suzuki DL1000V(2002-2020)

For Suzuki DL1000XTV（2019-2020）

For Suzuki B king(2008-2012)

For Suzuki C90(2005-2020)

For Suzuki C109R/T(2008-2015)

For Suzuki C1500(2005-2017)

For Suzuki C1800R(2008-2015)

For Suzuki Gladius(2009-2015)

For Suzuki M90（2009-2020）

For Suzuki M1500(2009-2015)

For Suzuki M1800R(2006-2020)

For Suzuki M109R/R2(2006-2020)

For Suzuki SV1000(2003-2009)

For Suzuki SFV400(ALL)

For Suzuki SFV650(2009-2015)

For Suzuki Inazuma250(2011-2015)

For Suzuki Intruder250LC(2015)

For Suzuki TL1000R(1998-2003)

For Suzuki TL1000S(1997-2003)

For Suzuki VZ1500(2009-2015)

For Suzuki VLR1800(2008-2015)

For Suzuki VZR1800(2006-2020)

(If you encounter any questions, please be sure to contact me first, please do not leave negative comments first, I very much hope to answer your questions, thank you)

Package Include:

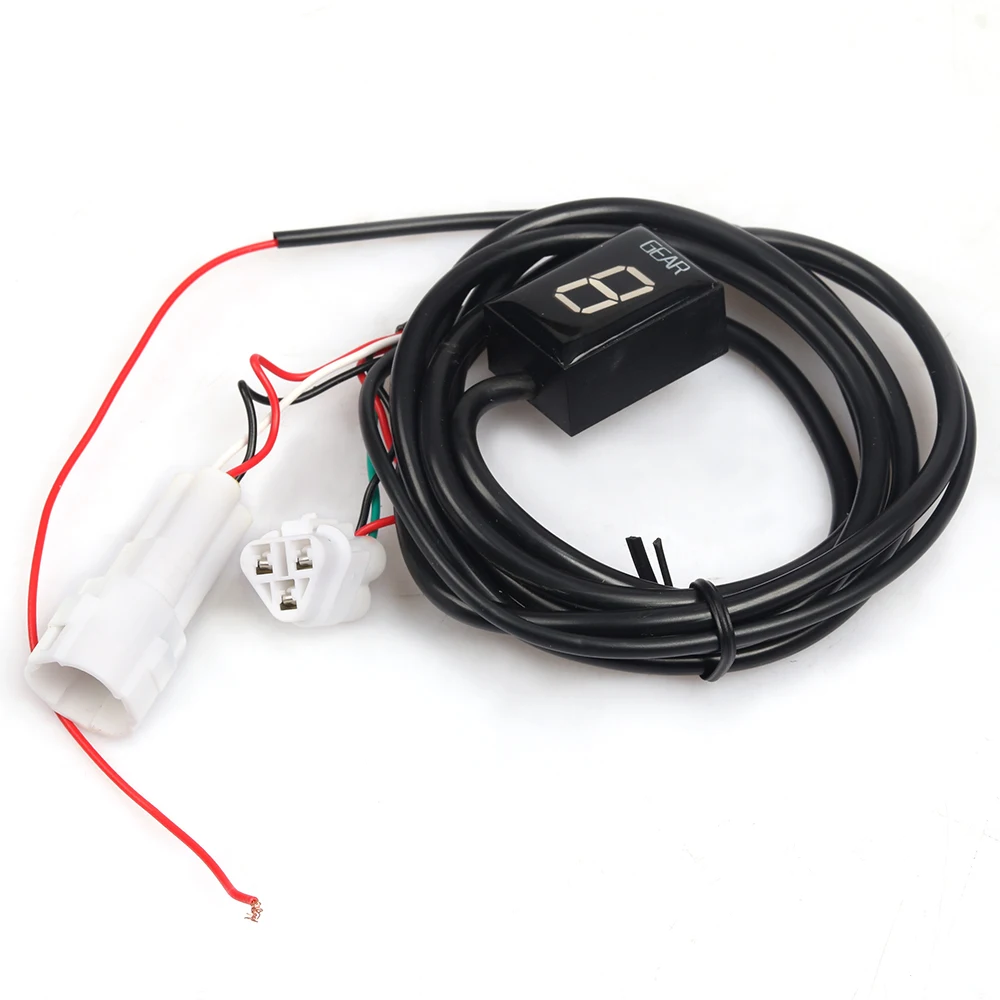

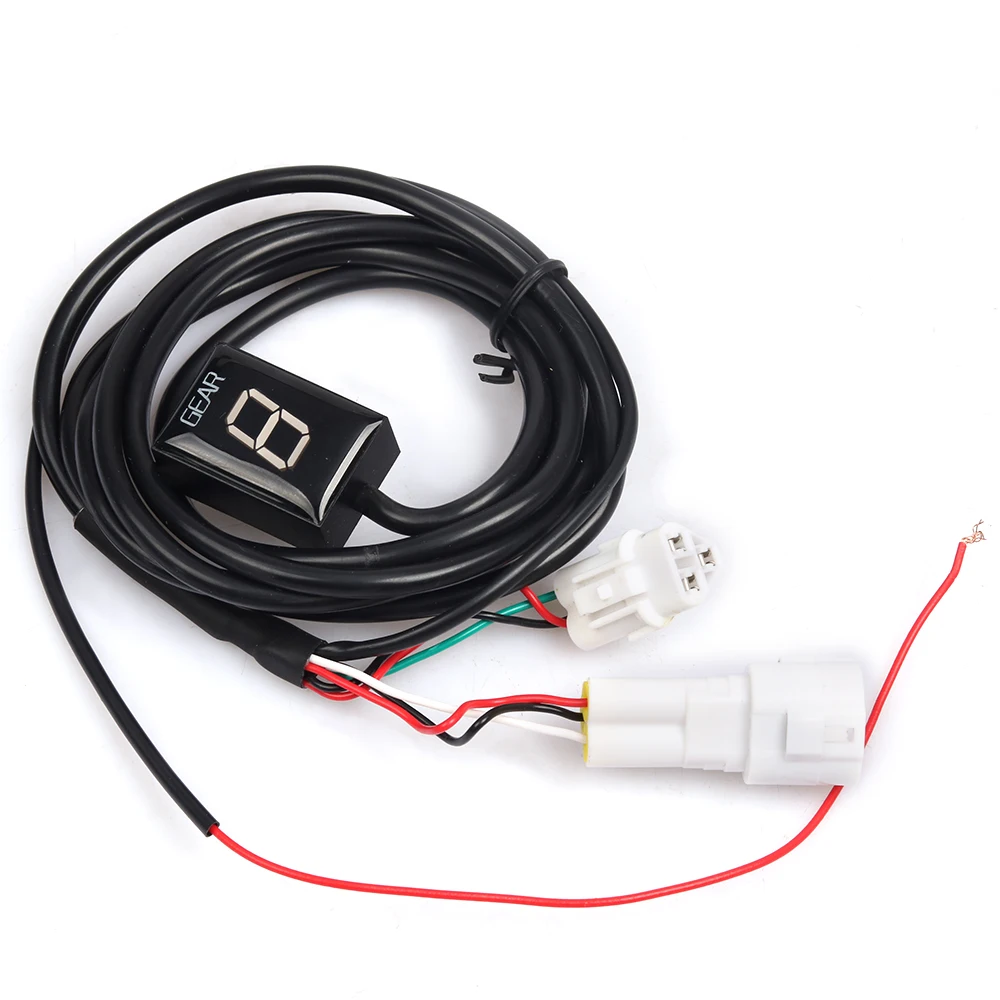

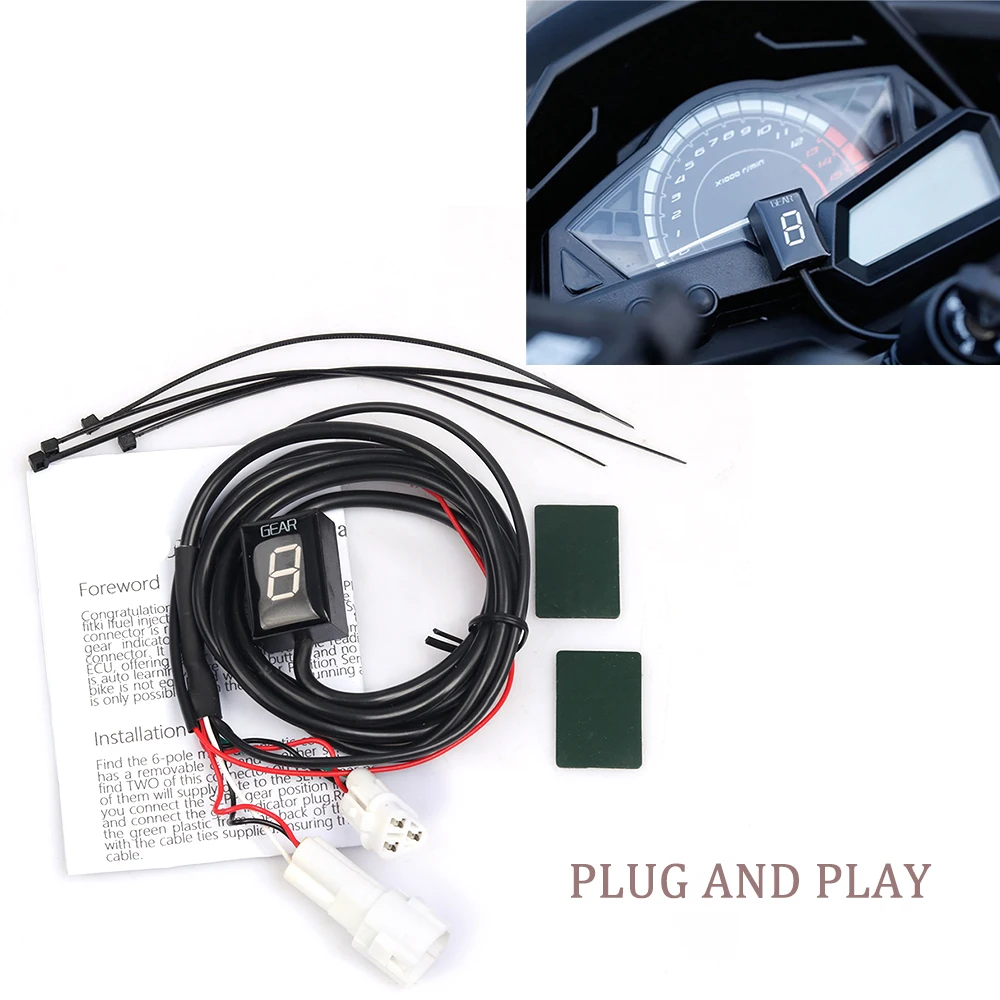

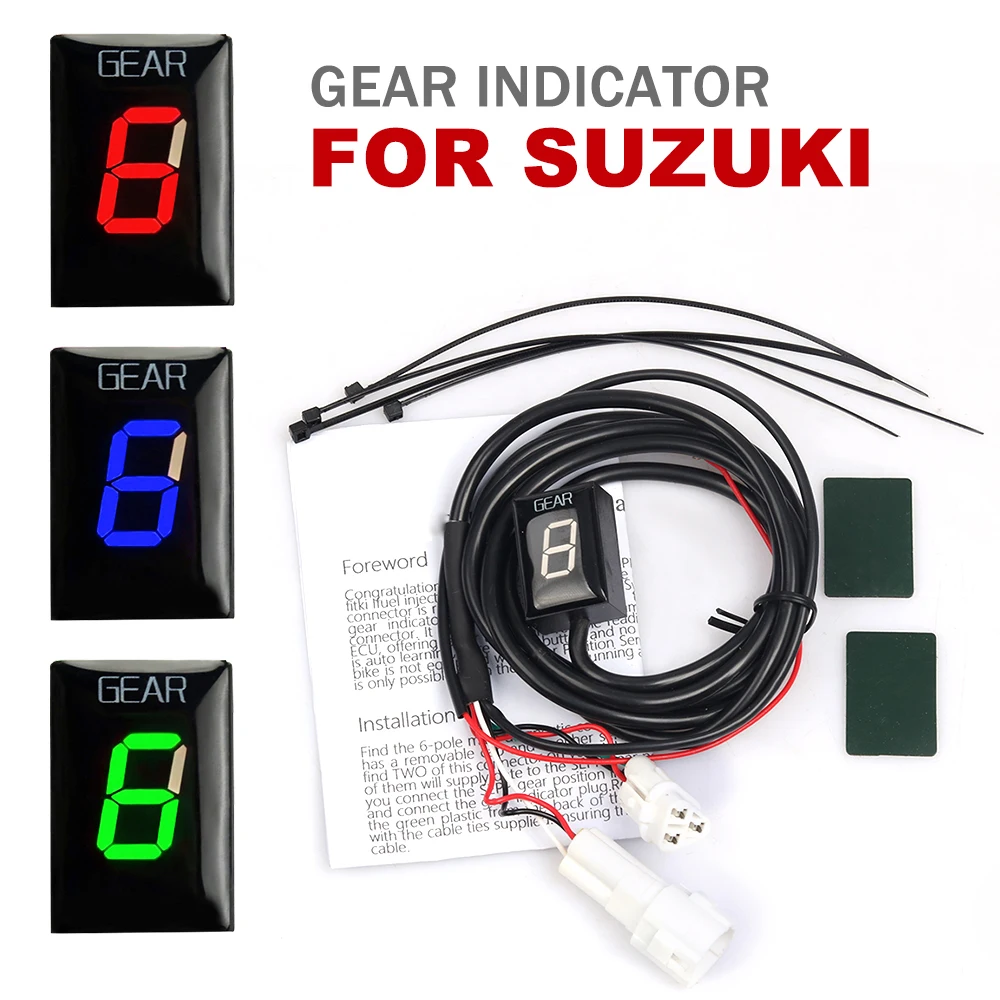

1 x Gear Indicator (Contains installation instructions)

Description:

Condition: 100% New

Item Name: Speed Gear Display Indicator

Feature:

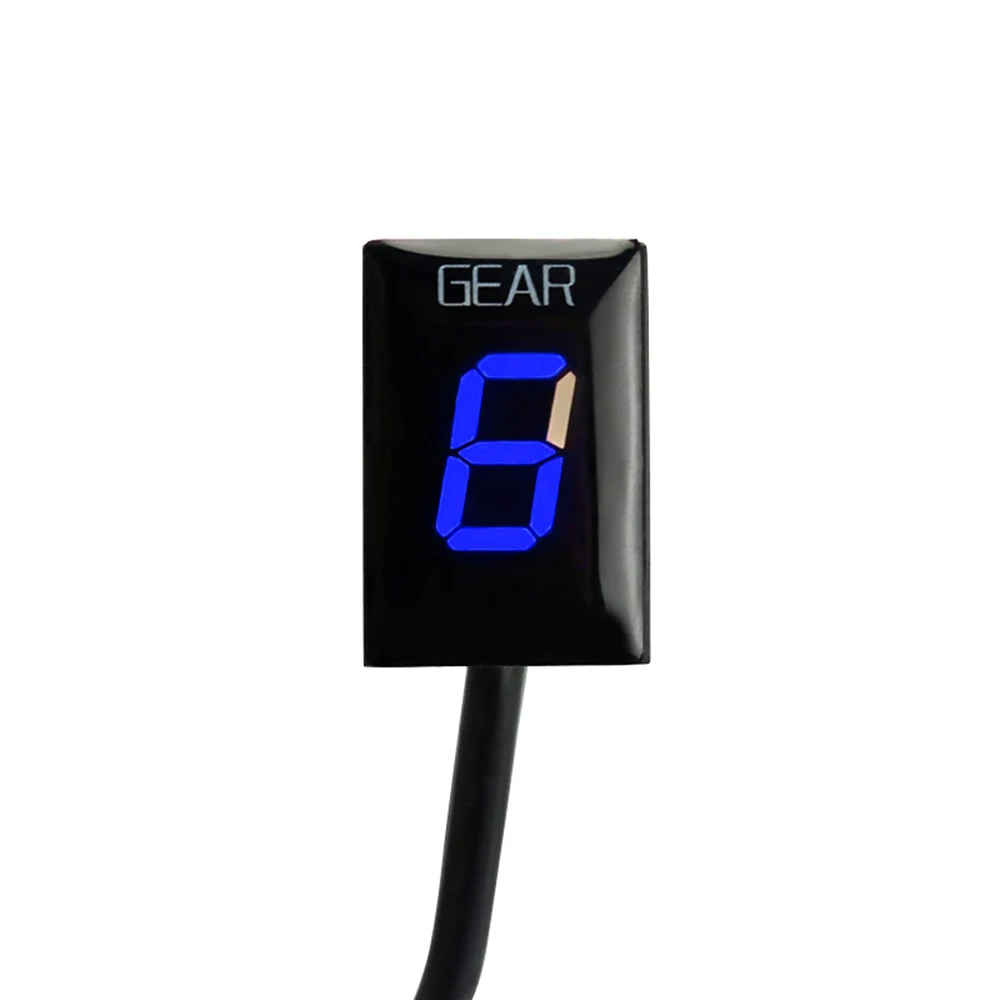

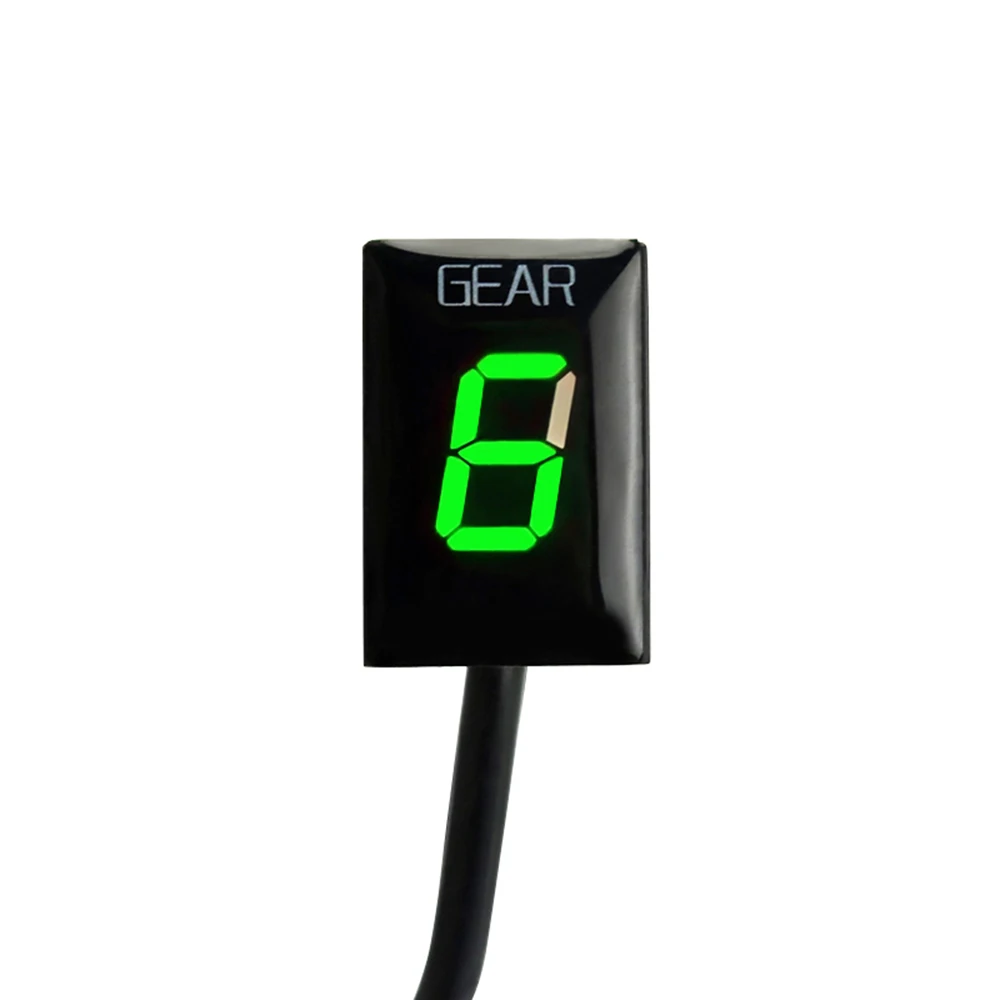

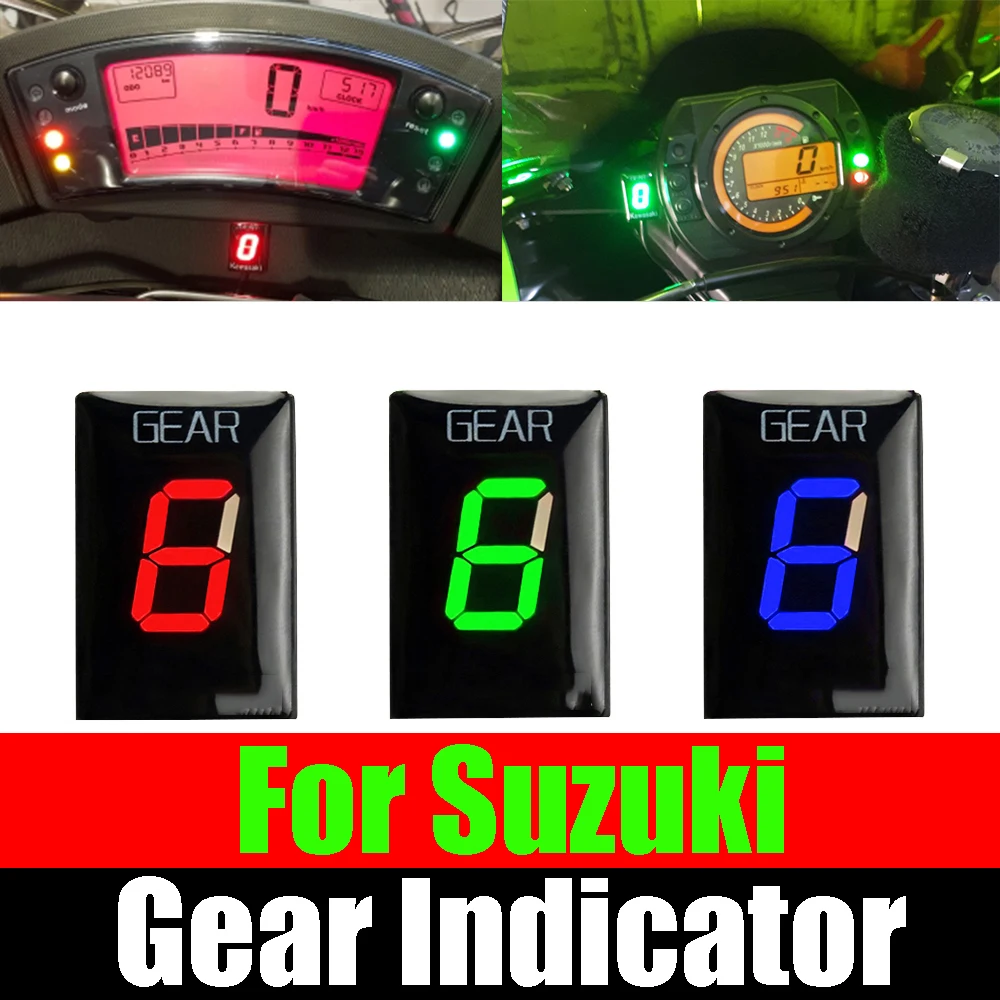

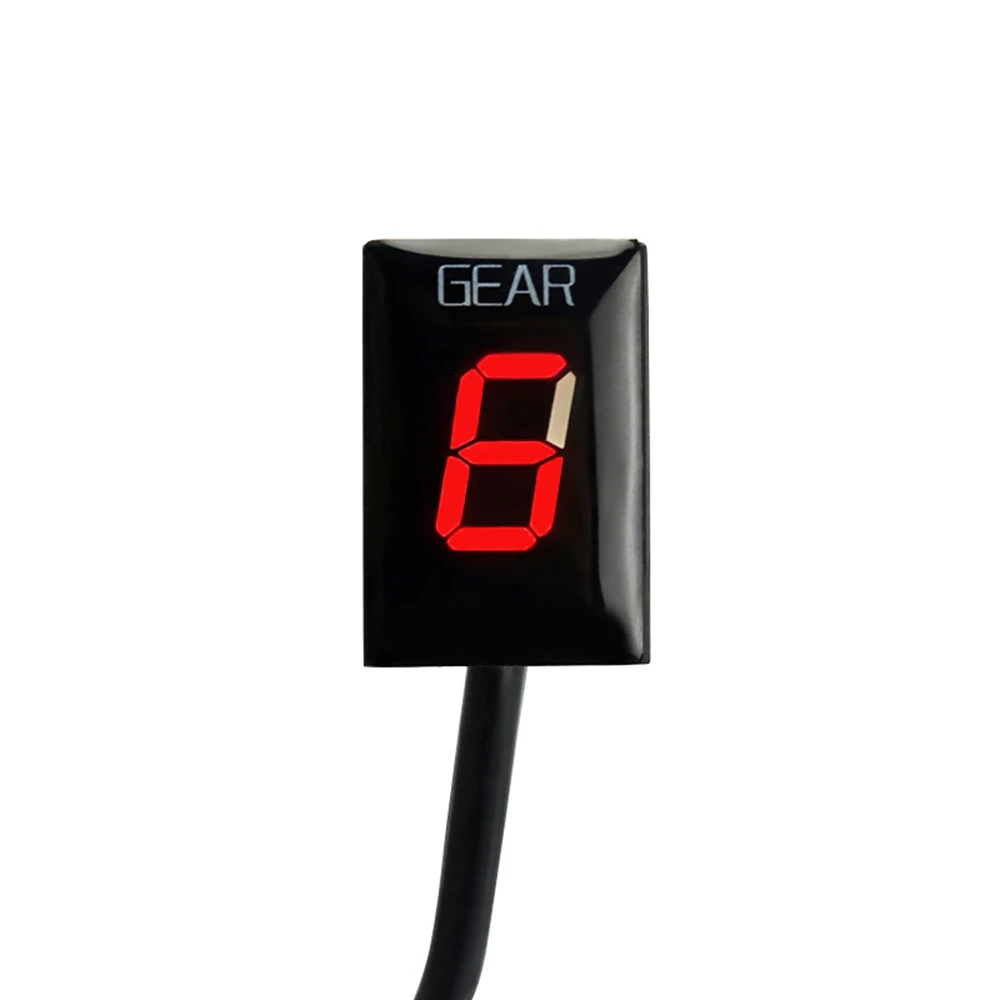

Shows current gear number

Indicates the current gear from 1 to 6. as well as a neutral indicator.

Detects current gear faster than other gear indicators that use the speedometer / tachometer signal.

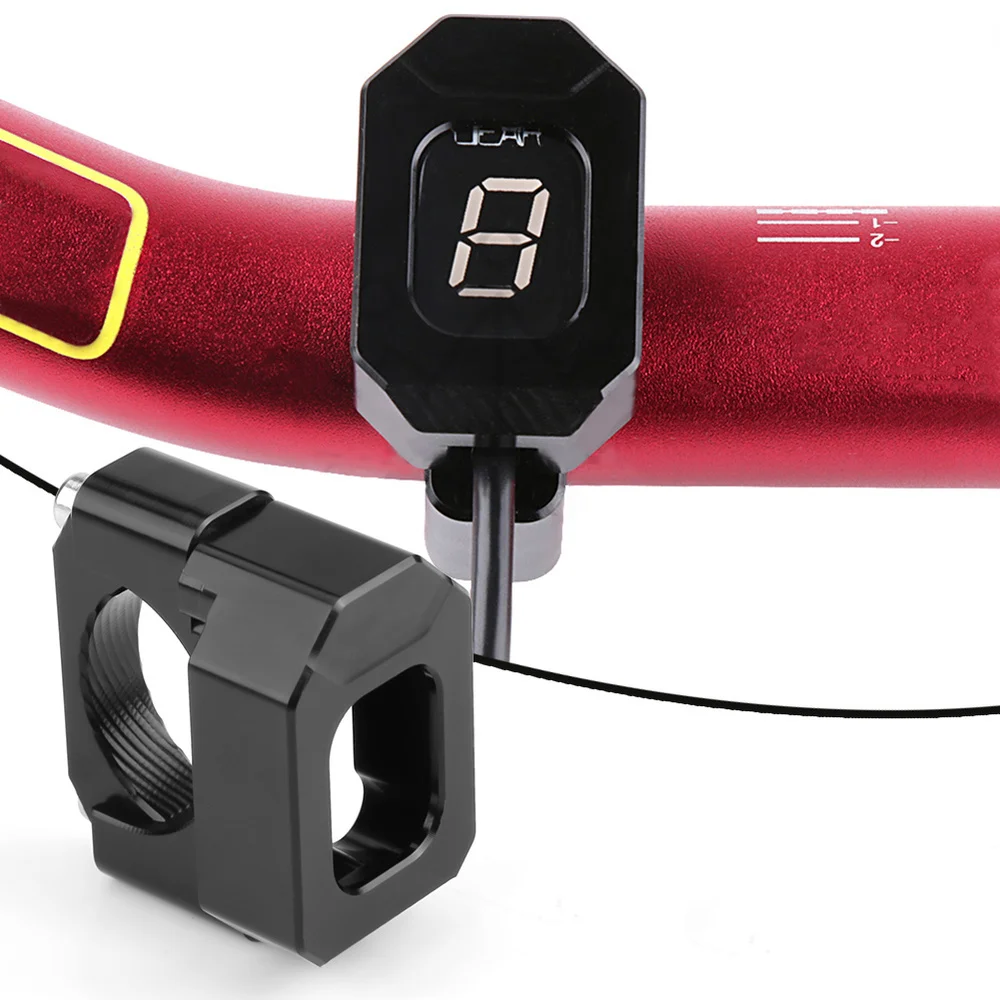

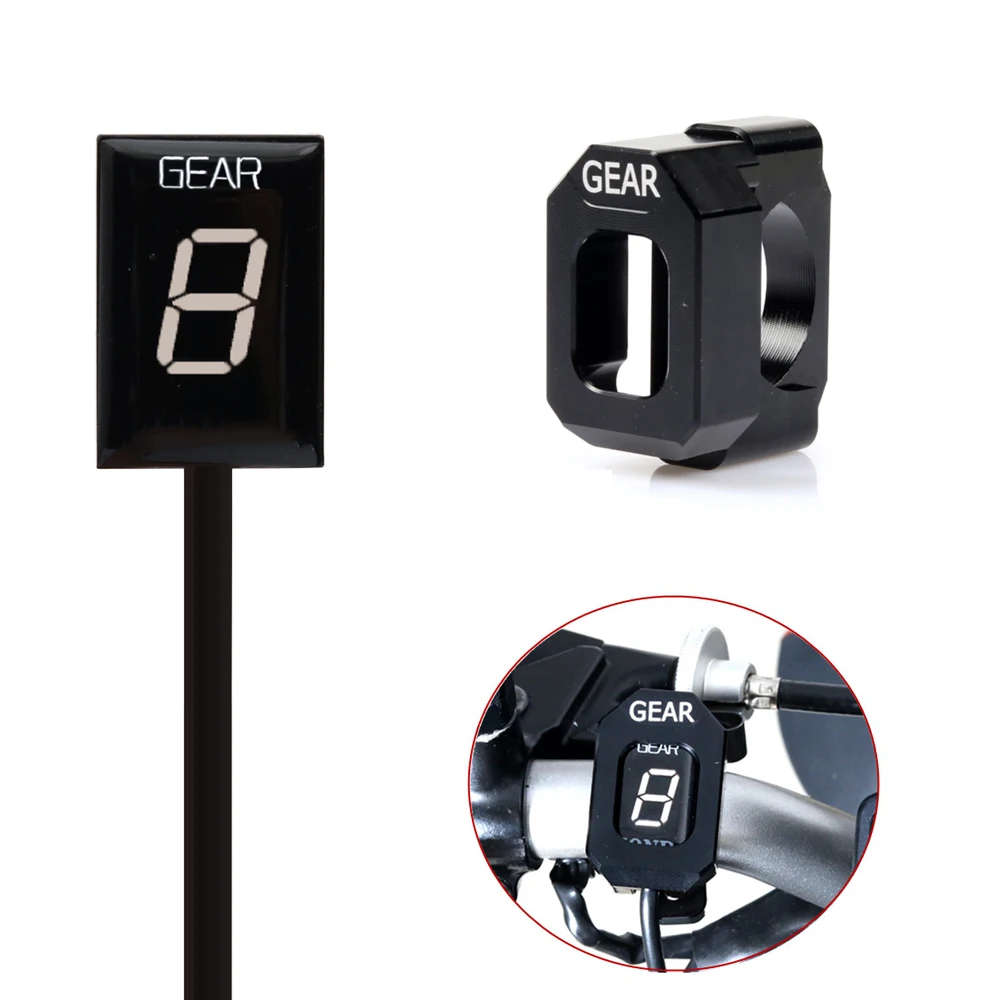

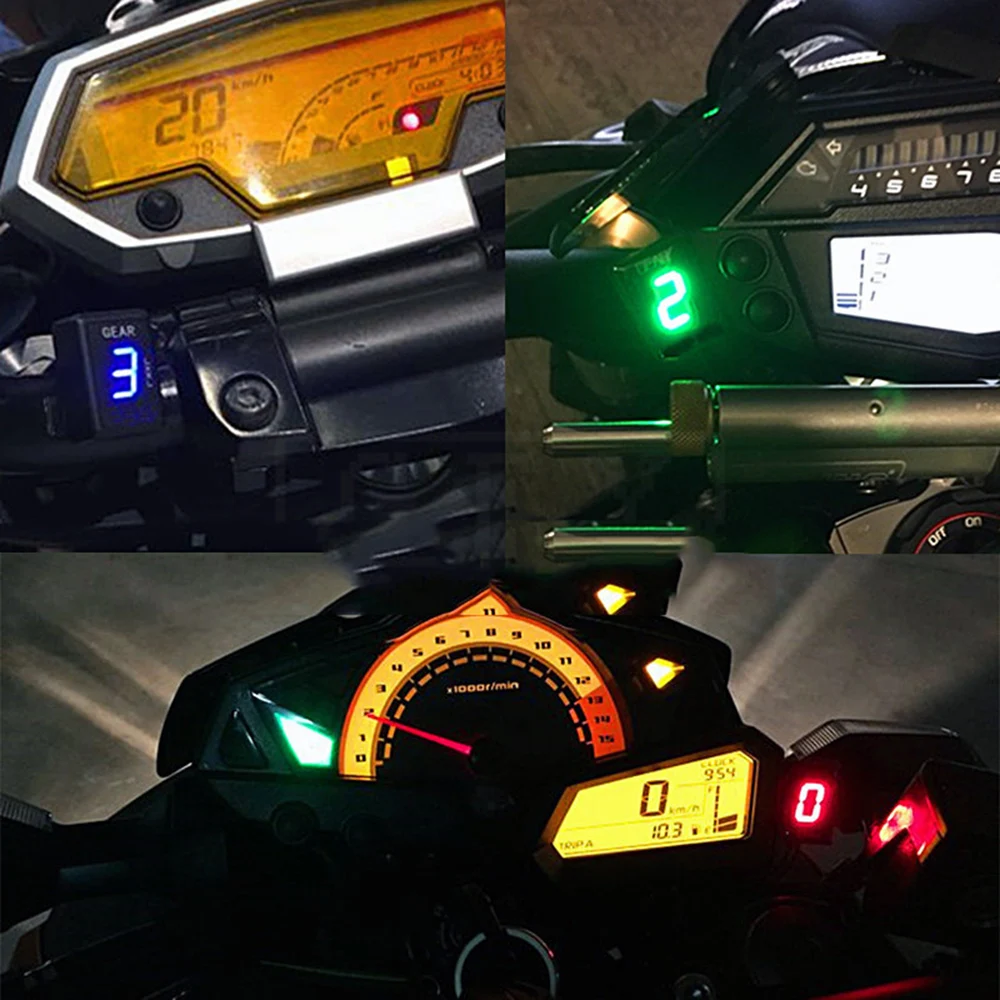

Display can be mounted anywhere

Preface:

Congratulations on your purchase of a gear position indicator. It is the most advanced gear position indicator on the market today. This product will fit all fuel injected (fi) suzuki motorcycles that have onboard diagnostic system connector. This connector is referred to as "coupler select switch mode" in the suzuki manuals. Unlike other gear indicators available for your bike, this product plugs into the diagnostic connector. Makes the installation very simple. The unit reads data directly from the ECM, offering faster and more reliable readings than competitive products. The unit is fully automatic, there are no buttons and no "programming wire", the display will indicate all gears correctly when the ignition is on, the side stand is up and the engine stop switch is in the run position.

Notice:

Not Plug And Play. The original motorcycle speedsensor connector is connected together. Please separate the connector and connect it with the two white connectors of the product (connect the speed signal cable). The red cable is connected to the positive pole of the 12V power supply (Power positive cable)

Instructions Guide:

After you receive the gear indicator, pls connect the cable at right port according our poduct page and plug into your motorcycle's ecu plug。

Set up:

-You need to setup the module after installation. When ignition is turned on, the display counts backwards (6 to 1) indicating that the memory is clear.

-Raise the rear wheel off the ground by using a stand, and start the engine in Neutral. (If you do not have a stand, you may setup the unit while riding. Find a long, straight road with light traffic.)

the screen displays L, indicating that learning is started.

accelerate through the handle throttle slowly

-The display will blink “1”.Select first gear, release the clutch, and keep the RPM above idle speed. The display is blinking faster while the unit is learning the gear.

-When the display shows “2”, select second gear.

Repeat this process until all gears are thought (5 or 6).

The unit is programmed and should indicate the gears correctly.

Now, when ignition is turned on, the display counts forward (1 to 6) indicating that it is fully functional.
