For Kawasaki ZX-6R ZX6R ZX-6RR ZX6RR Z750 Z1000 Z 750 1000 1-6 Speed Motorcycle Accessories Gear Indicator Gear Display Meter

▶Fitment:

For Kawasaki ZX-6R (2003 - 2008)

For Kawasaki ZX-6RR (2003-  2006)

For Kawasaki Z750 (2004 - 2006)

For Kawasaki Z1000 (2003 - 2006)

For Kawasaki ER-6N (2006 - 2011)

For Kawasaki ER-4N(2010 - 2014)

For Kawasaki ER-4F(2010 - 2012)

For Kawasaki ER-6F (2006 - 2011)

For Kawasaki Ninja 250R [FI only, not in USA] (2008 - 2012)

For Kawasaki Ninja 400R 2010 - 2012

For Kawasaki Ninja 650R (2006 - 2011)

For Kawasaki KLE650 / Versys650 (2006 - 2009)

For Kawasaki ZRX1200 DAEG(2009 - 2010)

For Kawasaki Vulcan 900 / VN900 (2006 - 2010)

For Kawasaki Vulcan 1700 / VN1700 (2009 - 2010)

For Kawasaki KFX450R [ATV] (2008 - 2010)

For Kawasaki Vulcan 2000 / VN2000 (2004 - 2010)

For Kawasaki KVF 750 [ATV] (2008 - 2010)

(If you encounter any questions, please be sure to contact me first, please do not leave negative comments first, I very much hope to answer your questions, thank you)

Description:

Condition:100% Brand New

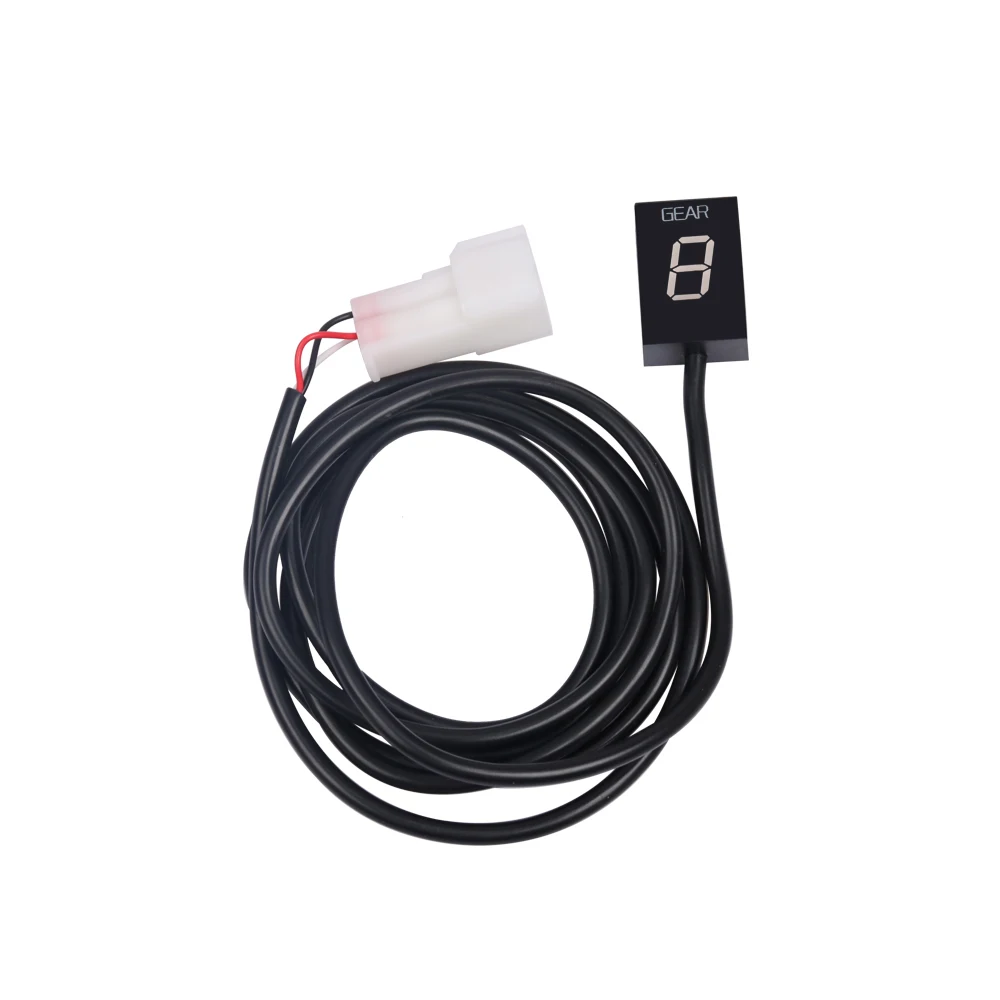

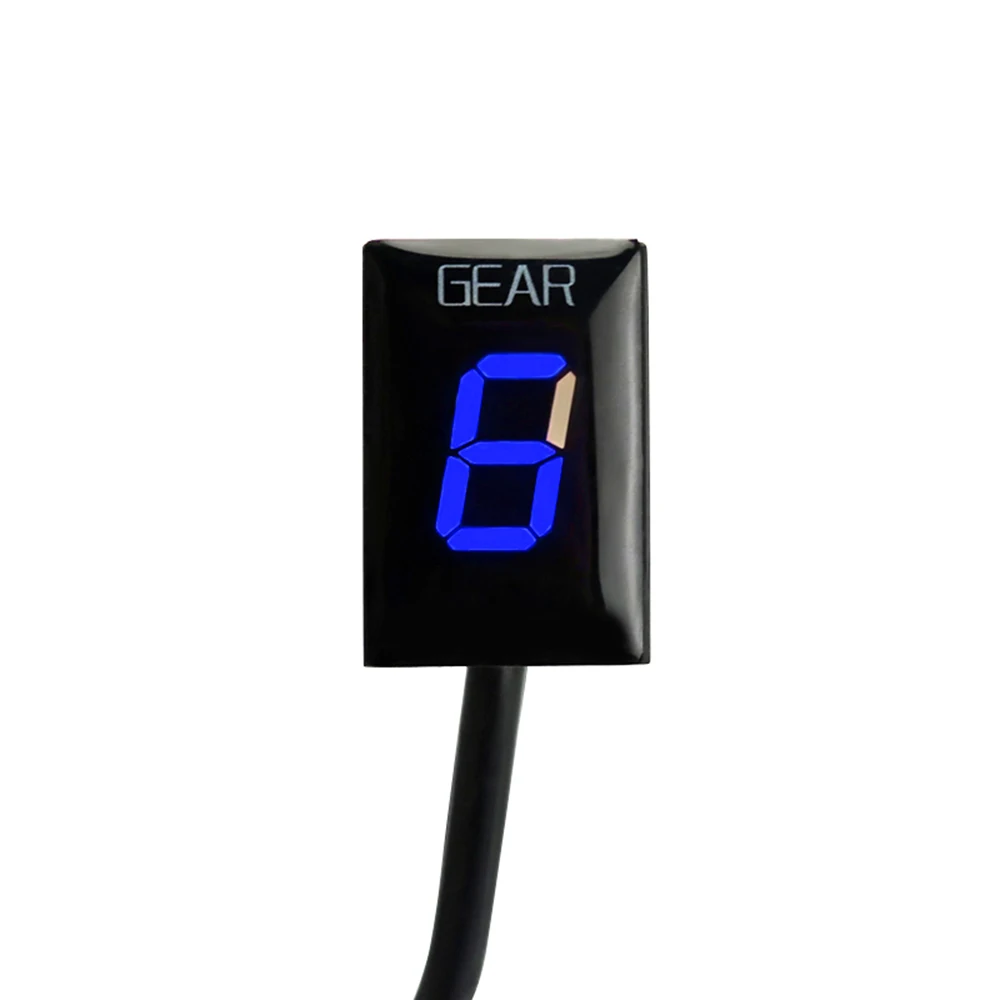

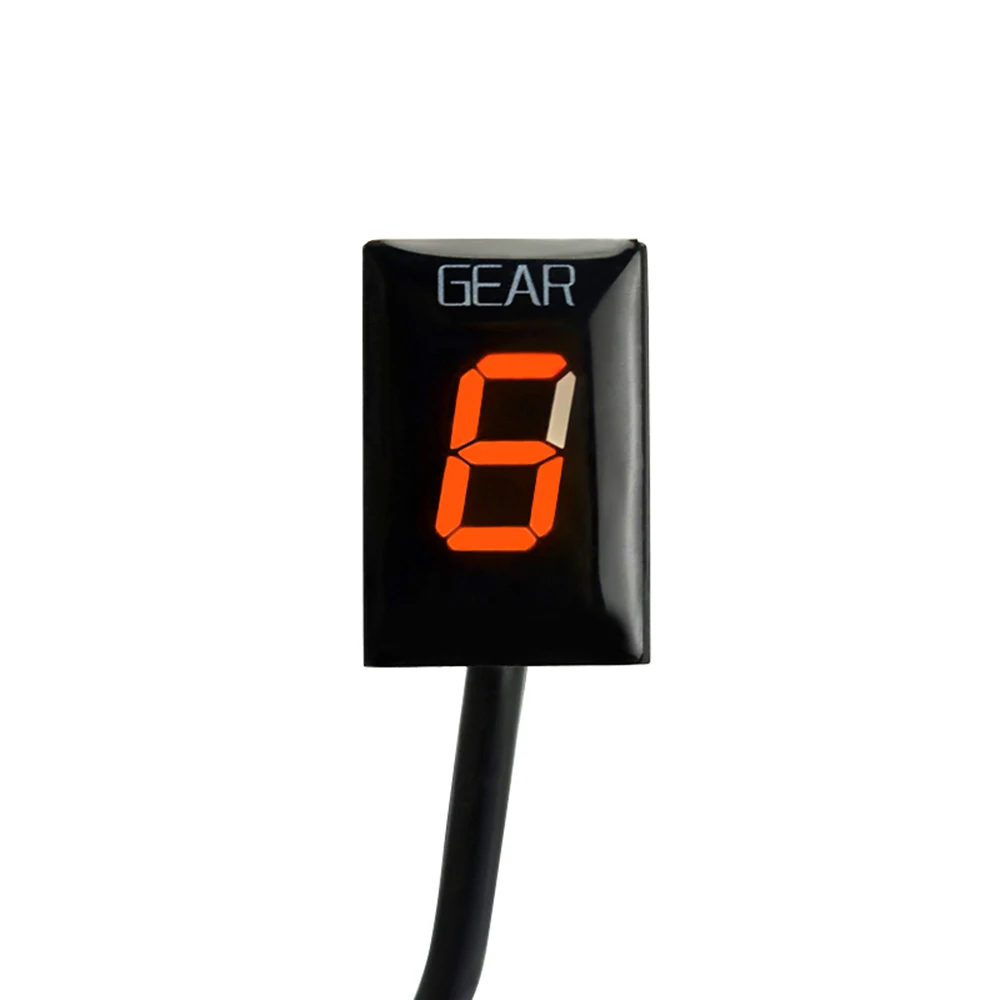

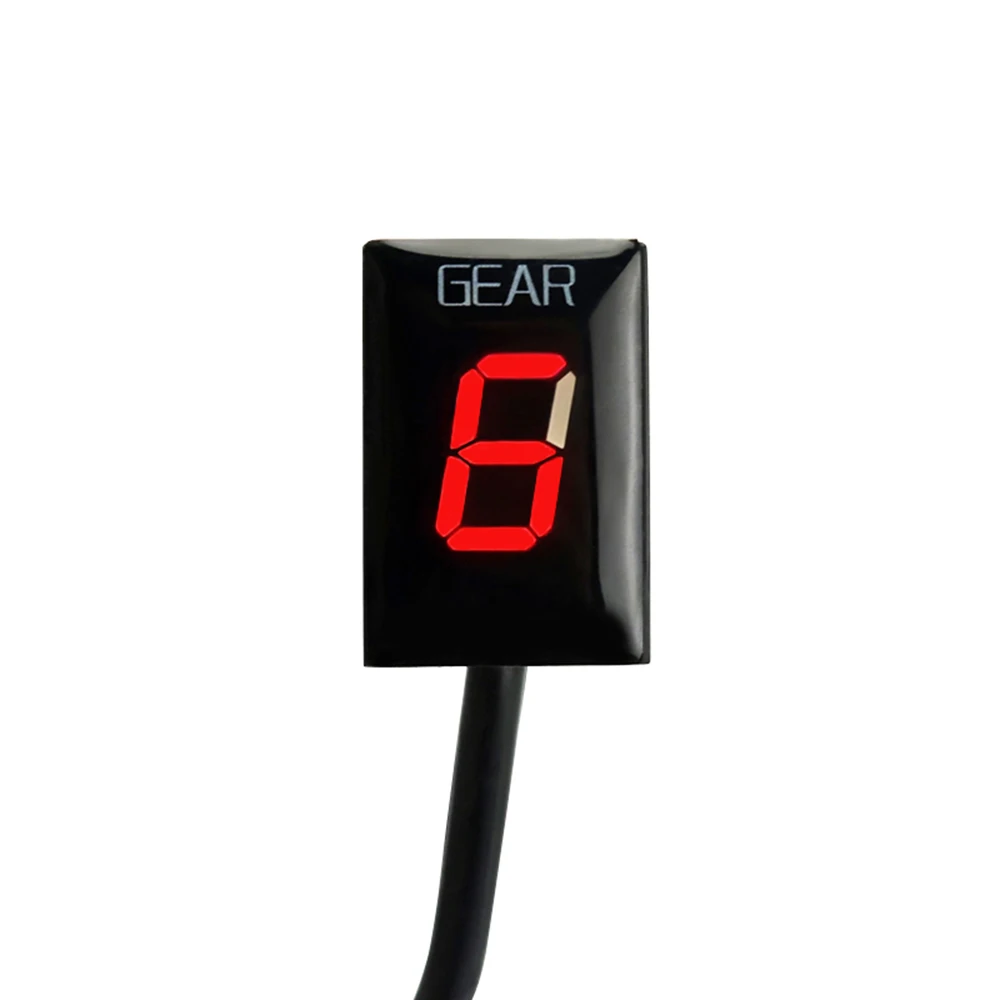

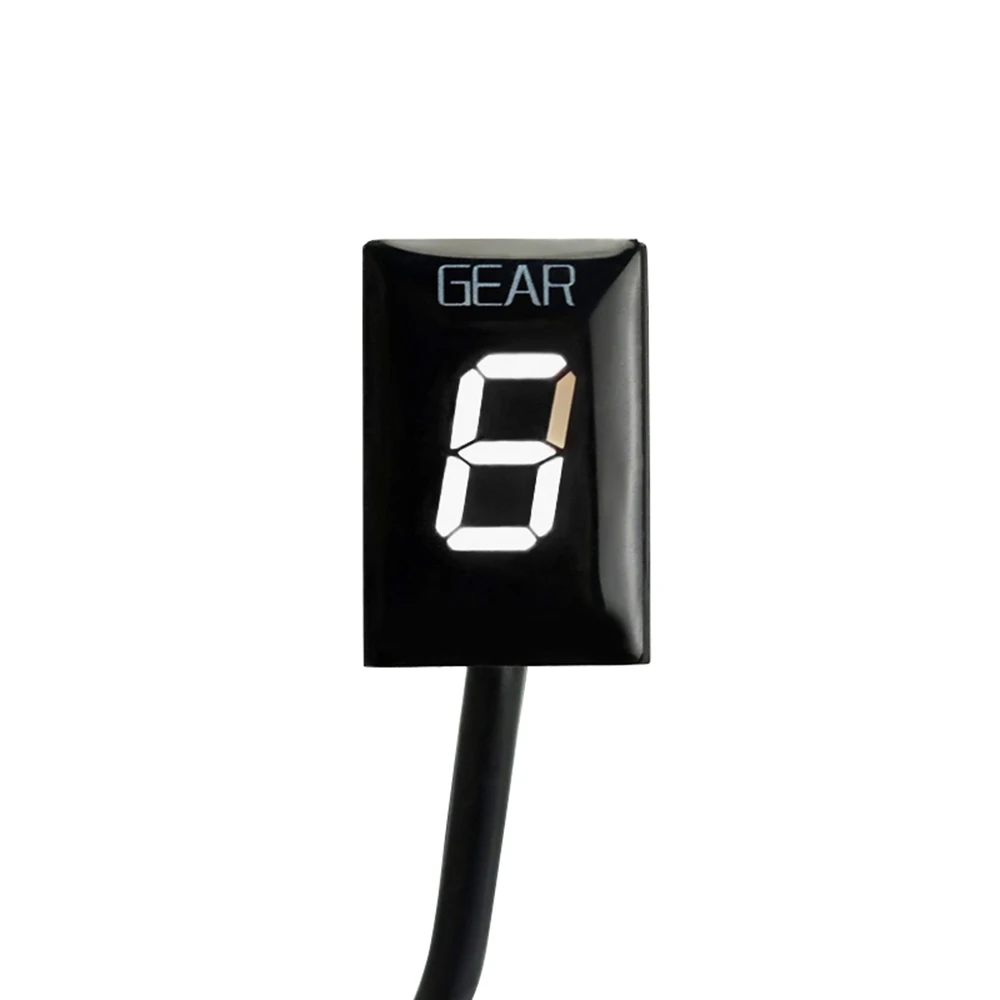

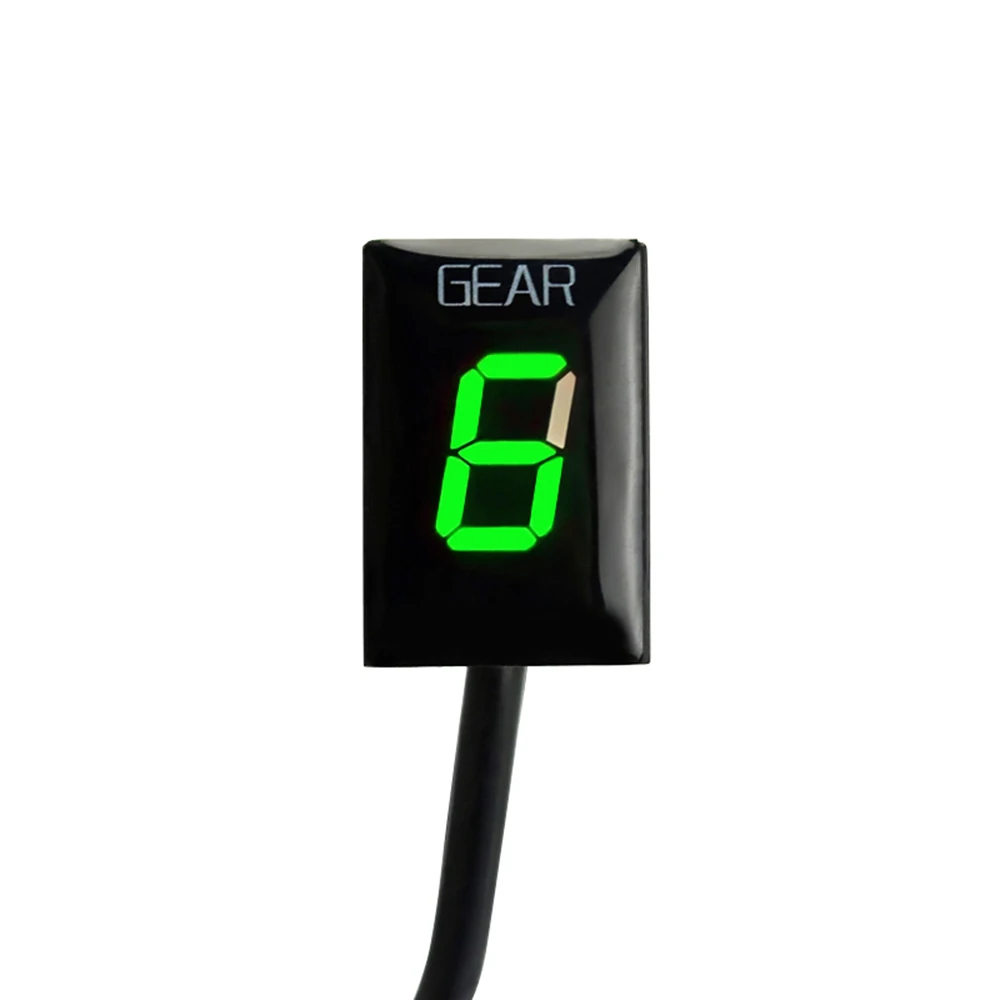

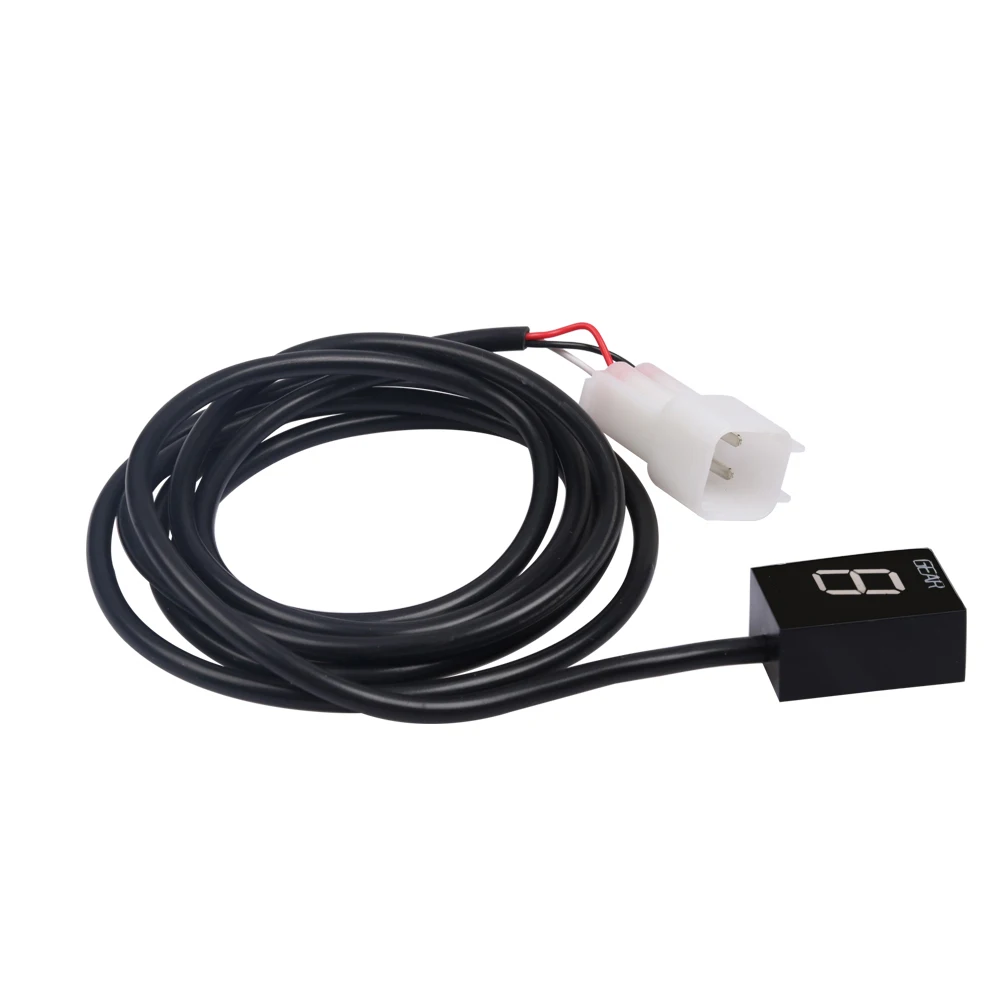

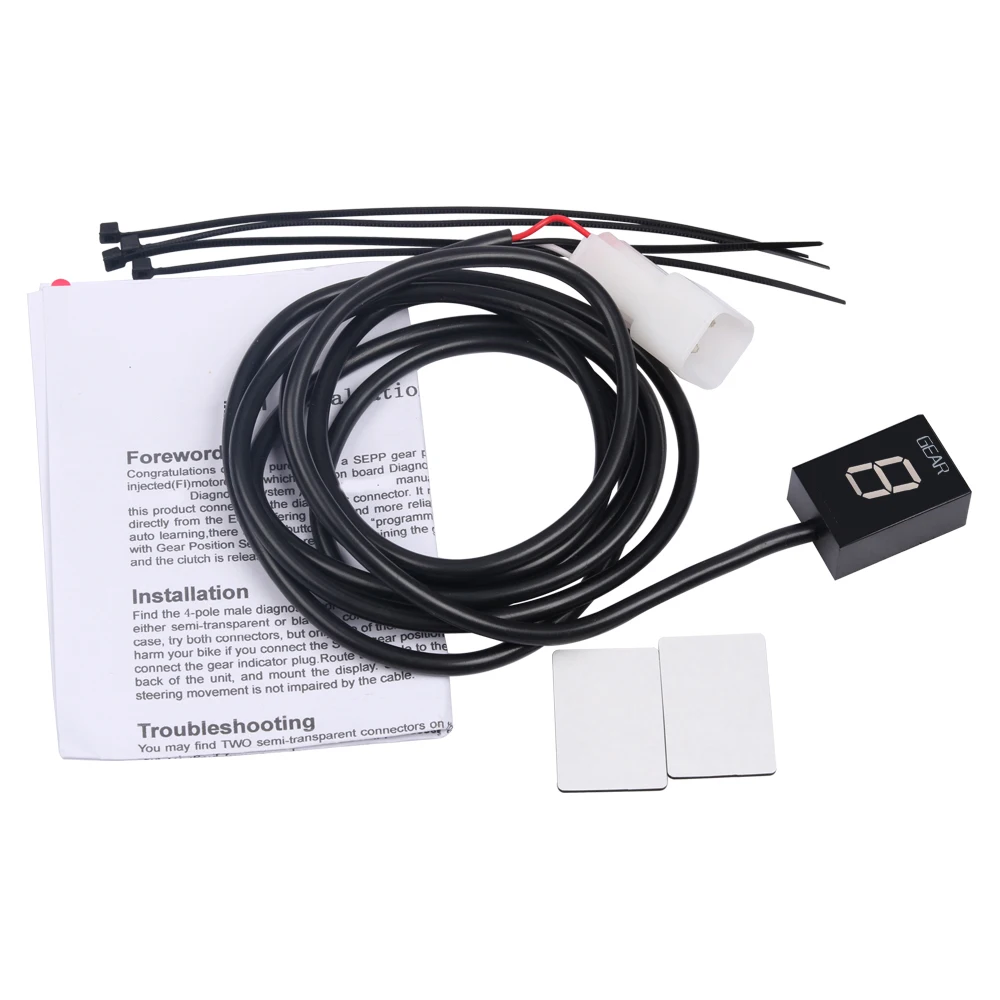

Item Name:Speed Gear Display Indicator

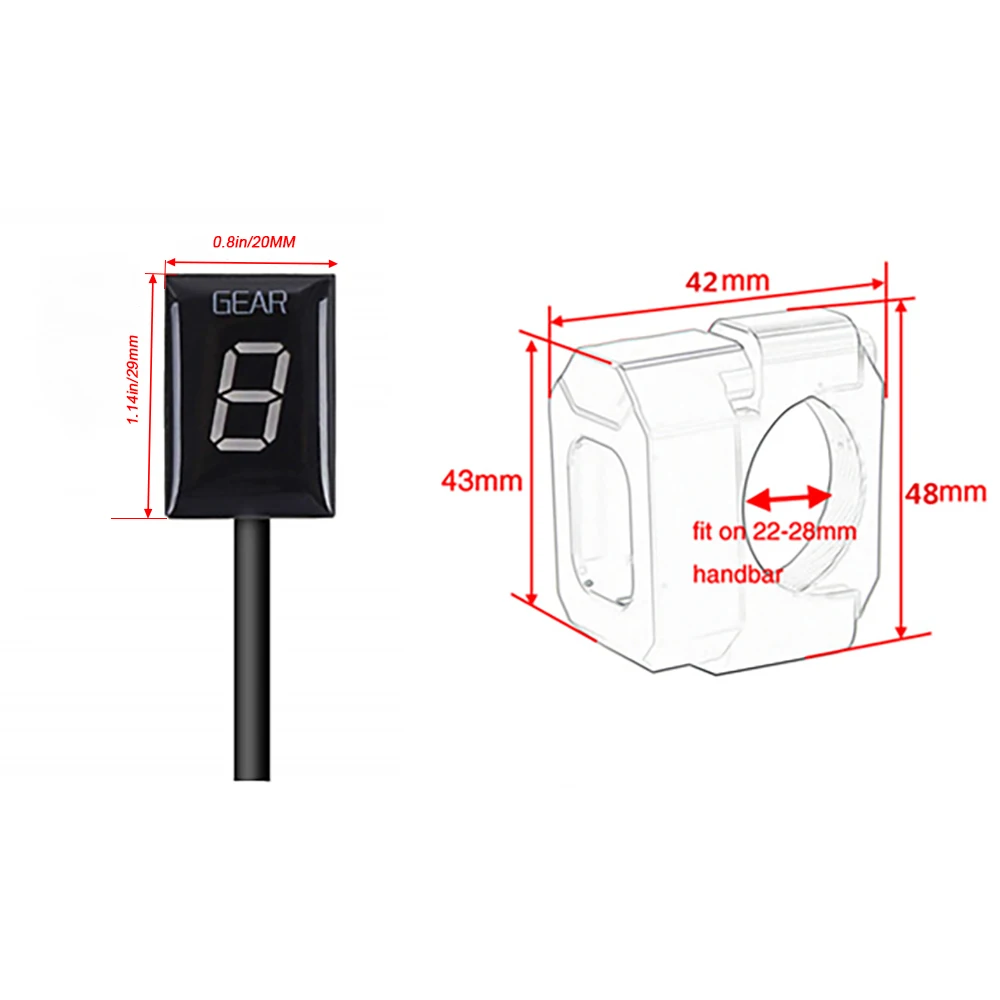

Size:4cm*4cm*4cm/1.57inch*1.57inch*1.57inch

Feature:

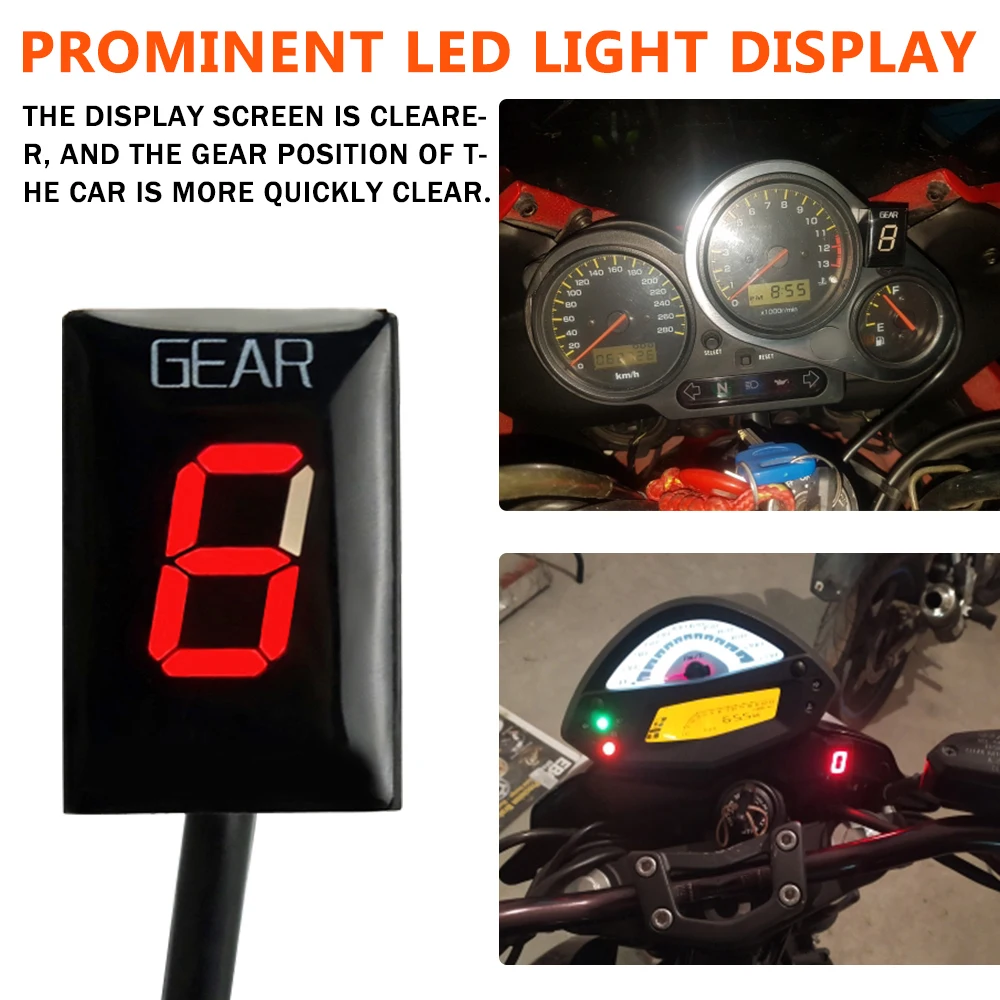

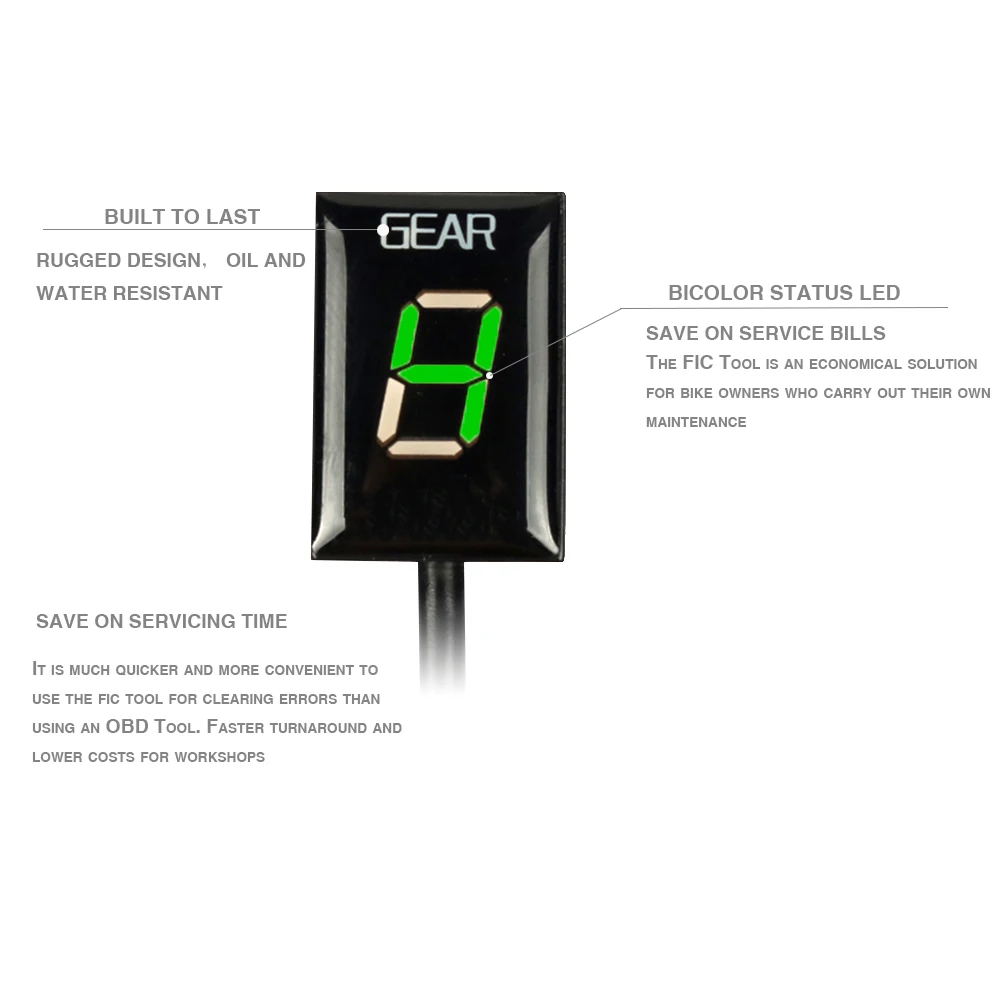

Shows current gear number

Indicates current gear from 1 to max of 6. as well as a neutral indicator.

Detects the current gear faster than other gear indicators that use speedometer/tachometer signal.

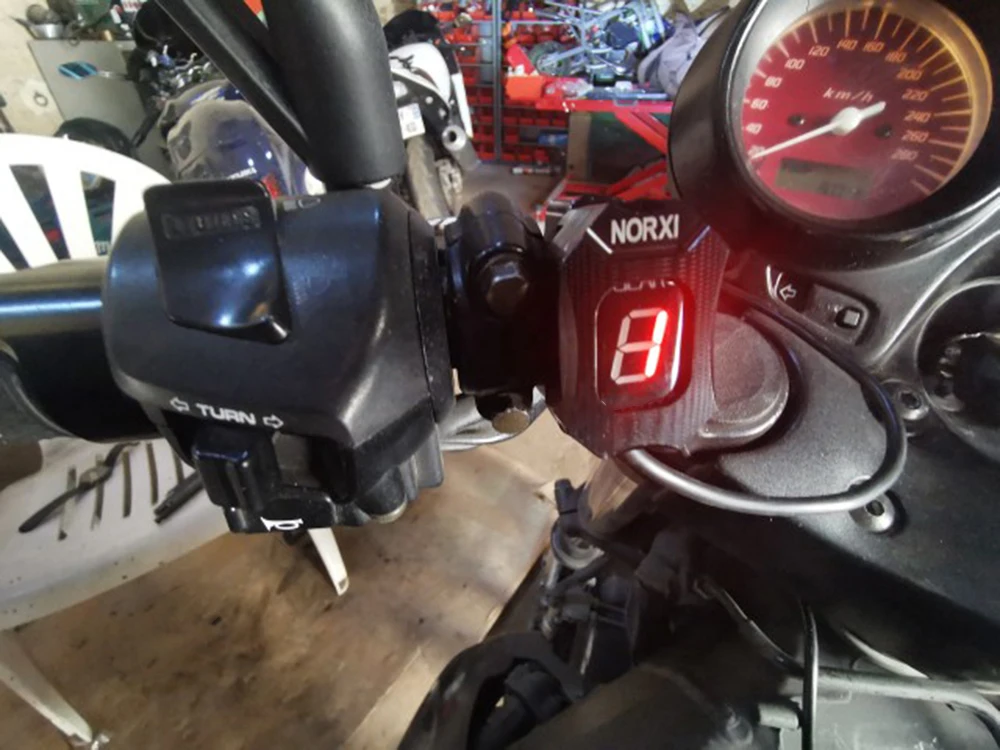

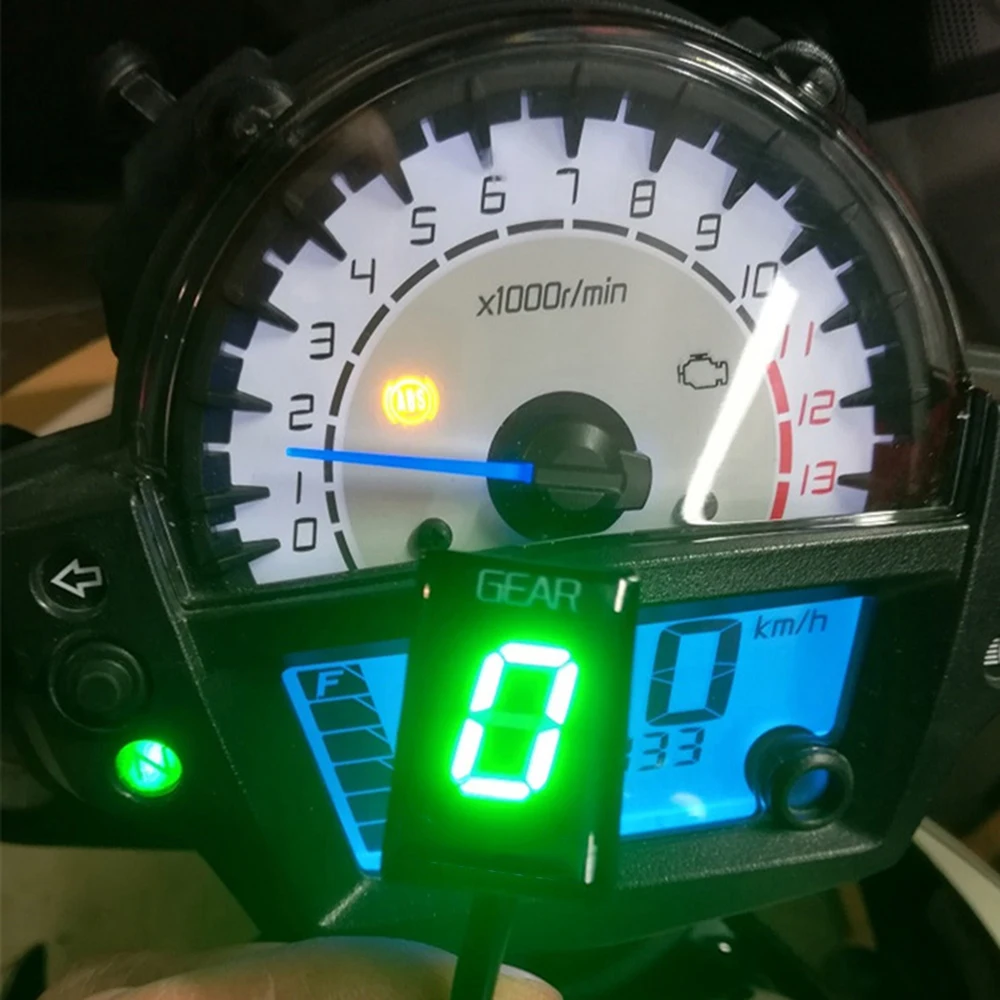

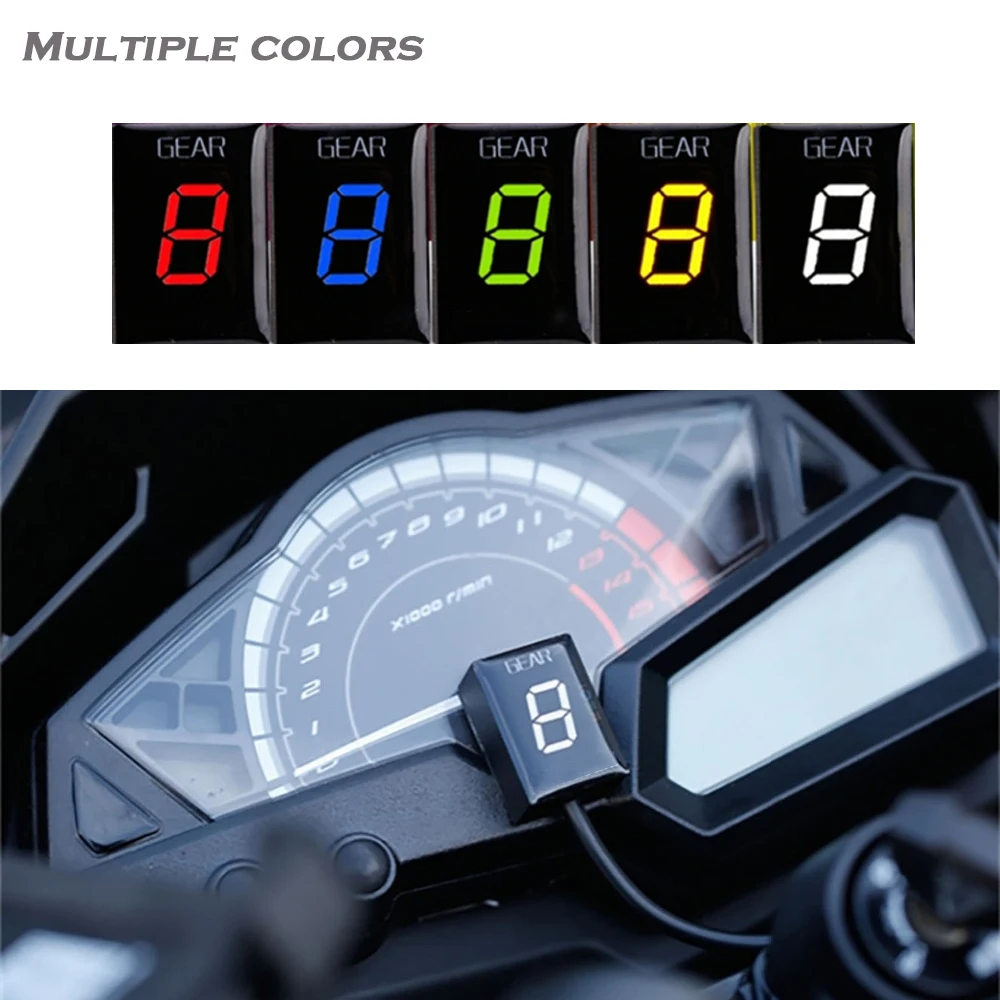

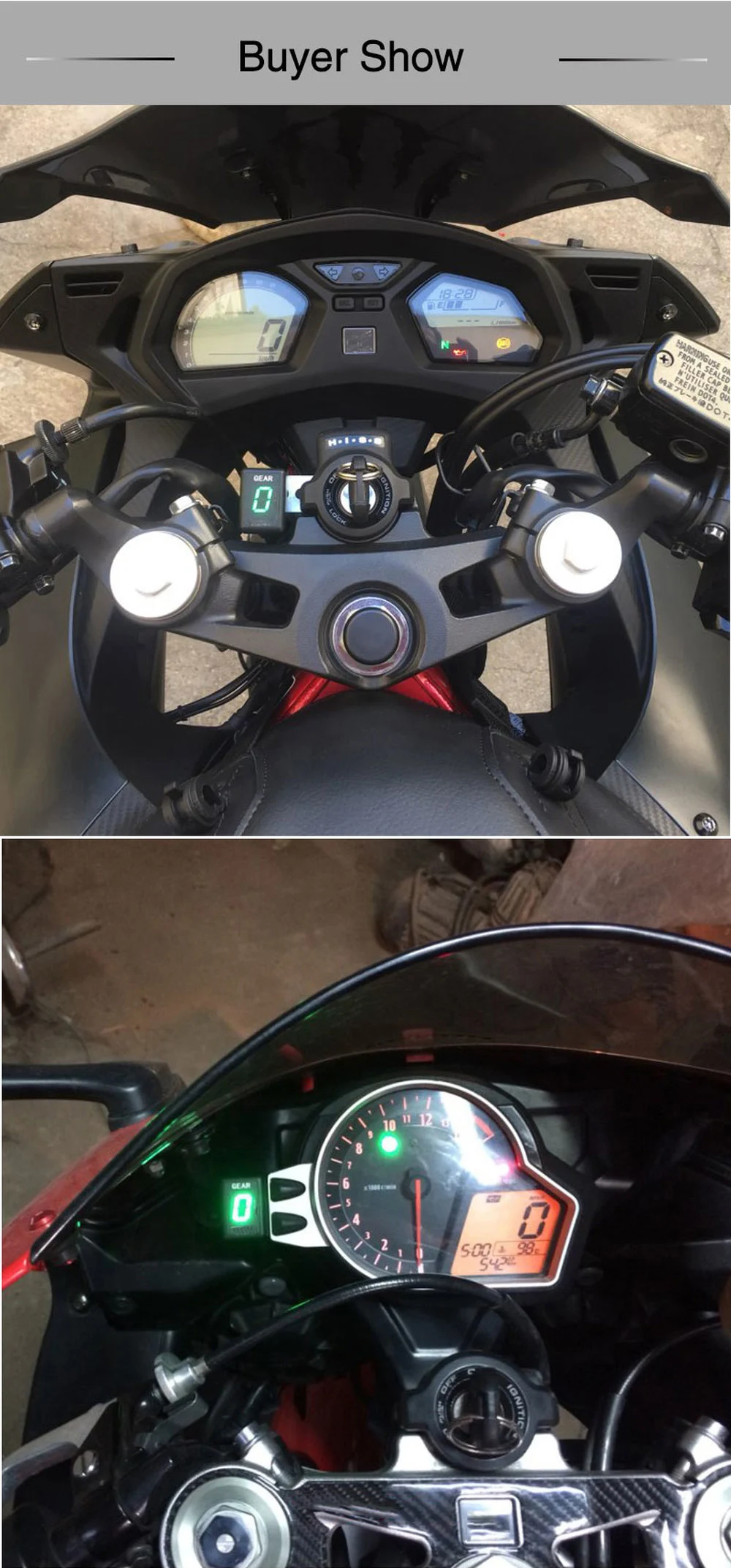

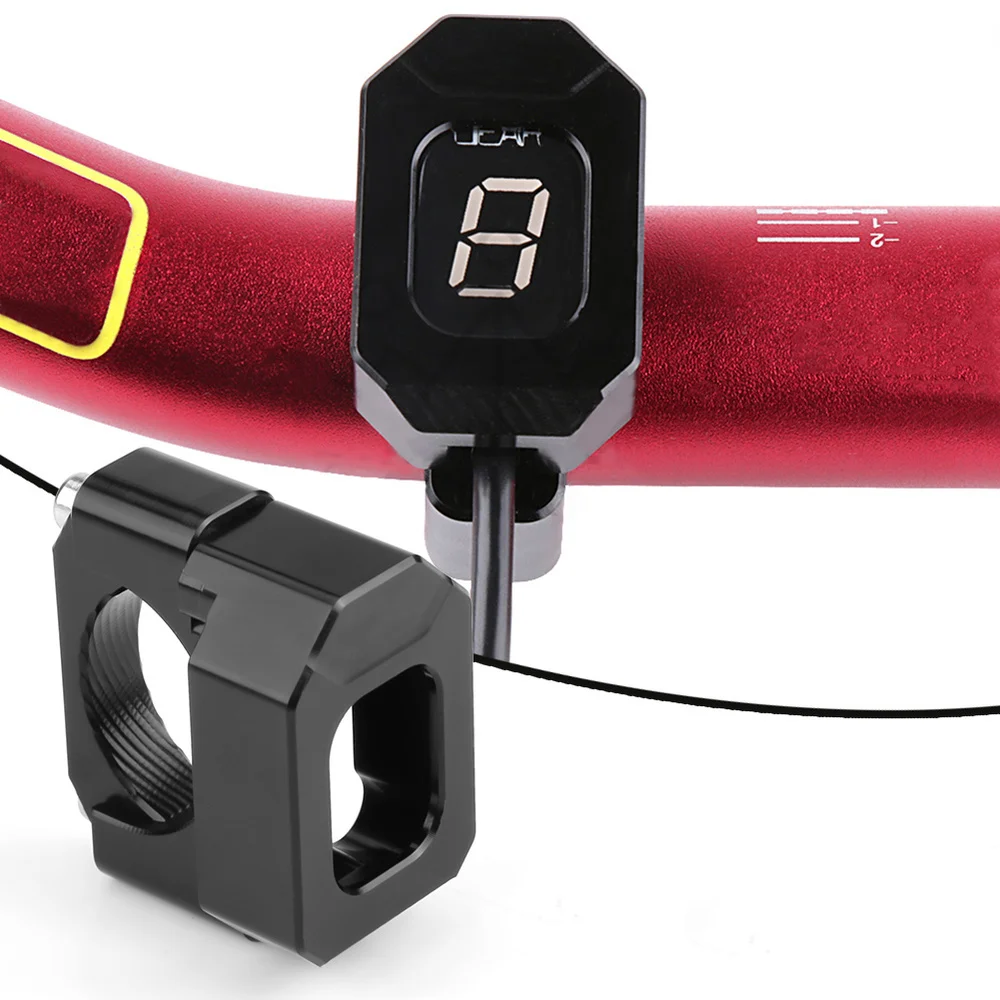

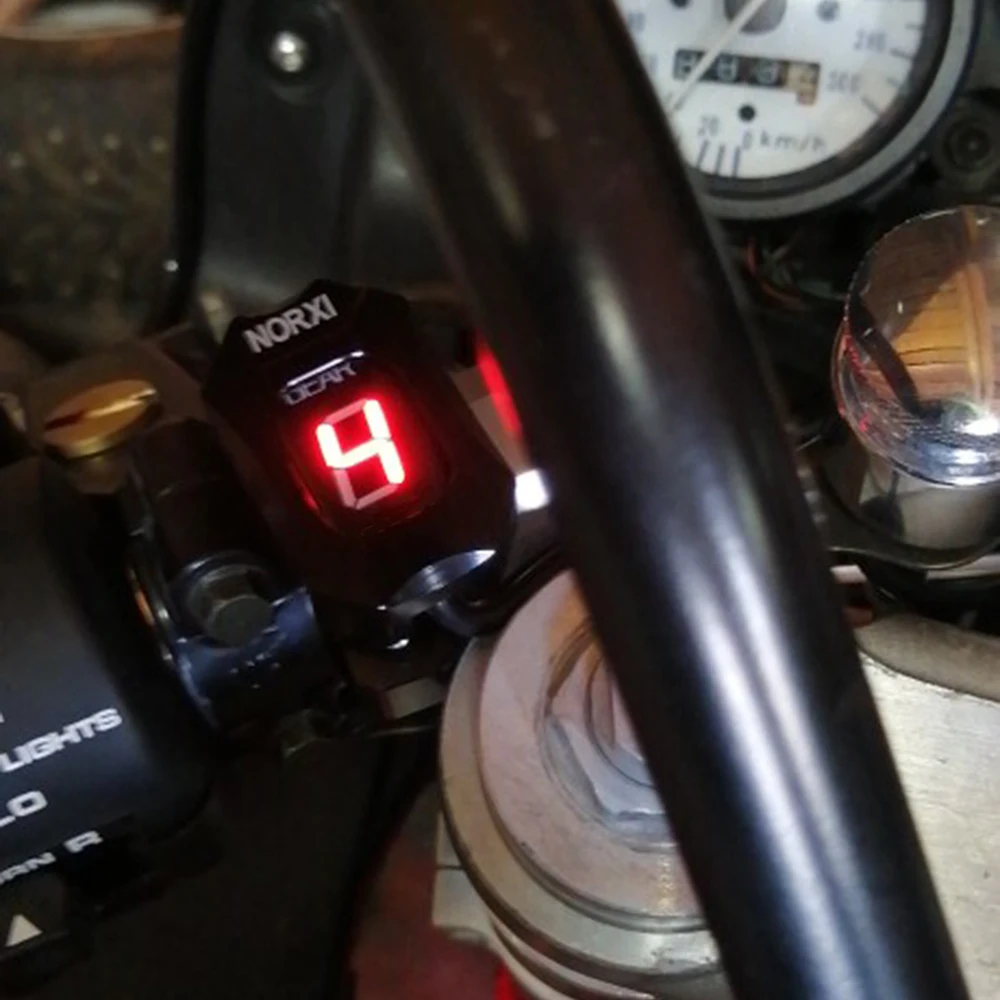

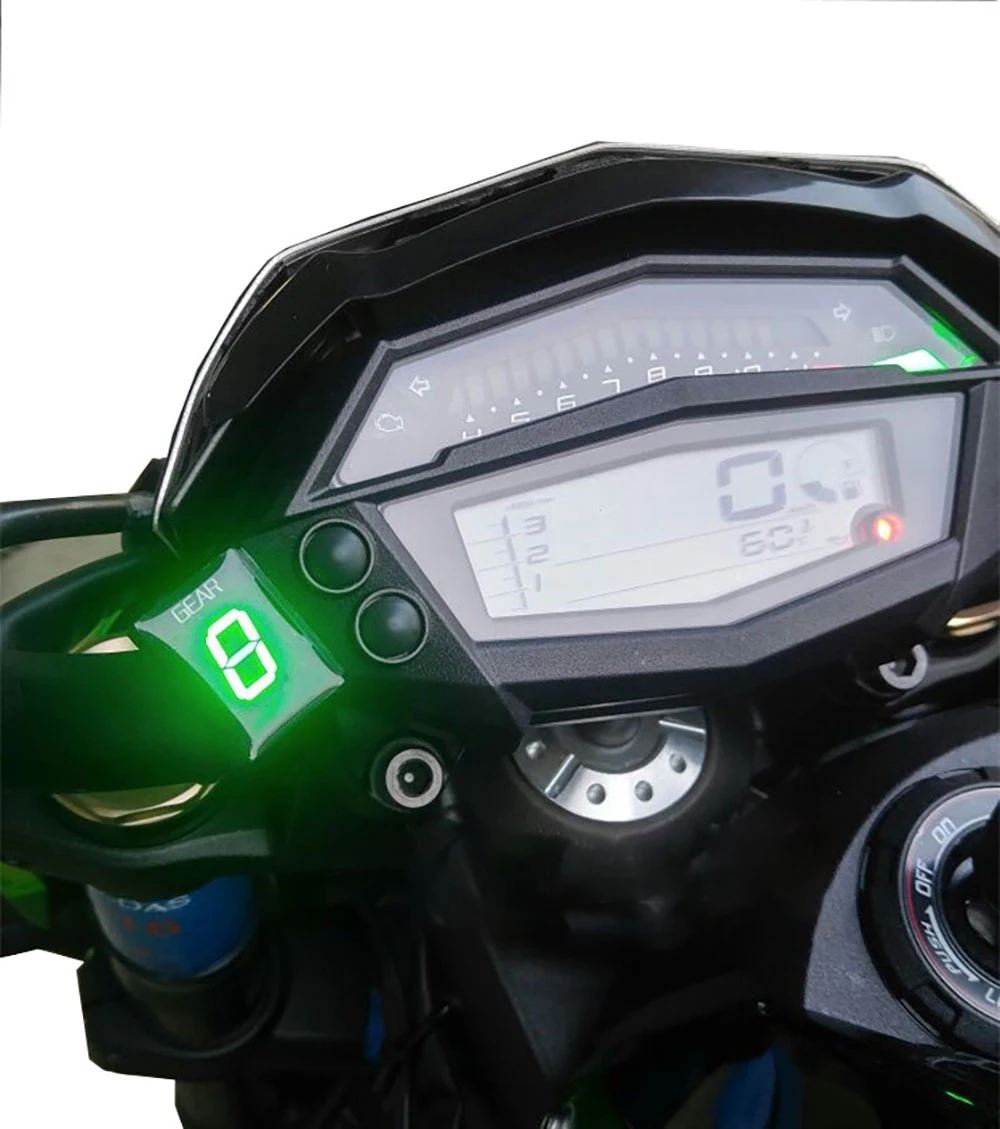

Display can be mounted anywhere

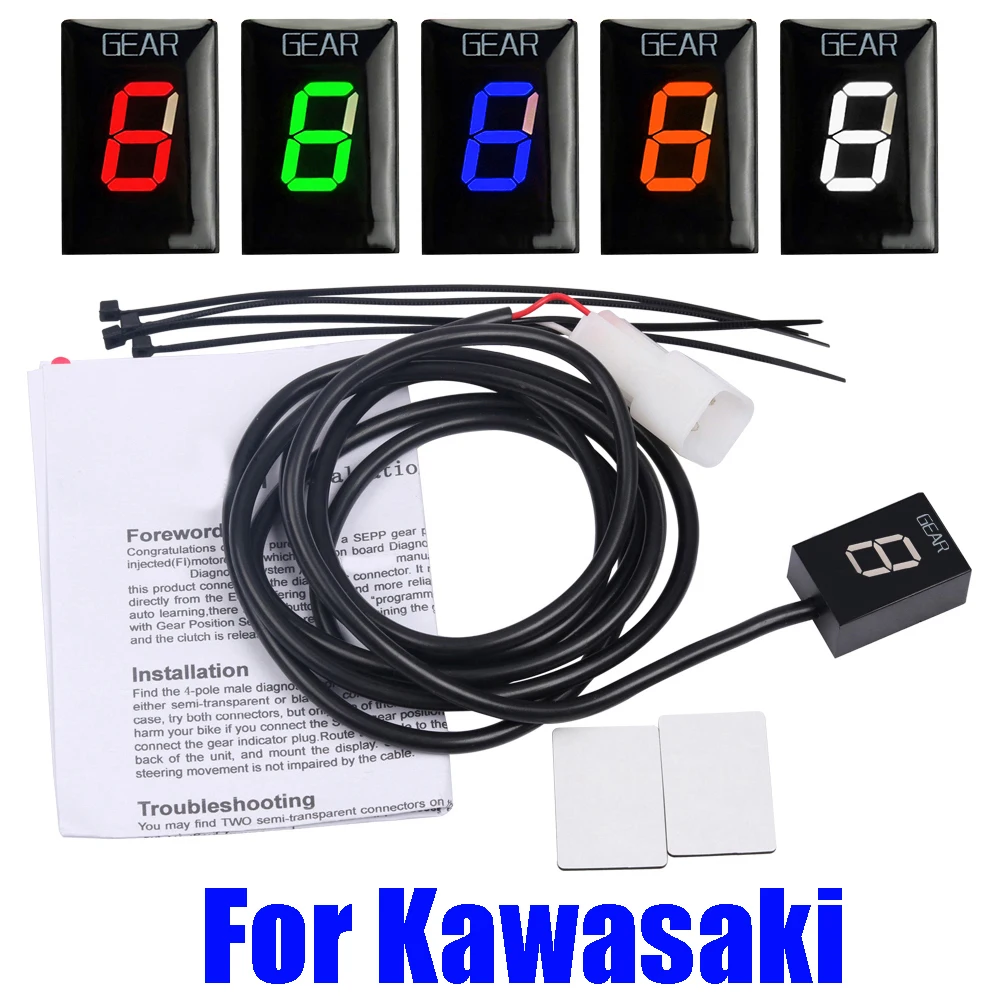

Installation:

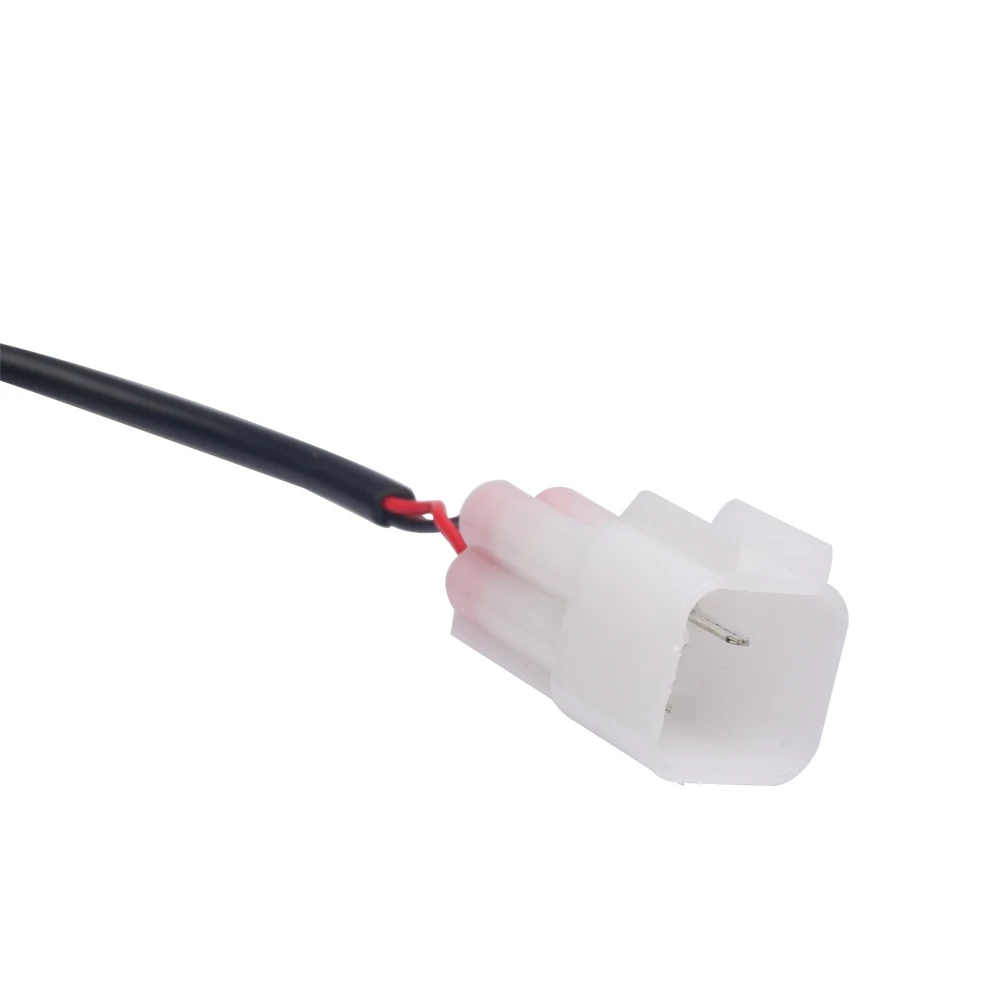

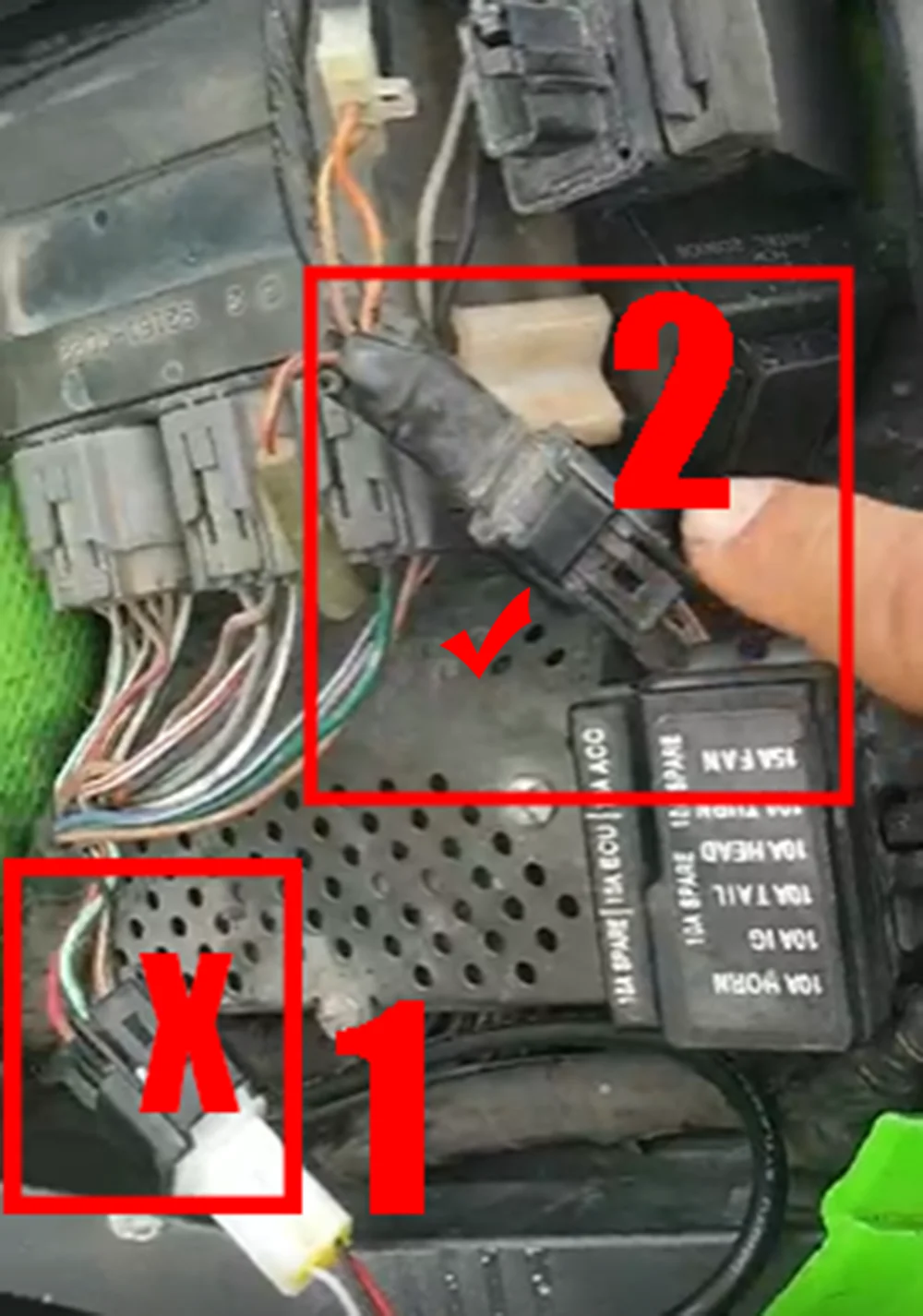

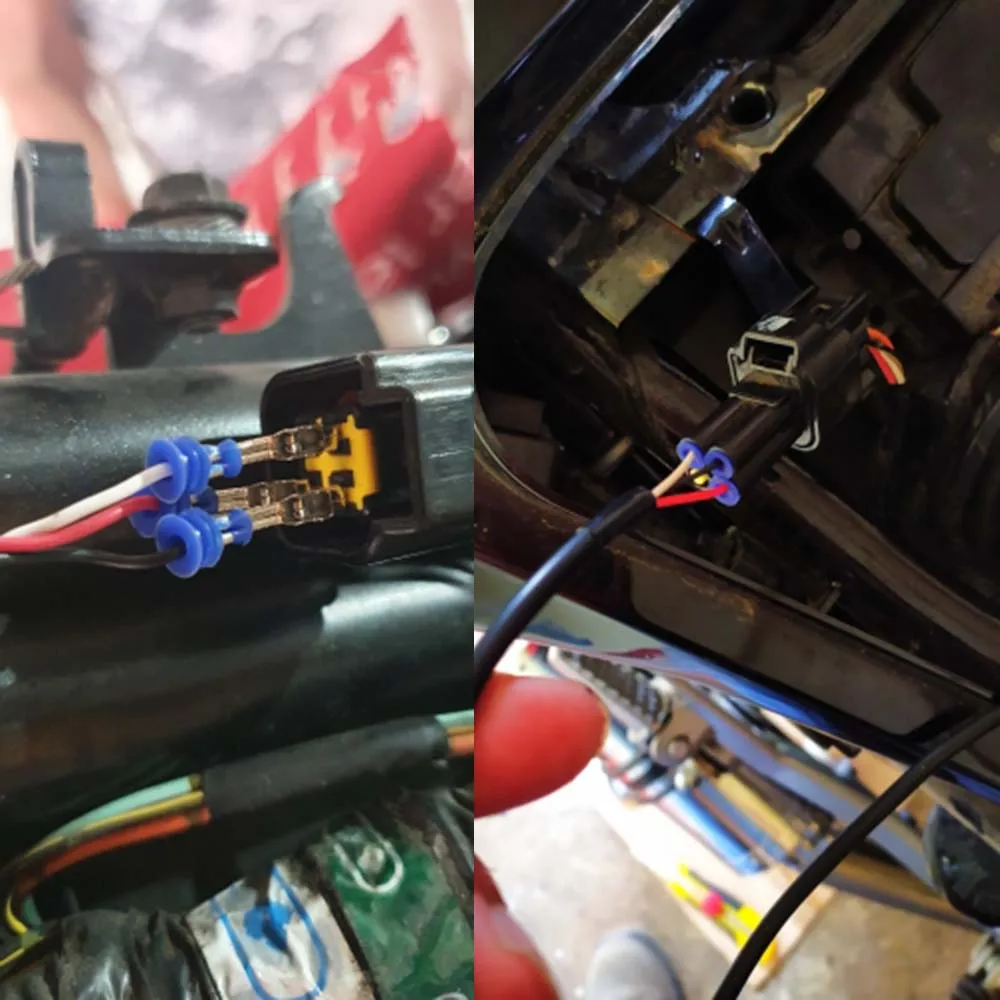

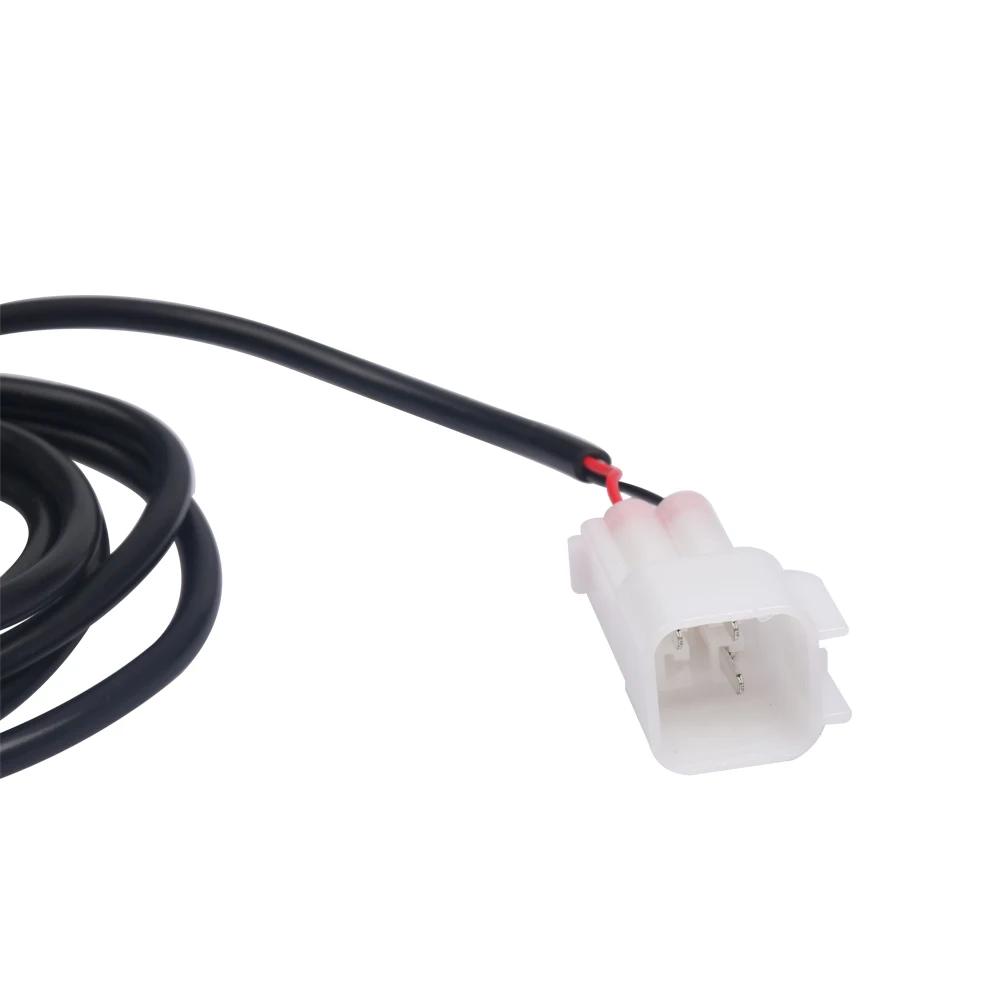

Find the 4-pole male diagnostic connector(DLC), usually near the ECU box,It may have a removable cap and may be partially covered by black tape.

Steps:

You need to setup this module after installation.Perform the setup only when the engine is WARM so the idle speed is normal,Find a long,straight road with light traffic.The unit does not learn the same gear twice,this makes it easy to set up on the road. You can even shift down and stop during the setup if needed.Do not stare at the display,watch the road and ride with extreme care as always! Turn the ignition On.The display counts backwards(6 to 1)indicating that the memory is clear. When "L" is flashing,stare the engine in Neutral and let the engine idle.When the display is flashing "1",select second gear. Release the clutch and stare riding normally.The display is blinking faster while the unit is learning the gear. When the display show "n"(next),select second gear.Repeat this process until all gears are thought.In top gear,wait until "o"(over) is indicated and the display stops blinking. The unit is now programmed and should indicate all gears correctly.When ignition is turned on,the display counts forward(1 to 6) indicating that it is programmed and fully functional.

Rest:

If some gears are not indicated correctly, reset the unit and set it up again.If you change your gearing (install new front or rear sprocket),or you install a speedometer (or other speedometer calibrator),probably you will have to reset it and set it up again. Cut off the power of the unit 6 times in a row,while the display is counting up and shows3 ,4 or 5. You can power on/off the display by turning the ignition key on/off.On the next power up,the display will count backwards(6 to 1). The memory is clear now and you can perform the Setup procedure.
