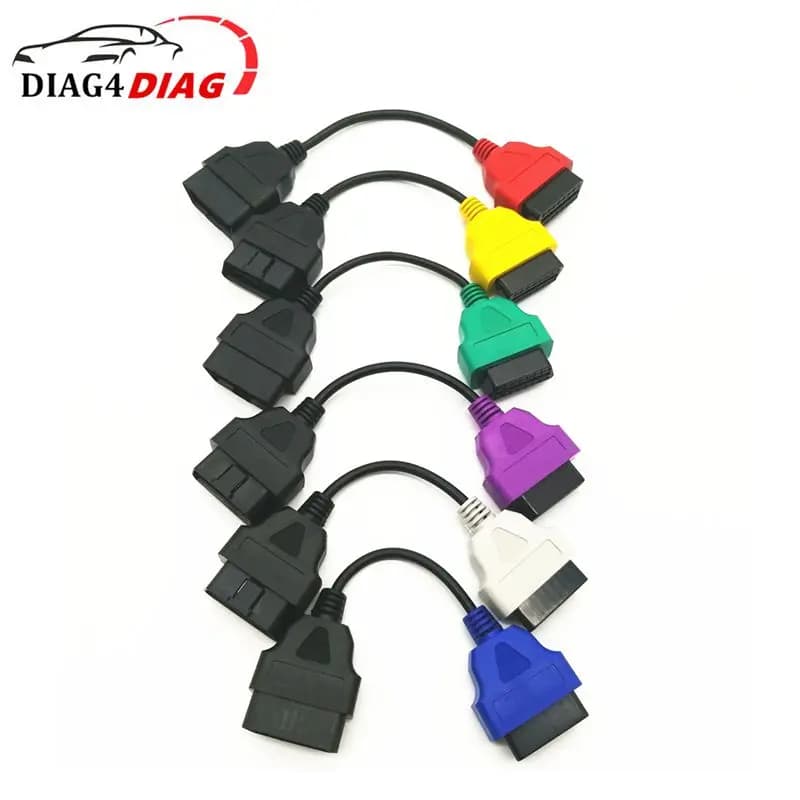

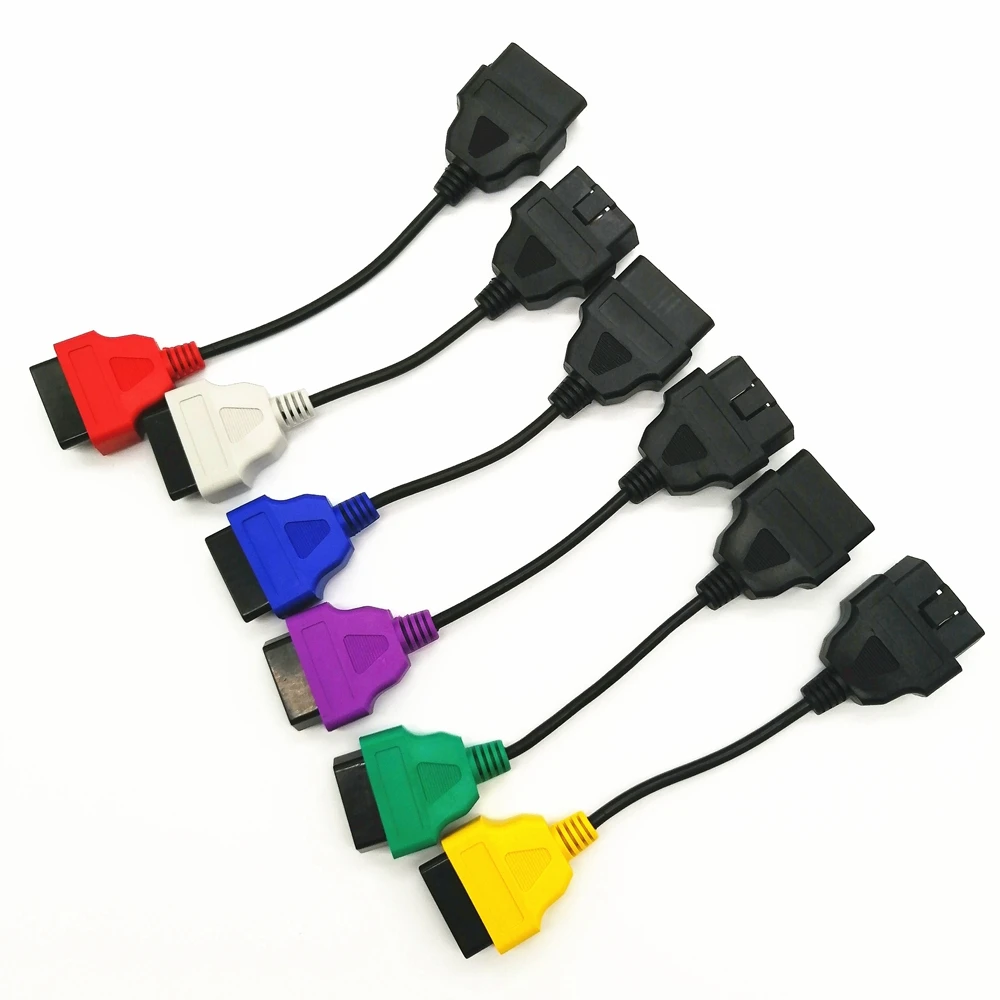

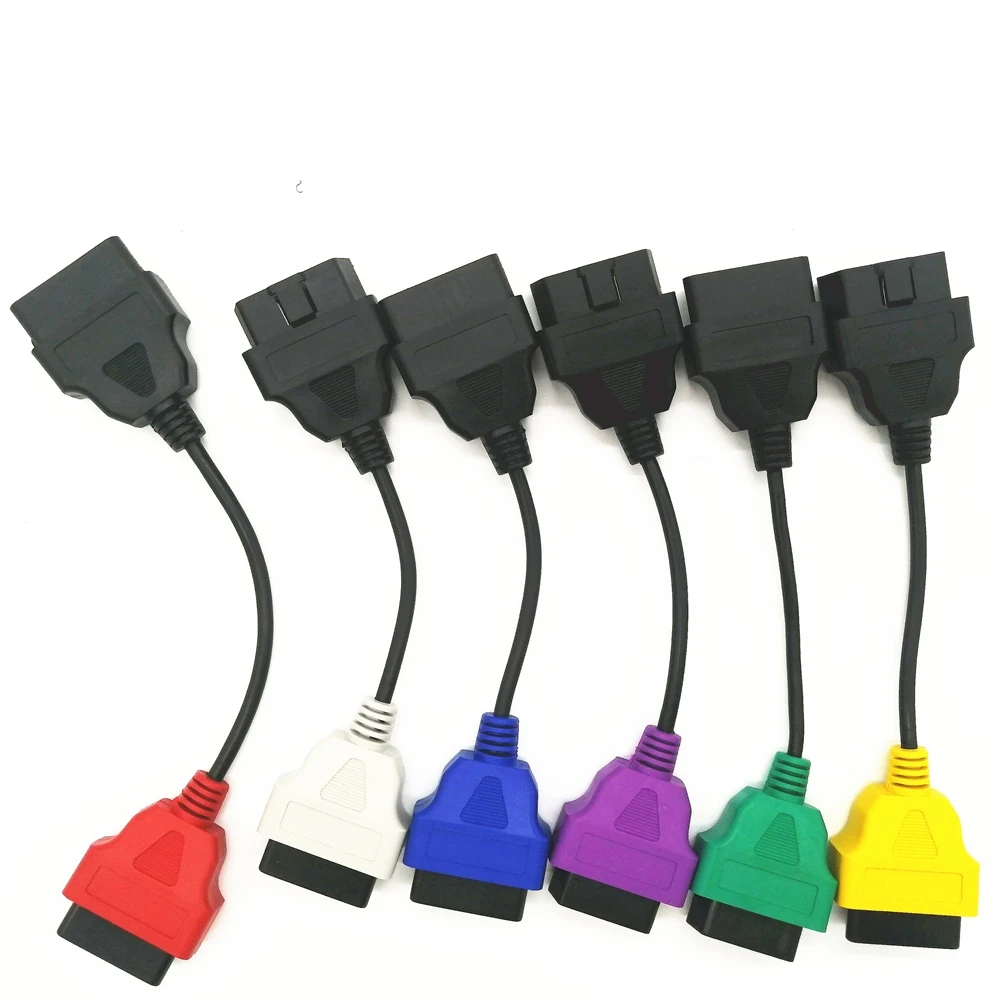

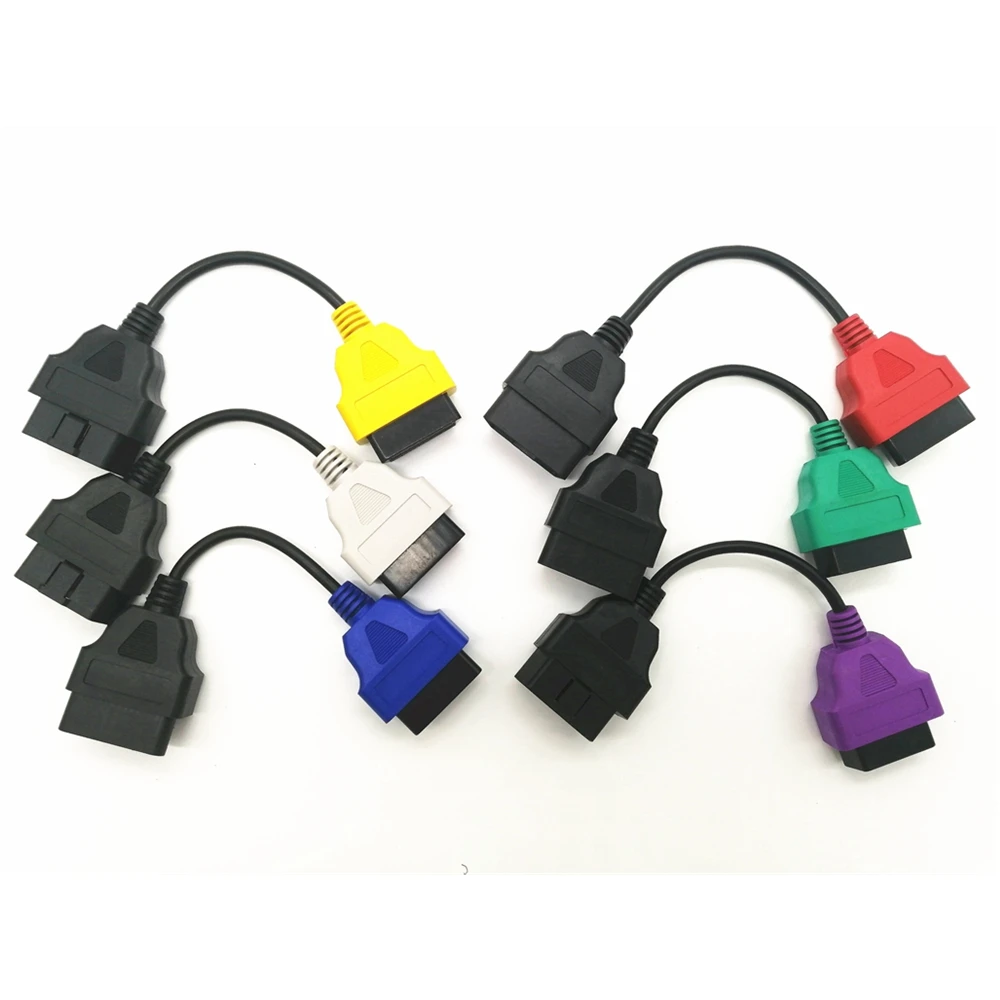

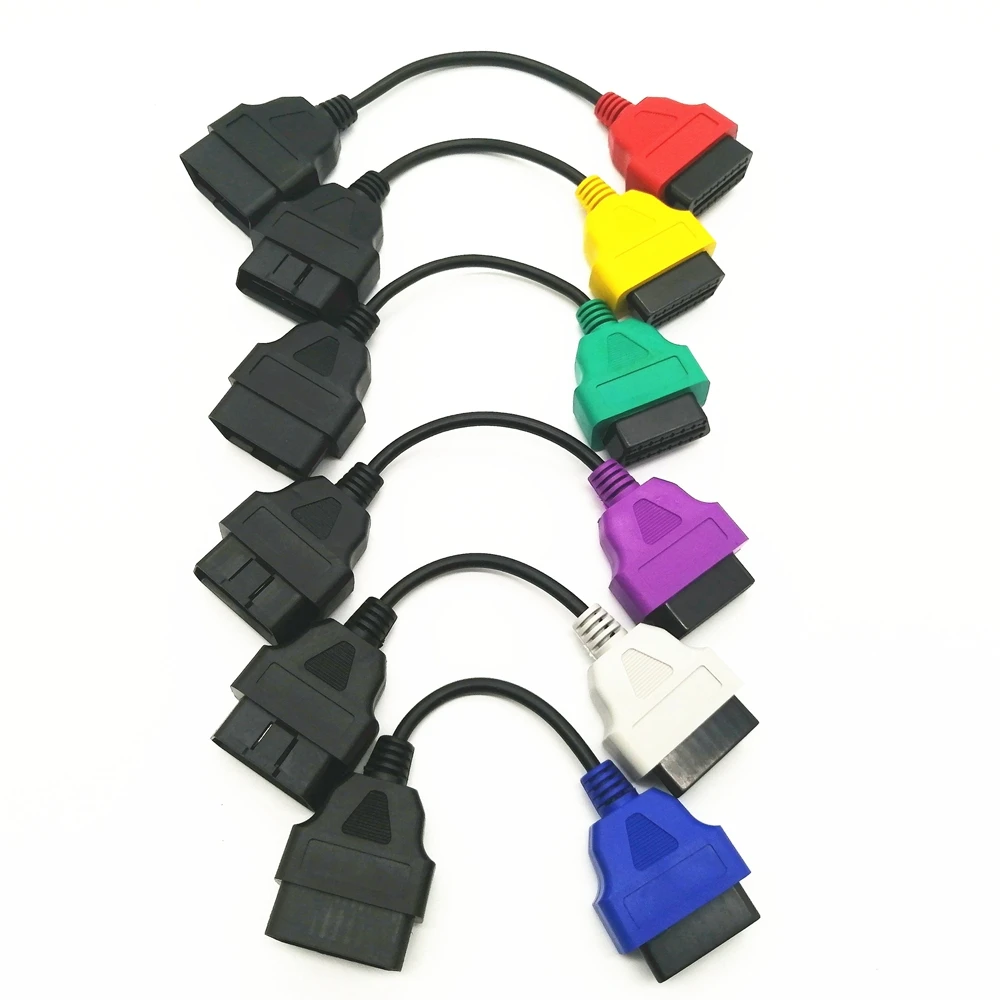

1pcs/lot for MultiECUScan / FiatECUScan Durable OBD2 Interface Car Diagnostic Cables for Jeep for Chrysler for FIAT for LANCIA

1pcs/lotfor MultiECUScan / FiatECUScanDurable obd2 CarDiagnostic Cablesfor Jeepfor Chryslerfor Dodgefor FIATfor LANCIA

Support and Parameters：

This product supports the following brands vehicles:

for Jeep

for Chrysler

for Dodge

for FIAT

for LANCIA

Description：

1.Green ABS / Power Sreeing adapter lead ( "Adapter 1" on MultiECUScan website)

-Designed to allow access to the ABS and Power Steering systems on supported vehicles. This adapter has a green connector on one end for easy identification.

Using this adapter, Pin 7 on the diagnostic tool is connected to Pins 1,7,9 & 12 on the car.

2.Red Airbag adapter lead ( "Adapter 2" on MultiECUScan website)

-Designed to allow access to the Airbag system on supported vehicles.

This adapter has a red connector on one end for easy identification.

Using this adapter, Pin 7 on the diagnostic tool is connected to pin 3 only pn the car.

3.Yellow CAN adapter lead ( "Adapter 3" on MultiECUScan website)

-Designed to allow access to the low-speed CAN system on supported vehicles.

This adapter has a yellow connector on one end for easy identification.

Using this adapter, Pin 6 & 14 on the diagnostic tool are connected to pins 1 & 9

Respectively on the car, Pin 7 on the diagnostic tool is connected to pin 12 on the car.

4.Purple Electric hood adapter lead ( "Adapter 4" on MultiECUScan website)

-Designed to allow access to the electric hood system on supported vehicles.

This adapter has a purple connector on the end for easy identification.

Using this adapter, Pin 7 on the diagnostic tool is connected to pins 7,8,11 & 13 one the car.

5.Blue Control Module Adapter Wire Design allows access to enhanced features on the vehicle (eg, multimedia, blind spot sensors, etc.)

6.Gray base control module adapter wire designed to allow access to basic functions on the vehicle (eg headlights, parking controller, ABS, electric steering, etc.)

Specification:

Green Adaptor Lead (MultiECUScan / FiatEcuScan Adaptor 1) = Engine, ABS, Power Steering

Red Adaptor Lead (MultiECUScan / FiatEcuScan Adaptor 2) = Airbag

Yellow Adaptor Lead (MultiECUScan / FiatEcuScan Adaptor 3) = CAN

Purple Adaptor Lead (MultiECUScan / FiatEcuScan Adaptor 4) = Electric Hood

Blue Adaptor Lead(MultiECUScan / FiatEcuScan Adaptor 5)= Control Module

Gray Adaptor Lead(MultiECUScan / FiatEcuScan Adaptor 6)= base control module

Note:

We only provide hardware (without software). If you need software :" FiatECUscan" or "MulitECUscan" , please go to the official website to buy it.

Product appearance is for reference only, subject to the actual product

Designed to meet the requirements of the Multiecuscan diagnostic system, the product is perfectly compatible with the Multiecuscan/FiatECUScan.

Package List：

1PCS Diagnostic cables FOR Fiat
