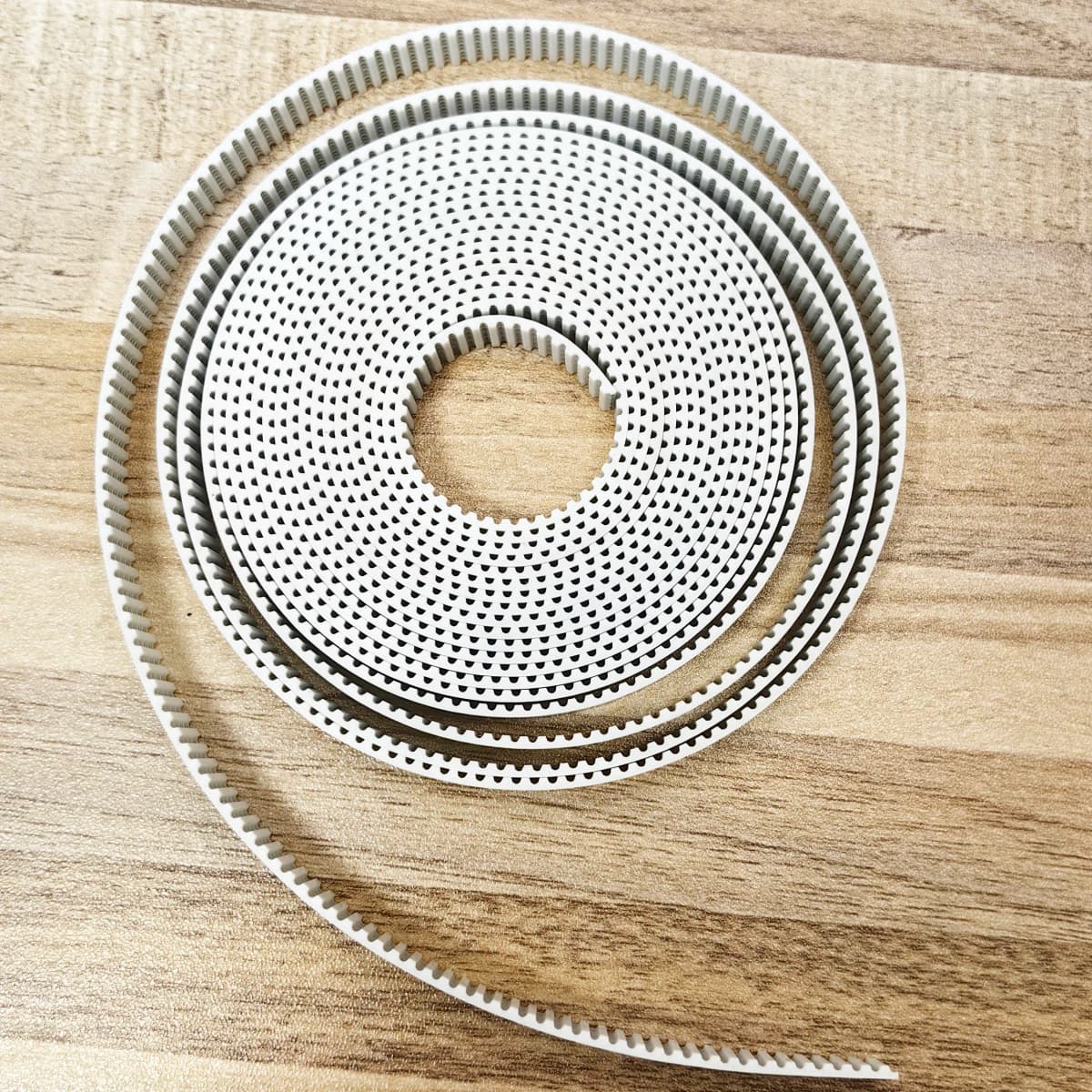

Polyurethane PU AT5 Timing Belt Dimension Width 10mm 15mm 20mm 25mm 30mm Open Ended Belt
17.82$
10.62$
Quantity:
1
Availability:
Width
Length
Card Payments
Crypto Payments
Easy return
Reliable Shipping
If you need other type, check on the follwing Tooth shape list and click the model
Picture of tooth shape
Model
Pitch (mm)
Tooth height (mm)
Belt thickness (mm)
Pb
hg
H
T2.5
2.5
0.7
1.3
T5
5
1.2
2.2
T10
10
2.5
4.5
T20
20
5
8
AT3
3
1.1
1.9
AT5
5
1.2
2.7
AT10
10
2.5
4.5
AT20
20
5
8
HTD3M
3
1.17
2.4
HTD5M
5
2.06
3.6
HTD8M
8
3.38
5.6
HTD14M
14
6
10
STD3M
3
1.14
1.9
STD5M
5
1.91
3.4
STD8M
8
3.05
5.2
STD14M
14
5.3
10.2
RPP5M
5
2
3.8
RPP8M
8
3.2
5.4
RPP14M
14
6
10
H
12.7
2.3
4.3
XH
22.225
6.35
11.2
L
9.525
1.9
3.6
XL
5.08
1.27
2.3
MXL
2.032
0.51
1.14
P1
10
0
1
P2
10
0
2
P3
10
0
3
GT2
2
0.75
1.38
GT3
3
1.14
2.4
TT5
5
0.75
1.38
AT5 Closed Loop Belt
Loop Belt List
