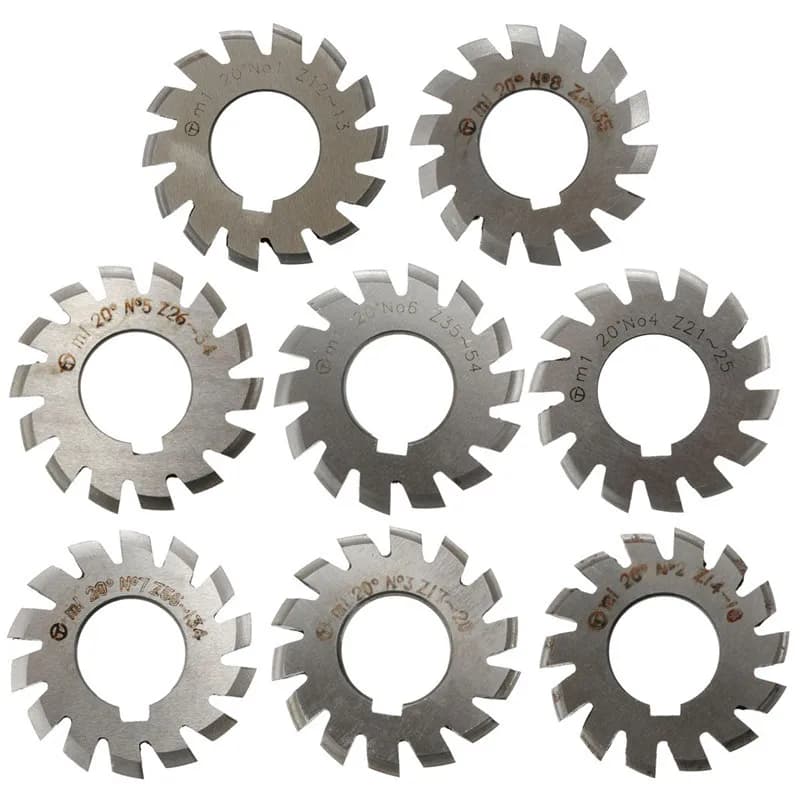

Module 1 PA20 Degrees Bore 22mm #1-8 HSS Involute Gear Milling Cutter High Speed Steel Gear Milling Cutter Gear Cutting Tools

Module 1 PA20 Bore 22mm #1-8 HSS Involute Gear Milling Cutter

Feature:

M1 HSS gear milling cutter.

Specialty cutting tools designed for milling gears.

8 cutters available to suit different numbers of teeth.

Sized and proportioned to afford a good cutting range and ample rigidity.

Straight form tooth design to suit the involute gear form.

Well suited for use in a variety of ferrous and non-ferrous materials.

Specification:

Material: HSS

Outer Diameter: 50mm

Inside Bore: 22mm

Pressure Angle: 20 degree

Quantity: 1pc

Each of Gear is different:

1#: 12-13 Gear

2#: 14-16 Gear

3#: 17-20 Gear

4#: 21-25 Gear

5#: 26-34 Gear

6#: 34-54 Gear

7#: 55-134 Gear

8#: ≥135 Gear

Package included:
