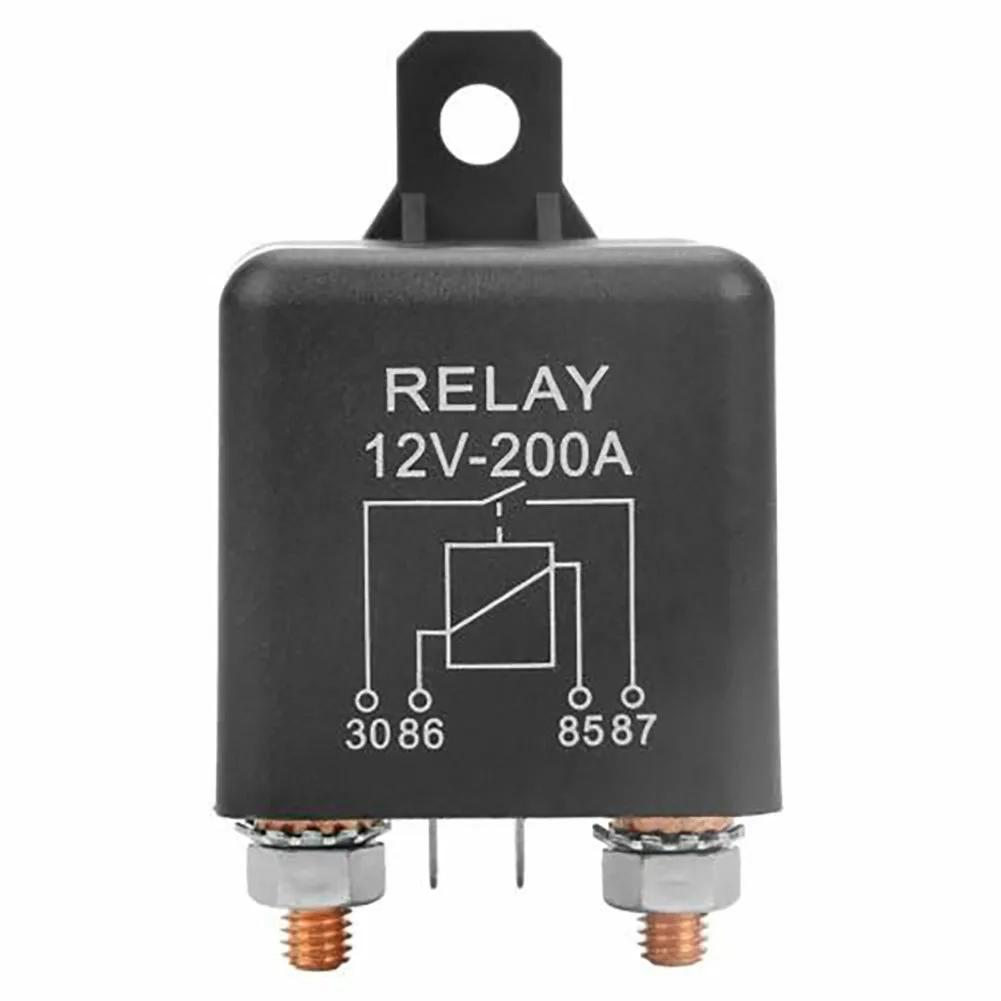

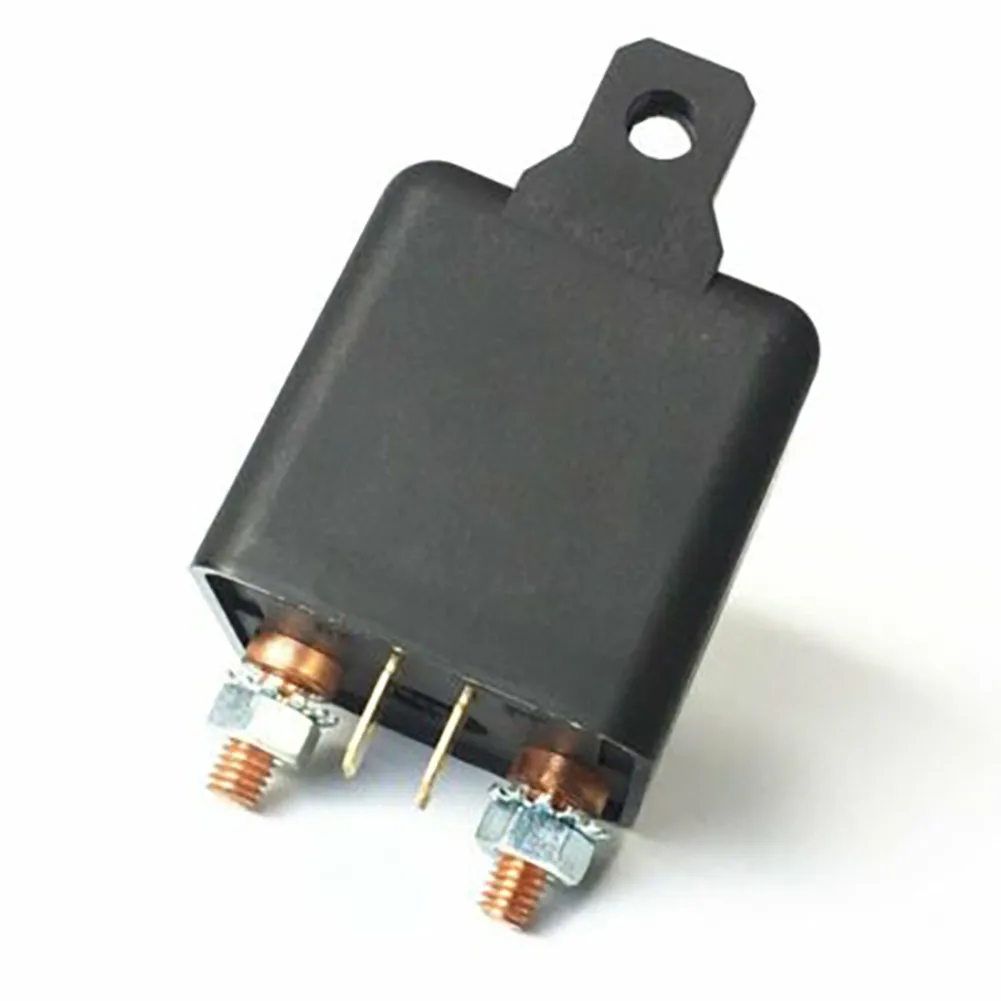

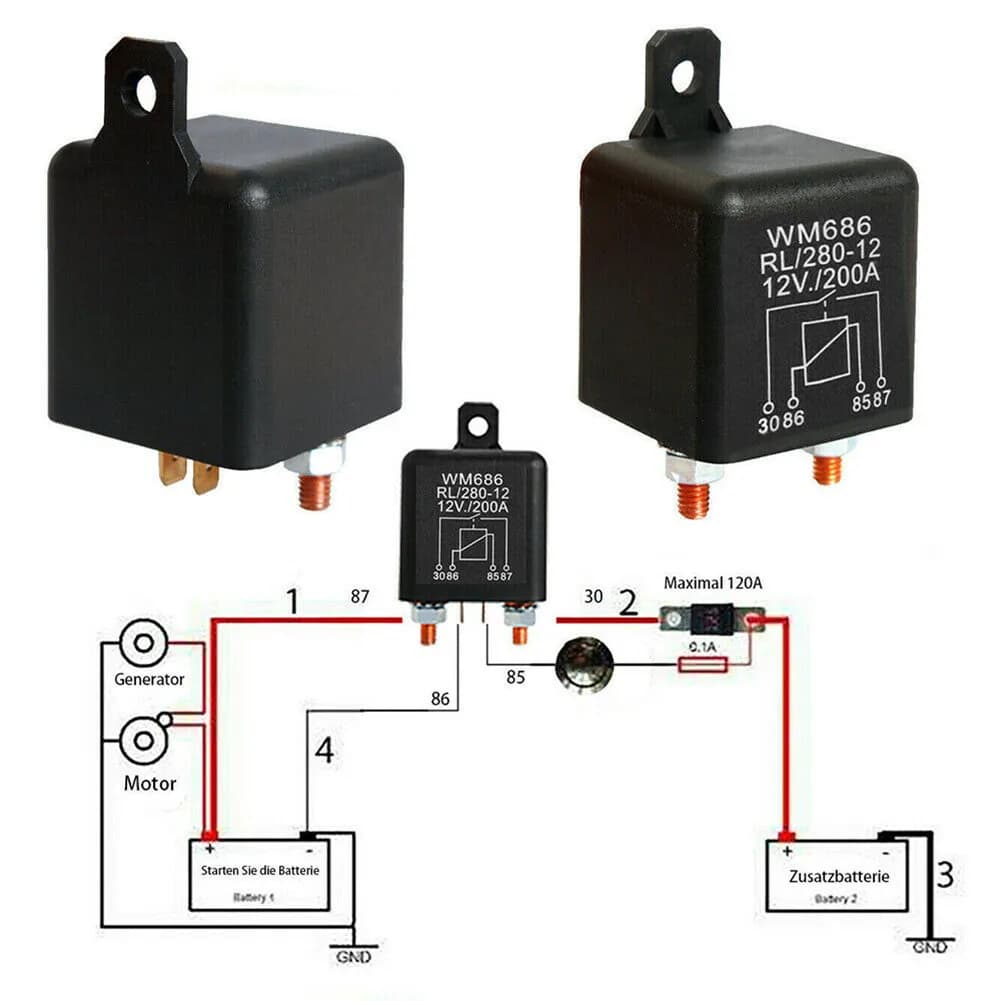

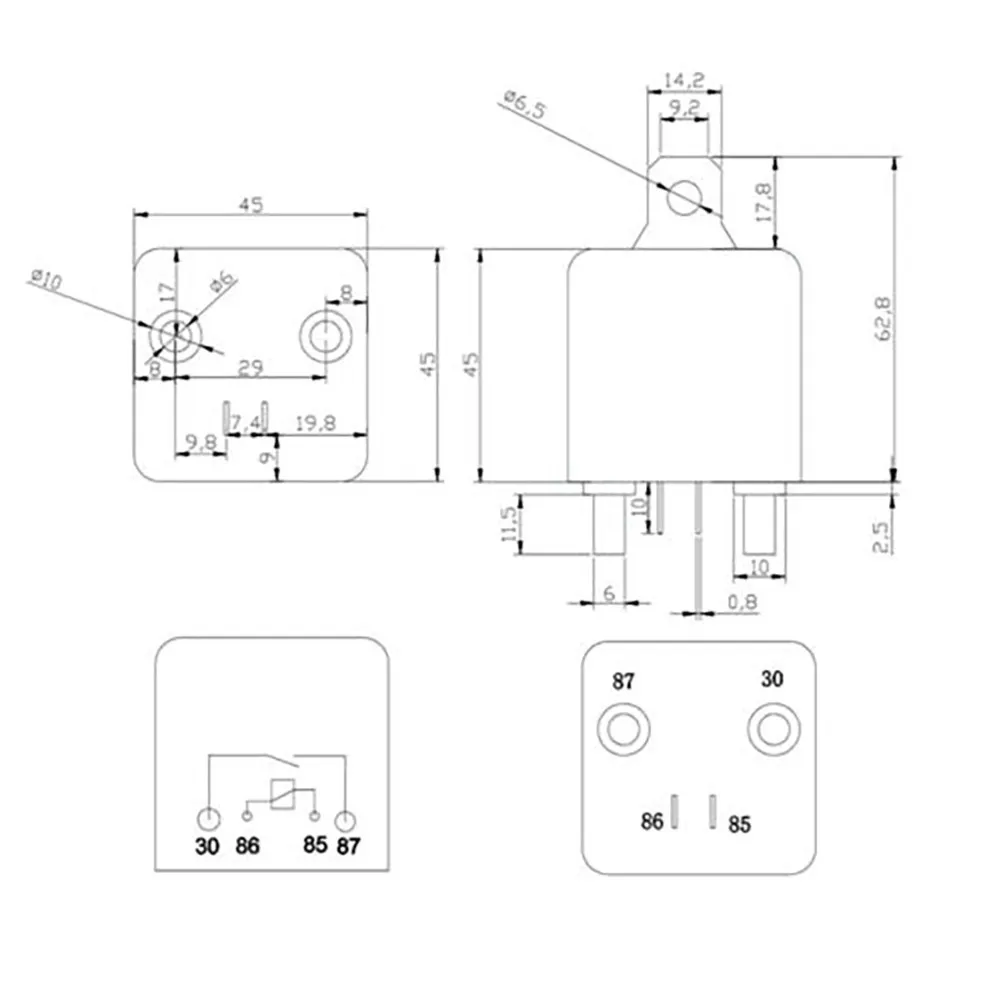

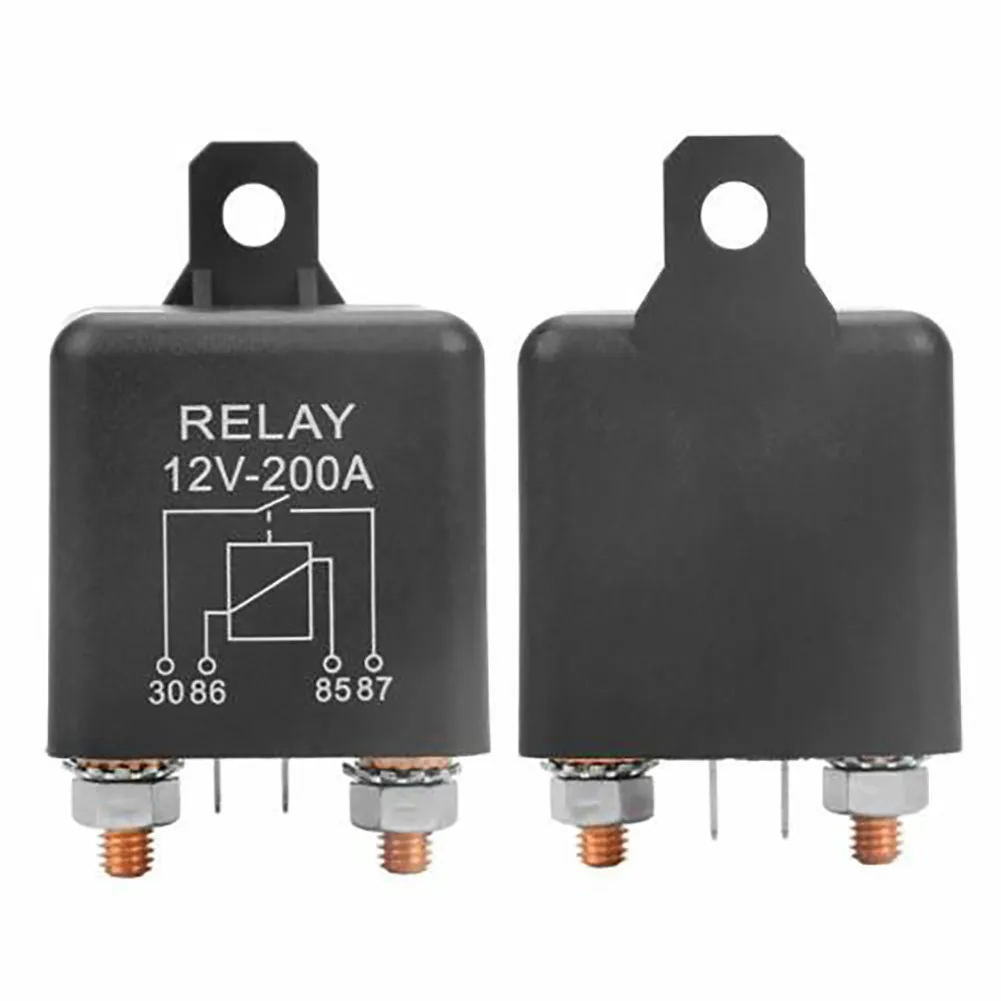

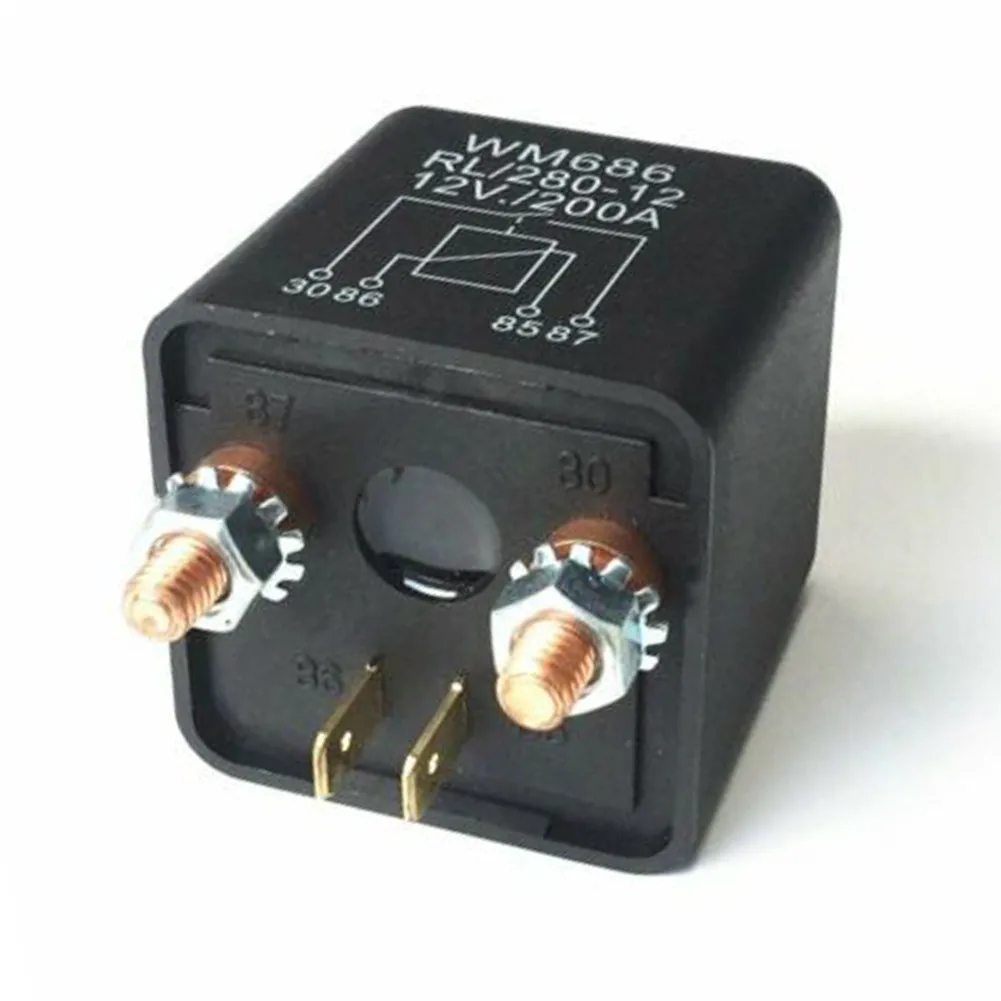

12V 200A Universal Battery Switch Relay 4 Pin Dual Battery Isolator Relay Current Relay Car Relay

Features:


*100% brand new and high quality
*Made of high quality material, durableand practical to use
*high capacity, maximum current of 80 amps can be switched; Available in the standard contact form: 1 normally open, a number of conversions.
*High capacity, maximum current of 80 amps can be switched;
*Usage: vehicle control unit.
*Good workmanship and good performance.
*Easy to use，Long lifetime.


Specification:



*Rated voltage: DC12V
*Coil power supply: 12V / AC
*Nominal current: 200A
*Contact switching current: 200A
*Contact switching voltage: 7.8V
*Protective Features: Sealed
*Contact load: high performance
*Applications: Electromagnetic
*Contact form: type of conversion

*Working temperature: -40 to + 125 ° C.
*Product usage: automotive control unit




Package Includes:

1 piece x isolating relay


Notes:

1.
The real color of the item may be slightly different from the pictures
shown on website caused by many factors such as brightness of your
monitor and light brightness.
2. Please allow slight manual measurement deviation for the data.
