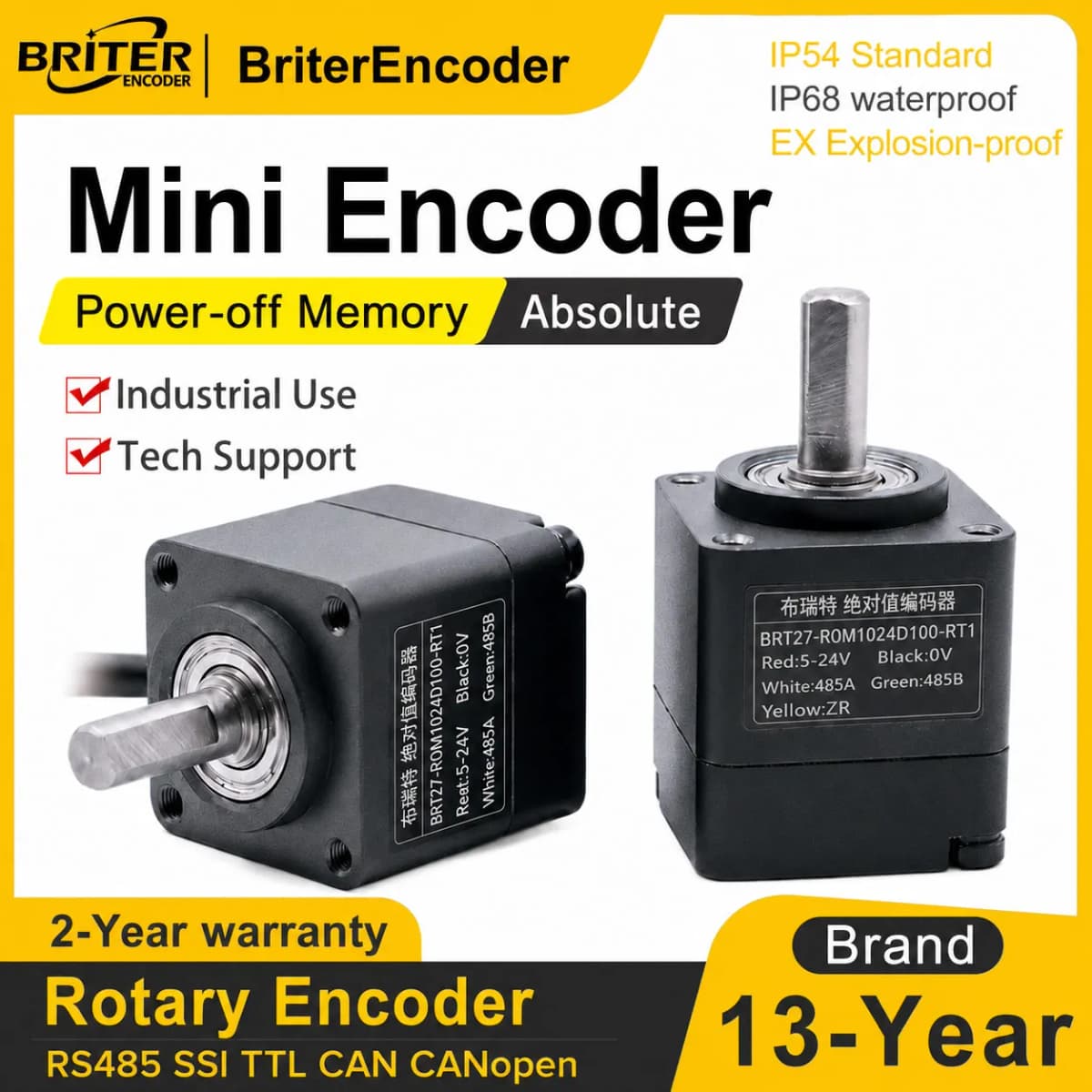

Mini Rotary Encoder Single Multi-turn CAN RS485 Modbus 0-5V 4-20mA Angle Speed Sensor for Automation Lines IP54&IP68

Waterproof Absolute encoder, single-turn, SSI, CAN, RS485 interface, Power-off Memory, High precision BriterEncoder

Used for angle measurement, Speed and length measurement.

Absolute encoder adopts advanced magnetic encoding technology, non-contact, high-resolution rotary position encoder;

Standard 1~1.5m high-quality shielded signal wire, if you need to lengthen it, please consult with us, please note when placing the order.

Maximum mechanical speed: 1000rpm

Protection Grade: IP68

10bit= 1024P/R

12bit= 4096P/R

14bit= 16384P/R

15bit= 32768P/R

The absolute value type rotary encoder detects the rotation angle through the output binary code, and the detected angle is an absolute angle. Since each position is absolutely unique, there is no need to use a battery, and the position information can be maintained even if the power is turned off. In addition to high detection accuracy, the biggest advantage of this encoder is easy installation and long service life.

For measurement in the 360° range, a single-turn absolute encoder can be directly used, and the highest single-turn resolution can reach 15 bits, that is, 32768P/R.

If you want to measure rotation beyond 360°, please use a multi-turn absolute encoder. The number of turns is optional, we keep Single-turn and multi-turn of 24 turns to 1056turns for this type in stock. The maximum resolution of a single turn is up to 12 bits, that is, 4096P/R, and the maximum measurement range is 1056 turns*4096P/R.

Widely used in Steel Industry, Textile Machinery, Port Machinery, Plastic Machinery, Lifting Machinery, Pressure Machinery, Glass Machinery, Printing Machinery, Wood Machinery, Packaging Machinery, Machine Tool, logistics Machinery, Tire Machinery, Electronics and Solar, Elevator, AGV cars etc.

We have a variety of resolutions and output interfaces, welcome to choose!
