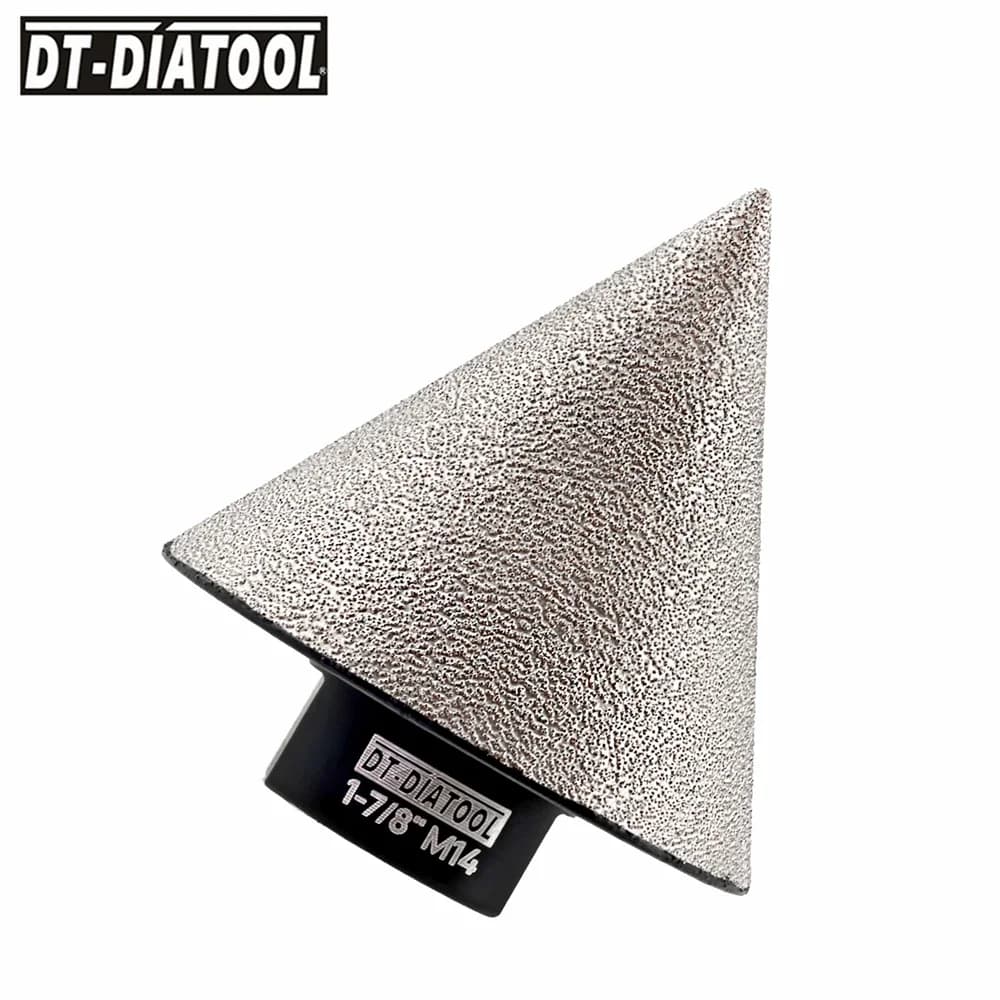

DT-DIATOOL Diamond Chamfer Milling Bits Chamfer Crown for Tile Ceramic Porcelain Beveling Hole Saw Milling Diamond Chamfer Bit

Product Name:

Diamond Vacuum Brazed Chamfer Milling bits For enlarging, polishing and bevelling the exsit holes

Specification:

Dia 35mm/1-3/8":  workable length 35mm; 5/8-11 or M14 thread; Grit #80/100; Angle: 53 degrees;

Dia 50mm/2":  workable length 46mm; 5/8-11 or M14 thread; Grit #80/100; Angle: 60 degrees;

Dia 82mm/ 3-1/4": workable length 49mm; 5/8-11 or M14 thread; Grit #80/100; Angle: 60 degrees;

(NOTE: 5/8-11 Thread, it's usually suitable for North America Market, please attention!)

Quantity:1pc

Features:

    1. Vacuum Brazed Processing, high diamond concentration provides for a faster cut rate while the high quality of the diamonds provides longer working life

    2. Strict production process to ensure the perfect combination of the cutter head and the base.

    3. Bevel Ease chamfers and stress relieves rough holes in glass, ceramic and porcelain tiles.

    4. Very useful to reduce the risk of cracking with standard and large format tiles subjected to tension (ex tightened plumbing, led lights etc).

5. Very useful to improve the edge finishing of exposed holes.

    6. Dry or wet use.

NOTE :

    This is not a core bit for drilling. It doesn’t make holes but it bevels the hole cleaning and reinforcing the borders when the borders are chipped or need to be clean.

    When using, tilt and reduce the contact surface. Do not press with direct force . Shake slowly and slightly along the force, and the range should not be too large.

Ref. Brand:This product is marked our "DT-DIATOOL" brand name.If you need these diamond disc without our brand, please leave us message.  we could send you products without brand.We also provide brand-customizing service(If you order more 20pcs, we could mark your brand name on these products).

Note:

Please allow 1-3mm errors due to manual measurement

Item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same
