Serial Port RS232 To Wiegand WG26/34/232/Serial Wiegand/COM Port/Bidirectional Transmission Onverting RS232 Barcode Reader

RS232/wiegand bidirectional converter

HDC09 converter support bidirectional conversion between Wiegand and signal RS232 signals, The device can achieve the wiegand go to RS232 and RS232 go to Wigan.The conversion process of automatic identification the signal transmission direction, Do not need manual operation and settings.

Converter use high anti-interference MCU Processing chip, built-in watchdog circuit, automatic check the equipment work state, Automatic reboot when abnormal working state.

Converter interface parameters:

Voltage:9-15v

Current:20mA/50mA

1.RS232 Interface Port

baud rate :9600

Data bits :8

Stop bit :1

2.wiegand interface Port

Support Wg26 Wg34.(Other protocols can be customized)

3.Applicable occasions

 Wiegand 26/34 input > RS232 output

Need to convert the signal from wiegand equipment to the serial,

such as: access control Card reader,Barcode reader,Fingerprint access control,face Recognition machine,So the output data after conversion

You can get the date by the computer serial port, through the serial debugging software or super terminal. Usr also Design software to get the serial port data

 RS232(serial input)>Wiegand 26/34 output

Need to convert the signal from serial equipment to the wiegand controller,

Such as IC/ID serial interface card reader, Barcode scanner or computer.After the conversion of wiegand WG26/34,The signal can input access controller Directly.

The input and output data format conversion

A.16Hex Output/Input

B.Text (ASCII Code) input/output

According to the converter, from RS232 Interface output 10bit ASCII Code number,Such as:"0009019418"

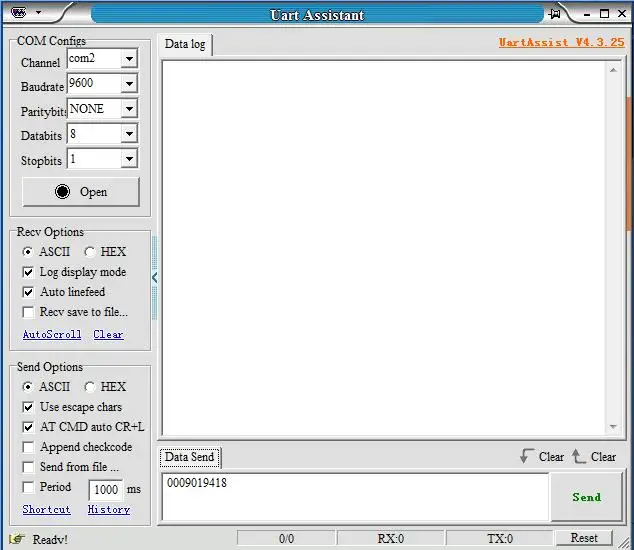

 Send a text "0009019418"

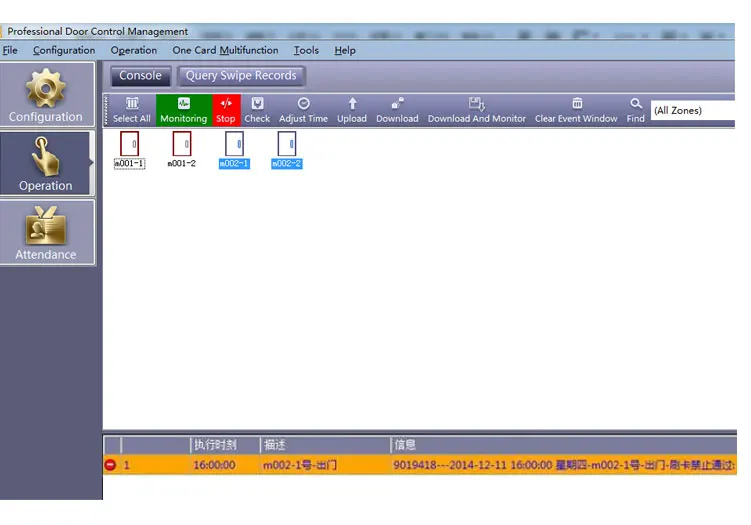

Access control software received is "9019418", in front of "000" Be omitted by software

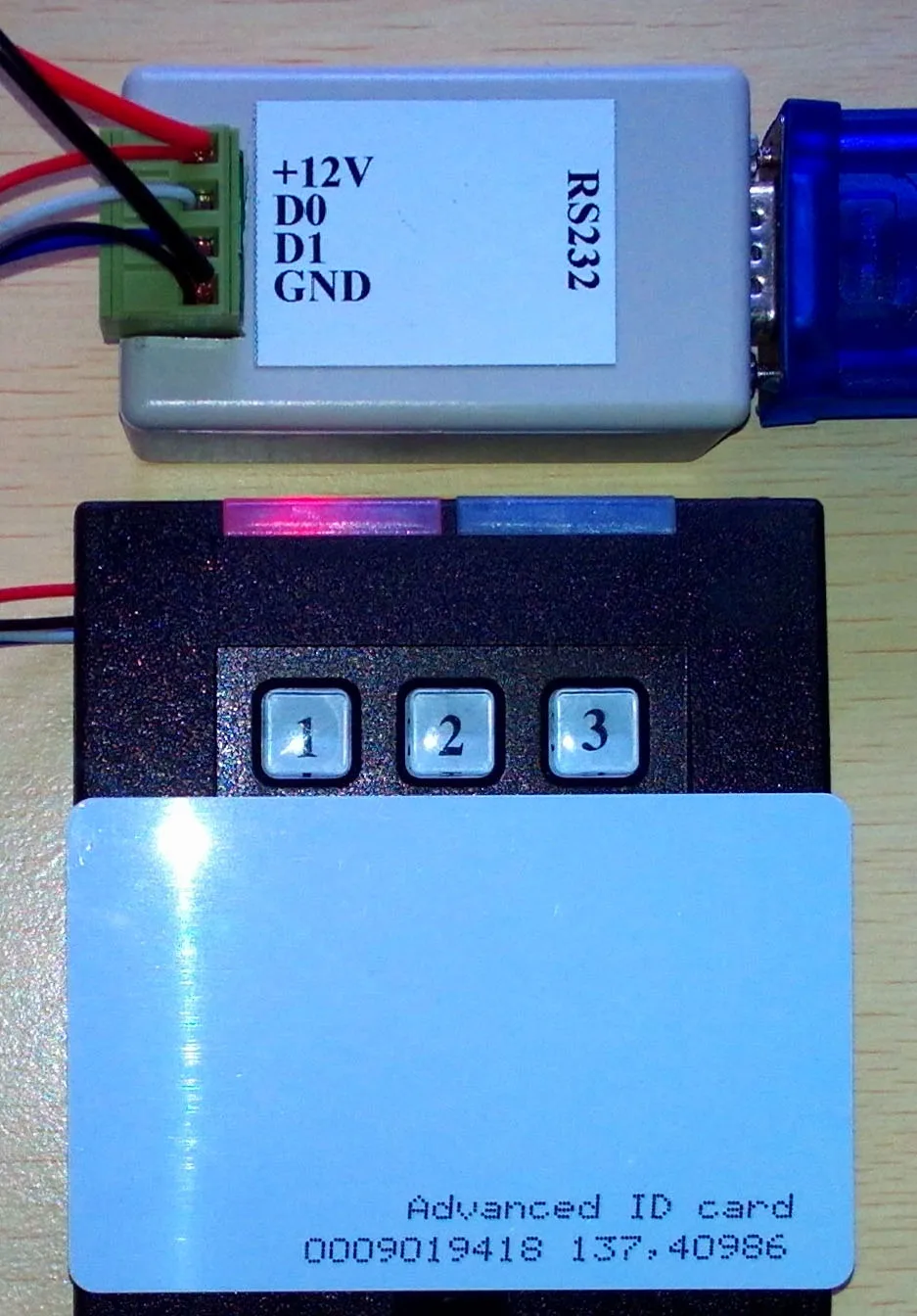

Similarly, the Wiegand device such as ID/IC card reader read output the card number "0009019418"

The ID Card number printed on "0009019418"

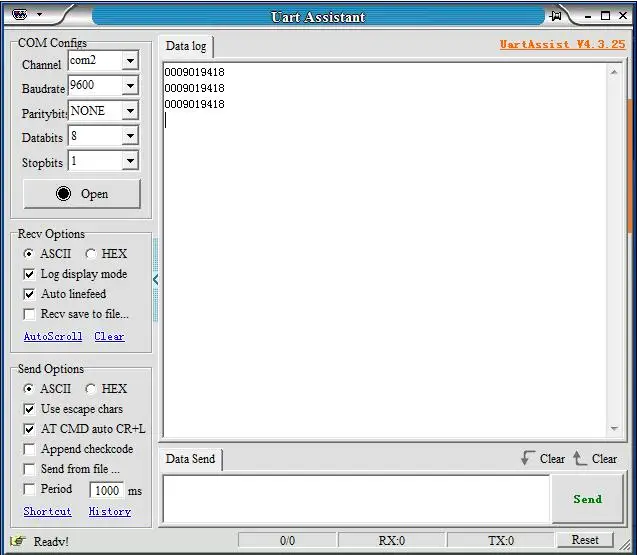

The text is received "0009019418"

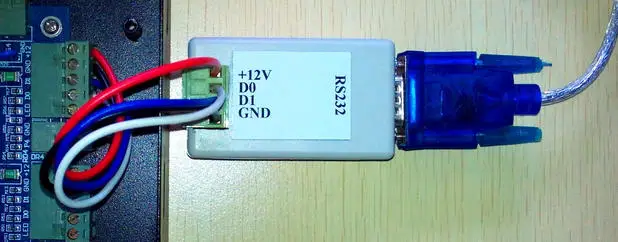

Connection method of converter

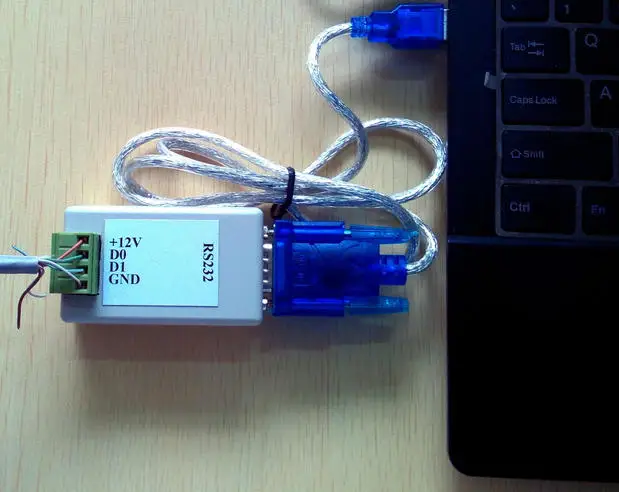

A.Connect PC serial port

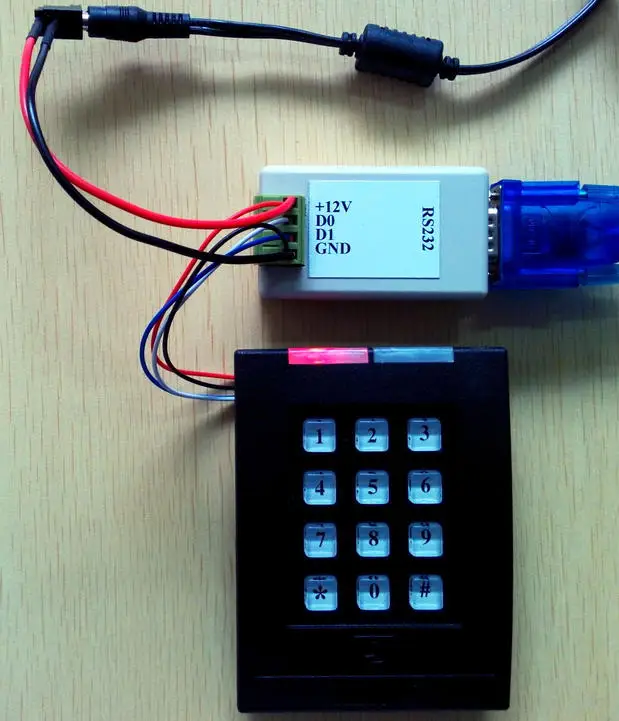

Connect the output device wiegand IC/IDCard reader, face recognition instrument...

Connect the input device (wiegand access controller)

************************************************************************************************************************************

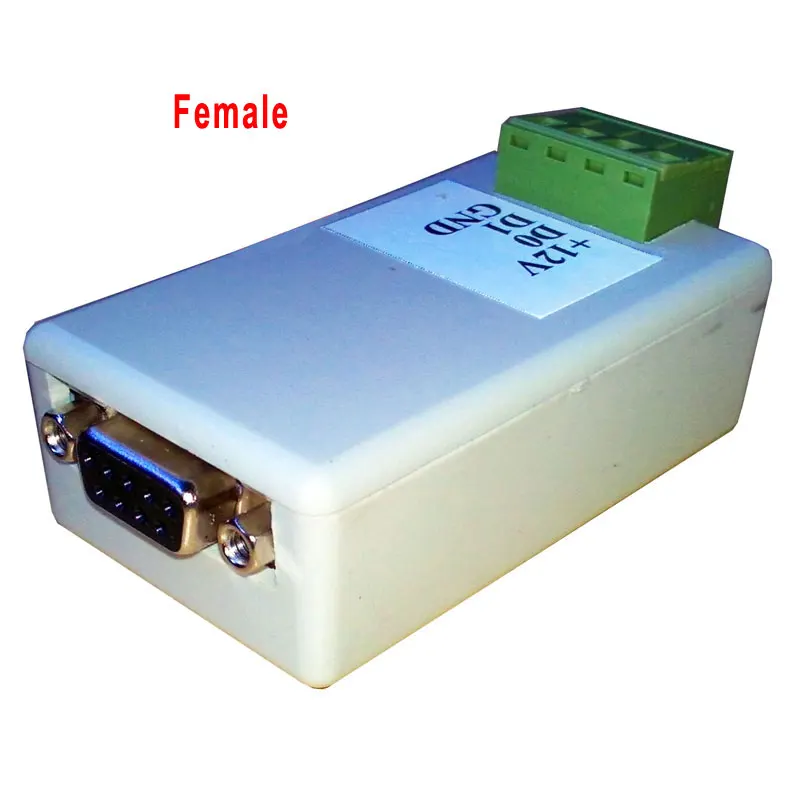

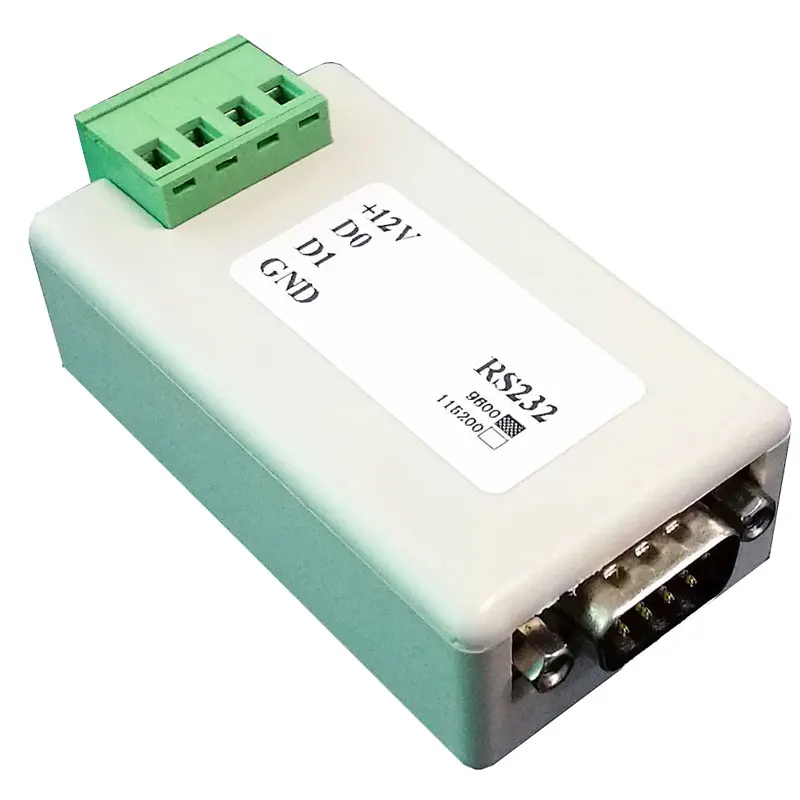

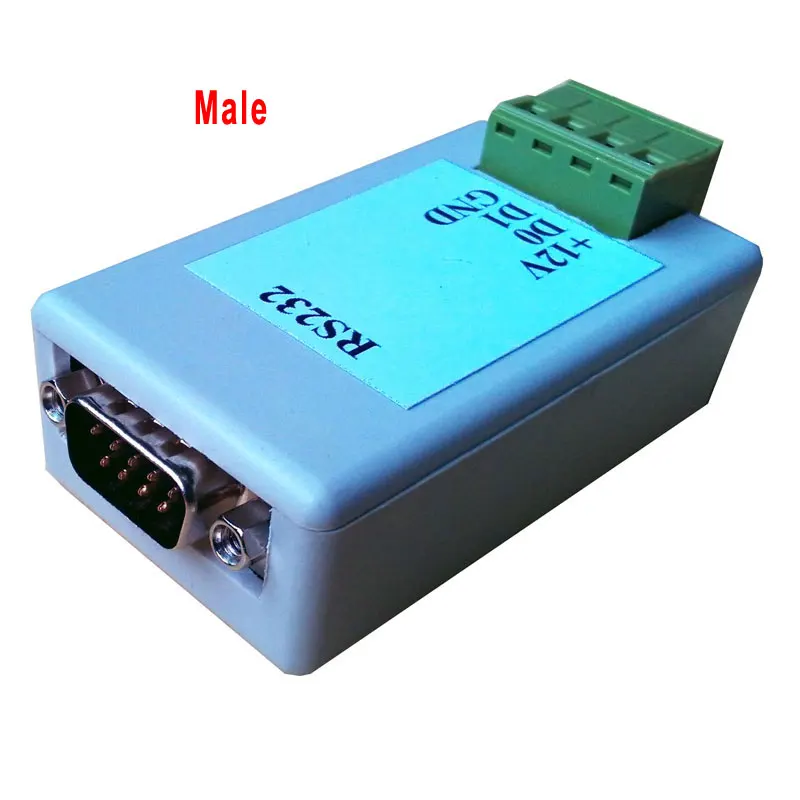

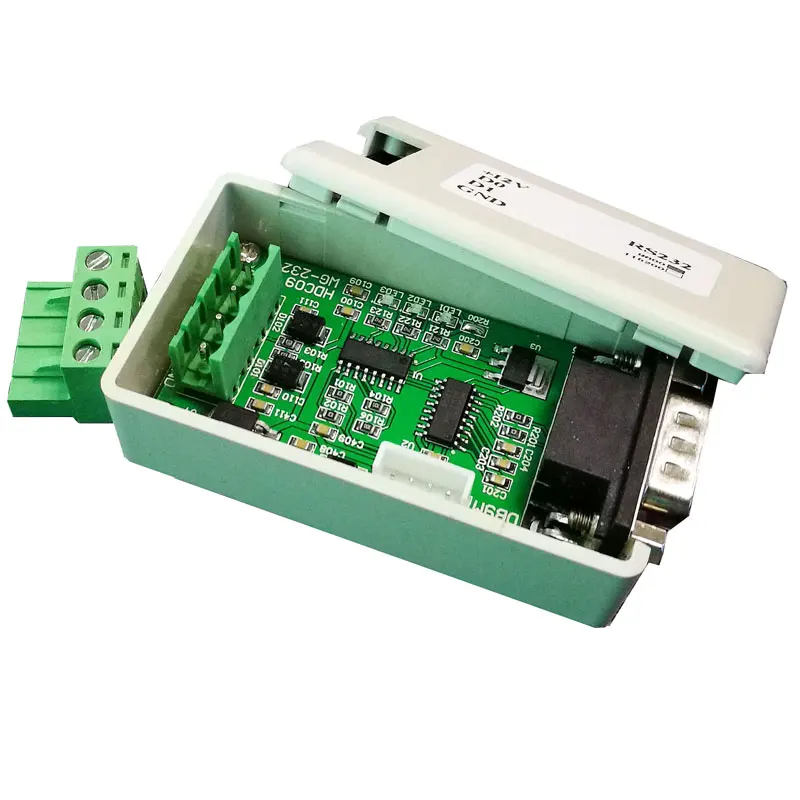

The product photo
