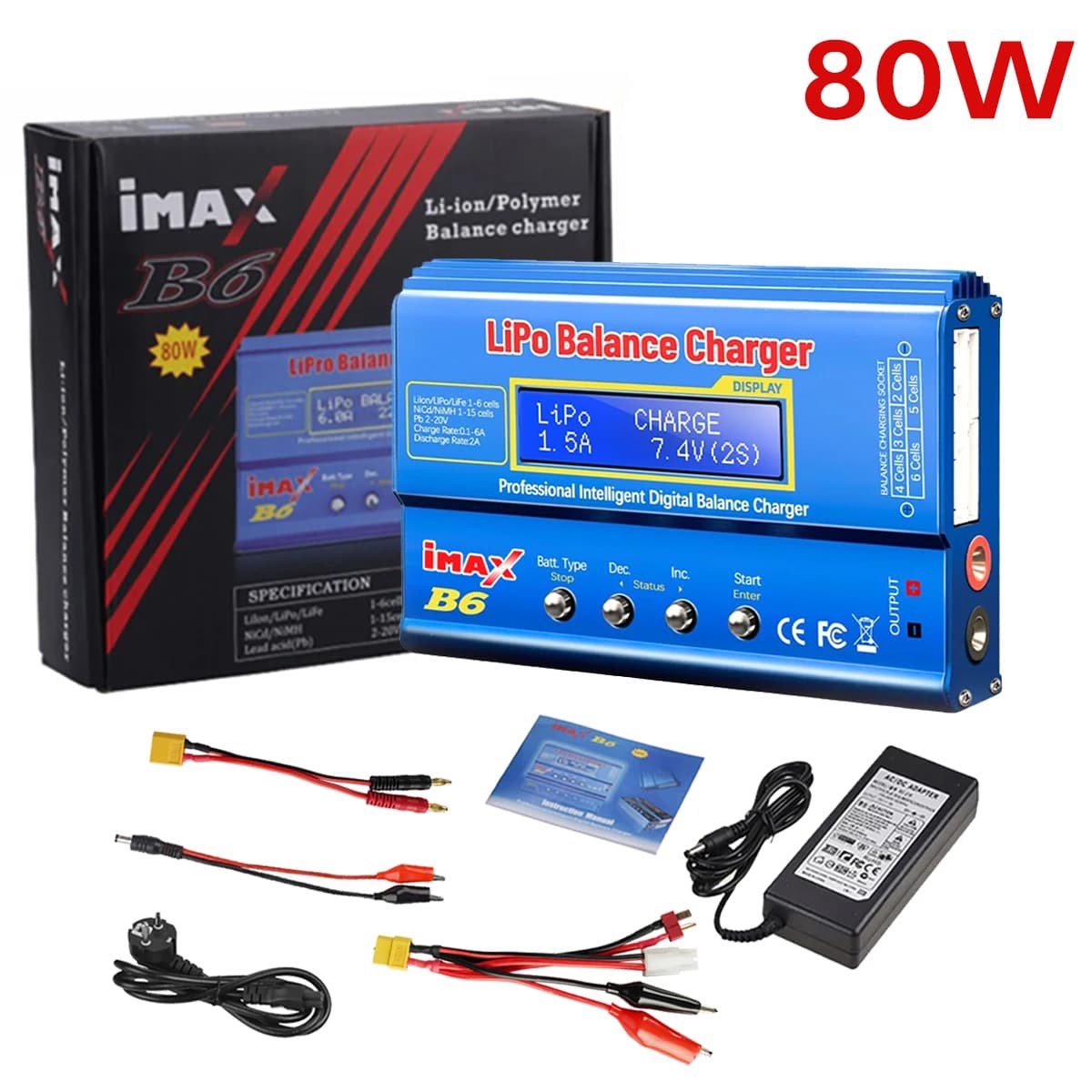

IMAX B6 80W Multi-function Charger For Lipo Li-ion LiFe NiMh Ni-Cd PB Battery RC Balance Discharger 15V 6A Adapter Optional

iMAX B6 80W 6A  Multifunction Charger Digital RC Battery Balance Charger Discharger 50W 5A for 1-6s Lipo NiMh Li-ion Ni-CdWith 15V 6A Adapter

FAQ

Q:What Difference of B6 between Hb6 ？

A:The HB6 and B6  is just  the color and brand differ,same Function,In order to satisfy to color preferences of more customer,Please don't worry.

Q:Does The IMAX B6 Original?

A:Yes.Our imax b6 is "HTRC "Brand And produced by Our HTRC factory which focus on the high quality chargers.not Skyrc,no fake,and don't need Security Code,if you mind,please don't buy,thanks!

Q:How to charge correctly when received the goods?

A:after you received the goods,please follow those using turn

1.plug in the adapter firstly.

2.then plug the machine.

(if you plug the machine firstly,that will caused the machine can not open or work unnormally)

Description:

IMAX B6 LCD Screen Digital RC Lipo NiMH NiCd LiFe Pb Battery Balance Charger Discharger

IMAX B6 is the new intelligent multifunction charger which can charge and discharge for

Lion, LiPo, LiFe , Pb, NiCd and NiMH batteries. It\'s all-powerful in a way.

Feature:

1. Microprocessor controlled Delta-peak sensitivity.

2. Individual cell balancing Li-ion, LiPo and LiFe capable Ni-Cd and NiMH capable

3. Large range of charge currents Store function, allows safe storage current

4. Time limit function

5. Input voltage monitoring. (Protects car batteries at the field)

6. Data storage (Store up to 5 packs in memory)

7. Battery break in and cycling.

8. Support new generation  system (LiFe) battery

Specification:

* Operating voltage range: DC11.0-18.0 Volt / AC to DC adaptor(DC11.0-18.0V/ 6A/5A)

* Circuit power: Max.charge power 50W / 80W / Max.discharge power 5W

* Charge Current Range:50W 0.1~5.0A / 80W :0.1-6.0A

* Discharge current range:50W 0.1-1.0A / 80W:0.1-2.0A

* Current drain for balancing Li-po: 300mAH/cell

* LiIon/LiPo/LiFe cells : 1-6 cells

* NiCd/NiMH cells : 1-15

* Pb battery voltage: 2~20v

*  Weight of charger : about 400g .Weight of adapter: about 400g ,

Chip :STM32G030C8T6

Please note:our machine can't support to  measure the 1s battery 's voltage and Resistance .

Do not choose the wrong battery type when charging !!

15V 6A AC adapter:

Output : DC 15V 6A

Power:80W

Color: Black

DC Plug size:

-Inner diameter:2.5mm

-Outer diameter:5.1mm

Input : 100-240V AC 50/60Hz

Package include:

1 x imax B6 LiPo battery balance charger

1 x charge cable with T-plug

1 x Multi-fuctional extension wire

1x XT60 wire

1 x Universal crocodile clip

1 x JST plug

1 x Manual

1 x 15V 6A adapter  ( please choose with adapter ,if choose no adapter ,it is not including  )

1.About the positive electrode and negative electrode interfaces,you need to connect correctly,otherwise,it will fail to charger.

2.About the connectors,you need to connect correctly,otherwise,it will fail to charger.

3.If you choose the balance mode about the balance ports ,you need to connect correctly ,otherwise,it will fail to charger

4.After setting ,press the "ENTER"button for 3 seconds,then you can charge the battery .

1.PROGRAM SELECT LIPO BATT : to charge /balance charge/fast charge/storage/discharge/lipo/lion/life batteries

2.USER SET PROGRAM: to set the parameter of charge batteries which you need .

3.PROGRAM SELECT NIMH BATT :to charge/discharge/cycle/nimh/nicd batteries

4.PROGRAM SELECT SAVE DATA : save setting data

5.PROGRAM SELECT PB BATT:to charge/discharge the pb (lead acid ）batteries .

1.press the "battery type"button to choose the correct battery type

2.press the "start"button twice to the charging parameters setting

3.press the "dec."or "inc" and "start"button to set the current & voltage .

4.press and hold the "start"button for 3 seconds to entrt charging mode .
