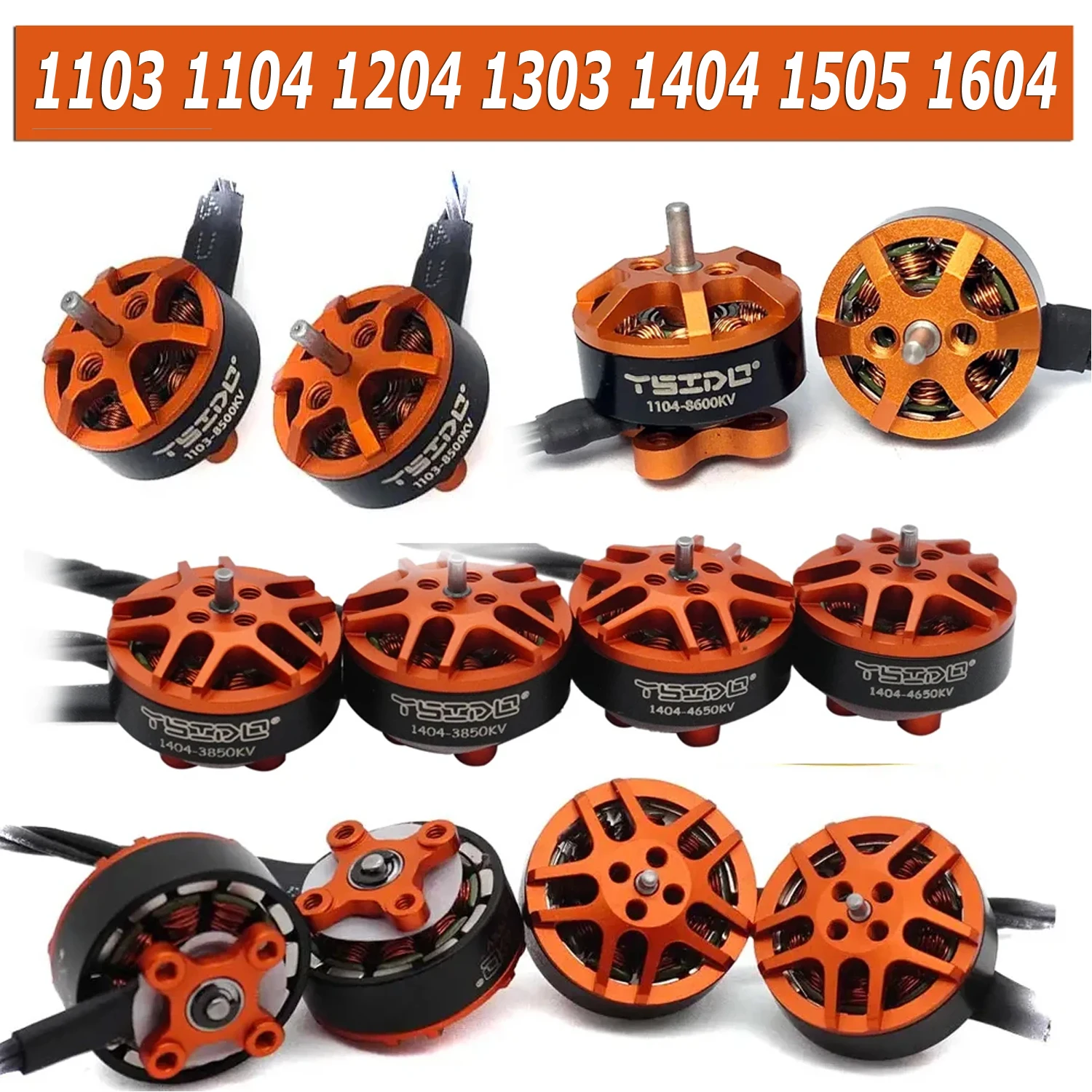

4PCS YSIDO 1103 1104 1204 1303 1404 1505 1604 Brushless Motor for RC FPV Fixed-wing Racing Drone RC Quadcopter RC Accessories

4PCS YSIDO 1103 1104 1204 1303 1404 1505 1604 Brushless Motor for RC FPV Fixed-wing Racing Drone RC Quadcopter DIY RC Upgrade Accessories

1103 Specifications:

Mode: 1103 8500/11000KV

Configu-ration: 9N12P

Stator Diameter: 11mm

Stator Length: 3mm

Shaft Diameter: φ1.5mm

Motor Dimension(Dia.*Len): φ14mm*16mm

Weight(g): 3.8g

No.of Cells(Lipo): 1-2S

1104 Specifications:

Item name: 1104 motor

Height: 14mm

Weight: about 5.6g

Shaft: φ1.5mm

KV (rpm/V): 7500KV/8600KV Optional

Prop: 3 inch, 2 inch, 65mm, 45mm

Battery: 3.7V -7.4V(1-2S) Lipo

1404 3850KV 4650KV Brushless Motor:

3850KV

Confign Ration:9N12P

Stator Diameter:14mm

Stator Length:4mm

Staft Diameter:1.5mm

Size: Φ19.3 x 14.8mm

Weight:10.0g

Idle Current(10)@10V:≤0.6A

NO.of Cells(LIPO):2-4S

Max Contimous Power(W)60S:240W

Internal Resistance:142mΩ

Max Current(60S):15A

Cable: 22AWG # 150mm Cable

4650KV

Configu-ration: 9N12P

Stator diameter: 14mm

Stator Length:4mm

Staft Diameter:1.5mm

Size: Φ19.3 x 14.8mm

Weight:10.3g

Idle current (10) @10V: ≤0.72A

No. of cells (Lipo): 3~4S

Max continuous power (W) 60S: 287.8W

Internal Resistance: 159mΩ

Max current(60S): 17.99A

Cable: 22AWG # 150mm Cable
