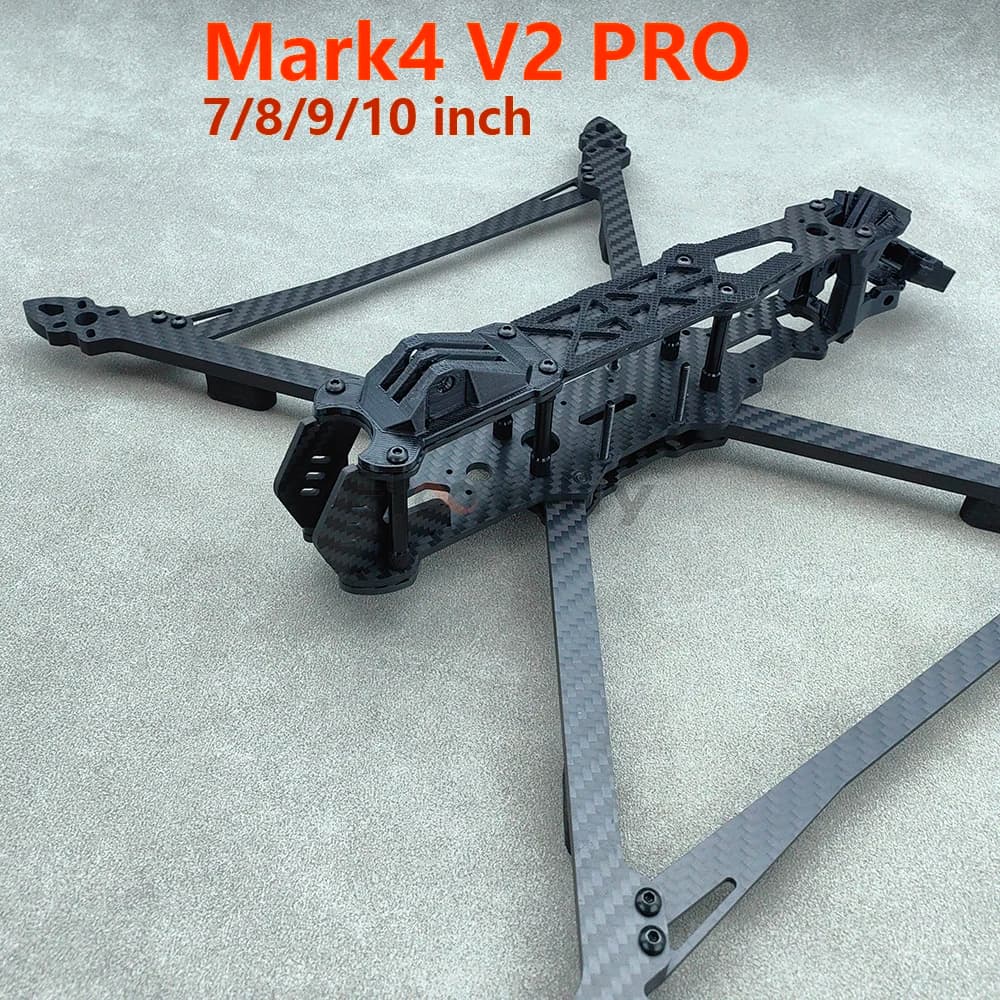

Mark4 V2 PRO FPV Frame 7/8/9/10 inch Quadcopter Frame Kits for Freestyle Long Range DIY Parts
73.66$
27.42$
Quantity:
1
Availability:
Color
Card Payments
Crypto Payments
Easy return
Reliable Shipping
Mark4 V2 Pro 7Inch Frame
Parameters:
Frame structure: X-Type
Wheelbase: 295mm
Size: 193.75mm * 223.06mm
Bottom plate thickness: 3.0mm
Medium plate thickness: 3.0mm
Upper plate thickness: 2.0mm
Arm thickness: 6.0mm
Camera side plate thickness: 2.5mm
Camera installation hole spacing: 19mm
Image transmission installation hole spacing: 20*20mm & 30.5*30.5mm
Flight control installation hole spacing: 20*20mm & 30.5*30.5mm
Inner space height: 35mm
Motor installation hole position: 16*16mm & 19*19mm
Compatible GPS size：25x25mm
Mark4 V2 Pro 8Inch Frame
Parameters:
Frame structure: X-Type
Wheelbase: 367mm
Size: 230.35mm * 278.52mm
Bottom plate thickness: 3.0mm
Medium plate thickness: 3.0mm
Upper plate thickness: 2.0mm
Arm thickness: 6.0mm
Connecting plate: 2.0mm
Camera side plate thickness: 2.5mm
Camera installation hole spacing: 19mm
Image transmission installation hole spacing: 20*20mm & 30.5*30.5mm
Flight control installation hole spacing: 20*20mm & 30.5*30.5mm
Inner space height: 35mm
Motor installation hole position: 16*16mm & 19*19mm
Compatible GPS size：25x25mm
Mark4 V2 Pro 9Inch Frame
Parameters:
Frame structure: X-Type
Wheelbase: 387mm
Size: 234.35mm * 282.52mm
Bottom plate thickness: 3.0mm
Medium plate thickness: 3.0mm
Upper plate thickness: 2.0mm
Arm thickness: 6.0mm
Connecting plate: 2.0mm
Camera side plate thickness: 2.5mm
Camera installation hole spacing: 19mm
Image transmission installation hole spacing: 20*20mm & 30.5*30.5mm
Flight control installation hole spacing: 20*20mm & 30.5*30.5mm
Inner space height: 35mm
Motor installation hole position: 16*16mm & 19*19mm
Compatible GPS size：25x25mm
Mark4 V2 Pro 10Inch Frame
Parameters:
Frame structure: X-Type
Wheelbase: 427mm
Size: 268.18mm*332.07mm
Bottom plate thickness: 3.0mm
Medium plate thickness: 3.0mm
Upper plate thickness: 2.0mm
Arm thickness: 7.0mm
Connecting plate: 2.0mm
Camera side plate thickness: 2.5mm
Camera installation hole spacing: 19mm
Image transmission installation hole spacing: 20*20mm & 30.5*30.5mm
Flight control installation hole spacing: 20*20mm & 30.5*30.5mm
Inner space height: 35mm
Motor installation hole position: 16*16mm & 19*19mm
Compatible GPS size：25x25mm
