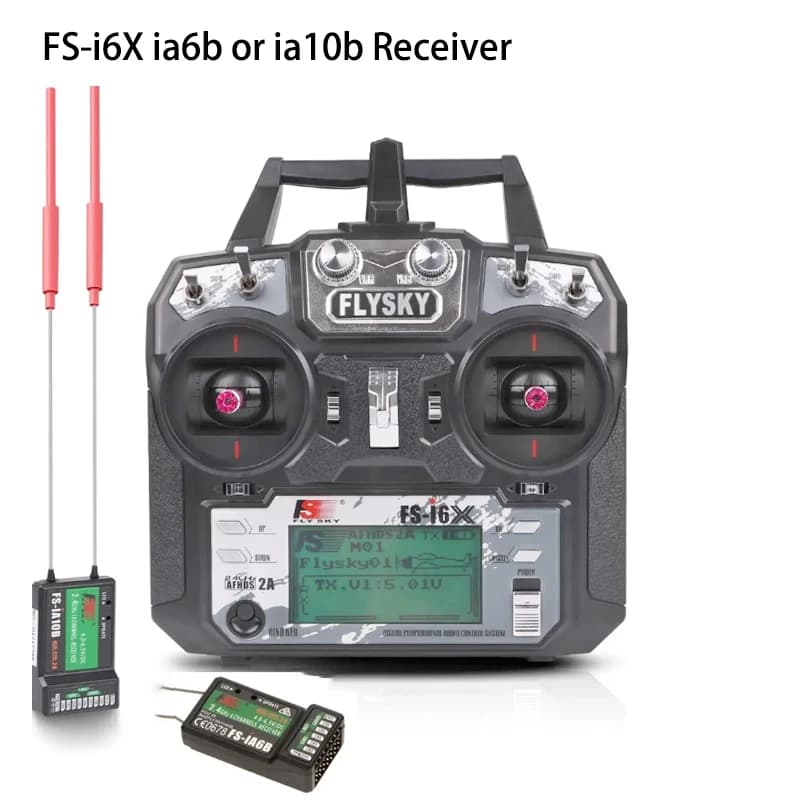

FLYSKY FS-i6x 2.4G 6/10CH AFHDS 2A Radio RC Transmitter with IA6B or IA10B Receiver for RC Airplane Helicopter FPV Racing Drone

The FS-i6X transmitter and FS-iA6B receiver constitute a 6 channel 2.4GHz AFHDS 2A digital proportional computerized RC system. This system offers superior protection against interference while maintaining lower power consumption and high reliable receiver sensitivity. It is specially developed for all radio control models.

Mode 2-- Throttle stick on left

Package list:

1 * FS-i6X Remote Controller(If you choose Fs-I6X with receiver,it will have receiver)

1 * Bind Plug

1 * Manual

Note:;

I6X and IA6B - with receiver

I6X and IA10B - with receiver

Please purchase as needed, thank you!

Features:

Adopt AFHDS 2A (Automatic Frequency Hopping Digital System Second Generation) technology. Offering superior protection against interference while maintaining lower power consumption and high reliable receiver sensitivity.

Receiving data from temperature, altitude and many other types of sensors, servo calibration and i-BUS support.

Multi-channel hopping frequency, hop between 16 channels (32 for Japanese and Korean version) to reduce interference from other transmitters.

Unique ID recognition system, each transmitter and receiver has its own unique ID to prevent interference.

Low power consumption, consuming as little as one tenth the power of a standard FM system, dramatically extending battery life.

FS-iA6B receiver compatible with FS-i6X, FS-i4, FS-i6, FS-i10, FS-GT2E, FS-GT2G transmitter.

FS-i6X Transmitter Specifications:

Channels: 6-10 (default 6)

Model type: Fixed-Wing/Glider/Helicopter

RF Range: 2.408-2.475GHz

RF power: <20dBm

RF Channel: 135

Bandwidth: 500KHz

2.4GHz system: AFHDS 2A / AFHDS

Modulation type: GFSK

Stick resolution: 4096

Low voltage warning: <4.2V

DSC Port: PS/2 Port

Chargeable: No

Antenna Length: 26mm (Dual Antenna)

Weight: About 400g

Power: 4 * AA battery (not included)

Display: STN transflective display, LCD 128*64 lattice, VA 73*39mm, LCD with white backlight

Size: 190 * 174 * 89mm

On-Line Update: Yes

Color: Black

Certificate: CE0678, FCC ID: N4ZFLYSKYI6X

FS-iA6B Receiver Specifications:

Channels: 6

Model type: Airplane/Glider/Helicopter

RF range: 2.4055-2.475GHz

RF channel: 140

RF receiver sensitivity: -105dBm

Bandwidth: 500KHz

2.4GHz system: AFHDS 2A

Modulation type: GFSK

Power: 4.0-6.5V DC

Compatible transmitter: FS-i6X, FS-i4, FS-i6, FS-i10, FS-GT2E, FS-GT2G

Antenna length: 26mm (Dual Antenna)

Weight: 16.3g

Size: 47 * 26.2 * 15mm

i-BUS port: Yes

Data acquisition port: Yes

FS-IA10B Specifications:

Number of Channels: 10

Suitable models: Airplane / glider / helicopter Health

Frequency range :2.4-2 .48 GHz

Number of newspapers: 160

Transmitting power: not more than 20dBm

Receiver sensitivity:-105dBm

2.4G modes: automatic frequency second generation digital system

Encoding: GFSK

Antenna length: 26 mm * 2 (dual antenna)

Weight: 19.3 g

Input power :4.0-6 .5 V DC

Dimensions: 47 * 33.1 * 14.7 mm

Color: Black

Certification: CE0678, FCC

i-BUS Interface: Yes

Data acquisition interface: Yes

Package information:

Package size: 23.2 * 20.8 * 10.5cm / 9.13 * 8.18 * 4.13in

Package weight: 666g / 1.47lb

Gift box package
