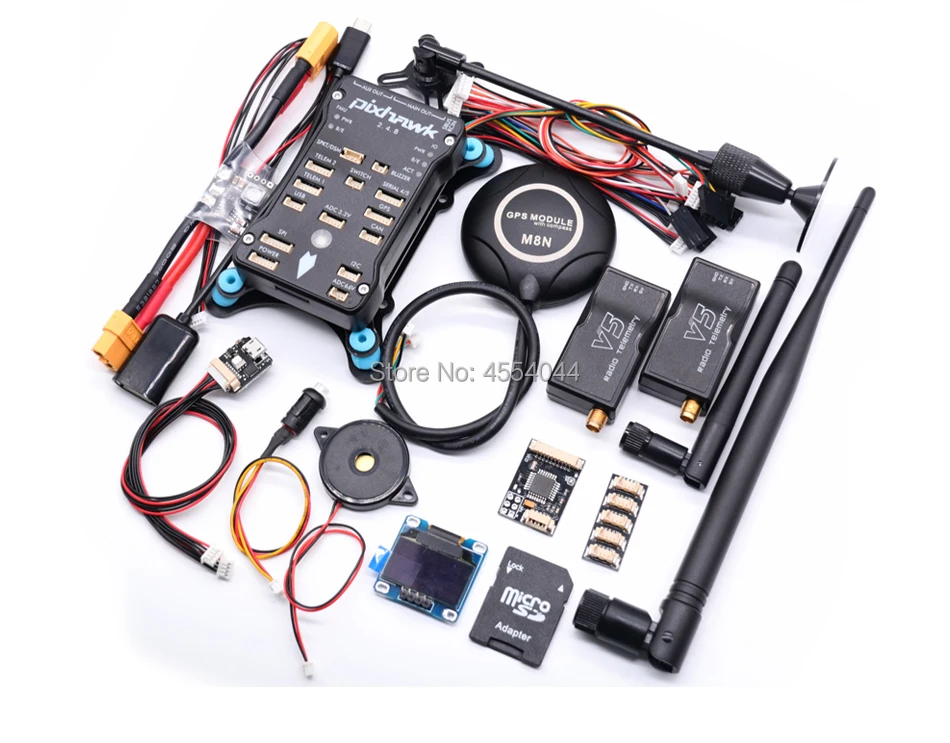

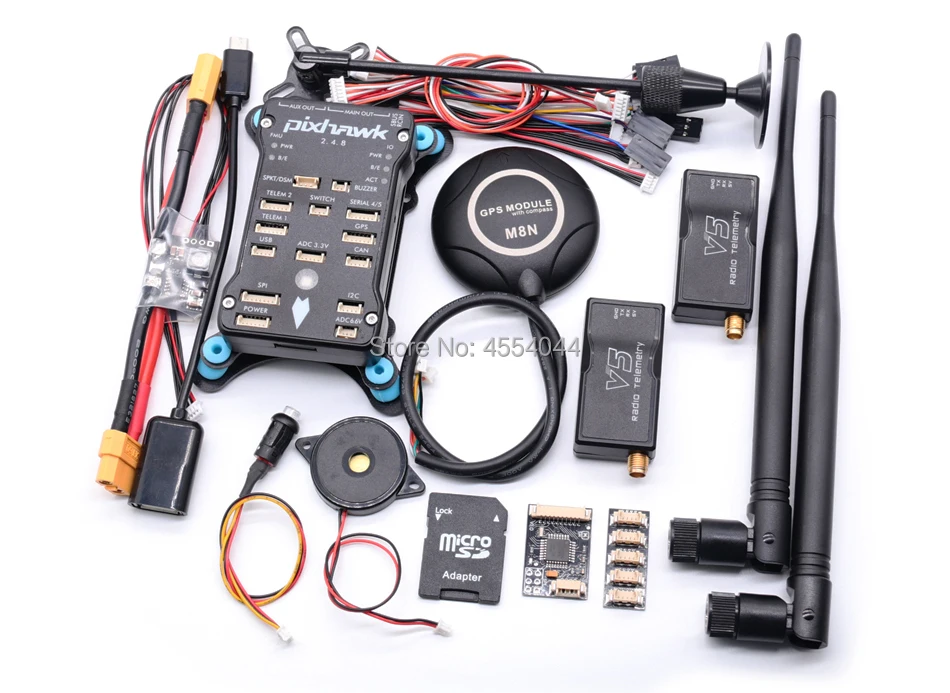

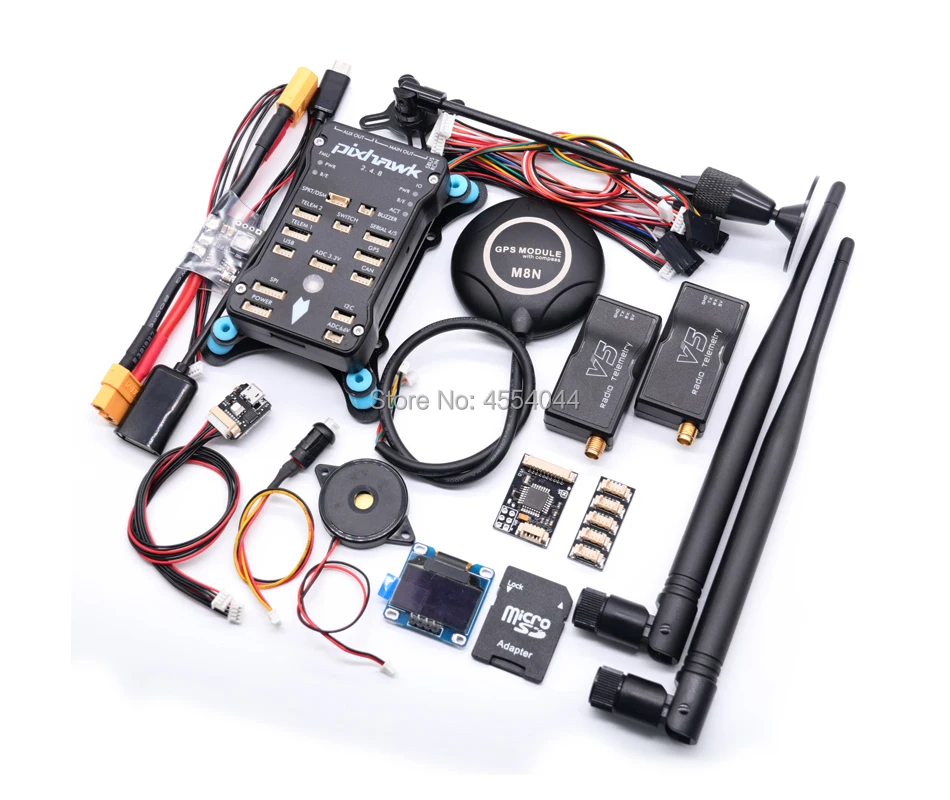

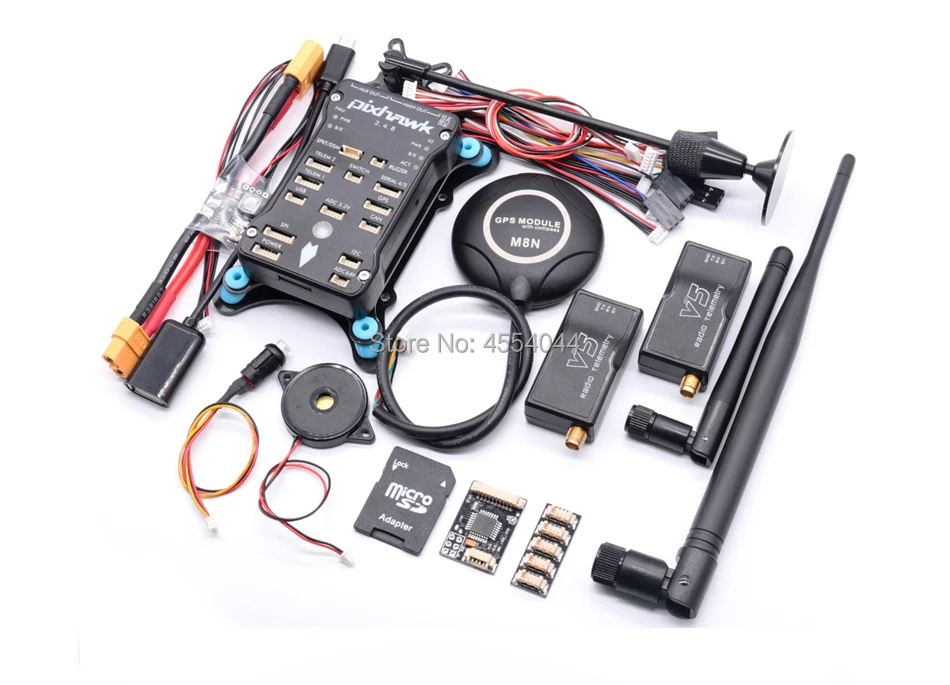

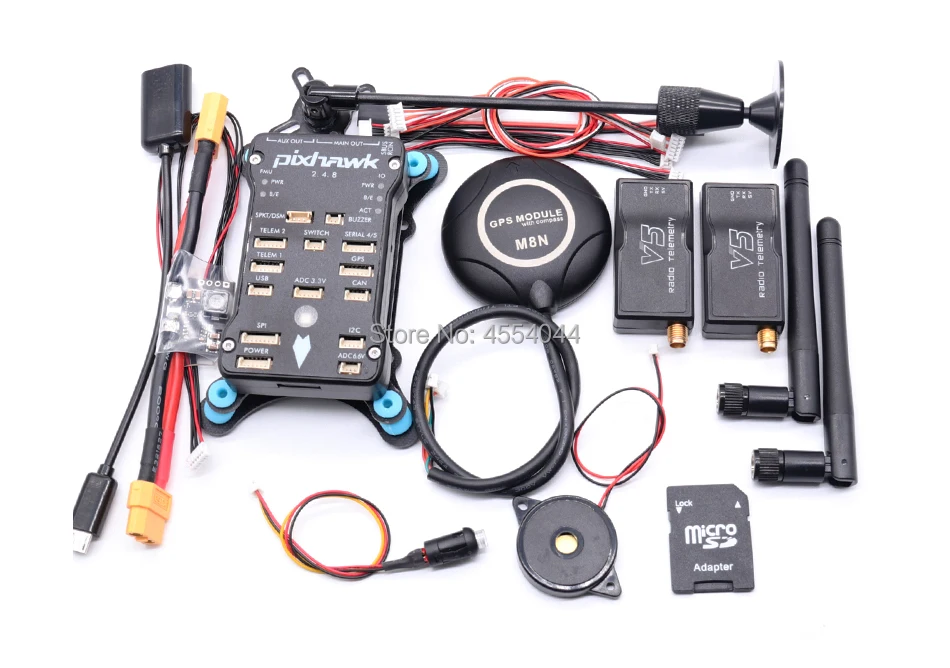

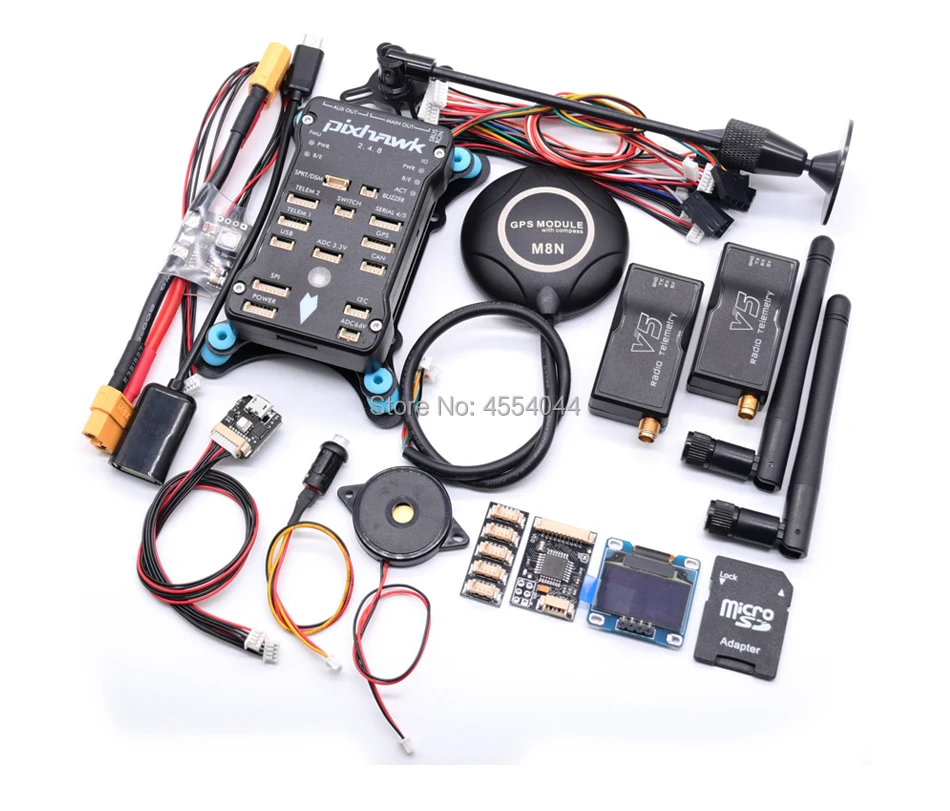

AN Pixhawk PX4 2.4.8 Flight Controller+M8N GPS+ 433/915Mhz 100/500mw Radio V5 Telemetry+Safety Switch+Buzzer+RGB+I2C+ 4G SD

The product has passed strict CE certification. If you need a PDF or more complete test certificate, please leave a message.

- Advanced 32 bit CortexM4 ARM high performance processor, can run RTOS NuttX real time operating system;
- Integrated backup power supply and failure backup controller, the main controller can be safely switched to backup control;
- Provide redundant power input and fault transfer function;
- 14* PWM/ actuator output;
- Bus interface (UART, I2C, SPI, CAN);
- Provide automatic and manual mode;
- Color LED lamp;
- Multi tone buzzer interface;
- Micro SD to record flight data;

Interface:
5* UART, 1*compatible high voltage, 2*hardware flow control
2*CAN
Spektrum DSM/DSM2/DSM-X satellite receiver compatible input
Futaba SBUS compatible input and output
PPM signal input
RSSI (PWM or voltage) input
I2C
SPI
3.3 and 6.6VADC input
External USB MICRO interface

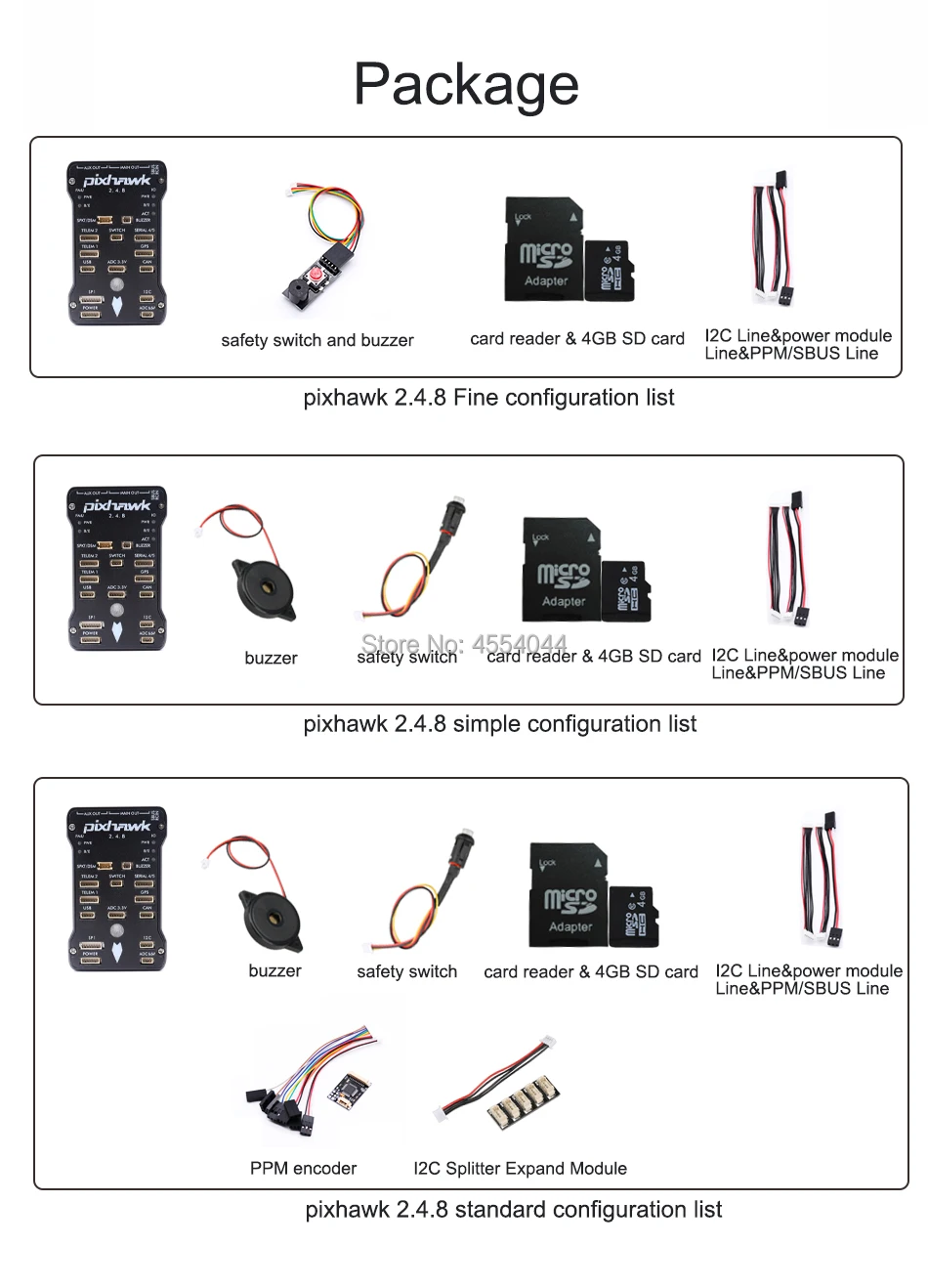

Fine Collocation included:

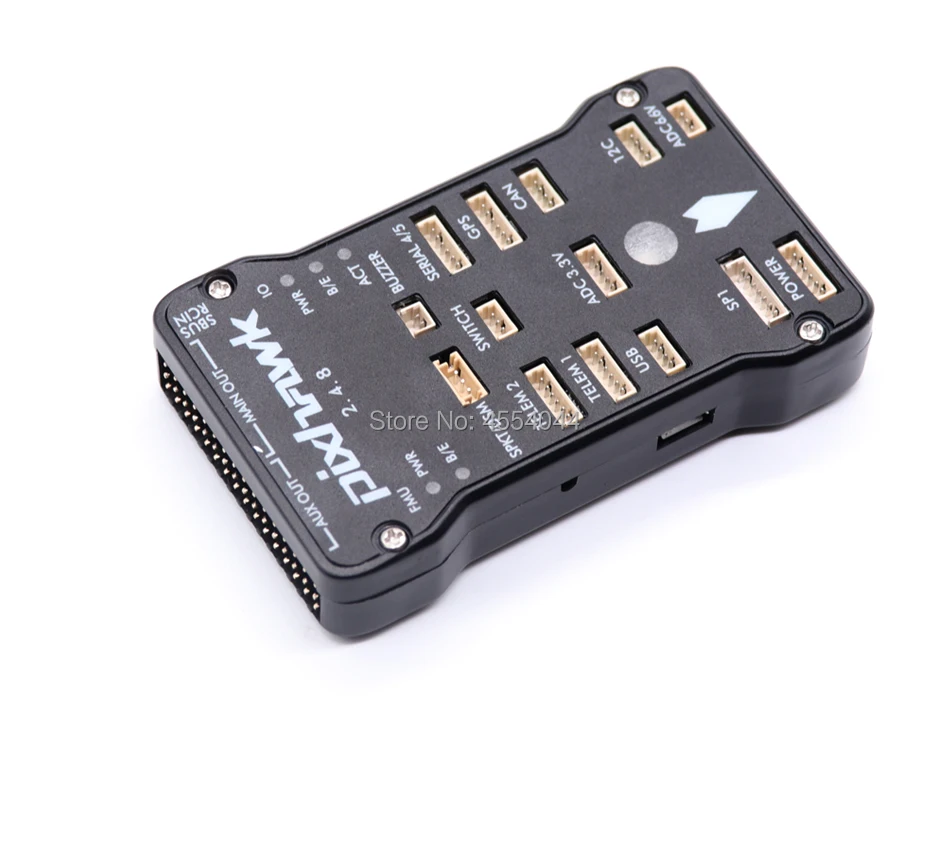

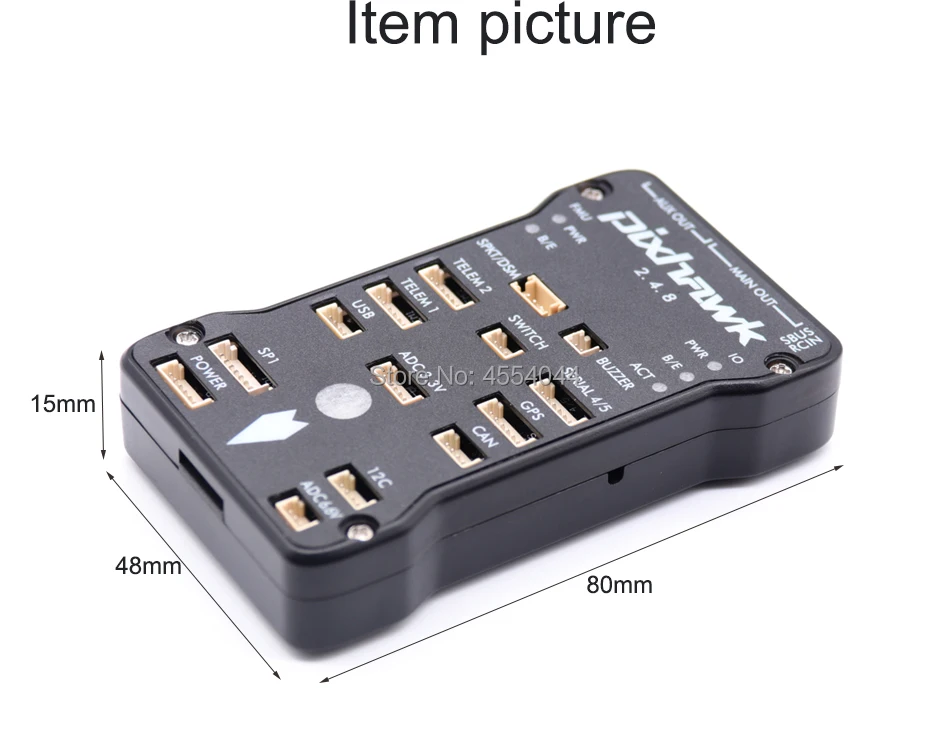

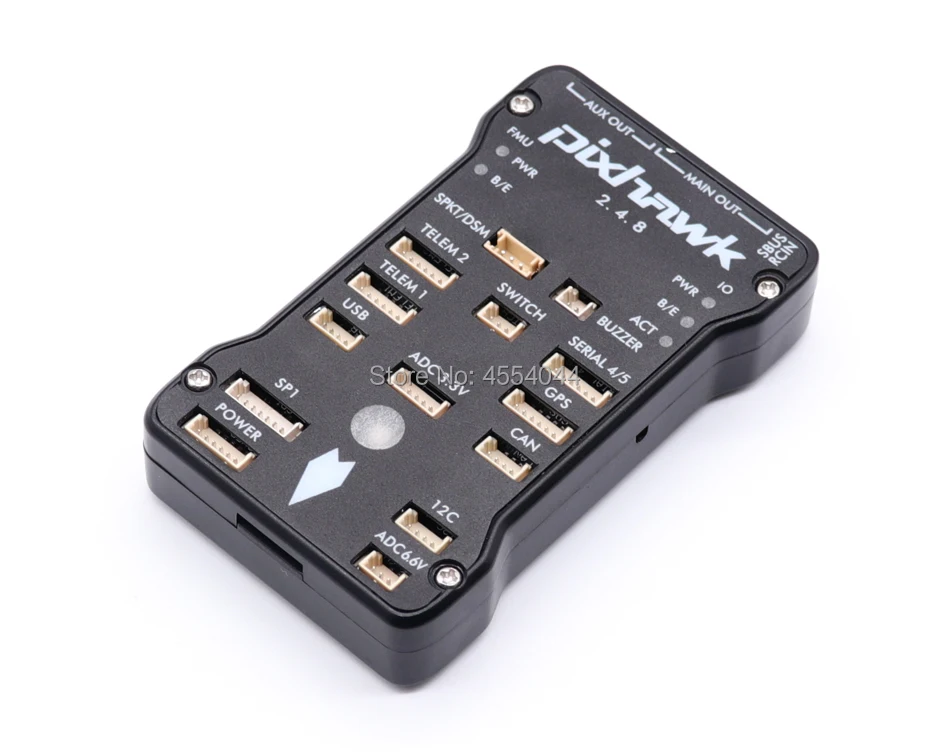

1 x 2.4.8 Pixhawk flight controller board with 4G SD with shell

1 x Safety switch and Buzzer

1 x card reader

1 x I2C Line,1 x power module Line,1 x PPM/SBUS Line

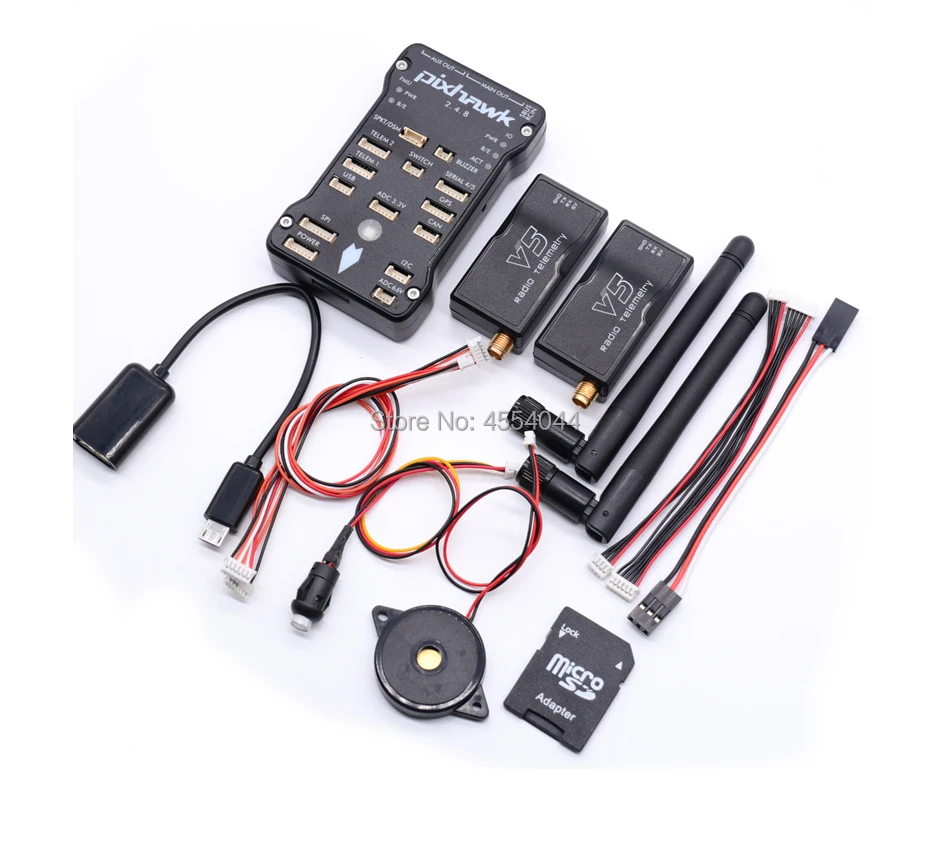

Simple Collocation included:

1 x 2.4.8 Pixhawk flight controller board with 4G SD with shell

1 x Safety switch

1 x Buzzer

1 x card reader

1 x I2C Line,1 x power module Line,1 x PPM/SBUS Line

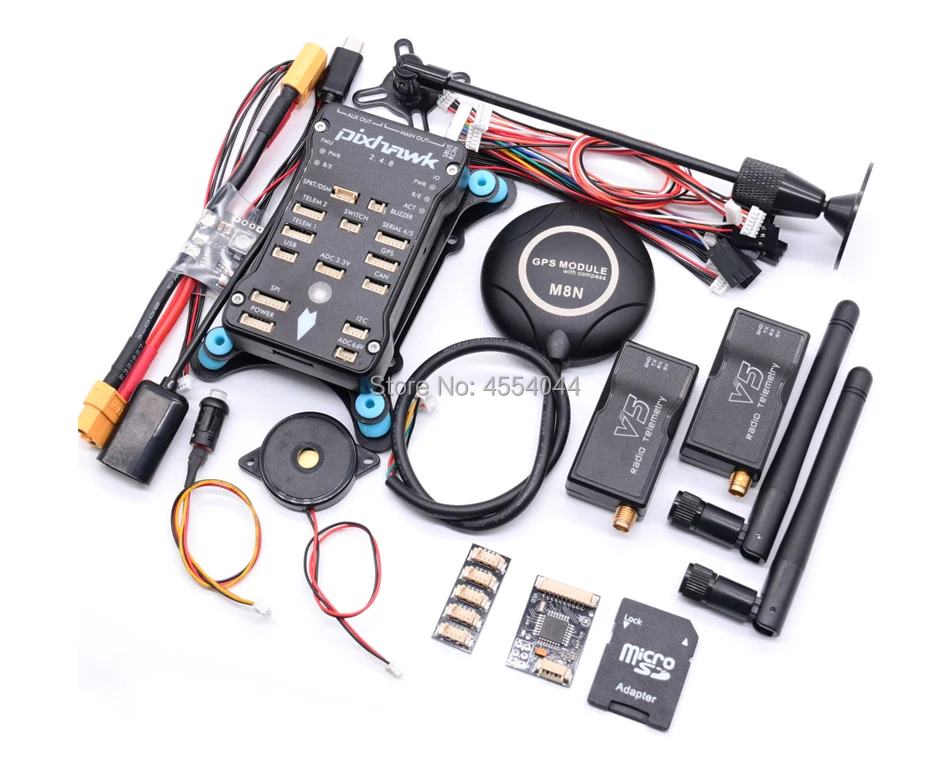

Standard Collocation included:

1 x 2.4.8 Pixhawk flight controller board with 4G SD with shell

1 x Safety switch

1 x Buzzer

1 x card reader

1x PPM encoder

1x I2C splitter expand module

1 x I2C Line,1 x power module Line,1 x PPM/SBUS Line

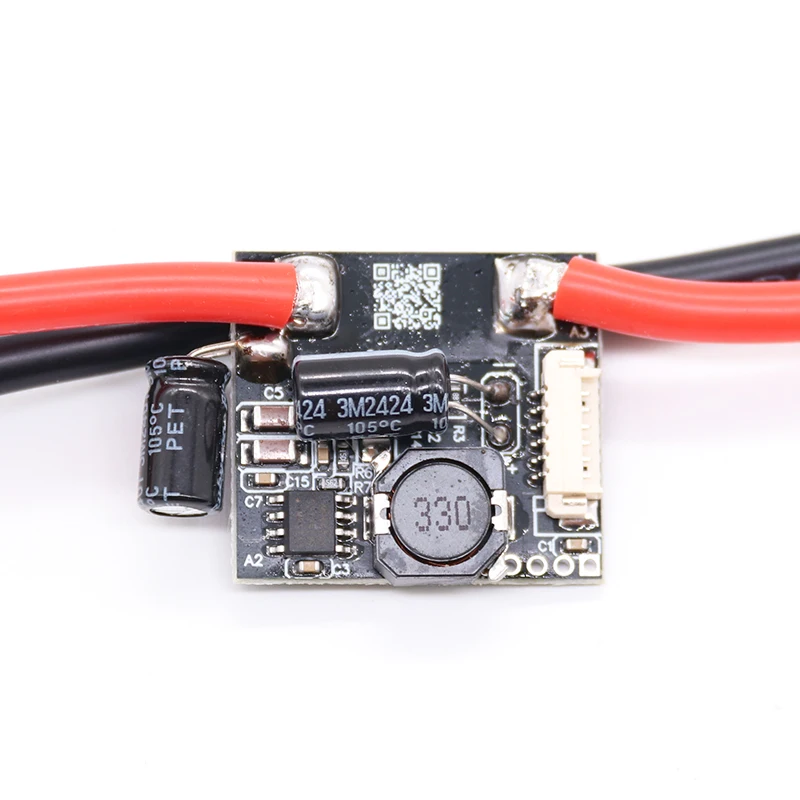

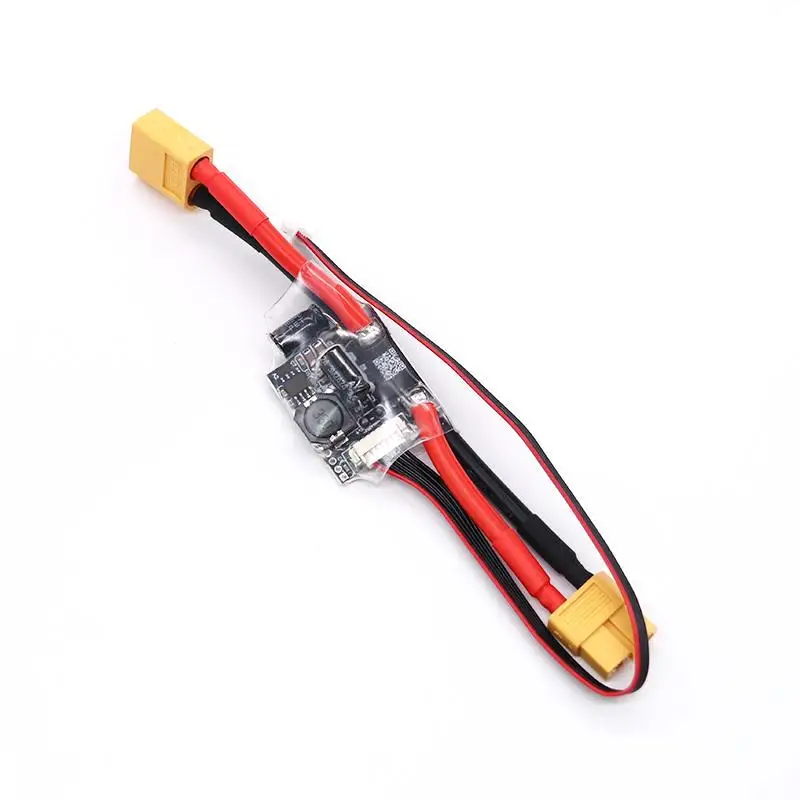

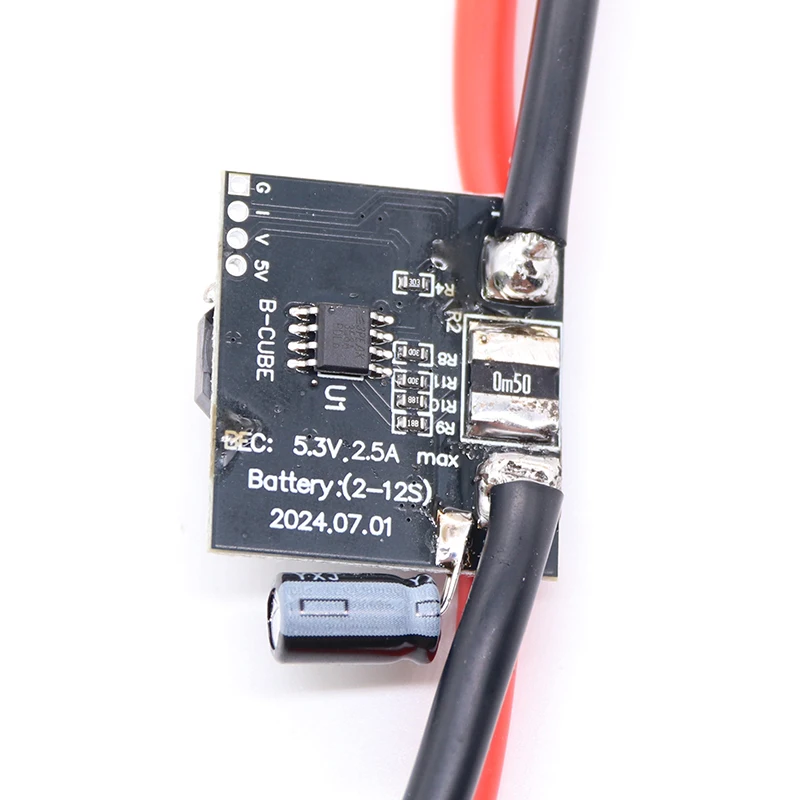

If the package includes the 3DR Power Module, the current hardware of the 3DR Power Module has been fully upgraded. Previously, it only supported a maximum of 6S, but now it supports a maximum of 12S. By default, XT60 plug is sent. If XT90 plug is required, please leave a message.
