Ultralight Carbon Fiber OD-3 Overdrive Transmission 48P Gearbox for AR44 AR45 Capra Axle LCG Comp Rigs 1/10 RC Rock Crawler

Feature:

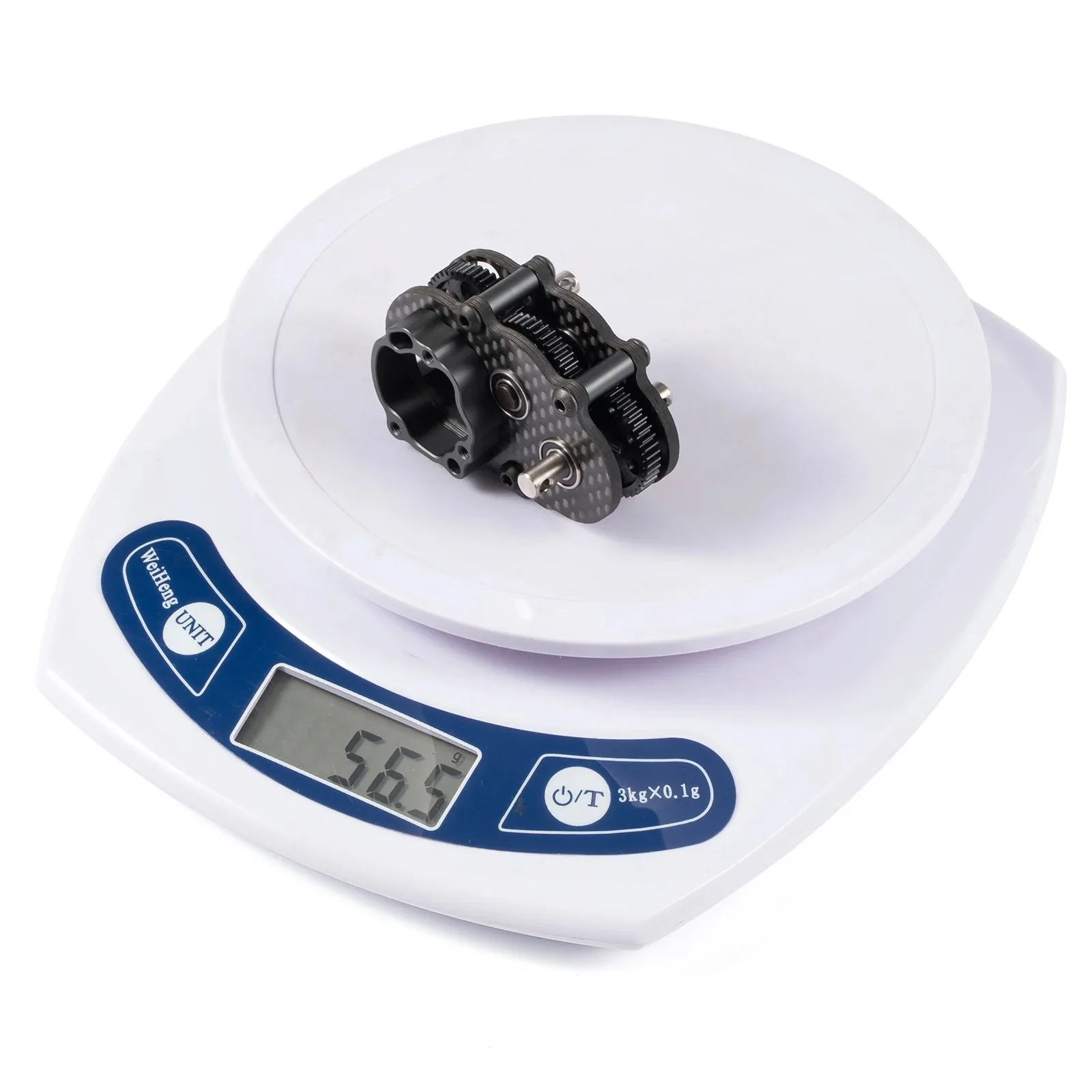

• Extremely compact and lightweight 57g / 2.01oz.

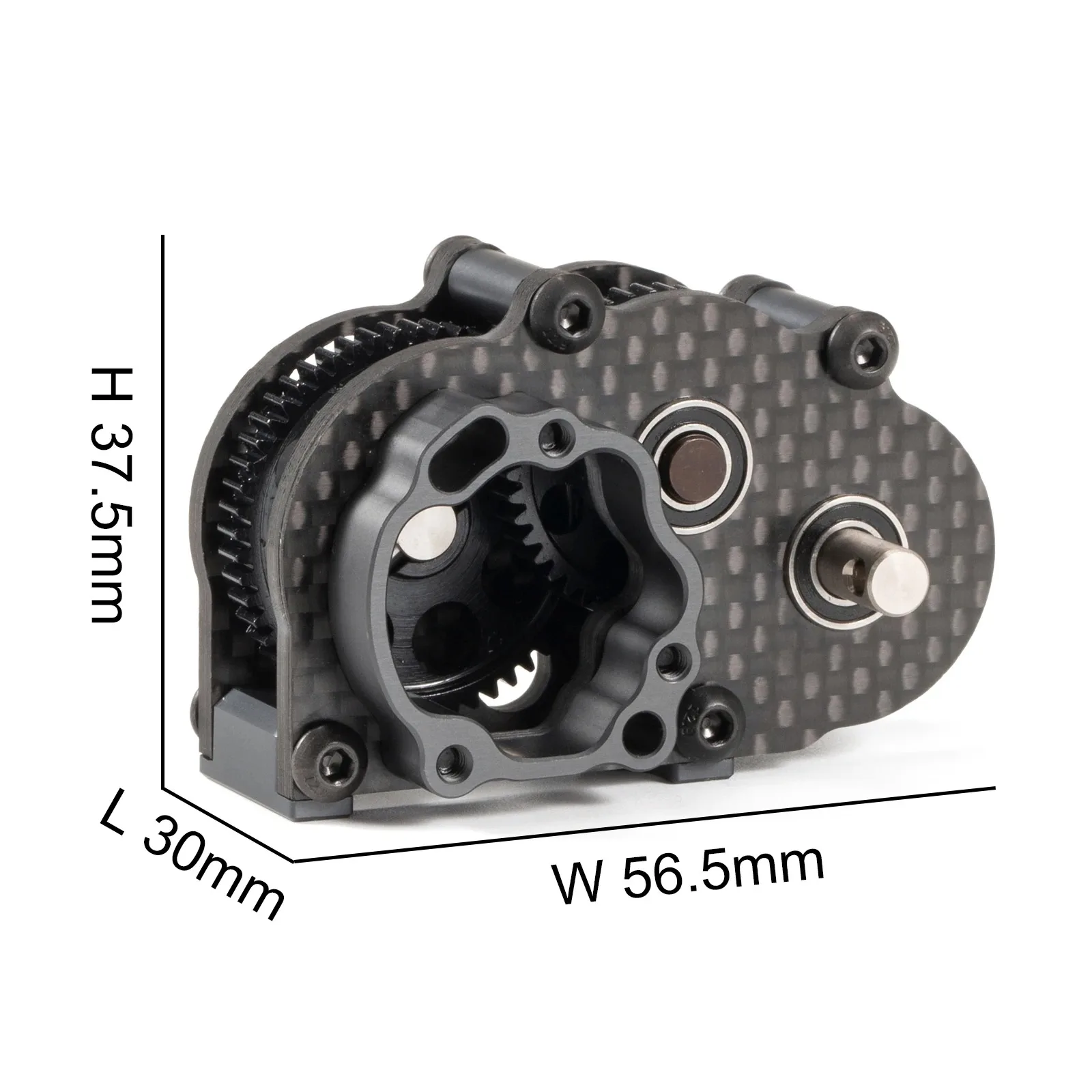

• Dimensions (mm): 30L × 56.5W × 37.5H (Length excludes output shafts)
• Designed for motor forward mounting (Right Motor Version).

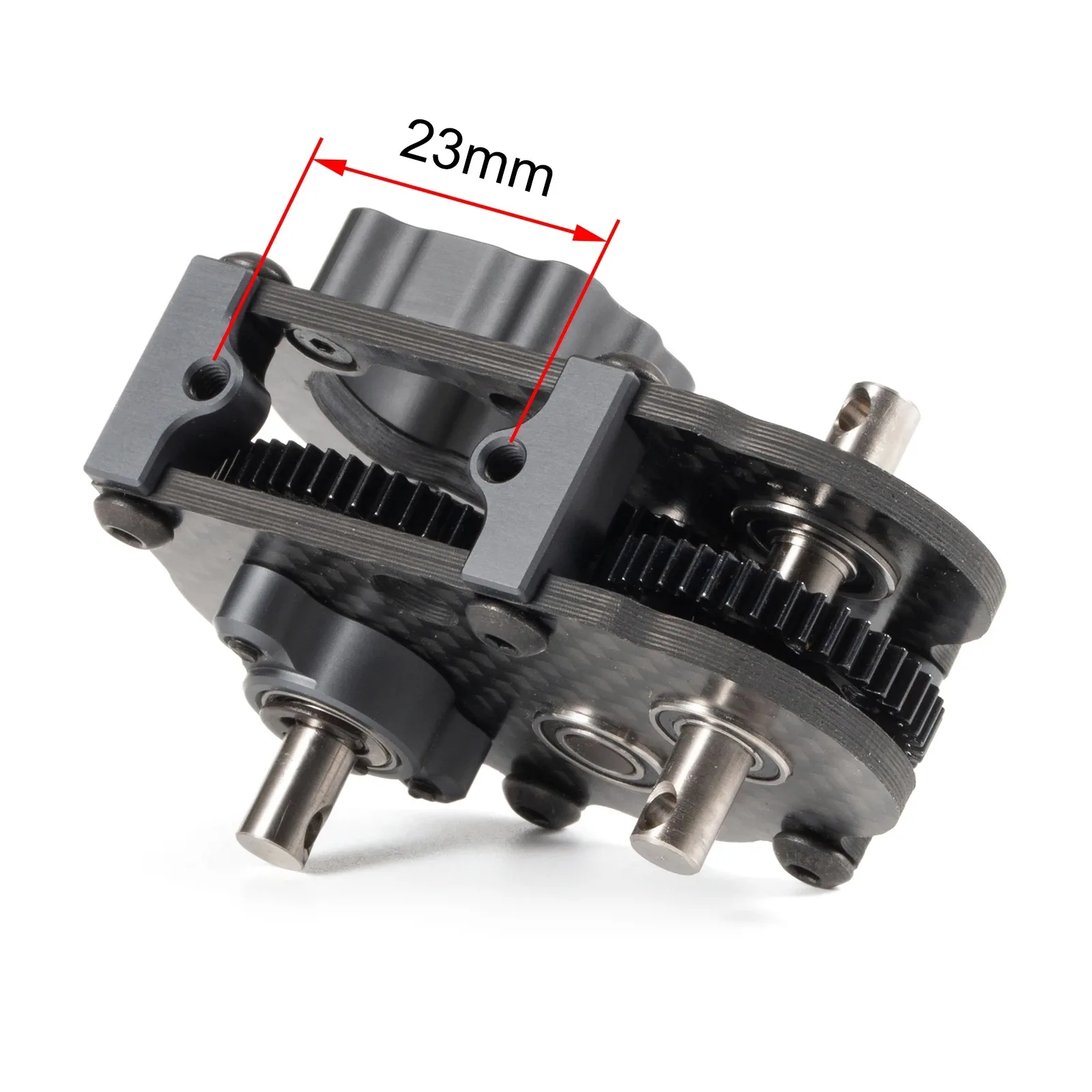

• Mounting is accomplished by two M3 tapped holes, 23mm center to center
(not angled).
• Comes with an aluminum slidable shim based on the Axial 3 gear type transmission mounting holes.
• High strength carbon fiber case.
• CNC aluminum motor mount and transmission brace.
• Heat treated alloy steel gears.
• Grade 5 Titanium output shafts.
• Fits 48 Pitch pinions from 9T to 17T(Not Included)

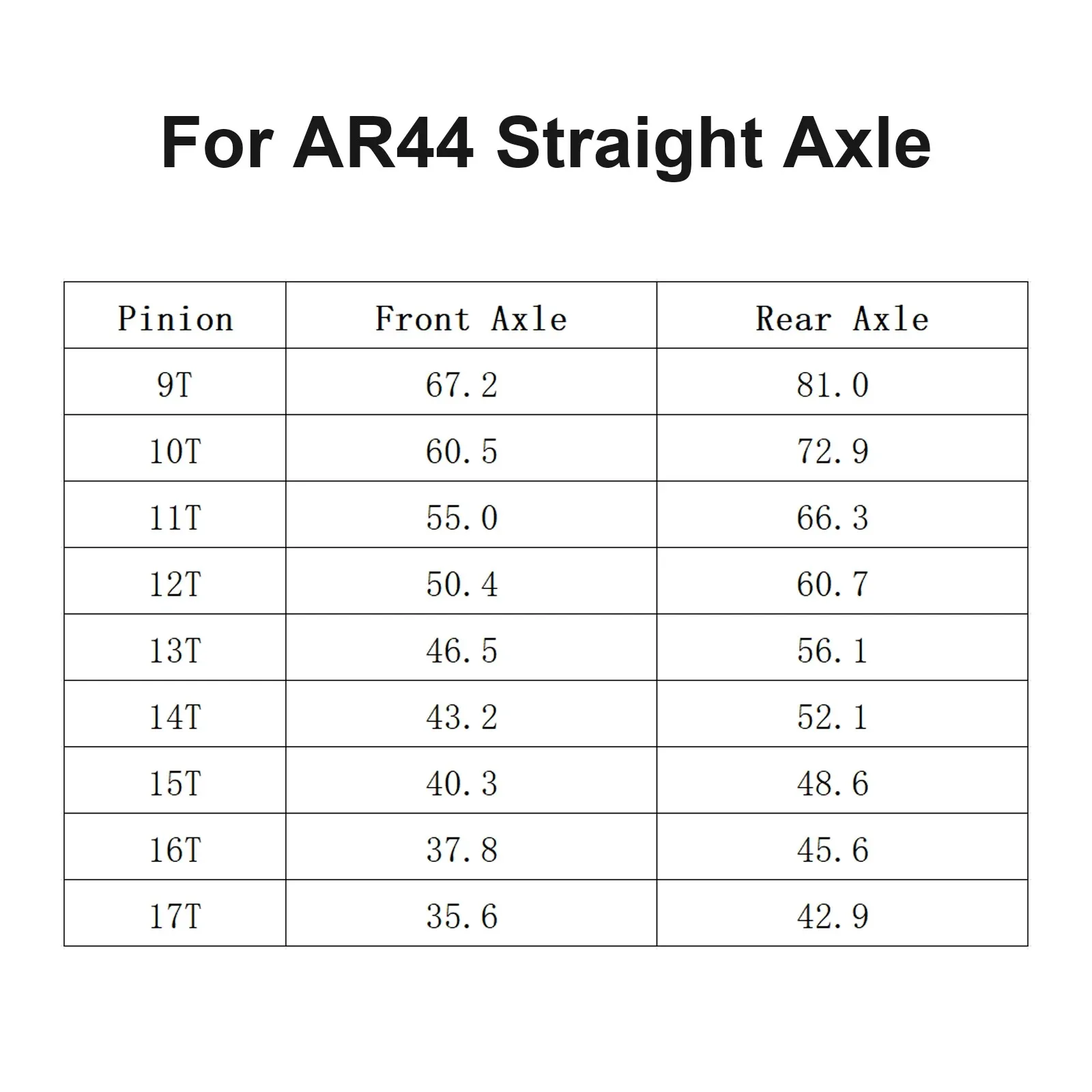

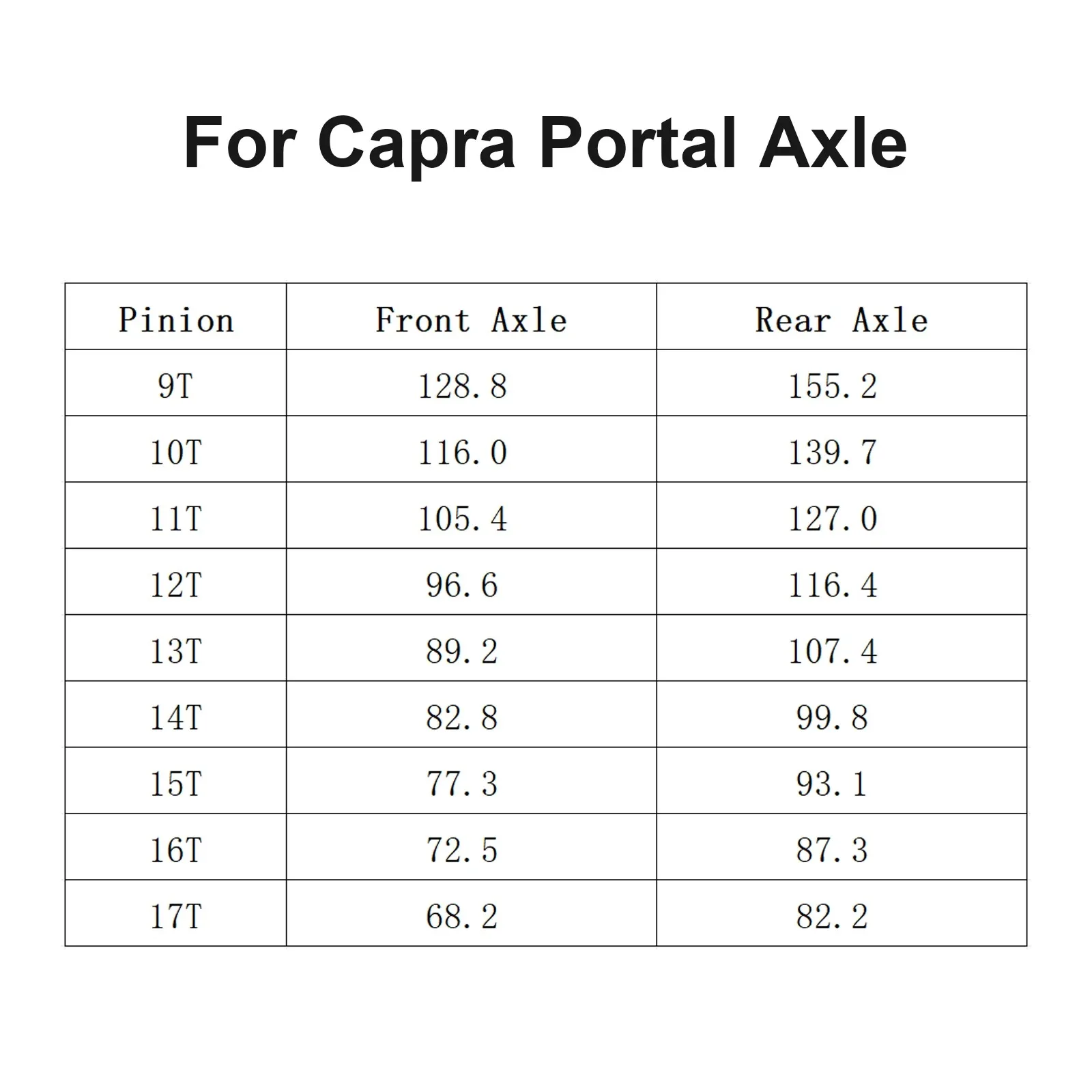

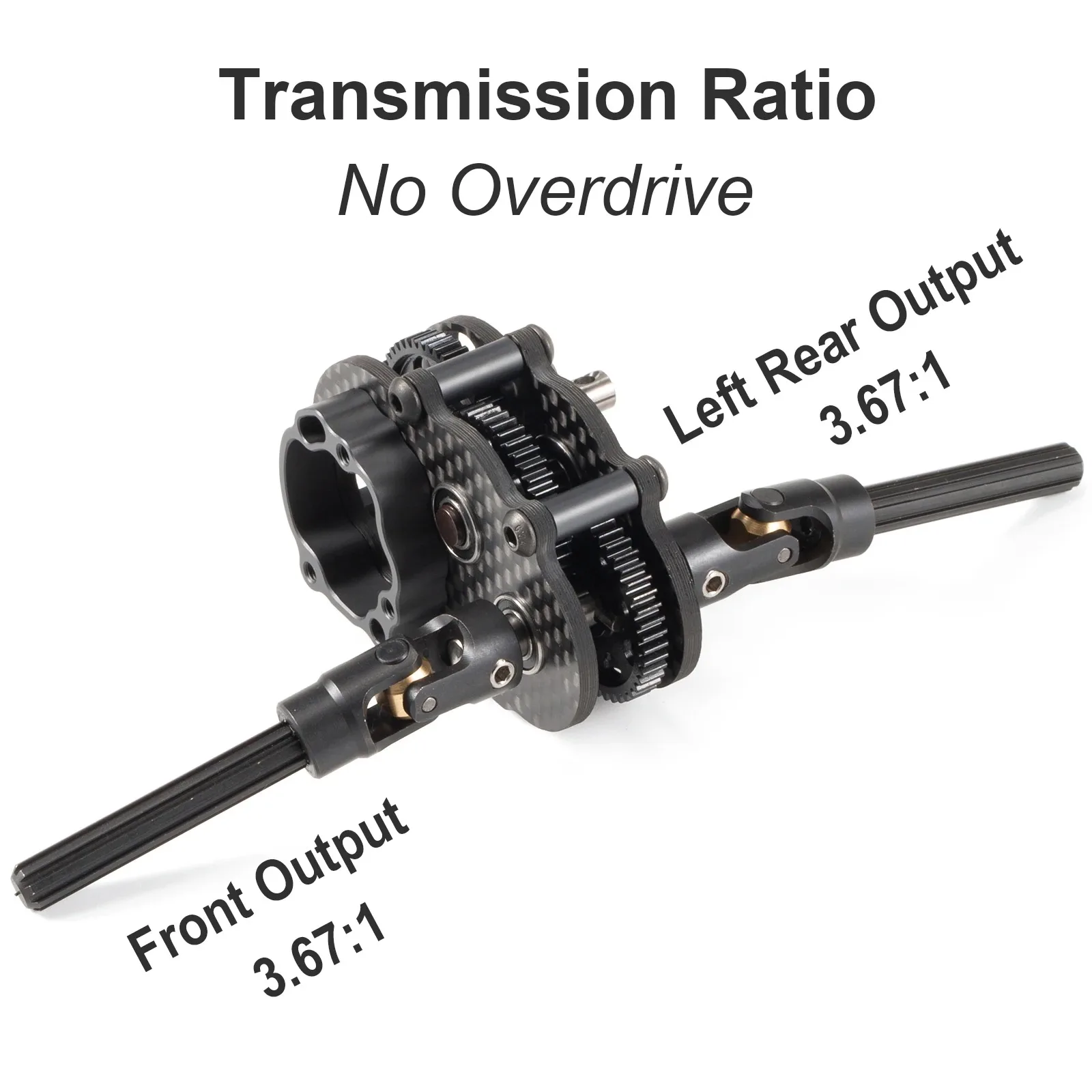

Transmission Ratio:

3.67:1 Front Output
3.67:1 Left Rear Output

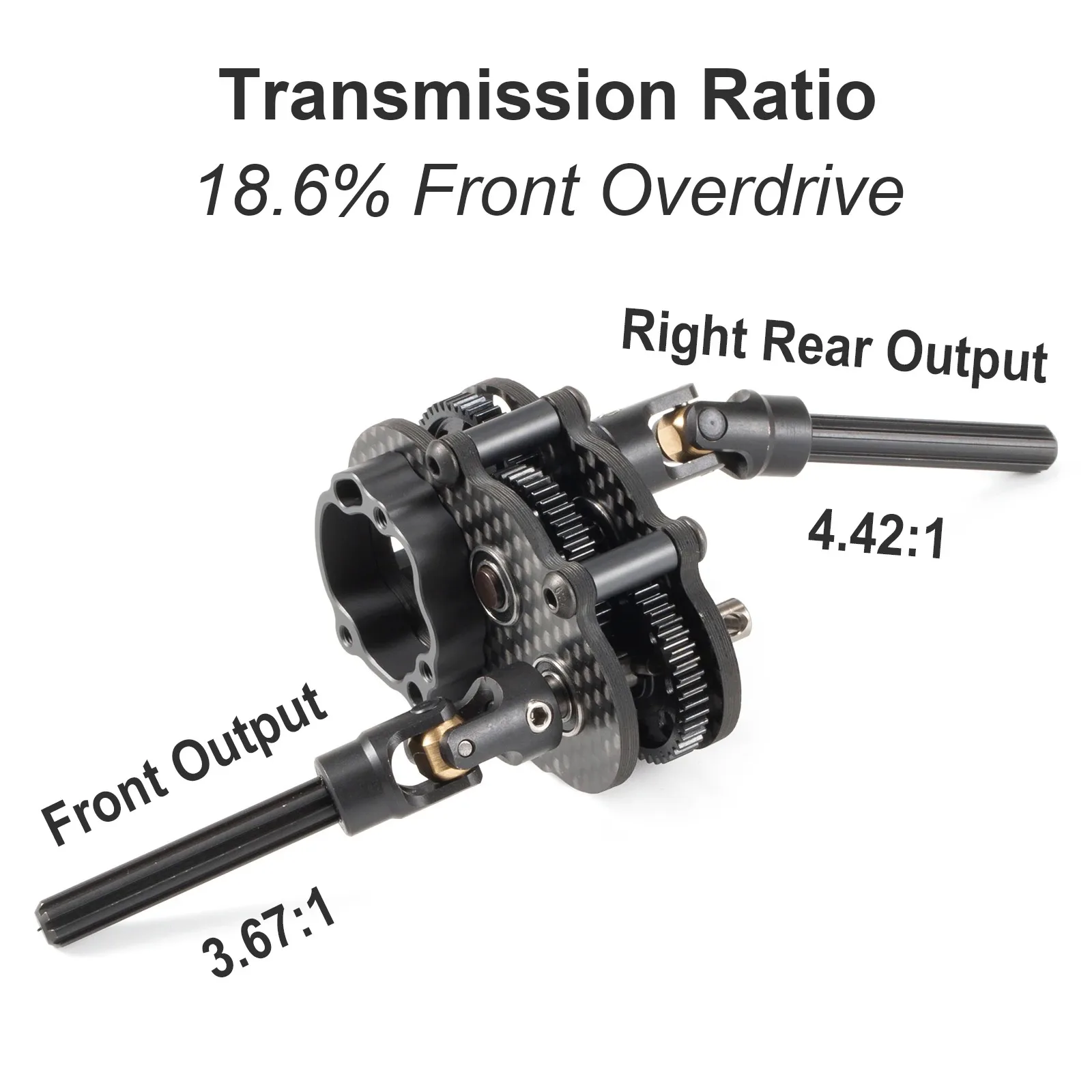

4.42:1 Right Rear Output

18.6% overdrive (both outputs spin same direction, so no need for flipped ring gears).

28% overdrive when using:
Rear underdrive gear set (33T/8T) + Front stock gear set (30T/8T).

38% overdrive when using:
Rear underdrive gear set (33T/8T) + Front overdrive gear set (27T/8T).

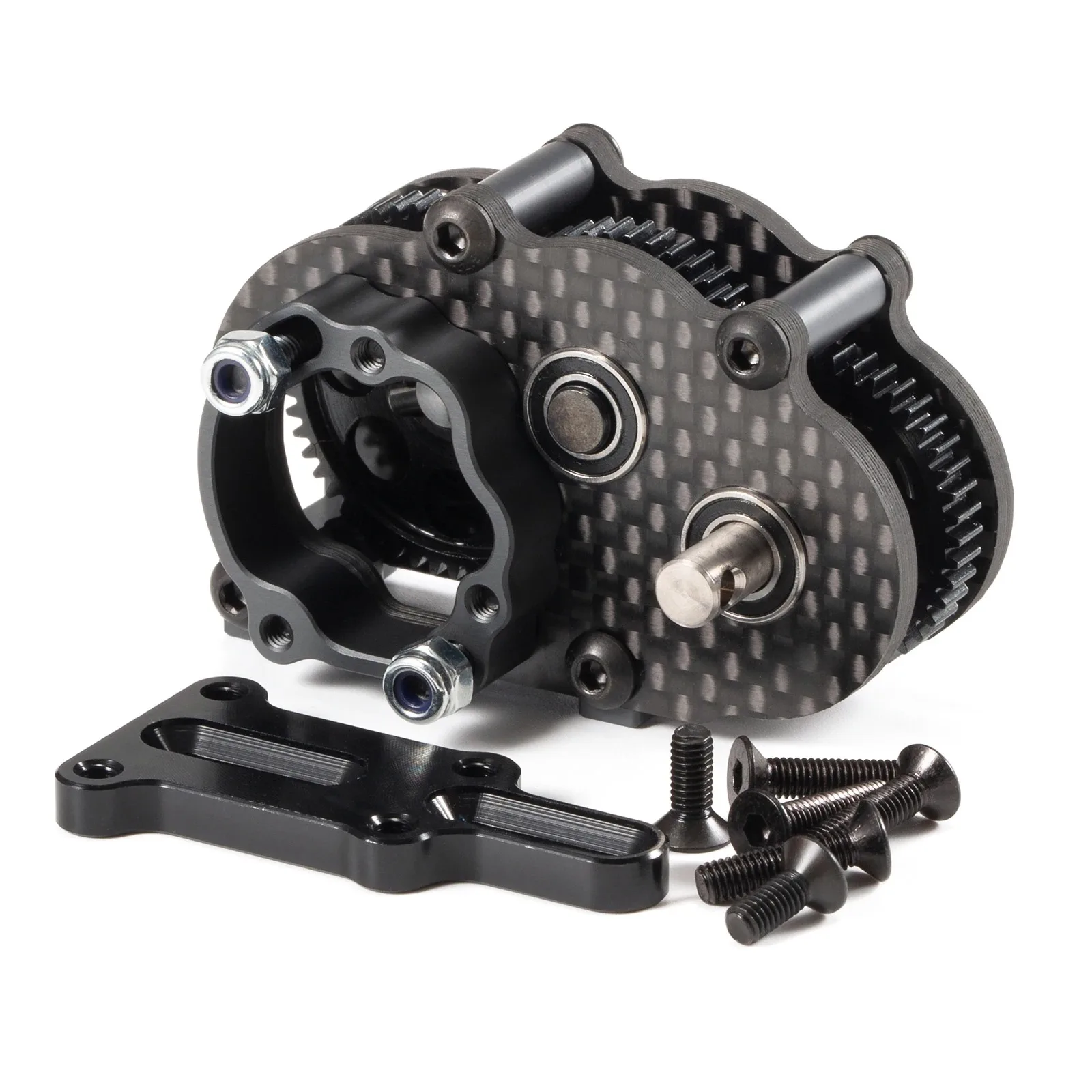

Included:

1x Overdrive Transmission
1x Slidable Shim
1x Hardware Set
