Radiomaster PWM Mini Receiver ER4 ER6 ER6G ER6GV ER8 ER8G ER8GV 4-8CH CRSF ExpressLRS 2.4GHz 100mw for RC Aircraft Boat Car

Radiomaster PWM Mini Receiver ER4 4CH/ER6 ER6G ER6GV 6CH/ER8 ER8G ER8GV 8CH CRSF ExpressLRS 2.4GHz 100mw Support Voltage Telemetry WiFi Update RC Receiver for Aircraft Boat Car

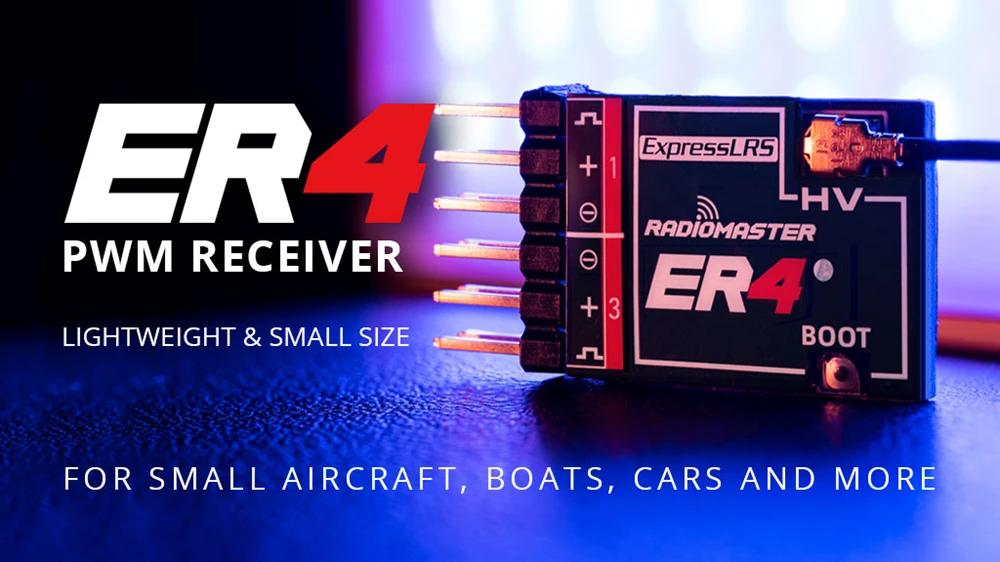

ER4 2.4GHz ELRS PWM Receiver

Features:

Based on the Revolutionary ExpressLRS System

High performance, high reliability, flexible configuration, fast response speed and ultra-long range

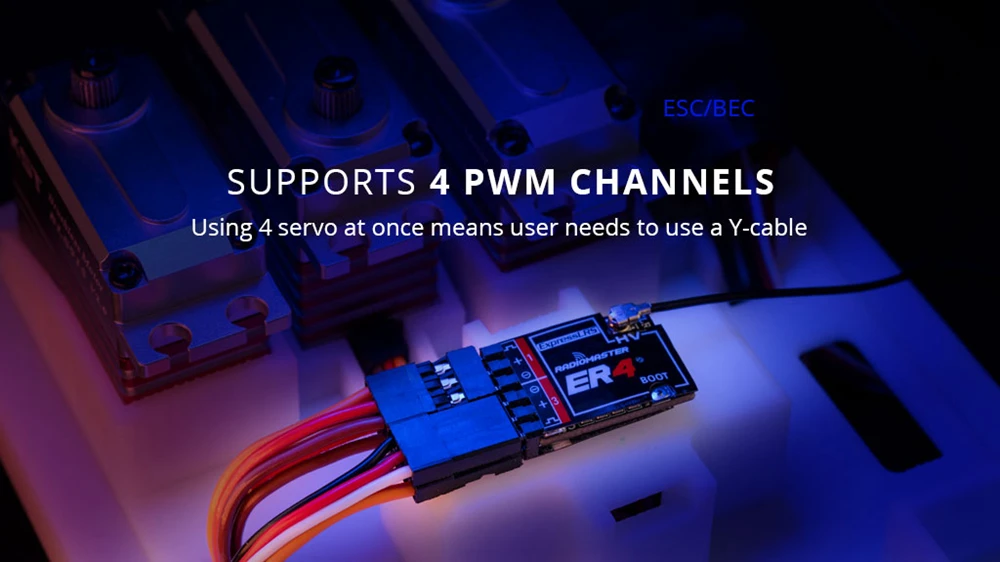

Support 4 PWM Channel

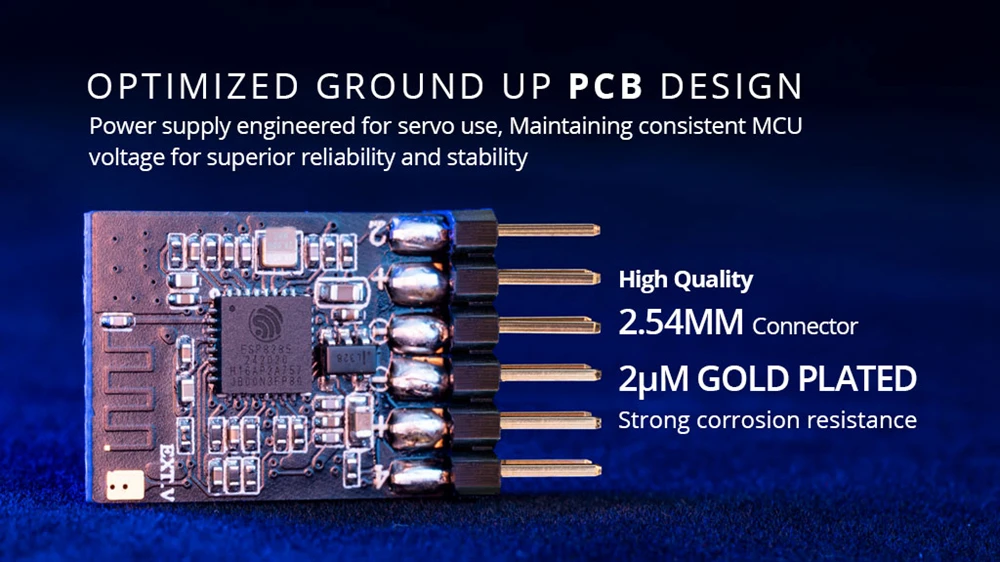

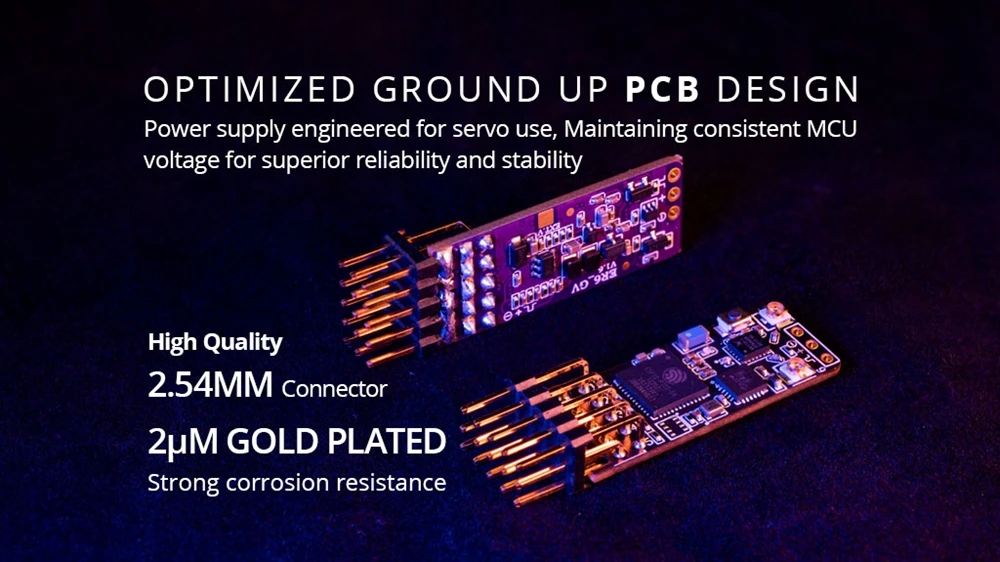

Optimized ground up PCB design

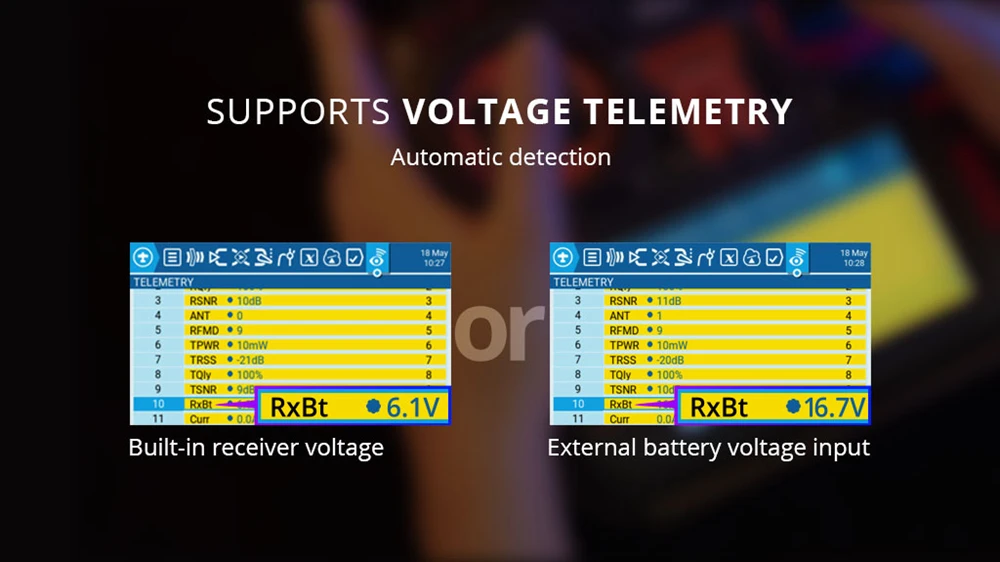

Automatically voltage telemetry of external battery voltage or built-in receiver voltage

Supports Wi-Fi updates and WEBUI configuration

High quality 2.54 mm connector

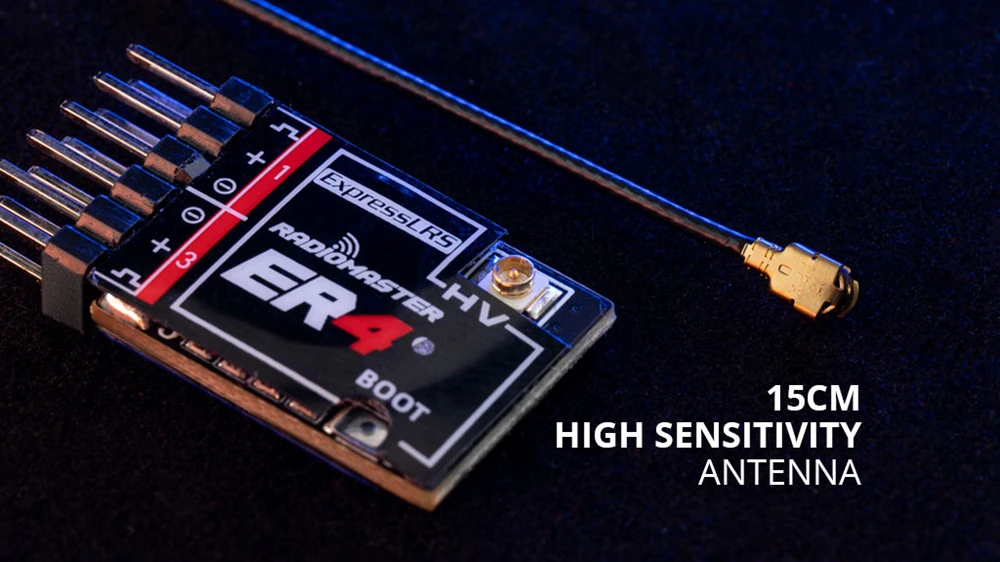

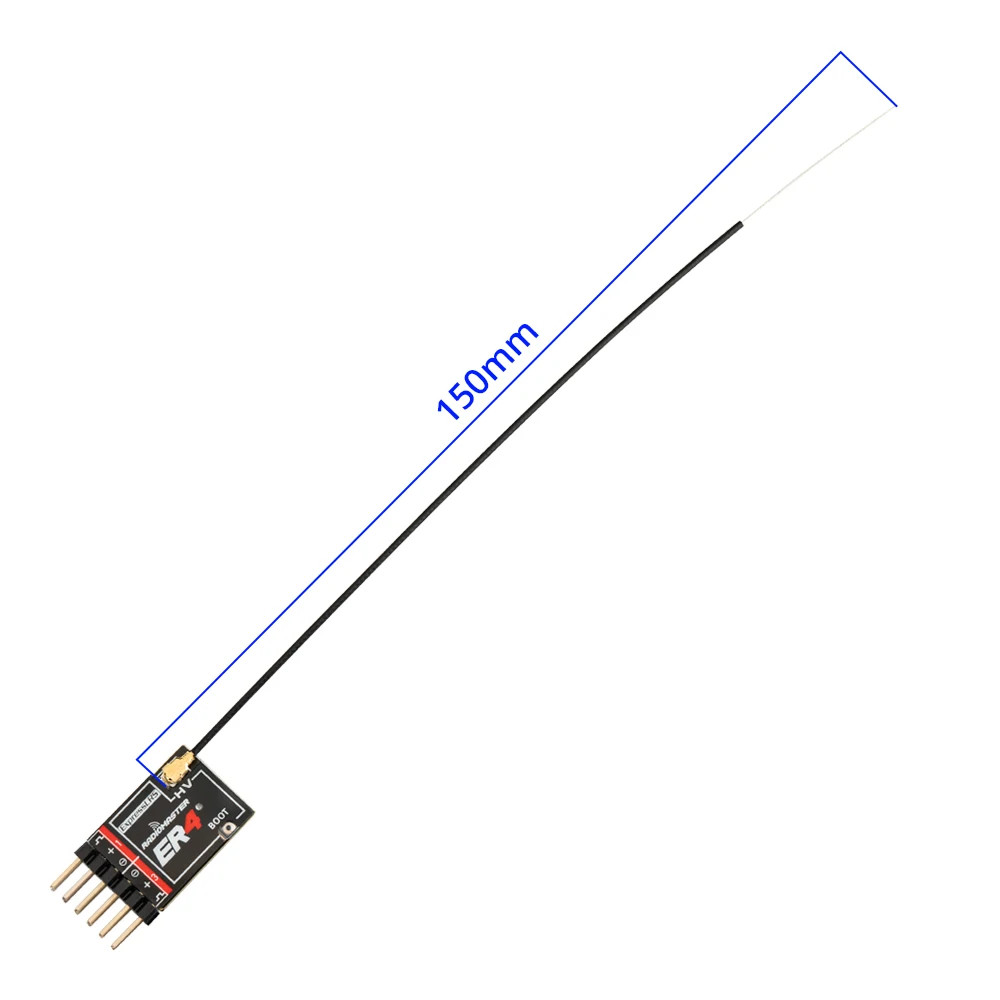

Standard 15 cm High Sensitivity Antenna

For small aircraft, boats and cars and more

Specifications:

Power supply: DC 4.5 - 8.4V

Antenna type: 15cm high sensitivity antenna

Wireless protocol: ExpressLRS 3.2 pre-installed

Output channel: 4CH PWM

Telemetry power: 10mw

Battery voltage detection range: DC 4.0- 35V

Weight: 3.0 grams

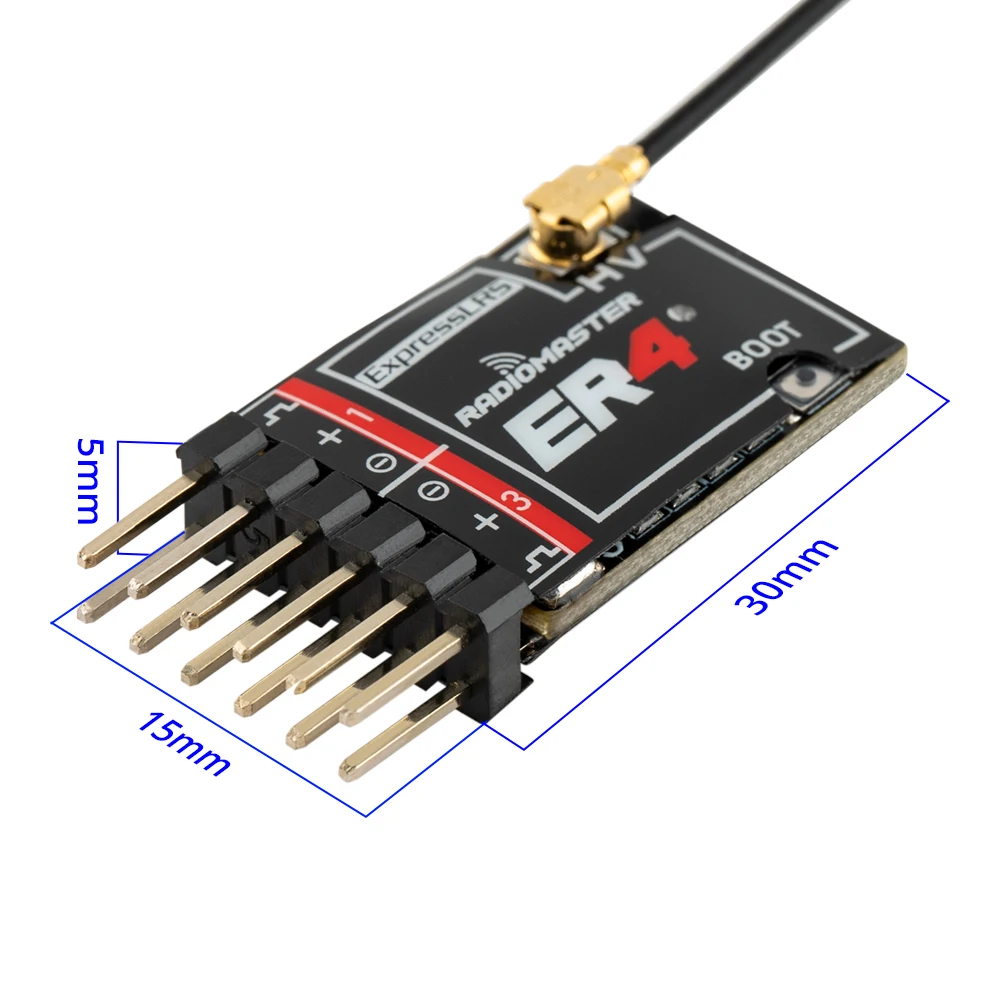

Dimensions: 30*15*5mm

Firmware: Device Category: Radiomaster 2.4Ghz / Device: RadioMaster ER4 2400 PWM RX

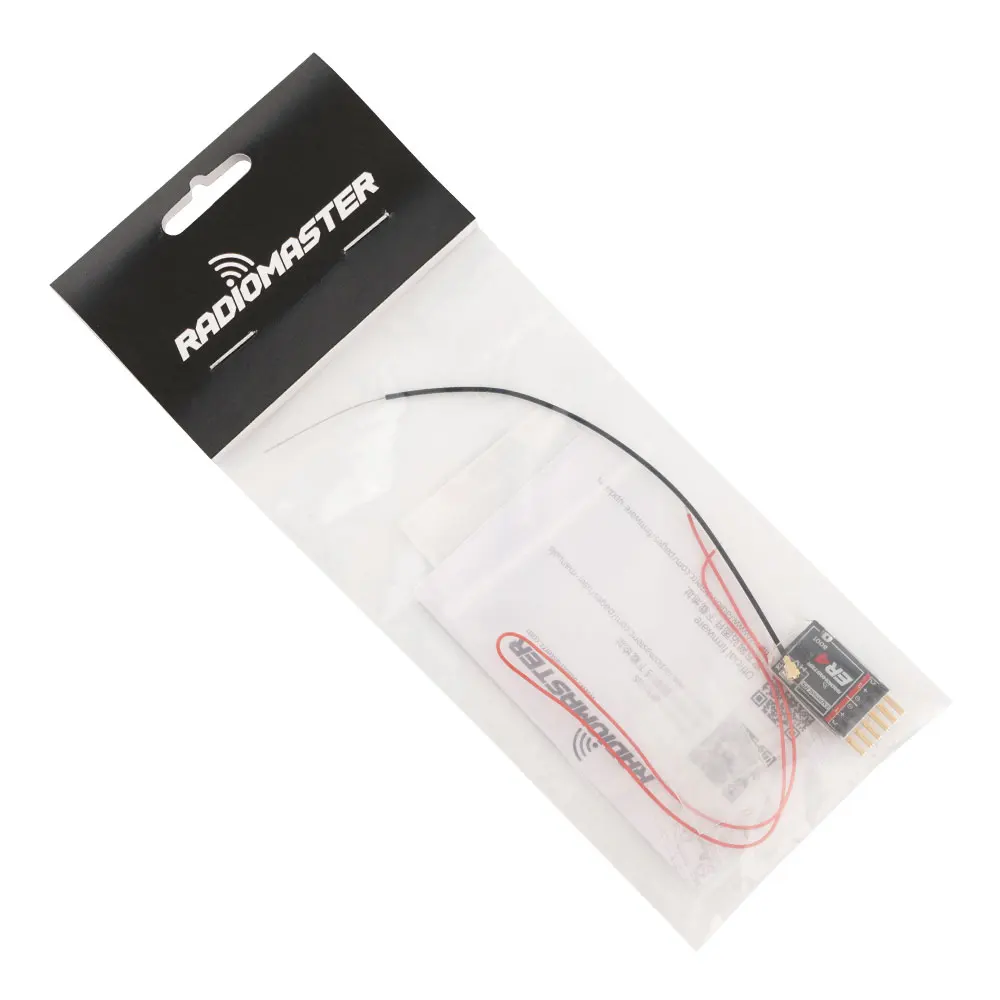

Package Includes:

1 * ER4 2.4GHz ELRS PWM Receiver

2 * Heat-shrink tube

1 * Voltage telemetry wire (Type-A)

1 * User Card

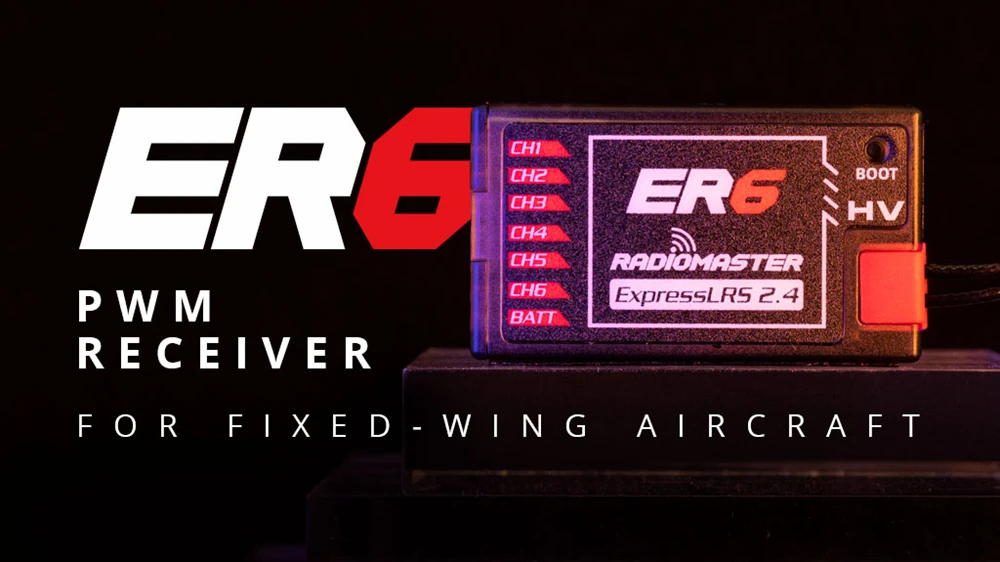

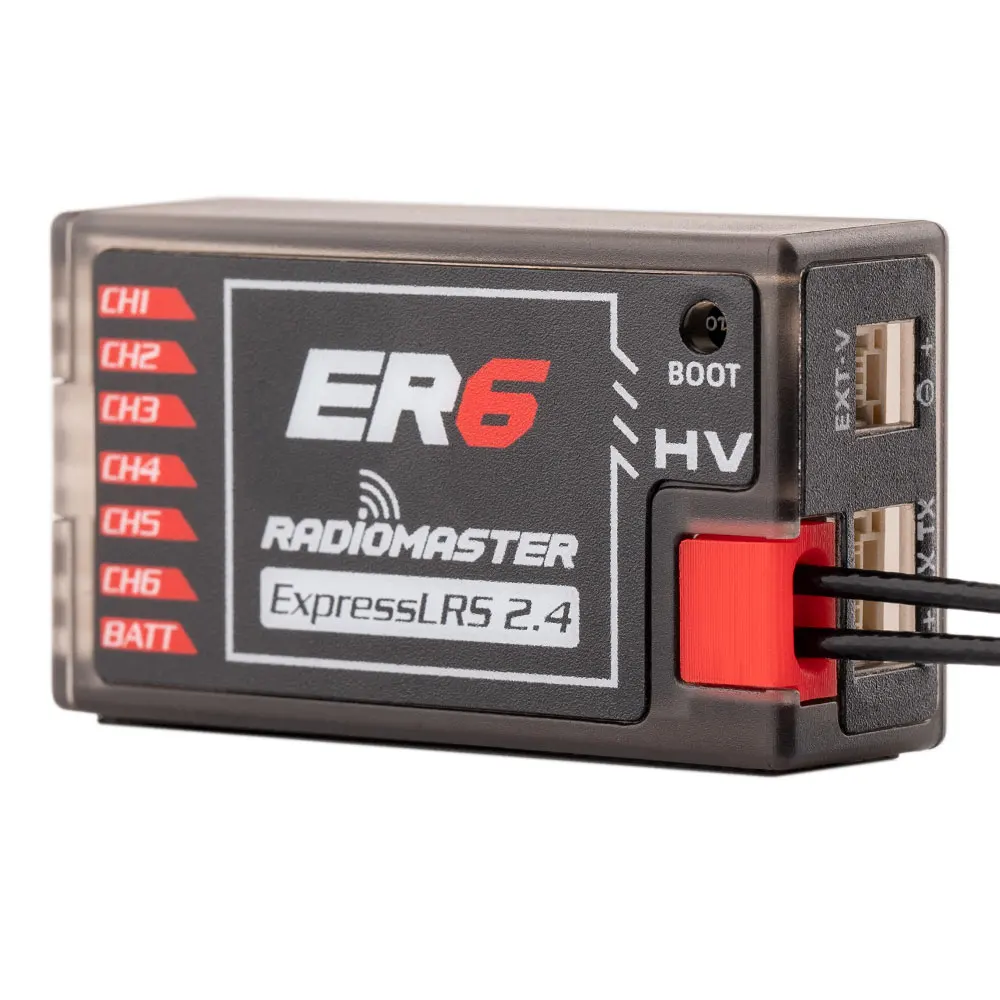

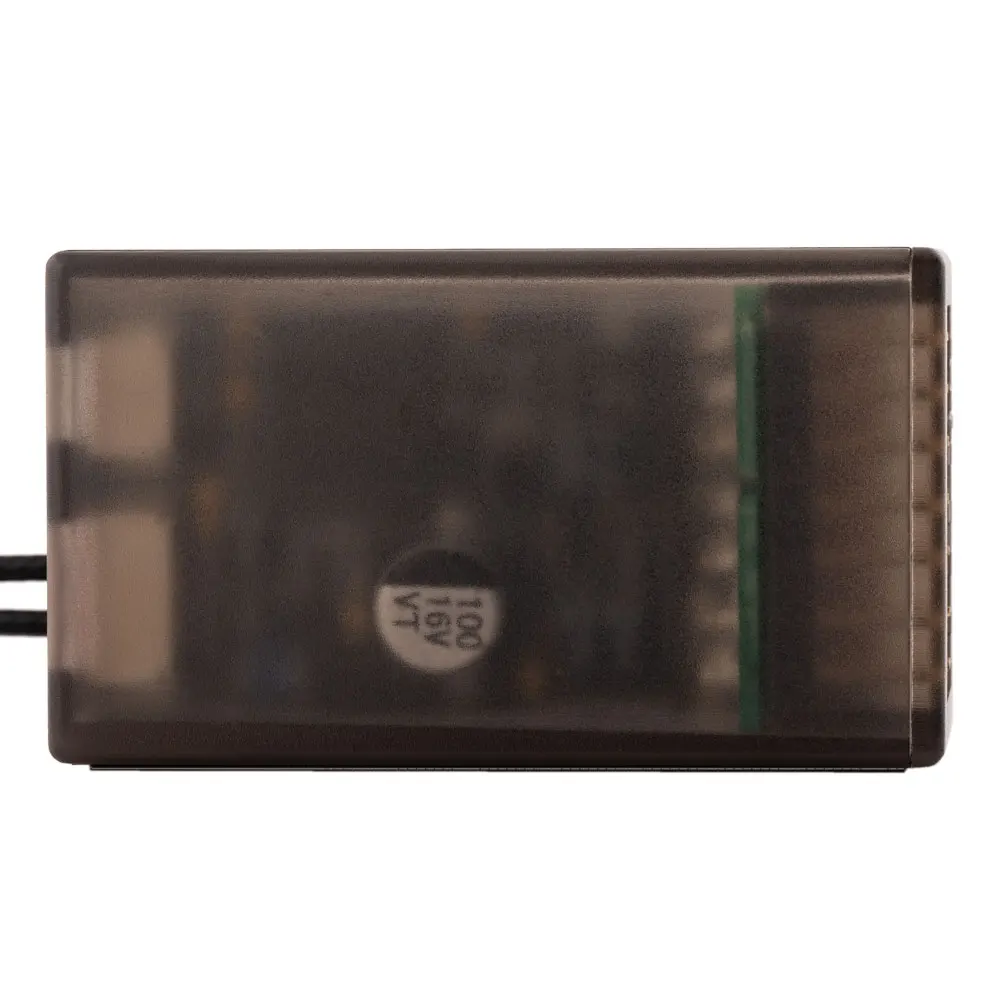

ER6 2.4GHz ELRS PWM Receiver

Features:

Based on the Revolutionary ExpressLRS System

High performance, high reliability, flexible configuration, fast response speed and ultra-long range

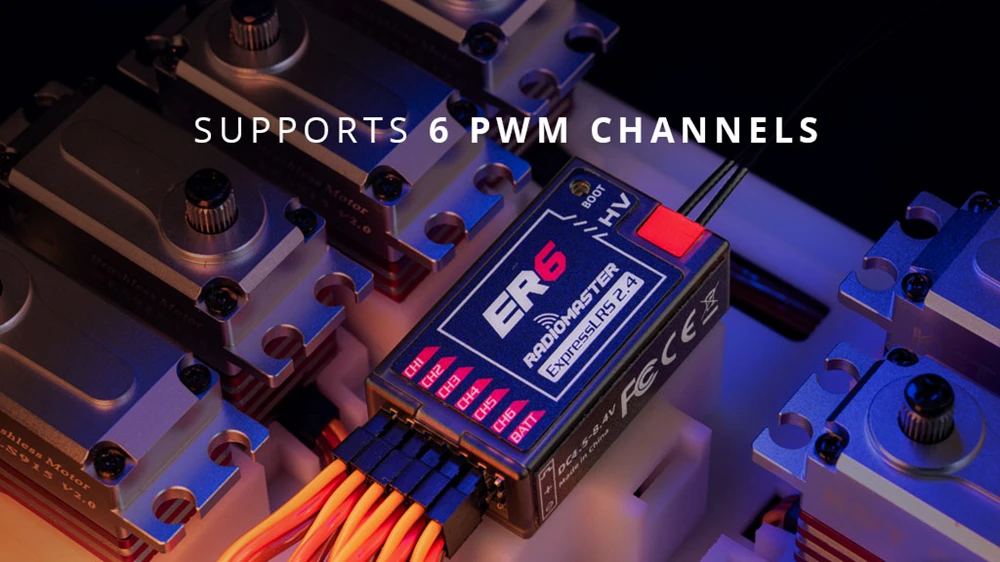

Support 6 PWM Channels

Optimized ground up PCB design

Automatically voltage telemetry of external battery voltage or built-in receiver voltage

Supports Wi-Fi updates and WEBUI configuration

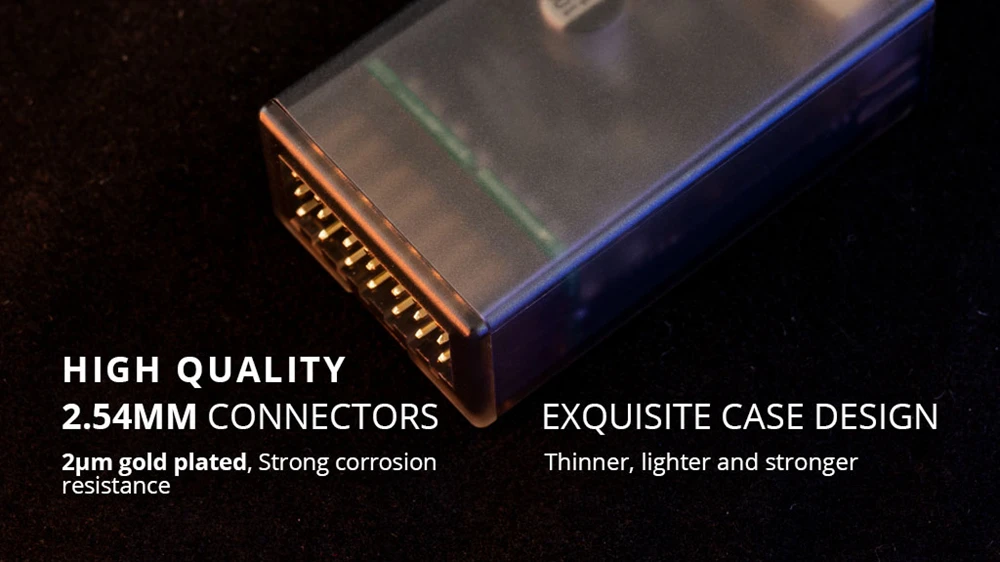

High quality 2.54 mm connector

Standard 20 cm High Sensitivity Antenna

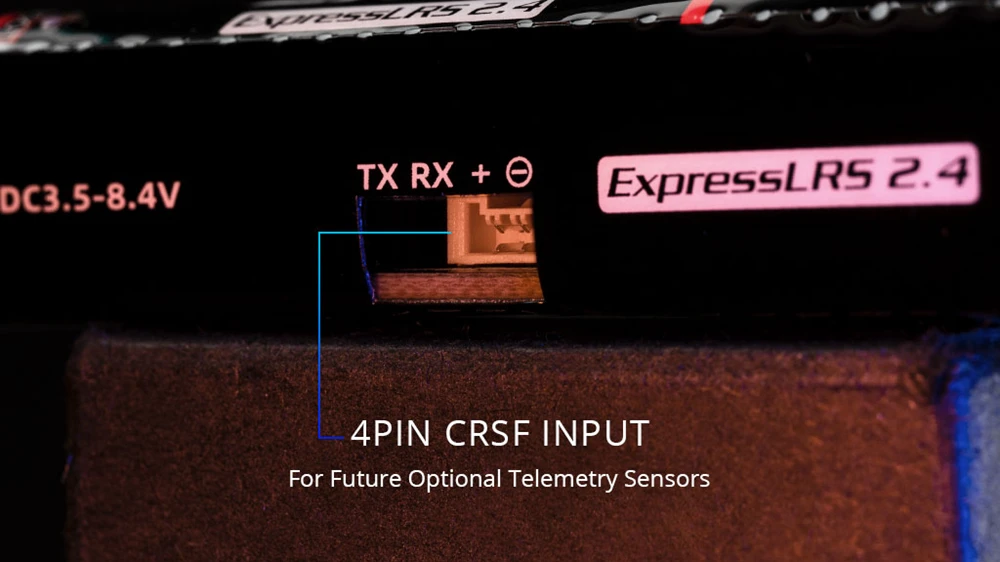

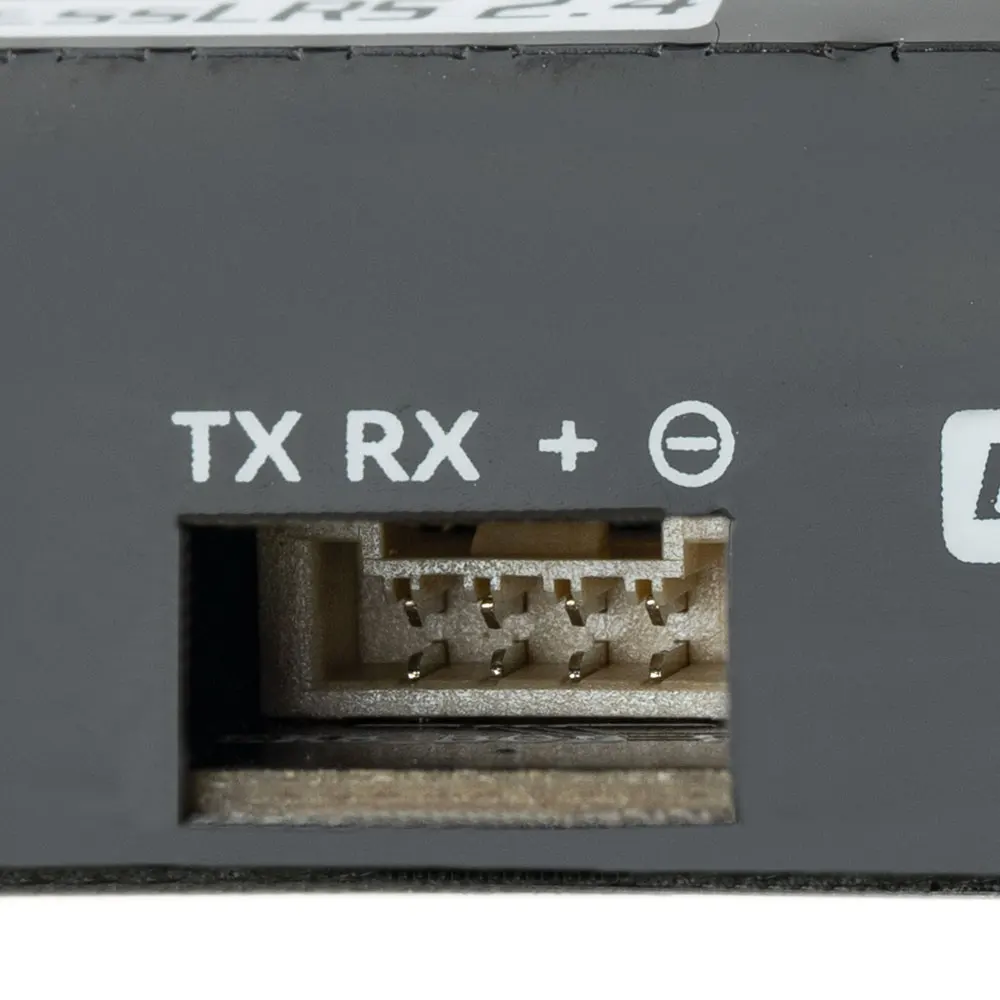

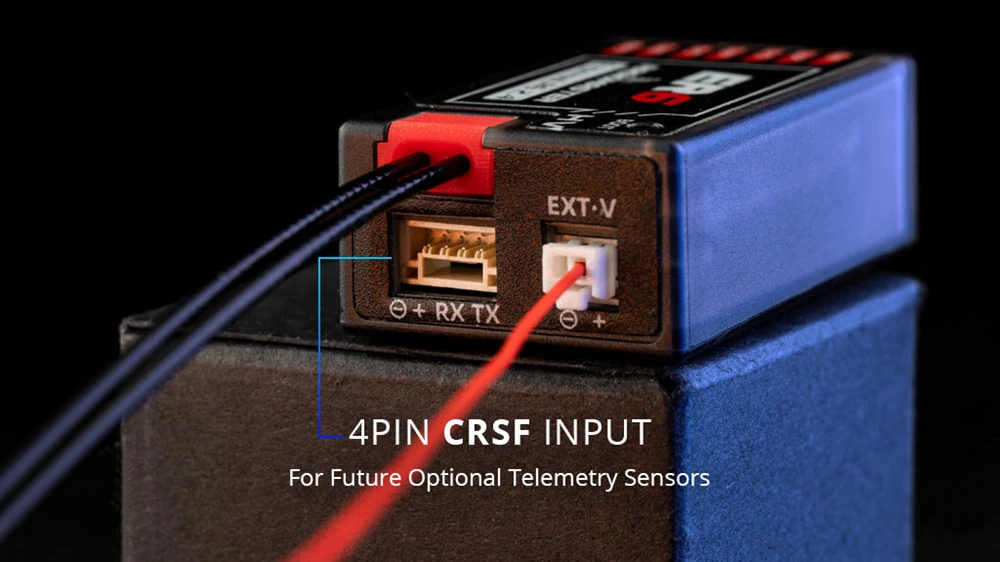

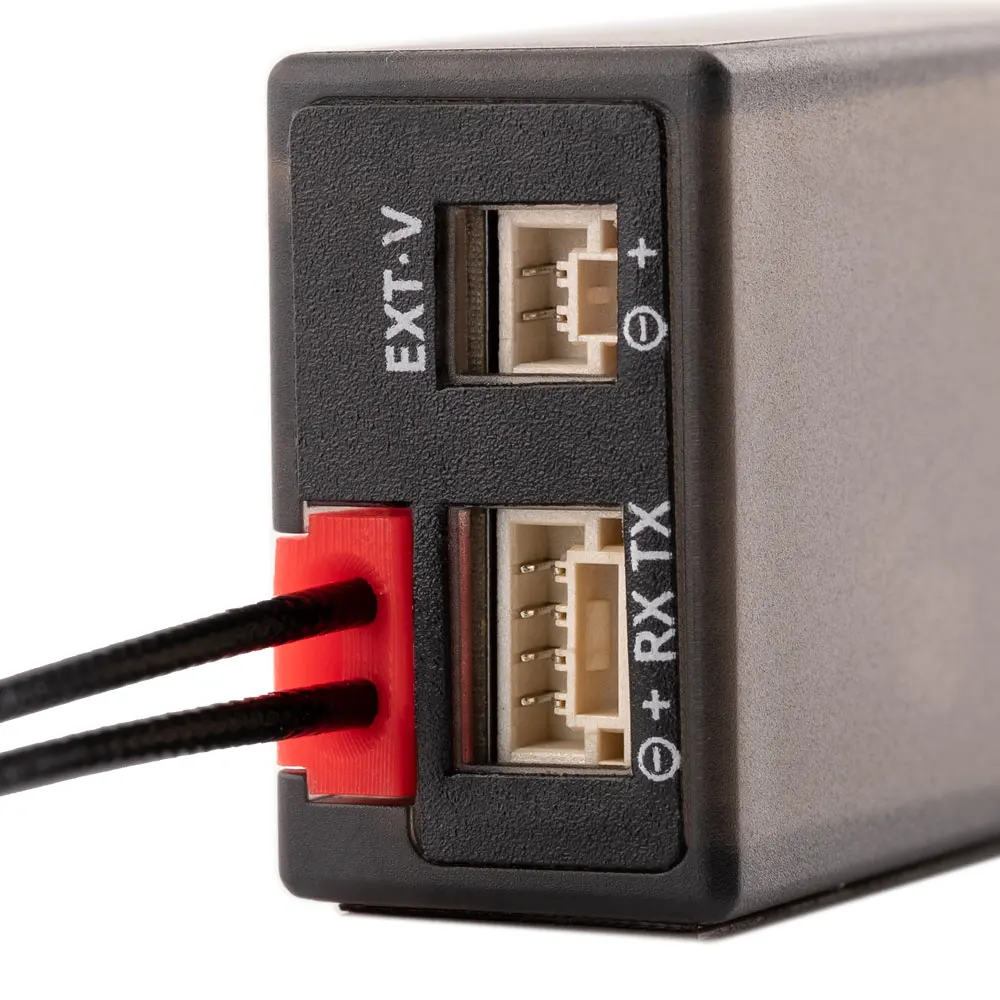

Reserve 4pin CRSF input port

The shell adopts one-piece molding process with high structural strength

For fixed-wing aircraft and more

Specifications:

Power supply: DC 4.5 - 8.4V

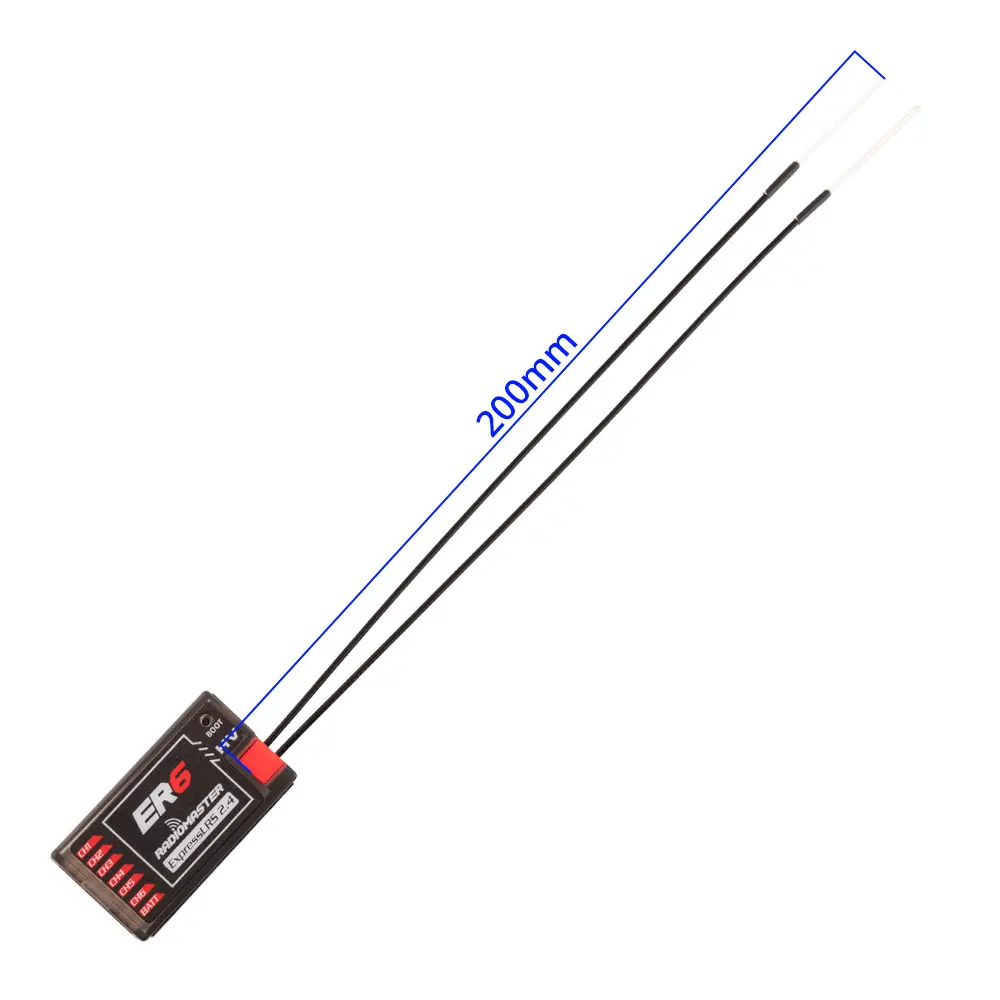

Antenna type: 20cm high sensitivity dual antenna

Wireless protocol: ExpressLRS 3.2 pre-installed

Output channel: 6CH PWM

Telemetry power: maximum 100mw (LUA Adjustable)

Telemetry Battery voltage detection range: DC 4.0 - 35V

Bus interface: CRSF

Weight: 14.5 grams

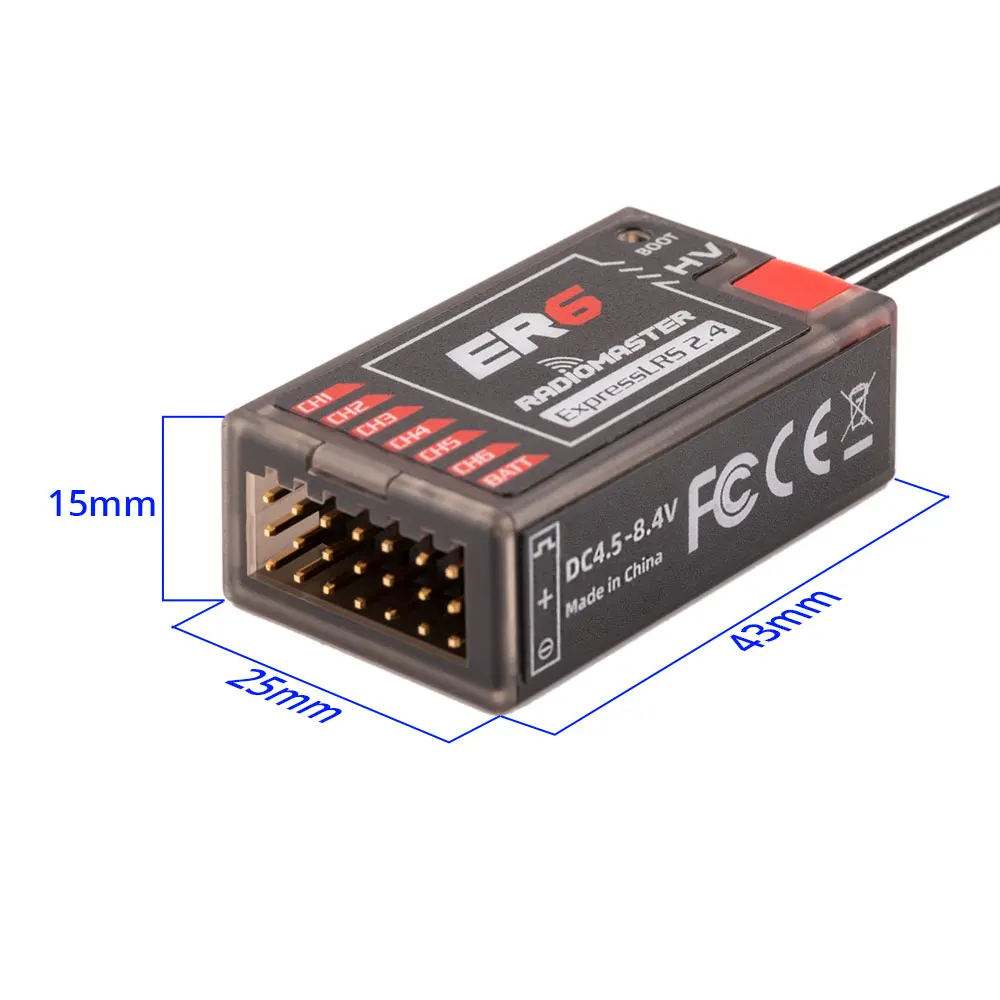

Dimensions: 43*25*15mm

Firmware: Device Category: Radiomaster 2.4Ghz / Device: RadioMaster ER6 2400 PWM RX

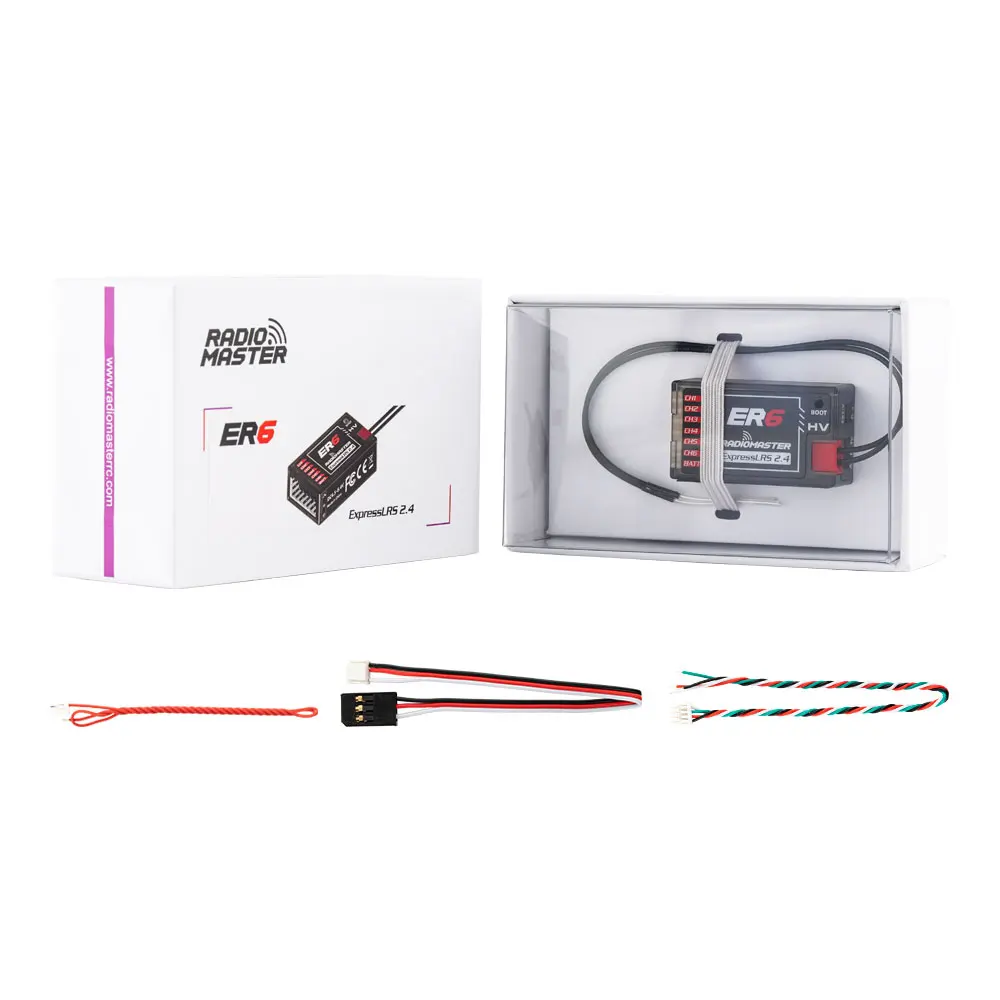

Package Includes:

1 * ER6 2.4GHz ELRS PWM Receiver

1 * Voltage telemetry wire (Type-B)

1 * CRSF wire

1 * ELRS- RX- SBUS wire

1 * User Card

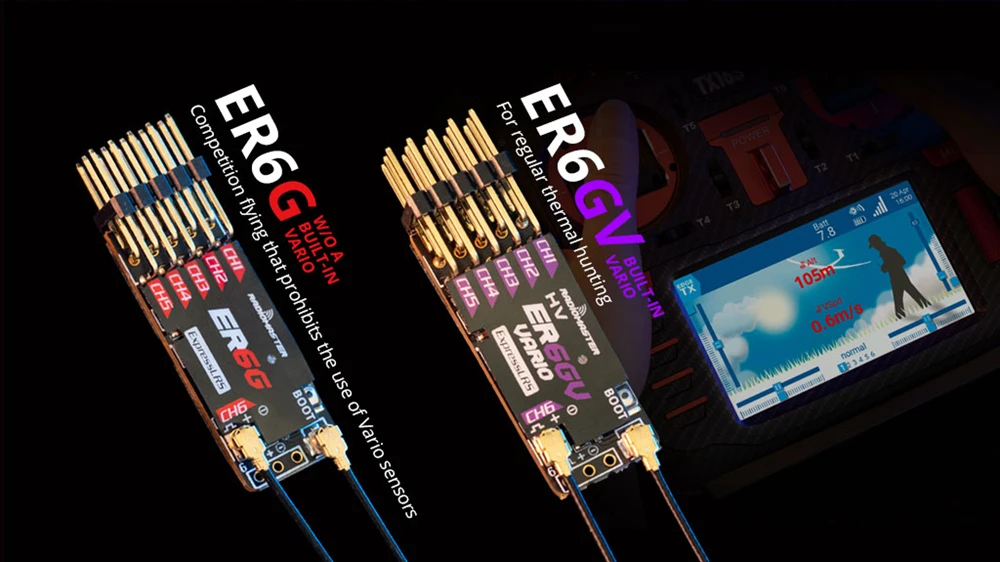

ER6G&ER6GV 2.4GHz ELRS PWM Receiver

Features:

Based on the Revolutionary ExpressLRS System

High performance, high reliability, flexible configuration, fast response speed and ultra-long range

Support 6 PWM Channels

Optimized ground up PCB design

Automatically voltage telemetry of external battery voltage or built-in receiver voltage

ER6GV Receiver is built-in high-precision air pressure sensor (Vario)

Supports Wi-Fi updates and WEBUI configuration

High quality 2.54 mm connector

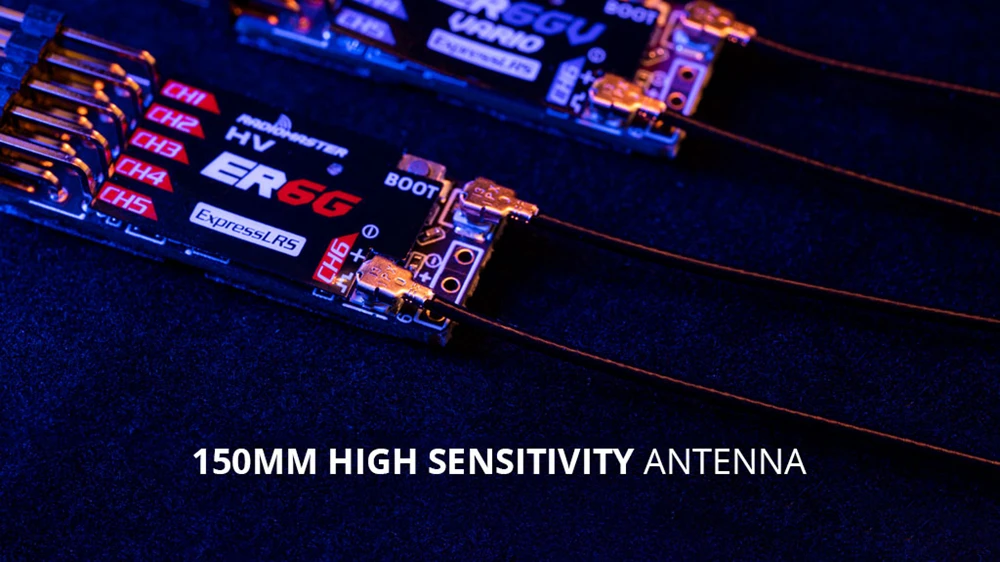

Standard 15 cm High Sensitivity Antenna

For fixed-wing aircraft and gliders

Specification (ER6G)

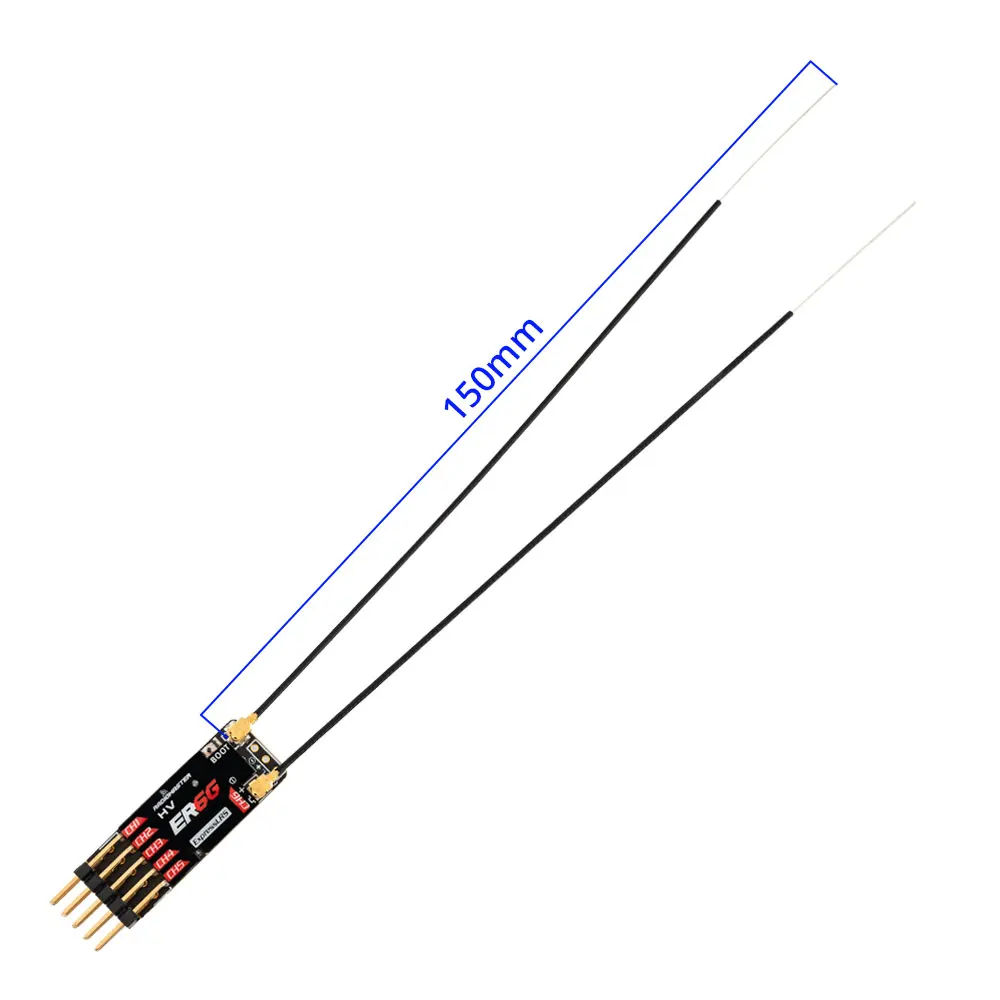

Item: ER6G 2.4GHz ELRS PWM Receiver

Power supply: DC 3.5 - 8.4V

Antenna type: 15cm high sensitivity antenna

Wireless protocol: ExpressLRS 3.2 pre-installed

Output channel: 6CH PWM

Return power: maximum 50mw (LUA Adjustable)

Battery voltage detection range: DC 4.0 - 35V

Weight: 5.0 grams

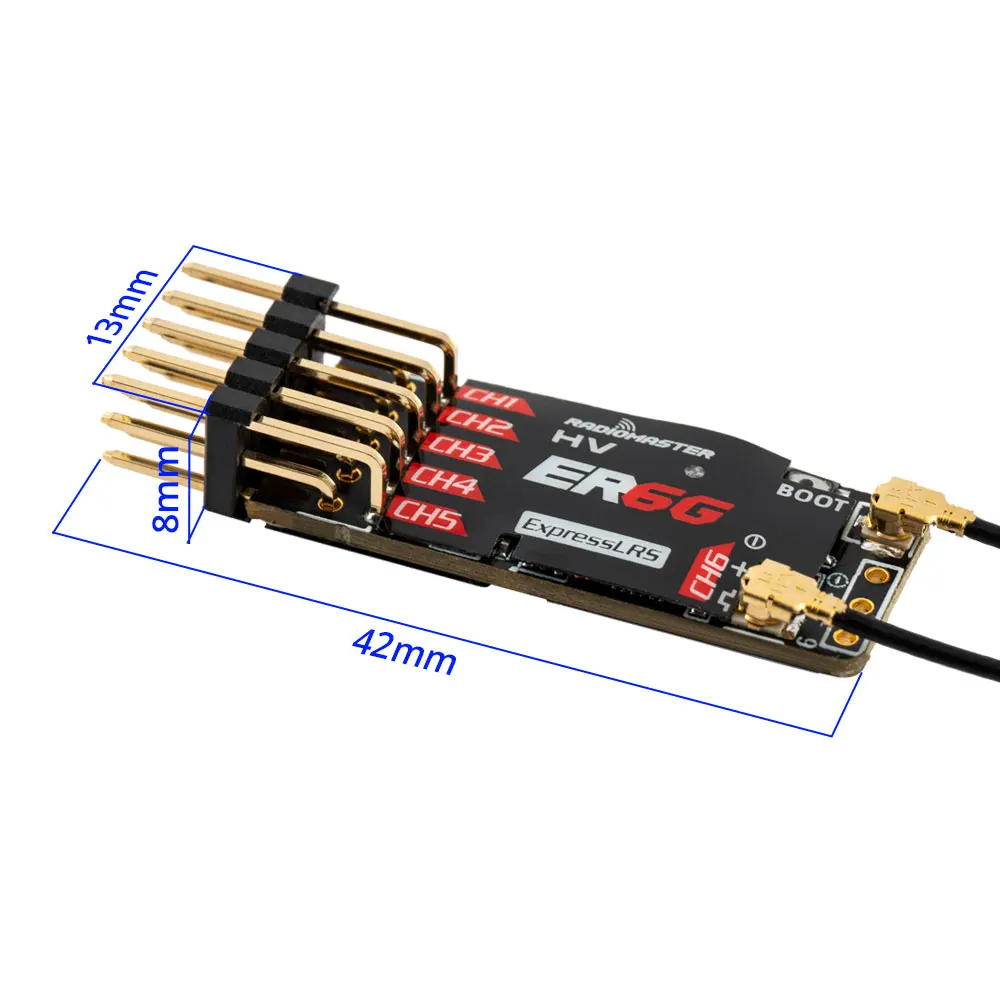

Dimensions: 42*13*8mm

Firmware: Device Category: Radiomaster 2.4Ghz / Device: Radiomaster ER6G

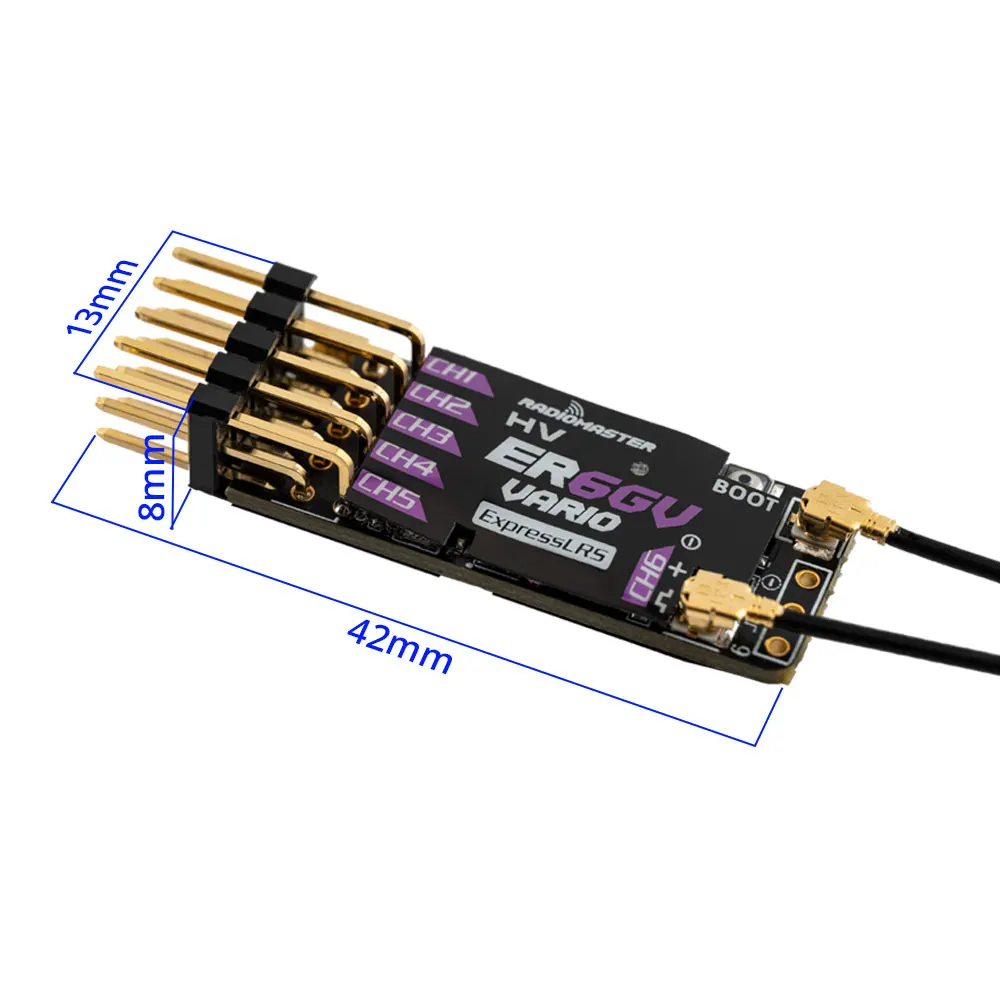

Specification (ER6GV)

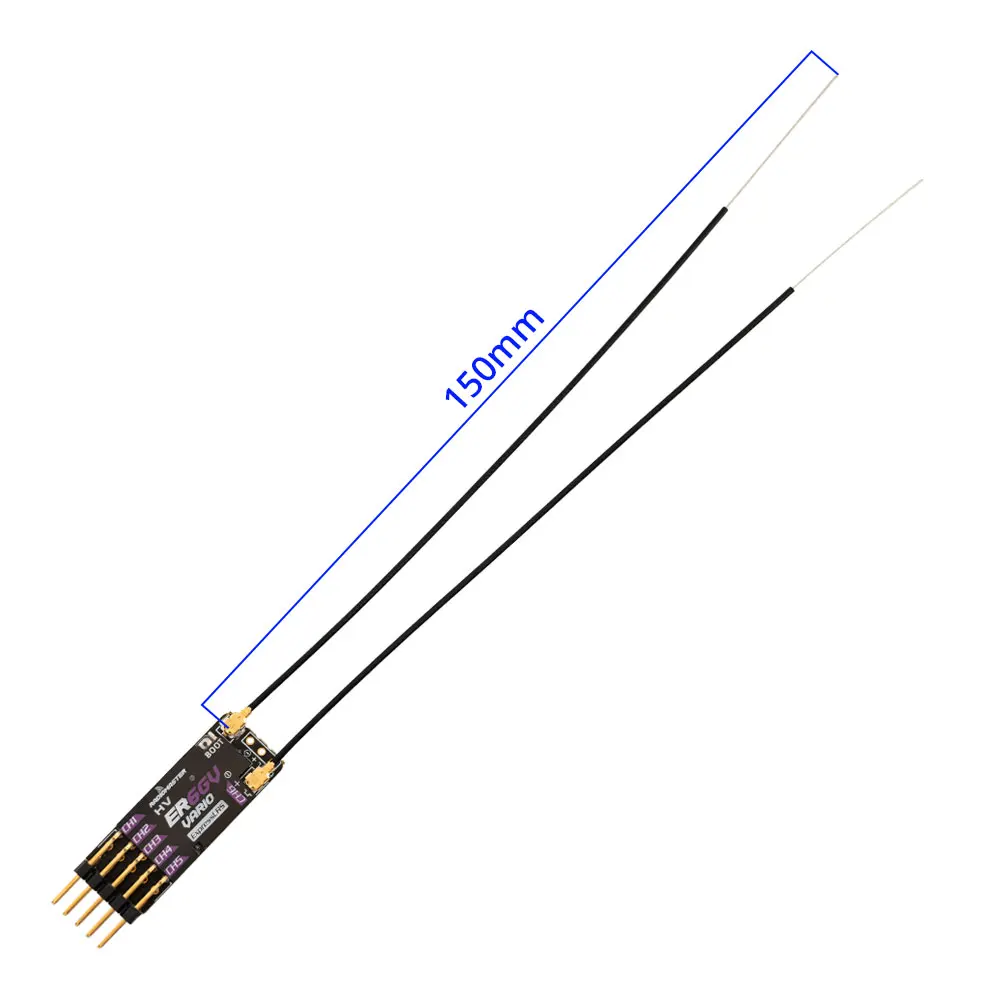

Item: ER6GV 2.4GHz ELRS PWM Receiver

Power supply: DC 3.5 - 8.4V

Antenna type: 15cm high sensitivity antenna

Wireless protocol: ExpressLRS 3.2 pre-installed

Output channel: 6CH PWM

Return power: maximum 50mw (LUA Adjustable)

Built-in high-precision air pressure sensor (Vario)

Battery voltage detection range: DC 4.0 - 35V

Weight: 5.0 grams

Dimensions: 42*13*8mm

Firmware: Device Category: Radiomaster 2.4Ghz / Device: Radiomaster ER6GV

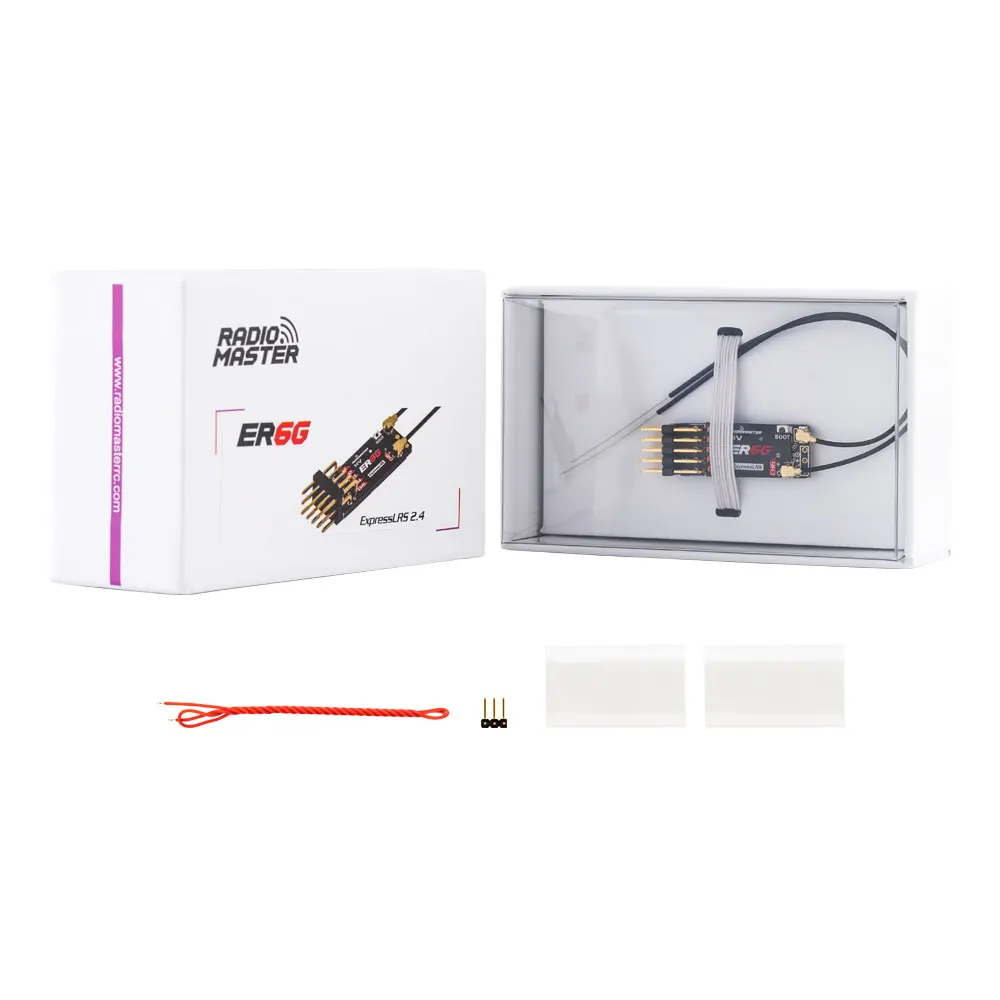

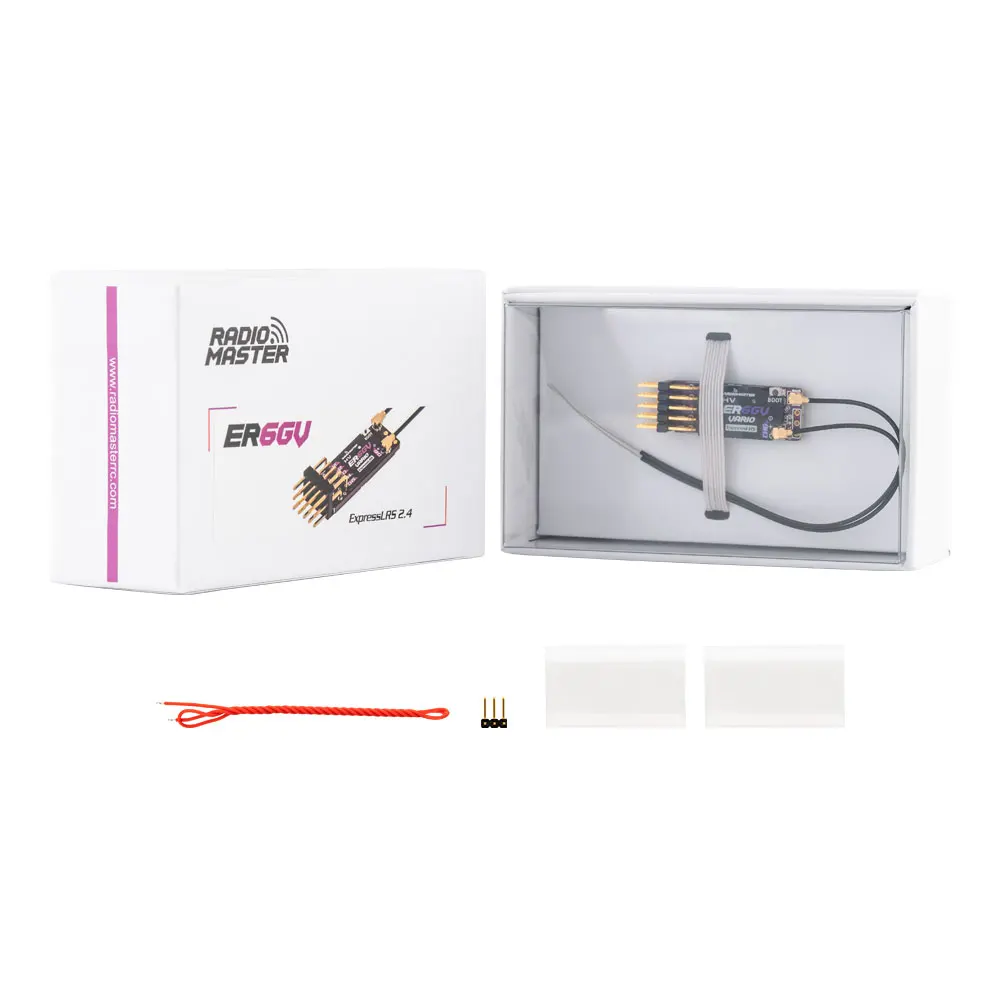

Package Includes:

1 * ER6G or ER6GV 2.4GHz ELRS PWM Receiver

1 * Voltage telemetry wire (Type-A)

2 * Heat-shrink tube

1 * User Card

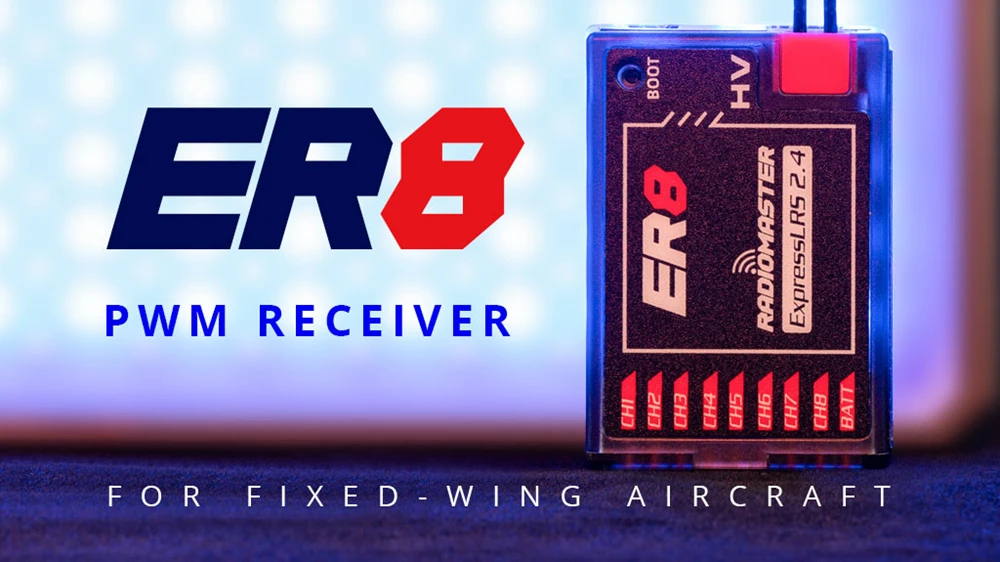

ER8 2.4GHz ELRS PWM Receiver

Features:

Based on the Revolutionary ExpressLRS System

High performance, high reliability, flexible configuration, fast response speed and ultra-long range

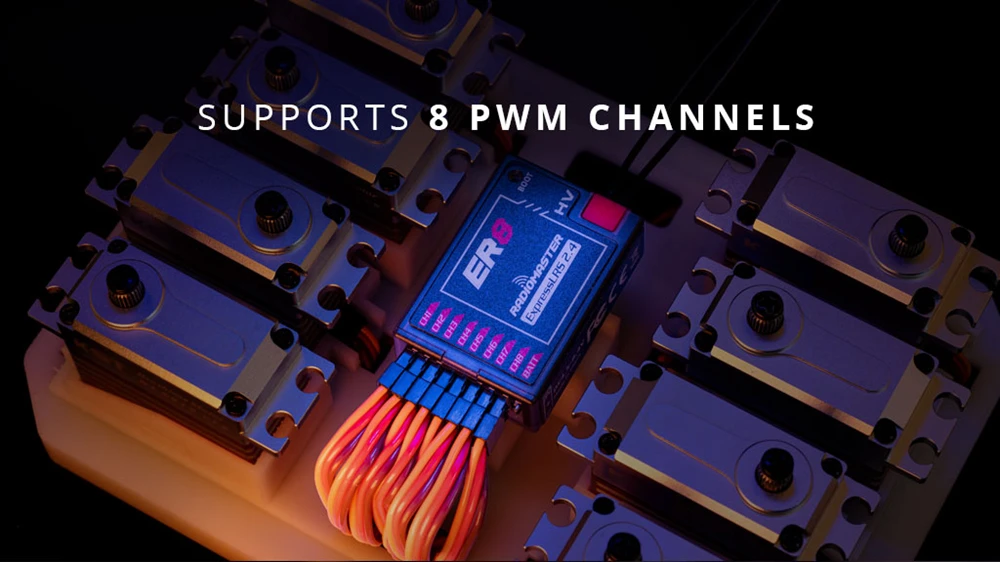

Support 8 PWM Channels

Optimized ground up PCB design

Automatically voltage telemetry of external battery voltage or built-in receiver voltage

Supports Wi-Fi updates and WEBUl configuration

High quality 2.54 mm connector

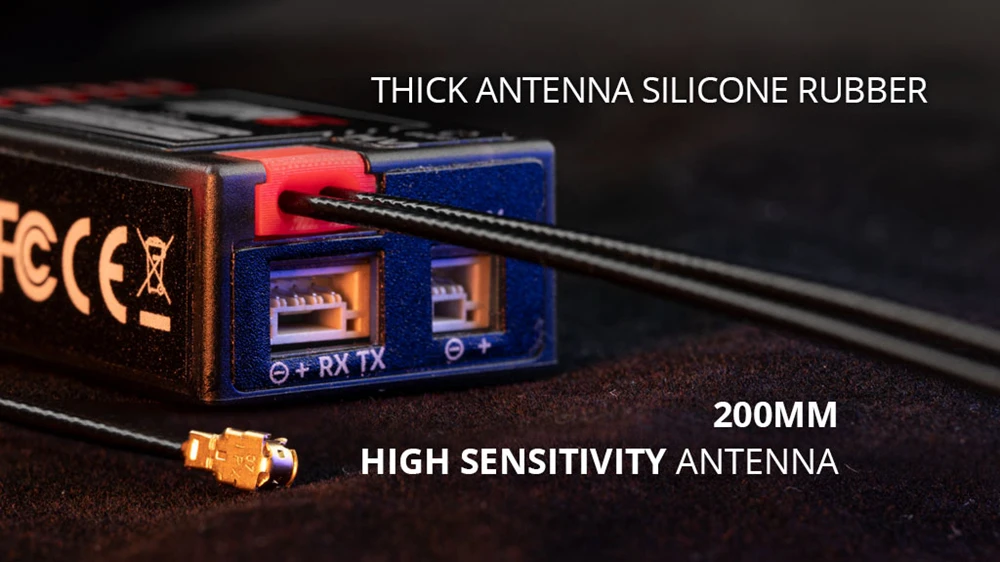

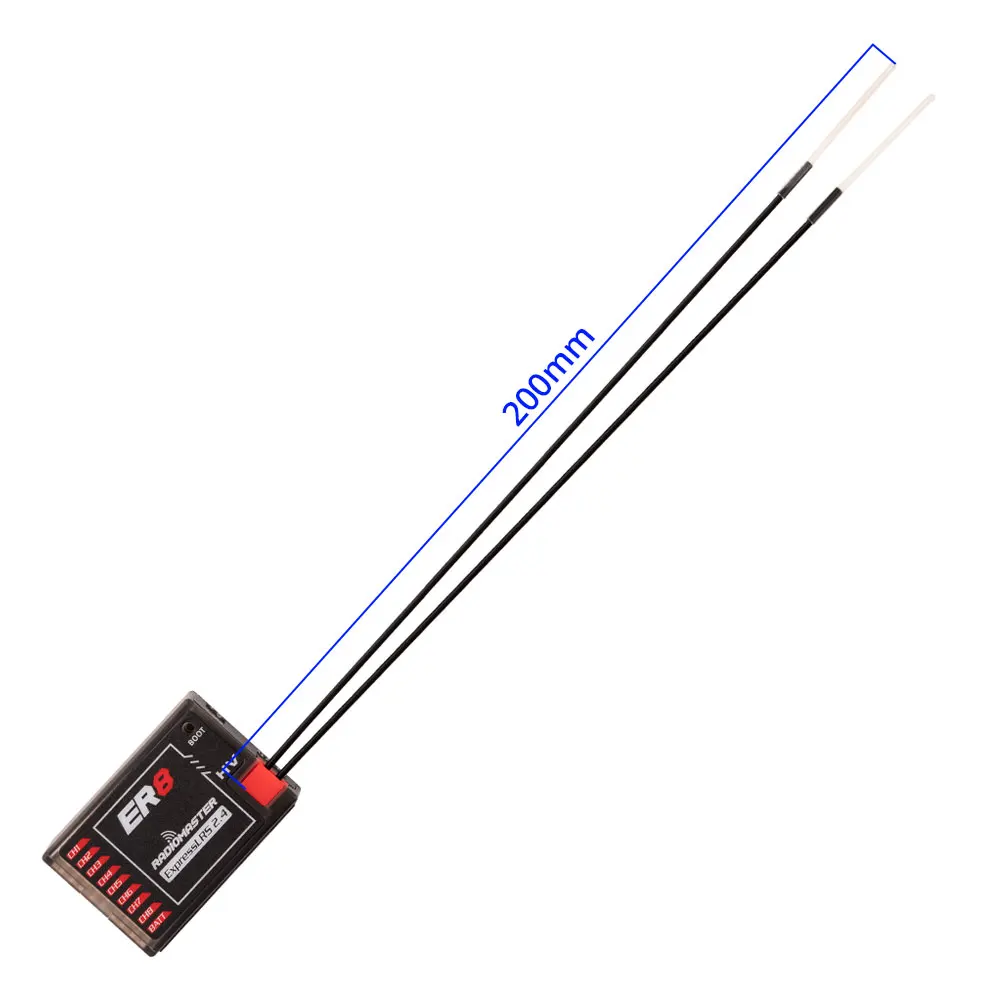

Standard 20 cm High Sensitivity Antenna

Reserve 4pin CRSF input port

Shell adopts one-piece molding process with high structural strength

For fixed-wing aircraft and more

Specifications:

Power supply: DC 4.5 - 8.4V

Antenna type: 20cm high sensitivity antenna

Wireless protocol: ExpressLRS 3.2 pre-installed

Output channel: 8CH PWM

Telemetry power: maximum 100mw (LUA Adjustable)

Battery voltage detection range: DC 4.0 - 35V

Bus interface: CRSF

Weight: 16.5 grams

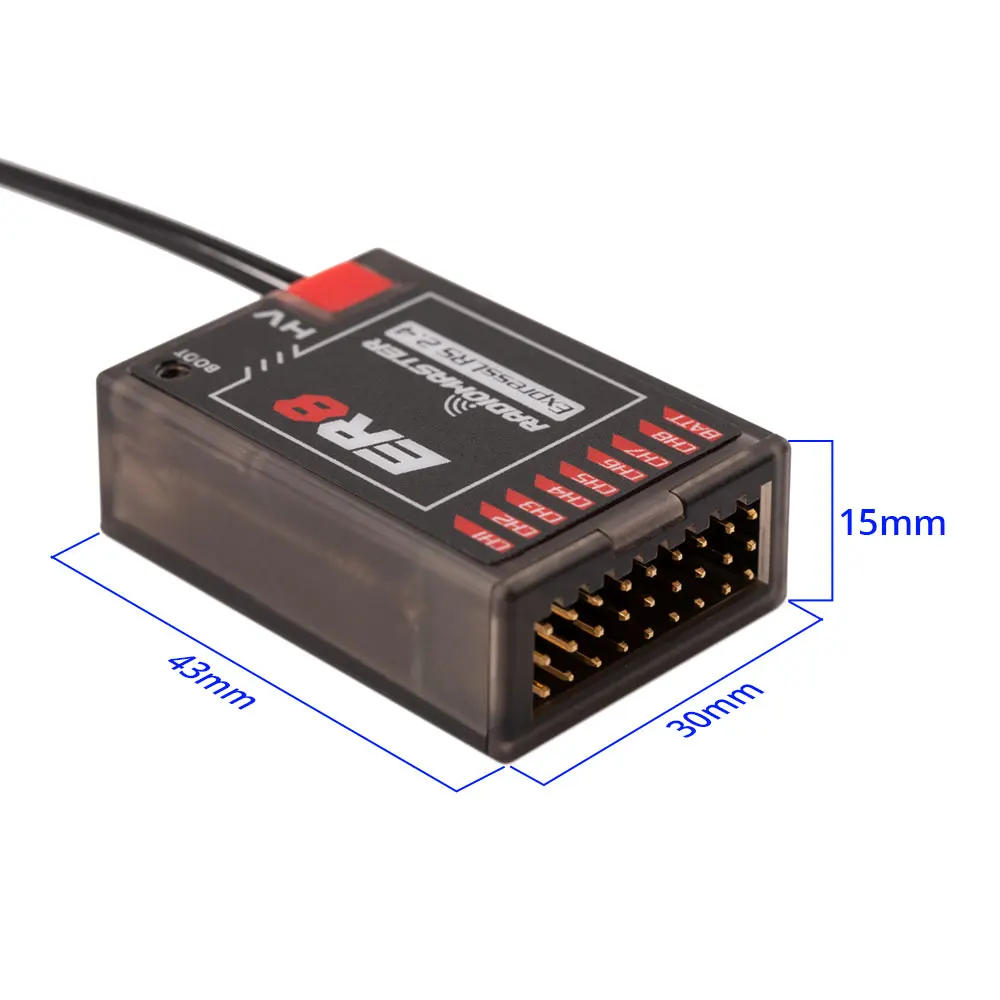

Size: 43*30*15mm

Firmware: Device Category: Radiomaster 2.4Ghz / Device: RadioMaster ER8 2400 PWM RX

Package Includes:

1 * ER8 2.4GHz ELRS PWM Receiver

1 * Voltage telemetry wire (Type-B)

1 * CRSF wire

1 * ELRS- RX- SBUS wire

1 * User Card

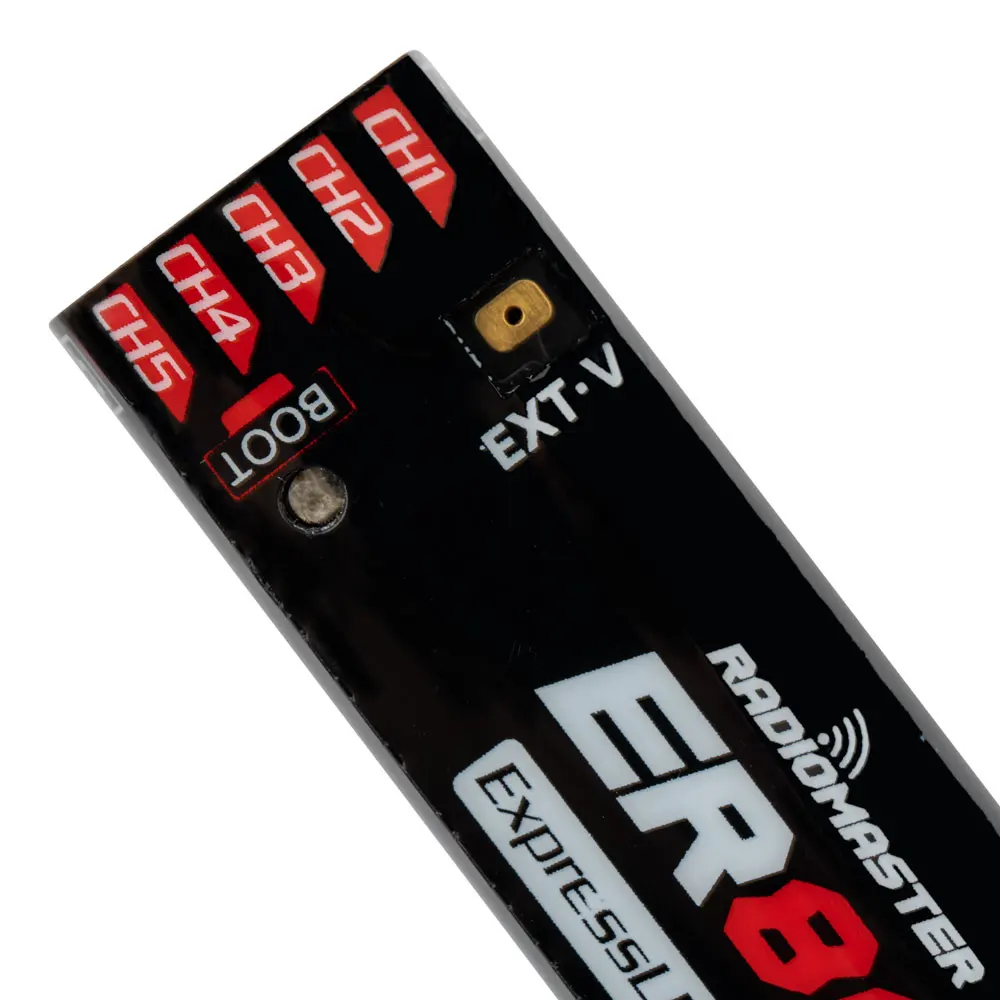

ER8G&ER8GV 2.4GHz ELRS PWM Receiver

Features:

Based on the Revolutionary ExpressLRS System

High performance, high reliability, flexible configuration, fast response speed and ultra-long range

Support 8 PWM Channels

Optimized ground up PCB design

Automatically voltage telemetry of external battery voltage or built-in receiver voltage

ER8GV receiver is built-in high-precision air pressure sensor (Vario)

Supports Wi-Fi updates and WEBUI configuration

Reserve 4pin CRSF input port

High quality 2.54 mm connector

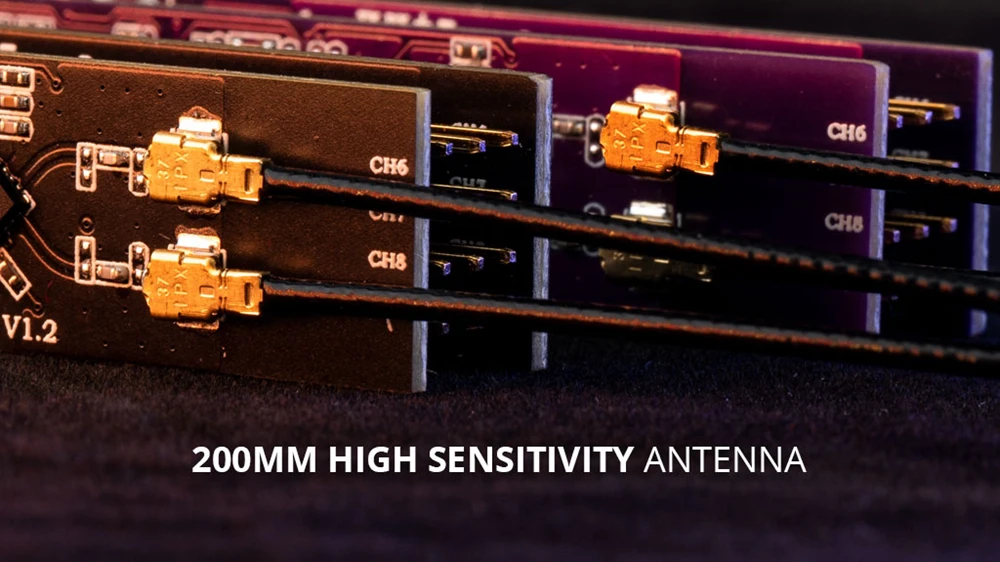

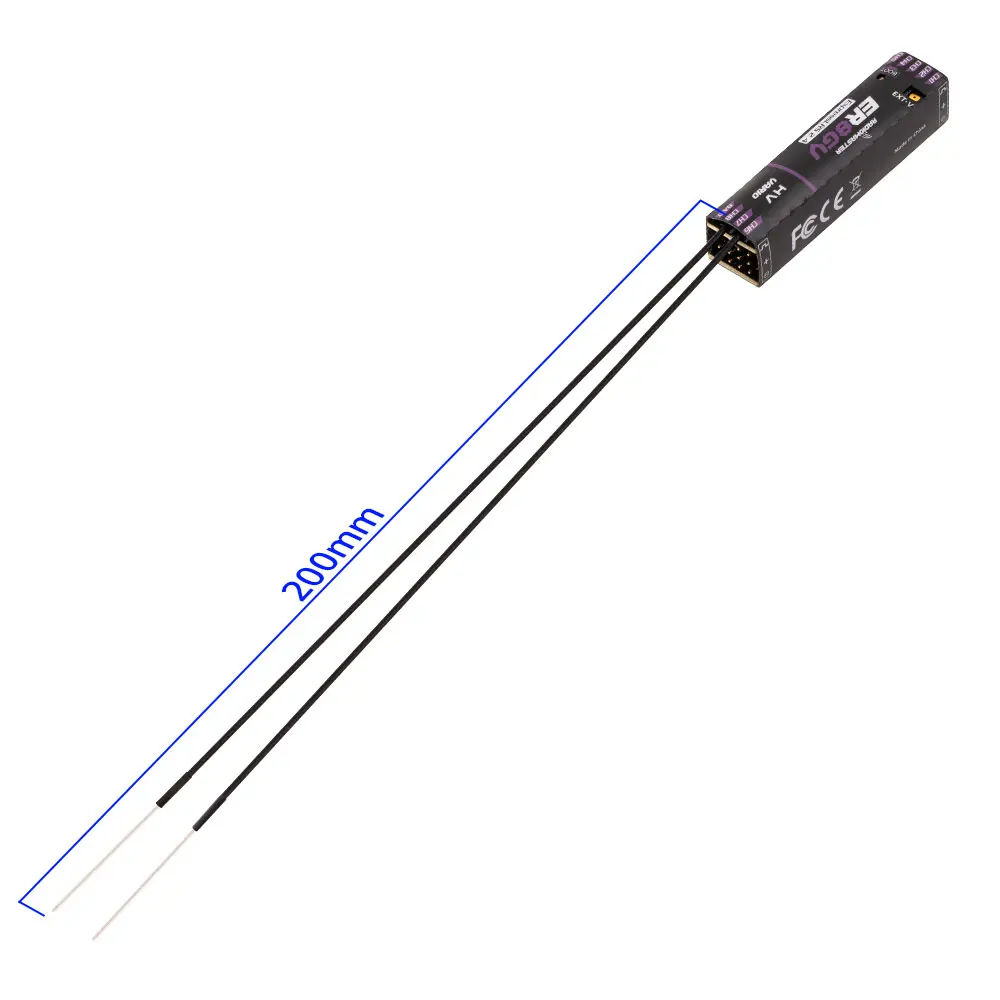

Standard 20 cm High Sensitivity Antenna

For fixed-wing aircraft and gliders

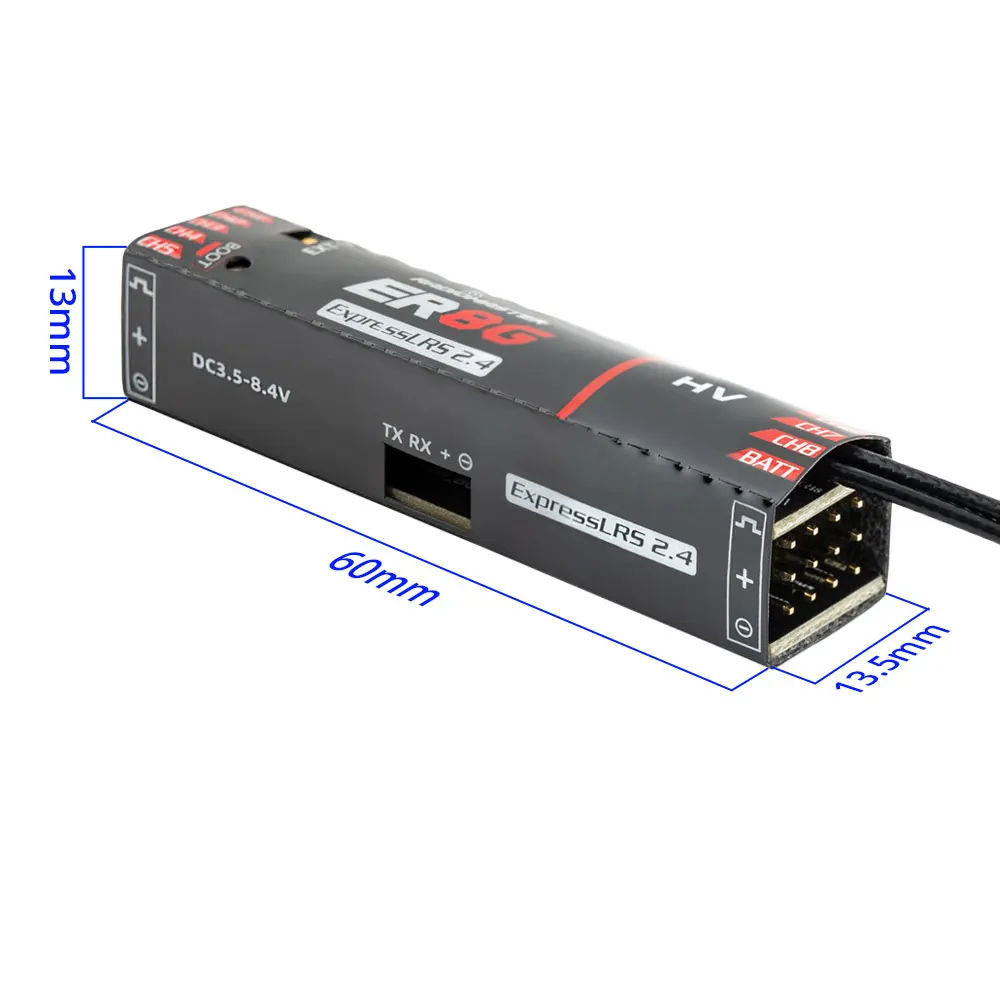

Specification (ER8G)

Item: ER8G 2.4GHz ELRS PWM Receiver

Power supply: DC 3.5 - 8.4V

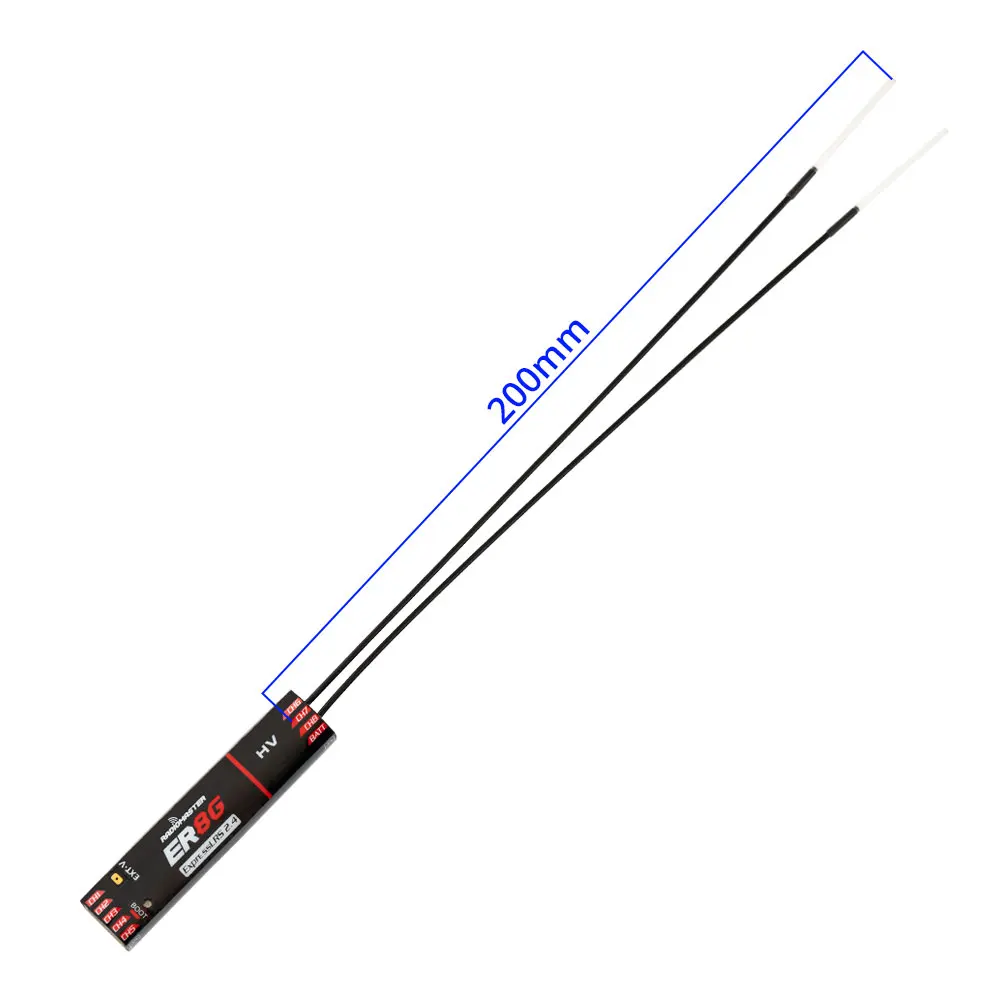

Antenna type: 20cm high sensitivity antenna

Wireless protocol: ExpressLRS 3.2 pre-installed

Output channel: 8CH PWM

Return power: maximum 100mw (LUA can be set)

Battery voltage detection range: DC 4.0 - 35V

Weight: 12 grams

Dimensions: 60*13.5*13mm

Firmware: Device Category: Radiomaster 2.4Ghz / Device: Radiomaster ER8G

Specification (ER8GV)

Item: ER8GV 2.4GHz ELRS PWM Receiver

Power supply: DC 3.5 - 8.4V

Antenna type: 20cm high sensitivity antenna

Wireless protocol: ExpressLRS 3.2 pre-installed

Output channel: 8CH PWM

Return power: maximum 100mw (LUA can be set)

Built-in high-precision air pressure sensor (Vario)

Battery voltage detection range: DC 4.0 - 35V

Weight: 12 grams

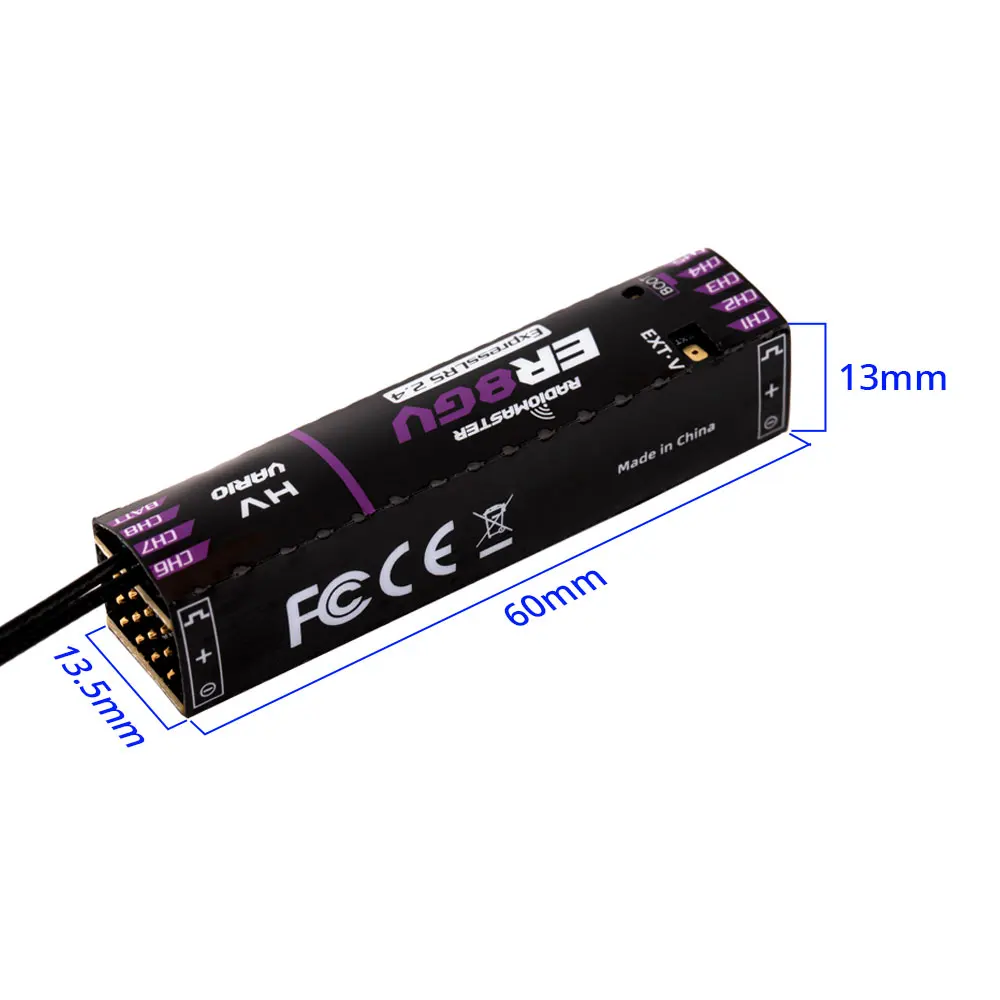

Dimensions: 60*13.5*13mm

Firmware: Device Category: Radiomaster 2.4Ghz / Device: Radiomaster ER8GV

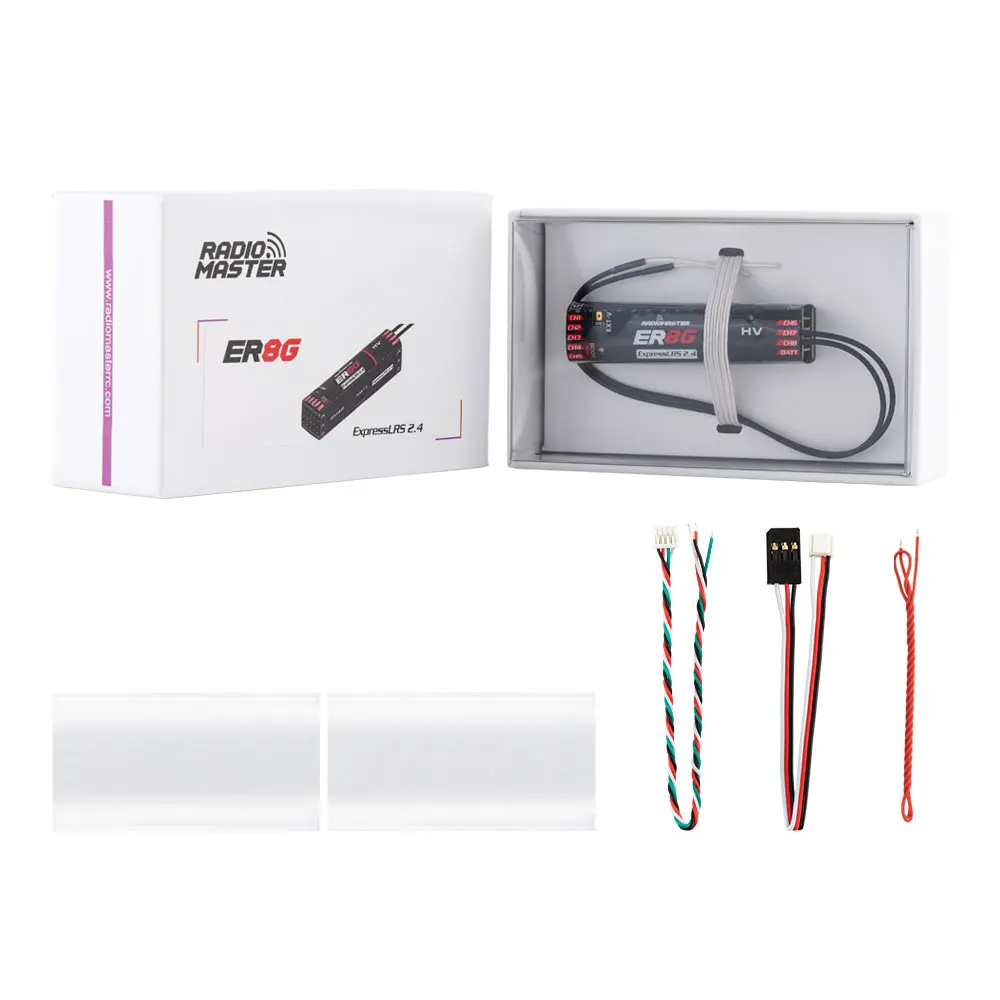

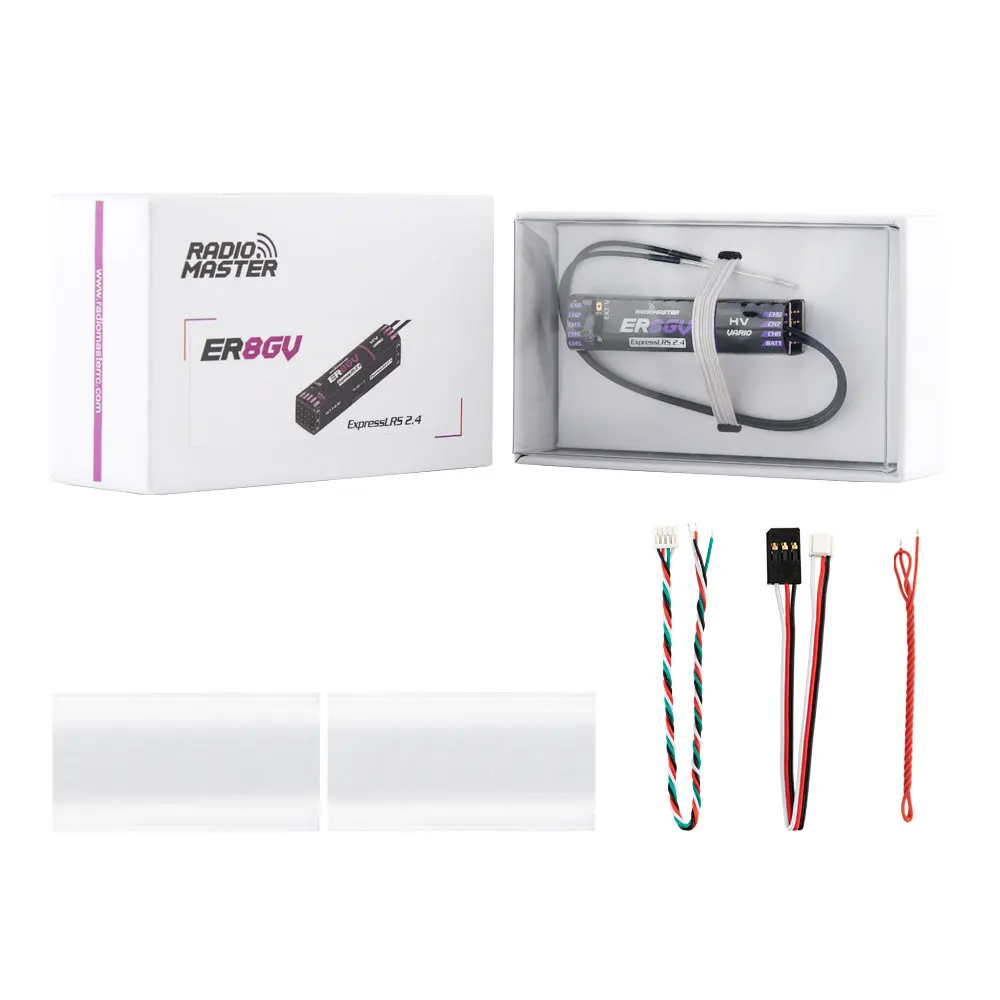

Package Includes

1 * ER8G or E8GV 2.4GHz ELRS PWM Receiver

2 * Heat-shrink tube

1 * Voltage telemetry wire (Type-A)

1 * CRSF wire

1 * ELRS- RX- SBUS wire

1 * User Card
