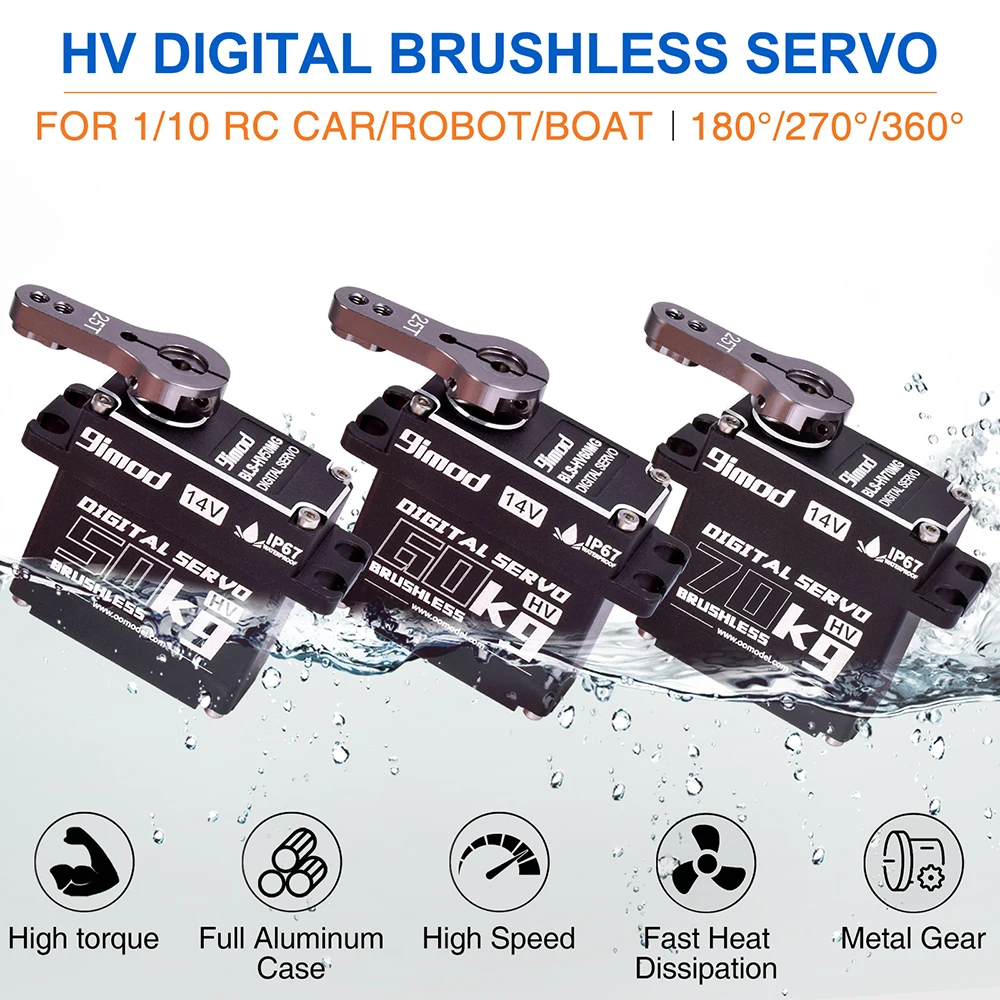

9imod Brushless Servo 70KG 60KG 50KG Waterproof RC Servo Motors Metal Gear 14V For 1/8 1/10 RC Crawler Car Robot Traxxas Scx10

eatures:

1.Upgraded Version: Less heat, more sensitive ,high torque!10.0V ~15V high performance digital high voltage brushless . (The High voltage servo is a direct power servo that needs to be supplied with extra power).

2.Waterproof Servo:The waterproof protection level is IP67. It can adapt to different wading environments.

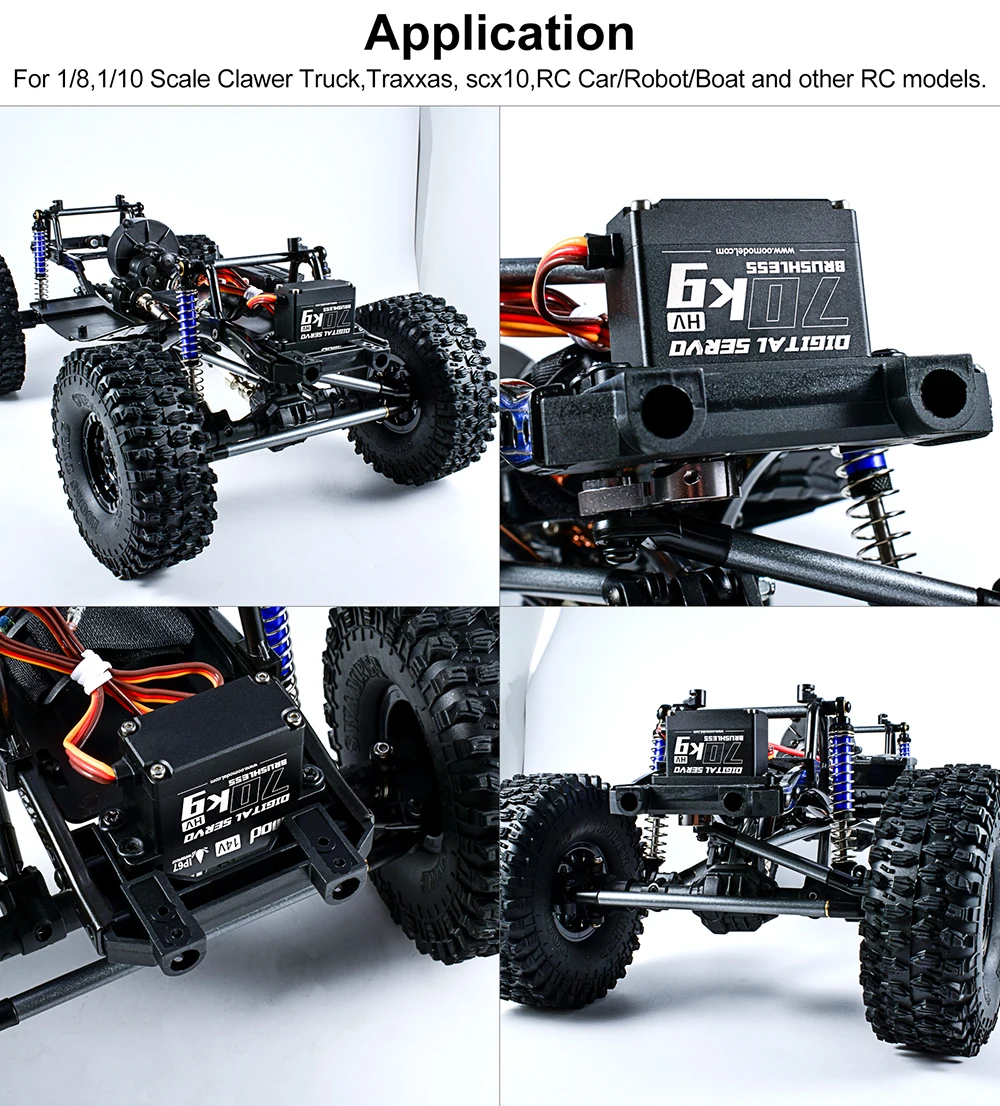

3.High Rotation :The steering servo (Control Angle 180°/270°/360°optional) is widely use.Excellent linearity, precision control. Compatible with 1/8, 1/10 Scale Clawer Truck, Traxxas, scx10, RC Car / Robot / Boat and other remote control models.

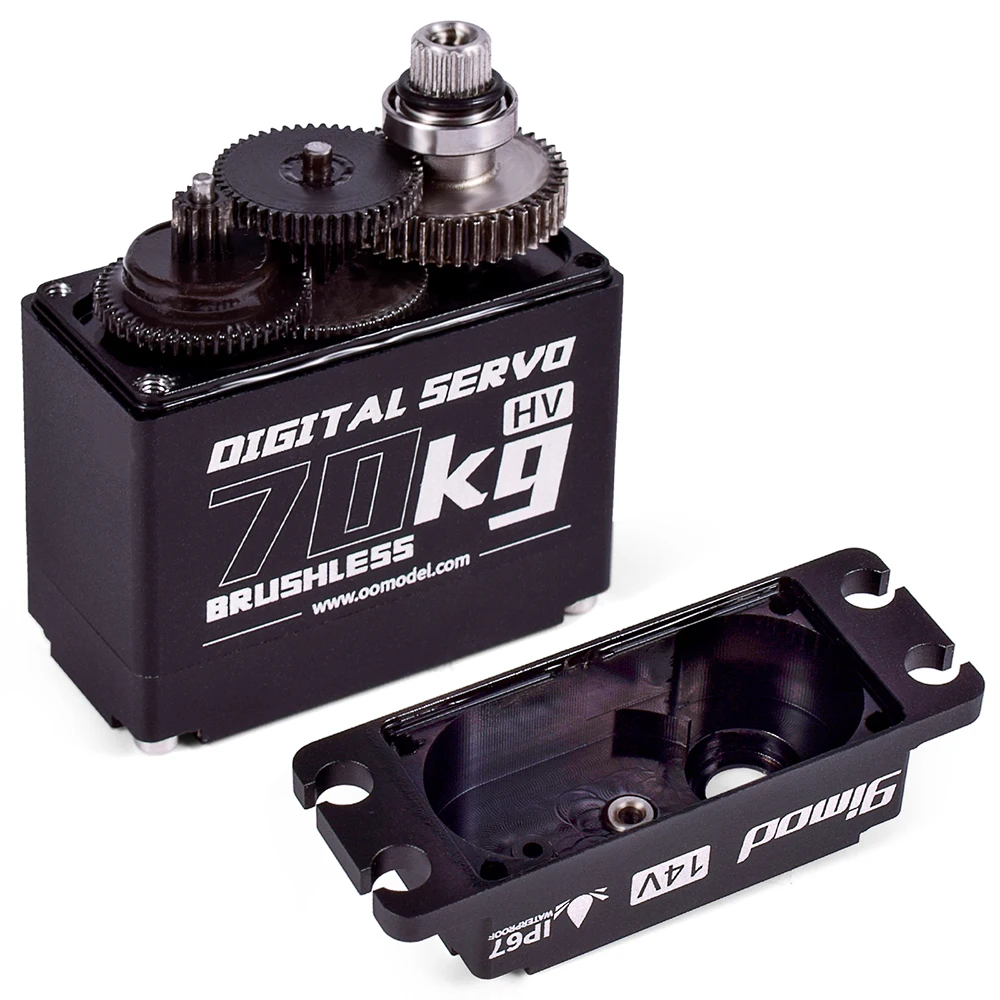

4.High Quality :Metal gear brushless servo equipped with stainless steel gears, full CNC aluminium shell, less noise, light weight.Dual ball bearings.

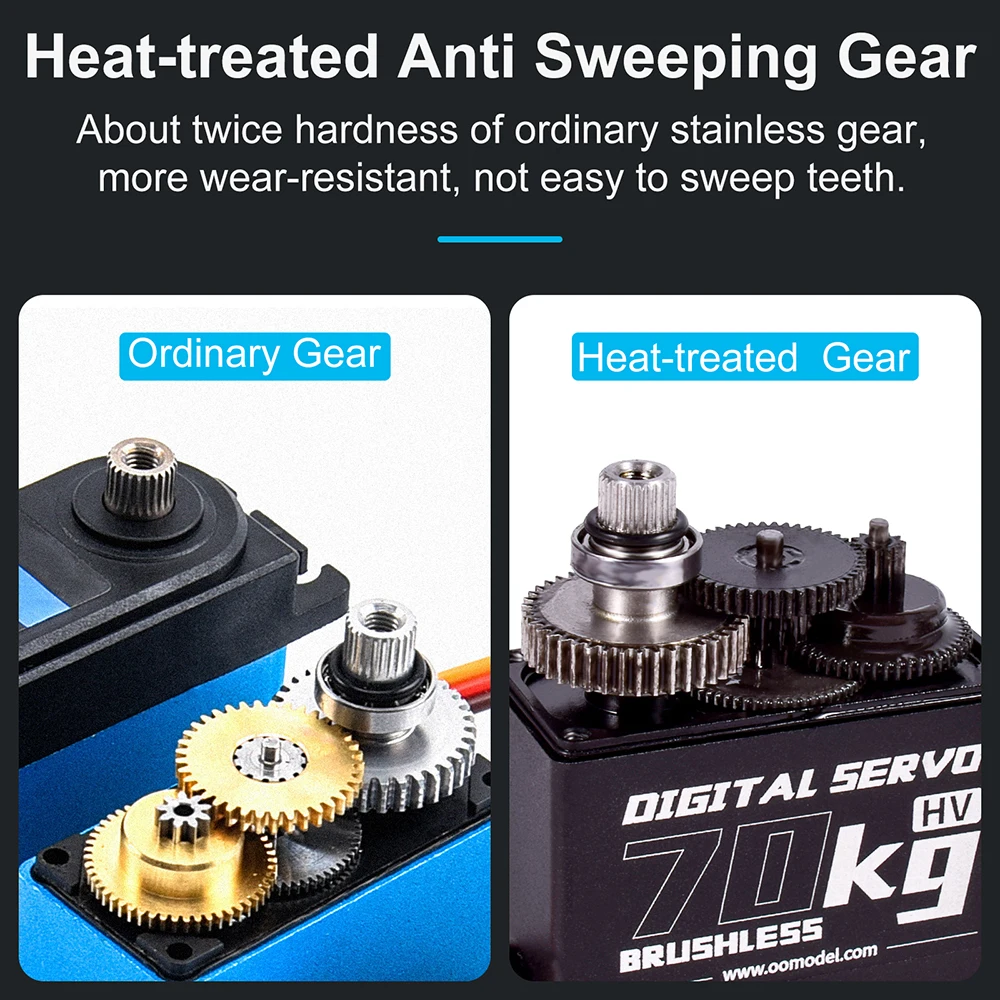

5.Black Heat-treated Gear:About twice hardness of ordinary stainless gear, more wear-resistant, not easy to sweep teeth.

Description:

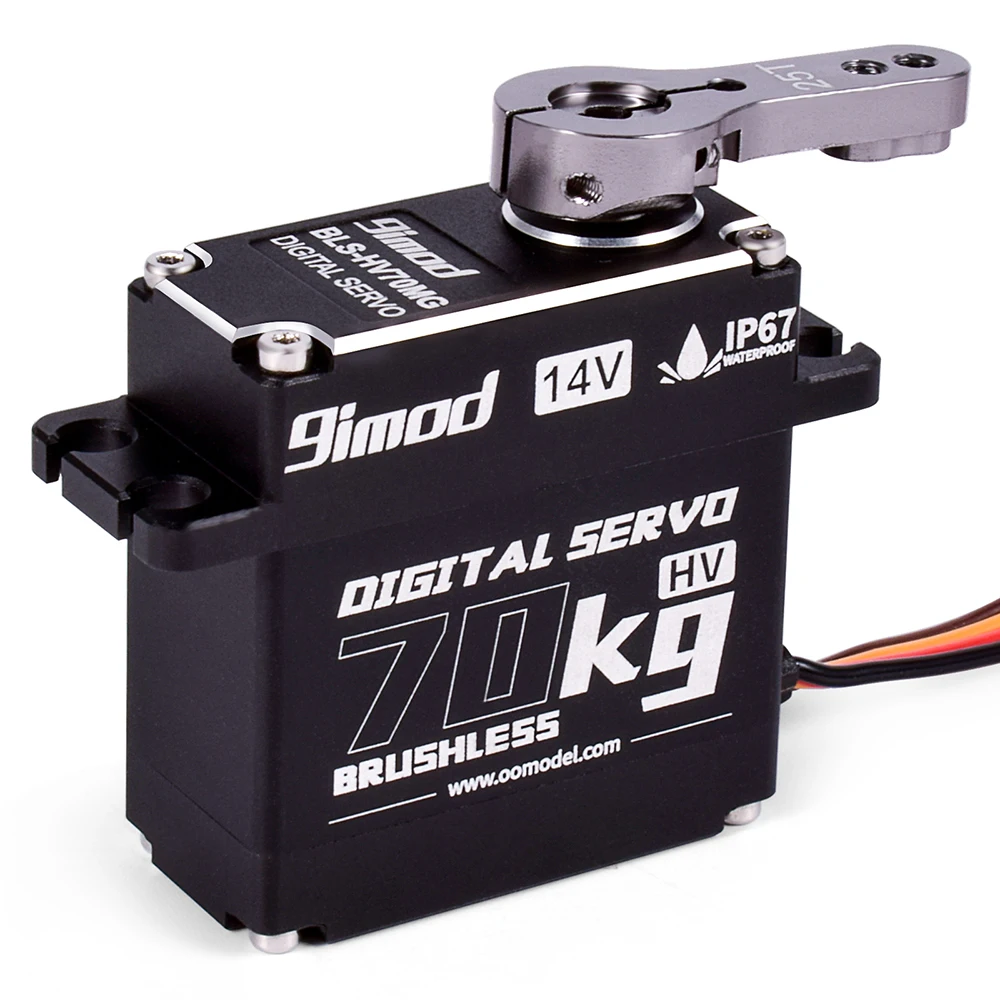

9imod Digital Servo Motor 50KG/60KG/70KG with 25T metal servo arm,It has 10V~15V high operation voltage range brushless large torque and waterproof.Compared with ordinary servo, the speed is much faster and the reaction is also fast.

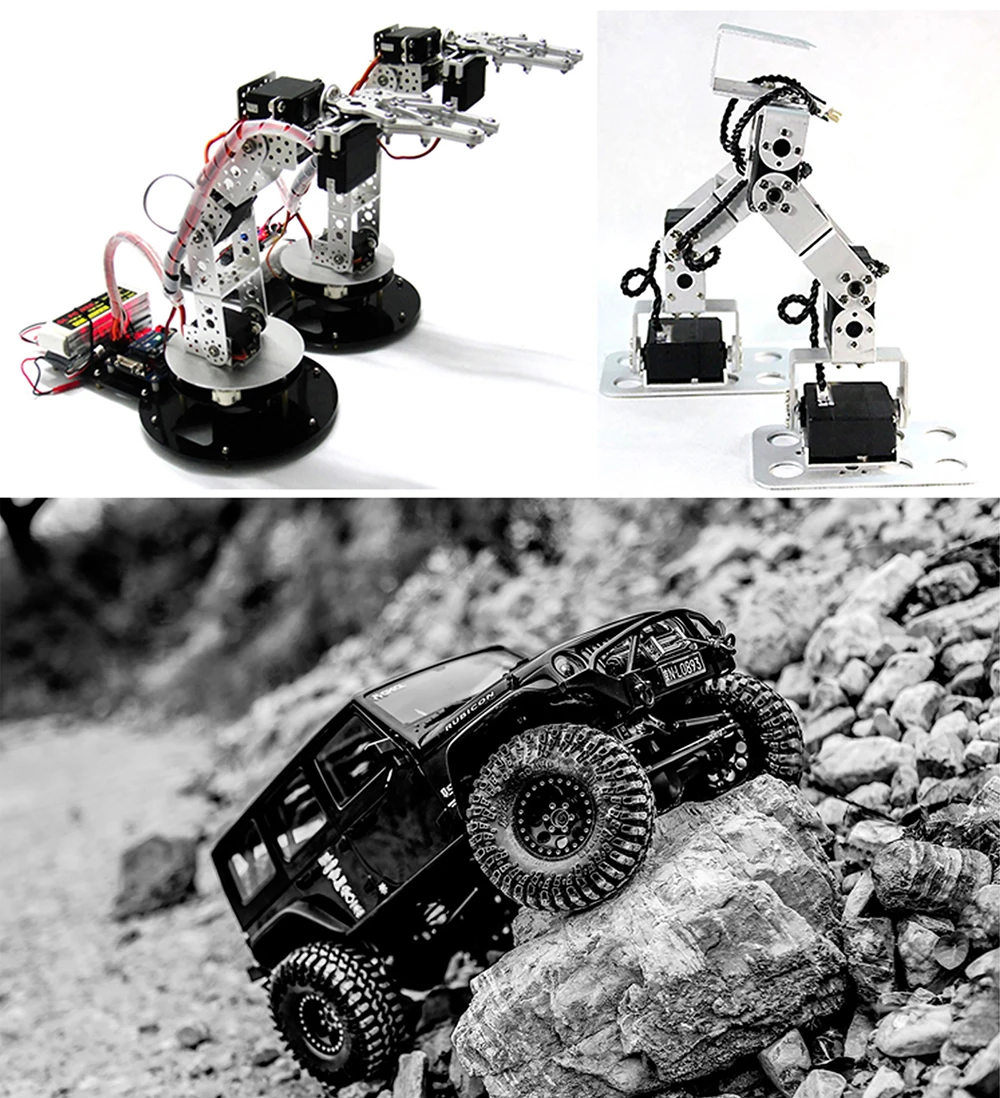

It's a good steering servo for your 1:8/1:10 RC Car Truck Crawler Boat Robot and DIY model toy!

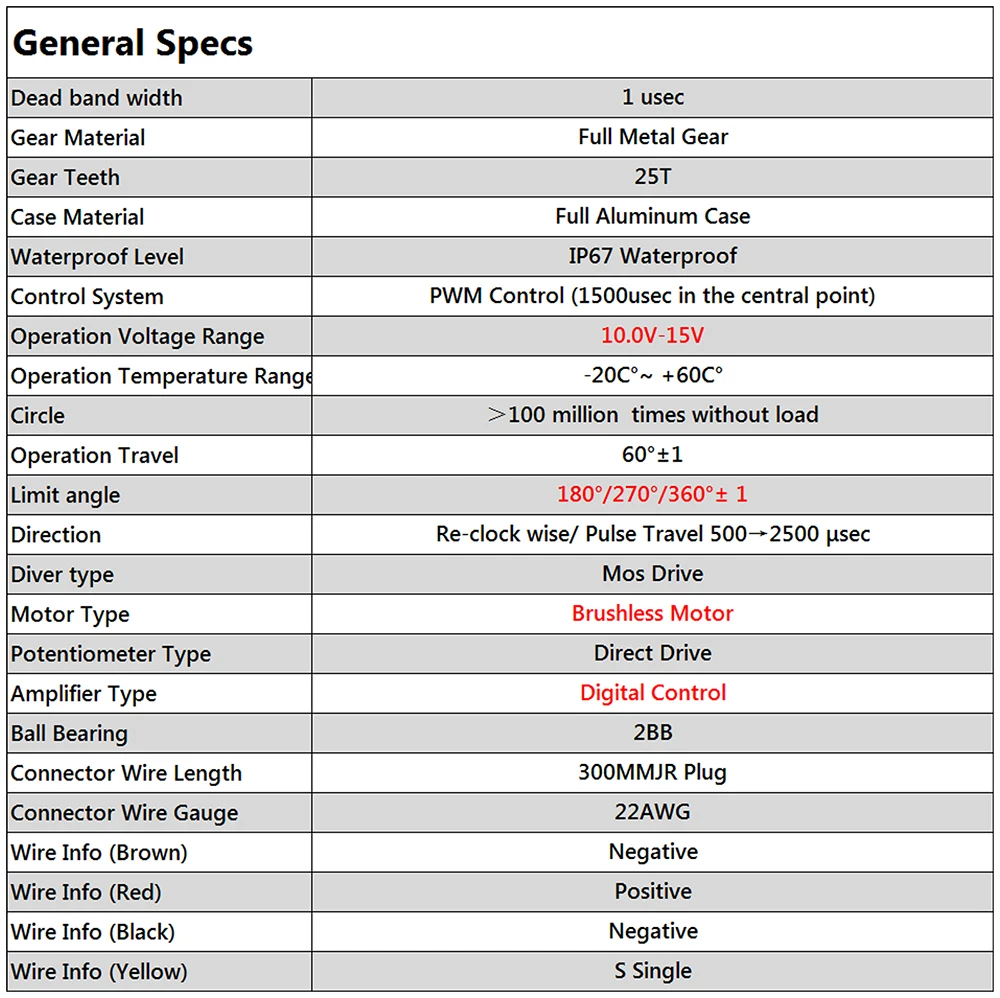

Specifications:

Brand:9imod

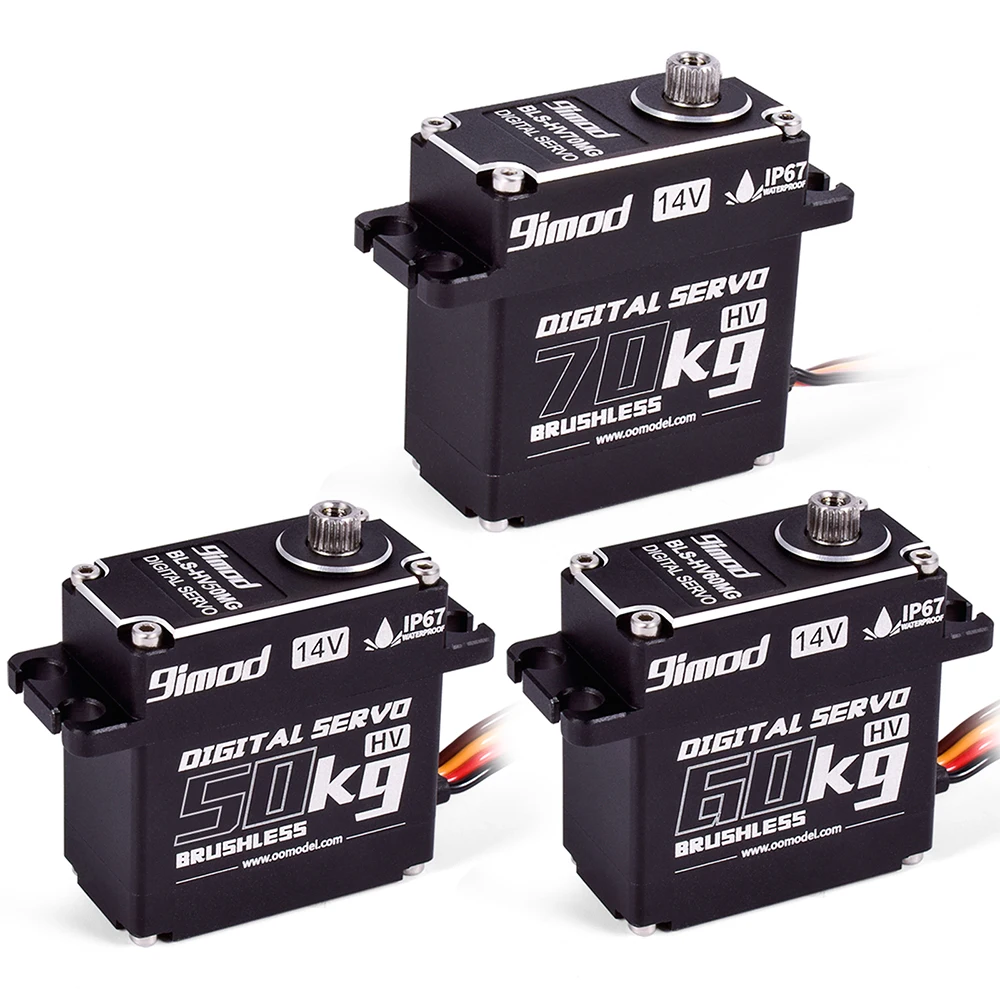

Model:BLS-HV50MG/BLS-HV60MG/BLS-HV70MG

Color:Black

Control Angle:180°/270°/360°optional

Dead band width:1 usec

Gear Material:Metal Gear

Case Material:Aluminum Case

Control System:PWM Control (1500usec in the central point)

Operation Voltage Range:10.0V ~15V

Operation Temperature Range:-20C°~ +60C°

Circle:＞100 million times without load

Operation Travel:60°±1

Limit angle :180°/270°/360°± 1

Direction:Re-clock wise/ Pulse Travel 500→2500 μsec

Diver type:Mos Drive

Motor Type:Brushless motor

Potentiometer Type:Direct Drive

Amplifier Type:Digital Control

Ball Bearing:2BB

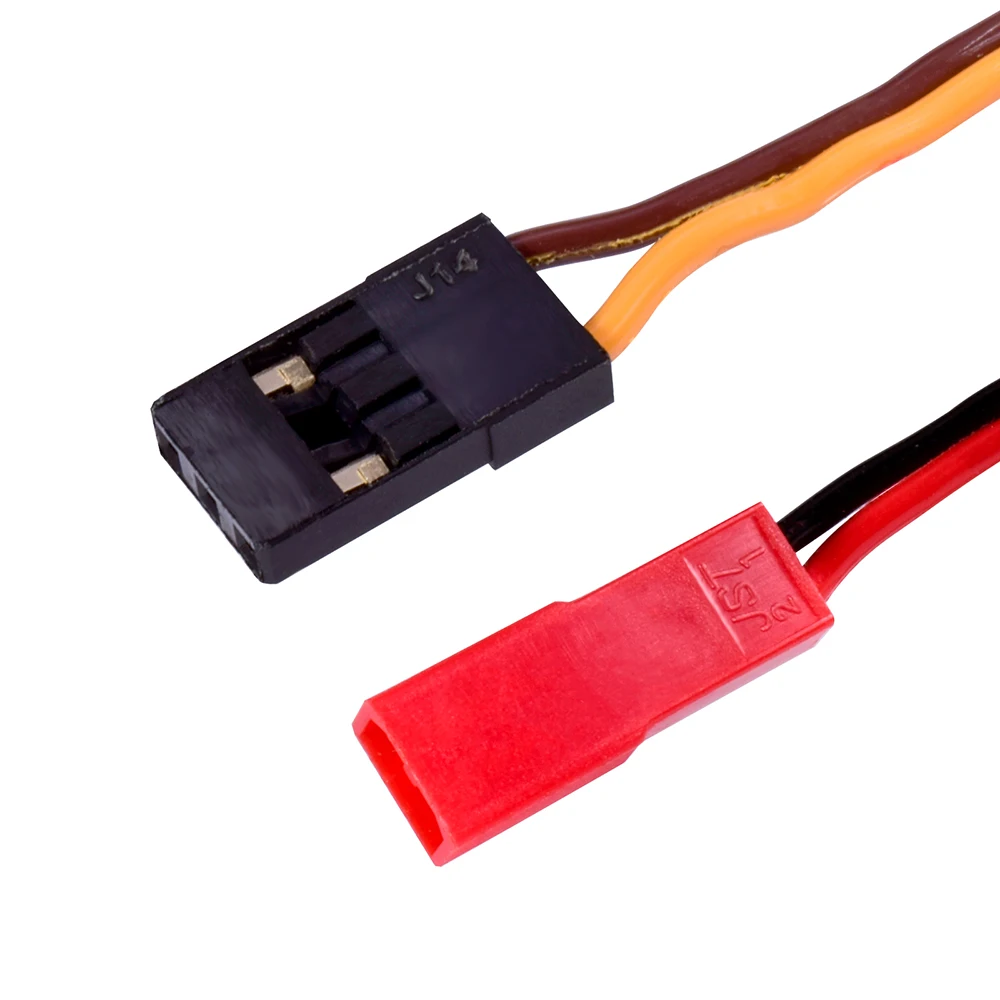

Connector Wire Length: 300MM JR JST Plug

Connector Wire Gauge:22AWG

Wire Info (Brown):Negative

Wire Info (Red):Positive

Wire Info (Black):Negative

Wire Info (Yellow):S Single

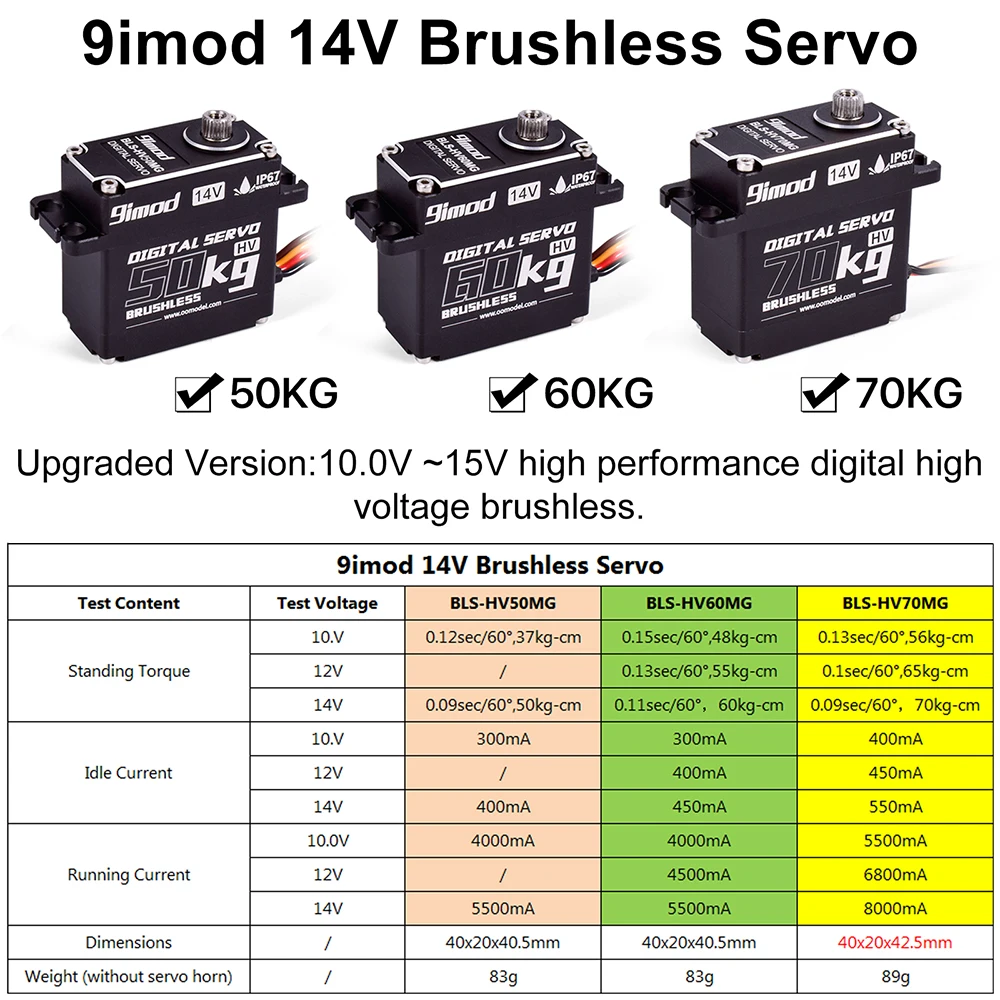

BLS-HV50MG

Standing Torque:0.12sec/60°,[email protected] ;

                           0.09sec/60°,50kg-cm@14V

Idle Current:[email protected] ; 400mA@14V

Running Current:[email protected] ; 5500mA@14V

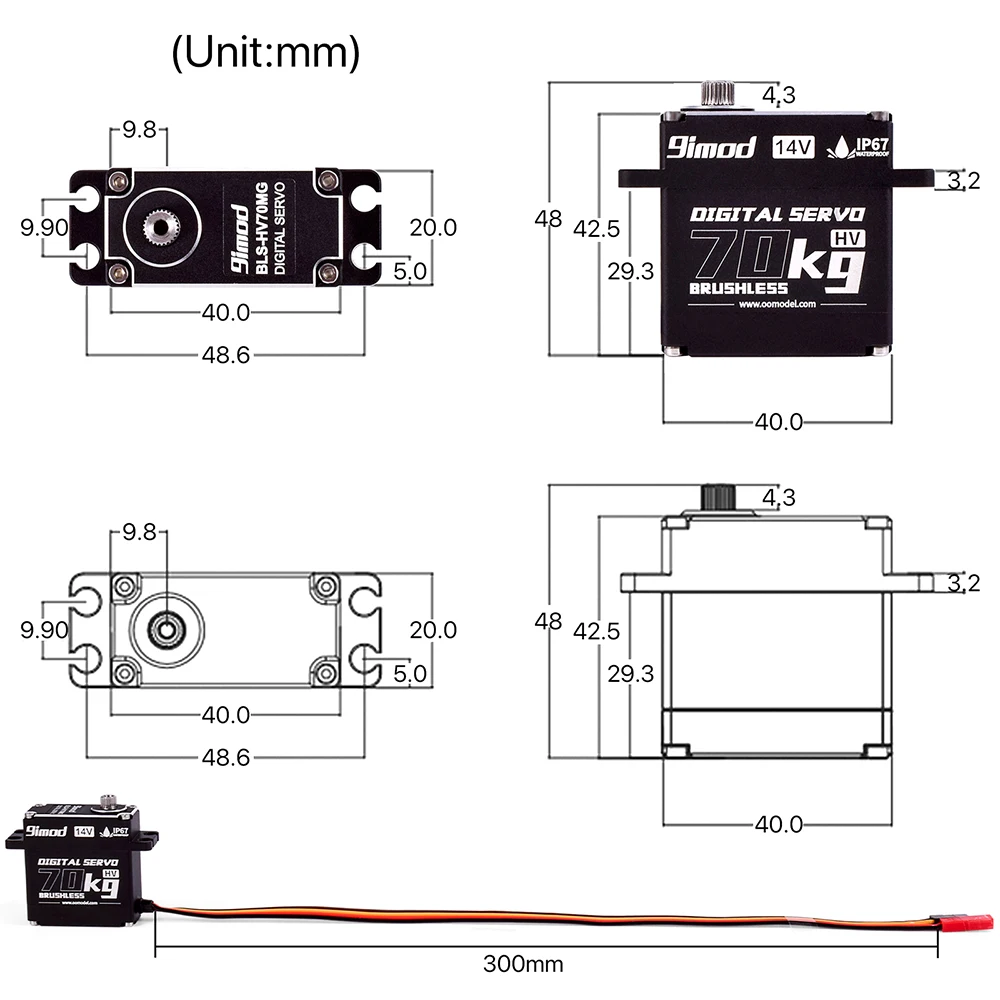

Dimensions:40x20x40.5mm

Weight:83g (without servo horn)

BLS-HV60MG

Standing Torque:0.15sec/60°,[email protected] ;

              0.13sec/60°,55kg-cm@12V

              0.11sec/60°，60kg-cm@14V

Idle Current:[email protected] ;400mA@12V;450mA@14V

Running Current:[email protected] ; 4500mA@12V;5500mA@14V

Dimensions:40x20x40.5mm

Weight:83g (without servo horn)

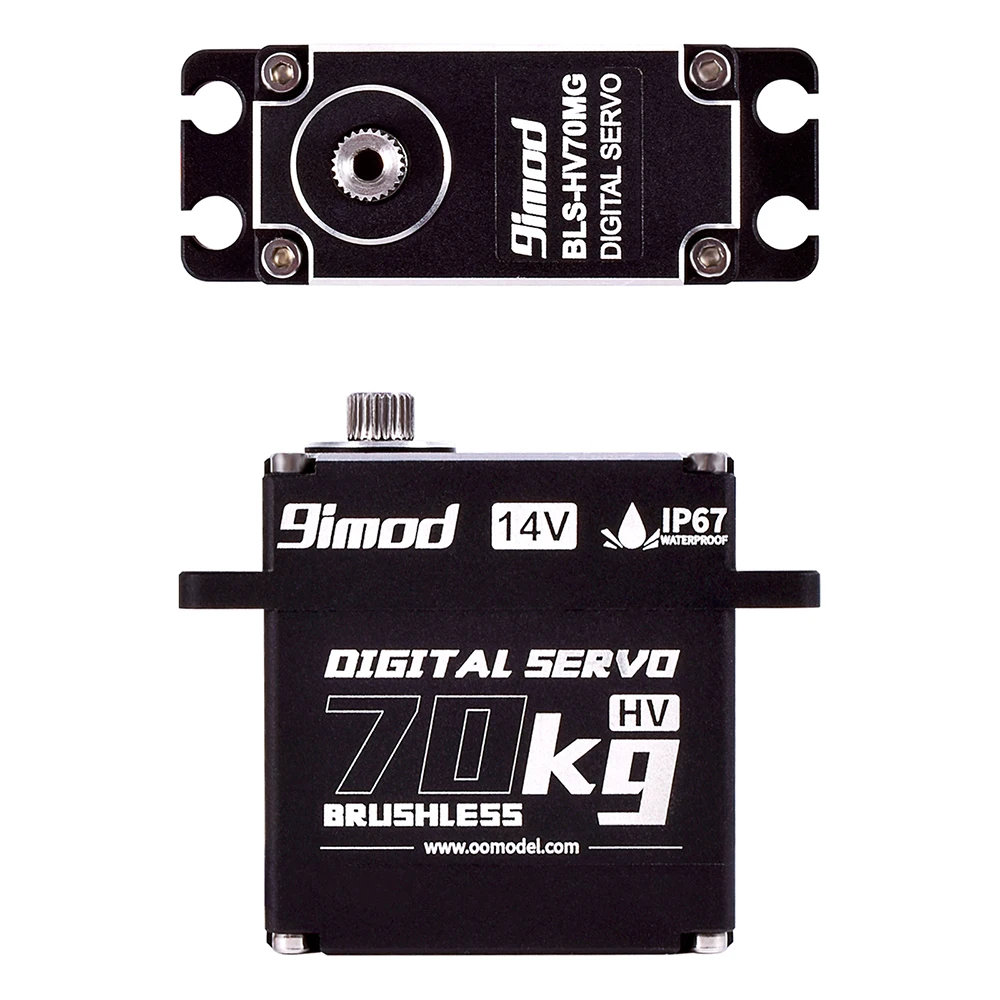

BLS-HV70MG

Standing Torque:0.13sec/60°,[email protected] ;

              0.1sec/60°,65kg-cm@12V

              0.09sec/60°，70kg-cm@14V

Idle Current:[email protected] ;450mA@12V;550mA@14V

Running Current:[email protected] ; 6800mA@12V;8000mA@14V

Dimensions:40x20x42.5mm

Weight:89g (without servo horn)

Pulse width signal: 500-2500 ms: 180 degrees

Remote control aerial template control: 900-2100 milliseconds: 120 degrees

Gun remote control: 1000-2000 ms: 90 degrees

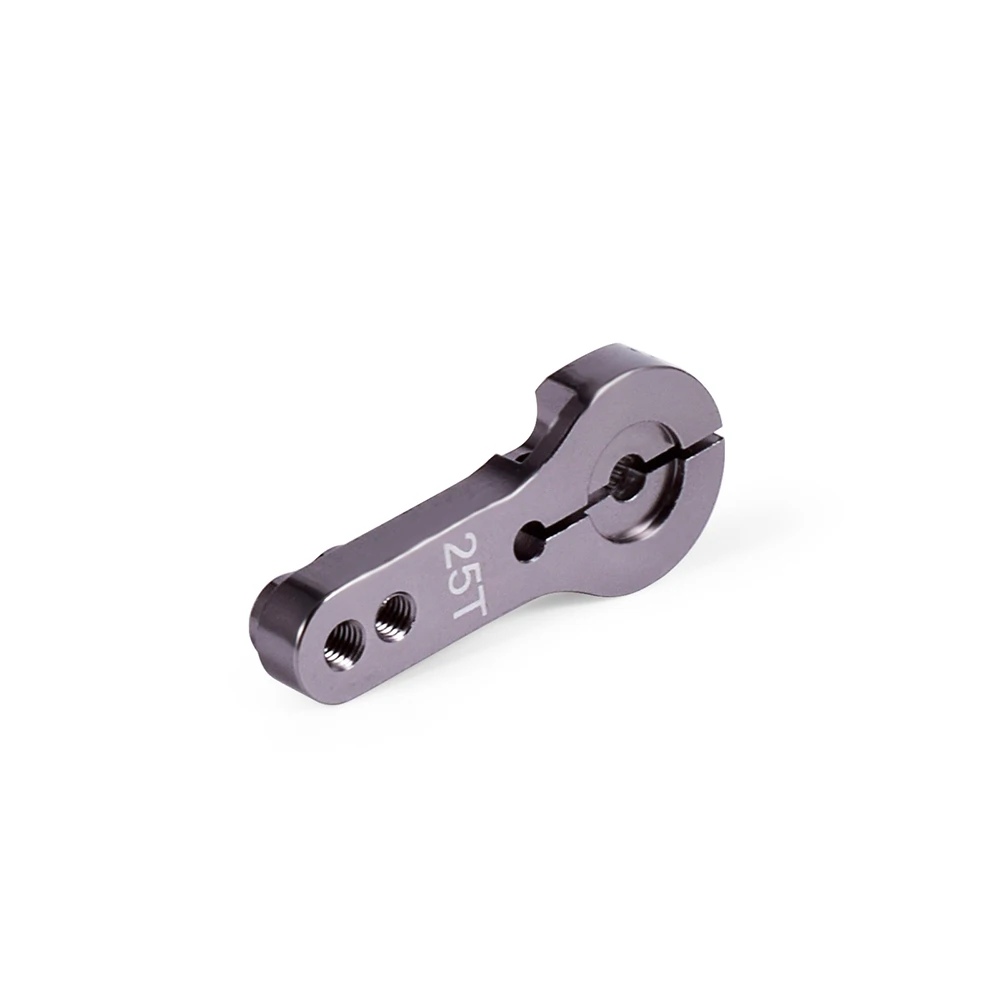

With 25T metal servo arm

Tips:Our 360 degree servo built in adjustable potentiometer.So is the left and right of the middle locus are 180 degrees, not 360 degrees rotation.

Package included:

1 x Servo

1 x Servo Accessories
