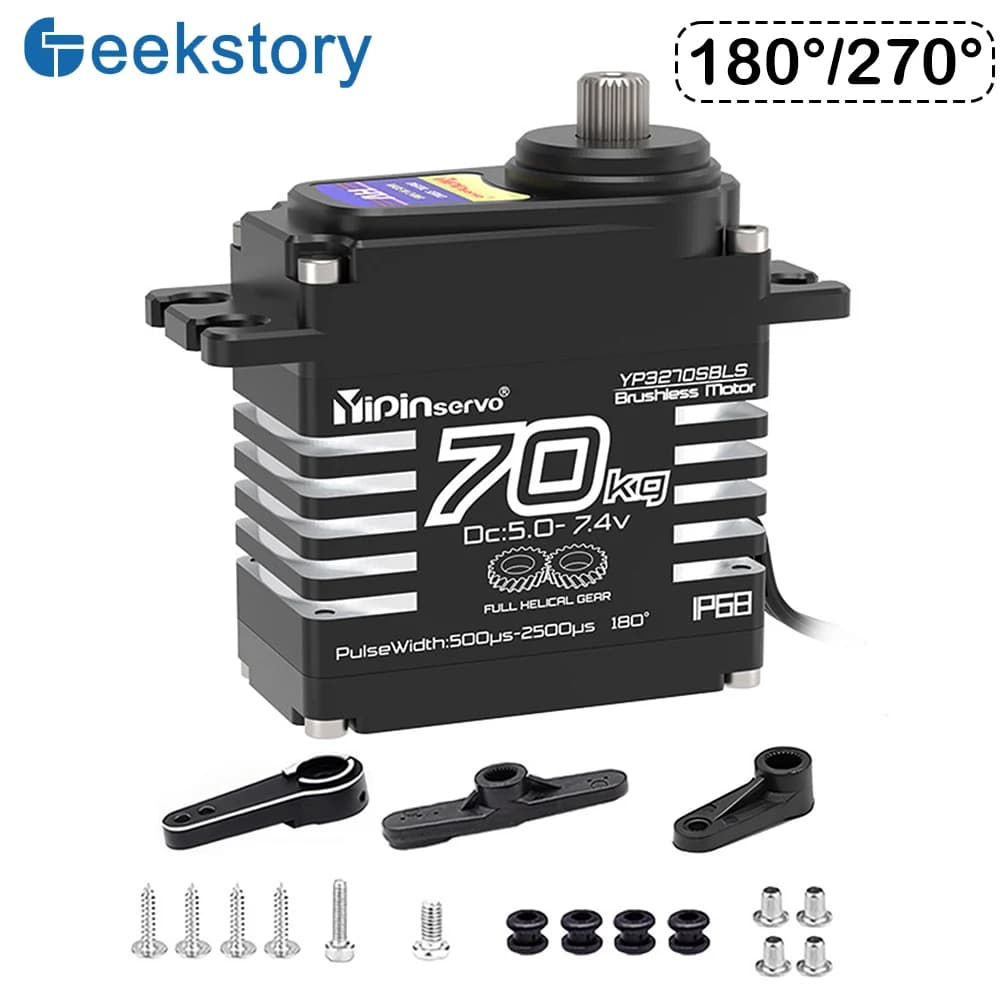

70kg Digital Servo 8.4V 180 Degree Brushless RC Servo Motor High Torgue IP68 Steel Helical Gear with 25T Servo Arm 1/8, 1/10 Car

70kg Digital Servo 8.4V 180° Brushless RC Servo Motor High Torgue Waterproof IP68 Steel Helical Gear with 25T Servo Arm 1/8, 1/10 RC Car Robot Boat

Description：
product size：90g
Net weight of product：4.05*2.1*4.17cm
Operating Voltage 6.0-8.4V DC
Standby Current: ≤20mA
Stall Current 6.0V：≤5A
Stall Current 7.4V：≤7A
Stall Current 8.4V：≤9A
Rated Torque：6.0V：≥10kg.cm
Rated Torque：7.4V：≥14kg.cm
Rated Torque：8.4V：≥16kg.cm
No Load Speed 6.0V：≤0.12sec/60°
No Load Speed 7.4V：≤0.10sec/60°
No Load Speed 8.4V：≤0.09sec/60°
Max.Torque 6.0V: ≥ 55 kgf.cm
Max.Torque 7.4V: ≥ 63 kgf.cm
Max.Torque 8.4V: ≥ 70 kgf.cm
Rotating Direction：ccw(500—2500us)

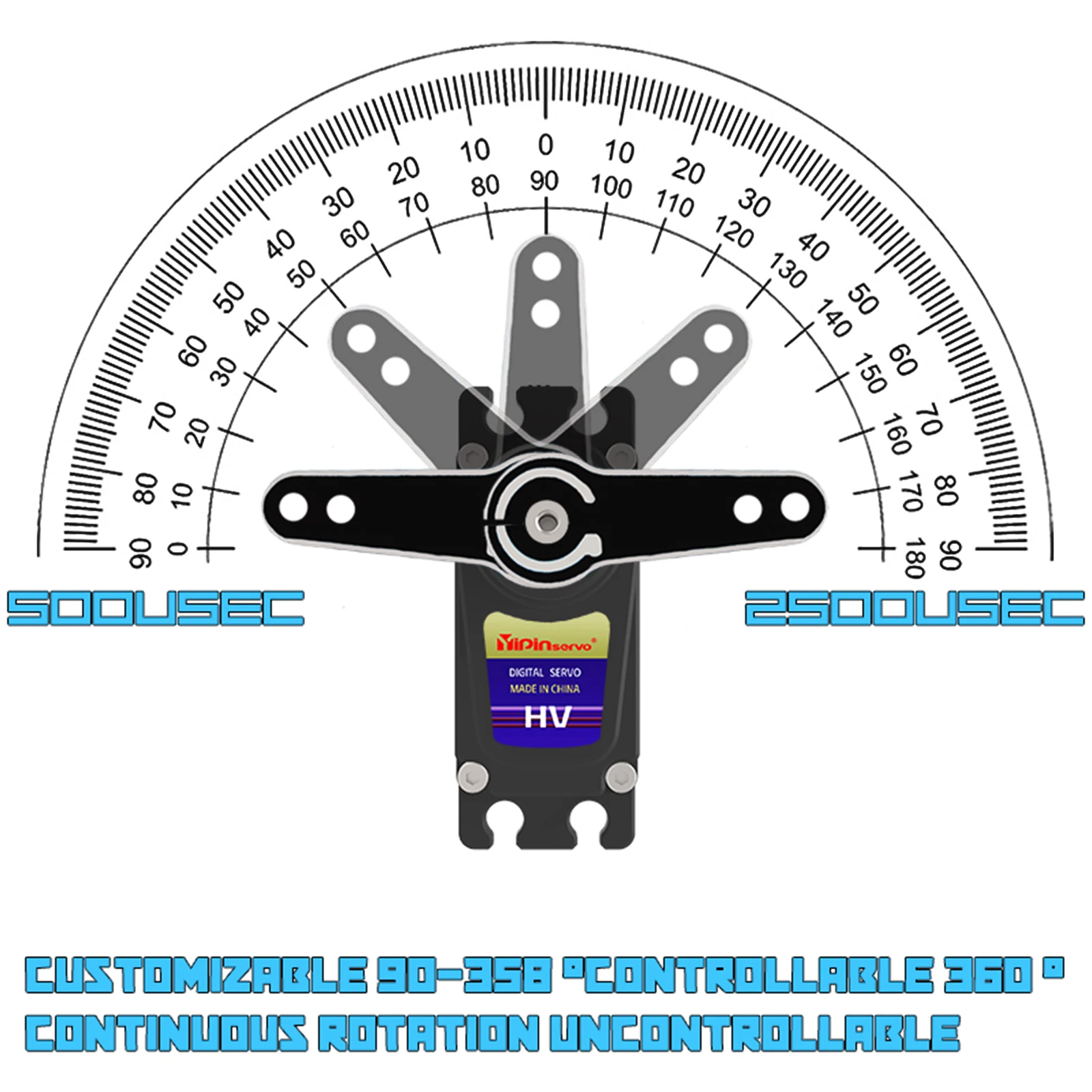

Operating Travel Angle：180±10°(500~2500us)
Neutral Position：1500us
Reduction ratio：1：299
Dead Band Width：≤2us
Operating Temperature Range：-20℃~+80C
Waterproof rating：IP68

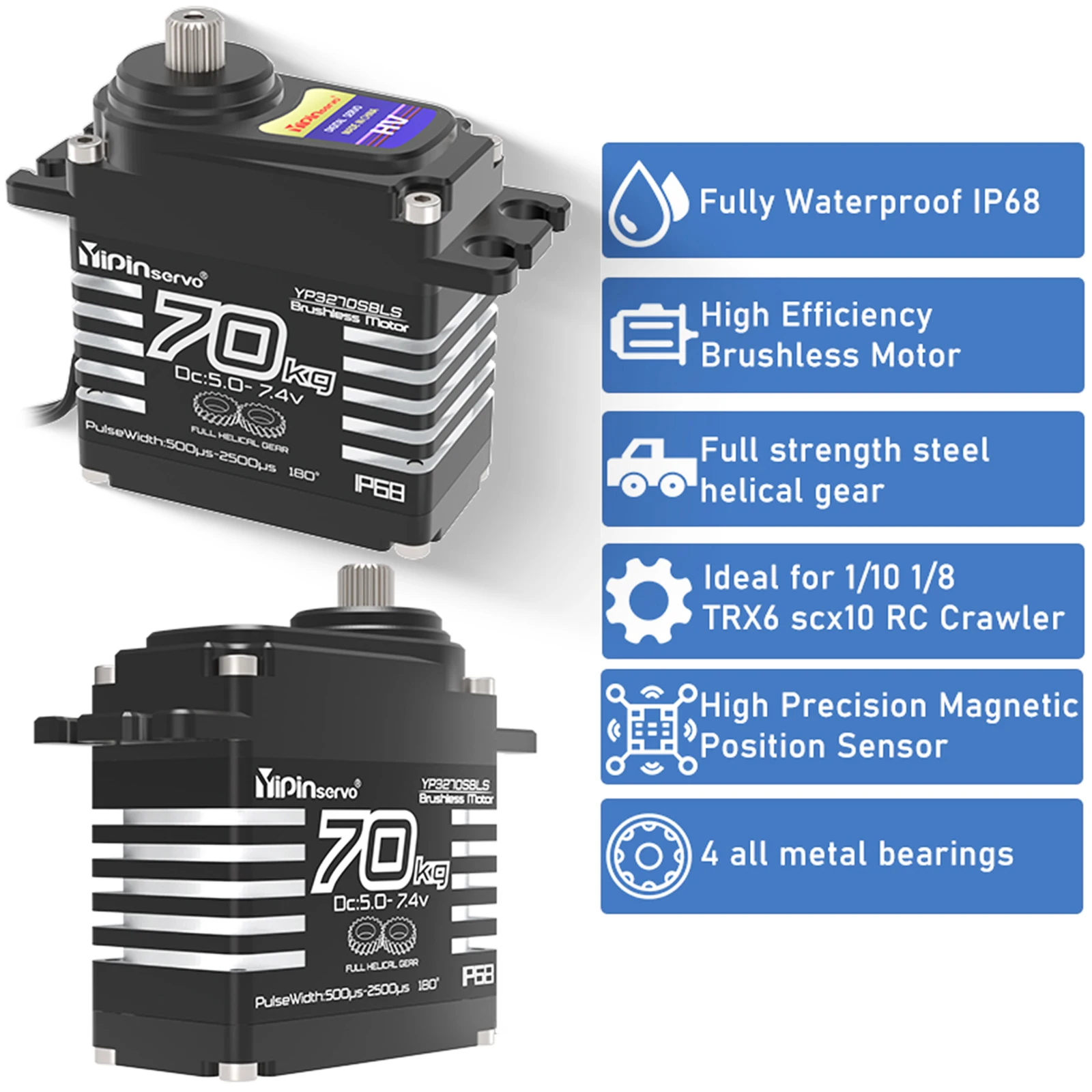

Features：

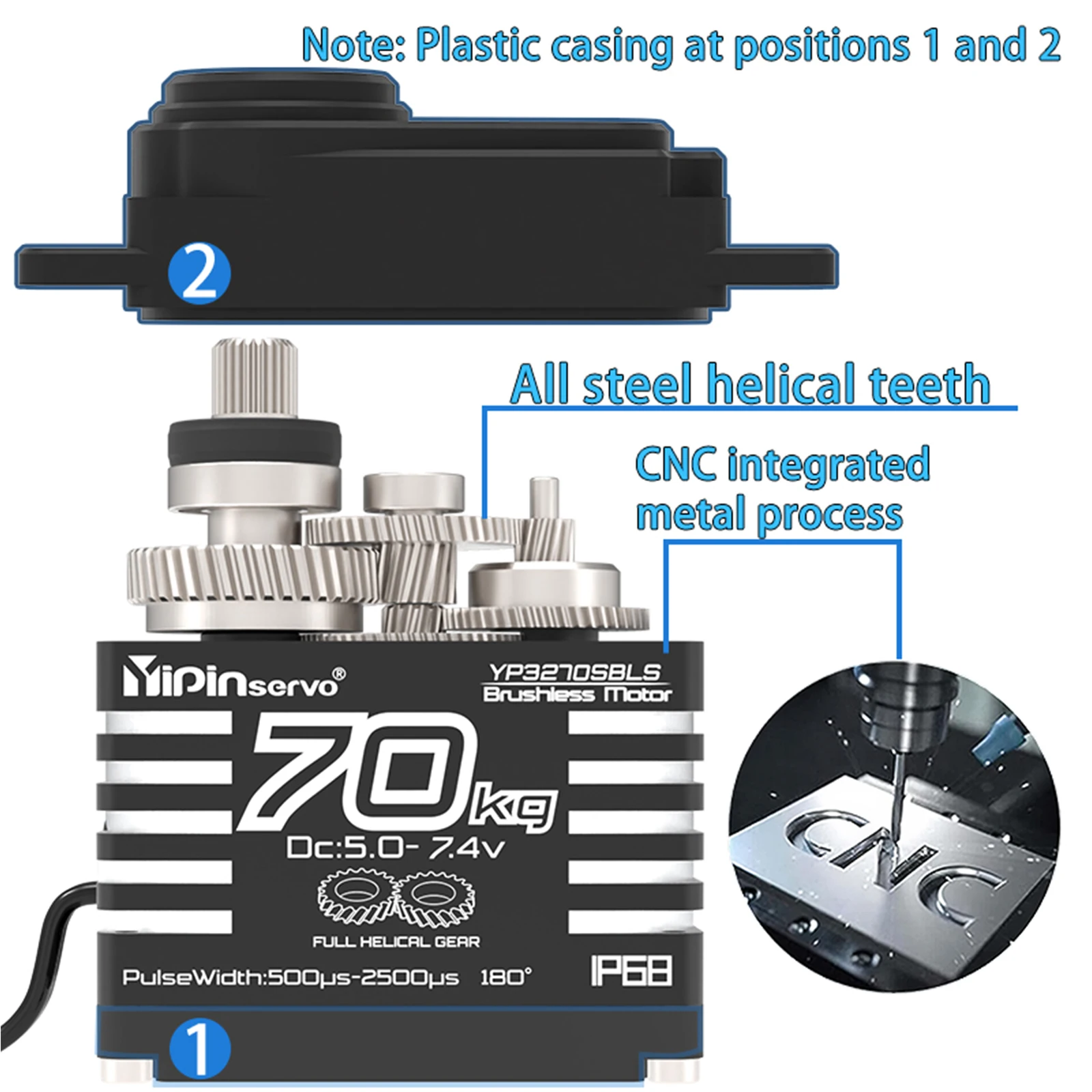

- Metal Gear
-Semi-metal case
-Brushless
-IP68

Packing list:
1 X 70kg Servo (180°/270°)
1 X Servo accessories
