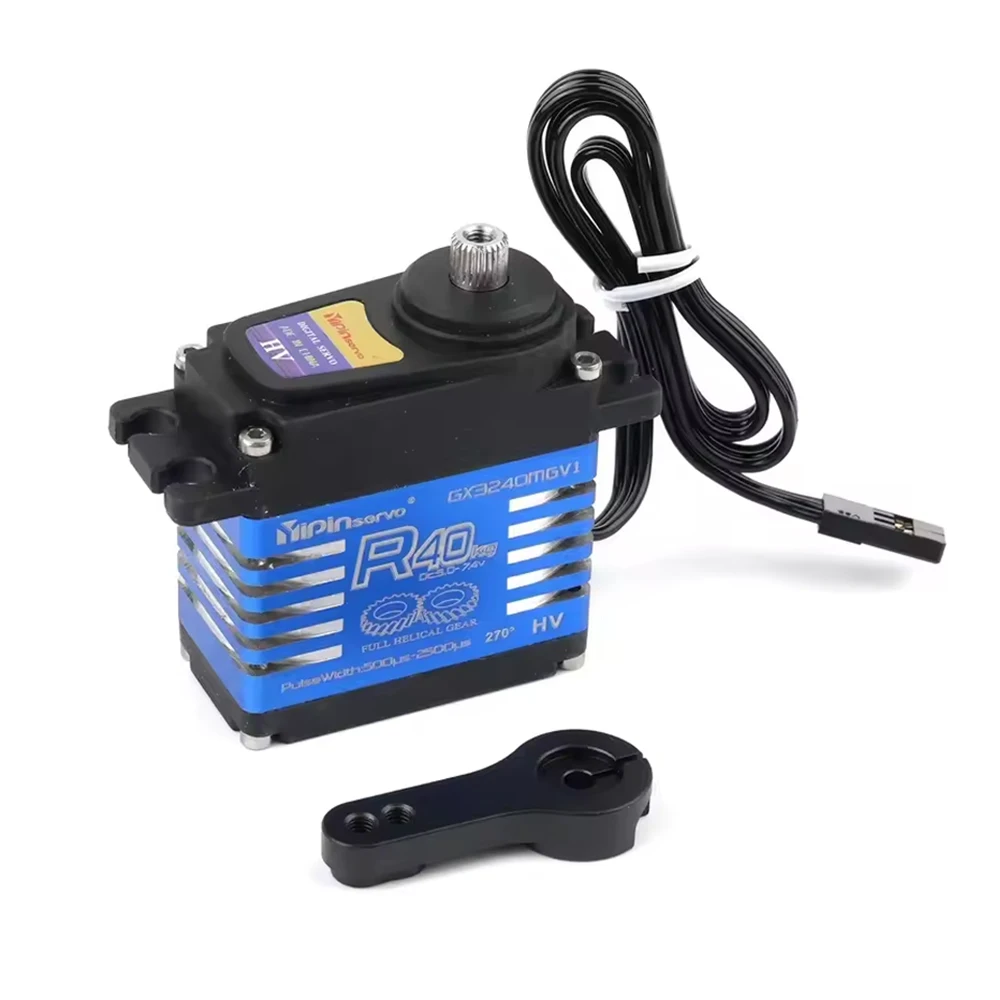

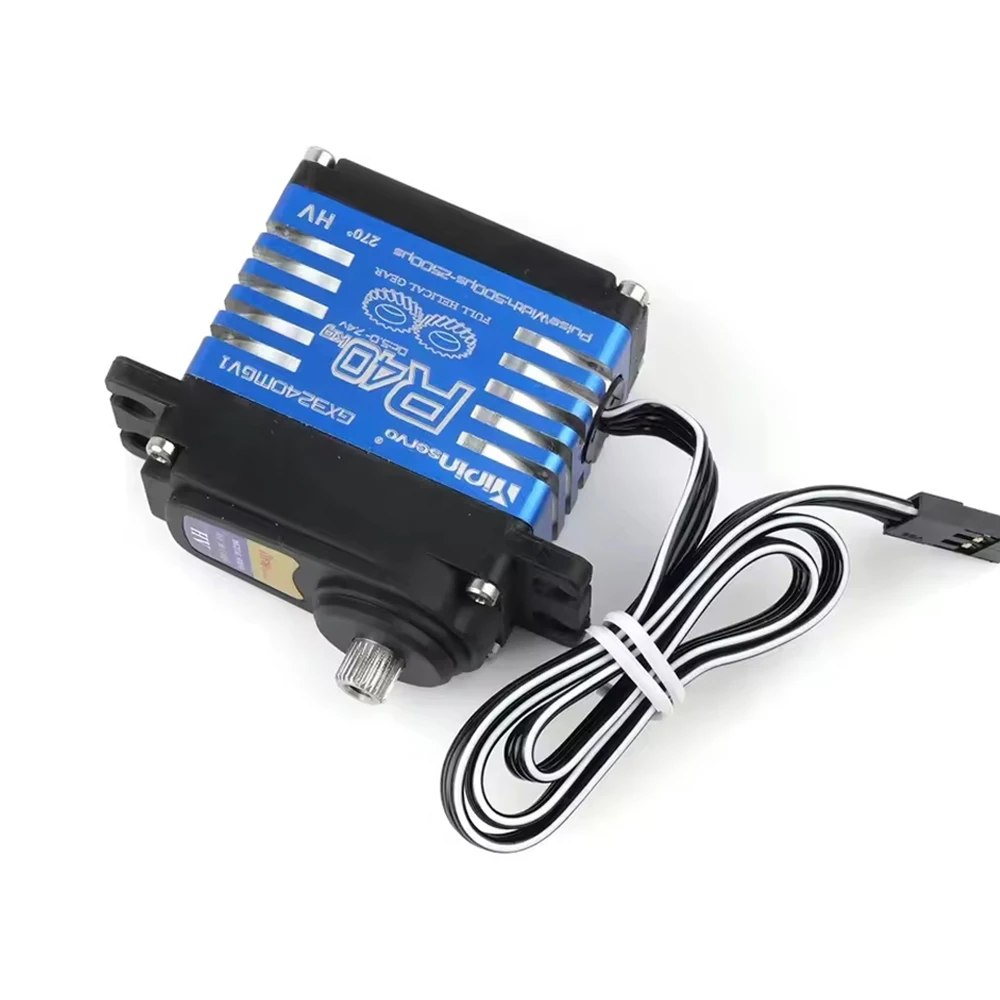

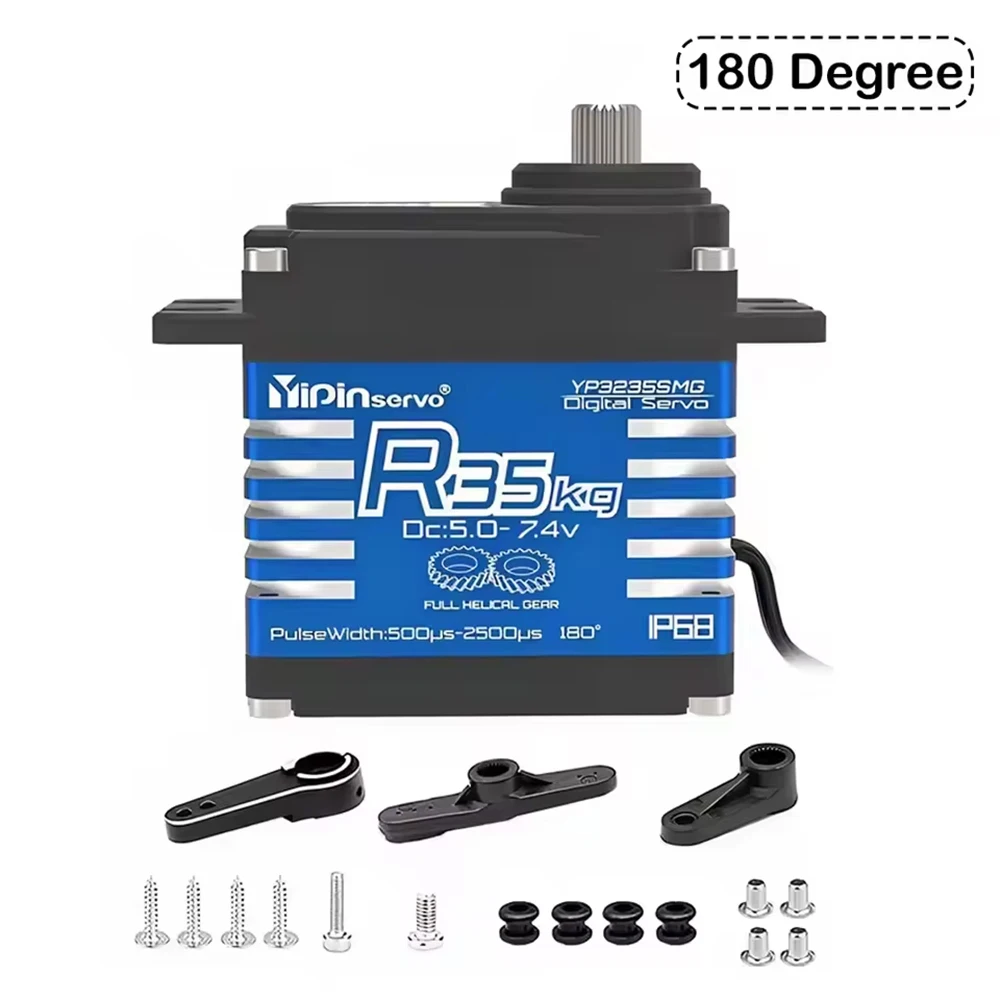

40KG 35KG Digital Servos Motor All Steel Helical Gear Waterproof RC Servo for 1/8 1/10 RC Trucks & Competition Robots

Net weight of product: 89g

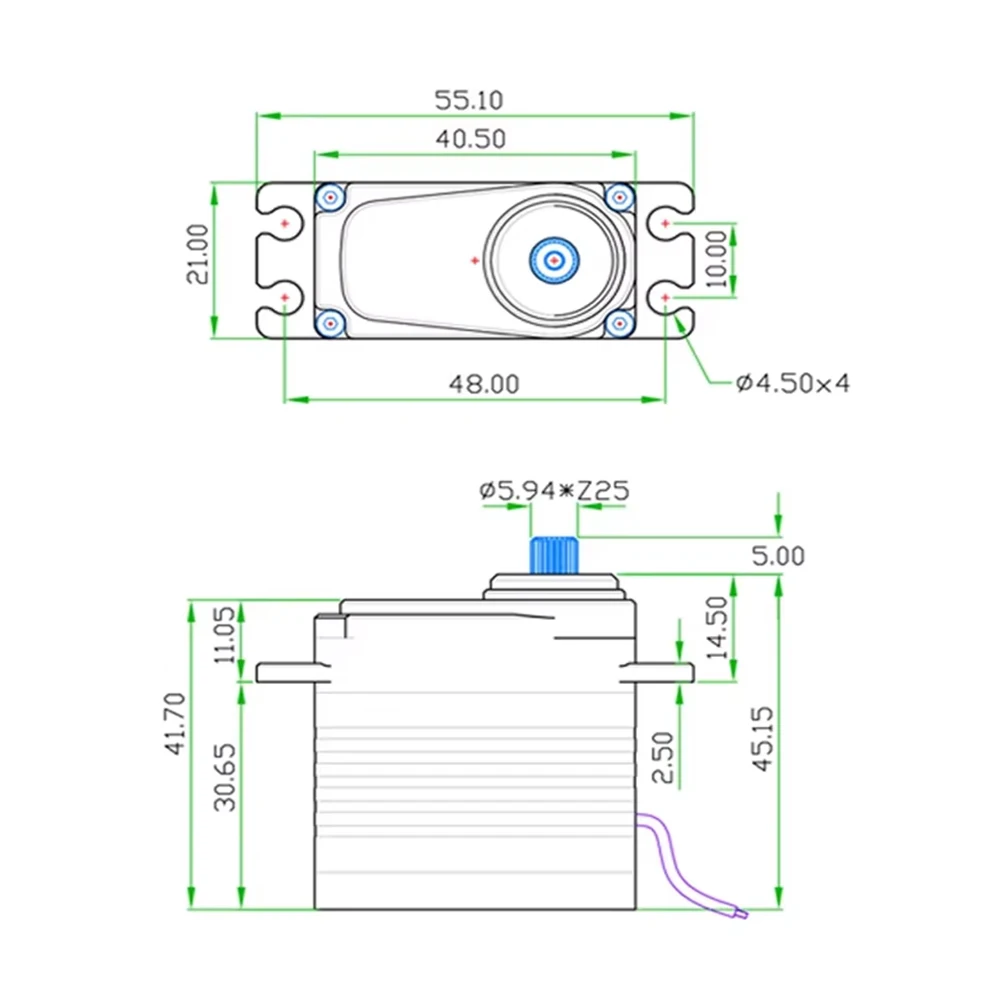

Product size: 4.05*2.1*4.17cm

Operating Voltage: 6.0-8.4V DC

Standby Current: ≤20mA

Stall Current 6.0V: ≤3.8A

Stall Current 7.4V: ≤4.0A

Stall Current 8.4V: ≤4.5A

Rated Torque: 7.4V: ≥4kg.cm

Rated Torque: 7.4V: ≥5kg.cm

Rated Torque: 8.4V: ≥6kg.cm

No Load Speed 6.0V: ≤0.15sec/60°

No Load Speed 7.4V: ≤0.14sec/60°

No Load Speed 8.4V: ≤0.13sec/60°

Max. Torque 6.0V: ≥ 35 kgf.cm

Max. Torque 7.4V: ≥ 40 kgf.cm

Max. Torque 8.4V: ≥ 45 kgf.cm

Rotating Direction: ccw(500-2500us)

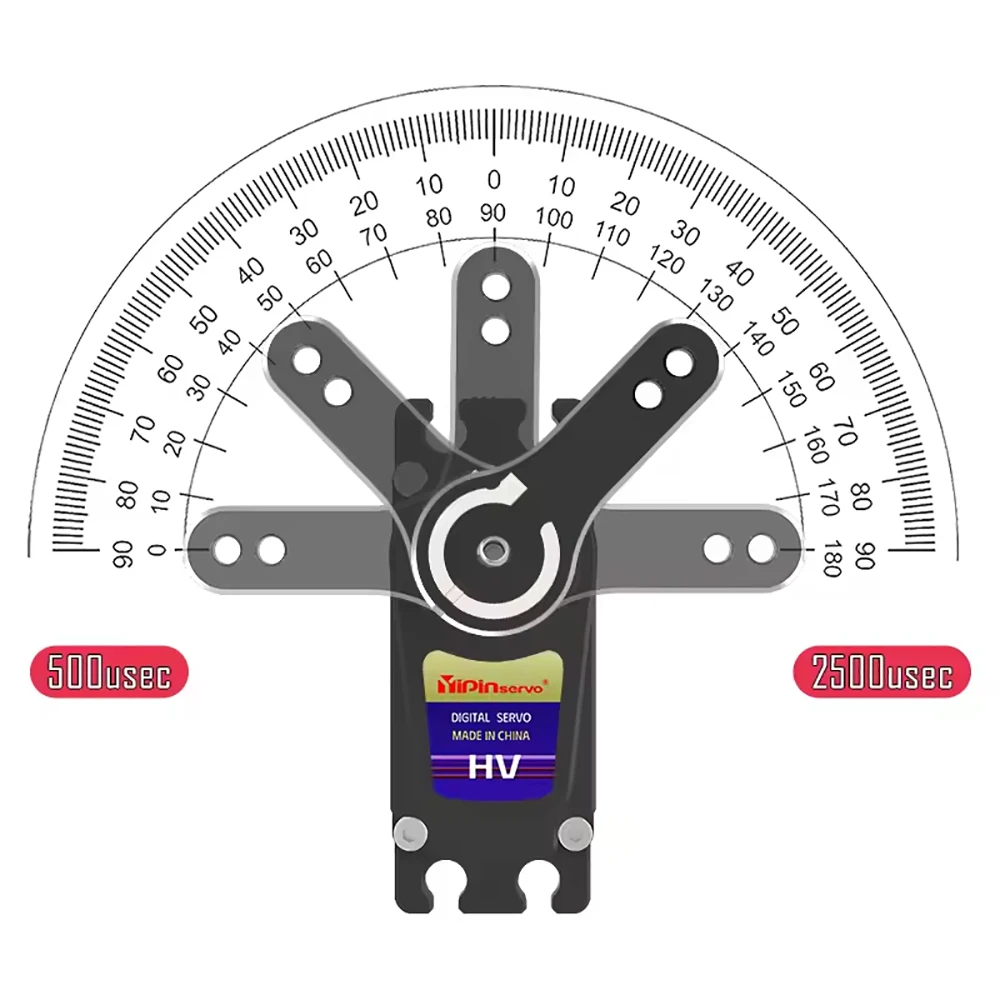

Operating Travel Angle: 180±10°(500~2500us)

Max. Operating Travel Angle: 358°±10°(500~250Ous)

Neutral Position: 1500us

Reduction ratio: 1:299

Dead Band Width: ≤4us

operating Temperature Range: '-20℃~+80C

waterproof rating: IP68

Features:

- Metal Gear

- Semi-metal case

- Iron core motor

- IP68

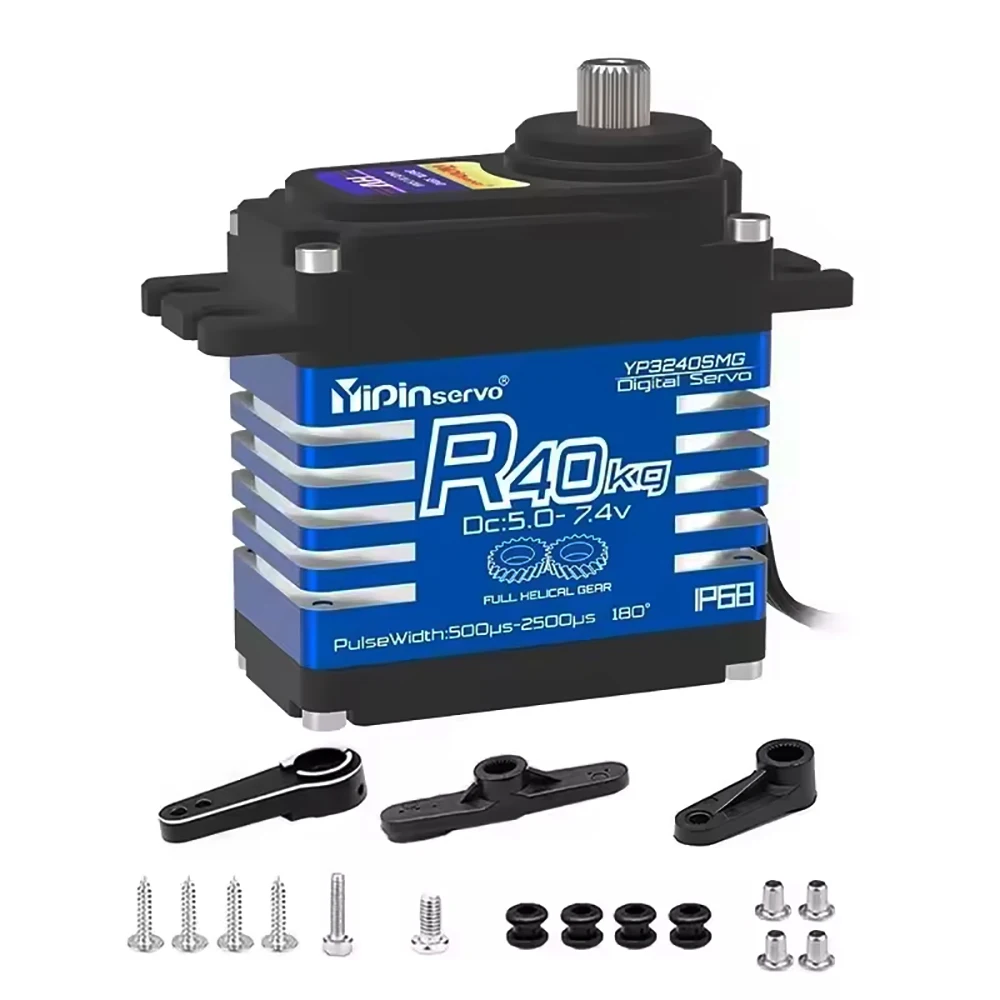

packing list:

Servo *1

Servo accessories *1

color box packing
