HotRC CT-10B 10CH Transmitter Color Screen Metal/Plastic Handwheel Remote Control 4/6/8/10CH Gyro Receiver for RC Car Truck Boat

HotRC CT-10B 10CH Transmitter Color Screen Metal/Plastic Handwheel Remote Control 4/6/8/10CH Gyro Receiver for RC Car Truck Boat

Features:

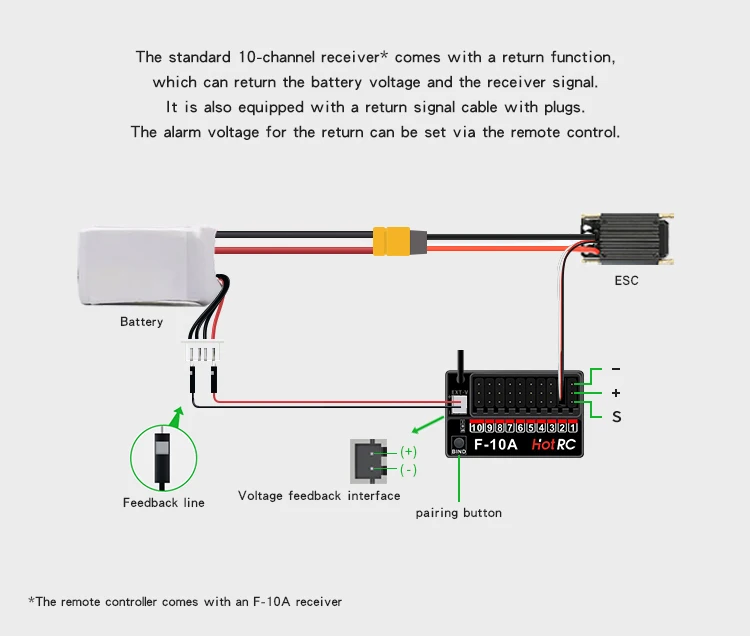

1.F-04AT,F-06A,F-06AT,F-08A, F-01A,F-01AT,F-10A receiver with voltage return function ;
2. F-04AT, F-06AT, F-08AT, F-01AT receivers have built-in gyroscopes to ensure that the model moves in a straight line and prevent tail swinging and rollover. The gyroscope function does not support aircraft models ;
3. F-04A, F-04AT, F-06A, F-06AT add a level channel ;
4. F-01A, F-01AT receivers are light group receivers, the receivers integrate light group functions, with 7 rows of LED interfaces ;
5. The receiver receiving distance is 300-800m, about 300m on the ground and about 800m in the air. The actual use will vary according to different environments ;
6.Only use FHSS frequency hopping algorithm, multiple people can operate in the same place at the same time without interference, and the ground remote control distance is stable 300 meters;
Speicfication:
Brand Name: HotRC

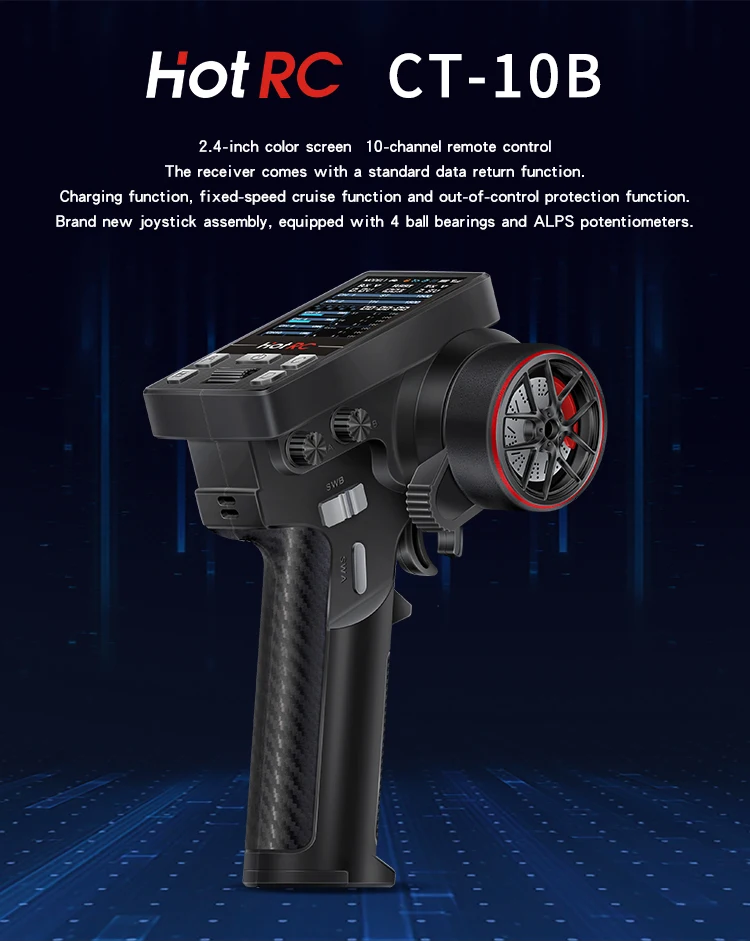

Product model:CT-10B Transmitter
Suitable type:Model car/ship/tank
Modulation mode:GFSK
Net weight:190g
Remote control distance:About 300m
Transmit power:≈160MA-300MA
Number of channels:10ch
Receiver channel:10ch
Spread Spectrum:FHSS
Response speed:PWM:<20ms
Frequency range:2.4GHZ ISM
Receiver sensitivity:-96 dbm
Receiver power supply:DC 3.5V-9V
Transmitterpower supply:DC 3.7V-9V
Standard receiver:F-10A
Battery: 18650 (not included)
Product model:F-06A
Number of channels: 6
Wireless frequency: 2.4GHz
Input voltage: DC4V-9V
Working current: 35mA
Return voltage: 0-27V [300m]
Return information: signal/voltage [300m]
Remote control distance: 300-800m*
Gyroscope: No
Appearance size: 38*24*13mm
Product weight: 7.4g
Applicable types: car/ship/aircraft/tank
Product model:F-06AT
Number of channels: 6
Wireless frequency: 2.4GHz
Input voltage: DC4V-9V
Working current: 39mA
Return voltage: 0-27V [300m]
Return information: signal/voltage [300m]
Remote control distance: 300-800m*
Gyroscope: Yes [Not supported for aircraft]
Appearance size: 38*24*13mm
Product weight: 7.4g
Applicable types: car/ship/aircraft/tank
Product model:F-08A
Number of channels: 8
Wireless frequency: 2.4GHz
Input voltage: DC4V-9V
Working current: 35mA
Return voltage: 0-27V [300m]
Return information: signal/voltage [300m]
Remote control distance: 300-800m*
Gyroscope: No
Appearance size: 43*24*13mm
Product weight: 9g
Applicable types: car/ship/aircraft/tank
Product model:F-08AT
Number of channels: 8
Wireless frequency: 2.4GHz
Input voltage: DC4V-9V
Working current: 39mA
Return voltage: 0-27V [300m]
Return information: signal/voltage [300m]
Remote control distance: 300-800m*
Gyroscope: Yes [Not supported for aircraft]
Appearance size: 43*24*13mm
Product weight: 9g
Applicable types: car/ship/aircraft/tank
Product model:F-01A
Number of channels: 8
Wireless frequency: 2.4GHz
Input voltage: DC4V-9V
Working current: 35mA
Return voltage: 0-27V [300m]
Return information: signal/voltage [300m]
Remote control distance: 300-800m*
Gyroscope: No [Not supported for aircraft]
Appearance size: 38*25*13mm
Product weight: 10g
Applicable types: car/ship/aircraft/tank
Product model:F-01AT
Number of channels: 8
Wireless frequency: 2.4GHz
Input voltage: DC4V-9V
Working current: 39mA
Return voltage: 0-27V [300m]
Return information: signal/voltage [300m]
Remote control distance: 300-800m*
Gyroscope: Yes [Not supported for aircraft]
Appearance size: 38*25*13mm
Product weight: 10g
Applicable types: car/ship/aircraft/tank
Product model:F-04BT
Number of channels: 4
Wireless frequency: 2.4GHz
Input voltage: DC4V-9V
Working current: 25mA
Return voltage: None
Return information: signal [50m]
Remote control distance: 100-300m*
Gyroscope: Yes [Not supported for aircraft]
Appearance size: 22*15*10mm
Product weight: 5g
Applicable types: car/ship/aircraft/tank
Product model:F-10A
Number of channels: 10
Wireless frequency: 2.4GHz
Input voltage: DC4V-9V
Working current: 35mA
Return voltage: 0-27V [300m]
Return information: signal/voltage [300m]
Remote control distance: 300-800m*
Gyroscope: No
Appearance size: 36*23*13mm
Product weight: 8.5g
Applicable types: car/ship/aircraft/tank
