AGFRC A73BHLW V2 40KG 0.10Sec Superb Torque Brushless Waterproof Digital Servo For RC Models

AGFRC A73BHLW V2 HV 40KG High Torque Brushless Waterproof 180 Degree Digital Standard RC Steering Servo Part For 1/10 RC Rock Crawler Buggy Car Boat Truck Airplane Helicopter Description

If you want to choose a cost-effective programmable standard servo that can meet most of your requirements, the A73BHLW V2 will be a good choice. It is suitable for a variety of harsh environments such as snow, rain, wet jungle, seaside, sand dunes, and mud. While retaining the advantages of the original 40KG high torque and high voltage 8.4V, the V2 version has improved the following performance:

* Motor----Enhanced high-efficiency and long-life brushless motor, upgraded to the same powerful motor as A81 series brushless motor servo.

* Gear----High-precision and strong reinforced steel gears are used to effectively protect the internal structure of the servo.

* Gear Shaft----The gear shaft is thickened and strengthened to 2.0mm, which can resist the impact when the model is running, and the anti-collision performance is improved.

With these supports, the servos run more reliably and smoothly. In addition, the price range of the V2 version is still within the range that most customers can accept without much change, and it is a practical budget servo.

Note: Currently, USB programming cards are only applicable to Windows XP/Windows Vista/Windows 7/Windows 8 /windows10 ( 32/64bit) system.

Feature

High Performance Standard Digital Servo

Fast Cooling Aluminum Case

Reinforced Steel Gear And Pin Shaft

High Strength Dual Ball Bearings

Fully Waterproof IP67

High Precision Magnetic Angular Position Sensor

High Quality & High Efficiency & Longer Lifetime Brusheless Motor

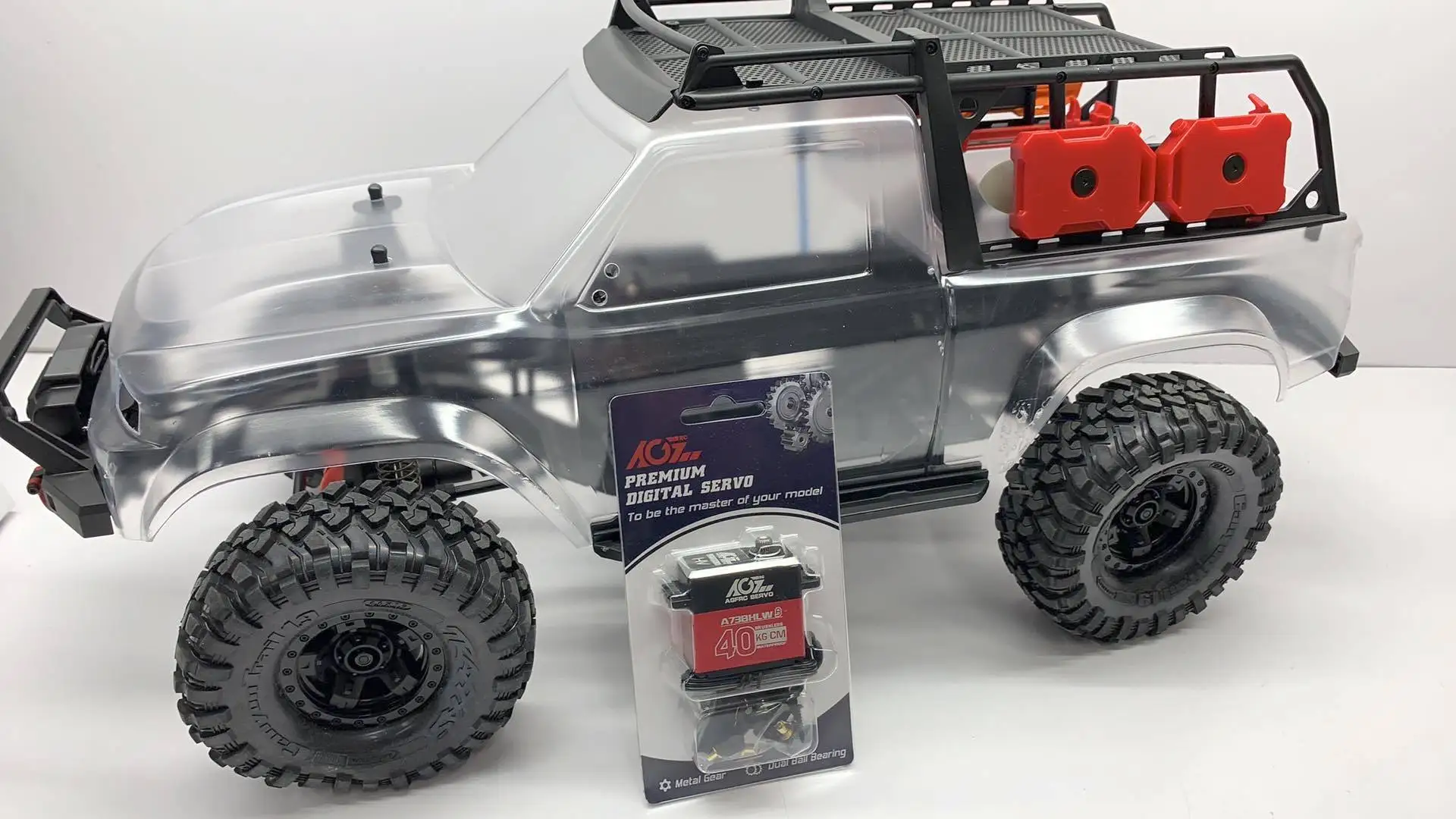

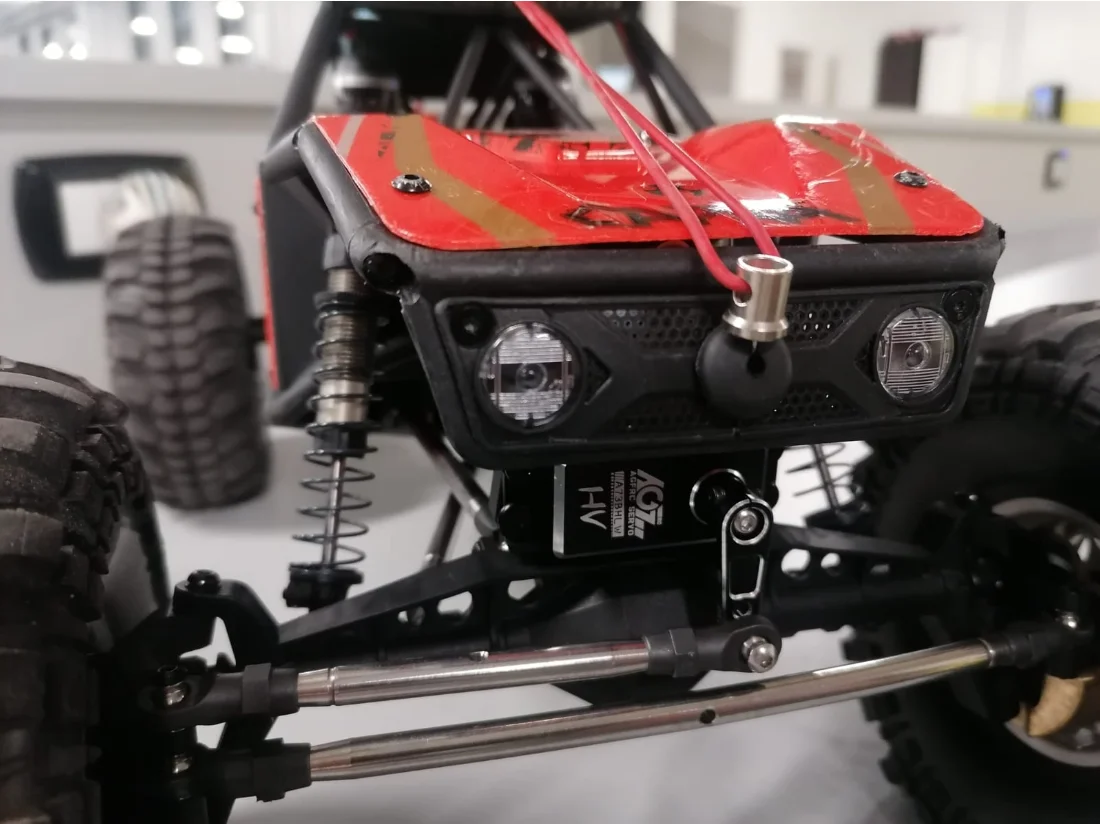

ideal for 1/10 on road, off road, RC crawlers , monster trucks, buggies, RC boats and other vehicles that require high level waterproof.

Upgrade on 1/10 Traxxas MAXX 4S Car: https://www.youtube.com/watch?v=FFz_PbTY6S4

Drive Test on Traxxas MAXX 4S Car: https://www.youtube.com/watch?v=54yeRWfIOe0&t=337s

Specification

A73BHLW V2

Operating Voltage: 4.8-8.4V

Operating speed: 0.123sec/60° @ 6.0V

Operating speed: 0.110sec/60° @ 7.4V

Operating speed: 0.100sec/60° @ 8.4V

Stall Torque: 29 kg-cm (403oz-in) @ 6.0V

Stall Torque: 35 kg-cm (486 oz-in) @ 7.4V

Stall Torque: 40 kg-cm (556 oz-in) @ 8.4V

Gear: Steel

Motor: Brushless

Size: 40*20*37.5mm (1.57 x 0.78 x 1.47 in)

Weight: 73.5g

Connector Wire: JR 300 mm /22AWG
