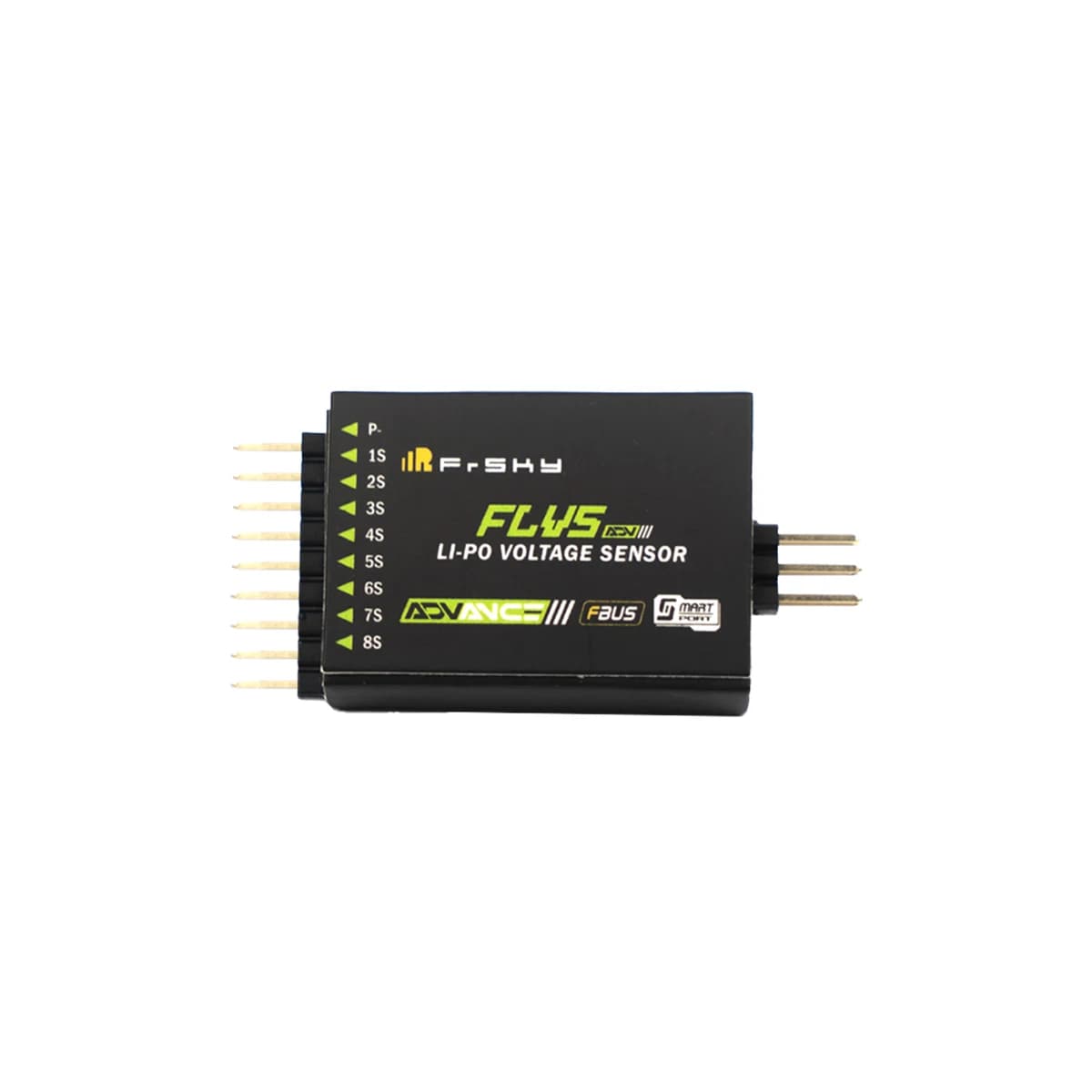

FrSky FLVS ADV Voltage Sensor FLVSS Upgrade for Remote Control Equipment

FrSky ADVANCE (ADV) series has comprehensive sensor types and enhanced the performance and capability of the original sensor line, all ADV sensors fully support FBUS protocol and they are also S.Port compatible. With the FBUS protocol, the ADV sensors can be seamlessly paired with the FBUS capable receiver and further simplifying the builds setup.

The FLVS ADV voltage sensor can measure the voltage range for 2S to 8S Li-Po batteries at 0.01V voltage resolution with an OLED display screen. This is an obvious choice for accurate measurement of Li-Po batteries with big capacity.

Specifications:

Dimension: 52*23.5*9.5mm (L*W*H)

Weight: 7.5g( with screen)/5.3g(without screen)

Measurement range: 2S~8S

Power consumption (S.Port): 10mA@5V

Power consumption (battery): 10mA

Voltage detection precision: 0.02V

Operating temperature: -20~60℃

Compatible with FBUS/S.Port protocol

with screen type:

128*64 OLED Screen (with screen)

Voltage display resolution: 0.01V (with screen)

Package Included:

1x FrSky FLVS ADV voltage sensor
