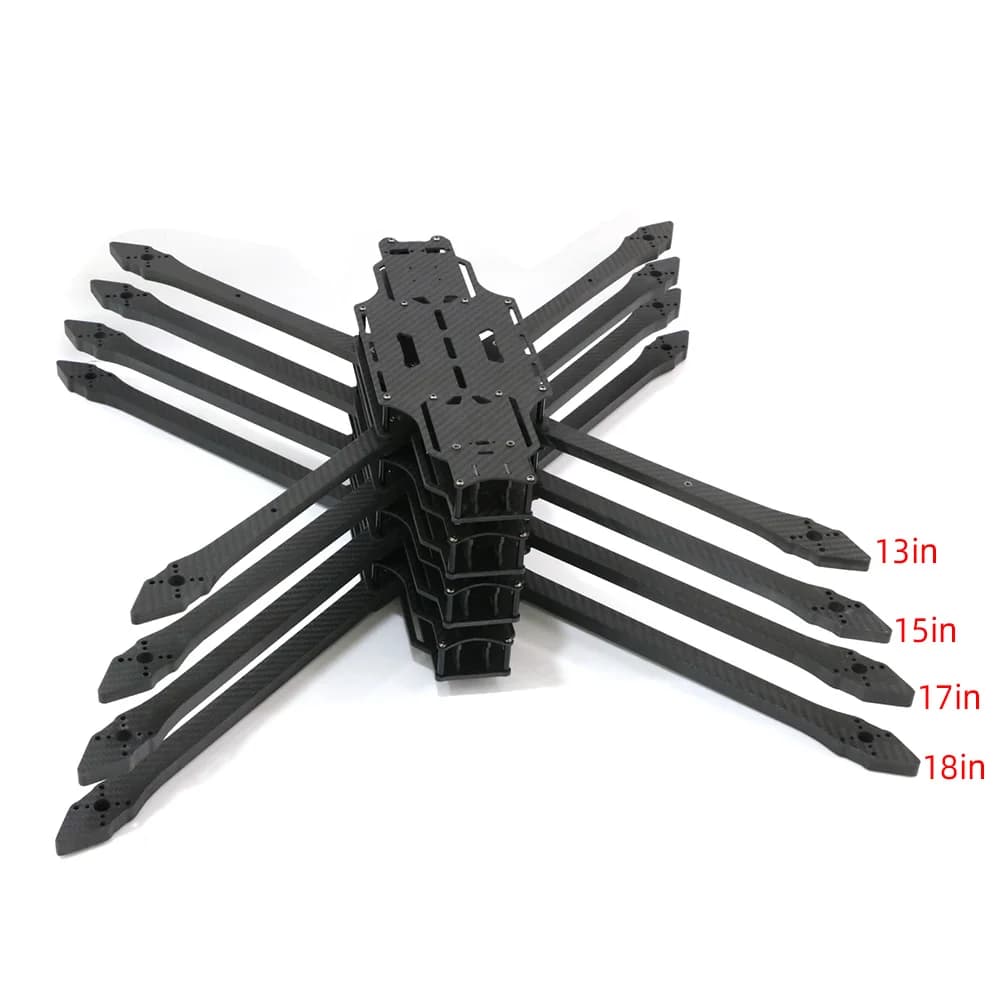

Mark4 V2 V3 Mark 4 13 Inch 15 Inch 17 Inch 18 Inch 3K Full Carbon Fiber TrueX Frame for RC Quadcopter FPV Freestyle Long Range

Mark4 V3 Pro 13Inch 570mm Carbon Fiber Frame:

Wheelbase: 570mm

Upper plate Thickness: 2.0mm

Bottom plate Thickness: 3.0mm

Thickness of lower fixed plate: 3.0mm

Thickness of camera side plate: 2.5mm

Front lip plate Thickness: 2.5mm

Rear lip plate Thickness: 2.5mm

Surrounding reinforcement Thickness: 3.0mm

Arm Thickness: 8.0mm

Weight: 560g

Camera mounting spacing:19MM

Flight control mounting hole spacing: 20*20MM / 30.5*30.5MM

VTX mounting hole spacing: 20*20MM / 30.5*30.5MM

Motor mounting hole spacing: 21*21MM

Motor screw hole diameter: 4MM (please make sure your motor hole is 4mm)

Can be adapted to 13inch paddle, 4312 , A4320motor



Mark4 V3 Pro 15Inch 680mm Carbon Fiber Frame:



Wheelbase: 680mm

Upper plate Thickness: 2.0mm

Bottom plate Thickness: 3.0mm

Thickness of lower fixed plate: 3.0mm

Thickness of camera side plate: 2.5mm

Front lip plate Thickness: 2.5mm

Rear lip plate Thickness: 2.5mm

Surrounding reinforcement Thickness: 3.0mm

Arm Thickness: 8.0mm

Weight: 590g

Camera mounting spacing:19MM

Flight control mounting hole spacing: 20*20MM / 30.5*30.5MM

VTX mounting hole spacing: 20*20MM / 30.5*30.5MM

Motor mounting hole spacing: 21*21MM

Motor screw hole diameter: 4MM (please make sure your motor hole is 4mm)

Can be adapted to 15inch paddle, 4312, A4320motor
