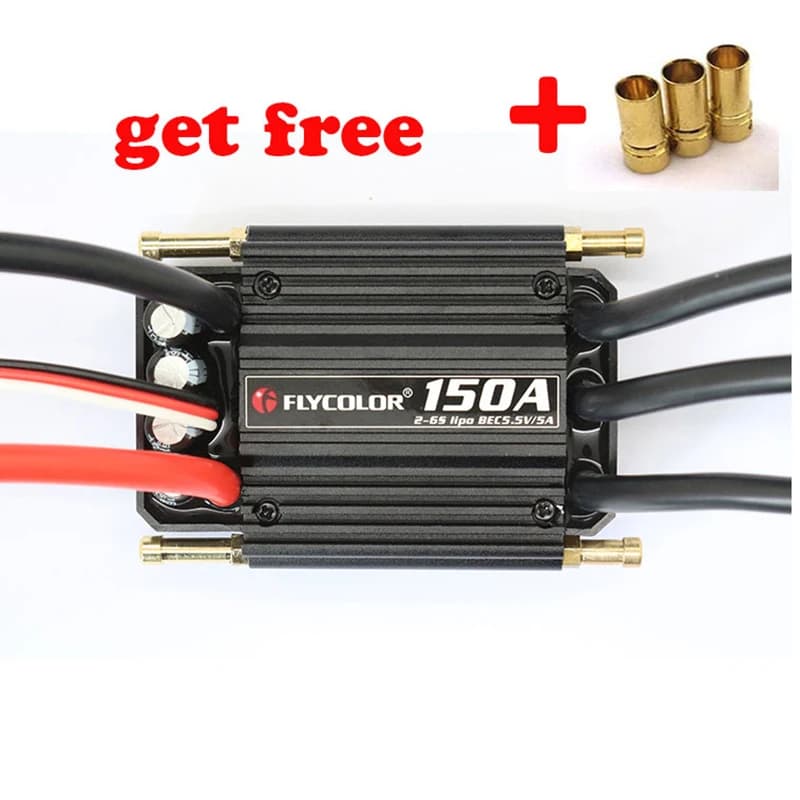

Flycolor ESC Speed Controller 150A 120A 90A 70A 50A Brushless ESC Stand 2-6S Lipo BEC 5.5V/5A for RC Boat F21267/71F

Speed Control Flycolor 150A 120A 90A 70A 50A Brushless ESC Stand 2-6S Lipo BEC 5.5V/5A for RC Boat F21267/71F

!!!!!!!!: buy ESC get free plug

There are five ESC Models: A-SW050006 (50A), A-SW070006 (70A), A-SW090006 (90A), A-SW120006 (120A), A-SW150006 (150A). Please, choose the one you want.

great application for the RC boat, design of the special structure with a condenser function to prevent damage components and protection against corrosion.

Professional waterproof technology, excellent performance after a long time in the water.

Driving Efficiency Optimization technology with BEC built in 5A through 8A, better performance, then BEC Asynchronous rectifier.

Powerful powerful, 5 main functional options for selection, meeting level difference requirement.

Easy to operate, same throttle adjustment method for both one-way and bidirectional.

01. main features

Use powerful and high performance MCU. Users can configure the functions as their demand, fully embody Intelligent features. Unique circuit design, strong anti-interference.

water resistant design (Note: if there is water at ESC, please dry the water in the connectors).

Start mode can be configured. the quick accelerator response, and has very good linear speed control. Compatible with boat scale and racing boat.

Low voltage protection threshold value can be adjusted.

Built-in BEC switch, large power load with servo, low power dissipation.

multiple protection functions: abnormal voltage protection / low voltage cutout protection, excess thermal protection and protection against accelerator signal loss, making the ESC more reliable.

High-performance safety performance: As long as the throttle lever is, the engine does not start immediately.

on thermal protection: when ESC temperature is above 100 degrees Fahrenheit, output power is automatically reduced. When it is less than 80 degrees Fahrenheit output power will return to normal.menu adjustment cycle, simple operation. support adjustment with program box and transmitter.

2. Specification

3. Wiring Diagrams

Note: We strongly advise the use of battery connections that do not allow reverse polarity, or ESC will be damaged. Pls disconnect the battery and ESC, if not use for a long time

4. Operation instruction
