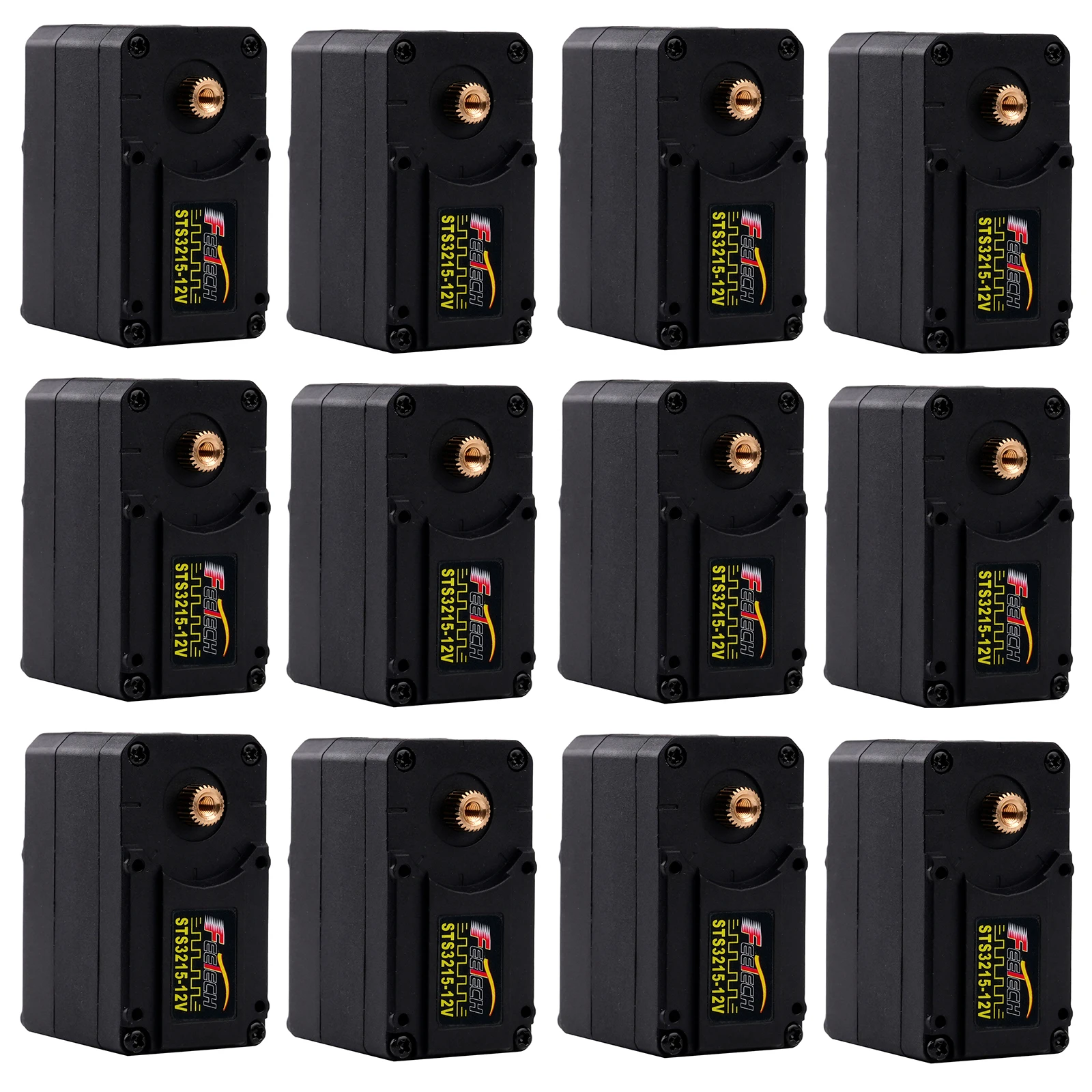

12PCS STS3215 12V 30KG High Torque Smart RC Servo Feetech TTL Serial Bus Robot Servo For SO-ARM100 Teaching Robotic Arm Project

12V 30KG metal gear magnetic encoding TTL serial robot servo

Feature:

*Heavy Load Capacity: Stall torque is up to 30Kg.cm at 12V.

*Wider Rotation Angle: Controllable angle range from 0 to 360 degrees, high torque and high precision gear make small vibration.

*Reliable Quality: Full steel gear with higher durability. Higher voltage saves more current and improves robot endurance. You can use it longer.

*Wide Applications: Attaching other brackets or servos, you can DIY an advanced robot (bipedal robot, spider robot, etc.), SO-ARM100 Teaching robot arm, PTZ cameras, wheel-drives on robots, and other mechanical projects that require more torque.

* If you have custom requirements and large quantities, you can contact the merchant or send an email: [email protected].

Servo Parameter:

Weight: 55g

Size: 45.2X24.7X35mm

Gear: metal gear

Motor: core motor

Gear ratio: 1/345

Horn type: 25T/OD5.9mm

Connector and cable: 15cm with 5264-3p

Operating temperature: -20℃～60℃

Angle senor: 12Bits magnetic coding

Opearing voltage: 6-14V

No load speed: 0.22s/60°/12V

No load current: 200mA

Stall torque: 30kg.cm/12V

Stall current: 2.7A

Idle current: 30mA

Kt constant: 10kg.cm/A

Running angle: 360°（0-4096）

Neutral position: 180°(2048)

Electronic protection: Over hot/voltage/current/load protection

Feedback: Load/ position/ voltage/ current/ speed/ temperature feedback

Package :
