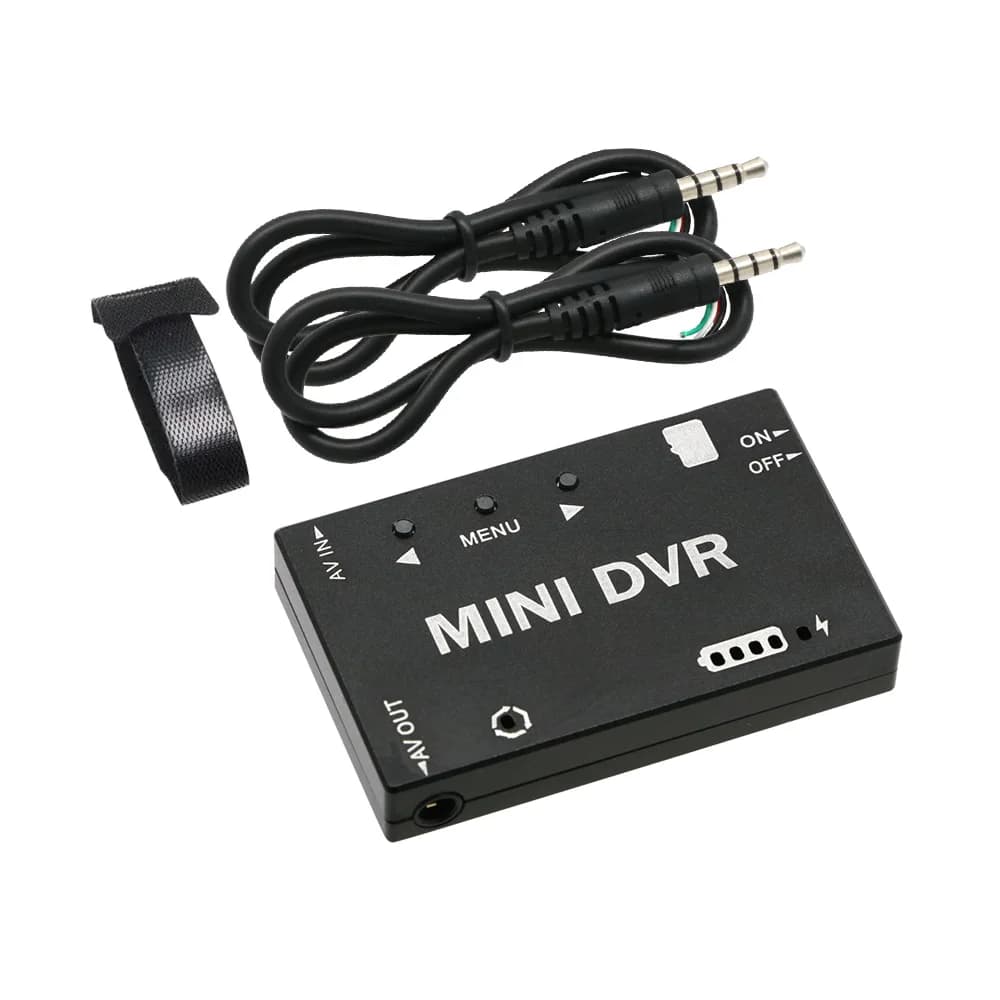

FPV Recorder Mini FPV DVR Module NTSC/PAL Switchable Built-in Battery Video Audio FPV Recorder for RC Models Racing FPV Drone

Item name: Mini FPV DVR
System startup time: 3 seconds
Video input format: NTSC/PAL
Video input impedance: 75? Typ.
Video compression format: MJPEG
Record file resolution: VGA (640 * 480) / D1 (720 * 480) / HD (1280 * 720) selectable
Record file format: AVI
Recording sound: ON/OFF selectable
Cycle recording time: 10min/20min/30min
Frame rate: 30 Frames
Memory card: TF card, support up to 32GB (C10 recommended)
Menu language: 11 language choices
Optical frequency: 50Hz/60Hz can be selected
Video playback: CVBS output (connected to the monitor)
Audio input interface: 3.5mm AV jack
Audio output interface: 3.5mm AV jack
Charging interface: micro USB interface
Charging voltage: 5V DC
Charging current: 500mA Max
Battery (non-removable): Built-in 3.7V/400 mAh lithium ion polymer battery
Battery life: Each working load is 1.5 to 2 hours of working time.
Operating temperature: -10~60C
Operating humidity: 85% RH
Dimension: 53mm * 33mm * 9mm
Weight: 24.5g
Menu language: English, French, German, Italian, Spanish, Portuguese, Traditional Chinese, Simplified Chinese, Japanese, Russian, Korean.
Features:
* Small size and light weight;
* Low power consumption, operating current 200 mA;
* Aluminum alloy casing (CNC processing);
* Support 32GB TF card (10 level recommended);
* Built-in 3.7V/400 mAh lithium ion polymer battery;
* Universal USB charging interface;
* High-precision 4-level battery power indicator;
* Multi-language menu, 11 menu language choices;
* CVBS signal input (built-in video decoder);
* Support playback and AV signal output (built-in video encoder)
Package included:
1* FPV minimum DVR
2* AV cable
1* magic tape
