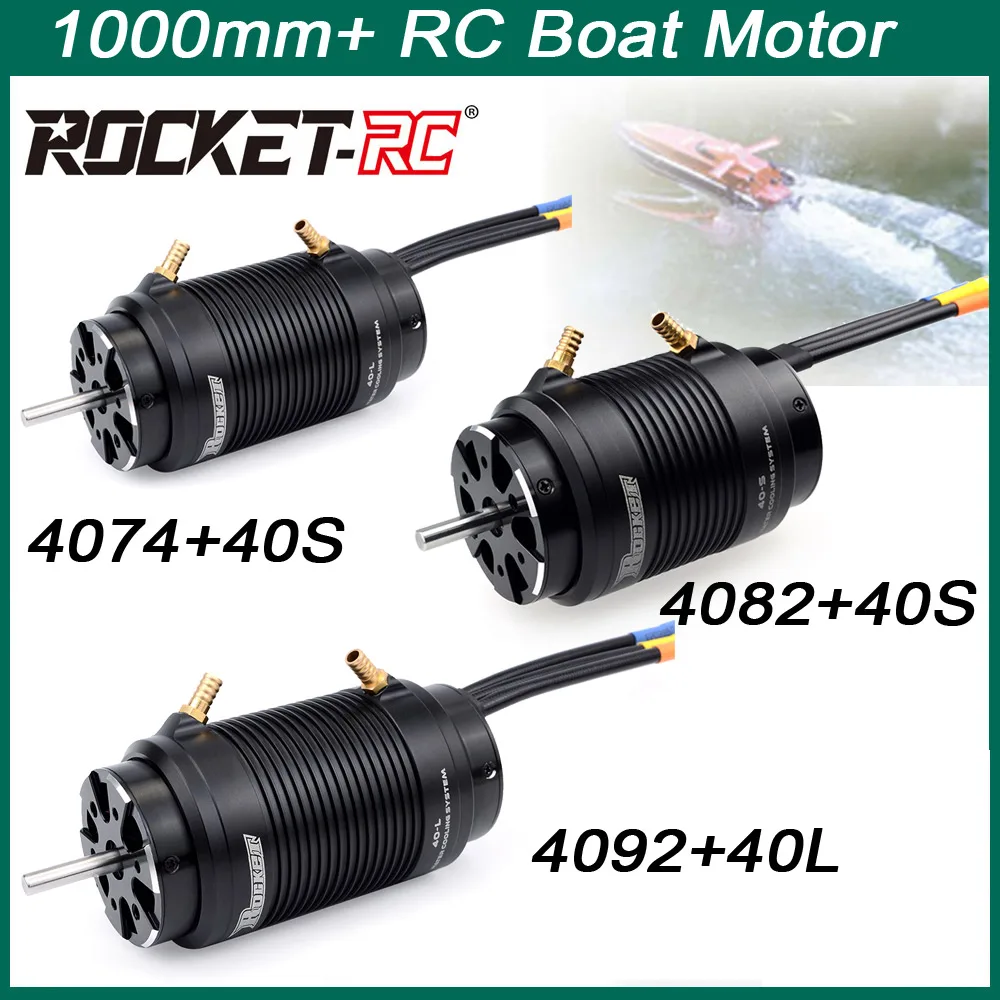

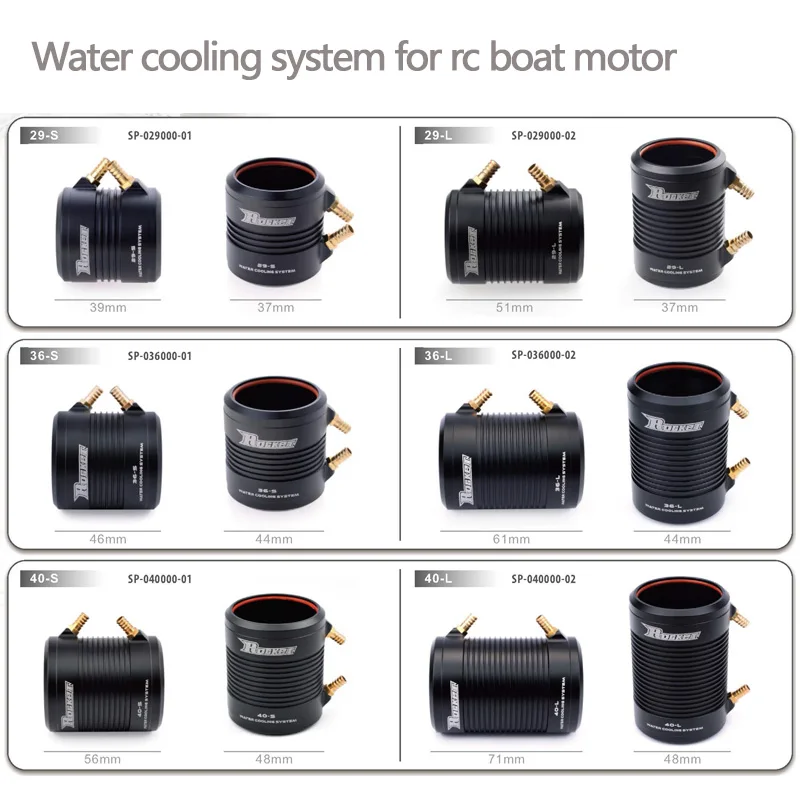

Rocket 4074 4082 4092 1900KV 1600KV 1520KV 1250KV 2250KV 1700KV Brushless Motor Water Cooling Jacket for 1000mm(or Above) RC Car

Rocket RC 4074 4082 4092 1900KV 1600KV 1520KV 1250KV 2250KV 2000KV 1700KV Brushless Motor Water Cooling Jacket for Traxxas M41 Catamaran Spartan 1000mm(or Above) RC Boat Car

The original Rocket 4092 4 poles sensorless brushless motor is designed to provide both quality and performance at an affordable price. It is built from high quality aluminum alloy which is produced from the latest CNC milling machines, and is designed with high power and rotation speed to provide longer run time for 600-800mm RC boat.

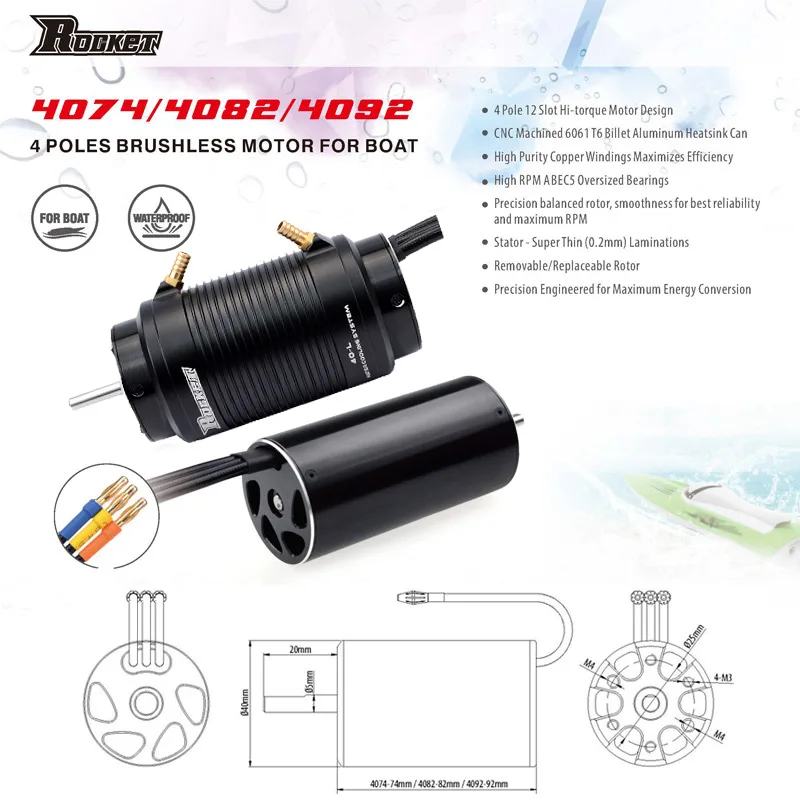

Features:

4 Pole 12 slot hi-torque motor design

CNC machined 6061 T6 billet aluminum heatsink can

High purity copper windings maximizes efficiency

High RPM ABEC5 oversized bearings

Precision balanced rotor, smoothness for best reliability and maximum RPM

Stator-super thin (0.2mm) laminations

Removable/replaceable rotor

Precision engineered for maximum energy conversion

4092 Specifications:

Brand name: Rocket

Item No.: 4092

KV(RPM/Volt): 1520KV/1250KV/1100KV Optional

RPM: 50000

Watt: 4200W

No load current: 2.6A

Max voltage: 37V

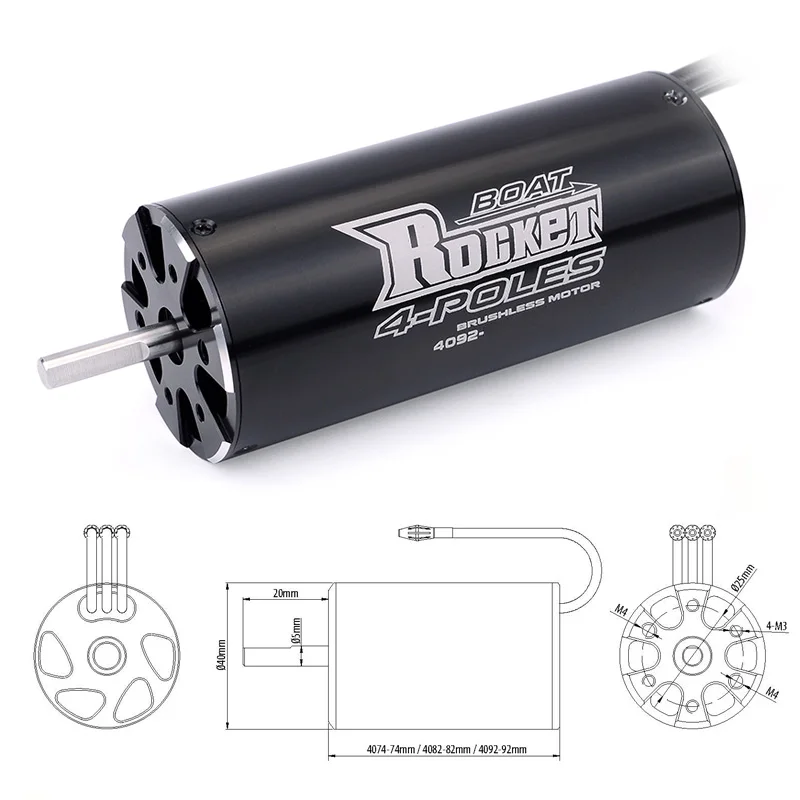

Diameter: 40mm

Length: 92mm

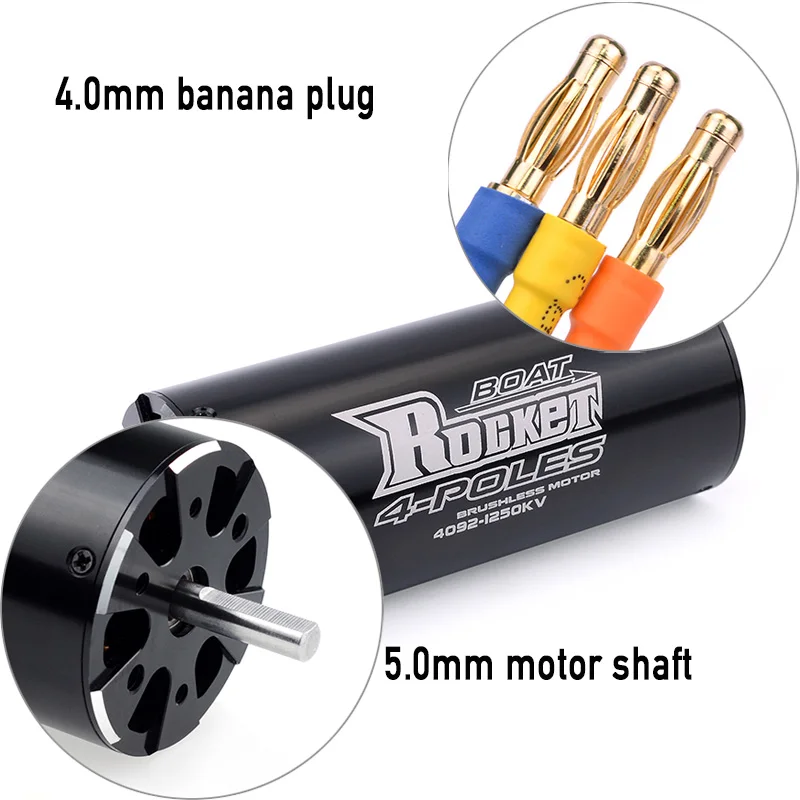

Shaft diameter: 5mm

Connector: 4mm golden banana connector

Weight: 390g

4082 Specifications:

Brand name: Rocket

Item No.: 4082

KV(RPM/Volt): 1900KV/1600KV Optional

RPM: 50000

Watt: 3400W

No load current: 2.8A

Max voltage: 30V

Diameter: 40mm

Length: 82mm

Shaft diameter: 5mm

Connector: 4mm golden banana connector

Weight: 380g

4074 Specifications:

Brand name: Rocket

Item No.: 4074

KV(RPM/Volt): 2250KV/2000K/1700KV Optional

RPM: 60000

Watt: 2800W

No load current: 3.2A

Max voltage: 26V

Diameter: 40mm

Length: 74mm

Shaft diameter: 5mm

Connector: 4mm golden banana connector

Weight: 354g

Package List:

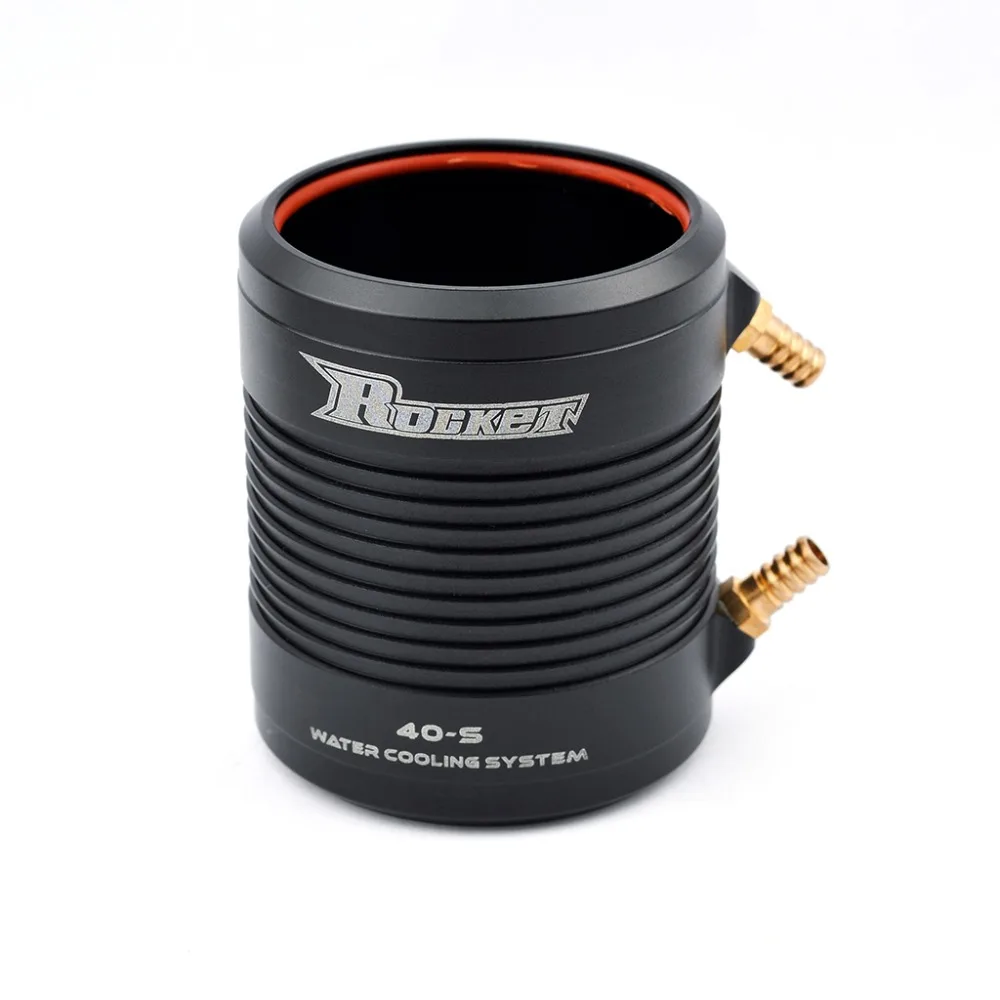

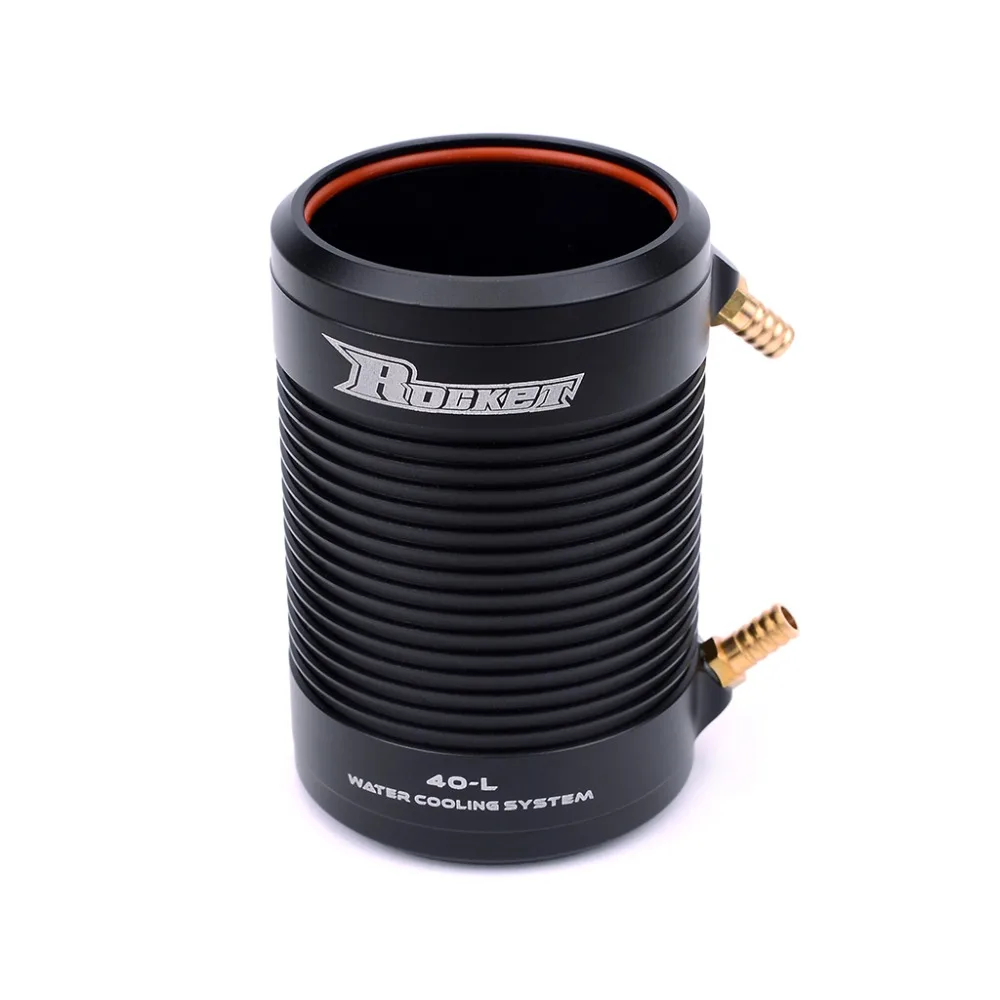

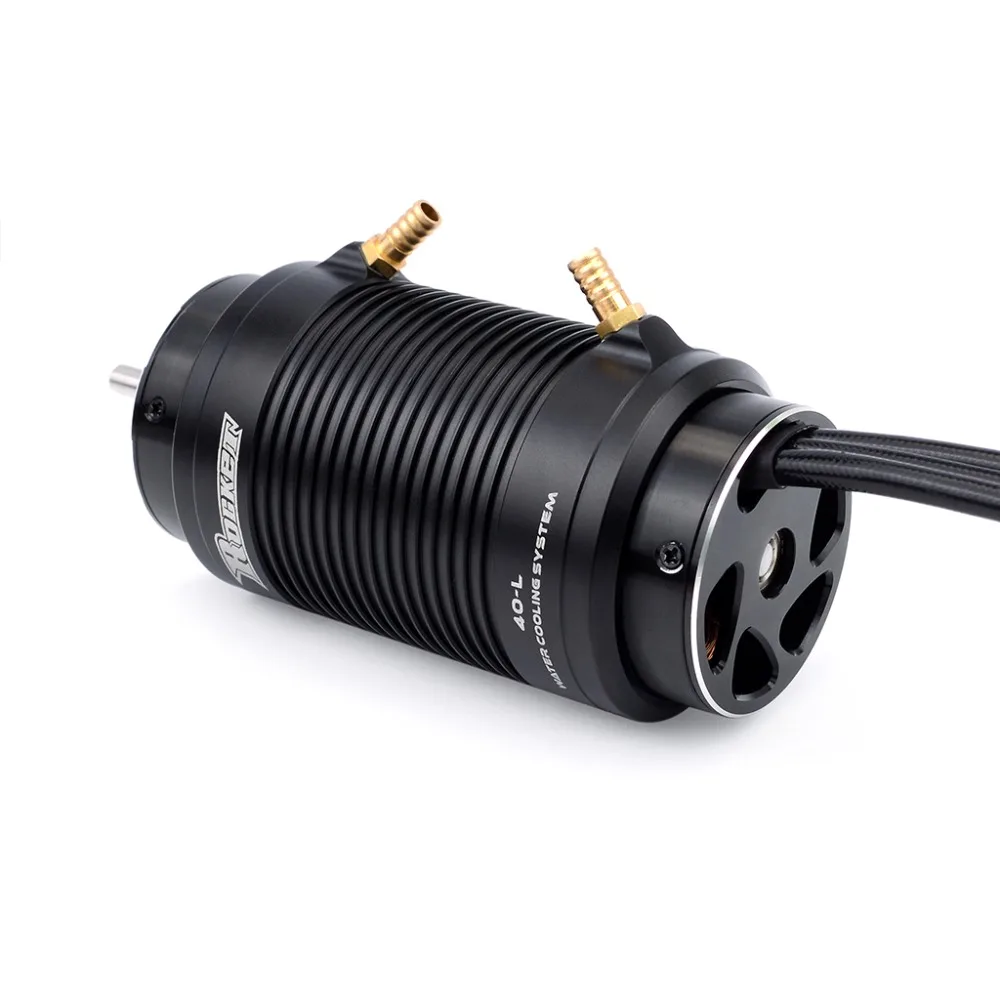

1 * Rocket Brushless Motor with Water cooling
