Rocket RC 3660 3670 3680 3250KV 2600KV 880KV 1100KV 4300KV Brushless Motor for M41 Catamaran Spartan 800mm-1000mm RC Boat

Rocket RC 3660 3670 3680 3250KV 2600KV 880KV 1100KV 4300KV Brushless Motor for M41 Catamaran Spartan 800mm-1000mm RC Boat

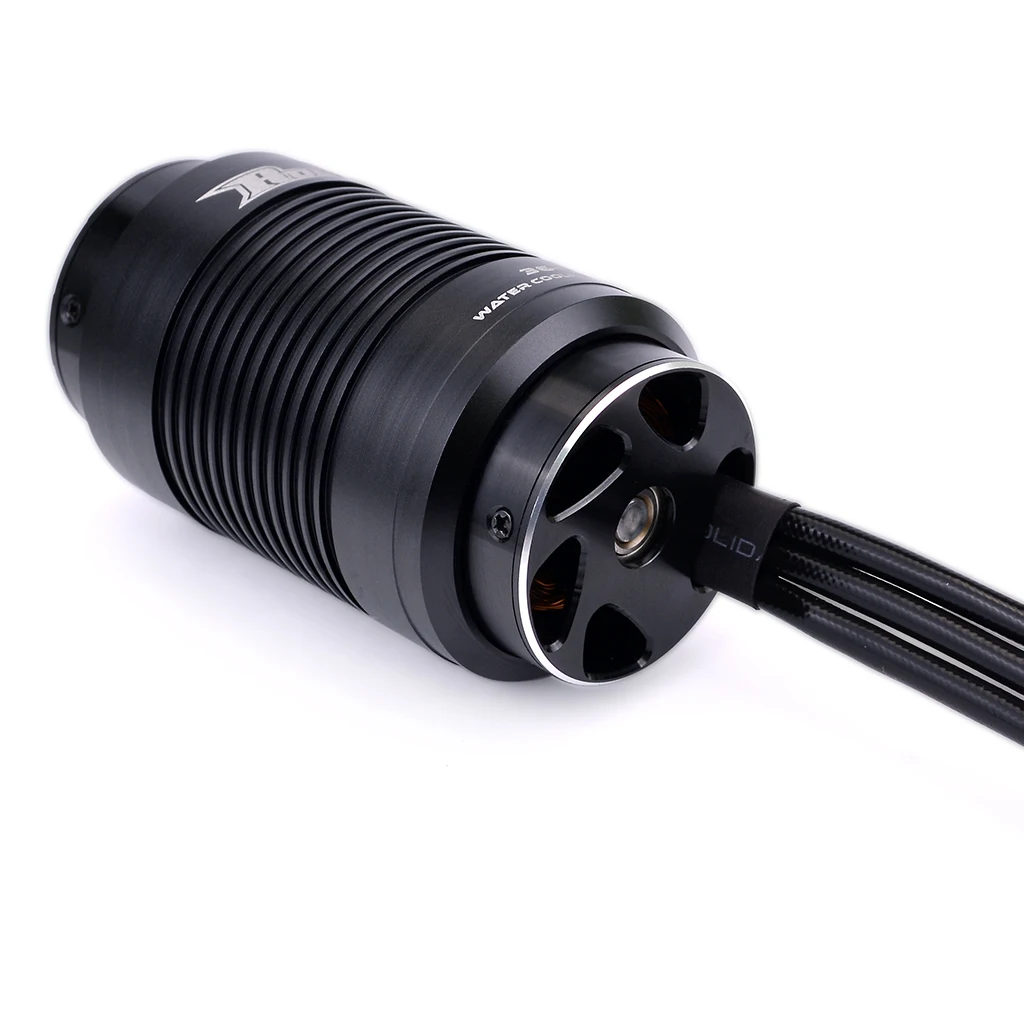

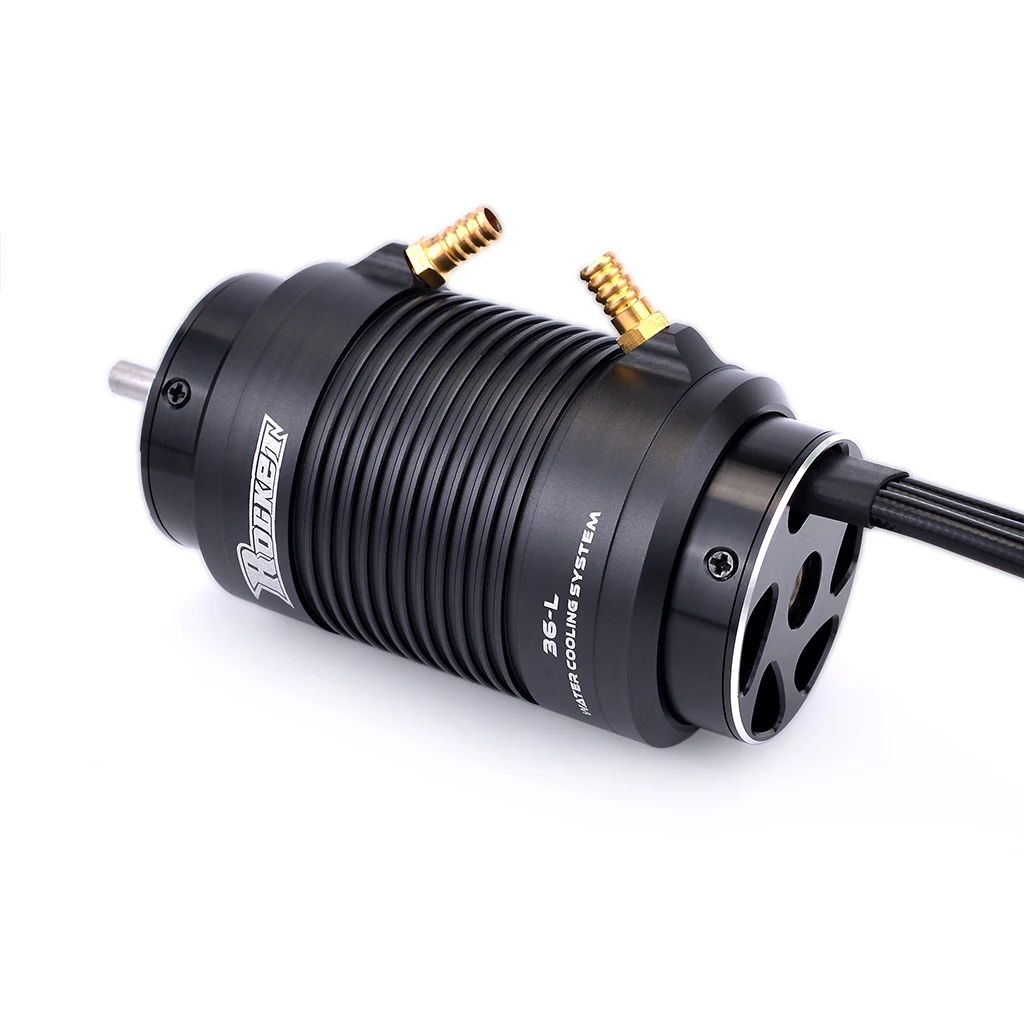

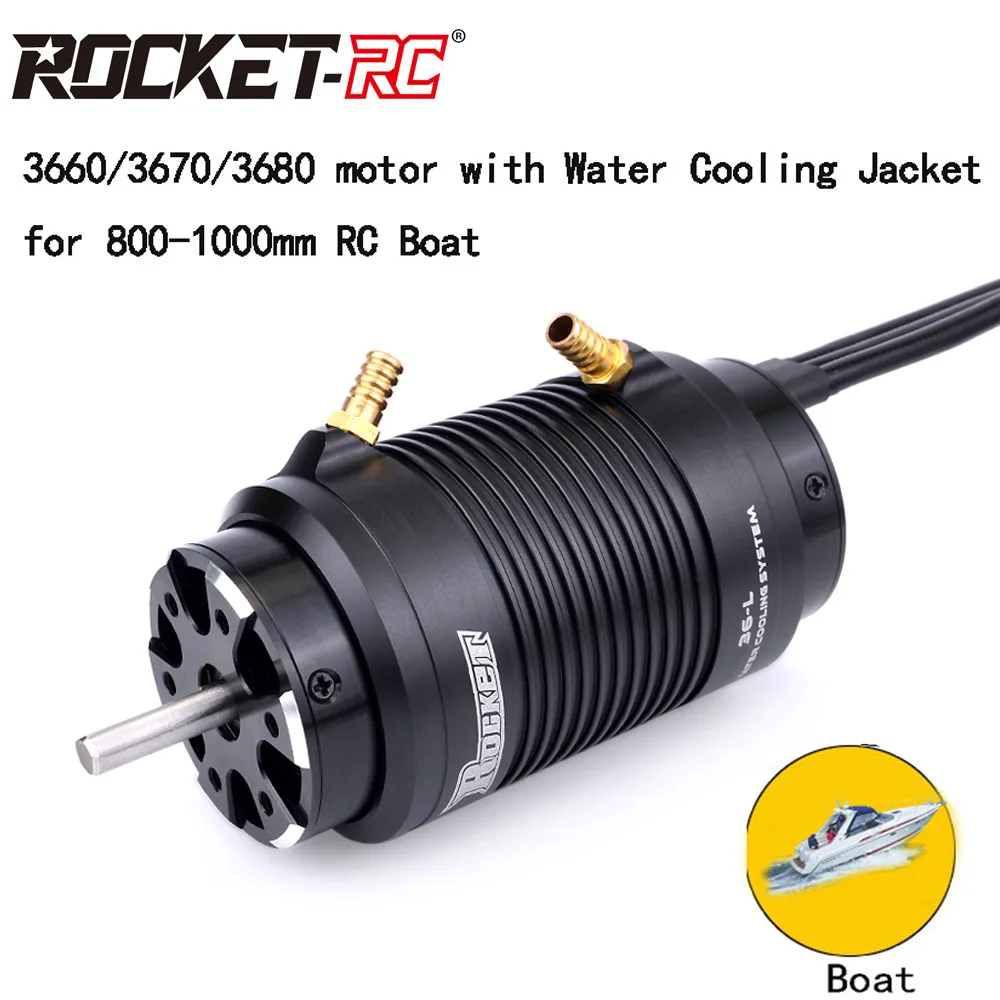

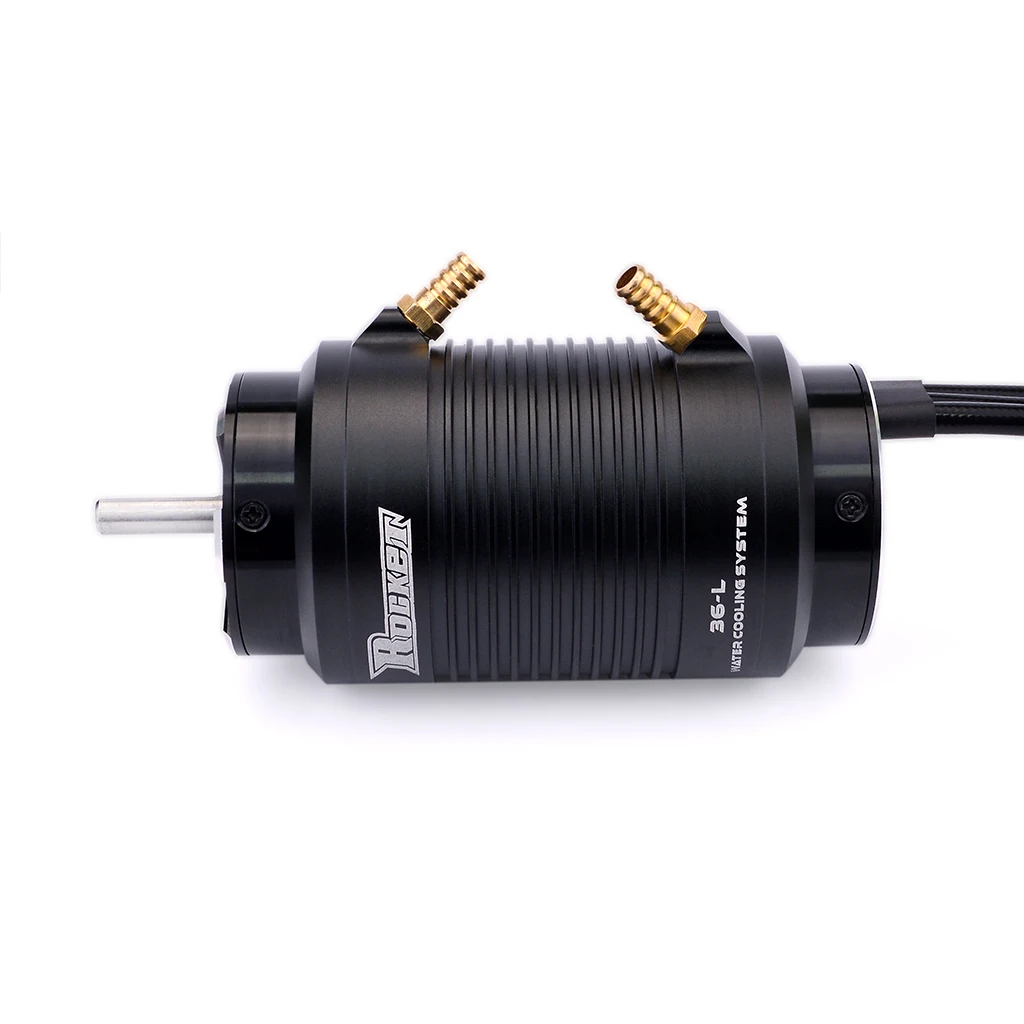

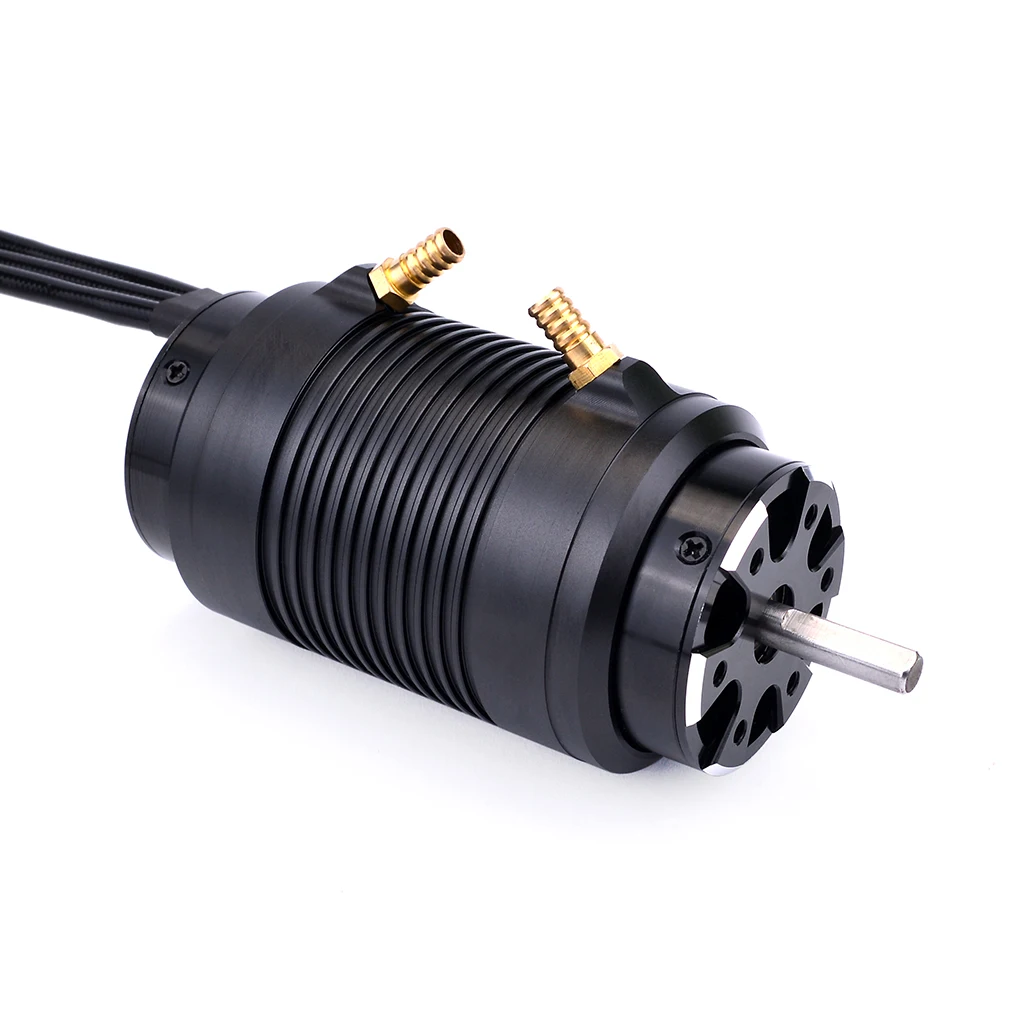

The original Rocke 3660 3670 3680 4 poles sensorless brushless motor is designed to provide both quality and performance at an affordable price. It is built from high quality aluminum alloy which is produced from the latest CNC milling machines, and is designed with high power and rotation speed to provide longer run time for 600-800mm RC boat.

Features:

4 Pole 12 slot hi-torque motor design

CNC machined 6061 T6 billet aluminum heatsink can

High purity copper windings maximizes efficiency

High RPM ABEC5 oversized bearings

Precision balanced rotor, smoothness for best reliability and maximum RPM

Stator-super thin (0.2mm) laminations

Removable/replaceable rotor

Precision engineered for maximum energy conversion

3660 Specifications:

Brand name: Rocket

KV(RPM/Volt): 4300KV/3250KV/2600KV(Optional)

RPM: 60000

Watt: 1200W

No load current: 3.8A

Max voltage: 14V

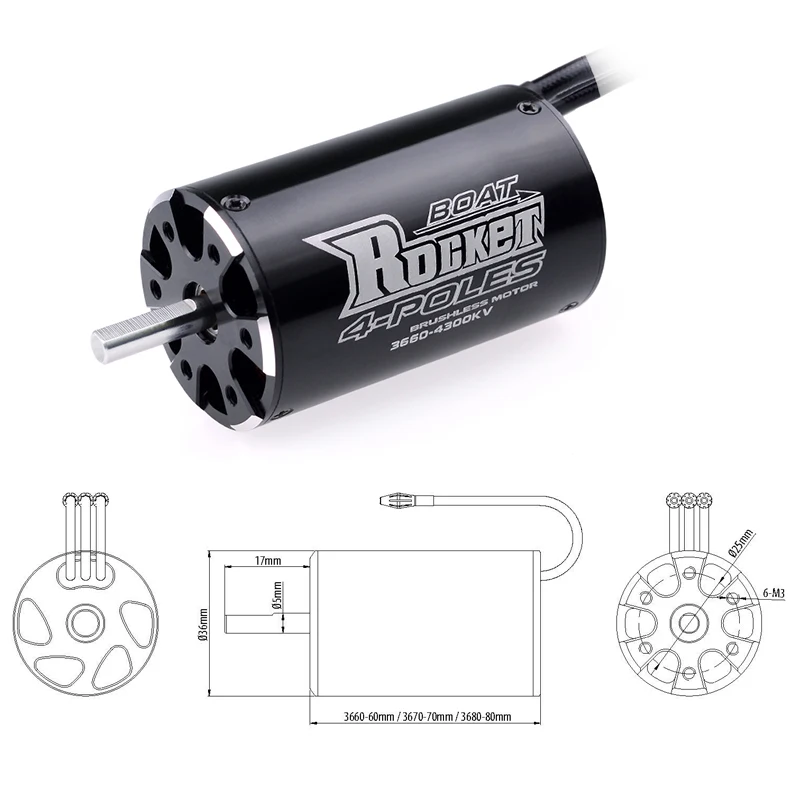

Diameter: 36mm

Length: 60mm

Shaft diameter: 5mm

Connector: 4mm golden banana connector

Weight: 208.5g

3670 Specifications:

Brand name: Rocket

KV(RPM/Volt): 2650KV/2280KV/1850KV Optional

RPM: 60000

Watt: 1600W

No load current: 2.8A

Max voltage: 23V

Diameter: 36mm

Length: 70mm

Shaft diameter: 5mm

Connector: 4mm golden banana connector

Weight: 271g

3680 Specifications:

Brand name: Rocket

KV(RPM/Volt): 1500/1100KV／880KV Optional

RPM: 50000

Watt: 2000W

No load current: 1.6A

Max voltage: 34V

Diameter: 36mm

Length: 80mm

Shaft diameter: 5mm

Connector: 4mm golden banana connector

Weight: 313g

Package List:

1 * Rocket Brushless Motor
